780W 12V (4x195W) Complete Off Grid Solar Kit with 2kW Inverter + 2.4kWh Lithium

If efficiency, reliability and affordable are high on your wish list, ECO-WORTHY 780W 12V expandable Solar Kit is an ideal choice.
ECO-WORTHY 195 Watt 12V Mono solar panel is backed by 25-year linear power guarantee. ECO-WORTHY LiFePO4 Lithium Iron Phosphate Battery has twice the power, half the weight and lasts 8 times longer than a sealed lead acid battery.
2000W Pure Sine Wave Inverter provides high-quality AC power equivalent to grid power to protect your household appliances and electronic equipment, especially suitable for sensitive electrical appliances.
ECO-WORTHY 780W 12V Solar Kit can be used for several different purposes, including cottages, weekends, cabins, boats, RVs, Campers, etc. Whatever the kit is used for, you can rest assured that you are purchasing a quality system. If you have any questions regarding this product, please contact us info@eco-worthy.com.

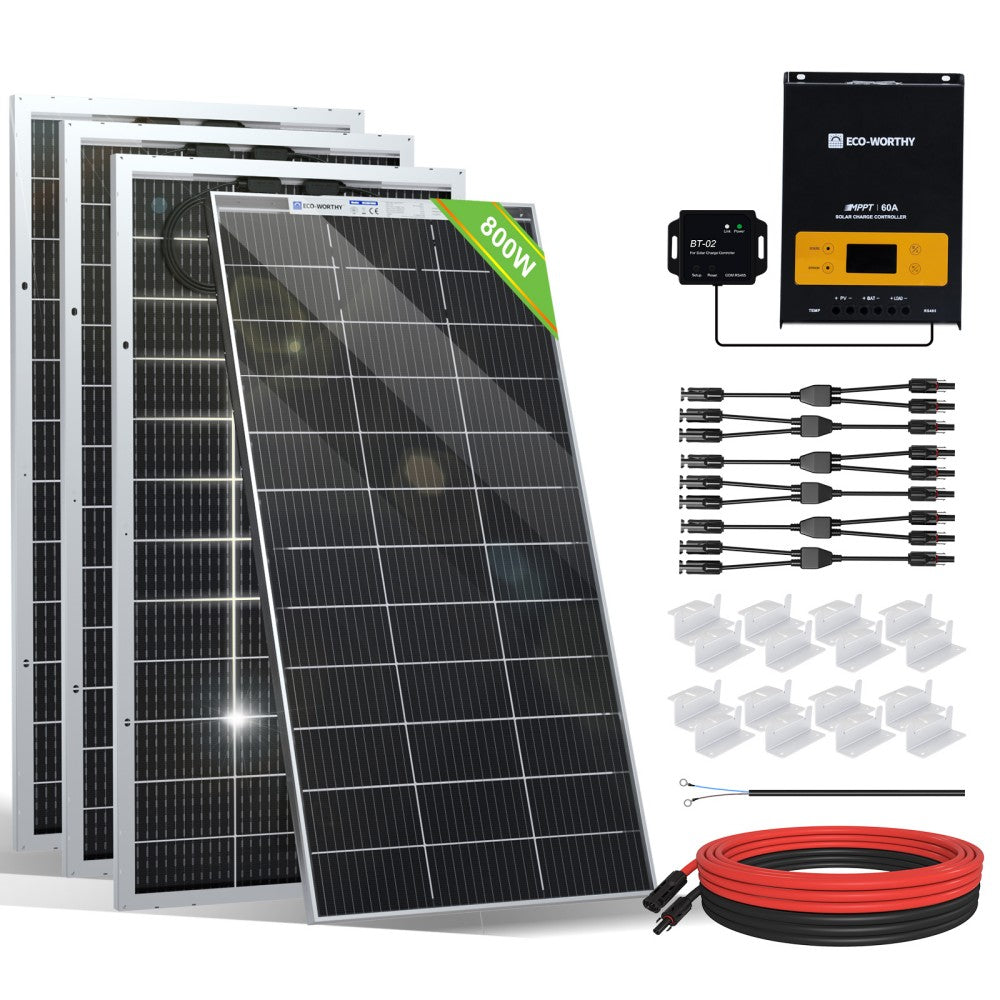

Package Includes
4x Bifacial 195W Mono Solar Panel
1x 60A MPPT Solar Controller
1x 5M 12AWG Extension Cable with MC4
4x Z Mounting Bracket
3x Y MC4 Connector
1x 1.5M Tray Cable
Inverter & Battery Bank Options-
Inverter & 2.4kWh Lithium Battery Bank (optional)
with
1x 2000W 24V-110V Pure Sine Wave Inverter
2x 100Ah 12V LiFePO4 Lithium Battery

Bifacial 195W Monocrystalline Solar Panel

Rated Power: 195W	Solar Cell: Monocrystalline
Maximum/Peak Voltage(Vmp): 19.8V	Open Circuit Voltage(Voc): 23.7V
Short circuit current: 10.5A	Maximum current: 9.85A
Output Tolerance: ±3%	Temperate coefficient of Isc: (010+/-0.01)%/℃
Temperate coefficient of Voc: -(0.38+/-0.01)%/℃	Temperature range: －40℃～ +85℃
Frame: Aluminum alloy frame	Weight: 20.48 lbs(9.29 kg)
Size: 52.6x26.38x1.38in (1335*670*35mm)

60A MPPT Solar Charge Controller

Battery voltage：12V/24V/36V/48V	Max Solar Input Power：780W(12V)/1560W(24V)/2340W(36V)/3120W(48V)
Charging mode：MPPT	Rated Load Current：30A
Charge Efficiency (Peak)：97%	Max Charge current：60A
Battey Type：LiFePO4,AGM,Sealed,Gel,Flooded	No-load static loss: 0.5W-1.2W
Size：240*166*65mm	Weight：1.96KG
Maximum wire size: 20mm2

2000W 12V Off Grid Inverter

Output Continuous Watts(W): 2000W+18W USB	Surge Capacity (PeakPower): 4000W
Rated Input DC (V,A): 12V Battery, 200A	Input Voltage Range: 10.5-16Vdc±0.3V
Rated Frequency (Hz): 60Hz±1	Rated Output AC (V,A): 115Vac±10%, 18A
Rated Output USB (V,A): 2*QC3.0 USB Ports (5V/3A,9V/2A,18W max)	No Load Current: <1.2A
Optimum Efficiency: 85% min	Fuse (A): 40A*6
FuseType: Internal Blade	Output Wave Form: Pure Sine Wave
Touch Temperature: 65℃(149℉)max	Operating Temperature: -20℃~40℃ (4℉~104℉)
Operating/Storage Humidity RH: 5~95%	Cooling System: Thermo Fan
THD: <4.5%	Dimensions (L*W*H): 16.8*9.8*4.1 in
Assembled Weight (kg): 7.67 lbs

100Ah LiFePO4 Lithium Battery

Battery Capacity: 100Ah	Battery Power: 1280Wh
Battery Voltage: 12.8V	Maximum Charge/ Discharge Current: 50A/100A
Charge Temperature Range: 0-45℃	Disharge Temperature Range:﹣20－55℃
Maximum Charge Voltage: 14.6V	Discharge Cut-Off Voltage: 10V
Screw size: M8	Battery Size: 260*168*209mm（10.2*6.6*8.2inch）
Battery Weight: 9.47kg

16.4 feet 12AWG Cables

Cable Type: Connecting Solar Panels to Charge Controller	Rating Voltage: 600/1000V
Length: 5 meters（16 ft）	Conductor: Tinned copper wire
AWG: 11	Normal Cross Sectional Area of the Conductor (mm2): 4
Waterproof: IP 65 Protection	Temperature: -40°F to +185°F
Connector: MC4	Weight: 0.742KG

Z Mounting Brackets

4 pieces of Z shape solar panel brackets

8 pieces of stainless steel nuts and cap bolts

Y Branch Cable MC4 Connectors

Compatible with MC4 solar connector.

Easy installation for 2 solar panels connected in parallel.
