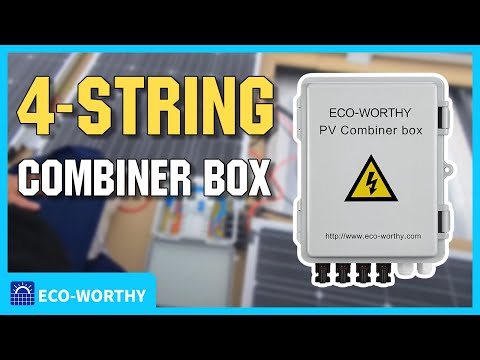

4 String PV Combiner Box with 4*10A Circuit Breakers for Solar Panel System

SKU: L03040401017-1

Sale price$119.99


ECO-WORTHY 4 String PV Combiner Box is suitable for photovoltaic grid-connected and off-grid power generation systems. Its main function is to converge the input of PV array. It can support solar panel system up to 700W in 12V system, 1400W in 24V system, 2800W in 48V system. Easy installation with mounting buckle that suit for any regular surface. It makes your solar panel system connection easier.

It has three protection measures
The first: The PV combiner box is configured with photovoltaic dedicated high-voltage lightning arrester, DC fuse and circuit breaker to provide short circuit fault protection and lightning protection.
The second: It has protect function of over-voltage and over-current so as to avoid damage to photovoltaic panels and inverters when the fault occurs.
The third: The PV combiner box is also used to reduce the connection of the photovoltaic array to the inverter, optimize the system structure, improve the reliability and maintainability of the system, make the photovoltaic system at its best.

Package Includes
4 String PV Combiner Box*1

4 String PV Combiner Box
Number of Max Connection PV Array: 4
Max Input Current of Single PV Array: 10A
Total Input Current of PV Array: 40A
Max Input Voltage of Single PV Array: 250V
Max Output Voltage: 250V
Protection Grade: IP65
Operational Environment Temperature: -30℃~+70℃
Surge Lightning Protection: Yes
Size: 8.66*6.69*4.33inch
Weight: 4.41lbs

Shipping & Return Policies

Customer Reviews

Based on 12 reviews
Michael C. Head
Looks nice

Haven’t hooked it up yet but it looks really well made and was delivered quickly.

Mike Fournier
Excellent Quality. Will be ordering more of them.

Excellent Quality. Will be ordering more of them.

Daniel Larson
Does what it needs to do.

The mounting clips are a little strange but once they were swung out and tightened, we were able to screw it securely to the wall. Fuse sizes are not common in the US but Amazon sells 10x38 ceramic fuses in various ratings.

Mike Fournier
Just what I needed and they had it in stock.

The combiner box is perfect for my system. Thanks



Works well enough, though the craftsmanship of the box itself is somewhat sloppy. The locking mechanism, a simple mechanical post that turns with a key. The electrical all seems sound and well installed. Functionally, the product has been perfect so far after a few months of use.
