2340W 48V 12-195W Panel Off Grid Solar Panel Kits with 4.8kWh Lithium Battery

Save 20%
SKU: L02M195-48VCWZIUS3500-12

Style: Base Kits
Sale price$2,960.70 Regular price$3,700.88

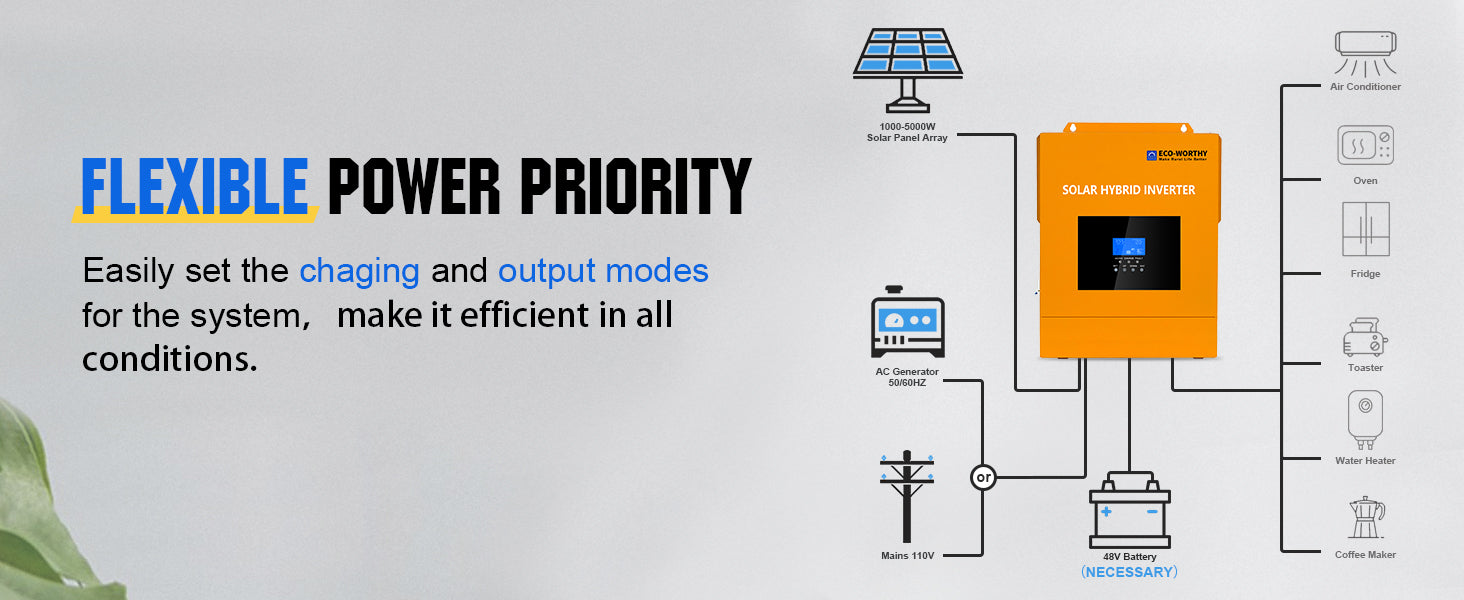

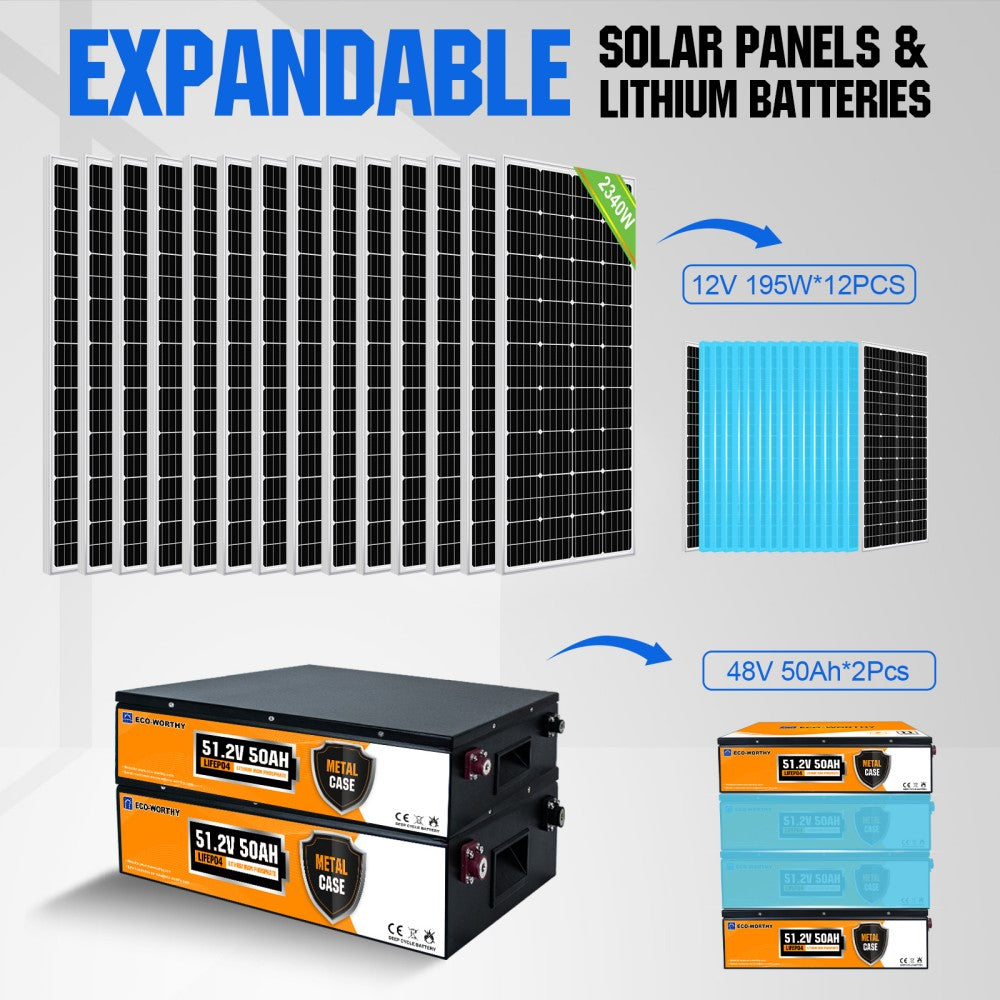

If efficiency, reliability and affordable are high on your wish list, ECO-WORTHY 2340W 48V expandable Complete Lithium Solar Kit is an ideal choice. This kit includes ECO-WORTHY 12*195 Watt 12V Mono solar panels, 4*1.2kWh LiFePO4 Lithium Batteries, All-in-one Inverter Built in 3500W 48V Pure Sine Wave Power Inverter & 80A MPPT Controller(not only allows you to charge your battery bank using PV system, but also use the Mains to charge at night), 4 String PV Combiner Box(you can add extra 4 pieces of 195W mono solar panel in your future use), cable and other components, a combination that offers very good results.

This system is typically used to power the following household appliances:
Washing machine,
Power tools.

ECO-WORTHY 2340W 48V Complete Lithium Solar Kit can be used for several different purposes, including homes, cabins, boats, RVs, etc. Whatever the kit is used for, you can rest assured that you are purchasing a quality system. If you have any questions regarding this product, please Contact us info@eco-worthy.com.

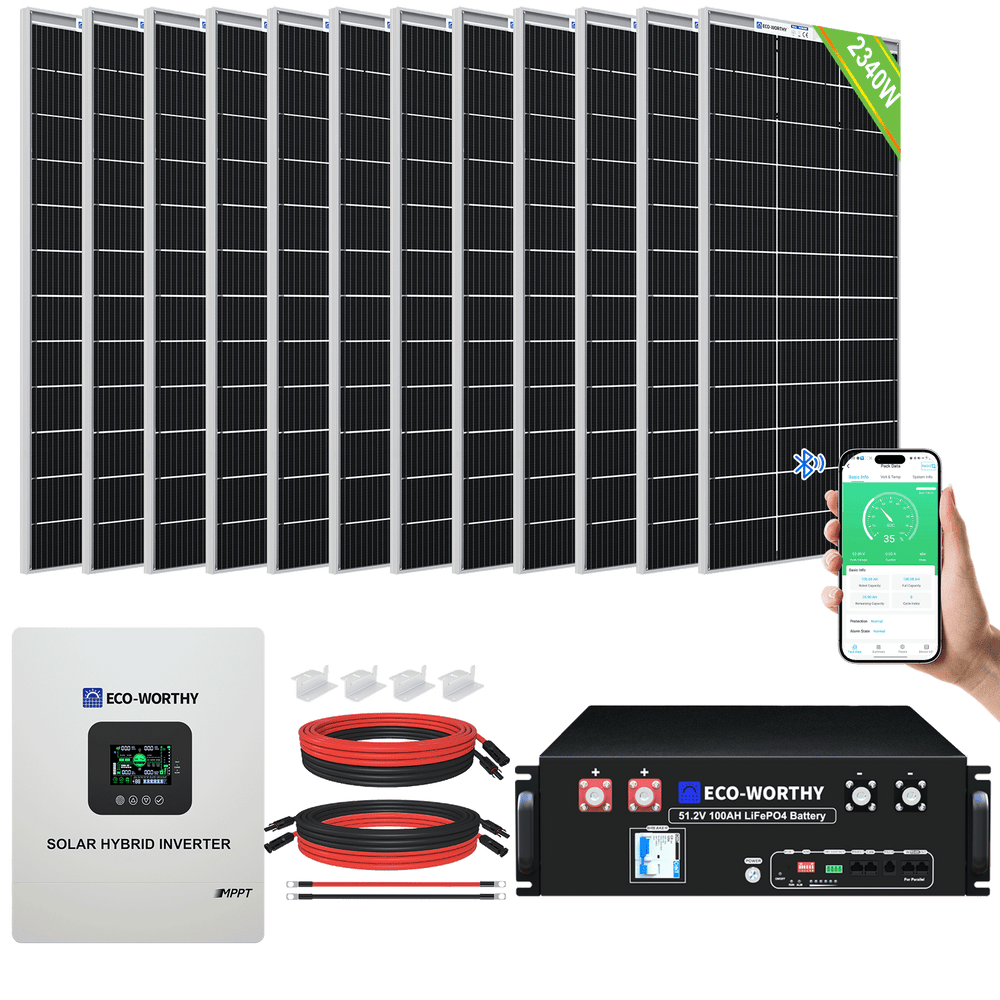

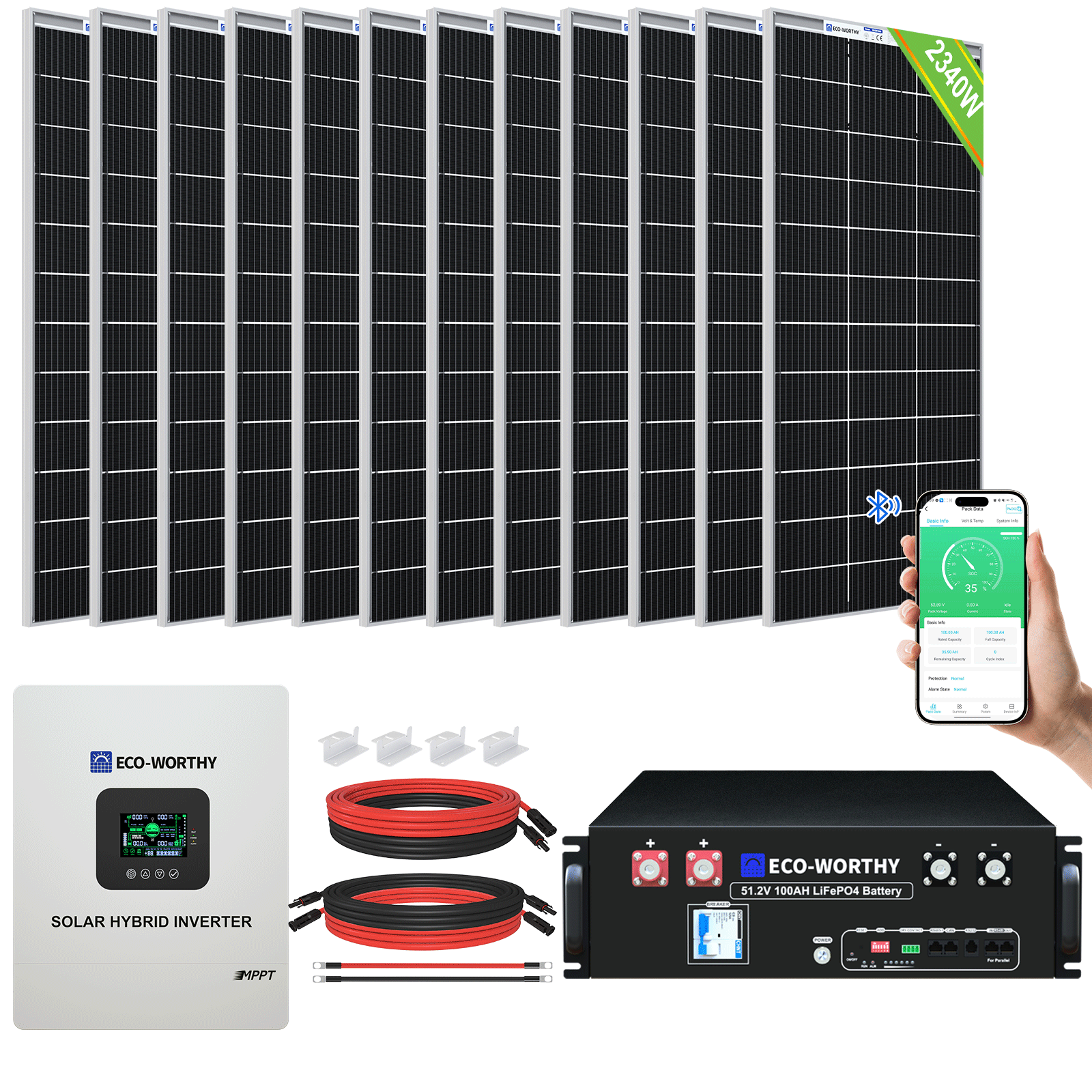

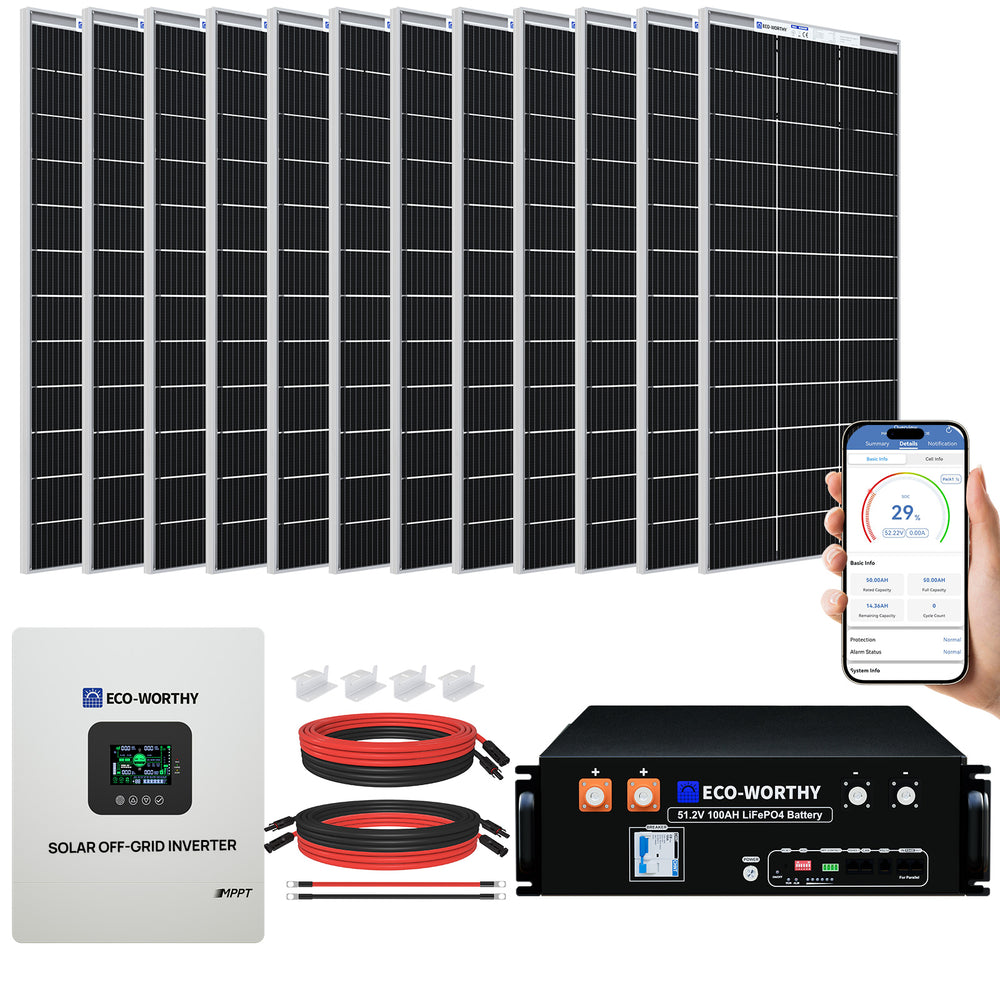

Package Includes

2340W 48V 12-Panel Off Grid Solar Kits
Daily Production Estimate:9360WH

195W Mono Solar Panel*12
All-in-one Inverter (3500W 48V Inverter+80A MPPT Controller)*1
4 String PV Combiner Box*1
5M 12AWG Extension Cable with MC4*1
5M 12AWG Solar Cable with MC4(Panel to Combiner Box)*3
Z Mounting Bracket*12
100Ah 12V 12V LiFePO4 Lithium Battery with Cable*4(Complete Kits)

195W Monocrystalline Solar Panel
High Efficient Monocrystalline
Rated Power: 195W
Open Circuit Voltage (Voc): 21.6V
Short Circuit Current (Isc): 10.83A
Working Current (Iop): 9.02A
Output Tolerance: ±3%
Temperature Range: -40℃ to +80℃
Size: 58.3*26.3*1.4 inch (1480*668*35 mm)
Weight: 29.2 lbs (13.2kg)
100Ah LiFePO4 Lithium Battery
Battery Capacity: 100AH
Battery Voltage: 12V
Max Charge Voltage: 14.5V
Discharge Cut-Off Voltage: 10V
Continuous Charge/Discharge Current: 100A
Peak Charge/Discharge Current: 100A
Size: 13*8.46*6.77inch
Weight: 22.92lbs

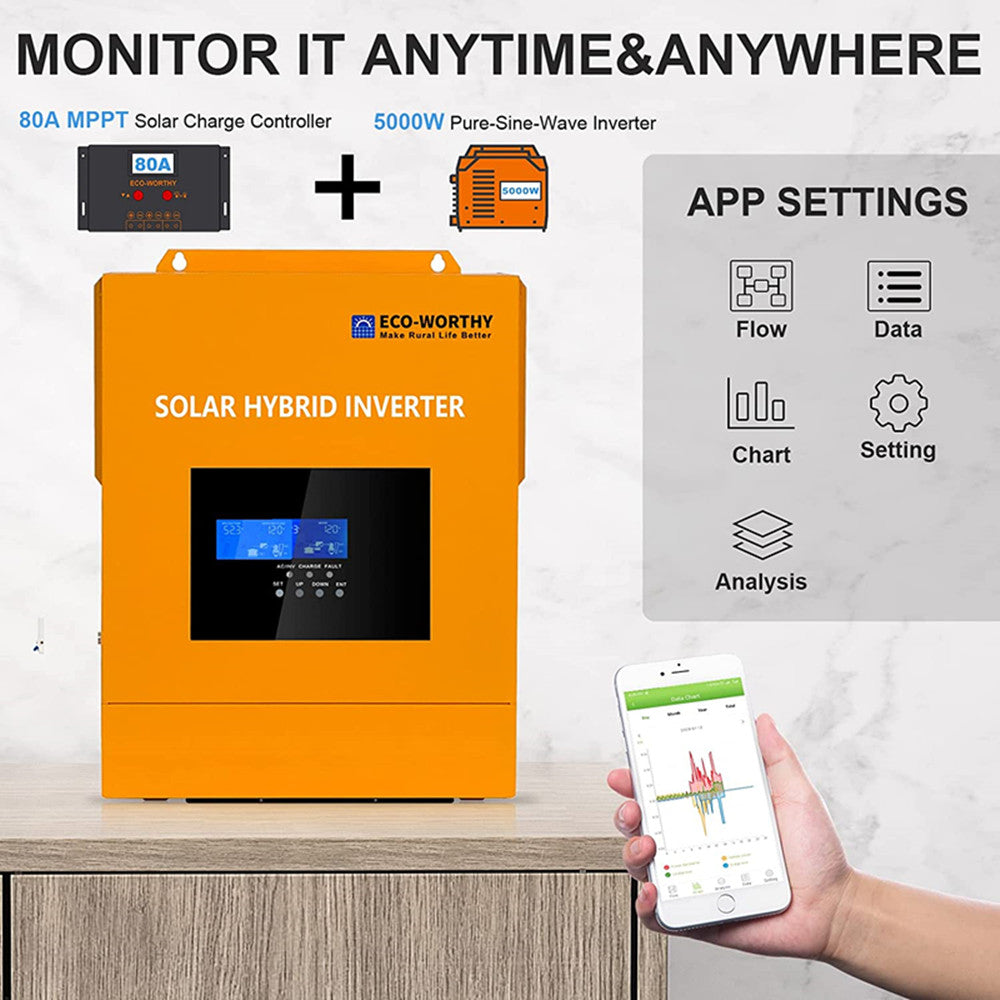

All-in-one Inverter
Build-in 80A MPPT Part
MPPT Voltage Range: 60-115VDC
Battery Voltage Range: 40-60VDC
Max Output Power: 4200W
Pure Sine Wave Inverter Part
Rated Output Power: 3500W
Rated Battery Input Voltage: 48V
Frequency: 50Hz/60Hz

4 String PV Combiner Box
Input Circuits Breakers: 4
Circuit Breaker Rating: 10A
Protection Grade: IP65
Surge Lightning Protection: Yes
Size: 8.66*6.69*4.33 inch(220*170*110mm)
Weight: 4.4lbs(2kg)
16.4 feet 12AWG Cables
16.4 feet red and black cable with connector.
For extending the cables of panel and connecting to controller.
Z Mounting Bracket
4 pieces of Z shape solar panel brackets.
8 pieces of stainless steel nuts and cap bolts.
Y Branch Cable MC4 Connectors
Compatible with MC4 solar connector.
Easy installation for 2 solar panels connected in parallel.

Why LiFePO4 Lithium Battery


ECO-WORTHY lithium iron phosphate batteries live up to 3000 cycles at 80 percent depth of discharge, without decreasing in performance. The average lifetime of lead-acid batteries is just two years.

ECO-WORTHY lithium iron phosphate batteries (LiFePO4) don’t require active maintenance to extend their service life. Also, due to low self-discharge (<3% per month), you can store them for a longer period of time. Lead-acid batteries need special maintenance.

ECO-WORTHY lithium iron phosphate batteries (LiFePO4) offer high power density which causes lithium batteries to be relatively small and light. The battery is only 1/3 of the weight of a lead-acid battery, easy to move and install. It is an ideal choice for outdoor camping power supply and simple indoor installation.

ECO-WORTHY lithium iron phosphate batteries (LiFePO4) have 100% of their capacity available. Additionally, their fast charge and discharge rates cause them to be a great fit for all sorts of applications. Fast charging reduces any downtime and increases efficiency. High discharge pulse currents deliver bursts of power in a short amount of time.

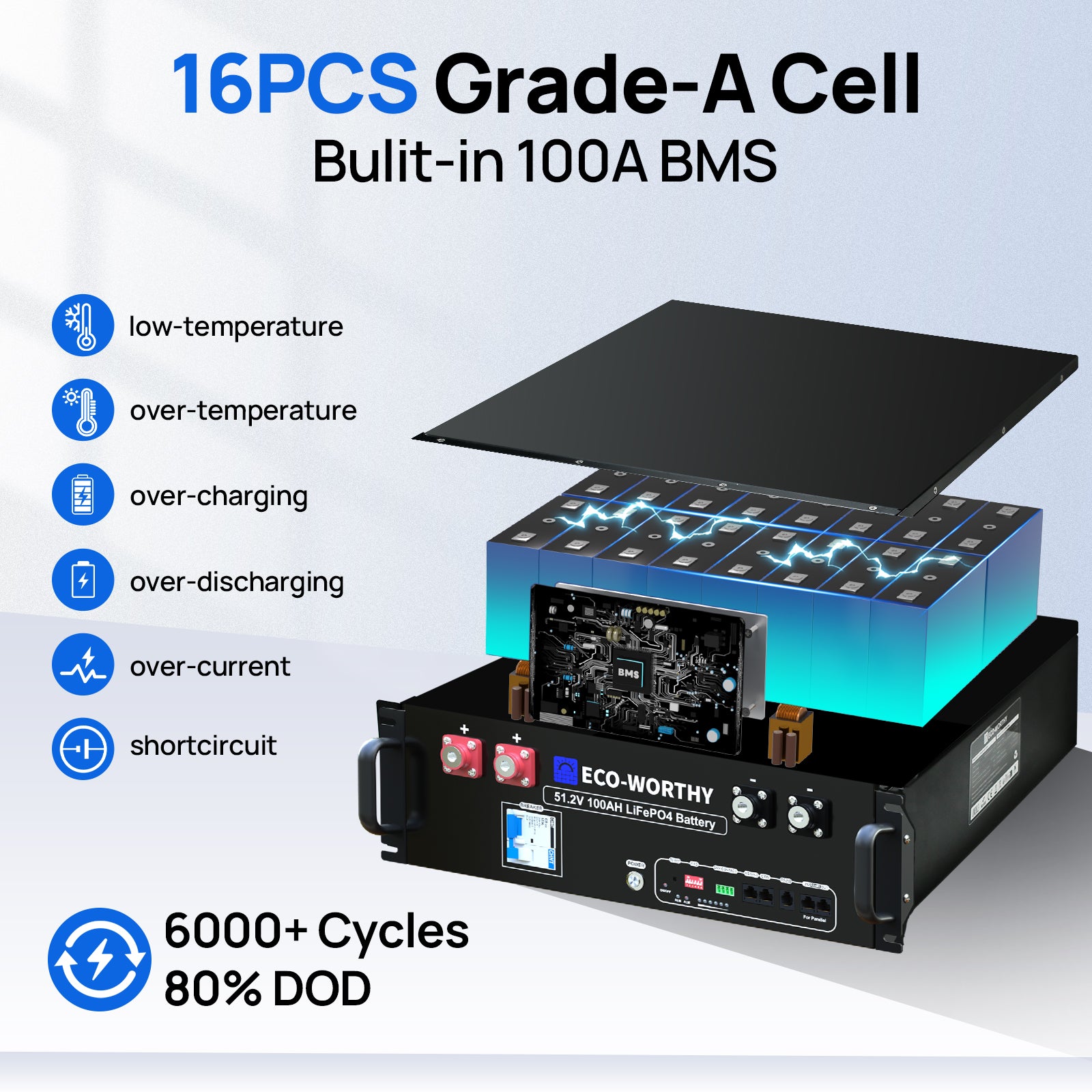

ECO-WORTHY lithium iron phosphate batteries (LiFePO4) have a built-in Battery Management System (BMS) that can protect it from overcharging, deep discharge, overload, overheating and short circuit, and low self-discharge rate.

It can be connected in series or in parallel. When connected in series, up to 4 identical batteries can be connected. Parallel connection is unlimited. It can support fast charging or solar panel charging.

ECO-WORTHY 3500W 48V All-in-one Inverter Manual

System Components

195W 12V Monocrystalline Solar Panel

100Ah LiFePO4 Lithium Battery

3500W 48V All-in-one Inverter

4 String PV Combiner Box

12AWG Solar Extension Cables

Z Style Solar Panel Mounting Brackets
