If efficiency, reliability and affordable are high on your wish list, ECO-WORTHY 4800W 48V expandable MPPT Solar Kit is an ideal choice. ECO-WORTHY 195 Watt 12V Mono solar panel is backed by 25-year linear power guarantee. ECO-WORTHY LiFePO4 Lithium Iron Phosphate Battery has twice the power, half the weight and lasts 8 times longer than a sealed lead acid battery.
All in one inverter Integrated with 80A/48V MPPT solar charge controller, 5000W pure sine wave inverter in one compact unit to let you enjoy the stable power from the sun and the utility grid to keep you powered under any circumstances.
4 strings PV Combiner box is greatly simplify input wiring of DC power distribution cabinet and controller. Providing lightning protection, short circuit protection and grounding protection and supervision for the performance of the photovoltaic system.
ECO-WORTHY 4800W 48V MPPT Solar Kit can be used for several different purposes, including homes, cabins, etc. Whatever the kit is used for, you can rest assured that you are purchasing a quality system. If you have any questions regarding this product, please contact us firstname.lastname@example.org.

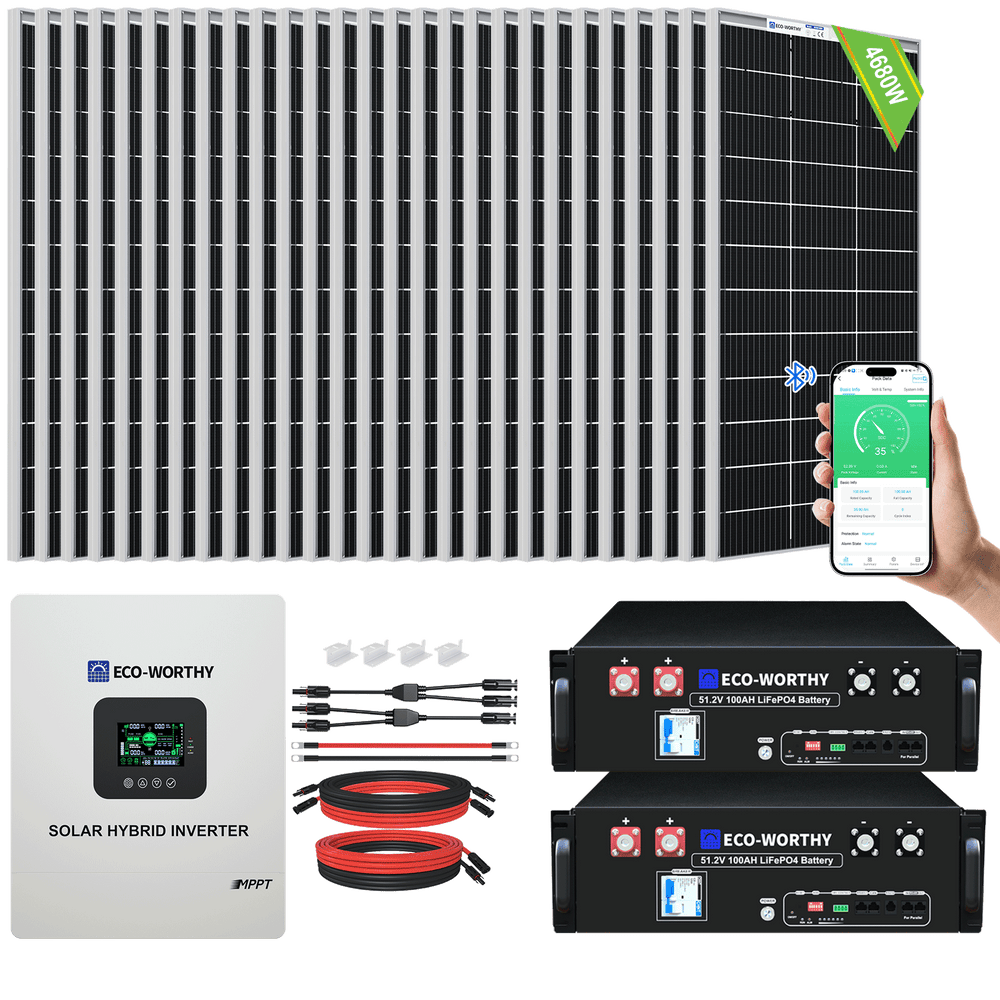

4800W (24-Panel) 48V MPPT Solar Kit
Complete System, LiFePO4 Bank/AGM Bank, All-in-one Inverter
Daily Production Estimate:19.2KWH
195W Mono Solar Panel*24
All-in-one Inverter(5000W 48V Inverter+80A MPPT Controller)*1
4 String PV Combiner Box*1
5M 12AWG Extension Cable with MC4*1
5M 12AWG Solar Cable with MC4(Panel to Combiner Box)*3
Z Mounting Bracket*24
Battery Bank Options-
Lithium Battery Bank (optional)
50Ah 48V LiFePO4 Lithium Battery*6
6AWG Battery Interconnect Cable*10
AGM Battery Bank (optional)
100Ah 12V AGM Battery*12
6AWG Battery Interconnect Cable*14
5000W 48V All-in-one Inverter with 80A MPPT
5000W 48V MPPT All-in-one Inverter Feature
1. PV priority: PV module will charge the battery preferentially, and the battery is charged by the Mains only when the PV system fails.
2. Mains priority: The Mains supply is preferentially used to charge the battery. Only when the Mains fails, the PV charging can be activated.
1. PV priority mode: Loads are powered by the PV module and battery. Diversified charging mode and output mode are optional. When PV priority mode is selected, utilization of green solar energy can be maximized to achieve energy saving and emission reduction. Switch to mains supply when the PV charging fails.
2. Mains priority mode: Switch to inverter only when the mains fails. Then, the unit is equivalent to a backup UPS, suitable for areas with unstable grid.
3. Inverter priority mode: Switch to mains supply only when the battery is under voltage. This mode maximizes the use of DC power and is used in the area with stable grid.
195W Monocrystalline Solar Panel
High Efficient Monocrystalline
Rated Power: 195W
Open Circuit Voltage (Voc): 21.6V
Short Circuit Current (Isc): 10.83A
Working Current (Iop): 9.02A
Output Tolerance: ±3%
Temperature Range: -40℃ to +80℃
Size: 58.3*26.3*1.4 inch (1480*668*35 mm)
Weight: 29.2 lbs (13.2kg)
50Ah LiFePO4 Lithium Battery
Battery Capacity: 50AH
Battery Voltage: 48V
Operating Temperature: -20°C -60°C
Maximum Charging Current: 40A
Maximum Discharging Current: 50A
100Ah AGM Deep Cycle Solar Battery
Normal Voltage: 12V
Rated Capacity(10hr): 100AH
Constant Voltage Charge: 15°C-25℃
Battery Cell Type: Lead Acid
4 String PV Combiner Box
Input Circuits Breakers: 4
Circuit Breaker Rating: 10A
Protection Grade: IP65
Surge Lightning Protection: Yes
Size: 8.66*6.69*4.33 inch(220*170*110mm)
16.4 feet 12AWG Cables
16.4 feet red and black cable with connector.
For extending the cables of panel and connecting to controller.
Z Mounting Bracket
4 pieces of Z shape solar panel brackets.
8 pieces of stainless steel nuts and cap bolts.
Why LiFePO4 Lithium Battery
Longer Life Span
Up to 80% capacity for 3000 cycles in recommended conditions. The typical SLA has 300-400 cycles. ECO-WORTHY Lithium batteries last so long that the price per use is a fraction of traditional batteries.
Our lithium battery is only 1/3 of the weight of a lead-acid battery, easy to move and install. It is an ideal choice for outdoor camping power supply and simple indoor installation.
It provides up to 95% of their rated capacity while a lead-acid battery is usually limited to 50%. You get all the juice down to the last drop. It can support fast charging or solar panel charging.
LiFePO4 batteries are safest battery type available today. ECO-WORTHY lithium battery has a built-in Battery Management System(BMS), we can guarantee the safety and reliability of our batteries.
|Panels||5-year/95% efficiency rate,
10-year/90% efficiency rate,
25-year/80% efficiency rate,
2-year limited material and workmanship warranty
|Accessories||1-year material warranty|
|195W 12V Monocrystalline Solar Panel||
|5000W 48V All-in-one Inverter|
|48V 50Ah LiFePO4 Lithium Battery||
|100Ah 12V AGM Deep Cycle Battery|
|4 String PV Combiner Box||
|12AWG Solar Extension Cables|
|Z Style Solar Panel Mounting Brackets||
