ECO-WORTHY 1560W 48V (8x Bifacial 195W) Complete Off Grid Solar Kit
ECO-WORTHY 1560W 48V (8x Bifacial 195W) Complete Off Grid Solar Kit
SKU: L02M195TM-SRNKUS3.5KML50U3U1-8

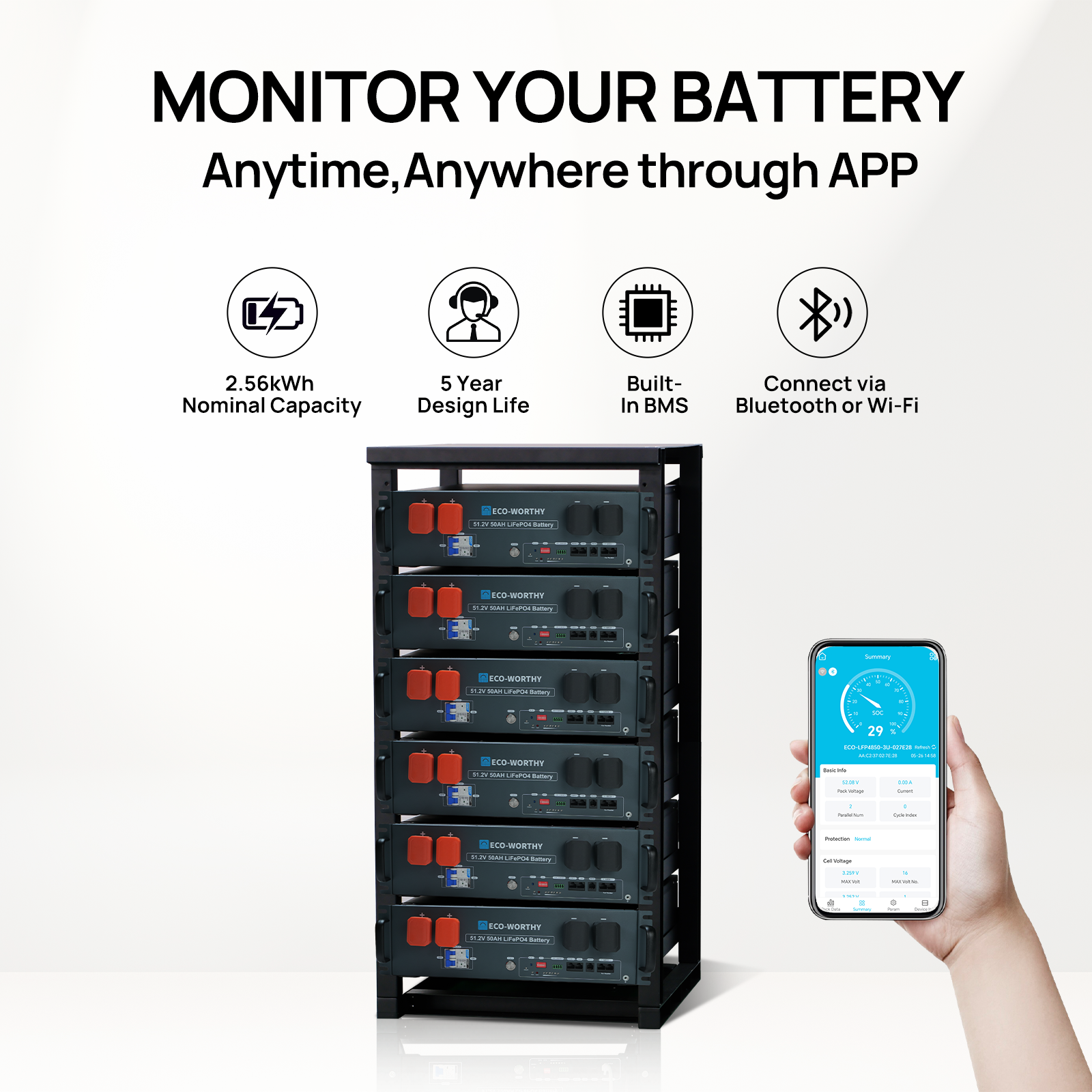

Smart Monitoring: Supports CAN/RS485/RS232 communications. Pre-loaded with multi-brand inverter protocols for grid/backup/off-grid modes. Real-time monitoring via Bluetooth & WiFi connections. Access battery status through mobile apps or PC software.
DIY Customizable Assembly: 3U rack-optimized design (61.9lbs) for single-person setup. Scalable to 32 parallel units with space-efficient stacking.

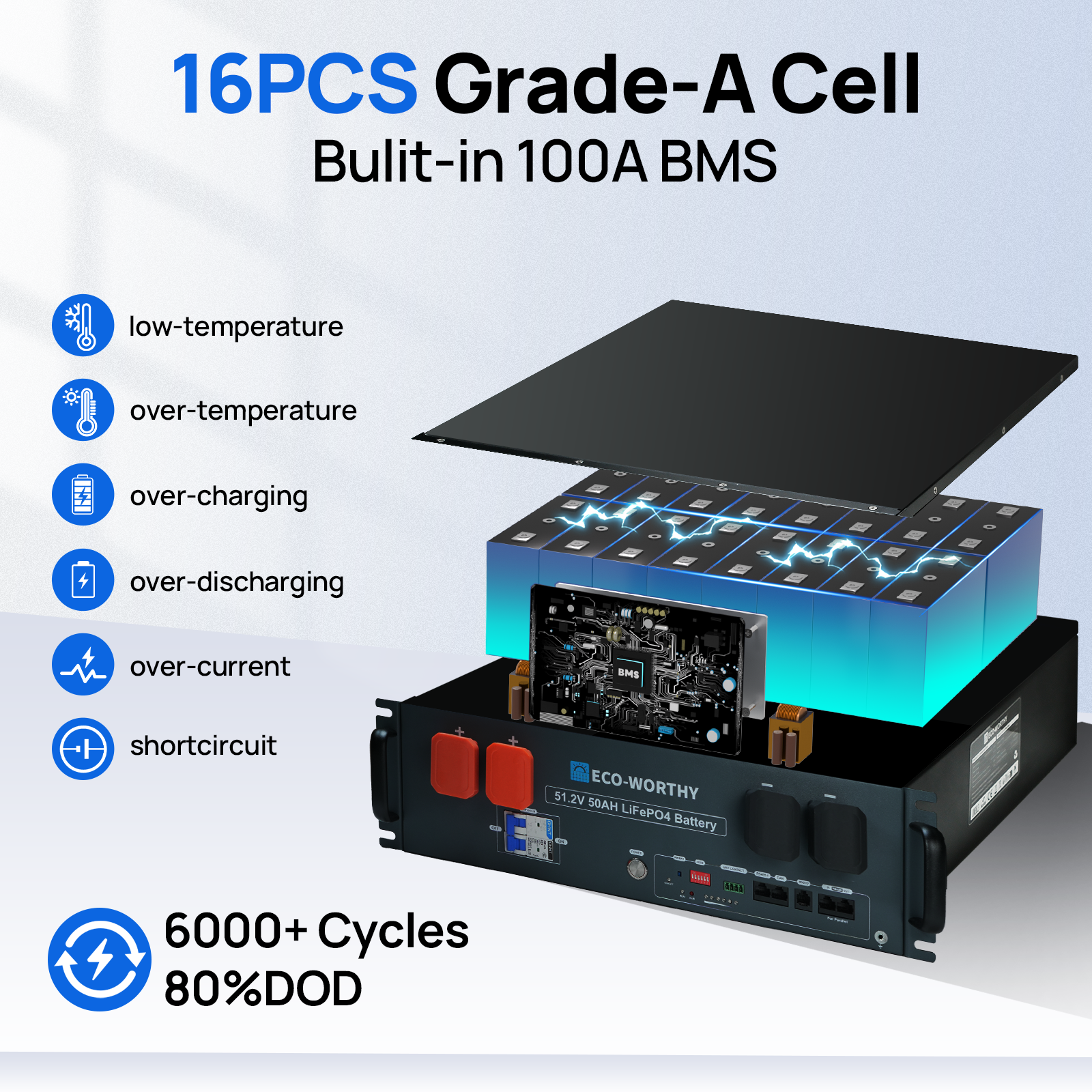

High safety:Full-metal enclosure + 100A BMS (OC/OD/OC/SC/OTP safeguards) + 63A circuit breaker & master switch.
[Parallel Supportable] Parallel support up to 6 units-21kw Max. It can be single phase or separate phase parallel.The output voltage of one inverter is 120v, and more than two inverters can output 120v/208v/240v in parallel. (Two units MINIMUM have to be in parallel to achieve 220V power.)
[Convenient Adjustment & Monitoring] Our 48v 3500w inverter allows easy parameter setting via the LCD screen and buttons. Meanwhile, the ability to remotely monitor various data in real time on your phone ensures worry - free use
[Bifacial Solar Panels] Bifacial solar panels are designed with a transparent back of 12BB solar cells, the back panel uses composite materials, the light transmittance up to 91.5%, the conversion rate of 23%, the power generation is 858Wh per day under ideal conditions, compared to traditional solar panels, energy surge up to 33%.In order to fully utilize the bifacial solar panels, it is recommended that they be used in conjunction with ECO-WORTHY's Tracking Bracket/Tilt Mounting Bracket.
Code:
Copy CodeCouldn't load pickup availability

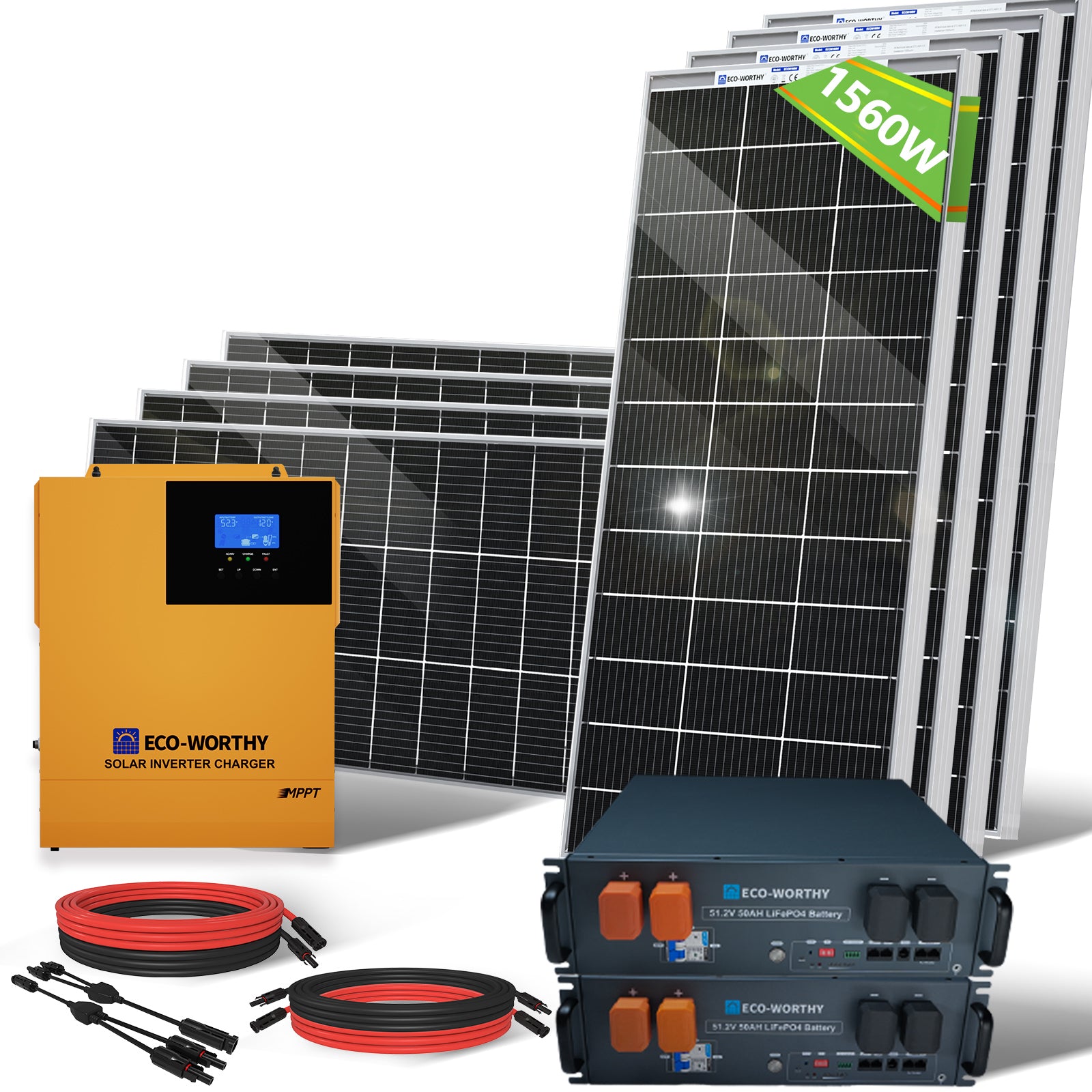

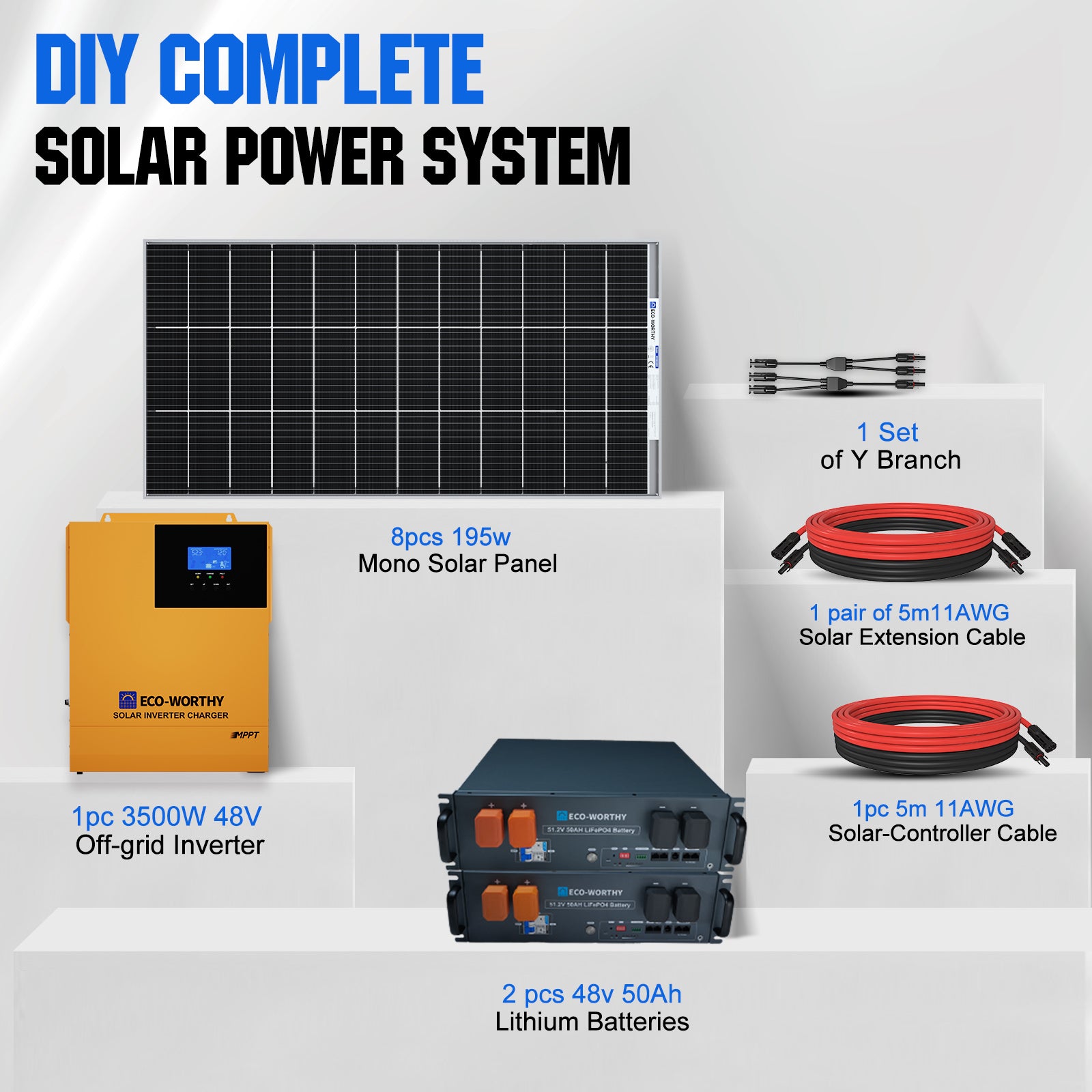

Package Includes
8x Bifacial 195W Mono Solar Panel
1x 3500W 48V Inverter All-in-one Inverter
1x 5M 12AWG Extension Cable with MC4
1x 5M 12AWG MC4-MC4 Extension Cable
1x Y MC4 Connector
2x 48v 50Ah 48V Server Rack Battery
Bifacial 195W Monocrystalline Solar Panel
Rated Power: 195W | Solar Cell: Monocrystalline |
Maximum/Peak Voltage(Vmp): 19.8V | Open Circuit Voltage(Voc): 23.7V |
Short circuit current: 10.5A | Maximum current: 9.85A |
Output Tolerance: ±3% | Temperate coefficient of Isc: (010+/-0.01)%/℃ |
Temperate coefficient of Voc: -(0.38+/-0.01)%/℃ | Temperature range: -40℃~ +85℃ |
Frame: Aluminum alloy frame | Weight: 20.48 lbs(9.29 kg) |
Size: 52.6x26.38x1.38in (1335*670*35mm) |
3500W 48V Inverter All-in-one Inverter
AC Input Mode | |
Rated Input Voltage: 110/120VAC | Input Voltage Range: 90V-140VAC |
Frequency: 50Hz/60Hz(auto detect) | Overload/Short Circuit Protection: Circuit breaker |
Efficiency: 92% | AC Reverse Protection: Available |
Max Bypass Overload Current: 40A | |
Invert Mode | |
Output Voltage Waveform: Pure Sine Wave | Rated Output Power: 3500W |
Rated Output Voltage: 120VAC | Peak Power: 6000W |
Bypass Breaker: 40A | Rated Battery Input Voltage: 48V |
Min Starting Voltage: 44V | Power Saving Mode: Load ≤50W |
AC Charging Mode | |
Battery Type: Lead acid or lithium battery | Max Charge Current: 40A |
Charge Voltage Range: 40-60VDC | Overcharge Protection: Alarm and turn off charging after 1 minute |
PV Charging Mode | |
Max Input Power: 5000W | PV Charging Current Range:0-80A(can be set) |
Max PV Open Circuit Voltage: 500VDC | PV Operating Voltage Range: 120-450VDC |
MPPT Voltage Range: 120-450VDC | Battery Voltage Range: 40-60VDC |
Max Output Power: 4400W | Charging Short Circuit Protection: Blown fuse |
48V 50AH SERVE RACK LITHIUM BATTERY
Battery Capacity: 50Ah | Battery Power: 2560Wh |
Rated Voltage: 51.2V | Voltage Range: 40~58.4V |
Maximum Charge/ Discharge Current: 50A | Charge Temperature Range: 0-55℃ |
Disharge Temperature Range:﹣20-55℃ | Maximum Charge Voltage: 58.4V |
Screw size: M8 | Battery Size: 17.13*16.76*5.24inch |
Battery Weight: 61.95 lbs | Each battery comes with a pair of battery parallel cables |
