If you are looking for a hybrid kit, ECO-WORTHY 1000W 24V expandable hybrid kit is an ideal choice. This system certainly can be adapted to small homes in off-grid systems. A 400W wind generator produces about 60kWh per month in 10.5m/s average winds. ECO-WORTHY 100 Watt 12V Mono solar panel is backed by 25-year linear power guarantee. Pure Sine Wave Inverter provides high-quality AC power equivalent to grid power to protect your household appliances and electronic equipment, especially suitable for sensitive electrical appliances.
For people looking to go off-grid, 1000W 24V hybrid kits allow you to produce energy around the clock. This way, you can decrease the size of the battery system needed to power your home during the night. If you have any questions regarding this product, please contact us firstname.lastname@example.org.

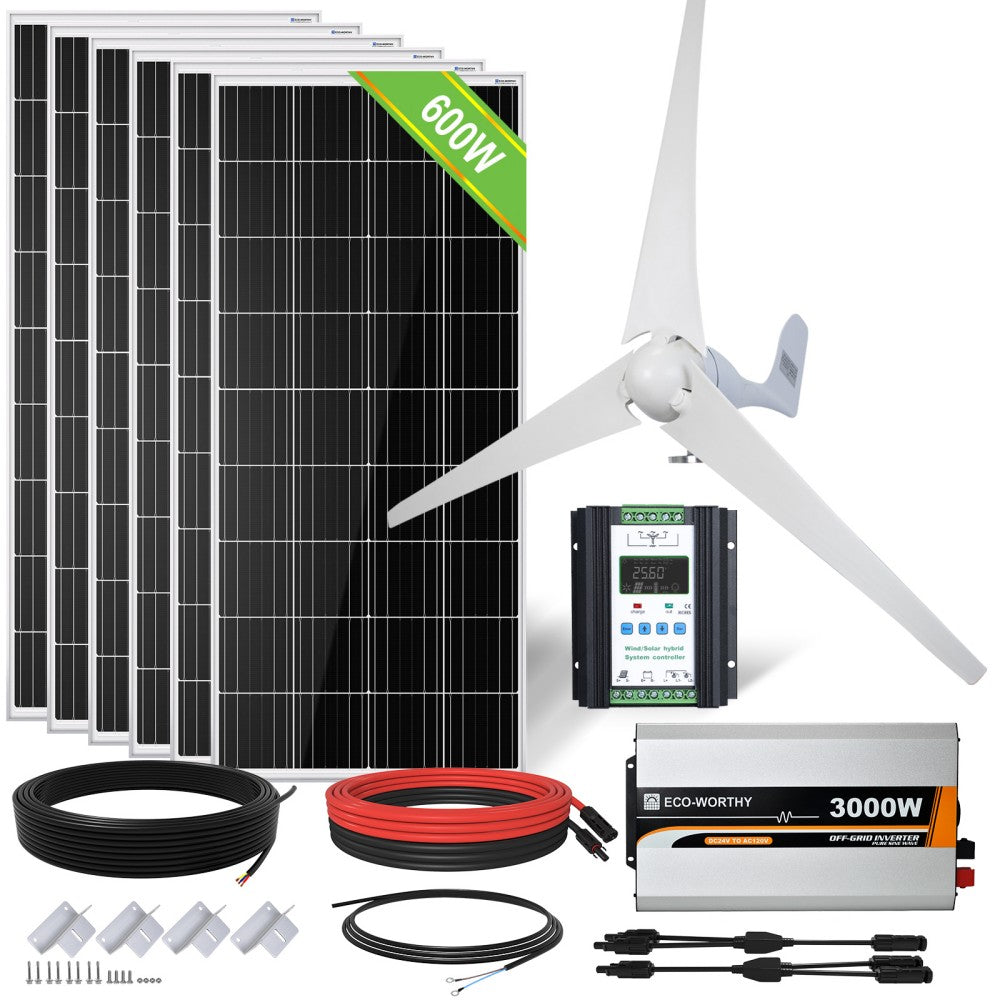

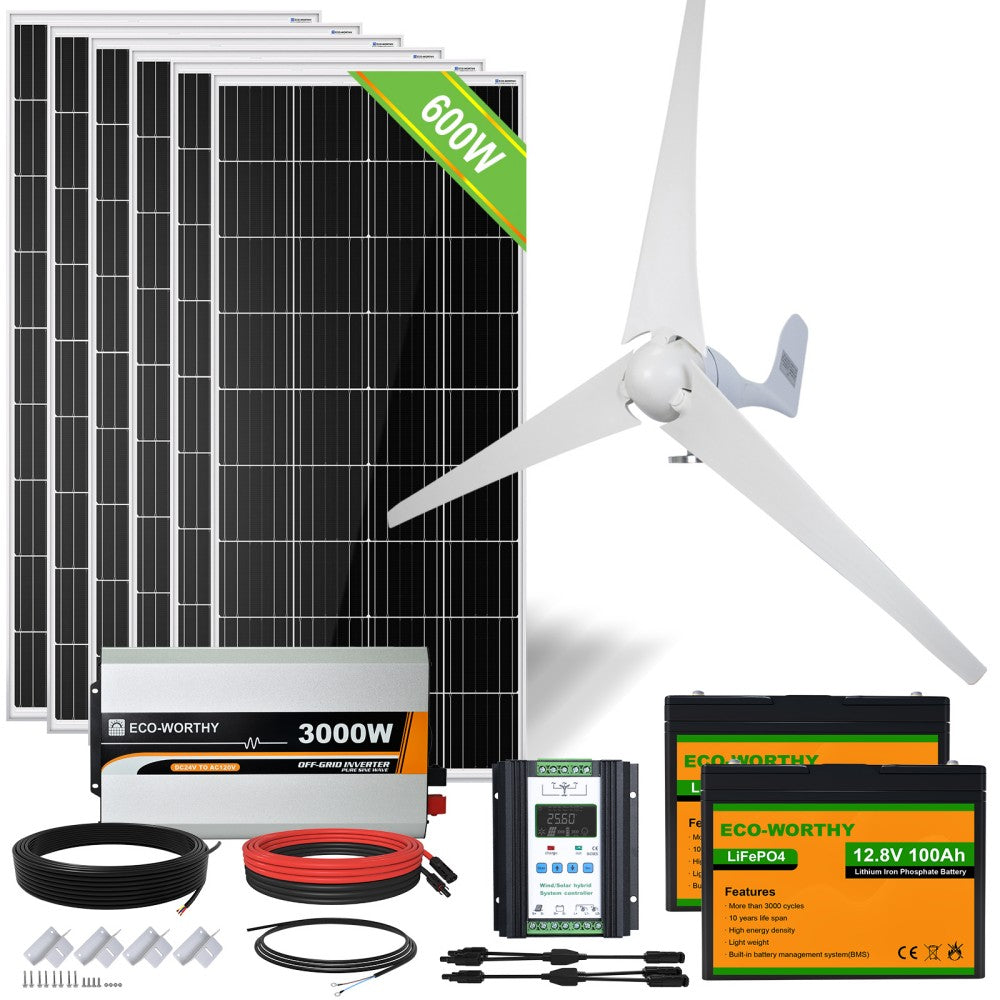

Package Includes 1x 400W Wind Turbine Generator 6x 100W Mono
Solar Panel 1x 20A Hybrid Controller 1x 1500W 24V-110V Pure Sine Wave
Inverter 1x 5M 12AWG Extension Cable with MC4 1x 9M 13AWG Wind Turbine
Extension Cable 6x Z Mounting Bracket 2x Y MC4 Connector Battery Bank Options- Complete AGM Kit (optional) with 2x 100Ah 12V AGM Battery 2x
6AWG Battery Interconnect Cable

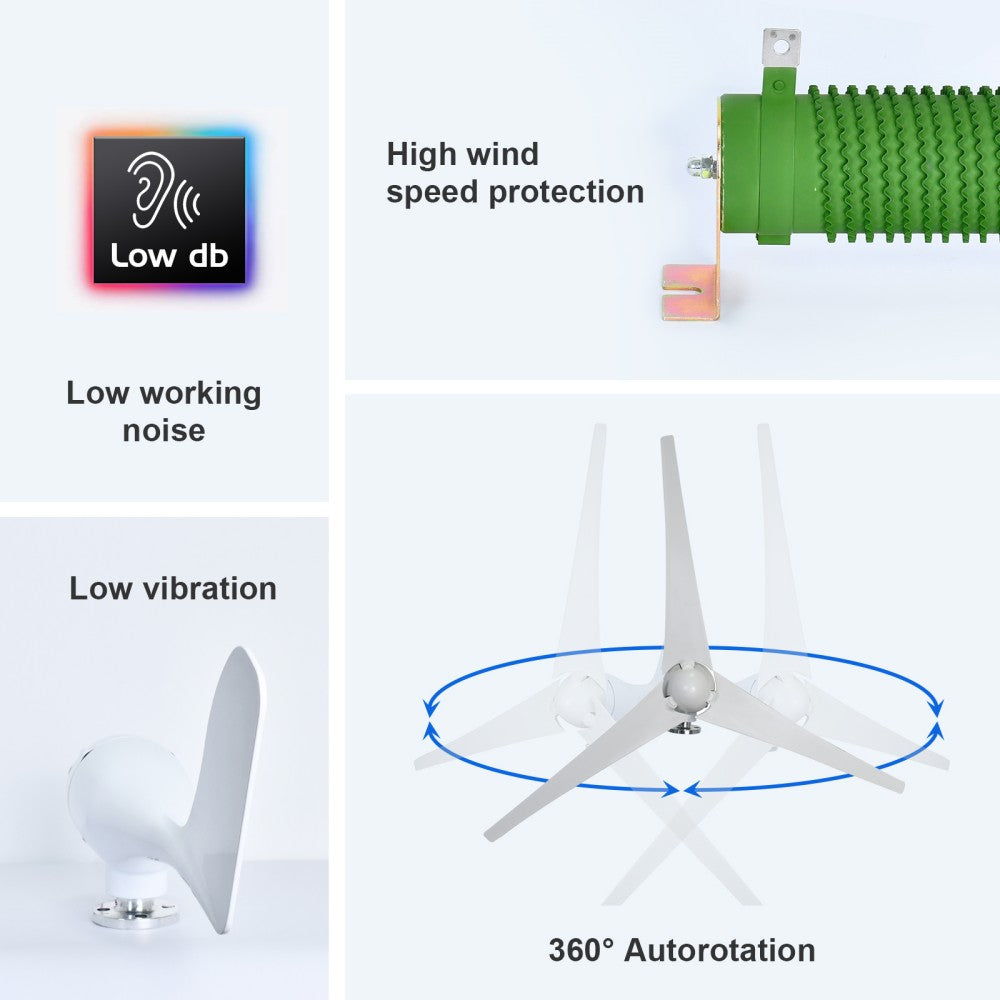

400W Wind Turbine Generator
Rated voltage: DC 27-54V
Battery voltage: DC 12/24V
Start-up wind speed: 2.5M/S
Rated wind speed: 10.5M/S
Rotor diameter: 3.93 feet(1.2M)
Rated speed: 800/min RPM
Rated speed: 800/min RPM
Number of blades: 3 pieces
Material: carbon fiber composite
Net weight: 17.6lbs(8kg)
Suggested Tower Diameter: more than 3.15inch(8cm)
20A Hybrid Controller
Rated Battery Voltage: DC 12V/24V
Rated Wind Generator Capacity: 400W/800W
Wind Generator Braking Voltage: 14.5V/29V
Wind Generator Recover Voltage: 13.2V/26.4V
Rated Solar Power: 500W/1000W
Max Discharging Current: 20A

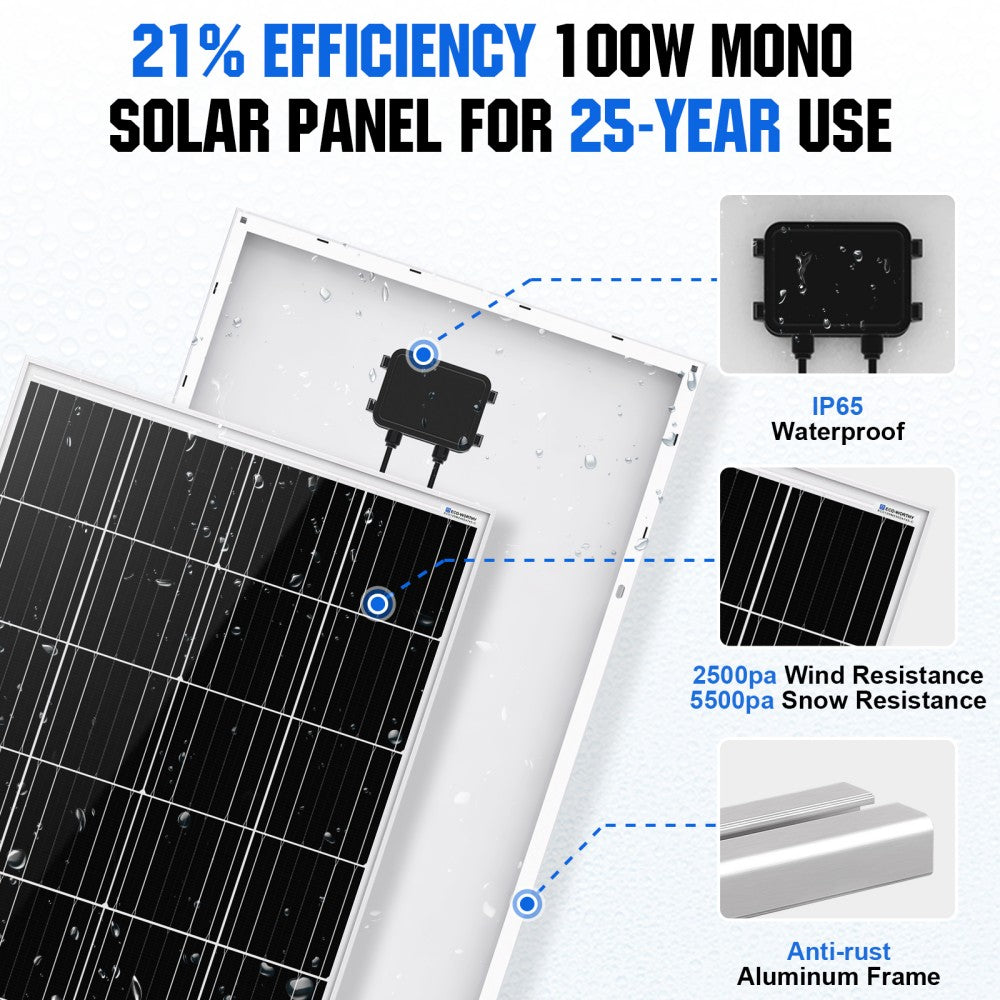

100W Monocrystalline Solar Panel
Rated Power: 100W
Solar Cell: Monocrystalline
Maximum/Peak Voltage(Vmp): 18V
Open Circuit Voltage(Voc): 21.6 V
Short circuit current: 6.11A
Maximum current: 5.55A
Output Tolerance: ±3%
Temperate coefficient of Isc: (010+/-0.01)%/℃
Temperate coefficient of Voc: -(0.38+/-0.01)%/℃
Temperature range:－40℃～ +85℃
Frame: Aluminum alloy frame
Length of extension cable: 90cm（2.95ft）
Size of extension cable: 4mm²（11AWG）/MC4 Connector
Weight: 13.14 lbs(5.96 kg)

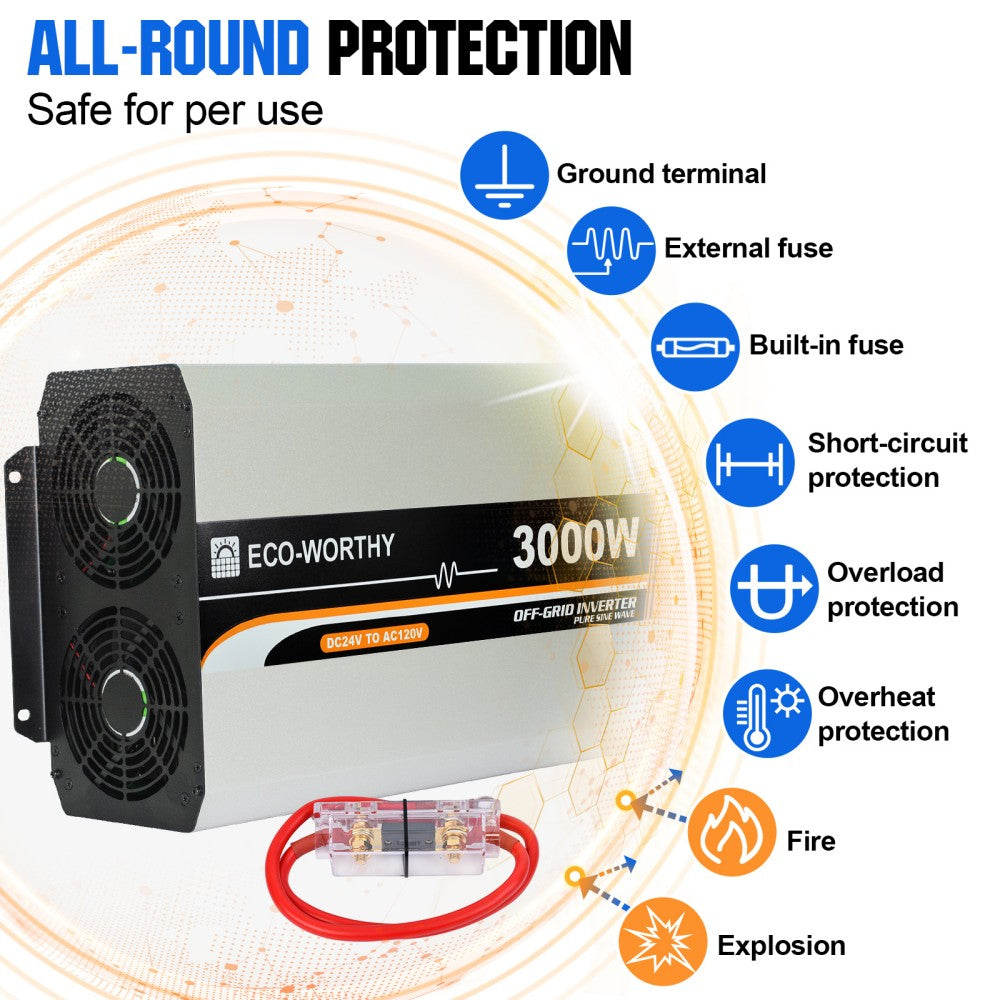

1500W 24V Off Grid Inverter
Input Voltage: 24V
Rated Power: 1500W
Peak Power: 3000W
Output Waveform: Pure Sine Wave
Output Voltage: 110Vac
Extension Cable: 10mm²,7AWG,0.8 meter
Output Frequency: 60HZ ± 0.3HZ
Cooling: Cooling fan control by temperature
AC Output Sockets: 1
100Ah AGM Solar Battery
Battery Capacity: 100Ah
Battery Power: 1200Wh
Battery Voltage: 12V
Rated Charge Voltage: 14.5-14.8V
Rated Charge Current: ≤20A，12A rated
Charge Temperature Range: 0-55℃
Disharge Temperature Range:﹣20－55℃
Screw size: M8
Battery Weight: 28kg
Battery Size: 330*175*190mm
16.4 feet 12AWG Cables
Cable Type: Connecting Solar Panels to Charge Controller
Rating Voltage: 600/1000V
Length: 5 meters（16 ft）
Conductor: Tinned copper wire
Normal Cross Sectional Area of the Conductor (mm2): 4
Waterproof: IP 65 Protection
Temperature: -40°F to +185°F
Z Mounting Brackets
4 pieces of Z shape solar panel brackets
8 pieces of stainless steel nuts and cap bolts
Y Branch Cable MC4 Connectors
Compatible with MC4 solar connector.
Easy installation for 2 solar panels connected in parallel.
We hope you have enjoyed your online shopping experience with ECO-WORTHY. Please read below for more information about our shipping and return policies.
We offer a free shipping service for most of mainland U.S. You will receive a confirmation e-mail after placing an order and another e-mail after your order has been shipped. The second one will contain the tracking information and some instructions on how to track your parcel. ORDER PROCESSING Procession time can take between 1-3 business days. The time it takes to prepare your item(s) to ship from our warehouse. This includes preparing your items, performing quality checks, and packing for shipment. SHIPPING TIME All items sold at ECO-WORTHY are guaranteed to be delivered in 30 days. If you have not received your item(s) beyond this time, you are eligible for a full refund after we have conducted a postal investigation.
3-5 business days
Freight: Larger Panels Kits must be shipped by freight, the shipping time is 5-14 business days. Note: The shipping times mentioned above refer to the estimated times of business days that the shipment will take after an order has been shipped. Business days do not include Saturday/Sunday and any public holidays. These estimates are based on normal circumstances and are not a guarantee of delivery times. We are not responsible for the failures or delays in delivery resulting from any force majeure event, such as natural disaster, bad weather, war, and any other event beyond our direct control, such as public holidays and customs issues. Full refunds are not available under the following circumstances: 1. Delays caused by the buyer providing incorrect or incomplete delivery information; 2. Delays in delivery caused by any force majeure incidents, such as natural disasters, bad weather, and war; 3. Any un-insured order that is lost or stolen; 4. Delays in delivery caused by any other beyond ECO-WORHTY's control, such as public holidays and Customs issues. HI, AK, PR & US Territories: Free shipping is not available for customers in Hawaii (HI), Alaska (AK), Puerto Rico (PR) or any US Territory. Please contact us for a shipping quote on your order.
GUARANTEES & RETURN POLICY
14 Days DOA Product Guarantee If one or more of the items you received are damaged, different, or not working, you will be protected by this Guarantee. Please contact us for Return Material Authorization within 14 days of the order being received. In the event of a replacement, ECO-WORTHY will arrange for return shipment of the defective unit, and once the part has been received and inspected, we will ship out the replacement part within 3 working days. To qualify under our Defective on Arrival policy, goods must be returned in their original packaging. Goods returned without original packaging will not be accepted. 30 Days No Reason Return Standard in stock merchandise purchased through ECO-WORTHY may be returned within 30 days of the receipt of the product. You will receive a refund or credit towards your account, provided the merchandise is returned in the original packaging in new and resalable condition with the original blank warranty cards, manuals, and all accessories. ECO-WORTHY will pay the shipping costs of the returned item(s) for the following reasons: carrier damage, defective product, product inconsistent with advertisements, incorrect product received, or for any extra products you did not order. For all other reasons, customers are responsible for the return shipping fees. ECO-WORTHY requires at minimum 1-2 working days to inspect a returned item prior to issuing a refund or credit. Please note that ECO-WORTHY will not accept returns with product modifications as it voids our warranty policy. Any modified products received will be returned to you at your expense. Please be prepared with your invoice or the following information: Order number Proof of purchase Video or photo of the faulty product (if applicable) Mailing address Contact telephone number Please carefully follow our warranty process to minimize any delays: 1. Describe the problem with your item in detail: What happened? When? How? Please also state your full order number and product code (SKU number). 2. Tell us what steps you have already taken to resolve the issue. 3. Provide the item code indicated on the outer packaging. 4. Send a clear photo or video showing the defect(s); these should be taken under good lighting.
