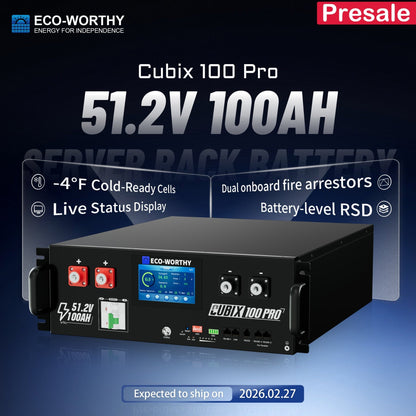

ECO-WORTHY Cubix 100 Pro | 48V 100AH Server Rack Battery | Bluetooth & WiFi | Low-Temp Charge | 10 Years Warranty

ECO-WORTHY Cubix 100 Pro | 48V 100AH Server Rack Battery | Bluetooth & WiFi | Low-Temp Charge | 10 Years Warranty

Regular price $979.99
Sale price $979.99 Regular price $1,299.99
Sale Sold out
Shipping calculated at checkout.

SKU:

SKU:GW-L12L100ACUB100PRO-1

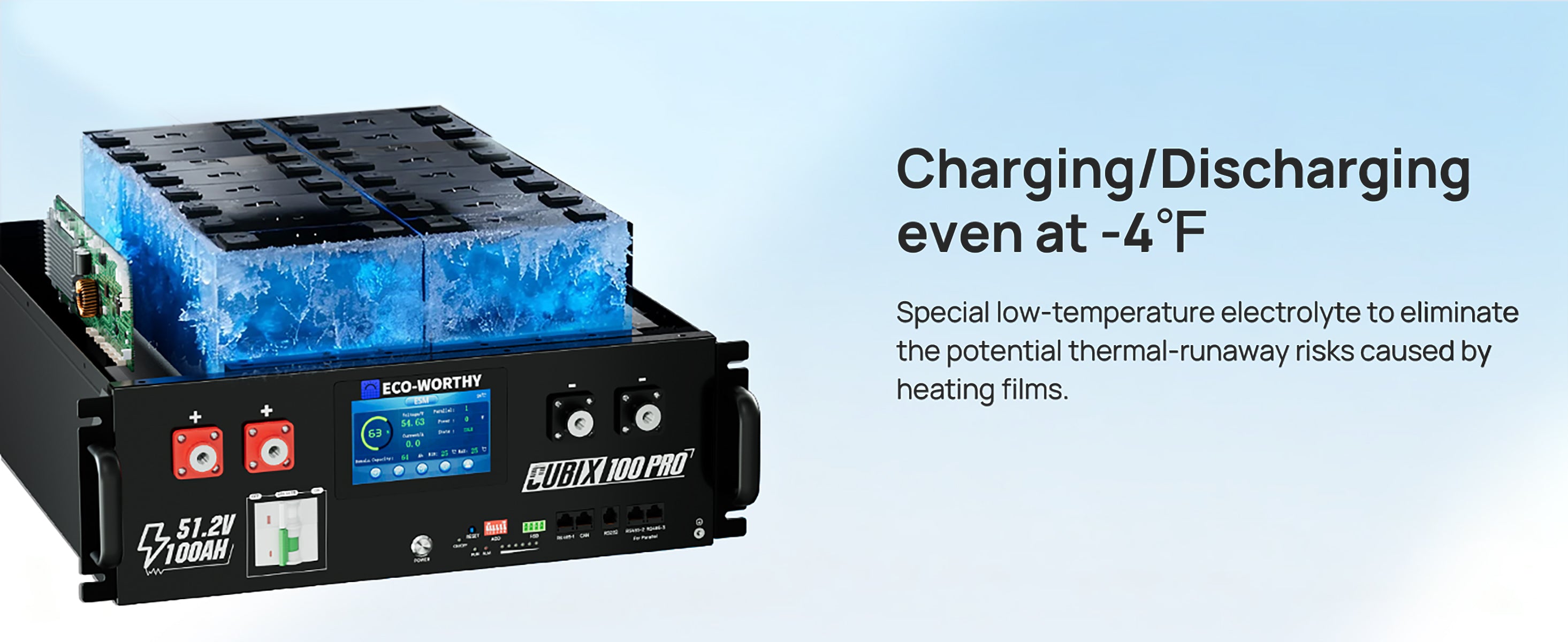

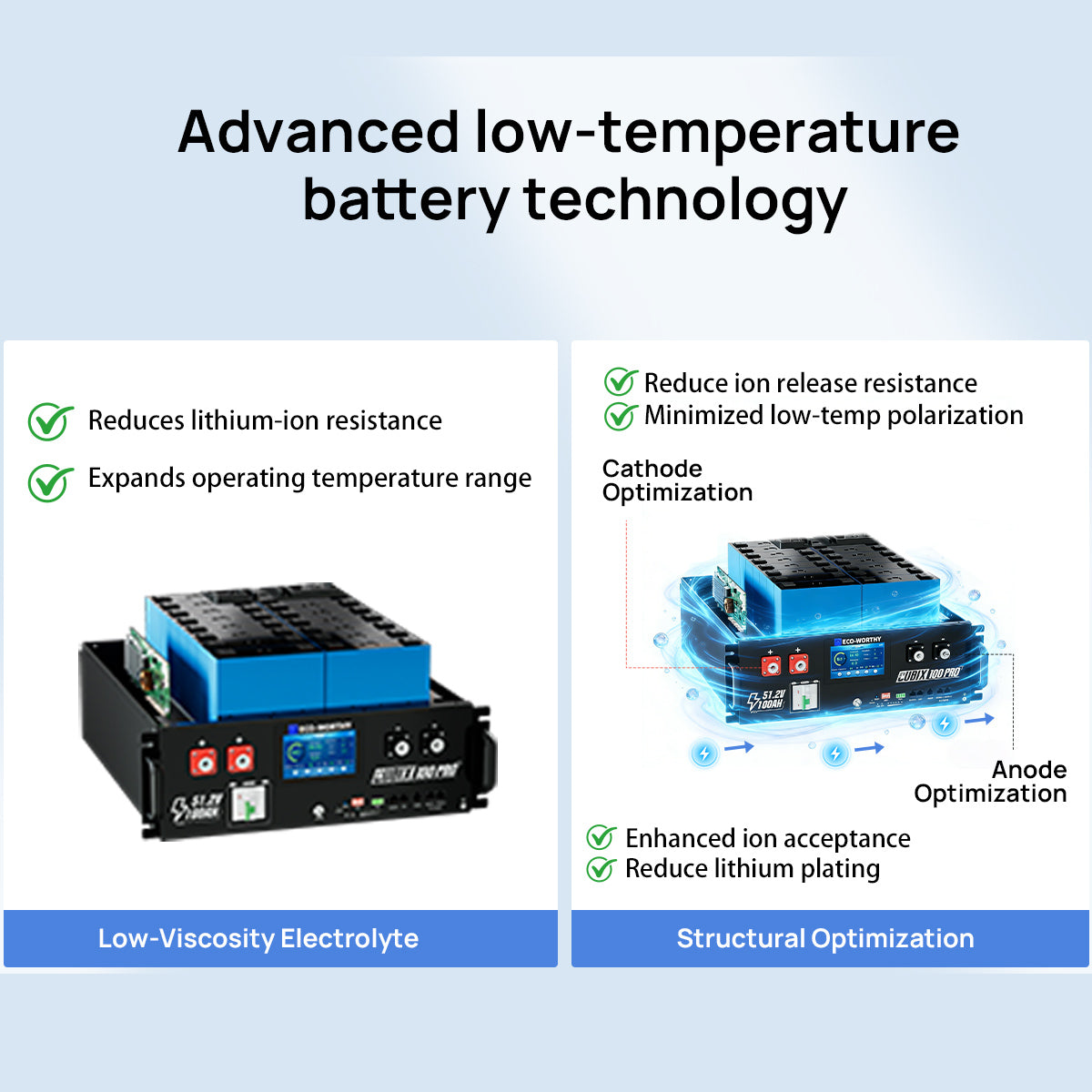

[Low-Temp Operation Ready] Special low-temperature electrolyte enables safe charging down to -4℉ without cell damage, delivering over 6,000 long-life cycles.

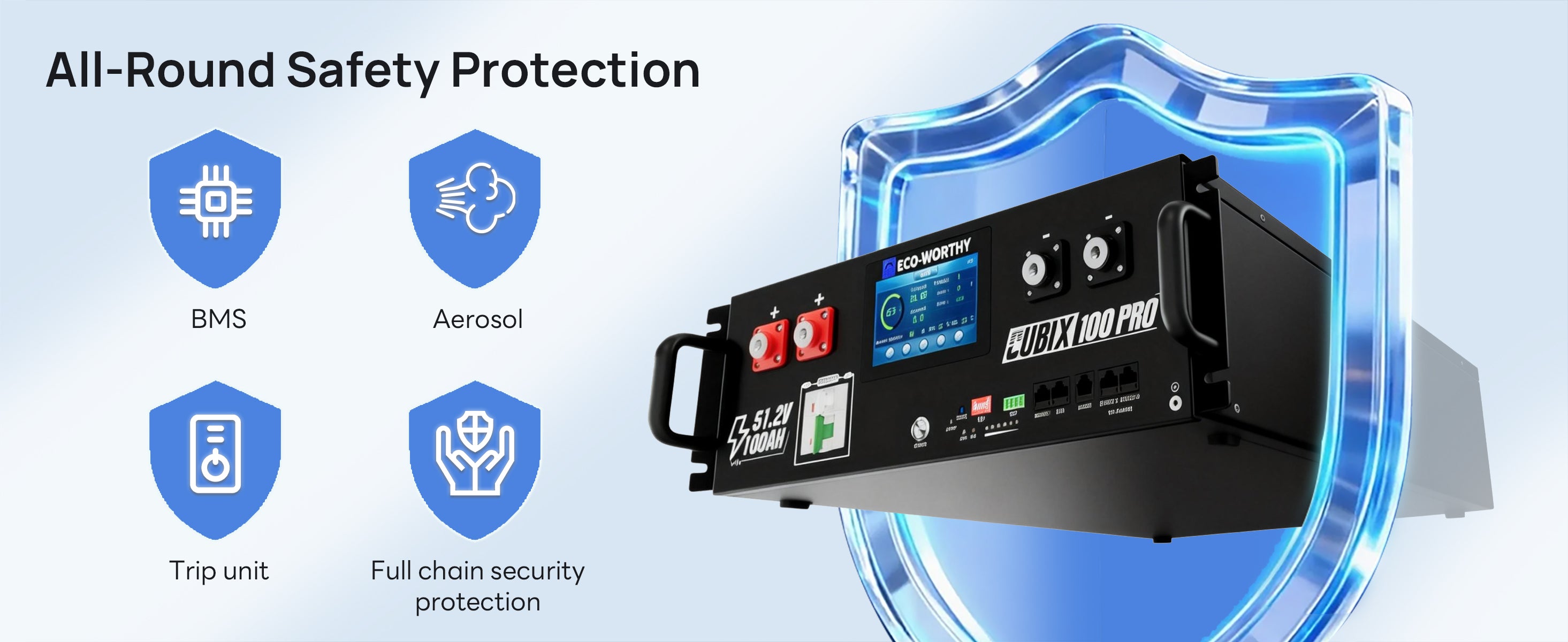

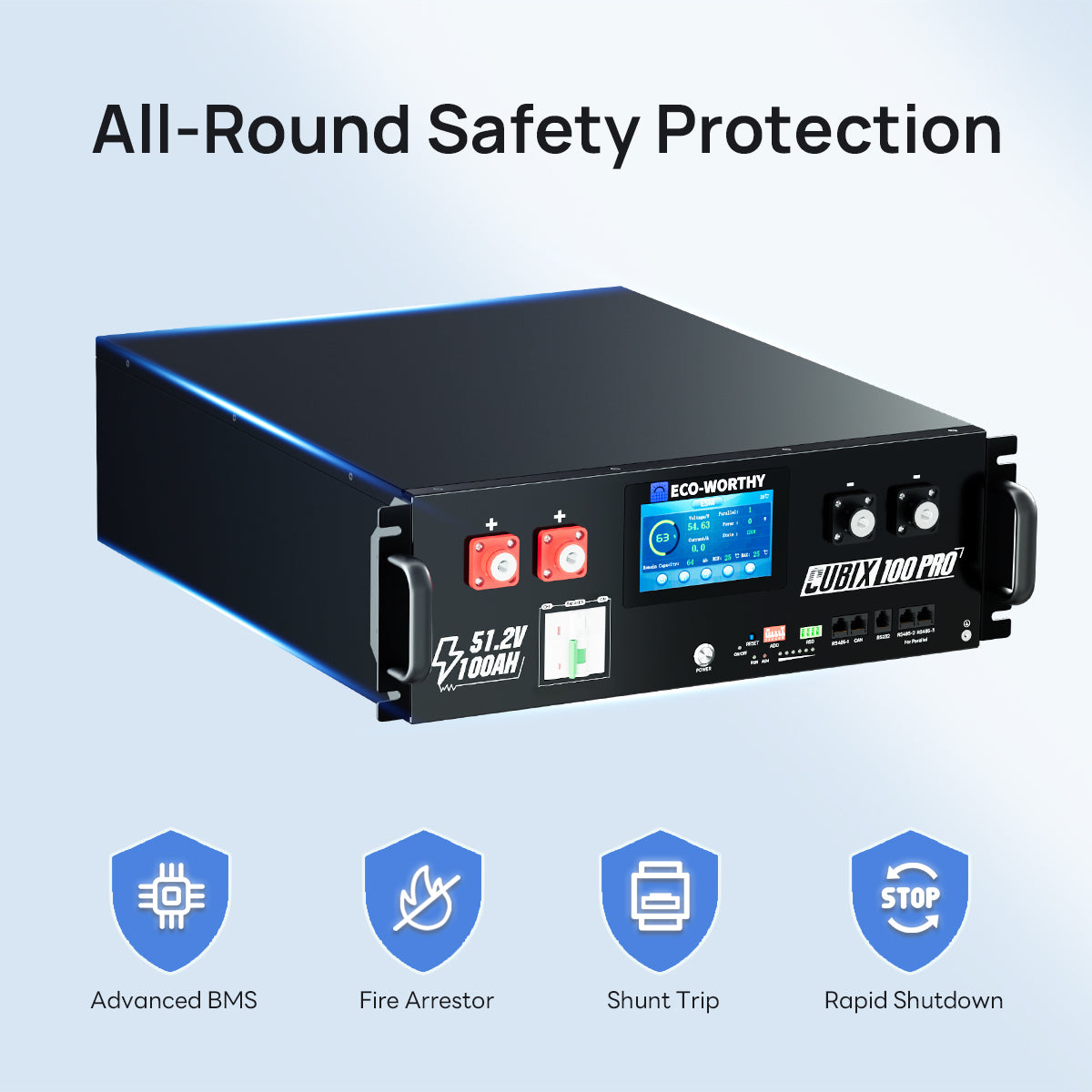

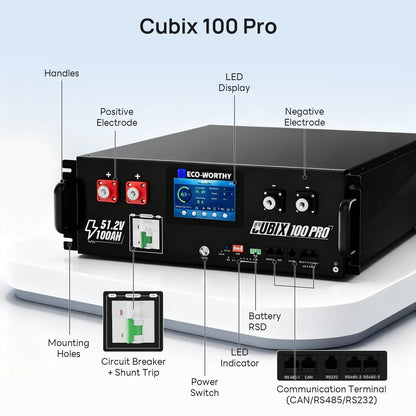

[Multiple Layers of Safety] Dual onboard fire arrestors combined with battery-level RSD (Rapid Shutdown) provide enhanced protection against thermal and electrical risks.

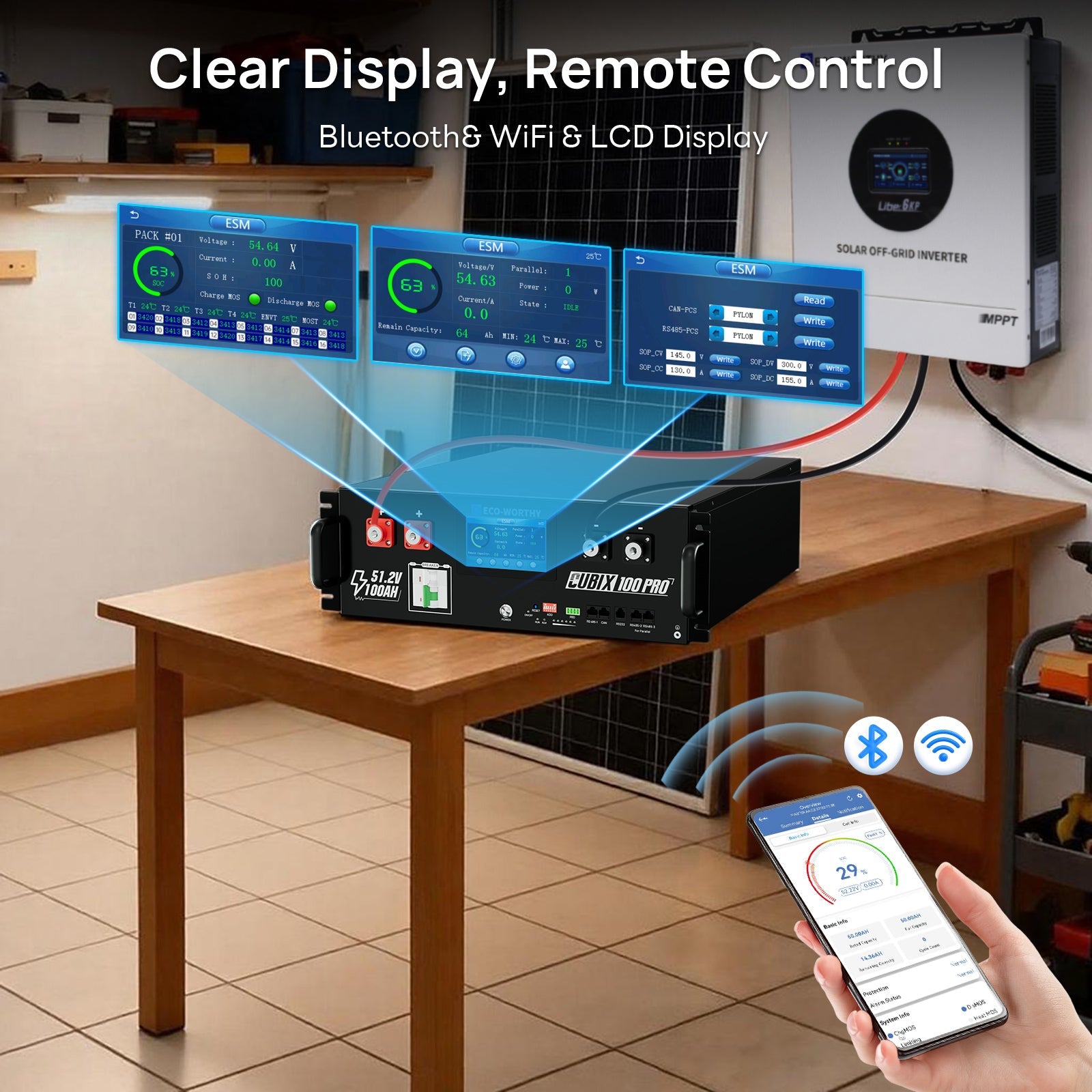

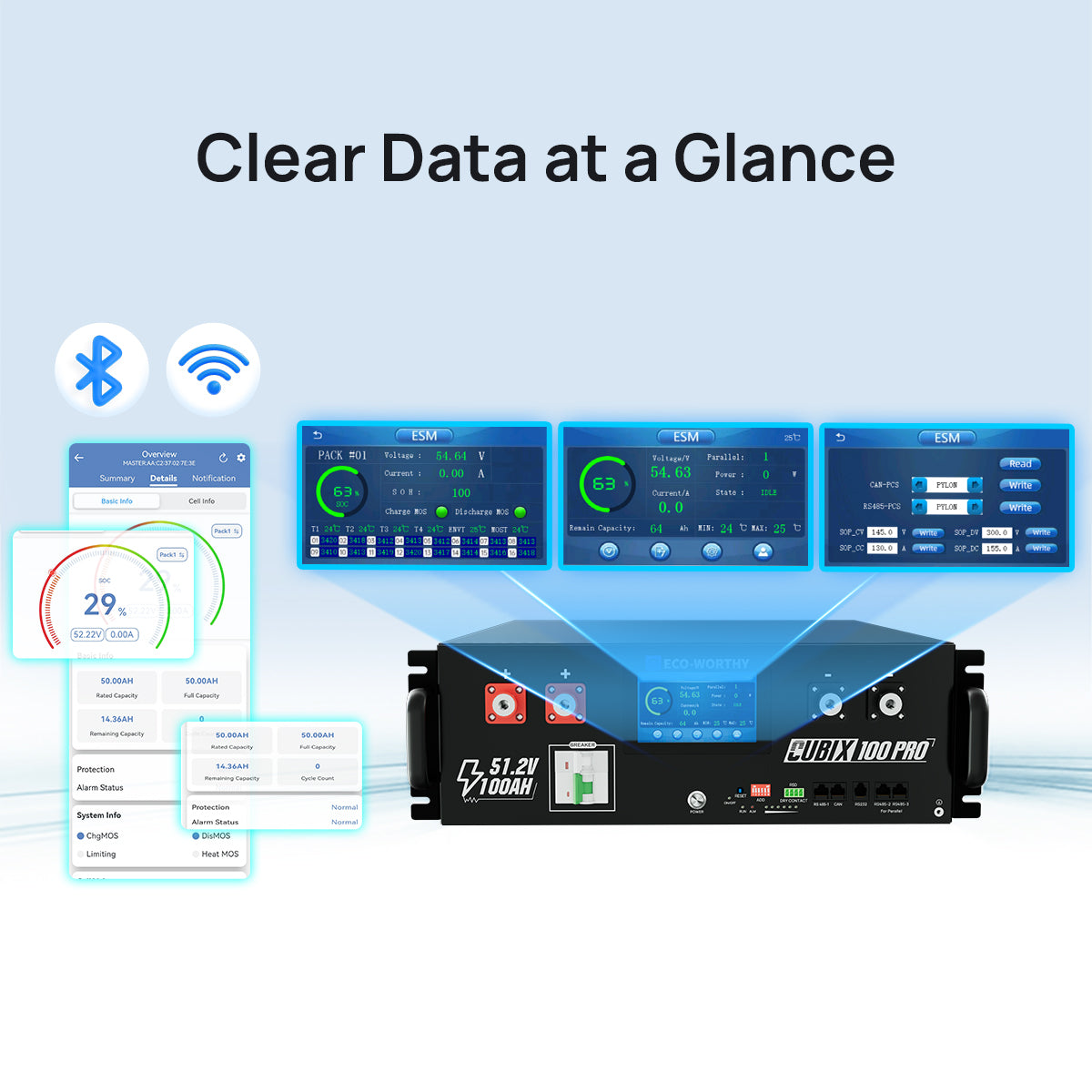

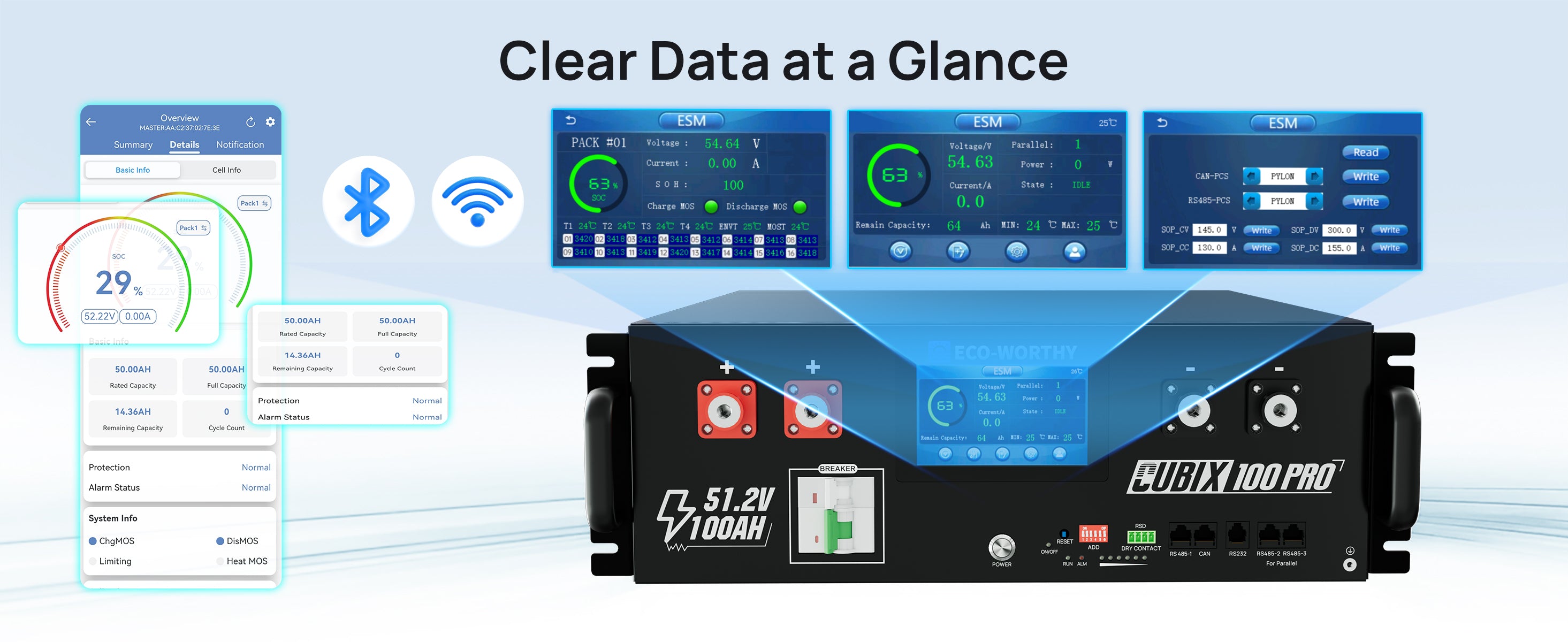

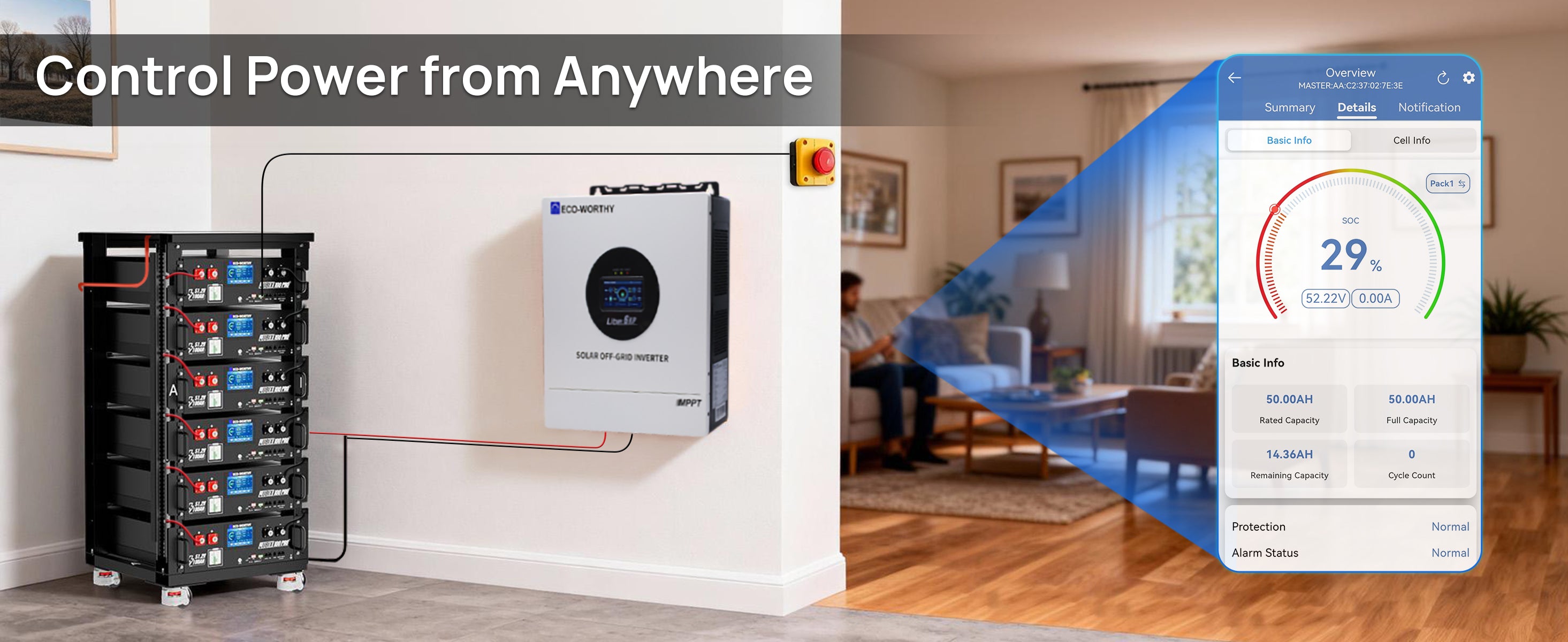

[Smart Monitoring & Control] Features a 4.3-inch full-color touchscreen plus Bluetooth and WiFi connectivity for convenient remote access and real-time status monitoring.

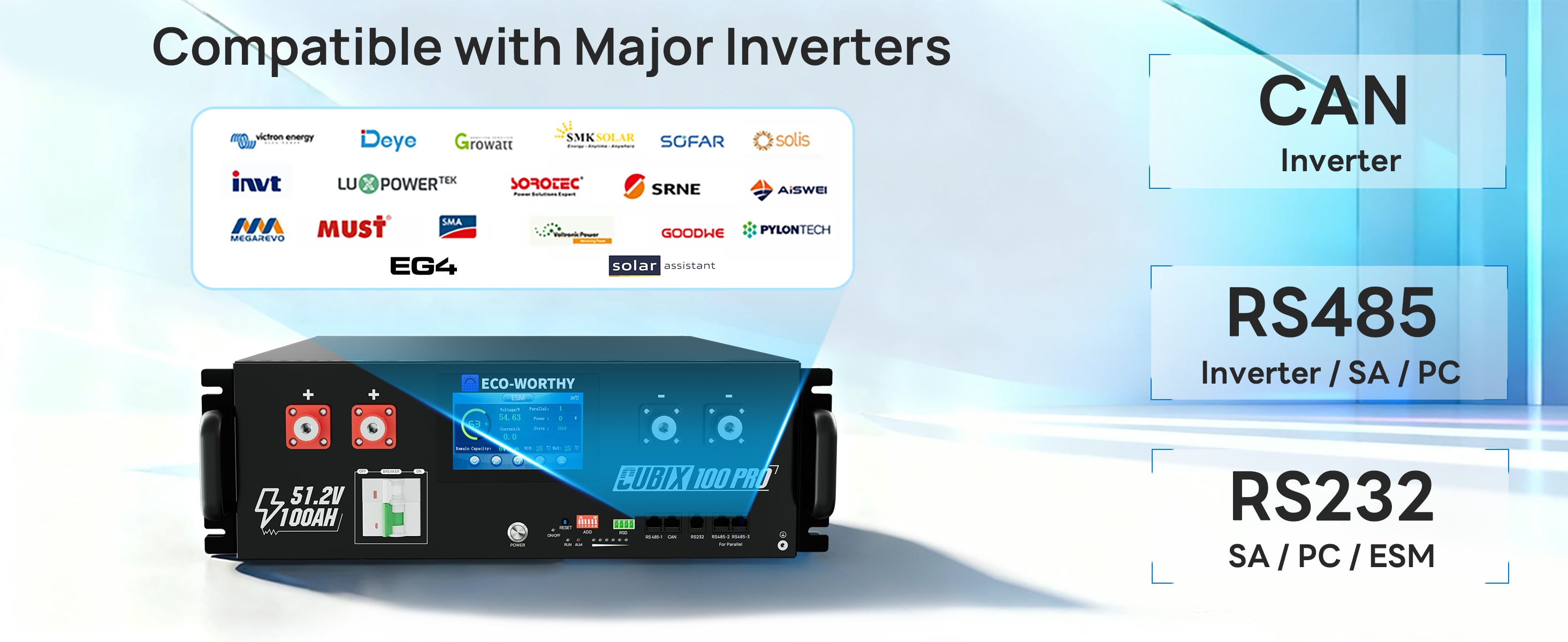

[90% Closed-Loop Inverter Compatibility] Seamlessly communicates with most mainstream inverters, including EG4, Sol-Ark, DEYE, Victron, and Growatt.
[Long-Term Reliability & Support] Backed by a 10-year limited warranty and lifetime technical support for lasting peace of mind in off-grid applications.

Read More

Plese Note: The Cubix100 Pro battery is on presale now,Expect to ship out on about Sept 12th

Packs

Total Price

$979.99
Buy It Now

Free Shipping

Return Guarantee

Secure Payment

or 4 interest-free payments of $244.99 with

Installments available at checkout
Shop with Confidence at Eco-Worthy

Free & Fast Delivery

14-Day Money-Back Guarantee

Up To 10-Year Warranty

Lifetime Customer Support

Pay with ease

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Trusted delivery

View full details
X
$979.99 $1,299.99
Buy It Now

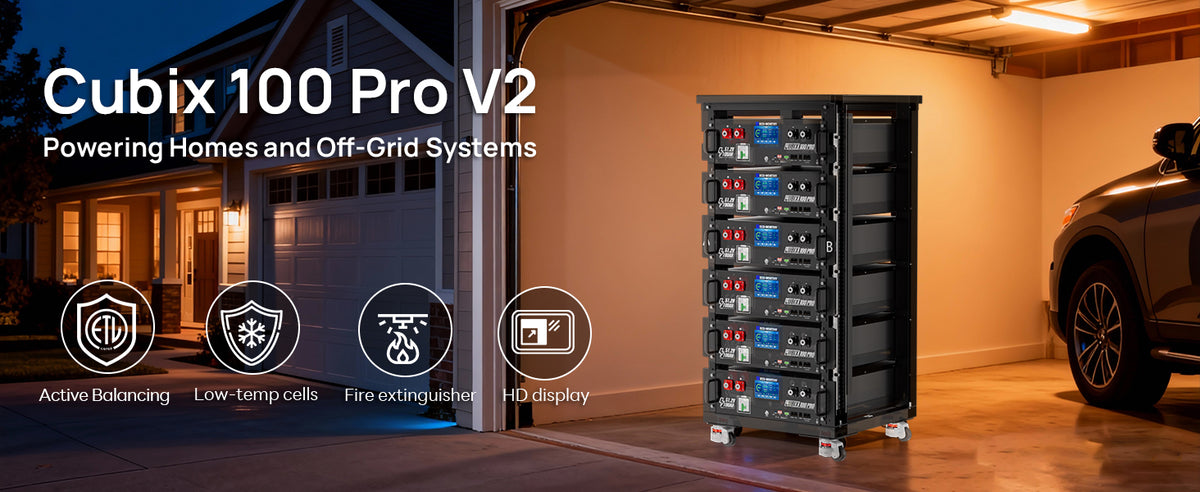

Upgrade your energy storage with the Eco-Worthy Cubix 100 Pro 48V 100Ah server rack battery, built for reliable off-grid and home backup power. Featuring advanced low-temperature charging down to -4℉, over 6,000 long-life cycles, and multiple safety layers including fire arrestors and rapid shutdown protection. Stay in control with a 4.3" touchscreen plus Bluetooth and WiFi monitoring. Compatible with leading inverters like EG4, Victron, and Growatt, this LiFePO4 battery delivers efficient, safe, and scalable power backed by a 10-year warranty and lifetime support.

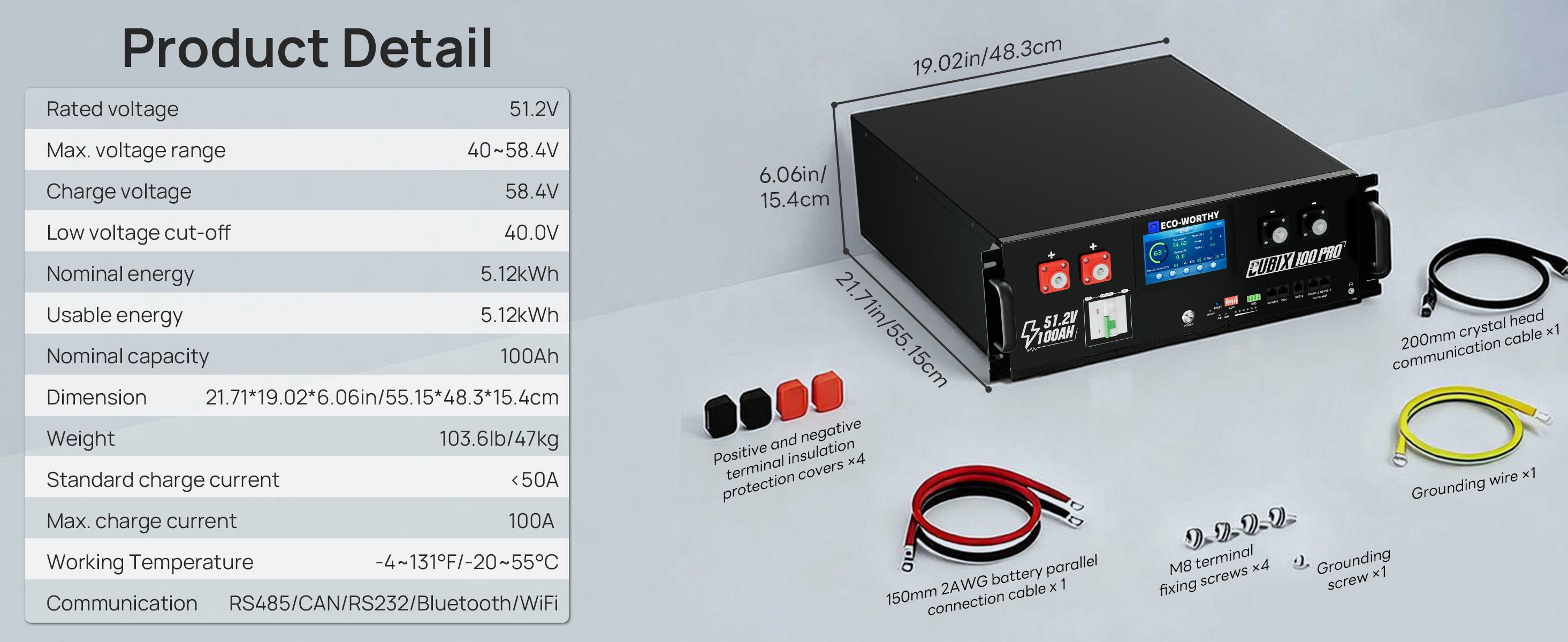

Technical Specifications

Cubix 100 Pro 48V 100AH Server Rack Battery
ECO-WORTHY RACK6 V2.1 I 6-Layer Rack With 600A Busbar

Items

ECO-Cubix100Pro

Rated voltage

51.2V

Max Charge voltage

58.4V

Low voltage cut-off

40.0V

Nominal energy

5.12KWh

Usable energy

5.12KWh

Nominal capacity

100Ah

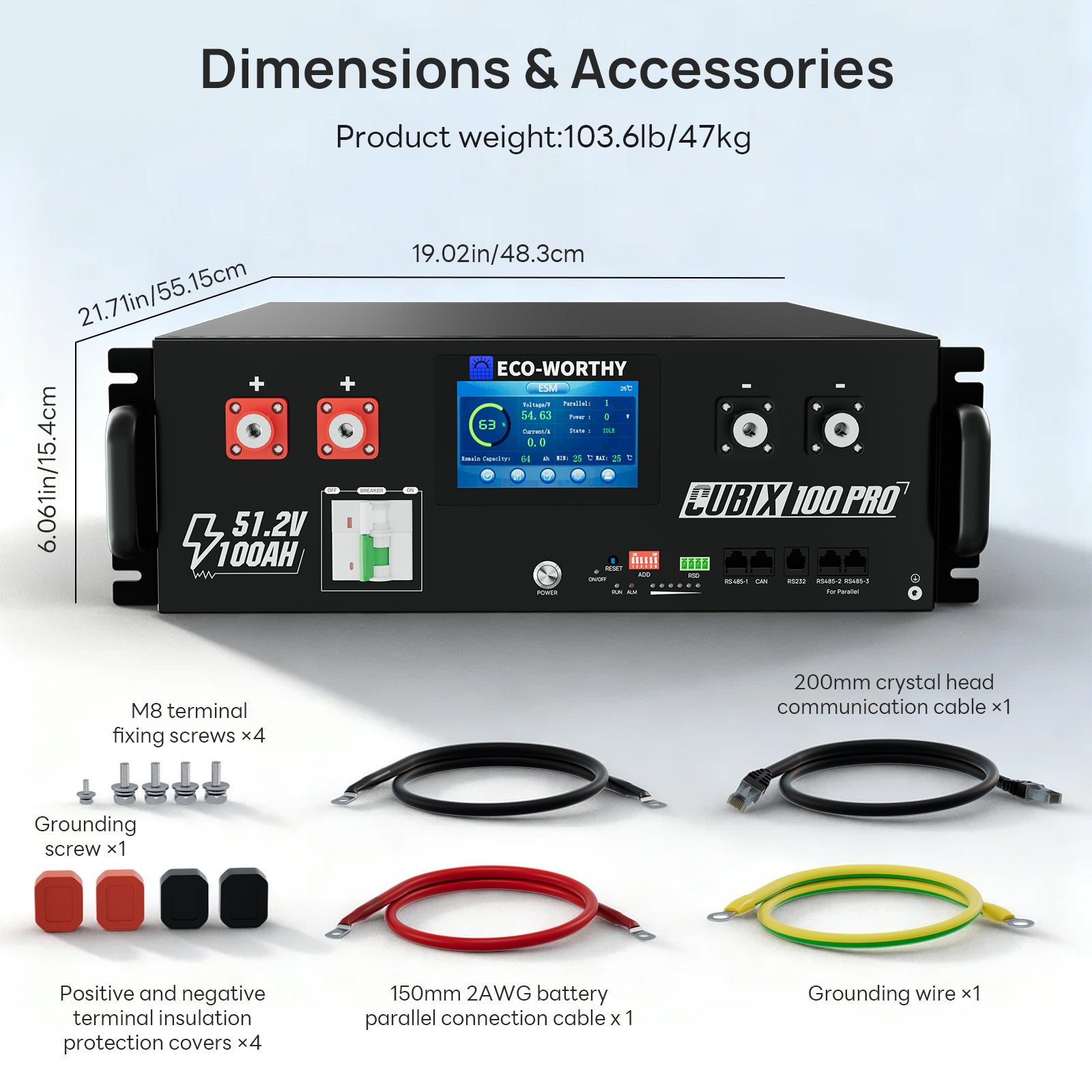

Dimension

22.09*19.02*5.63in/56.1*48.3*15.4cm

Standard charge current

≤50A

Max.charge current

100A

Standard discharge current

≤50A

Max.discharge current

100A(initialtemp.≤35°C)

Communication port

RS485/CAN/RS232

Max.parallel number

32pcs

Battery Weight

103 lbs

Charge temperature

-20~55°C

Discharge temperature

-20~55°C

Cycle Life

≥6000 cycles @ 25 °C, 0.5C charge / 0.5C discharge, ≥80% SOH

Warranty

10 Years

Package Gross Weight

47 kg ±1kg

Product Dimensions

47.32 in × 23.07 in × 21.93 in

Effective Space per Layer

20.87 in × 17.44 in × 6.50 in

Busbar Dimensions

W 40 mm × H 4 mm

Busbar Current Rating

600 A

Busbar Material

T2 Copper

Battery Capacity

Up to 6 batteries

Material

Metal

Included in the Box
box image

1.1x48v100ah Cubix Pro battery
2.1xBattery Accessories

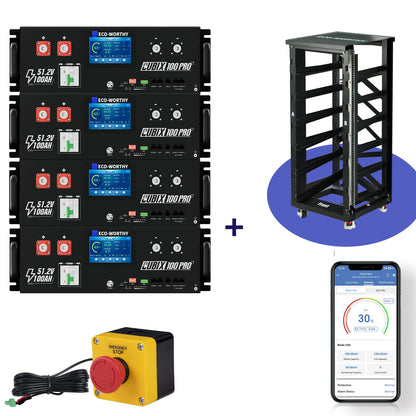

box image

1.4x48v100ah Cubix Pro battery
2.1xBattery Accessories
3.1xFree Rapid stop switch
4.1x6-layer battery Rack With 600a Busbar

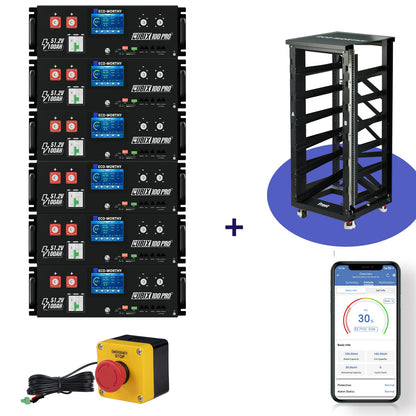

box image

1.6x48v100ah Cubix Pro battery
2.1xBattery Accessories
3.1xFree Rapid stop switch
4.1x6-layer battery Rack With 600a Busbar

box image

1.6x48v100ah Cubix Pro battery
2.1xBattery Accessories
3.1xFree Rapid stop switch
4.2x6-layer battery Rack With 600a Busbar

User manual

Eco-worthy Cubix 100 Pro Manual-20260415

Download

Eco-worthy APP&BMS Tool Guide

Download

Eco-worthy BMS_Tool&Drive_for_Windows

Download
  • 5 stars: 9 (90%)
  • 4 stars: 0 (0%)
  • 3 stars: 0 (0%)
  • 2 stars: 1 (10%)
  • 1 star: 0 (0%)
E
Erick Diaz
Great

Great product

j
jason lundmark
Eco-Worthy just works the way equipment should.

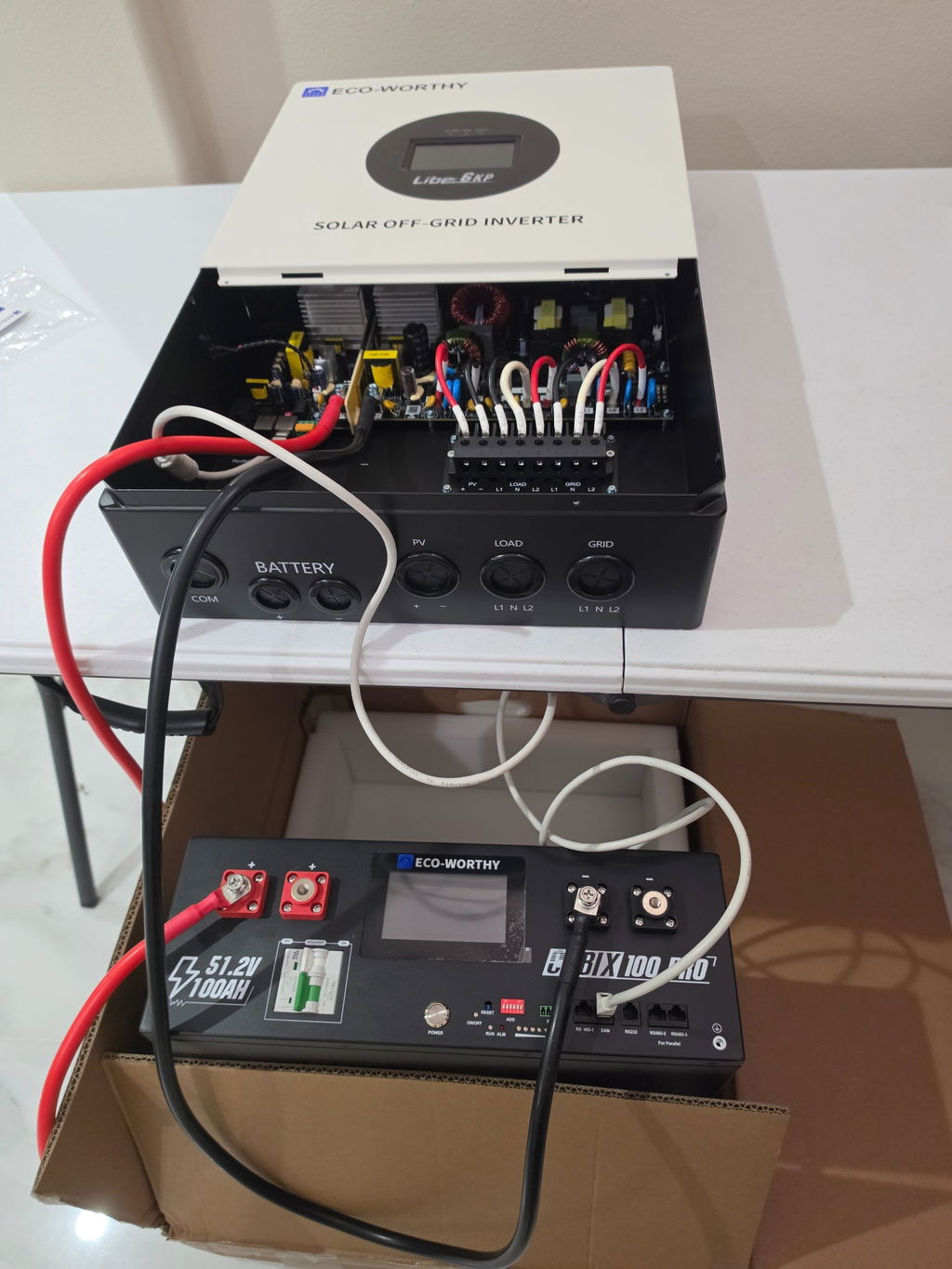

Recently, I purchased my ecoworthy matching system which included a 48v off-grid, inverter, external display screen, and two 48v lithium batteries, upon connection of everything and turning it on the system came to life began charging from my shore power connection without hiccup. Although there are many menu settings and extensive owners manuals that I will dive into to learn more, I'm very pleased to see the equipment simply talk to each other.

A
Anonymous
Think bsm is bad in

Think bsm is bad in mine

R
Ron Whitney
Best looking battery so far

Don't have it up and running yet. Putting a hole new 48v system. But the battery is a tank for size and weight. Had it hooked to my old system and like all the data you get back. Ran on Bluetooth but will be going wifi soon.

B
BMills
These batteries are great so far

So far these batteries look very nice and seem to be put together very well, The Display is beautiful and works well.
I did have a HARD time with 3 of the 6 Batteries getting the firmware to update but I finally got it figured out how to force it, I did NOT have the RS-232 cable at the time so be sure you order the cable when you order the battery's.
The cabinet seems well designed and looks pretty nice, I wish it had doors to protect the front panel,
BE SURE you read the manual to get the correct bolts where they go as a lot of them are the same size.

If I was going to have a complaint is that getting a response from the service dept was to slow and really wasn't helpful to my issue.
Shipping the Batteries and cabinet went well and packaging was TOP NOTCH for such heavy equipment.
All in all after the brief time I have had them in service they are 5 stars and it will be interesting to see how they respond this winter in the cold weather.
Bret M.

S
Steve Lloyd

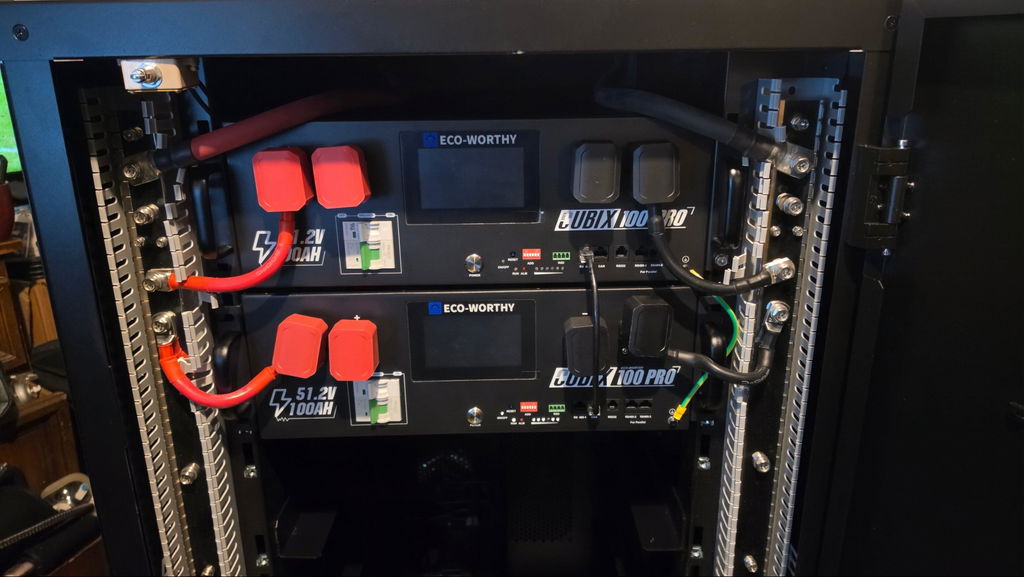

Cubix 100 pro

I purchased 4 Cubix 100 Pro batteries that came with the server rack 14 days ago. Delivery was really quick and very well packed with foam for protection all was in great shape even though the boxes were a little roughed up. Rack was very easy to assemble and is very well built sturdy. All the bolt holes alligned perfectly. The batteries were easy to install and all 4 fired up and worked perfectly and still running perfectly. I am very glad I went with Eco-Worthy and this package with their -4F to 131F temp range works for my home at 6500ft. elev. You just cant find better value. I hope I will have this same rating in ten years!

F
Fredrick Becker
quick install

everything showed up in great shape and was super easy to install. I used a Harbor Freight lift table instead of my back. Hardest part was the heavy wires I used to the inverter. The wireless is a pain just because of the restriction on characters in the sid.

J
James Siano
Eco worthy is tops

I purchased a used Eco worthy system and it out performed my neighbor's solar system, I'm totally off grid and he is too, but the difference is I'm running more appliances than he is, we figured it out and I'm using about 6000 amp hours of power while he's running about half my usage with a bigger array, but my Eco worthy system runs circles around his fancy set up! Eco worthy is worth every penny! Very happy! I'll be updating my system with more new products from Eco worthy directly!

K
Kelly Morgan

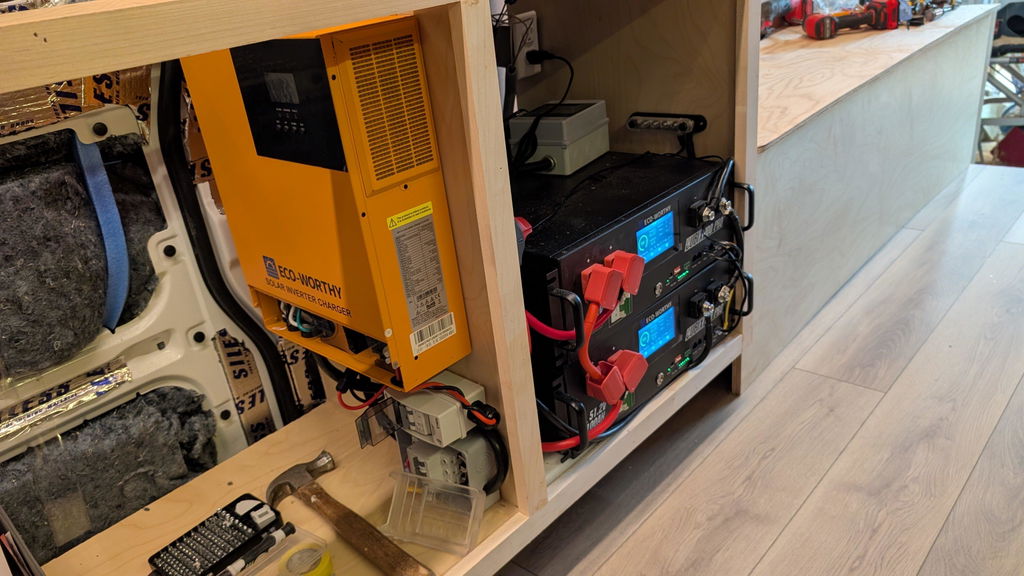

Installed 4, 48v , 100 amp hour rack battery’s. Running a Victron 48/5000. Runs my RV effortlessly.

Bought 4 because of the special. These are great in the RV. Powering everything needed.
I’ll pick up more for home use in the future.

c
corb ardrey
Upon unpacking, I found...

Oddly, the "This End Up" arrows & text were missing from the outer-most box, so it arrived upside down. SOooo...
Maybe time will confirm that indeed the otherwise excellent battery remains a 5-star...
* Interior packing: very protective
* Manual: well written
* Initial & 1st full charges: flawless
--> It’s great so far... Fingers crossed!

Frequently Asked Questions

What is the warranty period of the battery?

+
The battery comes with a 10-year limited warranty, covering non-human-induced failures under normal use conditions.

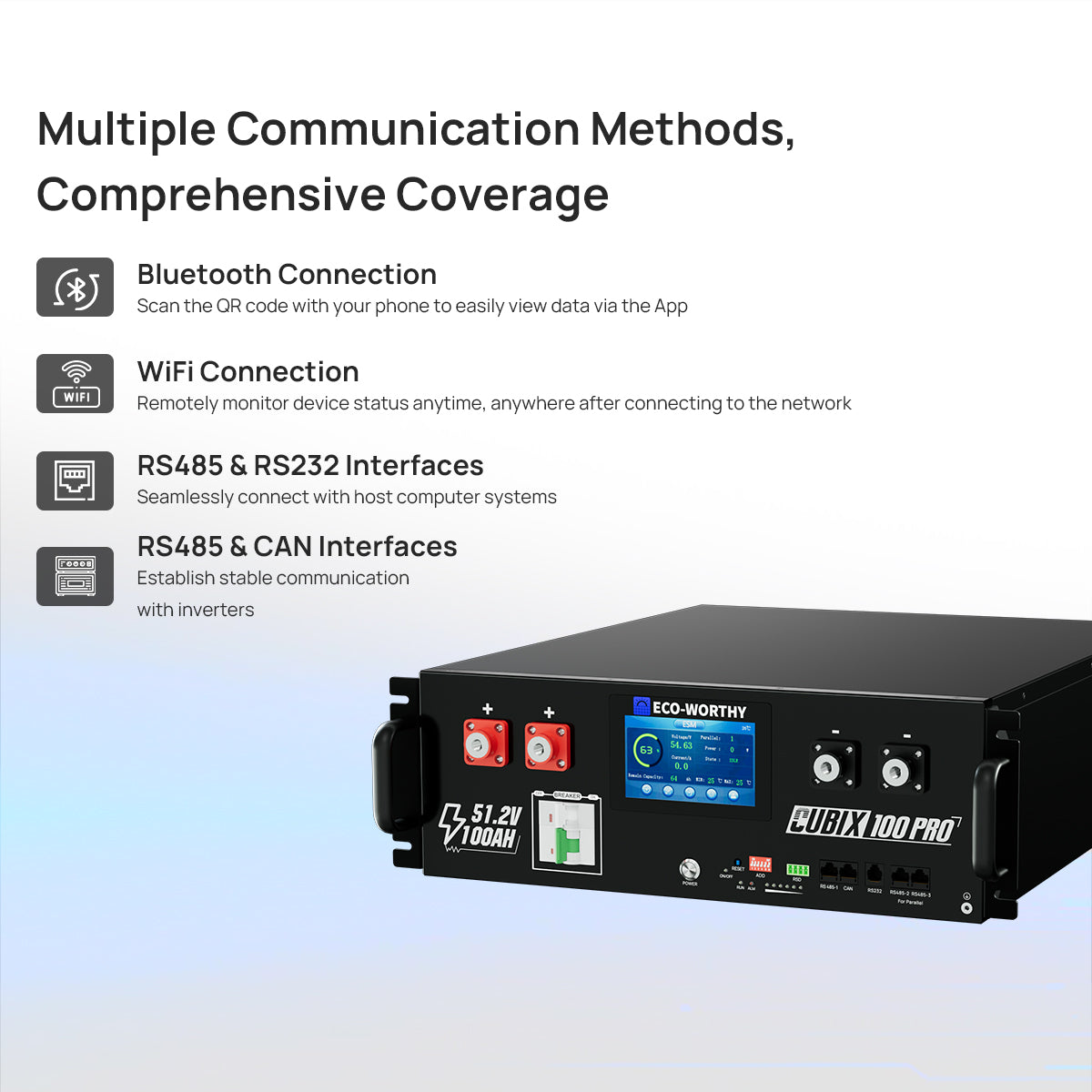

What communication methods are supported?

+

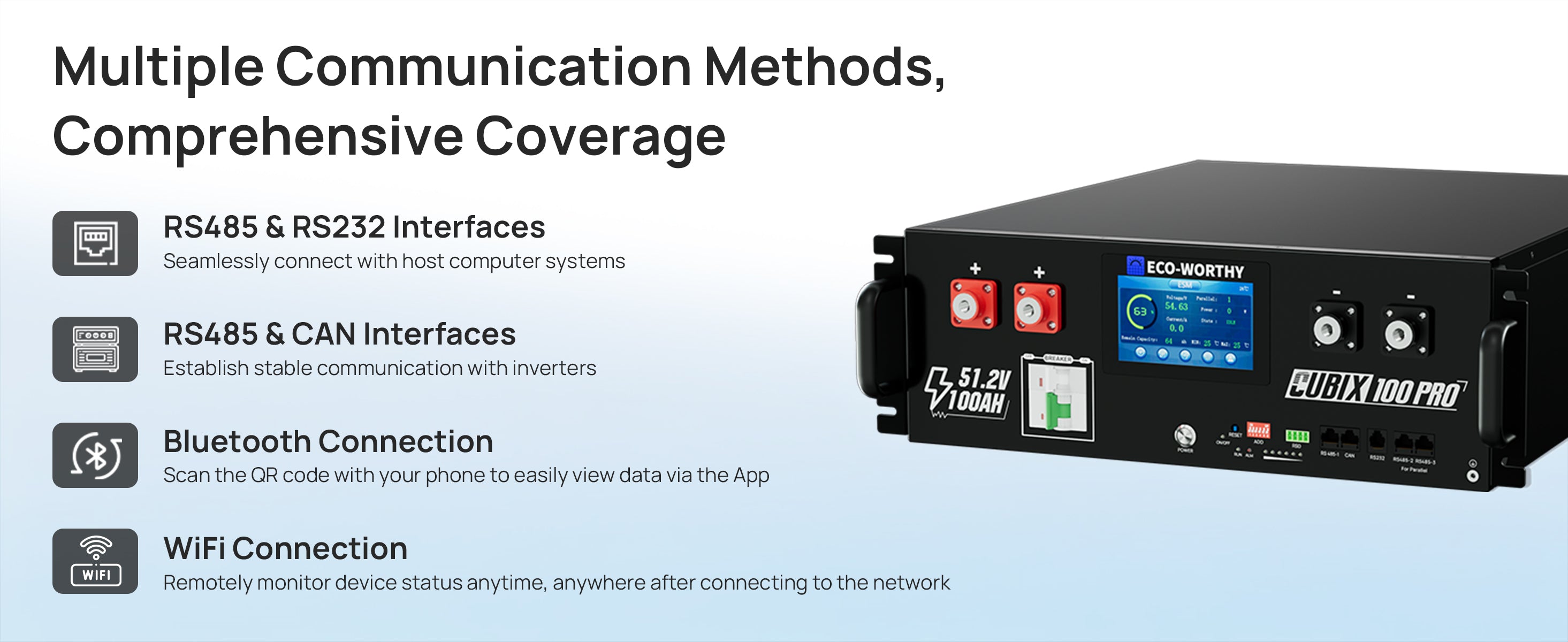

Our battery supports Bluetooth/WiFi for mobile apps; RS485 for PC software and inverters; CAN for inverter communication; and RS232 for PC software.

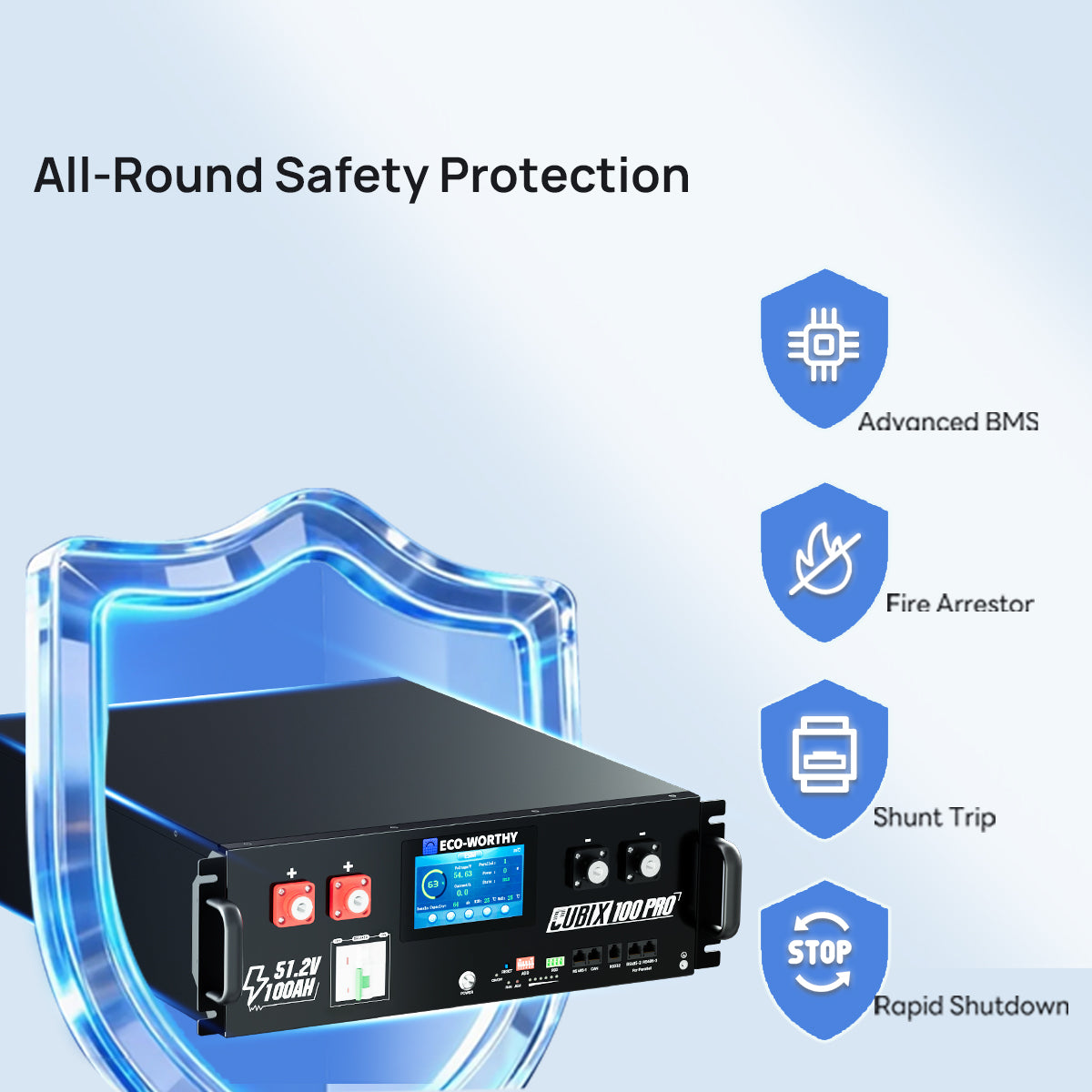

What safety designs does the battery have?

+
Each battery has a built-in 100A BMS, pre-charge circuit, low-temperature charging strategy, 125A circuit breaker, trip unit, fire suppression, and RSD.

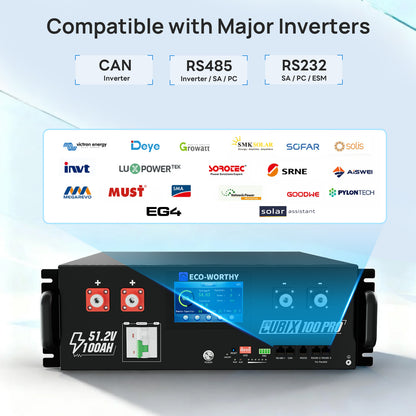

Which inverters can this battery communicate with?

+
Compatible with all major inverters: Victron, Deye, Growatt, Lux Power, Sol-Ark, GoodWe, EG4, SRNE, and more.

Are Cubix series batteries compatible with older versions and wall-mounted batteries?

+
It is compatible with older battery versions and wall-mounted batteries, but Cubix series batteries or wall-mounted batteries are recommended as the main device.

Do I need to buy battery cables separately?

+
Each battery includes 1 pair of parallel cables, screws, a grounding wire, and a communication cable — no extra purchase needed.

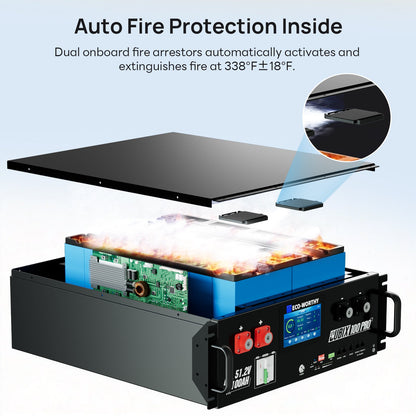

How do fire suppression devices work?

+
Once the fire suppression reaches the trigger temperature (338℉±18℉),, the fire suppression releases a large number of extinguishing particles, which quickly extinguish the fire by inhibiting the chemical reaction of the flame and displacing oxygen.

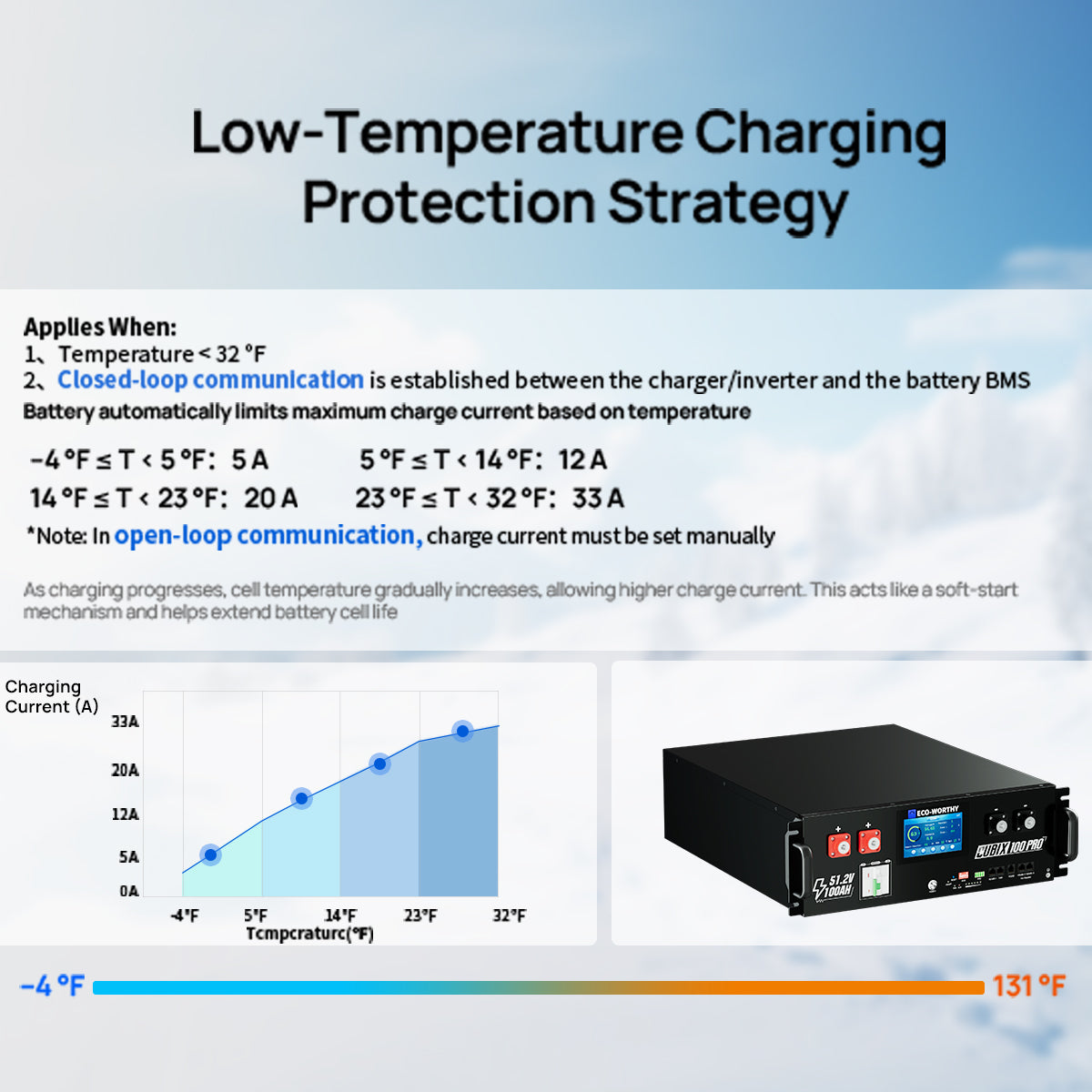

What precautions should be taken when charging at low temperatures?

+
During charging, communication should be established with the inverter or charger to utilize low-temperature strategies and ensure cell lifespan.

How is communication established between older server rack batteries, Cubix series, and wall-mounted batteries?

+
When connecting the parallel communication cables, there is no strict requirement for a specific port-to-port connection. However, for better consistency and stability, it is recommended to connect RS485-2 or RS485-IN to RS485-2 or RS485-IN, and RS485-3 or RS485-OUT to RS485-3 or RS485-OUT.
