3500W Solar Off-grid AIO Inverter, 48Vdc to 120Vac, 4400W@150V PV Input
3500W Solar Off-grid AIO Inverter, 48Vdc to 120Vac, 4400W@150V PV Input
SKU: L03SRUS3.5KWYTJ-1
[Best Entry-Level Inverter ] Ideal for Small Barns, Cabins, RV Builds, Home Critical Loads.
[3500W Continuous Power] Great Entry-Level 48V AIO Inverter Model, scalable up to 21kW with 6 units in parallel.
[Low-Voltage Solar MPPT] 4400W Solar Input Capacity,145VDC Solar Input Voltage,80A Solar Charge Current.
[120V Single Phase ] 120Vac Output and more than 2 inverters can output 120v/240v in parallel.
[Closed Loop Available] Real-time, two-way exchange of critical battery data (such as SOC, voltage, current, tempe.),compatible with eco-worthy batteries and other batteries using the PylonTech communication protocol.
[All-IN-ONE] Included inverter, AC-DC charger,MPPT Solar charge,Wifi and Bluetooth module in one unit.
Code:
Copy CodeCouldn't load pickup availability


| AC Input Mode | |
| Rated Input Voltage: 110/120VAC | Input Voltage Range: 90V-140VAC |
| Frequency: 50Hz/60Hz(auto detect) | Overload/Short Circuit Protection: Circuit breaker |
| Efficiency: 92% | AC Reverse Protection: Available |
| Max Bypass Overload Current: 40A | |
| Invert Mode | |
| Output Voltage Waveform: Pure Sine Wave | Rated Output Power: 3500W |
| Rated Output Voltage: 120VAC | Peak Power: 6000W |
| Bypass Breaker: 40A | Rated Battery Input Voltage: 48V |
| Min Starting Voltage: 44V | Power Saving Mode: Load ≤50W |
| AC Charging Mode | |
| Battery Type: Lead acid or lithium battery | Max Charge Current: 40A |
| Charge Voltage Range: 40-60VDC | Overcharge Protection: Alarm and turn off charging after 1 minute |
| PV Charging Mode | |
| Max Input Power: 4400W | PV Charging Current Range:0-80A |
| Max PV Open Circuit Voltage: 145VDC | PV Operating Voltage Range: 60-145VDC |
| MPPT Voltage Range: 60-115VDC | Battery Voltage Range: 40-60VDC |
| Max Output Power: 4200W | Charging Short Circuit Protection: Blown fuse |
ECO-WORTHY 3500W 48V All-in-One Off-Grid Inverter Charger integrates power inversion, battery charging, and system control into a single unit. Designed for off-grid solar applications, it converts 48V DC battery power into stable 120V AC output. Remote monitoring allows real-time system tracking, while parallel capability supports future expansion.
This inverter charger is ideal for cabins, off-grid homes, and backup power systems requiring reliable and scalable solar energy conversion.
We hope you have enjoyed your online shopping experience with ECO-WORTHY. Please read below for more information about our shipping and return policies.
SHIPPING
You will receive a confirmation e-mail after placing an order and another e-mail after your order has been shipped. The second one will contain the tracking information and some instructions on how to track your parcel. Depending on your order, your purchase may arrive in multiple packages.
ORDER PROCESSING
Procession time can take between 1-3 business days.
The time it takes to prepare your item(s) to ship from our American local warehouse. This includes preparing your items, performing quality checks, and packing for shipment.
SHIPPING COUNTRIES
We offer a free shipping service for most of mainland from our American local warehouse.
Note: HI, AK, PR & US Territories
(Free shipping is not available for customers in Hawaii (HI), Alaska (AK), Puerto Rico (PR) or any US Territory. Please contact us for a shipping quote on your order.)

SHIPPING TIME
All items sold at ECO-WORTHY are guaranteed to be delivered in 30 days.
If you have not received your item(s) beyond this time, you are eligible for a full refund after we have conducted a postal investigation.
|
Shipping from |
Shipping to |
Shipping time |
tracking information |
|
US warehourse |
Most of the U.S. states |
3 - 5 business days |
tracked |
Freight: Larger Panels Kits must be shipped by freight, the shipping time is 5-14 business days.
Note: The shipping times mentioned above refer to the estimated times of business days that the shipment will take after an order has been shipped. Business days do not include Saturday/Sunday and any public holidays. These estimates are based on normal circumstances and are not a guarantee of delivery times. We are not responsible for the failures or delays in delivery resulting from any force majeure event, such as natural disaster, bad weather, war, and any other event beyond our direct control, such as public holidays and customs issues.
Full refunds are not available under the following circumstances:
1. Delays caused by the buyer providing incorrect or incomplete delivery information.
2. Delays in delivery caused by any force majeure incidents, such as natural disasters, bad weather, and war.
3. Any un-insured order that is lost or stolen.4. Delays in delivery caused by any other beyond ECO-WORHTY's control, such as public holidays and Customs issues.
GUARANTEE & RETURN POLICY
14 Days DOA Product Guarantee
If one or more of the items you received are damaged, different, or not working, you will be protected by this Guarantee. Please contact us for Return Material Authorization within 14 days of the order being received. In the event of a replacement, ECO-WORTHY will arrange for return shipment of the defective unit, and once the part has been received and inspected, we will ship out the replacement part within 3 working days. To qualify under our Defective on Arrival policy, goods must be returned in their original packaging. Goods returned without original packaging will not be accepted.
30 Days No Reason Return
Standard in stock merchandise purchased through ECO-WORTHY may be returned within 30 days of the receipt of the product. You will receive a refund or credit towards your account, provided the merchandise is returned in the original packaging in new and resalable condition with the original blank warranty cards, manuals, and all accessories. ECO-WORTHY will pay the shipping costs of the returned item(s) for the following reasons: carrier damage, defective product, product inconsistent with advertisements, incorrect product received, or for any extra products you did not order. For all other reasons, customers are responsible for the return shipping fees. ECO-WORTHY requires at minimum 1-2 working days to inspect a returned item prior to issuing a refund or credit.
Please note that ECO-WORTHY will not accept returns with product modifications as it voids our warranty policy. Any modified products received will be returned to you at your expense.
Please be prepared with your invoice or the following information:
Order number
Proof of purchase
Video or photo of the faulty product (if applicable)
Mailing address
Contact telephone number
Please carefully follow our warranty process to minimize any delays:
1. Describe the problem with your item in detail: What happened? When? How? Please also state your full order number and product code (SKU number).
2. Tell us what steps you have already taken to resolve the issue.
3. Provide the item code indicated on the outer packaging.
4. Send a clear photo or video showing the defect(s); these should be taken under good lighting.

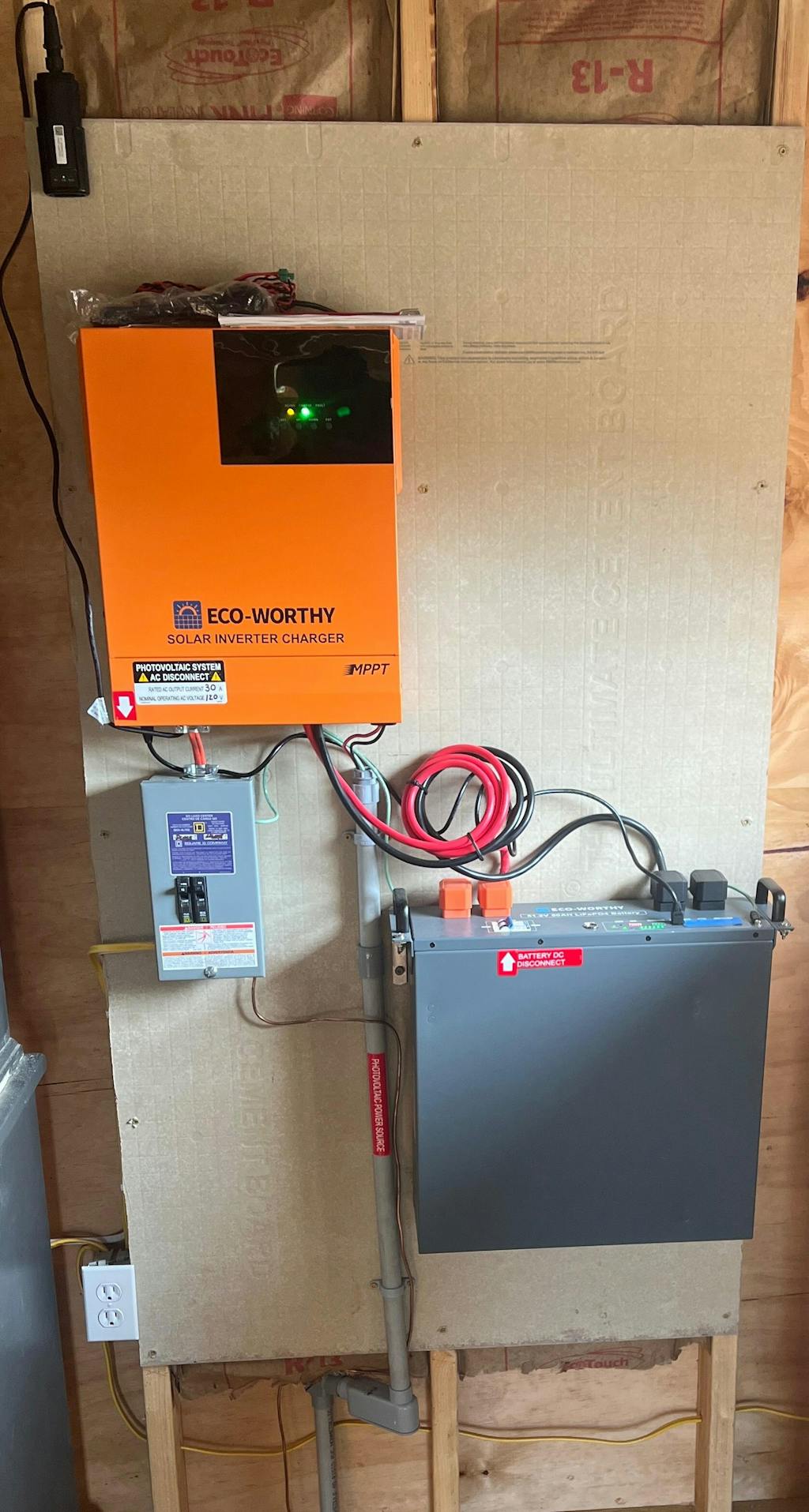

Amazing little inverter, set up for a customer needing power for a shed. Used 4 panels at 2.1KW wired at 96v input: Fan is not loud so far so good. Battery set up was a bit confusing as the manual did not state how to set up the data port to inverter. Lets See how log it lasts.
