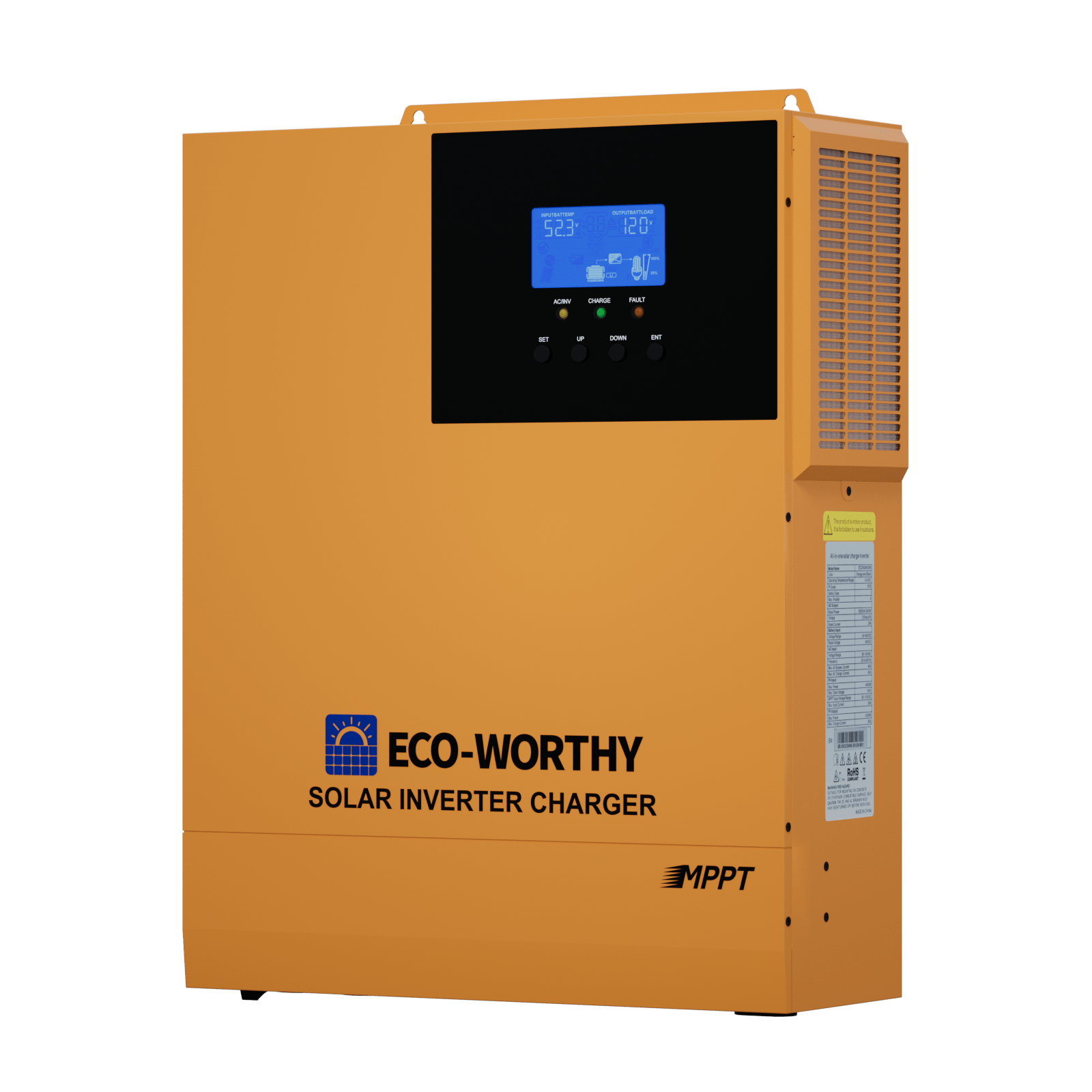

ECO-WORTHY 3500W 48V DC to 120V AC All-in-one Solar Off-grid Inverter Charger with Remote Monitoring,Multiple Parallel Ability.
ECO-WORTHY 3500W 48V DC to 120V AC All-in-one Solar Off-grid Inverter Charger with Remote Monitoring,Multiple Parallel Ability.
SKU: L03SRUS3.5KWYTJ-1

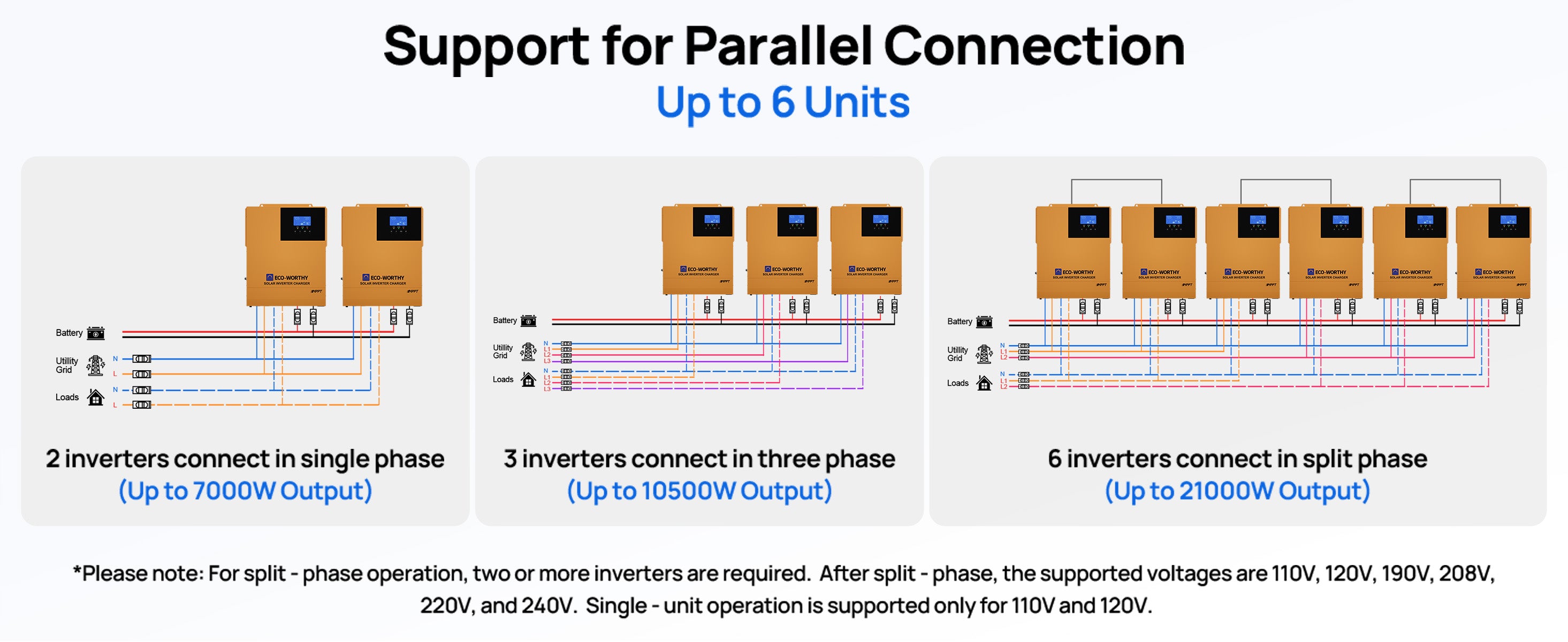

[Parallel Supportable] Parallel support up to 6 units-21kw Max. It can be single phase or separate phase parallel.The output voltage of one inverter is 120v, and more than two inverters can output 120v/208v/240v in parallel. (Two units MINIMUM have to be in parallel to achieve 220V power.)
[Versatile Battery Compatibility] Start lithium batteries via PV solar or mains. Our system allows the use of both lead-acid batteries and lithium batteries, offering you the flexibility to choose the power storage solution that best suits your needs
[Convenient Adjustment & Monitoring] Our product allows easy parameter setting via the LCD screen and buttons. Meanwhile, the ability to remotely monitor various data in real time on your phone ensures worry - free use
[Seven Layers of Protection] Our product is equipped with seven protection functions, such as short-circuit protection, overload protection, and reverse connection protection. Say goodbye to potential electrical hazards and fully enjoy a safe life
Code:
Copy CodeCouldn't load pickup availability



















AC Input Mode | |
Rated Input Voltage: 110/120VAC | Input Voltage Range: 90V-140VAC |
Frequency: 50Hz/60Hz(auto detect) | Overload/Short Circuit Protection: Circuit breaker |
Efficiency: 92% | AC Reverse Protection: Available |
Max Bypass Overload Current: 40A | |
Invert Mode | |
Output Voltage Waveform: Pure Sine Wave | Rated Output Power: 3500W |
Rated Output Voltage: 120VAC | Peak Power: 6000W |
Bypass Breaker: 40A | Rated Battery Input Voltage: 48V |
Min Starting Voltage: 44V | Power Saving Mode: Load ≤50W |
AC Charging Mode | |
Battery Type: Lead acid or lithium battery | Max Charge Current: 40A |
Charge Voltage Range: 40-60VDC | Overcharge Protection: Alarm and turn off charging after 1 minute |
PV Charging Mode | |
Max Input Power: 5000W | PV Charging Current Range:0-80A(can be set) |
Max PV Open Circuit Voltage: 500VDC | PV Operating Voltage Range: 120-450VDC |
MPPT Voltage Range: 120-450VDC | Battery Voltage Range: 40-60VDC |
Max Output Power: 4400W | Charging Short Circuit Protection: Blown fuse |
