Technical Specifications
Rated Power
130W
Maximum/Peak Voltage(Vmp)
21.10V
Short circuit current
6.50A
Output Tolerance
±3%
Temperate coefficient of Voc
-(0.38+/-0.01)%/℃
Weight
6.28 lbs
Solar Cell
Monocrystalline
Open Circuit Voltage(Voc)
24.50V
Maximum current
6.16A
Temperate coefficient of Isc
(010+/-0.01)%/℃
Temperature range
-40℃~ +85℃
Size of extension cable
4mm²(11AWG)/MC4 Connector

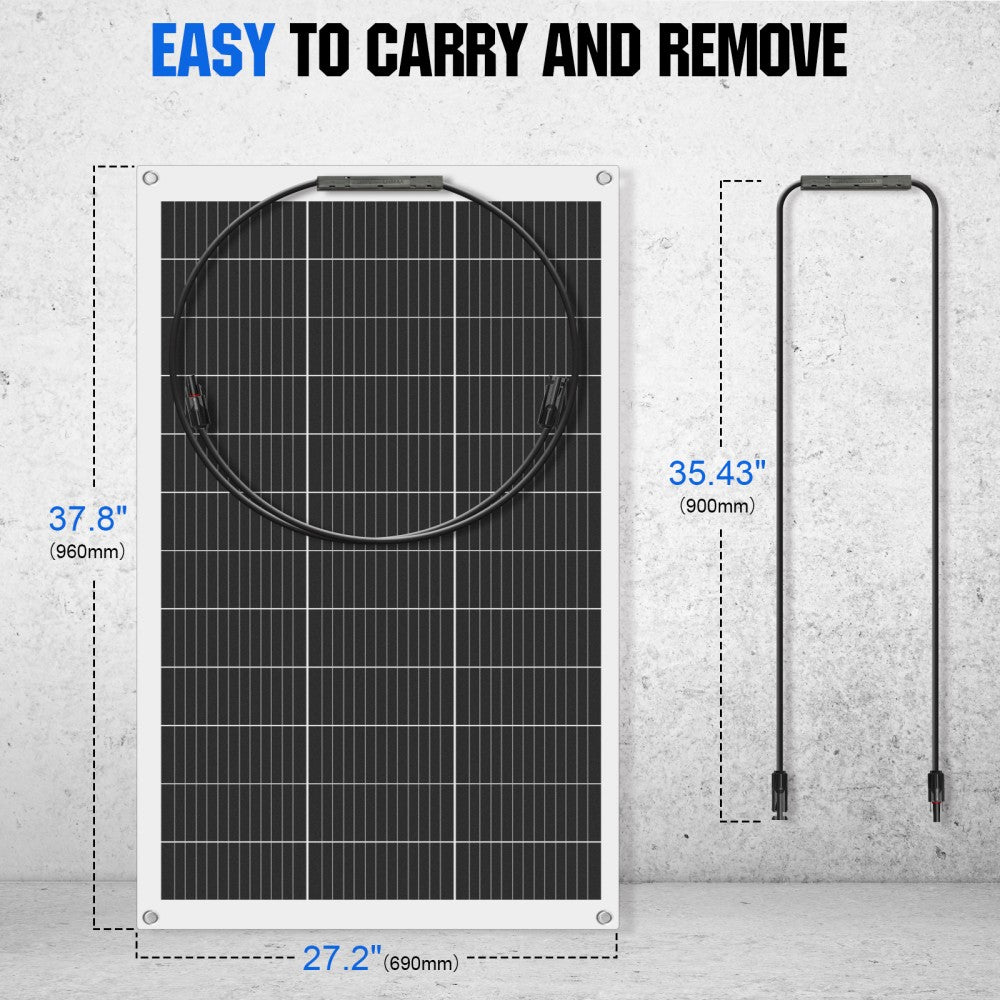

Size
37.8 x 27.1 x0.1 in
Included in the Box
User manual
ECO-WORTHY 130W 12V Flexible Mono Solar Panel Manual
Download
