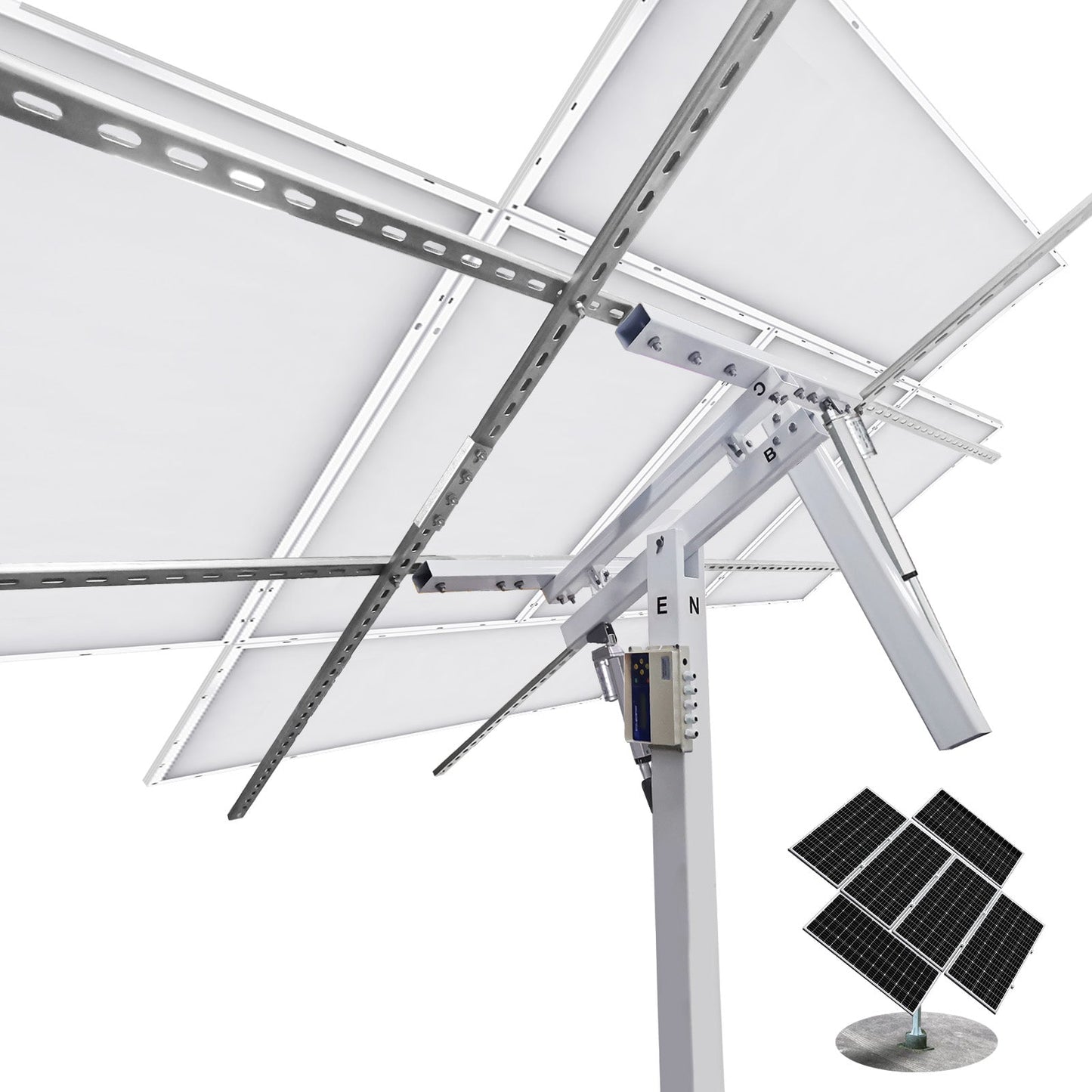

Dual Axis Solar Tracking System with Solar Tracker
Dual Axis Solar Tracking System with Solar Tracker
SKU: L03TGSF12-SCB-1
·1-Year Warranty: This product comes with a 1-year warranty for added peace of mind. Rest assured that if there are any issues within the first 12 months after purchase, you can rely on the manufacturer's commitment to support.

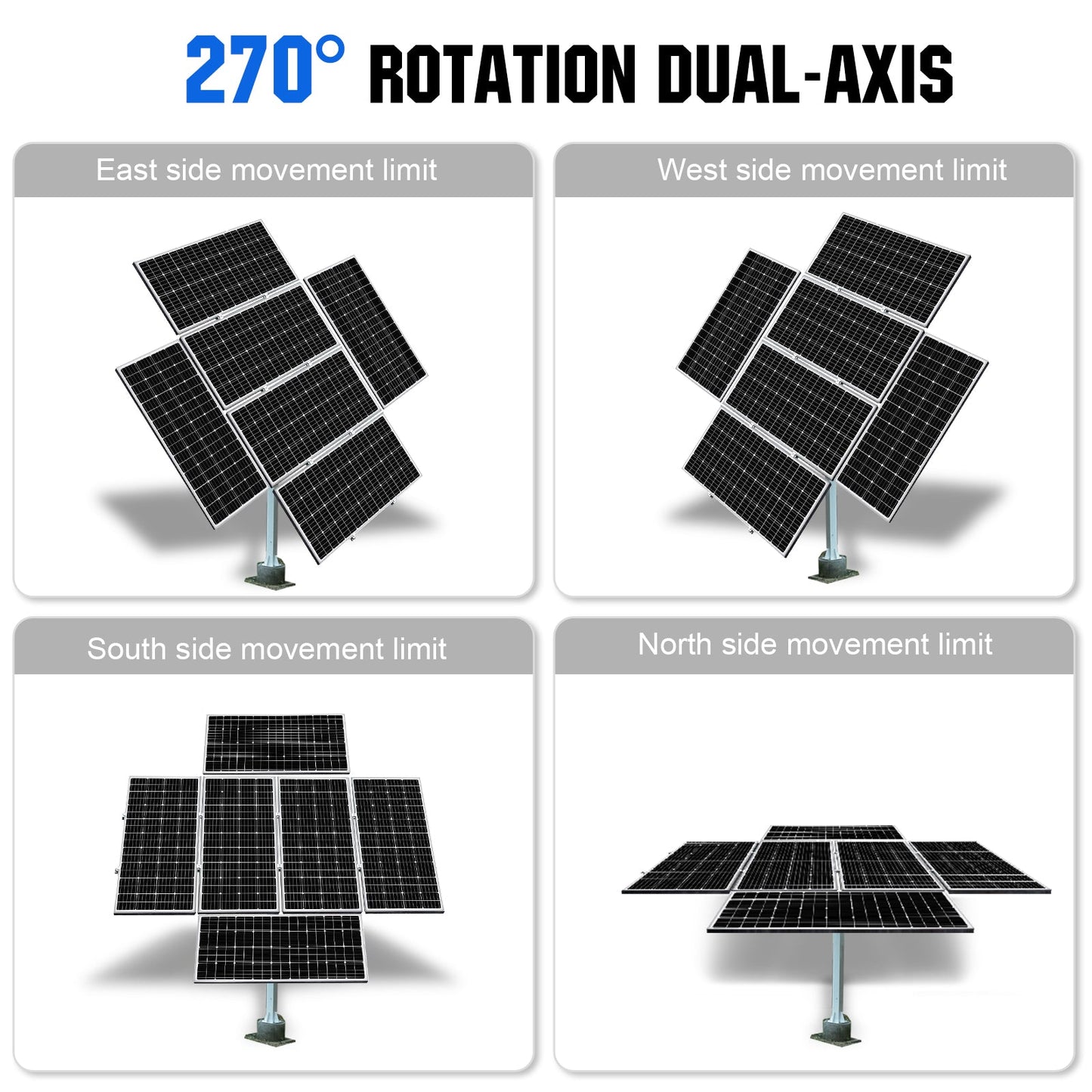

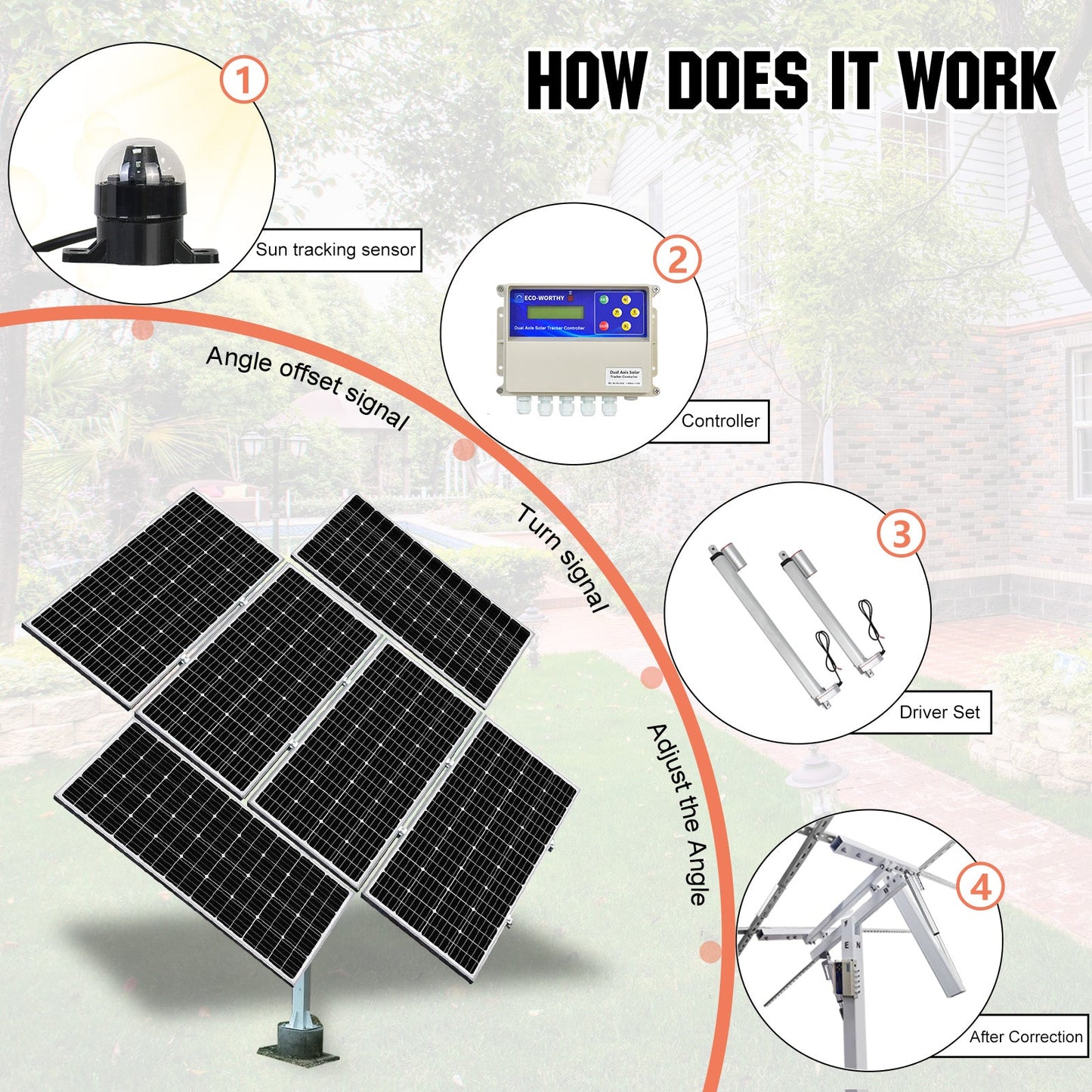

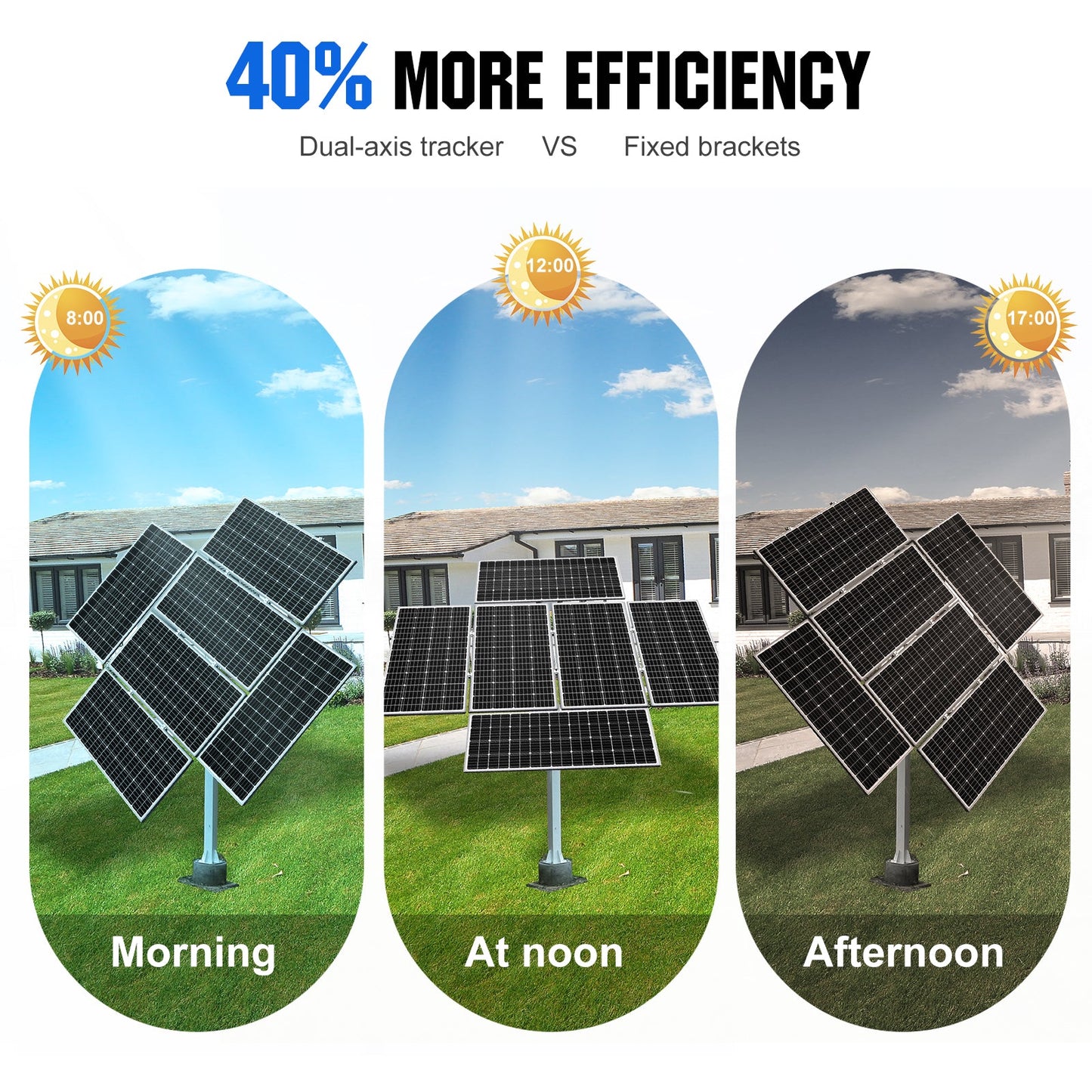

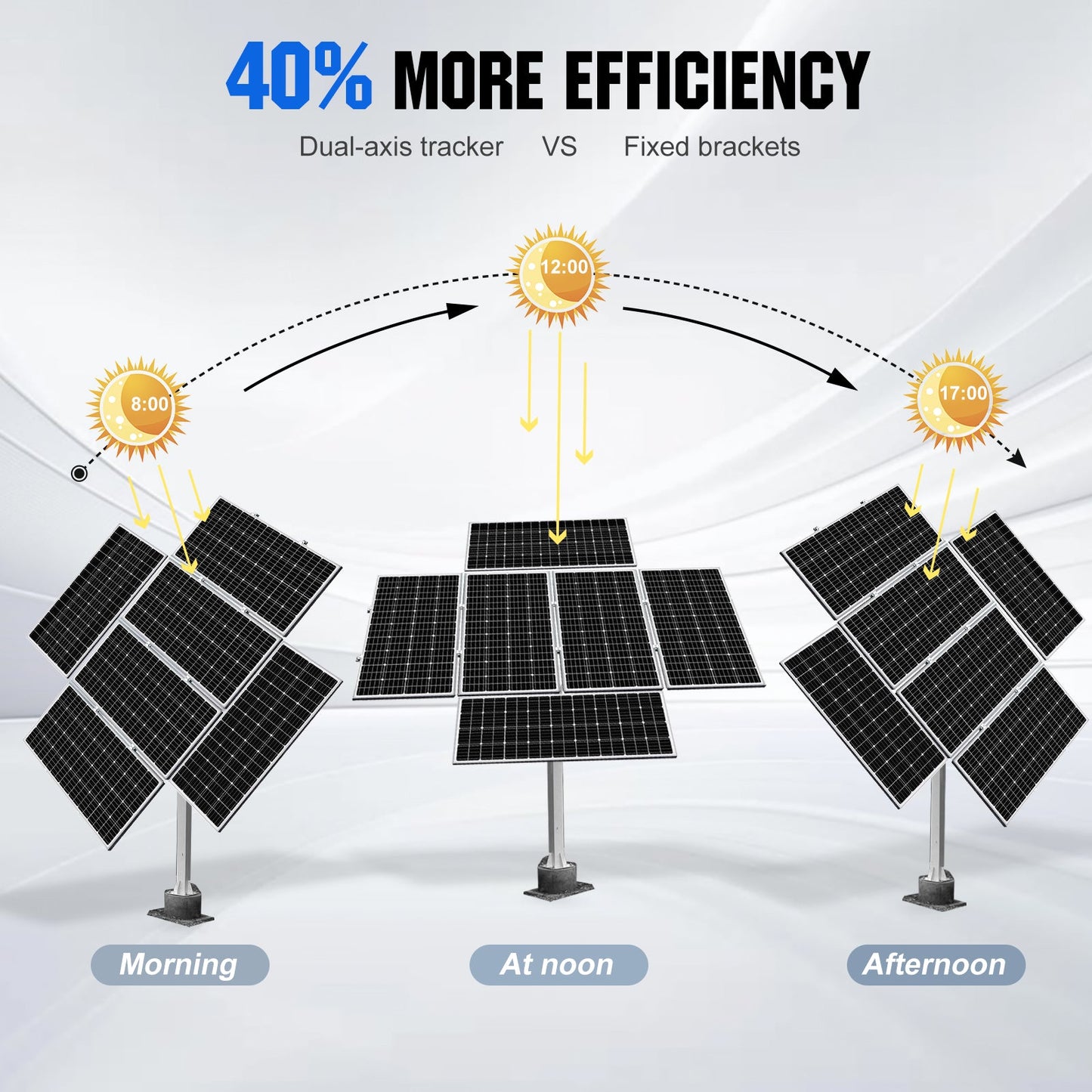

·270°Rotation: With 2 axis driving and sensitive sunshine sensor, the solar tracker can rotate for 270°, and make the panels to absorb the sun irradiance from north, south, west and east sides.

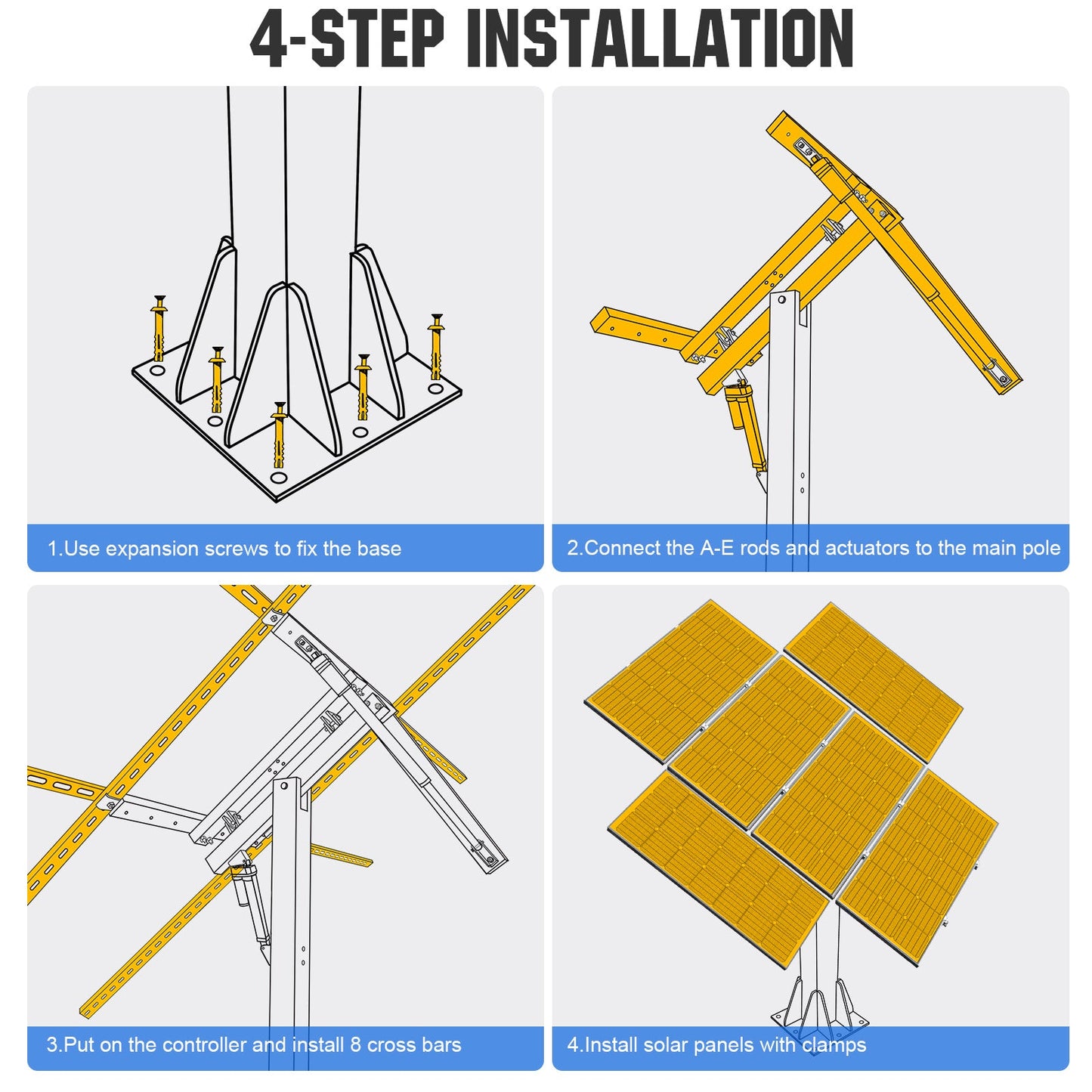

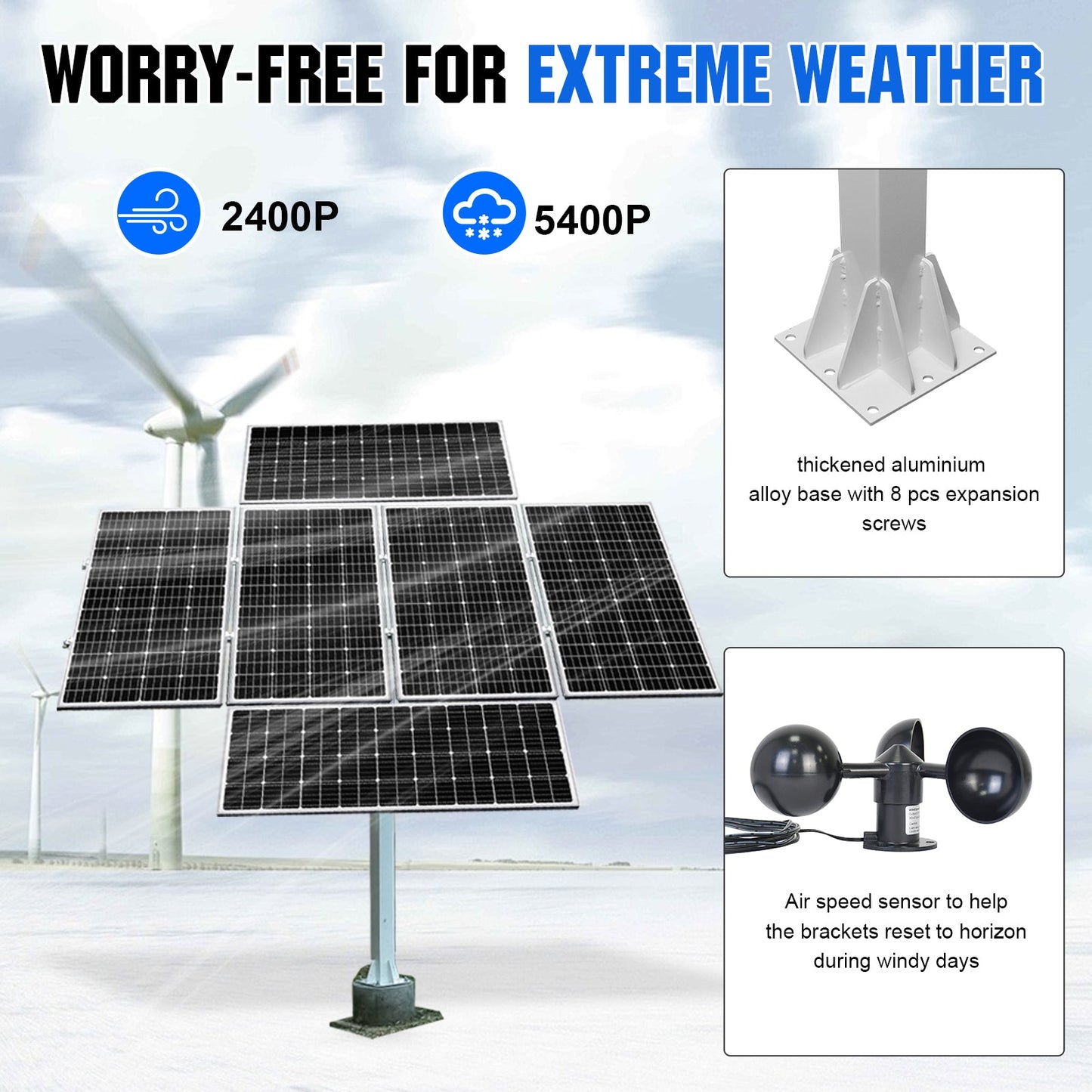

·Steady in Wind: There is a air speed sensor for windy days, when it detects heavy wind (data can be set manually), the solar tracker will auto reset the angle to horizon for keeping steady. Also, by drilling the expanding screws to ground, the base can firmly stand in hurricane or storm without problem.

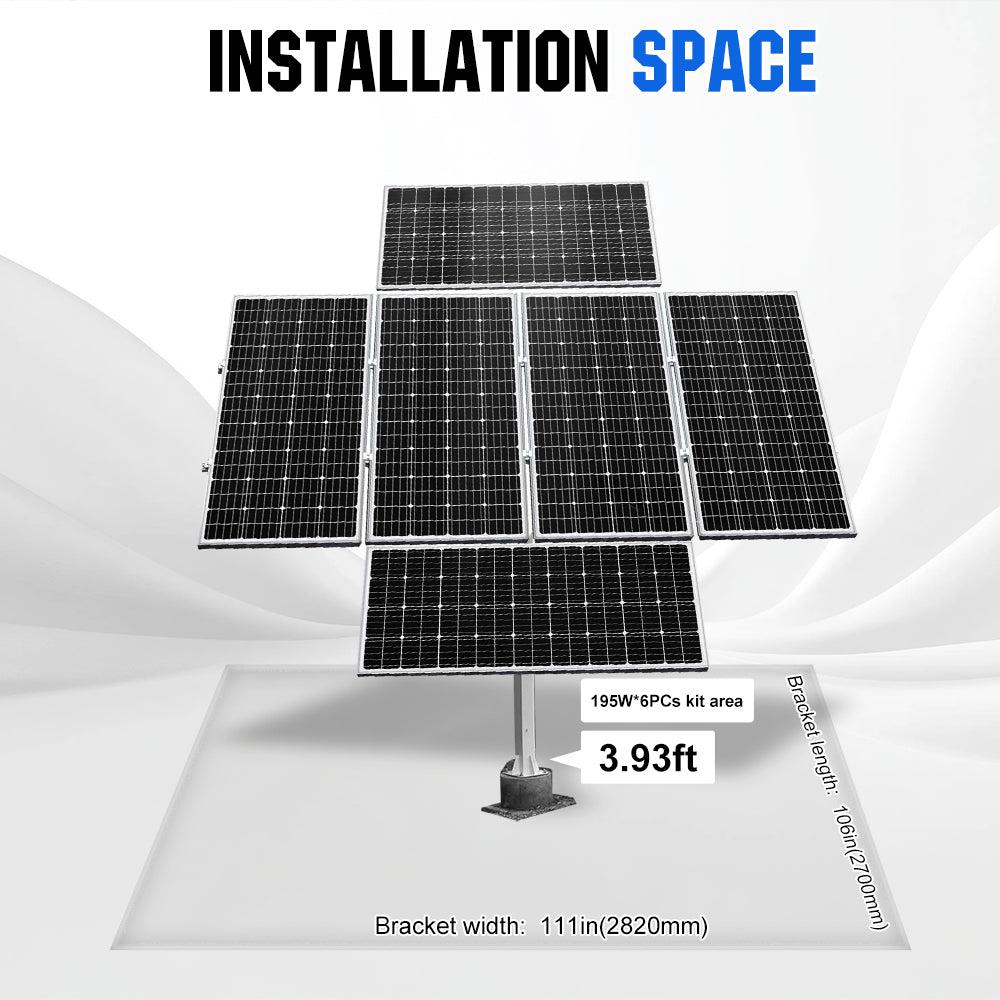

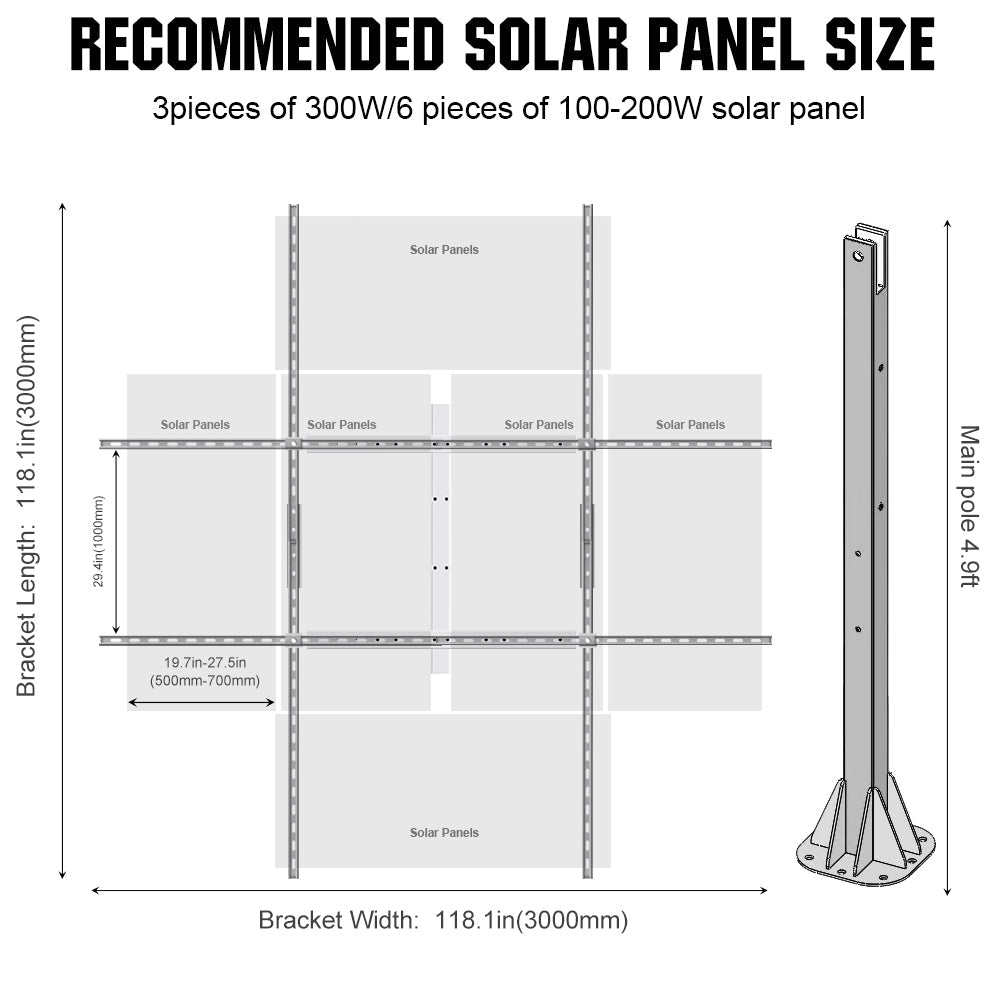

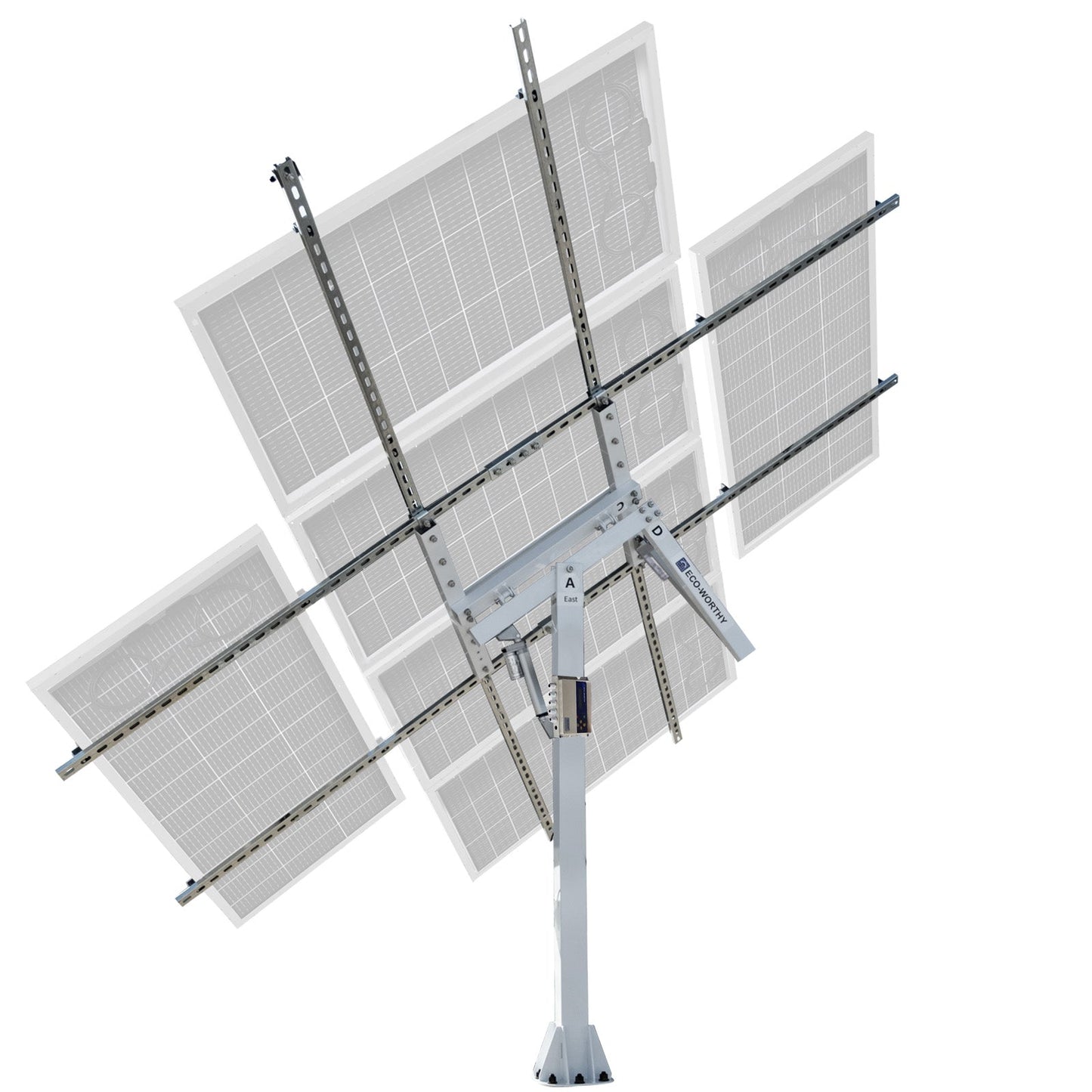

·For Different Panels: Please calculate according to the length information provided. The cross-rod length: 114.2in(2900mm), width:29.4in(1000mm); Vertical rod length (each side): 45.6in(1160mm), width:30.3in(770mm). With 1500N driving rods.
Using the coupon code, save extra $100 at checkout
Extra $100 Off
Code: BRACKET100
Copy CodeCouldn't load pickup availability















Dual Axis Solar Tracking System
Package 1 Weight: 19.7kg/43.4lbs | Package 1 Dimension: 72.5*28.5*19.0cm/28.5*11.2*7.5inch |
Package 2 Weight: 23.6kg/52.0lbs | Package 2 Dimension: 155.0*25.8*26.2cm/61.0*10.1*10.3inch |
6" 150mm Linear Actuator
Input Voltage: 12V DC | Max. Load: 1500N/330lbs/150kg |
Stroke Length: 6 inches (150mm) | Duty Cycle: 25% |
Protection Class: IP65 | Material: Aluminum alloy |
Low Noise: db<45 (A) |
12" 300mm Linear Actuator
Input Voltage: 12V DC | Max. Load: 1500N/330lbs/150kg |
Stroke Length: 12 inches (300mm) | Duty Cycle: 25% |
Protection Class: IP65 | Material: Aluminum alloy |
Low Noise: db<45 (A) |

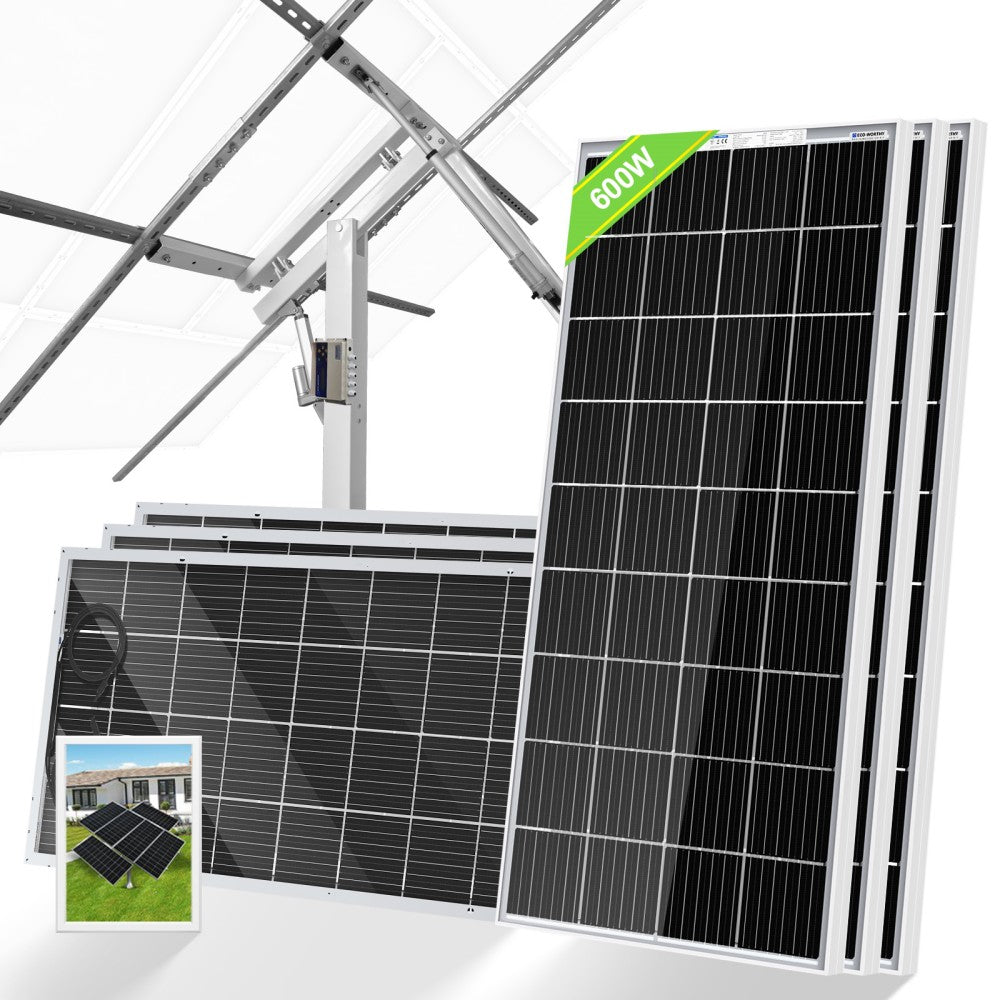

Bifacial 195W Monocrystalline Solar Panel
Rated Power: 195W | Solar Cell: Monocrystalline |
Maximum/Peak Voltage(Vmp): 19.8V | Open Circuit Voltage(Voc): 23.7V |
Short circuit current: 10.5A | Maximum current: 9.85A |
Output Tolerance: ±3% | Temperate coefficient of Isc: (010+/-0.01)%/℃ |
Temperate coefficient of Voc: -(0.38+/-0.01)%/℃ | Temperature range: -40℃~ +85℃ |
Frame: Aluminum alloy frame | Weight: 20.48 lbs(9.29 kg) |
Size: 52.6x26.38x1.38in (1335*670*35mm) |
