Power your home with the ECO-WORTHY Cubix100 48V 100Ah LiFePO4 server rack battery, a UL9540-certified energy storage solution designed for solar systems and home backup power. Built with Grade A lithium cells, a 100A smart BMS, and full safety protections, it delivers reliable, long-lasting performance. Monitor your system in real time via Bluetooth, WiFi, or CAN/RS485, and easily expand up to 32 units for scalable energy storage. Ideal for off-grid solar, RVs, and residential use, this lithium battery ensures energy independence, lower utility costs, and dependable backup power—backed by a 10-year warranty.
Pictures
Videos
🐬Summer Sale

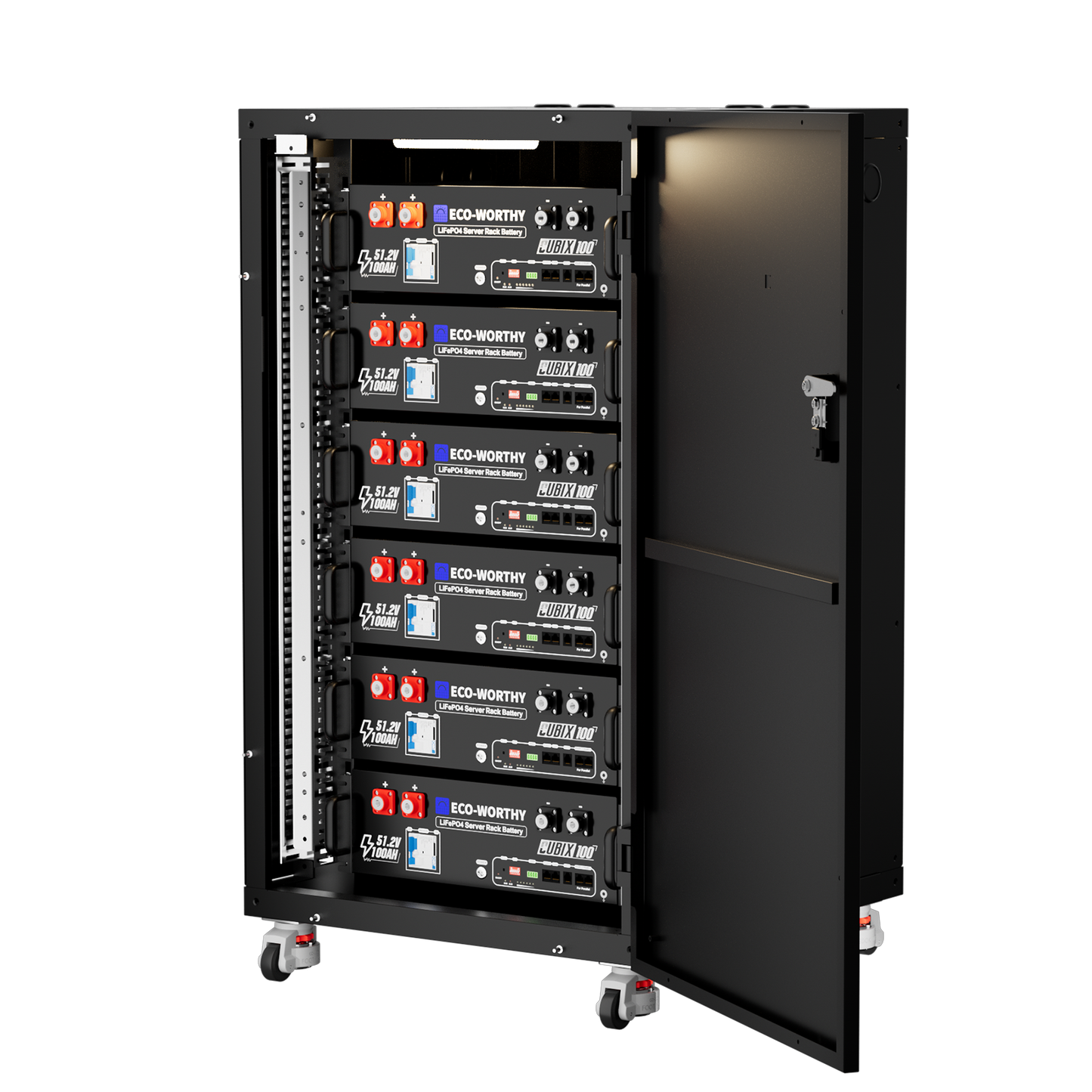

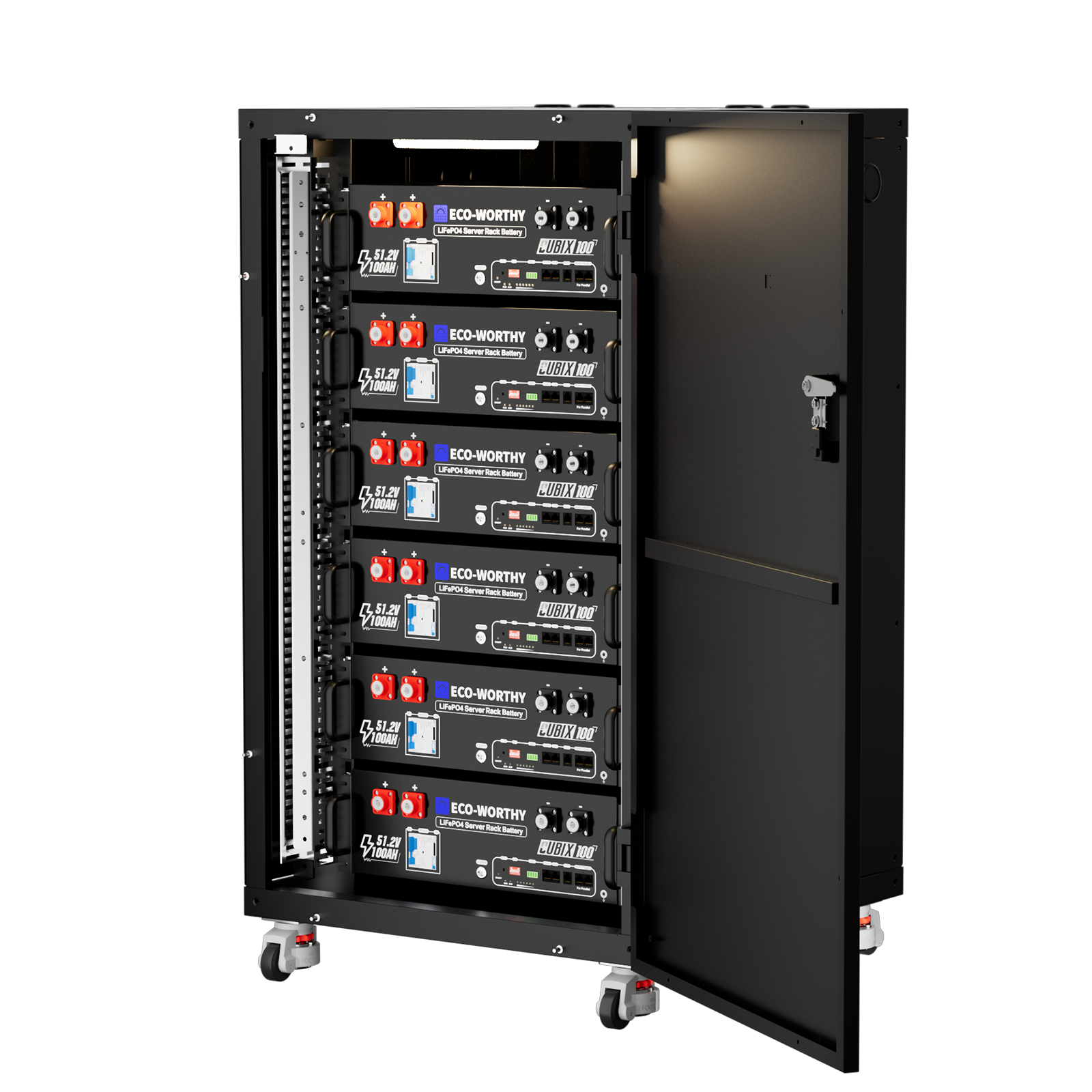

ECO-WORTHY Cubix100 48V 600AH (6Pack 48V 100AH) Lithium Lifepo4 Battery With RACK6 V3 Server Rack Battery Cabinet
ECO-WORTHY Cubix100 48V 600AH (6Pack 48V 100AH) Lithium Lifepo4 Battery With RACK6 V3 Server Rack Battery Cabinet
Regular price
$5,999.99
Sale price
$5,999.99
Regular price
$6,299.99
Unit price
per
Shipping calculated at checkout.
SKU:
SKU:GW-L03L100AHCUBIX-JGPACK6-6
Read More
Total Price
$5,999.99
Couldn't load pickup availability
Free Shipping
Return Guarantee
Secure Payment
or 4 interest-free payments of $1,499.99 with
Installments available at checkoutShop with Confidence at Eco-Worthy
Free & Fast Delivery
14-Day Money-Back Guarantee
Up To 10-Year Warranty
Lifetime Customer Support
Pay with ease
Trusted delivery

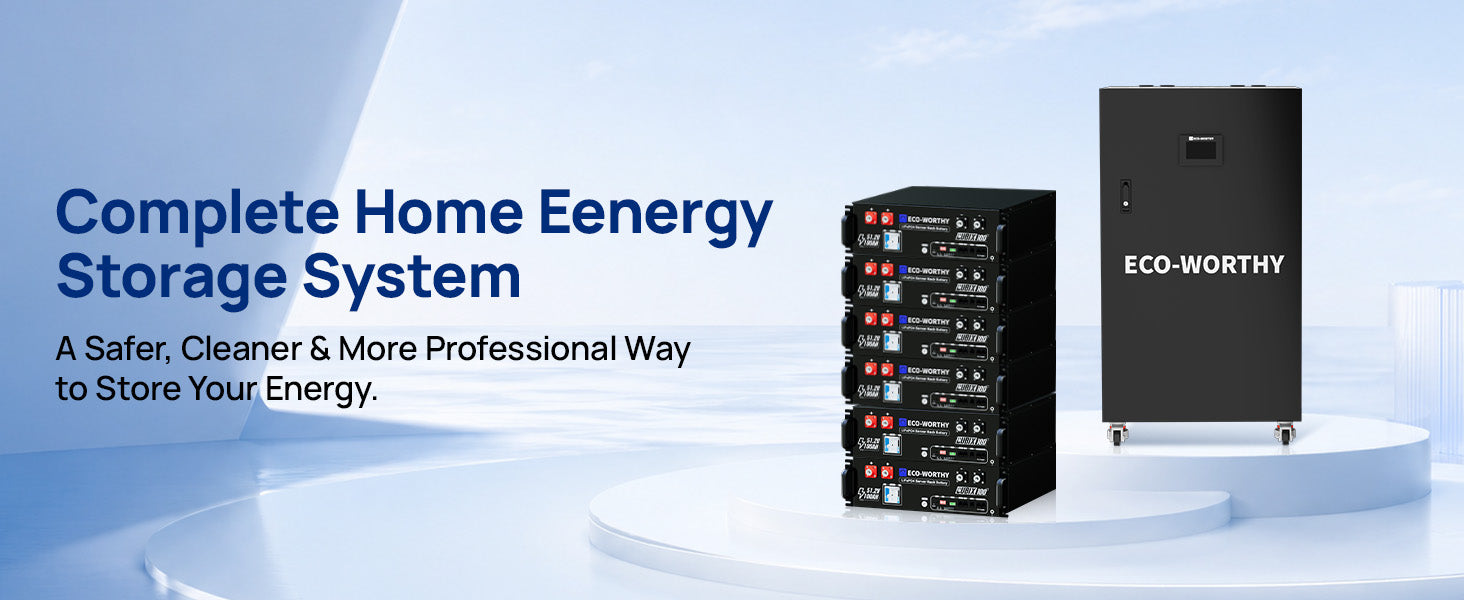

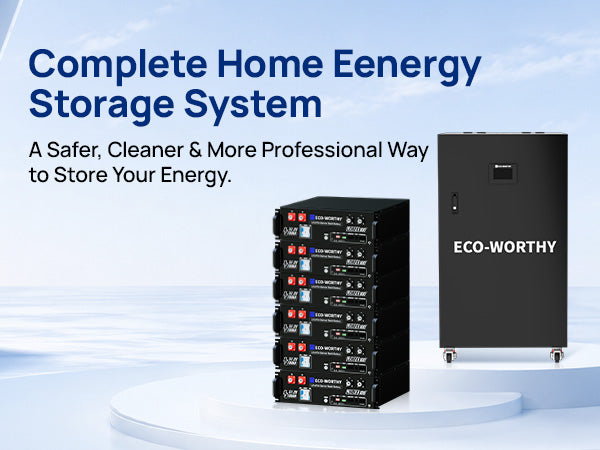

The Best Home Energy Storage Solution
Technical Specifications
48V 100Ah Server Rack Battery

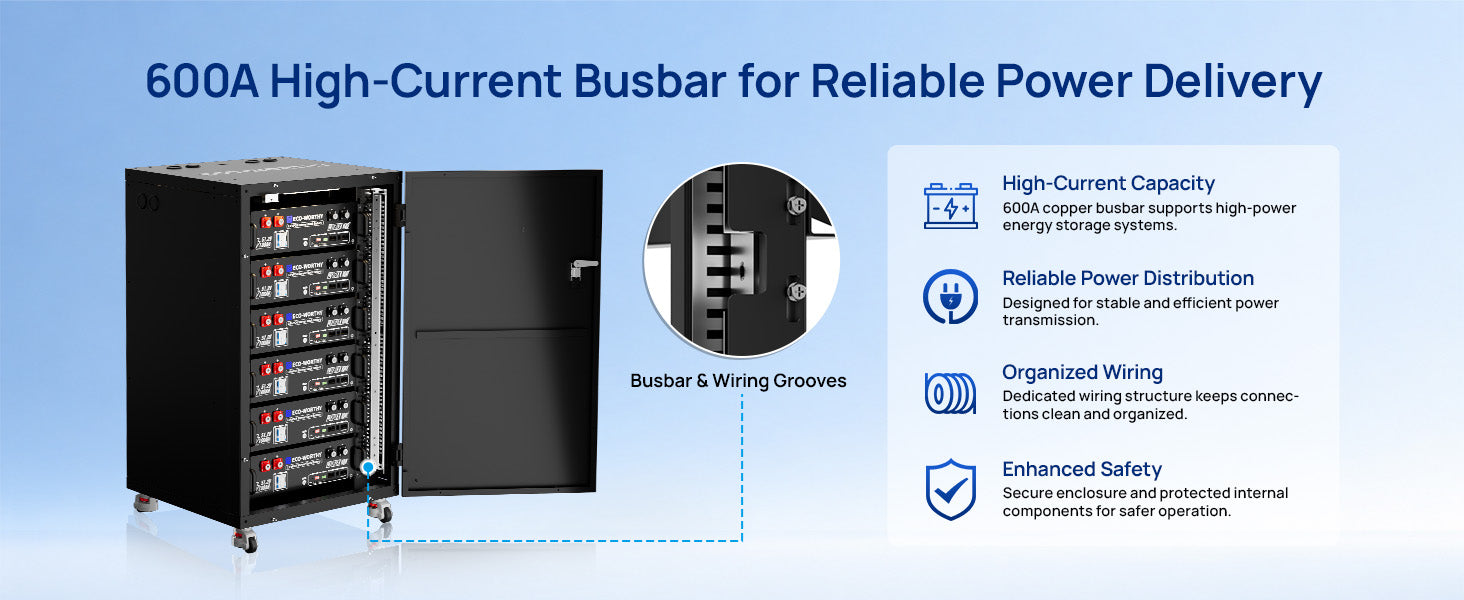

ECO-WORTHY RACK6 V2.1 I 6-Layer Rack With 600A Busbar
Battery Capacity
100Ah
Battery Power
5120Wh
Rated Voltage
40~58V
Maximum Charge/Discharge Current
100A
Charge Temperature Range
0-55°C
Discharge Temperature Range
-20-55°C
Voltage Range
40~58V
Maximum Charge Voltage
58.4V
Screw size
M8
Battery Size
22.09*19.02*5.63inch
Battery Weight
103 lbs
Certification
UL9540 | UL1973 | UL9540A | CEC LISTED
Warranty
10 Year Warranty
Package Gross Weight
47 kg ±1kg
Product Dimensions
47.32 in × 23.07 in × 21.93 in
Effective Space per Layer
20.87 in × 17.44 in × 6.50 in

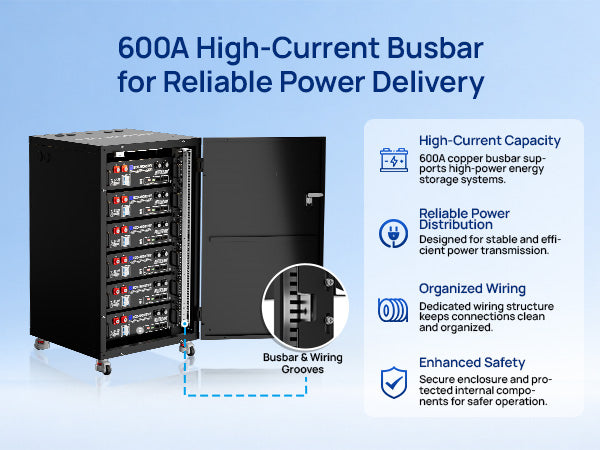

Busbar Dimensions
W 40 mm × H 4 mm
Busbar Current Rating
600 A
Busbar Material
T2 Copper
Battery Capacity
Up to 6 batteries
Material
Metal
Included in the Box
User manual
Eco-Worthy 48V 100Ah Server Rack Battery Manual online-26.03.17
DownloadATM for ECO-WORTHY UL9540 DC ESS
DownloadATM for ECO-WORTHY UL9540 AC ESS
DownloadEco-Worthy 48V 100Ah Server Rack Battery Software Manual Online-2026.3.17
DownloadEco-Worthy_51.2V_100AH_9540A_VOC
DownloadEco-Worthy 48v 100ah BMS_Tool&Drive_for_Windows
DownloadEco-Worthy 48v 100ah LFP4810002_UL1973_Certification
DownloadEco-Worthy 48V 100Ah Server Rack BatteryFirmware.13.5.1-260225 (V3 compatible)
DownloadFrequently Asked Questions
What certifications do you hold?
+

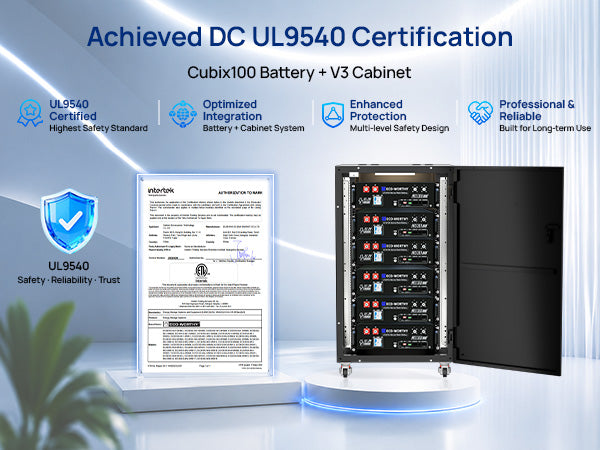

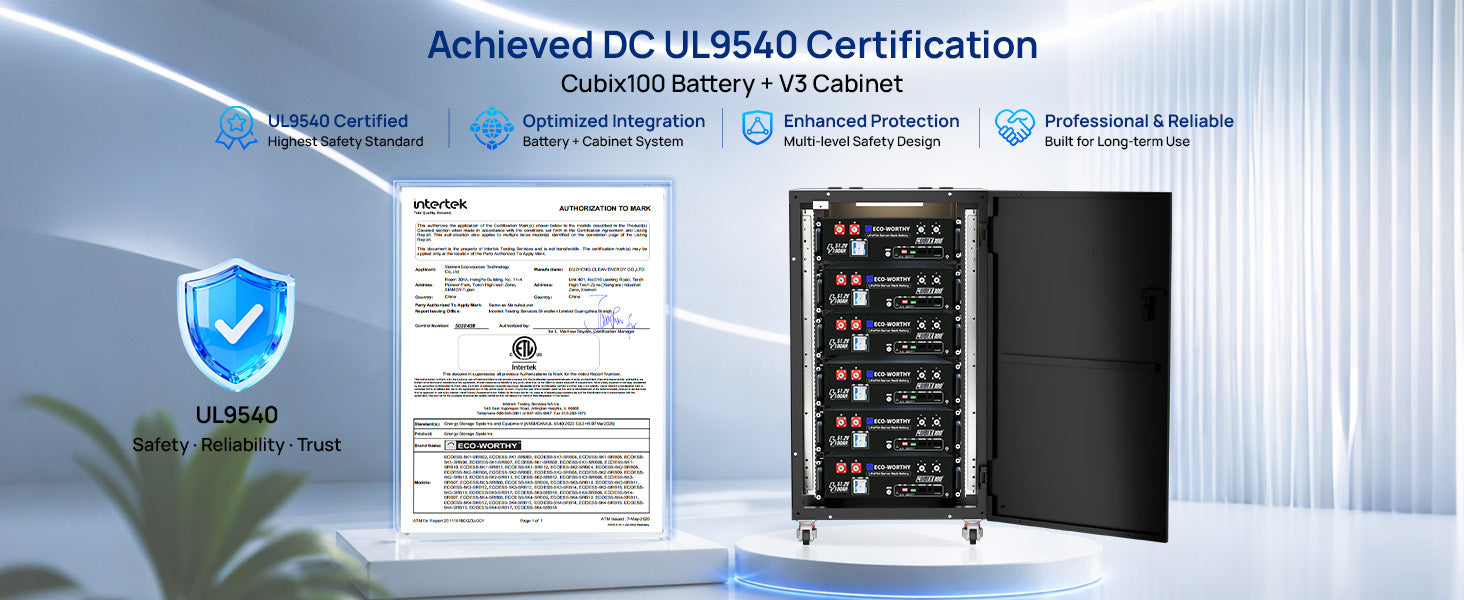

Our Eco-Worthy Cubix100 48V 100Ah battery has obtained UL1973, UL9540A, and CEC listed. This battery also has successfully undergone system-level UL 9540 testing conducted by Intertek, covering both DC and AC systems. (Please contact our customer service team for further details.)
What is the warranty period of the battery?
+
We offer 10-year warranty for 51.2v server rack lithium battery,covering non-human-induced battery failure issues.When you buy this solar kit, you are covered by the full manufacturer warranties on each component. Plus, you’ll receive our lifetime customer and technical support.
What communication methods are supported?
+
Our battery communicate via built-in Bluetooth/WiFi with mobile apps; RS485-1 on the front panel communicates with host computer software, mainstream inverters, and Solar Assistant; CAN interface communicates with inverters; RS232 interface communicates with host computer software.
What kind of battery cells are used?
+
We use 100% A-grade prismatic cells from REPT, ensuring 6000 cycles at 80% DOD.
What safety designs does the battery have?
+
Each battery includes a built-in 100A BMS, a pre-charging circuit, and a 125A short-circuit protection switch on the front panel.
Which inverters can this battery communicate with?
+
Compatible with all major inverters: Victron, Deye, Growatt, Lux Power, Sol-Ark, GoodWe, EG4, SRNE, and more.
Do I need to update the JBD software for 32 parallel units?
+
Yes. Please download here: https://app.eco-worthy.com:7778/Download/BMS-Tool&Drive-for-Windows.zip
Does the mobile app need to be updated for 32 parallel units?
+
Yes. Upgrade the "Lithium Battery IoT Cloud" app to version 1.6.6.
Do I need to buy battery cables separately?
+
Each battery includes 1 pair of parallel cables, screws, a grounding wire, and a communication cable — no extra purchase needed.
