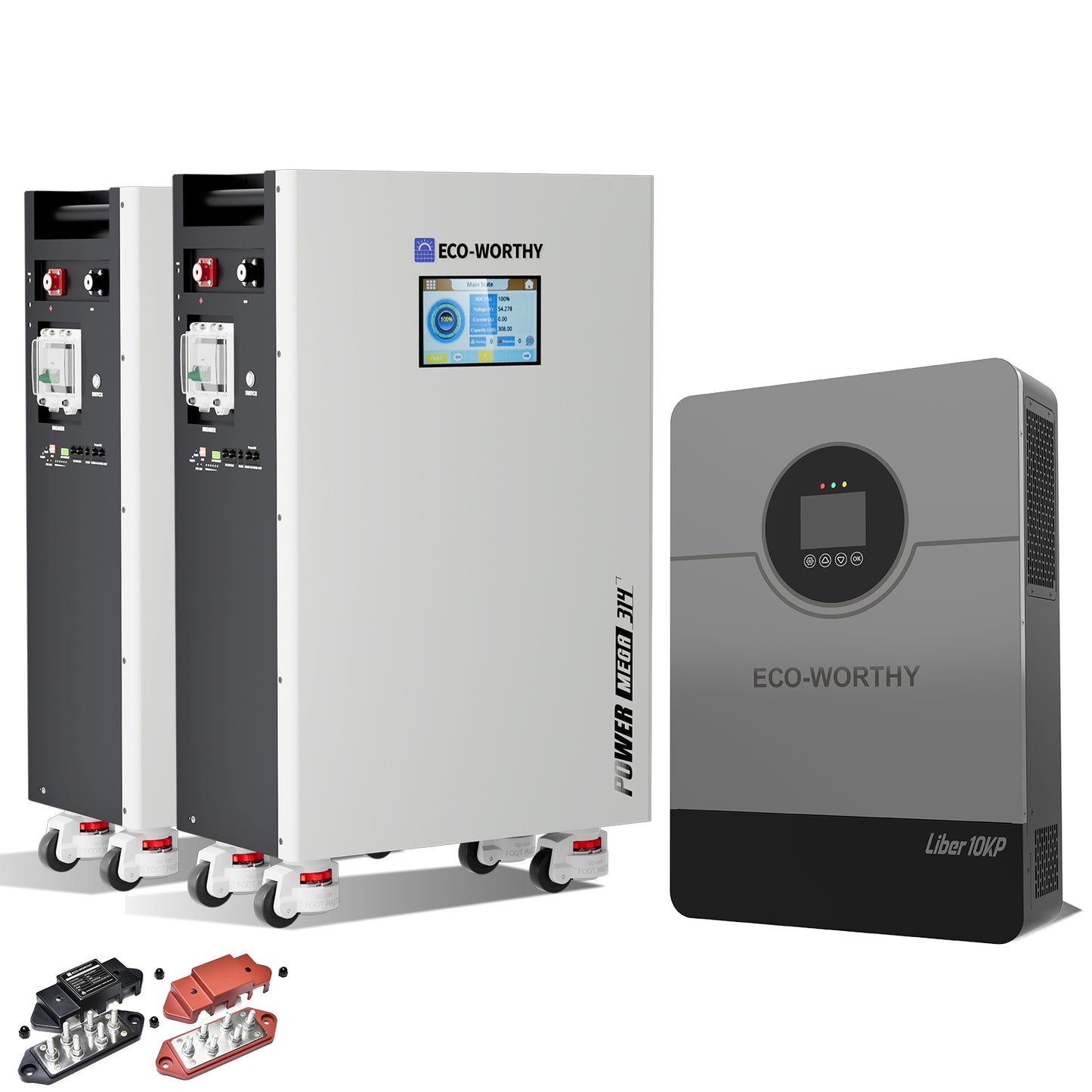

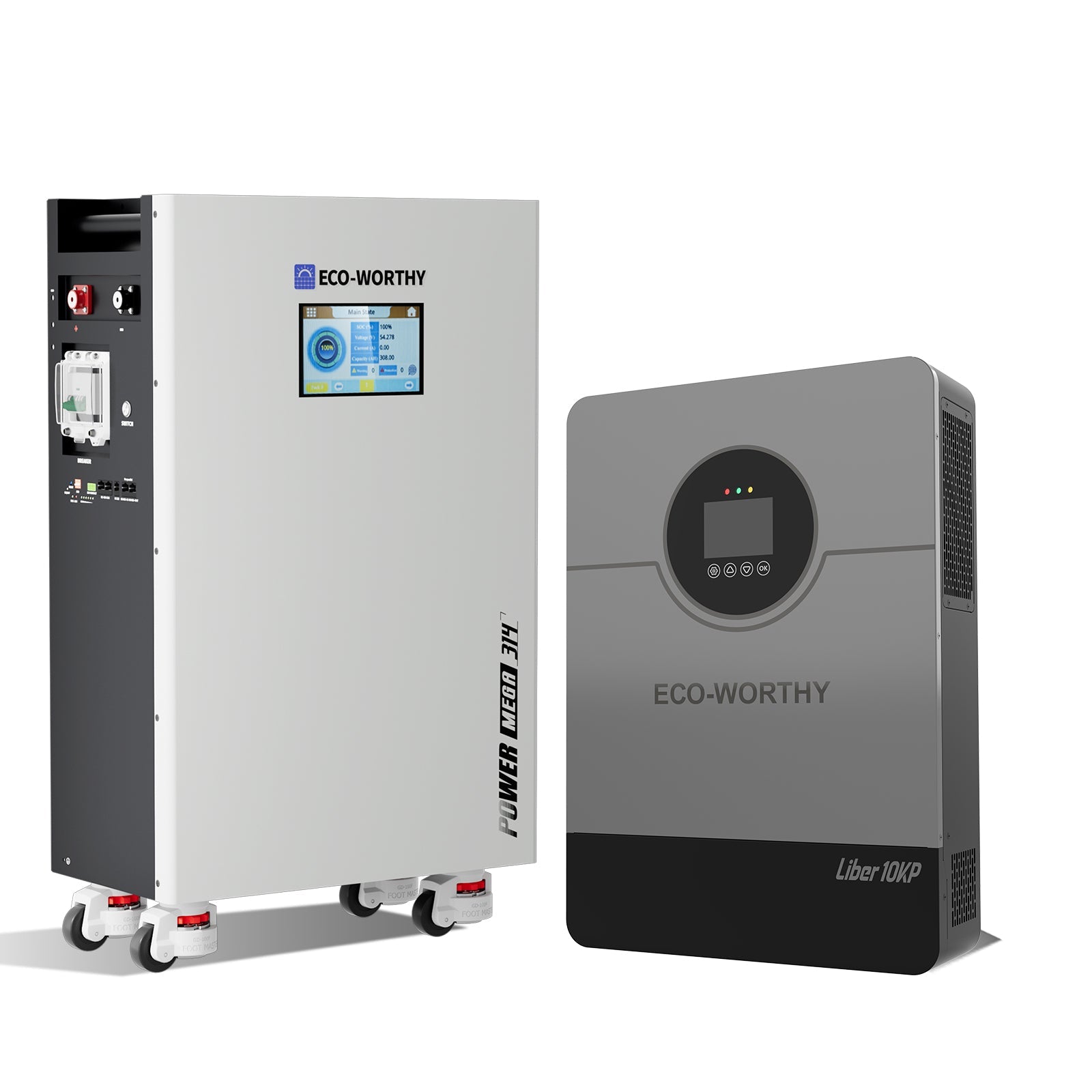

Home Collection Eco-Worthy 10kW Home Backup Solar Power Bundle | PowerMega 314 51.2V 314Ah Battery and 48V 10000w Off Grid Inverter
  • ECO - WORTHY PowerMega 314 Home Backup Power 16.08KWh 51.2V 314Ah Battery+10kW 48V Off Grid Inverter - lithium battery - ECO - WORTHY
  • ECO - WORTHY PowerMega 314 Home Backup Power 16.08KWh 51.2V 314Ah Battery+10kW 48V Off Grid Inverter - lithium battery - ECO - WORTHY
  • ECO - WORTHY PowerMega 314 Home Backup Power 16.08KWh 51.2V 314Ah Battery+10kW 48V Off Grid Inverter - lithium battery - ECO - WORTHY
  • ECO - WORTHY PowerMega 314 Home Backup Power 16.08KWh 51.2V 314Ah Battery+10kW 48V Off Grid Inverter - lithium battery - ECO - WORTHY
  • ECO - WORTHY PowerMega 314 Home Backup Power 16.08KWh 51.2V 314Ah Battery+10kW 48V Off Grid Inverter - lithium battery - ECO - WORTHY
  • ECO - WORTHY PowerMega 314 Home Backup Power 16.08KWh 51.2V 314Ah Battery+10kW 48V Off Grid Inverter - lithium battery - ECO - WORTHY
  • ECO - WORTHY PowerMega 314 Home Backup Power 16.08KWh 51.2V 314Ah Battery+10kW 48V Off Grid Inverter - lithium battery - ECO - WORTHY
  • ECO - WORTHY PowerMega 314 Home Backup Power 16.08KWh 51.2V 314Ah Battery+10kW 48V Off Grid Inverter - lithium battery - ECO - WORTHY
  • ECO - WORTHY PowerMega 314 Home Backup Power 16.08KWh 51.2V 314Ah Battery+10kW 48V Off Grid Inverter - lithium battery - ECO - WORTHY
Pictures
Videos
Prime Day Sale

Eco-Worthy 10kW Home Backup Solar Power Bundle | PowerMega 314 51.2V 314Ah Battery and 48V 10000w Off Grid Inverter

Eco-Worthy 10kW Home Backup Solar Power Bundle | PowerMega 314 51.2V 314Ah Battery and 48V 10000w Off Grid Inverter

$3,399.99
$3,399.99 $4,799.99
Sale Sold out
Shipping calculated at checkout.

SKU:

GW-L03L314A-NKUS10KW-1

[High Capacity & Flexible Expansion] 16 Grade-A 314Ah cells provide 16.08kWh per battery. Expand up to 15 units in parallel for large-scale energy storage.
[Safety Protection & Mobility] Advanced BMS with full protection features. Built-in buzzer alerts and nylon wheels for easy positioning and safe operation.
[Parallel Operation & Power Flexibility] Supports up to 6 inverters in parallel (60kW max). Delivers both 110V and 220V output; battery-free mode ensures continuous load support.
[Smart Charging Management] Features 3 output modes and 4 charging modes with time-based scheduling. Compatible with 10000W PV input and 20000W peak power.
[Extremely Long Life] Engineered for longevity with over 10,000 cycles and 80% DOD retention, providing more than ten years of dependable service.

Return Policy For 48v 314ah Battery<<click to view more

Read More
Packs

Total Price

$3,399.99
Buy It Now

Free Shipping

Return Guarantee

Secure Payment

or 4 interest-free payments of $849.99 with

Installments available at checkout
Shop with Confidence at Eco-Worthy

Free & Fast Delivery

14-Day Money-Back Guarantee

Up To 10-Year Warranty

Lifetime Customer Support

Pay with ease

  • American Express
  • JCB
  • Mastercard
  • PayPal
  • Venmo
  • Visa

Trusted delivery

View full details
X
$3,399.99 $4,799.99
Learn More
Buy It Now
Feature
Included in the box
Reviews
FAQs

ECO-WORTHY Home Backup Power: 16.08kWh Battery + 10kW Inverter

Achieve total energy independence with this high-capacity solar storage system. The 51.2V 314Ah LiFePO4 battery (expandable to 15 units) pairs with a powerful 10kW off-grid inverter, supporting 120V/240V output for whole-home backup. With 10,000+ cycles, advanced BMS protection, and mobile cart design, it offers a durable, scalable, and safe power solution for off-grid living or emergency readiness.

Technical Specifications

Eco-Worthy 10000W Solar Off-grid Split-phase AIO Inverter
51.2V 314Ah LiFePO4 Battery

Rated output power

10,000W

Maximum peak power

20,000W

Rated output voltage

120/240VAC(single-phase/split-phase)

Loading motor capacity

6HP

Rated frequency

50/60Hz

Output wave

Pure sine wave

Switching time

10ms (typical value)

Parallel number

6

Battery type

Lithium-ionbattery/lead-acidbattery/user-defined battery

Rated battery voltage

48Vdc

Voltage range

40Vdc-60Vdc

Maximum PV charge current

200A

Maximum mains/generator charge current

120A

Maximum mix charge current

200A

MPPT channel number

2

Maximum input power

11,000W

Maximum Input Current

22/22A

Maximum open circuit voltage

500Vdc

MPPT operating voltage range

125 Vdc-425 Vdc

Input voltage range

90VAC-140VAC

Input frequency range

50/60 Hz

Bypass overload current

63A

Dimension

620 mm*445 mm*130 mm

Weight

27 kg

Protection level

IP20, for indoor use only

Ambient temperature

−10°C–55°C, >45°C derating

Noise

<60 dB

Cooling mode

Intelligent fan

Battery Capacity

314Ah

Battery Power

16.08kWh

Rated Voltage

51.2V

Voltage Range

40~58.4V

Maximum Charge/ Discharge Current

200A

Charge Temperature Range

0-55℃

Discharge Temperature Range

﹣20－55℃

Maximum Charge Voltage

58.4V

Battery Weight

279.99Ib/127kg

Battery Size

33.13*19.69*10.24in/84.15*50*26cm

Standard charge current

150A

Standard discharge current

150A

Max.charge current

200A

Max. discharge current

200A(initial temp.≤35 C)

Max. parallel number

15pcs

Model No

ECO-LFP4831400

Included in the Box
box image

1.1 x 10kW 48V All-in-one Inverter
2.2x 51.2v 314ah battery
3.1 x 51.2v 314ah battery manual
4.1 x Battery to Inverter communication cable(1500mm)
5.1 Pair Of Battery to Busbarcable(2AWG 1500mm Black)
6.1x400A busbar

User manual

Eco-Worthy 51.2V 314AH Manual

Download

Eco-Worthy 51.2V 314Ah Host Computer User Guide

Download

Eco-Worthy 10kW Solar Off grid Inverter Charger Manual

Download

Eco-Worthy ECO10000W-UL 1741

Download

Frequently Asked Questions

Are Eco-Worthy batteries safe for home use?

+
All Eco-Worthy Batteries Built with premium Grade A LiFePO4 cells, one of the safest lithium technologies available. Built-in BMS protection prevents overcharge, overheating, and short circuits—making it ideal for residential energy storage.

Will it work with my inverter/solar system?

+
Yes. Our batteries are designed to be widely compatible with most 48V inverters and solar systems used in U.S. homes. For best performance, we recommend checking your inverter’s communication protocol or contacting our support team before purchase.

How much power do I actually need for my home?

+
It depends on your usage: 5–10 kWh → essentials (fridge, lights, WiFi); 10–20 kWh → partial home backup; 20 kWh+ → whole-home coverage; Our systems are scalable, so you can start small and expand anytime.

Can I expand the system later?

+
Absolutely. Eco-Worthy batteries support parallel expansion, allowing you to increase capacity as your energy needs grow—without replacing your existing system.

What kind of warranty and support do you offer?

+
We provide up to a 10-year warranty on key battery models, along with U.S.-based support. Our team assists with installation guidance, troubleshooting, and system planning to ensure a smooth experience.
