ECO-WORTHY MPPT Solar Charge Controller 12V/24V 20A with Bluetooth

ECO-WORTHY MPPT Solar Charge Controller 12V/24V 20A with Bluetooth

$59.99
$59.99 $69.99
Sale Sold out
Shipping calculated at checkout.

SKU:

GW-L03MPPT20AZY-1

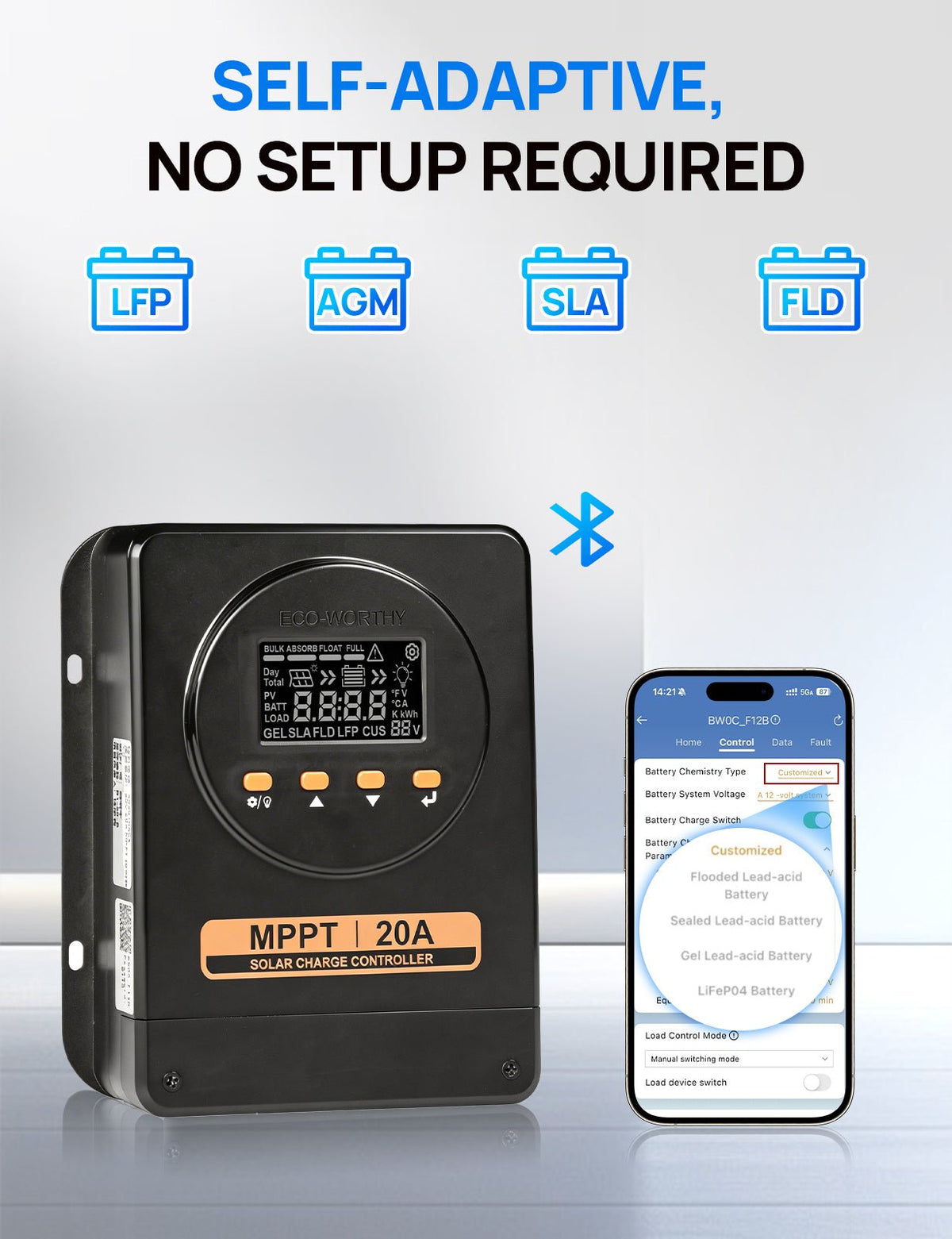

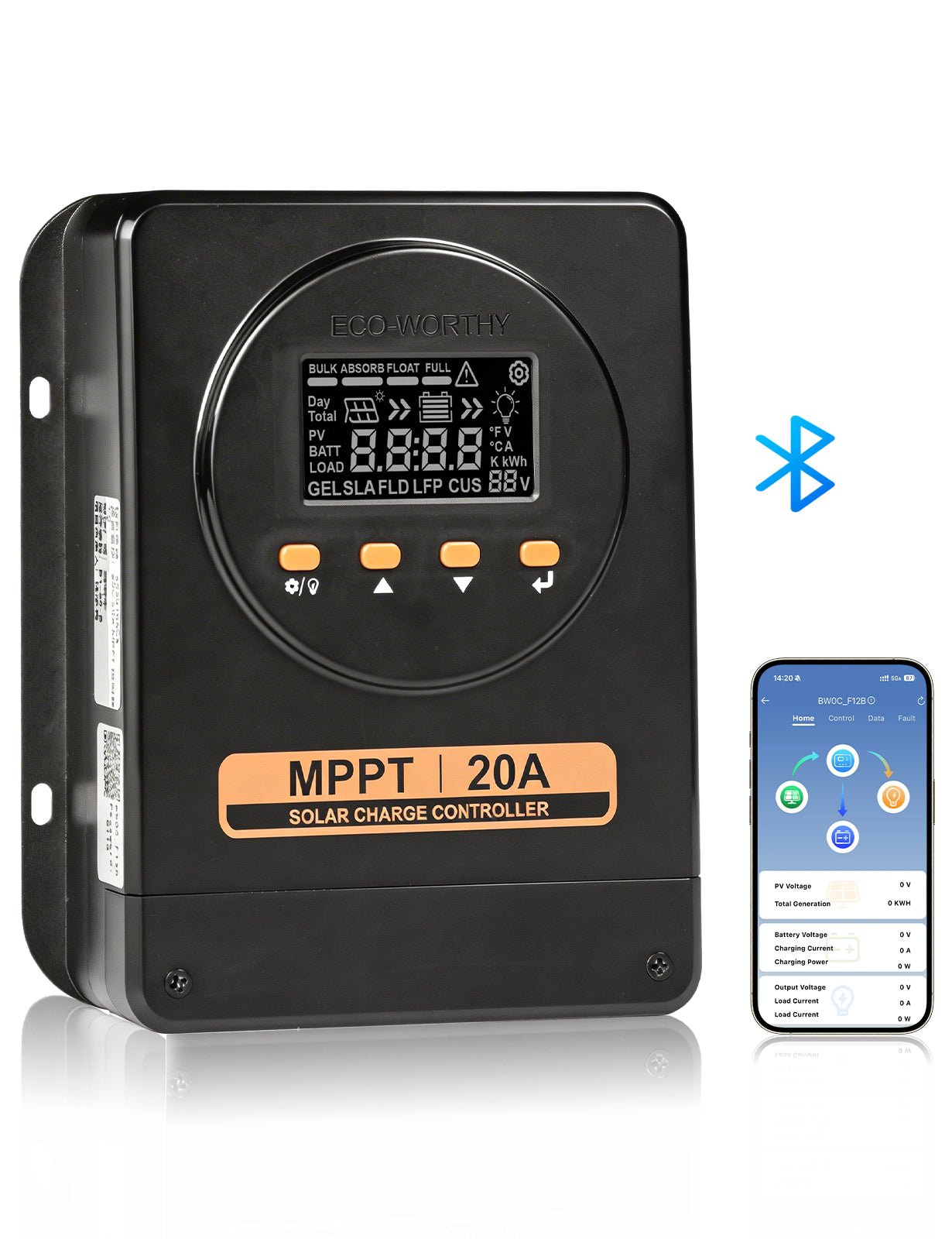

【Bluetooth Monitoring 】Built-in Bluetooth,eco worthy 20A mppt solar charge controller saves you the cost of an extra module,through the app remotely monitor battery status and set controller parameter.

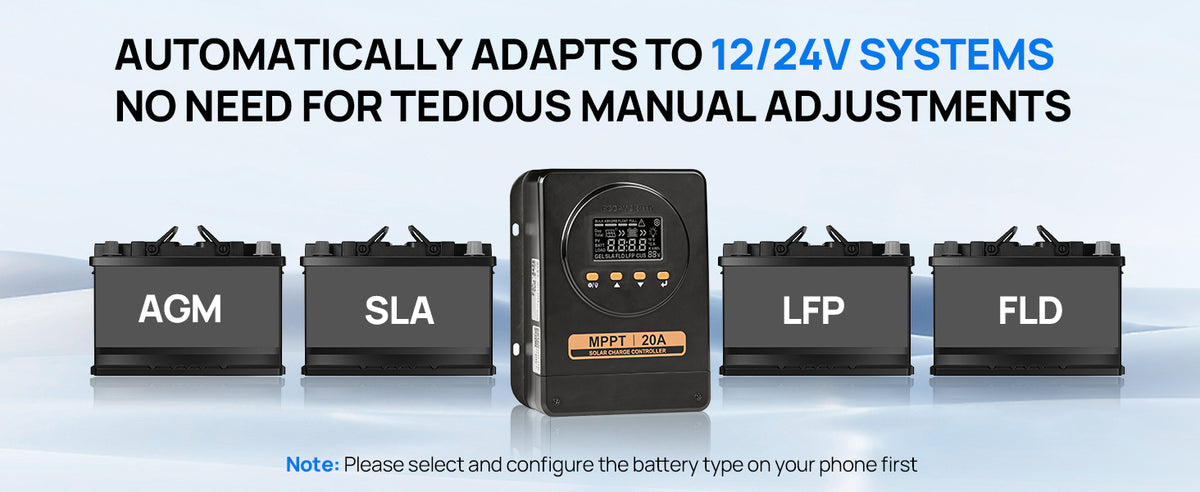

【Compatible with Various Batteries】This mppt solar charge controller can be adapted to 12/24V GEL/SLA/FLD/LFP batteries,automatically Identifies 12V/24V Battery Type,supporting the activation of the over-discharge protection of lithium batteries, avoid the cost of replacement.

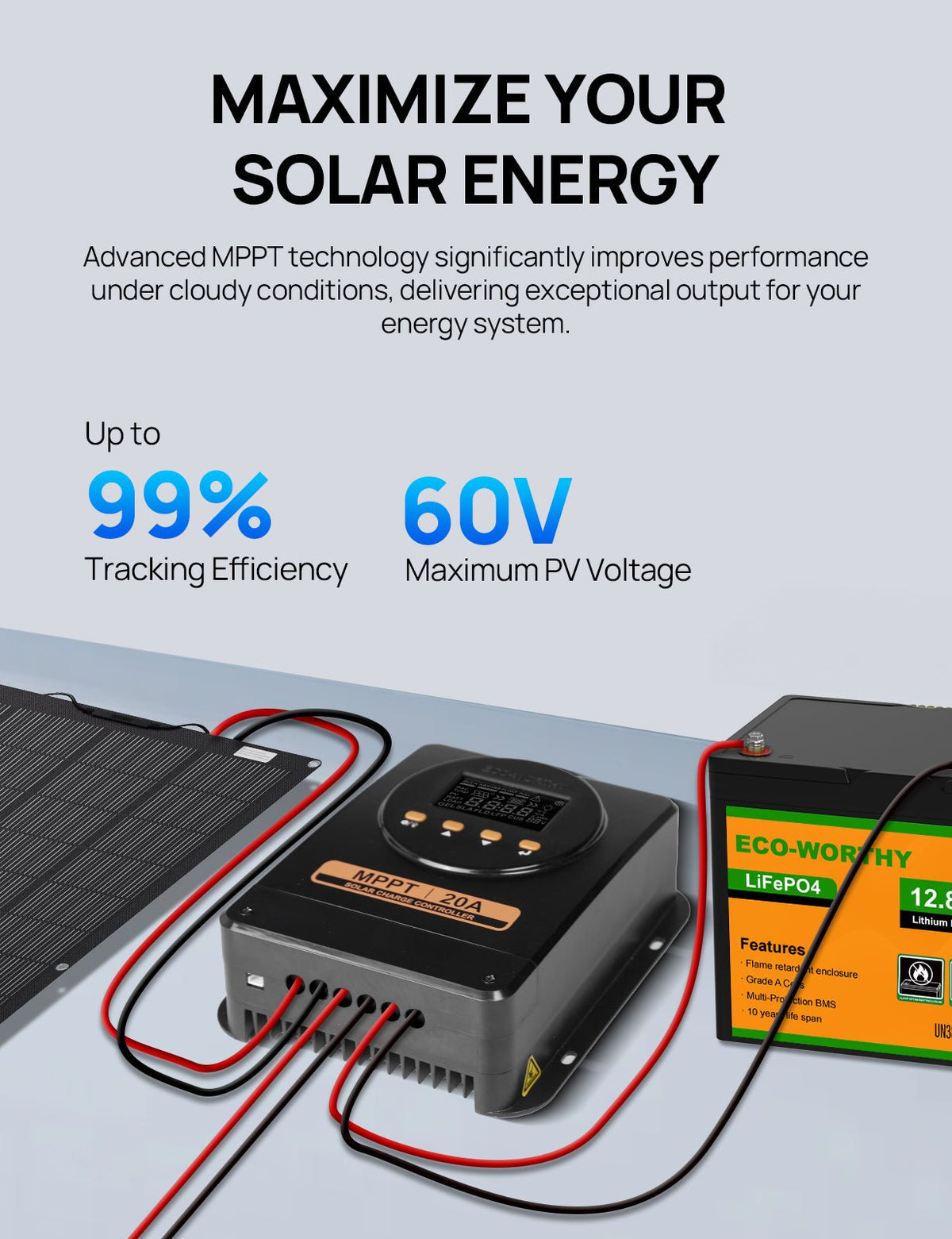

【MPPT Controller with 99% Efficiency】Mppt solar controller automatically tracks the maximum power point, tracking efficiency ≥ 99%, peak conversion efficiency ≥ 99%,Low self-consumption of controller,stable voltage and long service life.

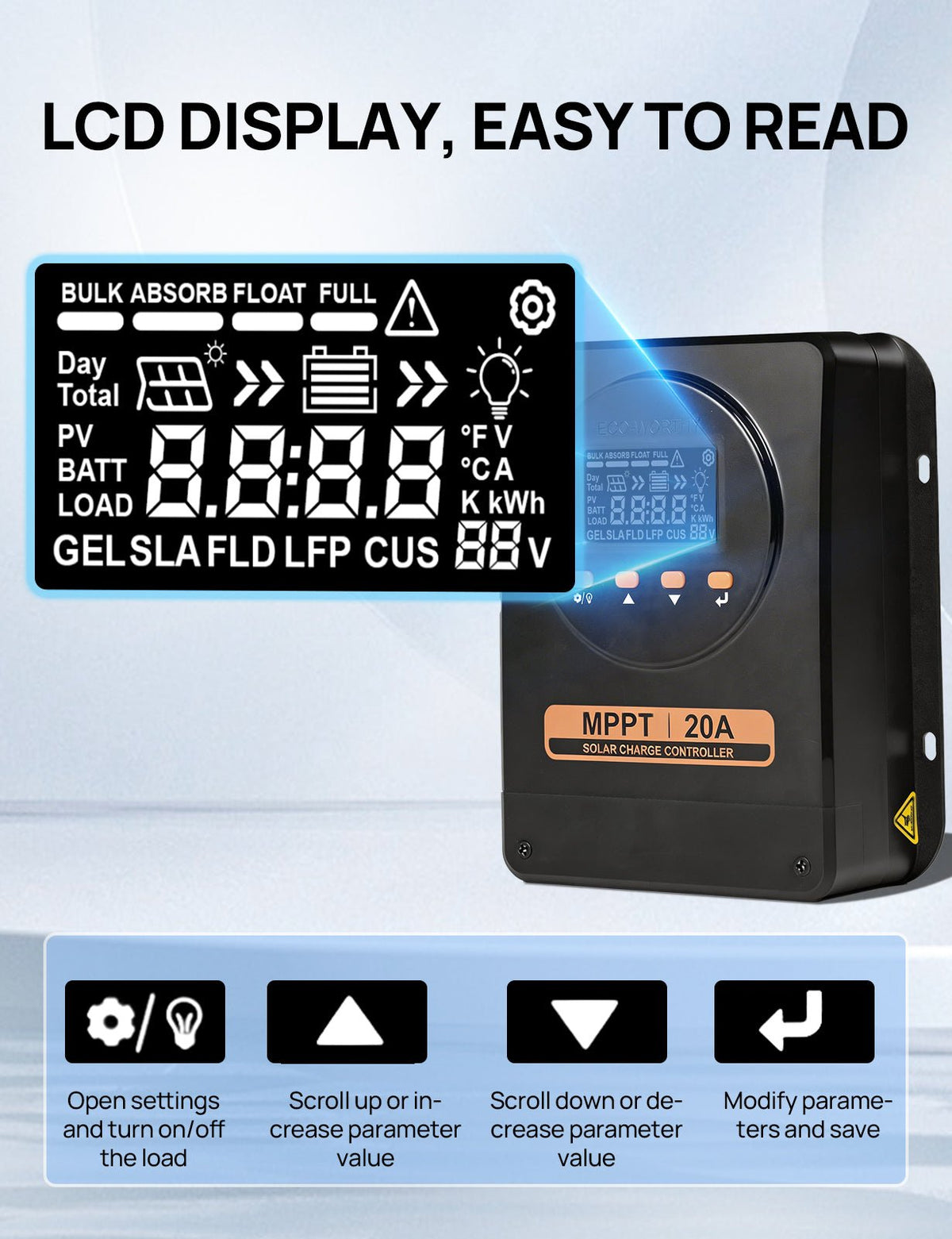

【LCD Display & Easy Installation】Note:The terminal screws are covered by a protective case. Please remove the case before connecting wires. 5 minutes quick installation, Equipped with high-resolution LCD display, which shows real-time working status and fault information. Simple operation, durable buttons, and firm terminals make installation quick and easy.

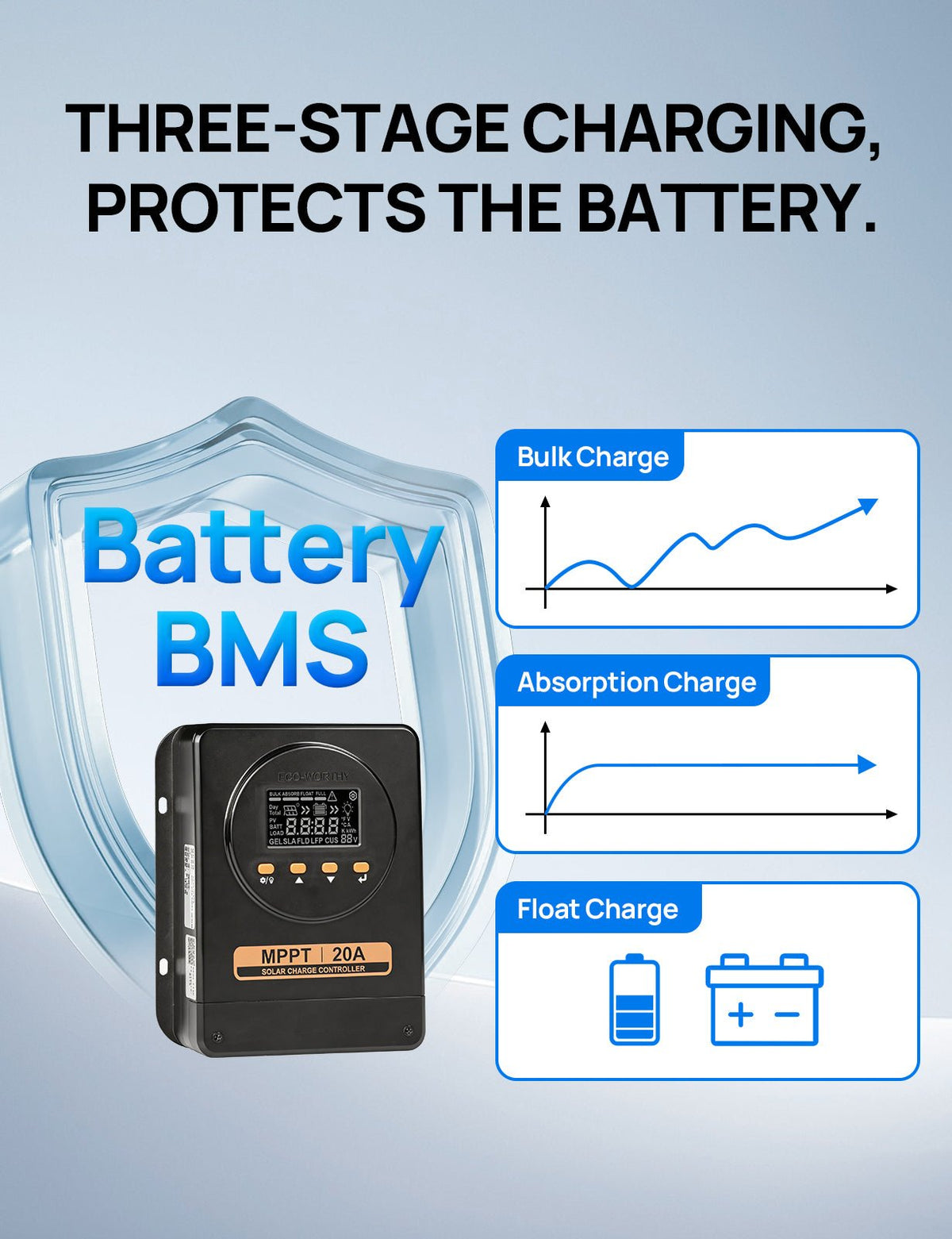

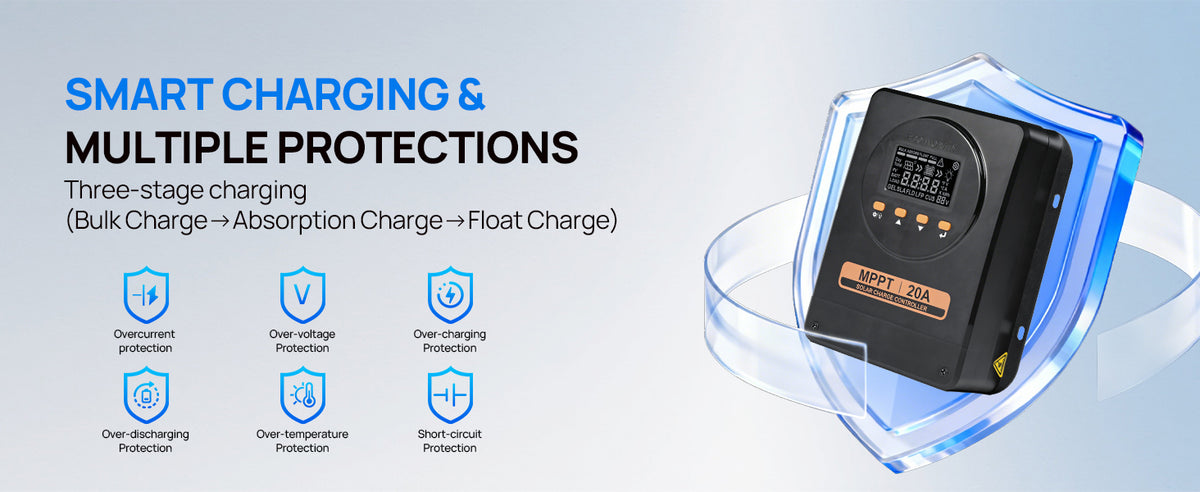

【Intelligent charging & Multi Protection】3-stage charging (bulk charging - balanced charging - float charging) effective extend the battery life. External temperature sensor monitors battery temperature. Equipped with over-voltage, over-charging, over-discharging, over-temperature, short-circuit protections.

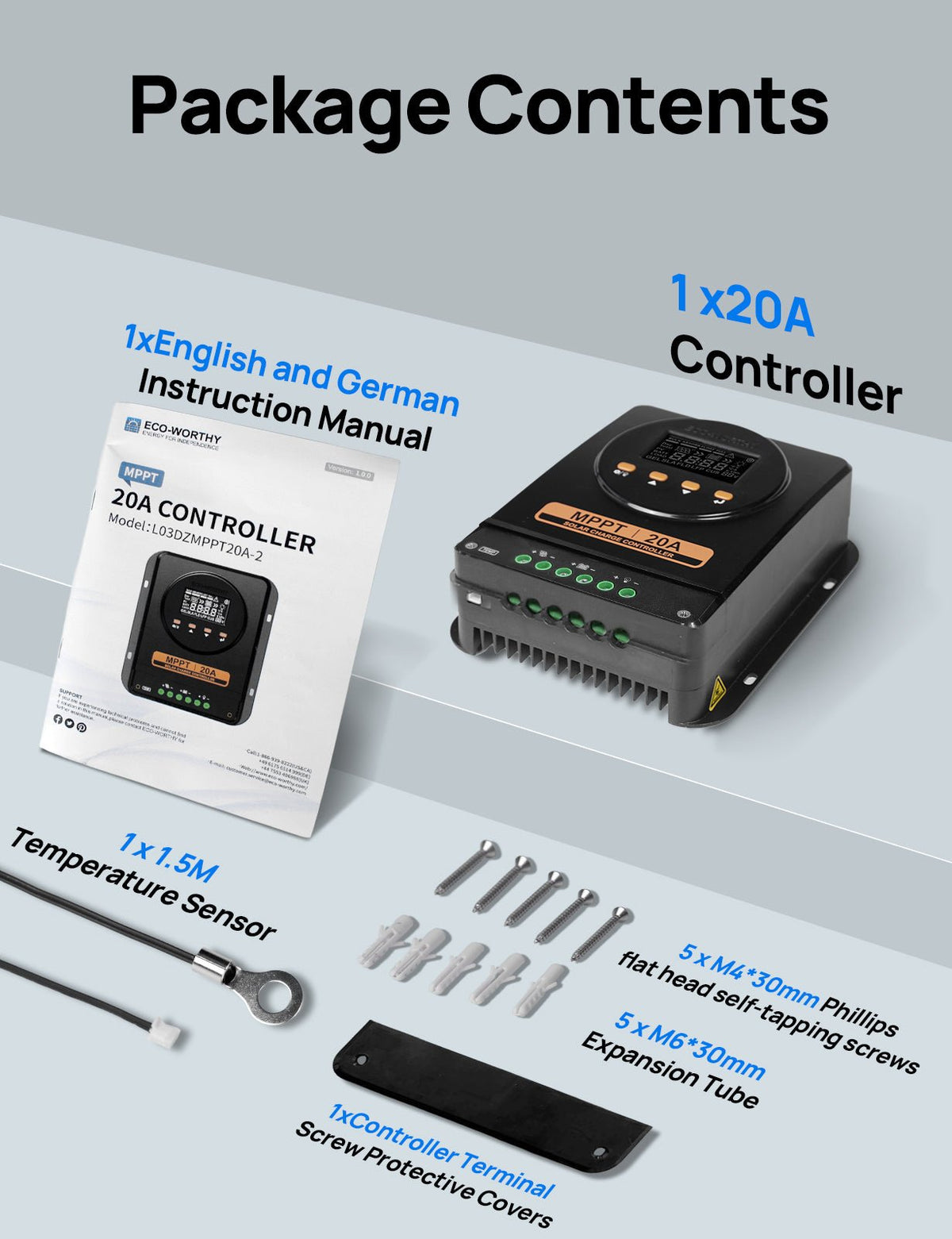

【Package includes】1*20A Mppt Controller, 1*1.5m Temperature Sensor, 5*M4*30mm Screws, 5*M6*30mm Expansion Screws, 1*English Language Instruction Manual.

Read More

Total Price

$59.99
Buy It Now

Free Shipping

Return Guarantee

Secure Payment

or 4 interest-free payments of $14.99 with

Installments available at checkout
Shop with Confidence at Eco-Worthy

Free & Fast Delivery

14-Day Money-Back Guarantee

Up To 10-Year Warranty

Lifetime Customer Support

Pay with ease

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • Shop Pay
  • Visa

Trusted delivery

View full details
X
$59.99 $69.99
Learn More
Buy It Now
Feature
Included in the box
Reviews
FAQs

The ECO-WORTHY 20A MPPT Solar Charge Controller is designed for efficient solar charging. With up to 99% tracking efficiency and 99% peak conversion efficiency, it maximizes solar power harvesting to charge your battery bank. It is compatible with 12V/24V GEL, SLA, Flooded, and Lithium (LFP) batteries, automatically identifies 12V/24V battery voltage, and features built-in Bluetooth for convenient remote monitoring and parameter settings via the app.

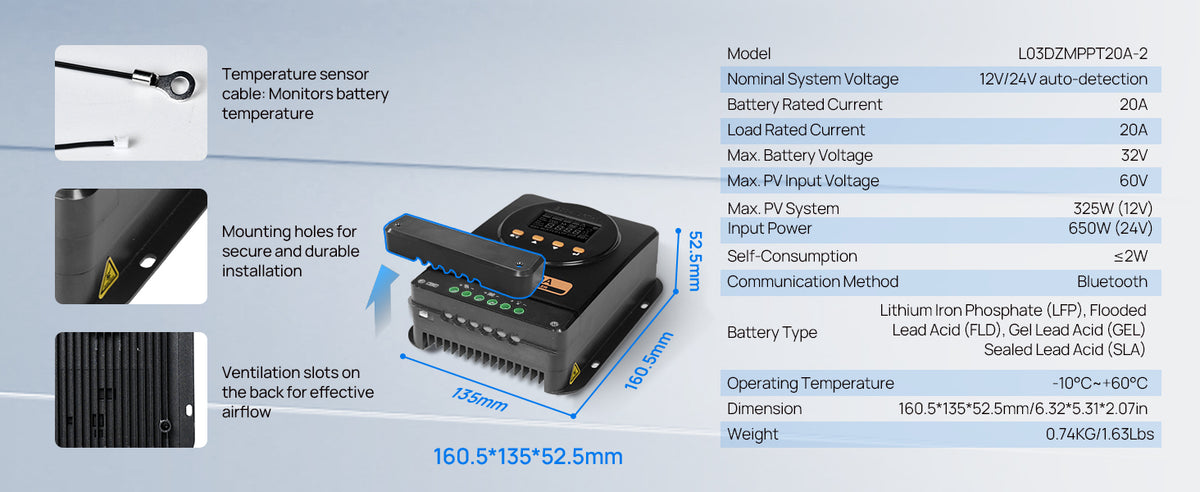

Technical Specifications

20A MPPT Solar Charge Controller

Battery voltage

12V/24V

Charging mode

MPPT

Max Battery Voltege

32V

Max PV Input Voltage

60V

Battery Rated Current

20A

Load Rated Current

20A

Charge Efficiency（Peak）

99%

Max PV System Input Power

325W(12V)/650W(24V)

Battery Type

LFP,FLD,GEL,SLA

Operating Temperature

-10℃~+60℃

Size

160.5*135*52.5mm

Weight

0.74KG/1.63Lbs

Included in the Box

1X 20A MPPT solar charge controller
