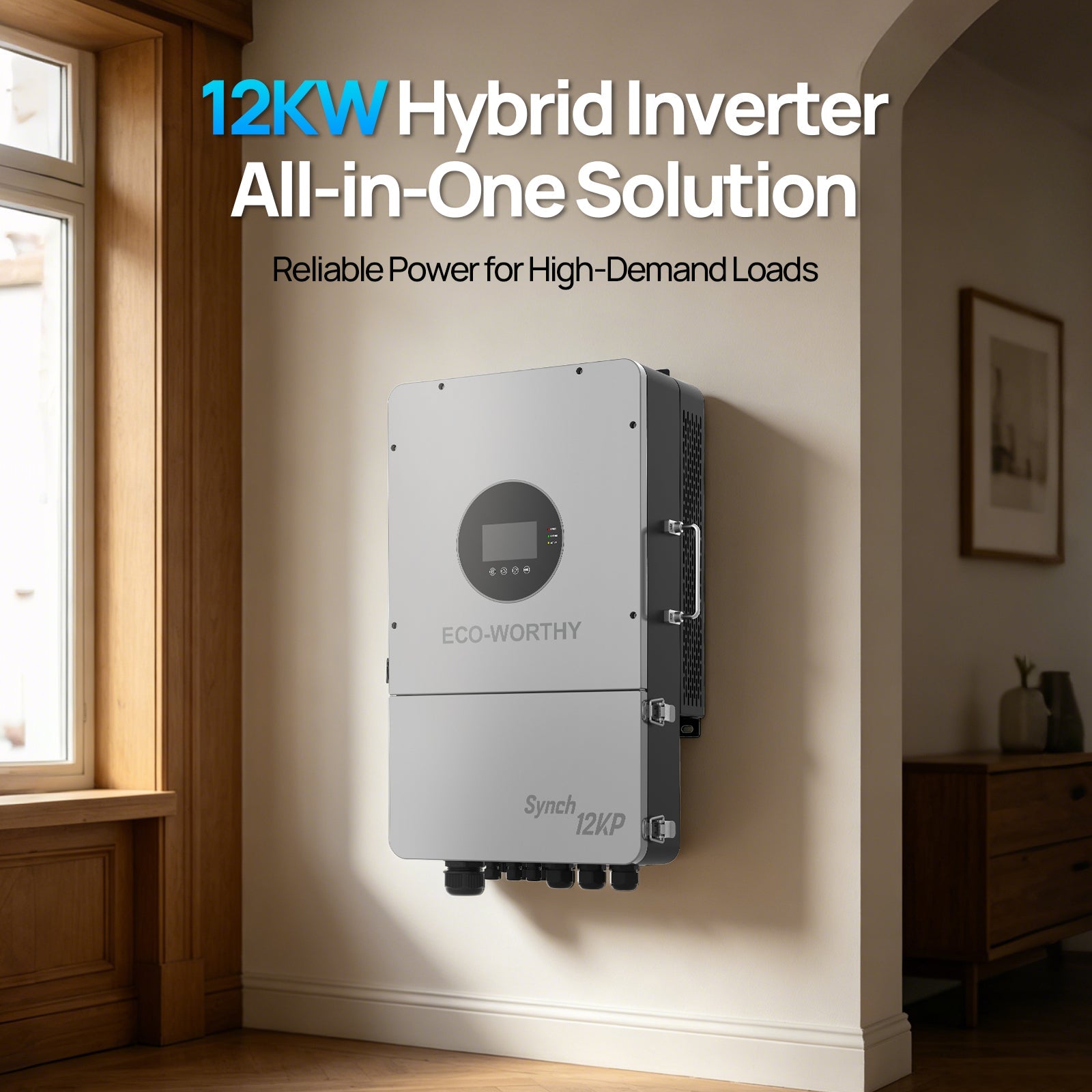

Power your home with a high-performance 12kW solar hybrid inverter, designed for whole-home energy storage and off-grid solar systems. Delivering 120V/240V split-phase output, it easily runs heavy appliances like HVAC and large loads. Featuring dual MPPT trackers with ultra-high efficiency, it maximizes solar input and supports flexible panel configurations. Smart energy management with time-of-use (TOU) control helps reduce electricity costs through peak shaving and optimized grid usage. Built with IP65 protection, advanced safety features (AFCI, rapid shutdown), and scalable up to 72kW, this inverter is the ideal solution for residential solar power, backup energy, and energy independence.
Prime Day Sale

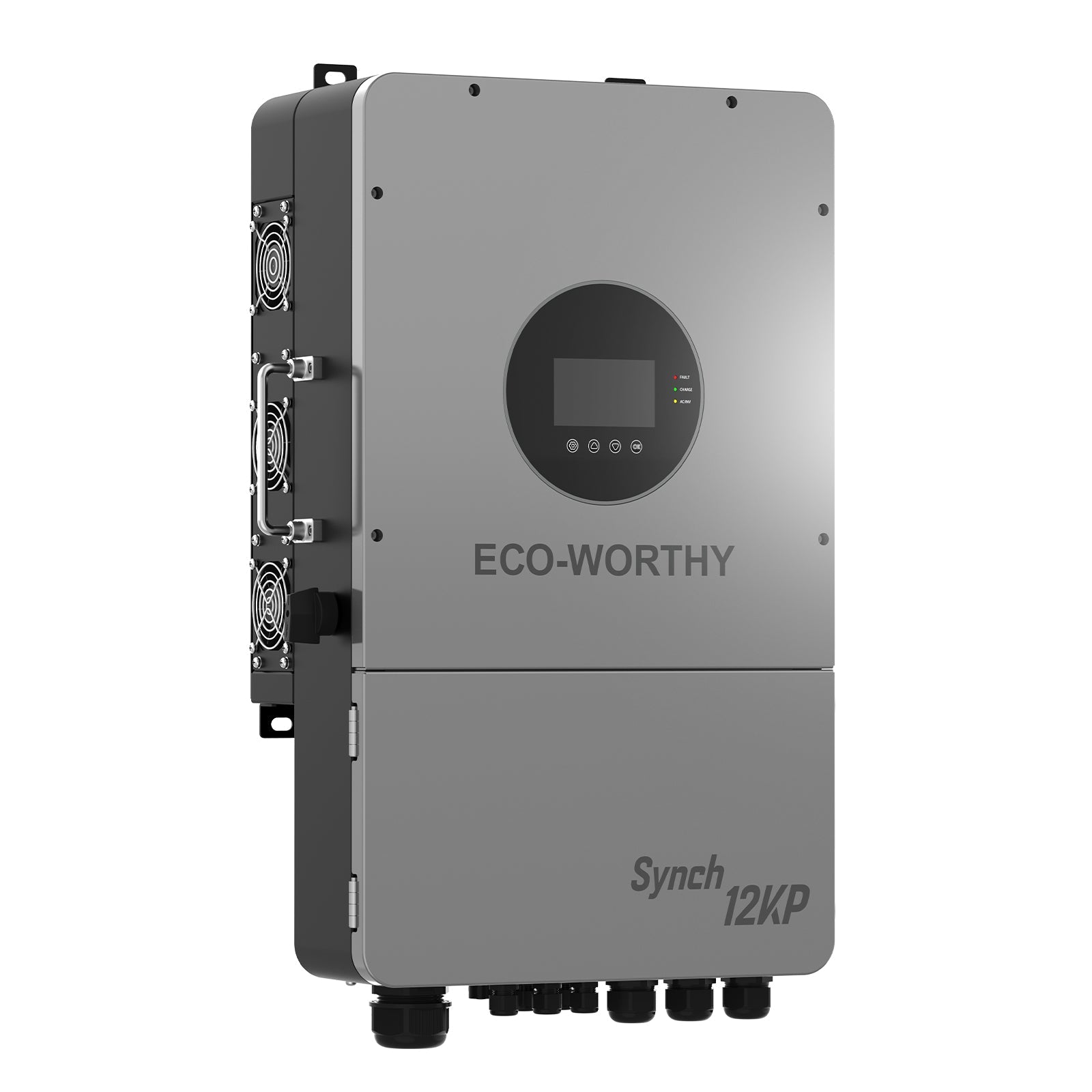

Eco-Worthy Synch 12KP Split-Phase Solar Hybrid Inverter | 48Vdc to 120Vac/240Vac | 13200W@550V PV Input
Eco-Worthy Synch 12KP Split-Phase Solar Hybrid Inverter | 48Vdc to 120Vac/240Vac | 13200W@550V PV Input
Regular price
$2,599.99
Sale price
$2,599.99
Regular price
$2,999.99
Unit price
per
Shipping calculated at checkout.
SKU:
SKU:GW-L03SR12KWYTJ-1
Read More
Extra $300 Off For Early Birds
Early300
Plese Note: the 12kw inverter expected to ship out on July 16th！
Total Price
$2,599.99
Couldn't load pickup availability
Free Shipping
Return Guarantee
Secure Payment
or 4 interest-free payments of $649.99 with
Installments available at checkoutShop with Confidence at Eco-Worthy
Free & Fast Delivery
14-Day Money-Back Guarantee
Up To 10-Year Warranty
Lifetime Customer Support
Pay with ease
Trusted delivery
Technical Specifications
12KW INVERTER
Rated Output Power
@240V 12000W @208V 10400W
Max.Peak Power
2 times rated power
Rated Output Voltage
120/240Vac(Split-phase)120/208V(Three-phase)
Rated Output Current
50A
Load Capacity of Motors
6HP
Rated ACF requency
50/60Hz
Wave form
Pure Sine Wave
Parallel Capacity
6
Battery Type
Li-ion / Lead-Acid / UserDefined
Rated Battery Voltage
48Vdc
Voltage Range
40-60Vdc
Max.PVCharging Current
200A
Max.Grid Charging Current
120A
Max.Generator Charging Current
60A
Max.Hybrid Charging Current
2
Num. of MPPT rackers
6600W/6600W
Max.PV Array Power
25A+25A
Max.Input Current
550Vdc+550Vdc
Max.Voltage of Open Circuit
125-450Vdc/125-450Vdc
MPPT Voltage Range
90-140Vac
Input Voltage Range
50/60Hz
Frequency Range
63A
Bypass Phase Current
29.5"×17.3"×9.4"
Dimensions
93lbs
Weight
IP65
Protection Degree
—13 - 140°F, >113°F derated
Operating Temperature Range
<60dB
Noise
Included in the Box
Frequently Asked Questions
Are Eco-Worthy batteries safe for home use?
+
All Eco-Worthy Batteries Built with premium Grade A LiFePO4 cells, one of the safest lithium technologies available. Built-in BMS protection prevents overcharge, overheating, and short circuits—making it ideal for residential energy storage.
Will it work with my inverter/solar system?
+
Yes. Our batteries are designed to be widely compatible with most 48V inverters and solar systems used in U.S. homes. For best performance, we recommend checking your inverter’s communication protocol or contacting our support team before purchase.
How much power do I actually need for my home?
+
It depends on your usage: 5–10 kWh → essentials (fridge, lights, WiFi); 10–20 kWh → partial home backup; 20 kWh+ → whole-home coverage; Our systems are scalable, so you can start small and expand anytime.
Can I expand the system later?
+
Absolutely. Eco-Worthy batteries support parallel expansion, allowing you to increase capacity as your energy needs grow—without replacing your existing system.
What kind of warranty and support do you offer?
+
We provide up to a 10-year warranty on key battery models, along with U.S.-based support. Our team assists with installation guidance, troubleshooting, and system planning to ensure a smooth experience.
