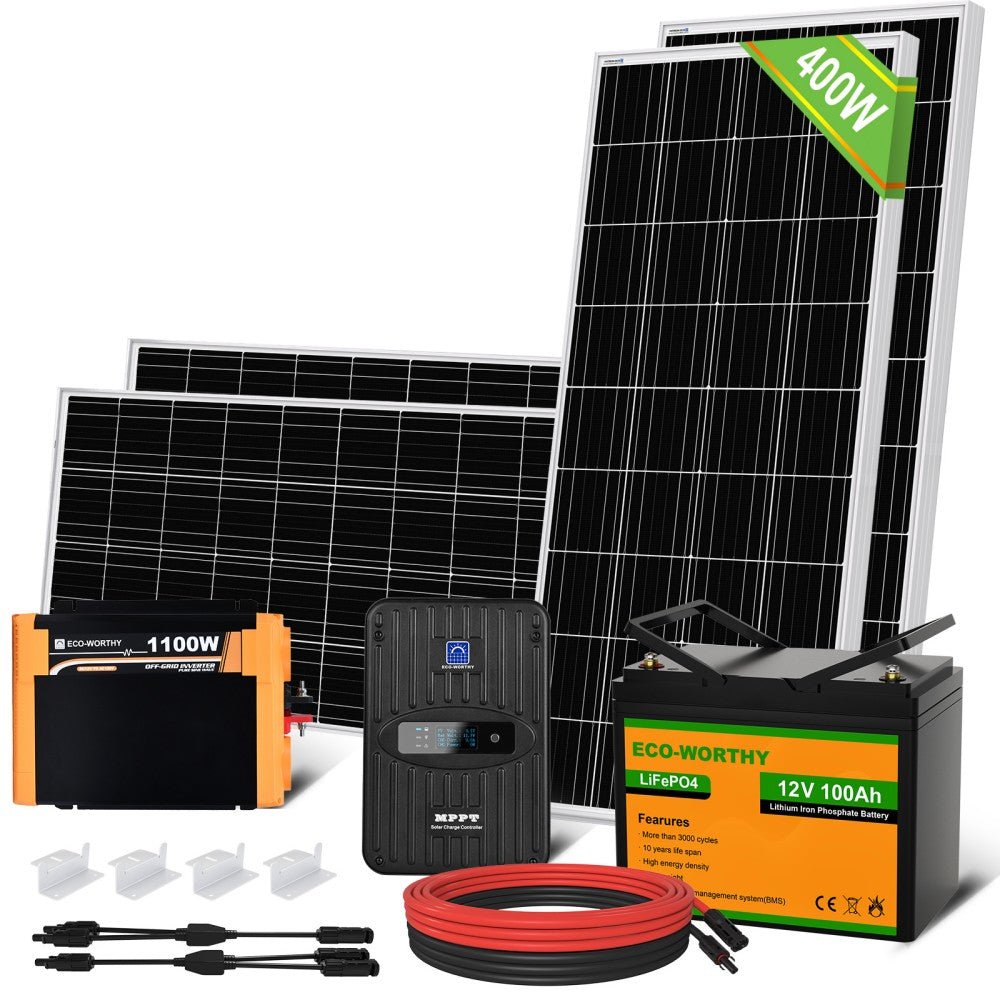

400W 12V (4x100W) Complete Off Grid Solar Kit with 1kW Inverter + 1.2kWh Lithium

Save 15%
SKU: L02M100-CWZIUS1000L100-4

Inverter & Battery Options: Inverter & 1.2kWh Lithium Battery
Price:
Sale price$1,259.99 Regular price$1,482.34

Description

If efficiency, reliability and affordable are high on your wish list, ECO-WORTHY 400W 12V expandable Solar Kit is an ideal choice. ECO-WORTHY 100 Watt 12V Mono solar panel is backed by 25-year linear power guarantee. ECO-WORTHY LiFePO4 Lithium Iron Phosphate Battery has twice the power, half the weight and lasts 8 times longer than a sealed lead acid battery.
1000W Pure Sine Wave Inverter provides high-quality AC power equivalent to grid power to protect your household appliances and electronic equipment, especially suitable for sensitive electrical appliances.
ECO-WORTHY 400W 12V Solar Kit can be used for several different purposes, including cottages, weekends, cabins, boats, RVs, Campers, etc. Whatever the kit is used for, you can rest assured that you are purchasing a quality system. If you have any questions regarding this product, please contact us info@eco-worthy.com.

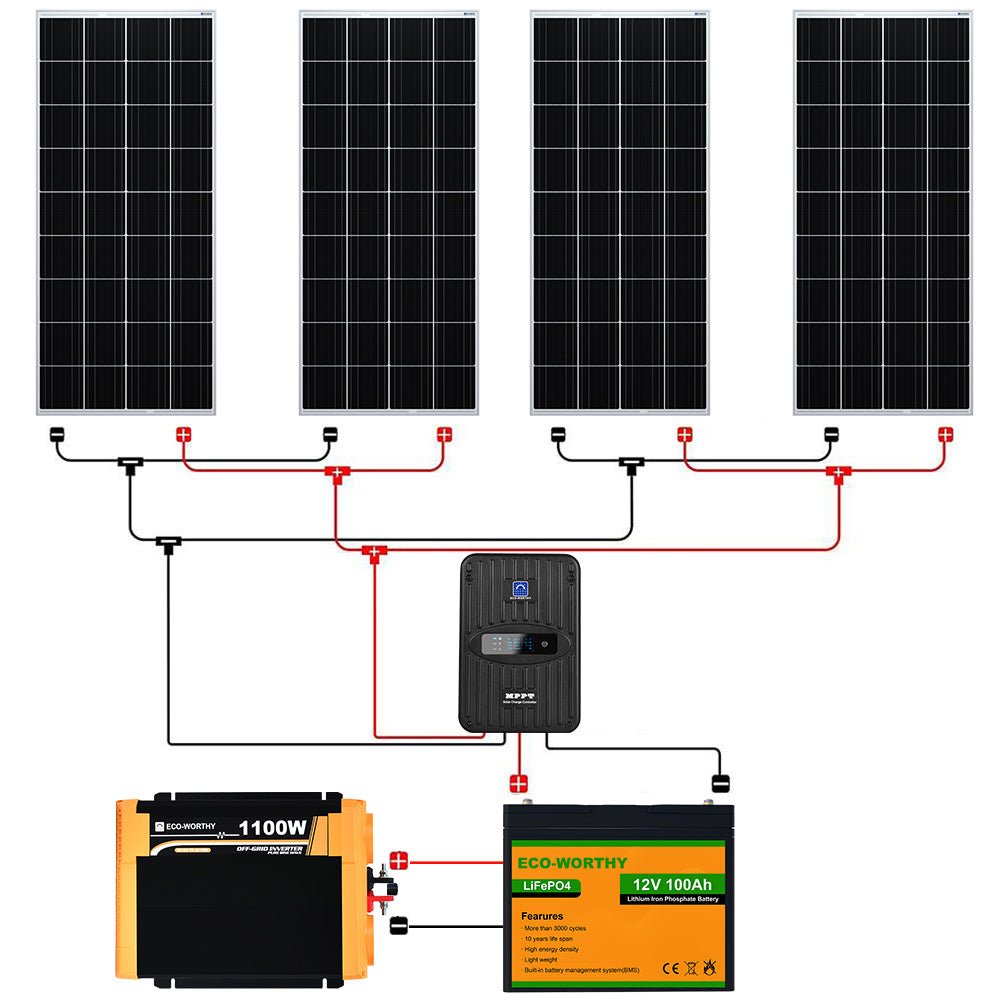

Package Includes

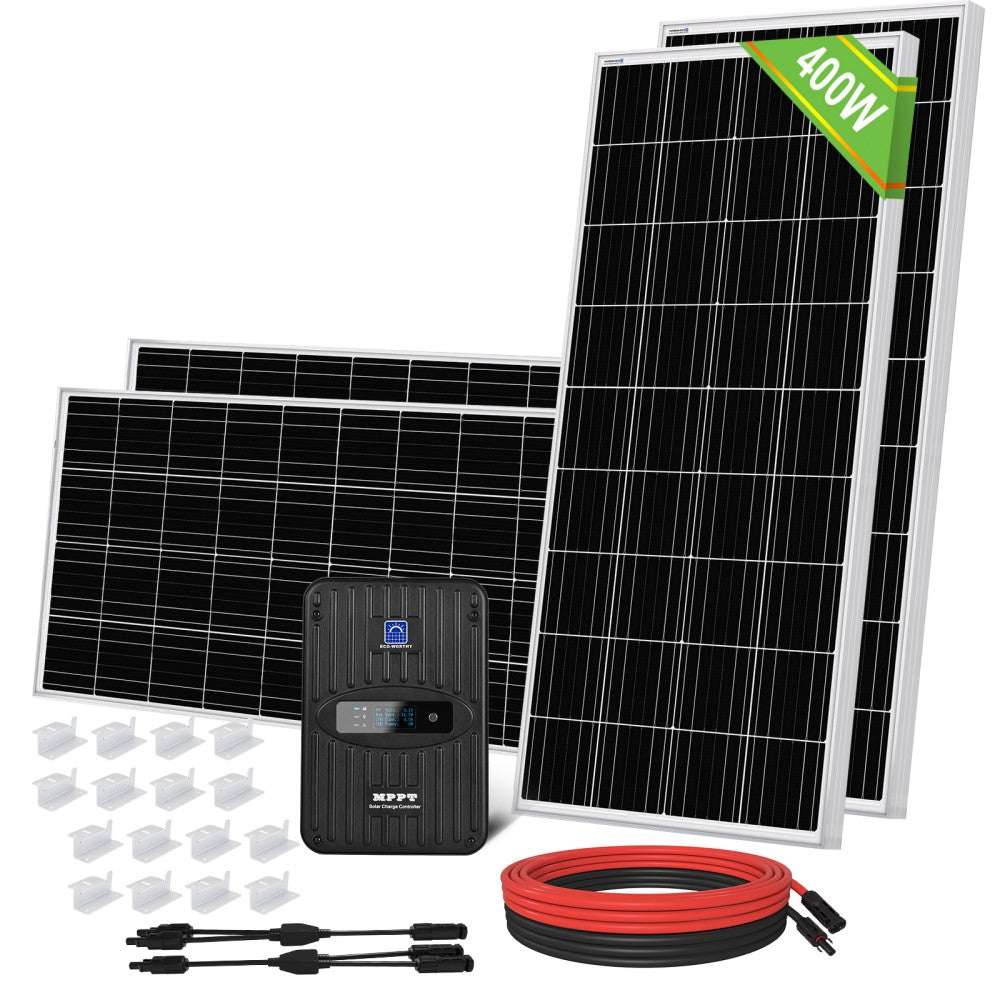

400W (4-Panel) 12V Solar Kit
Complete System, 1.2kWh LiFePO4 Battery/1.2kWh AGM Battery, Pure Sine Wave Inverter

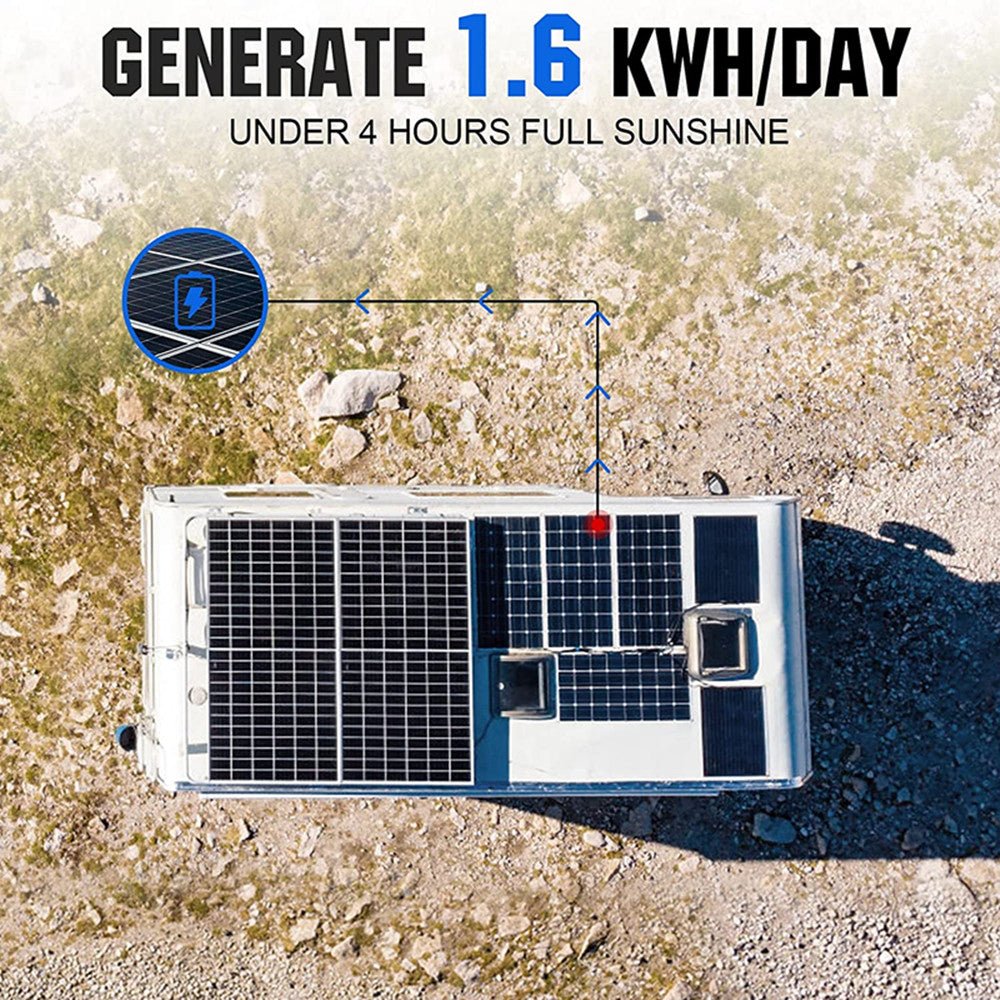

Daily Production Estimate:1600WH

100W Mono Solar Panel*4
60A PWM Solar Controller*1
5M 12AWG Extension Cable with MC4*1
Y MC4 Connector*3
Z Mounting Bracket*4
Inverter & Battery Options-
Inverter & 1.2kWh Lithium Battery (optional)
with
1.5M Tray Cable*1
1000W 12V-110V Pure Sine Wave Inverter*1
100Ah 12V LiFePO4 Lithium Battery*1
Inverter & 1.2kWh AGM Battery (optional)
with
1.5M Tray Cable*1
1000W 12V-110V Pure Sine Wave Inverter*1
100Ah 12V AGM Battery*1

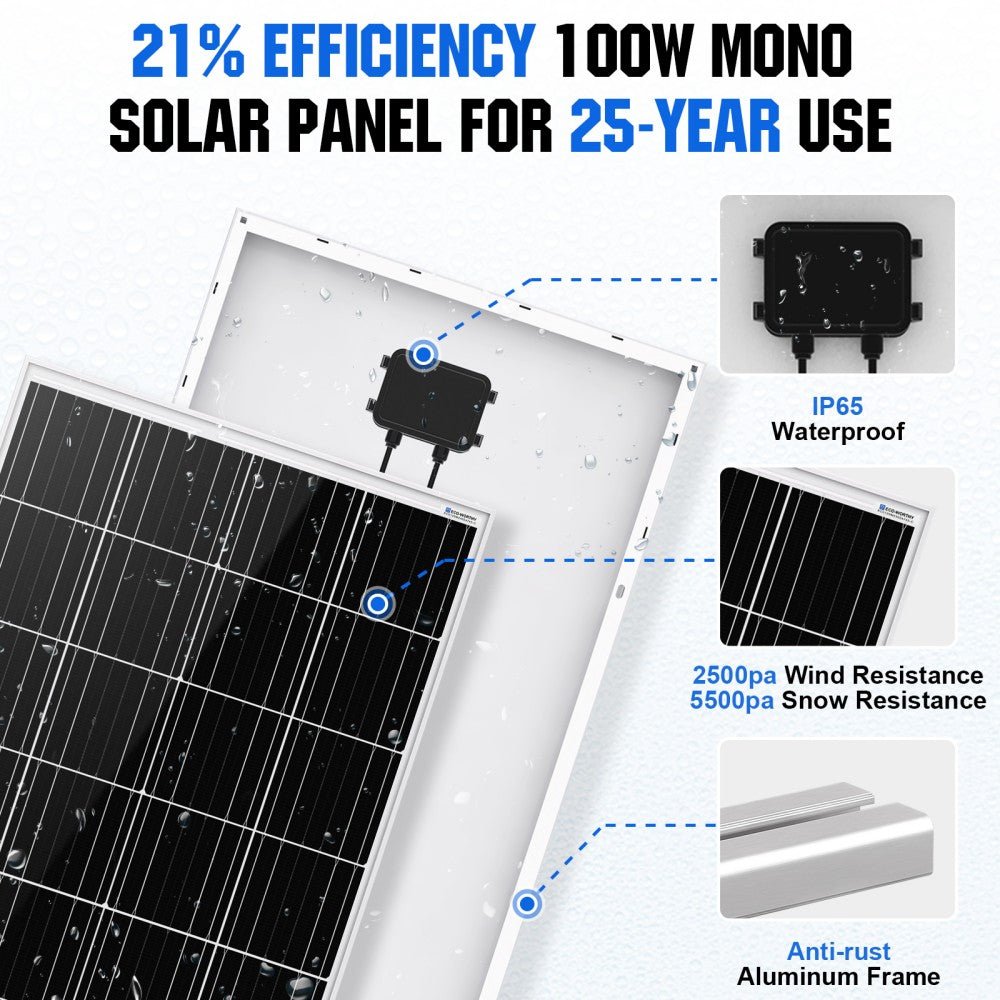

100W Monocrystalline Solar Panel
High Efficient Monocrystalline
Rated Power: 100W
Open Circuit Voltage (Voc): 21.6V
Short Circuit Current (Isc): 6.13A
Working Current (Iop): 5.78A
Output Tolerance: ±3%
Temperature Range: -40℃ to +80℃
Size: 1010*510*35mm (39.8*20.1*1.4inch)
Weight: 8.6kg

60A PWM Solar Charge Controller
Max charging current: 60A
Max loading current: 60A
Rated voltage: 12/24V
Floating charge voltage: 13.8V/27.6V
Cut-off voltage of discharge: 10.5V/21V
Discharge recovery voltage: 12.5V/25V

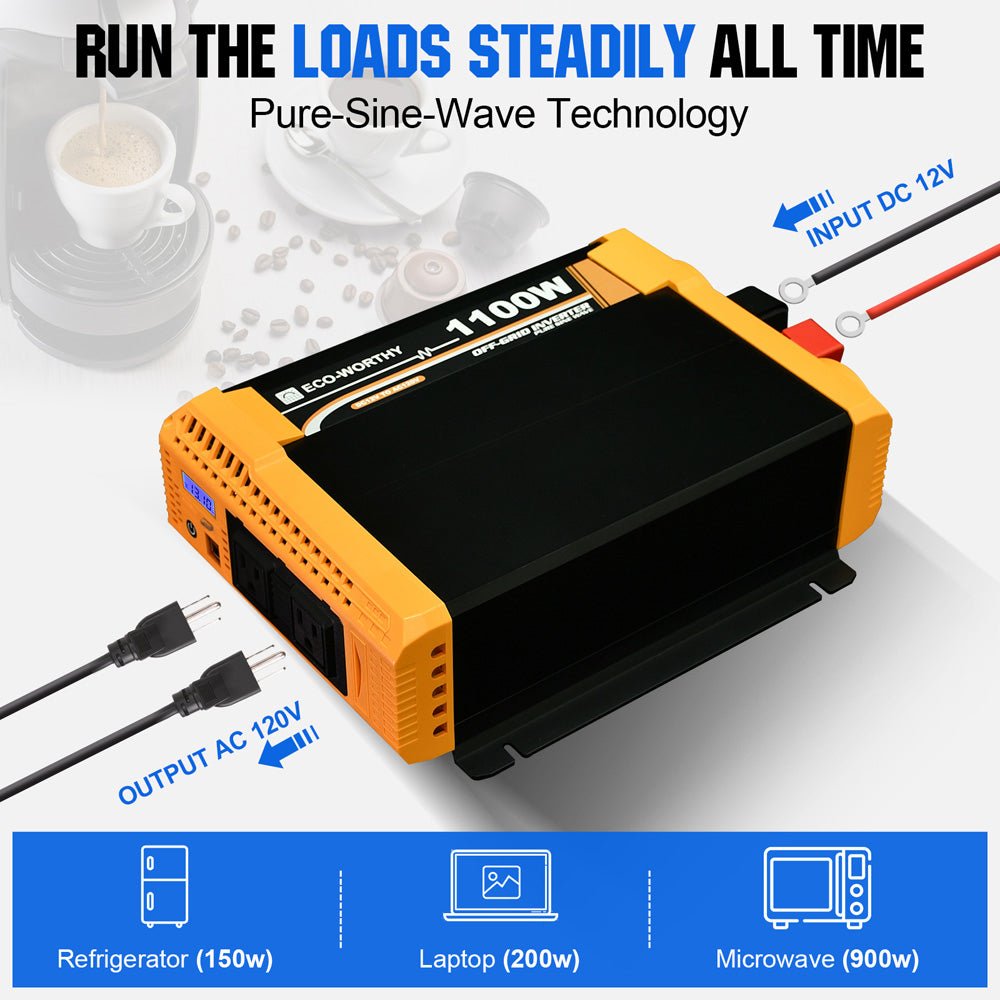

1000W 12V Off Grid Inverter
Continuous Power: 1000W
Input Range: 10-15V DC
Output Volt:110V-60Hz
Waveform Pure Sine Wave
Surge Power: 2000W
Non-load Consumption: <12W
Efficiency: >90%
Size: 13.8*5.9*3.14inch

100Ah AGM Deep Cycle Solar Battery
Normal Voltage: 12V
Rated Capacity(10hr): 100AH
Constant Voltage Charge: 15-25℃
Standby Use:13.5-13.8V
Cycle Use:14.5-15V
Battery Cell Type: Lead Acid
Size: 12.8*8.46*6.61inch

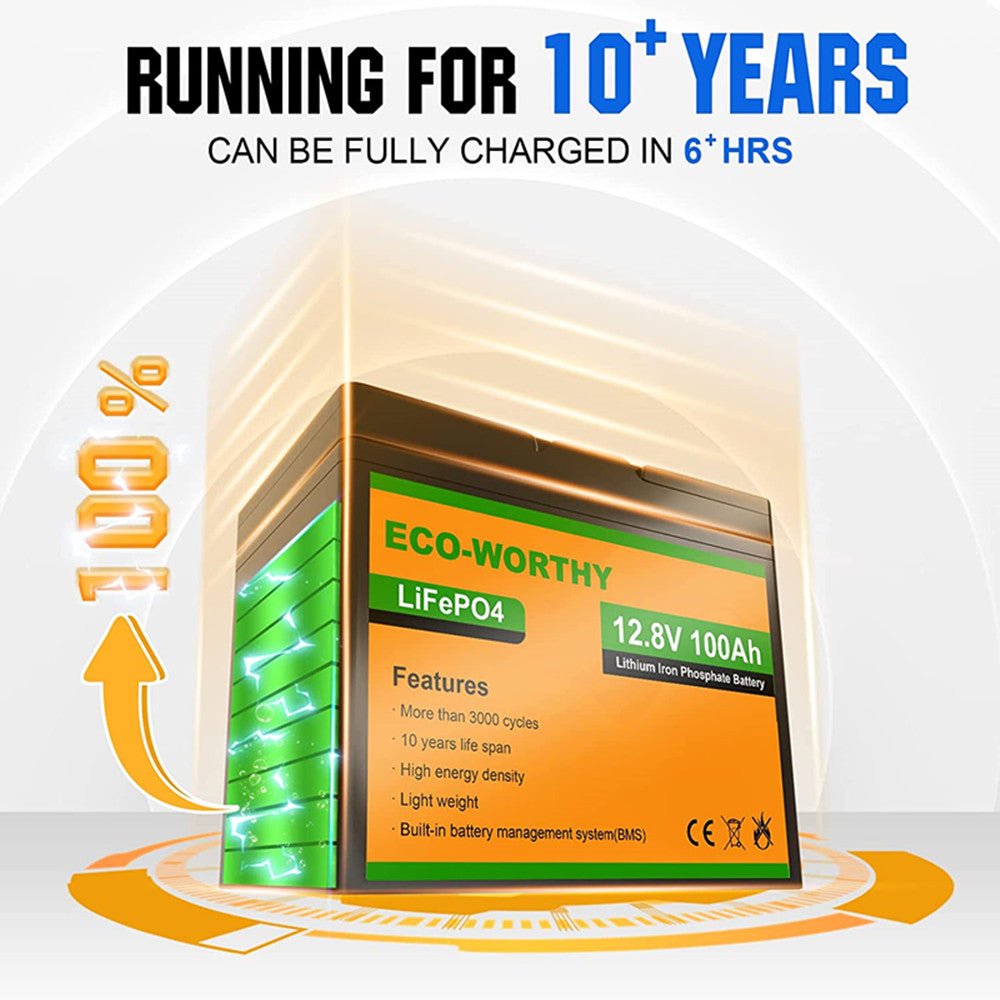

100Ah LiFePO4 Lithium Battery
Battery Capacity: 100AH
Battery Voltage: 12V
Max Charge Voltage: 14.5V
Discharge Cut-Off Voltage: 10V
Maximum Charging Current: 80A
Maximum Discharging Current: 100A
Size: 10.2*6.6*8.2inch
Weight: 22.4lbs

With 1.2kWh lithium batteries, which have higher charging/discharging efficiency and more than 3000 times deep cycles than lead acid batteries. Built-in BMS(battery management system), the updated 60A solar charge controller can also prevent the lithium battery from getting damaged and provide double protections.

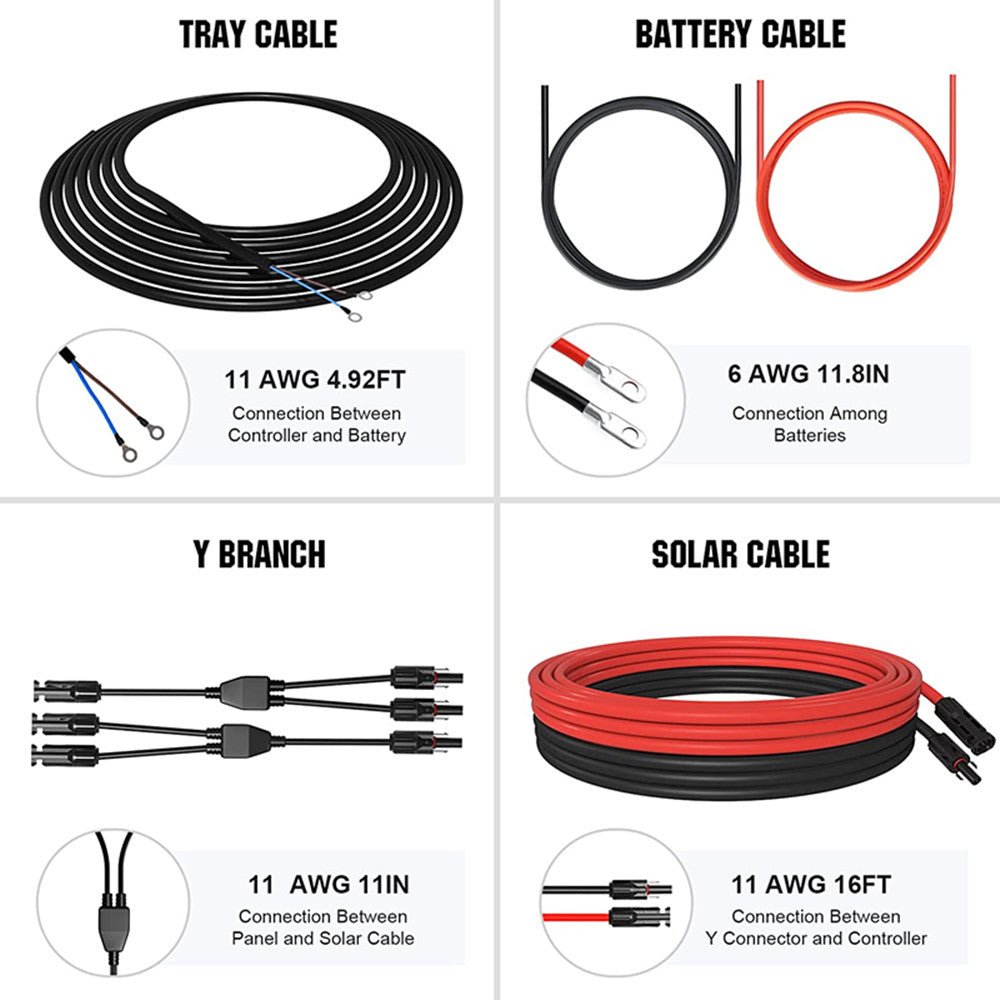

16.4 feet 12AWG Cables
16.4 feet red and black cable with connector.
For extending the cables of panel and connecting to controller.
Z Mounting Bracket
4 pieces of Z shape solar panel brackets.
8 pieces of stainless steel nuts and cap bolts.
Y Branch Cable MC4 Connectors
Compatible with MC4 solar connector.
Easy installation for 2 solar panels connected in parallel.


Why LiFePO4 Lithium Battery

Longer Life Span

Up to 80% capacity for 3000 cycles in recommended conditions. The typical SLA has 300-400 cycles. ECO-WORTHY Lithium batteries last so long that the price per use is a fraction of traditional batteries.
Lightweight Champion
Our lithium battery is only 1/3 of the weight of a lead-acid battery, easy to move and install. It is an ideal choice for outdoor camping power supply and simple indoor installation.
High Efficiency
It provides up to 95% of their rated capacity while a lead-acid battery is usually limited to 50%. You get all the juice down to the last drop. It can support fast charging or solar panel charging.
Extremely Safe
LiFePO4 batteries are safest battery type available today. ECO-WORTHY lithium battery has a built-in Battery Management System(BMS), we can guarantee the safety and reliability of our batteries.

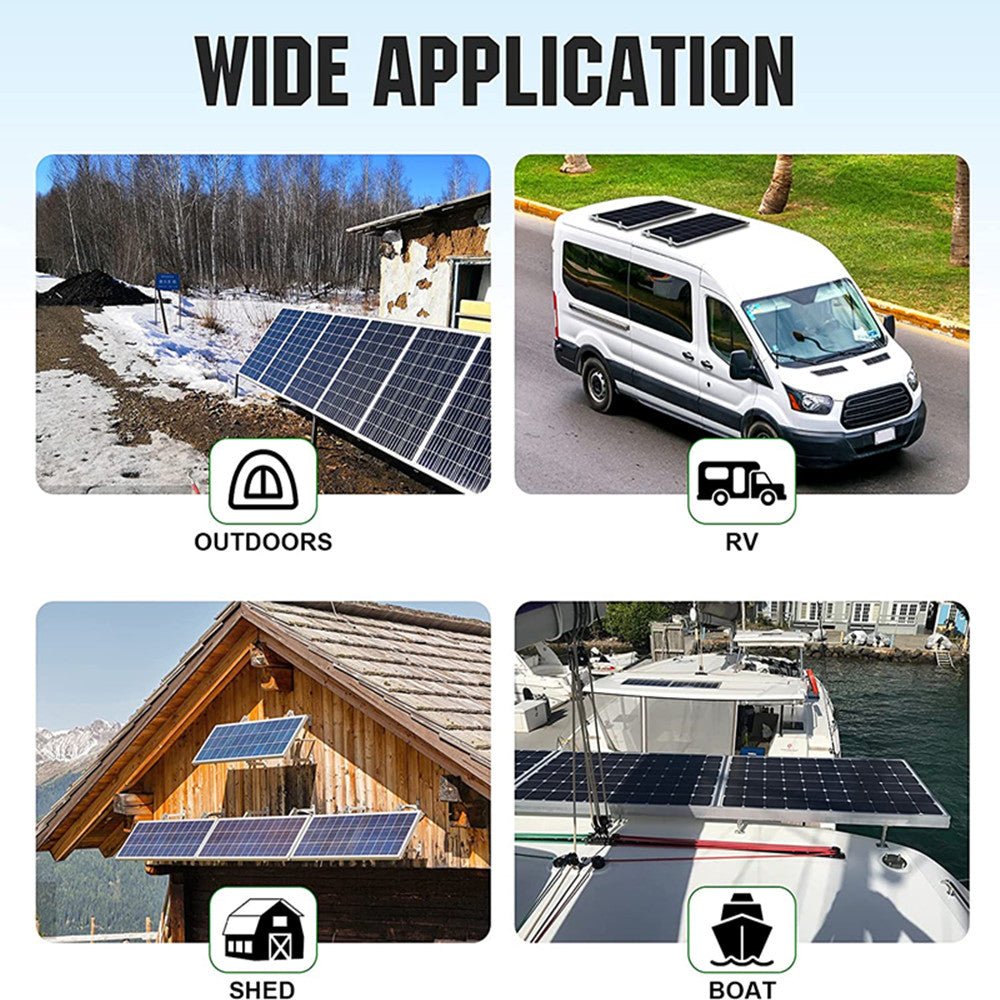

Wide Application
Suitable for RVs, Solar systems, off-grid, Boats, Fish finders, Power wheels, Scooters, Industry, Hiking, Camping, Backup power supply, etc.

Warranty Information

Panels 5-year/95% efficiency rate,
10-year/90% efficiency rate,
25-year/80% efficiency rate,
2-year limited material and workmanship warranty
Accessories 1-year material warranty


System Components

100W 12V Monocrystalline Solar Panel

60A PWM LCD Display Solar Charge Controller

100Ah LiFePO4 Lithium Battery

100Ah 12V AGM Deep Cycle Battery

1000W Off Grid Pure Sine Wave Inverter

12AWG Solar Extension Cables

Z Style Solar Panel Mounting Brackets

12AWG 1 Pair of Y Branch MC4 Connectors
