ECO-WORTHY Off Grid Home Power Bundle | 5kW Inverter with 48V 100AH Server Rack Battery
ECO-WORTHY Off Grid Home Power Bundle | 5kW Inverter with 48V 100AH Server Rack Battery
SKU:
SKU:L13NK5KSR48100B-1
⏰Sale is ending soon: Extra $30 off $1k | Extra $200 off $5k.
Total Price
Couldn't load pickup availability
Free Shipping
Return Guarantee
Secure Payment
or 4 interest-free payments of $387.49 with
Installments available at checkout
Shop with Confidence at Eco-Worthy
Free & Fast Delivery
14-Day Money-Back Guarantee
Up To 10-Year Warranty
Lifetime Customer Support
Pay with ease
Trusted delivery
Technical Specifications
Rated Input Voltage
110/120VAC
Input Voltage Range
90V-140VAC
Frequency
50Hz/60Hz(auto detect)
Overload/Short Circuit Protection
Circuit breaker
Efficiency
>95%
AC Reverse Protection
Available
Max Bypass Overload Current
40A
Output Voltage Waveform
Pure Sine Wave
Rated Output Power
5000W
Rated Output Voltage
120VAC
Peak Power
10000W
Bypass Breaker
63A
Rated Battery Input Voltage
48V
Min Starting Voltage
44V
Power Saving Mode
Load ≤50W
Battery Type
Lead acid or lithium battery
Max Charge Current
60A
Charge Voltage Range
40-60VDC
Overcharge Protection
Alarm and turn off charging after 1 minute
Max Input Power
5500W
PV Charging Current Range
0-80A(can be set)
Max PV Open Circuit Voltage
500VDC
PV Operating Voltage Range
60-145VDC
MPPT Voltage Range
120-450VDC
Battery Voltage Range
40-60VDC
Charging Short Circuit Protection
Blown fuse

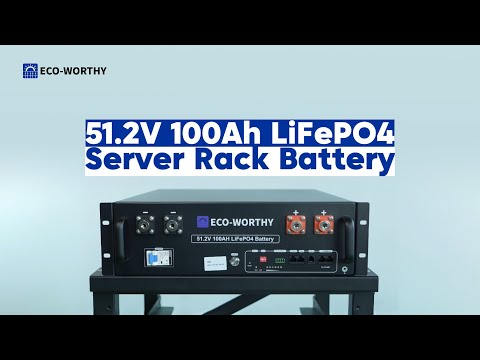

Battery Capacity
100Ah
Battery Power
5120Wh
Rated Voltage
40~58V
Maximum Charge/Discharge Current
100A

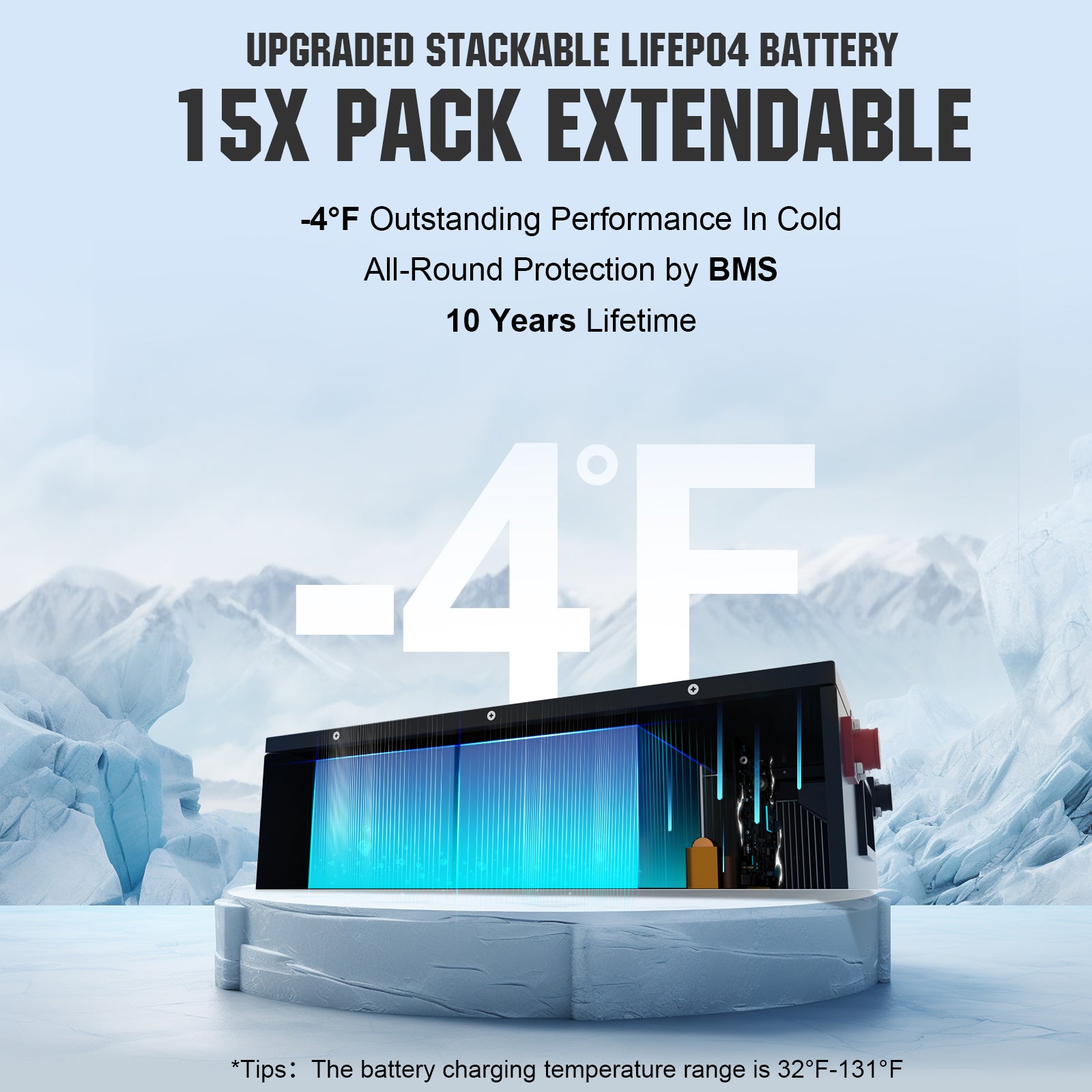

Charge Temperature Range
0-55°C
Discharge Temperature Range
-20-55°C
Voltage Range
40~58V
Maximum Charge Voltage
58.4V
Screw size
M8
Battery Size
22.09*19.02*5.63inch
Battery Weight
103 lbs
Certification
UL9540 | UL1973 | UL9540A | CEC LISTED
Warranty
10 Year Warranty
Included in the Box

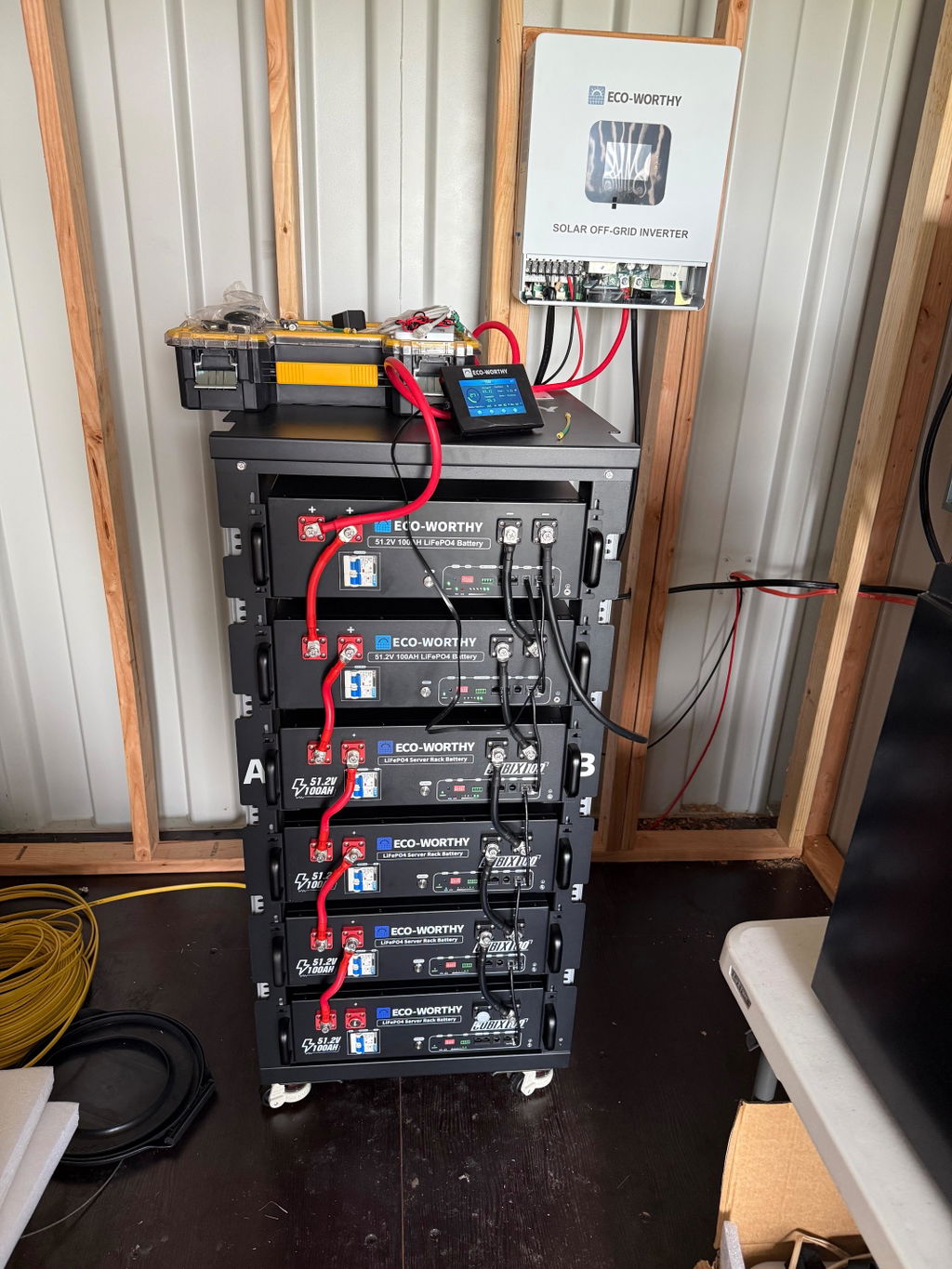

I now have 6 batteries, rack and monitor with 5kw inverter. I love the system and it holds up well to power our off grid cabin.

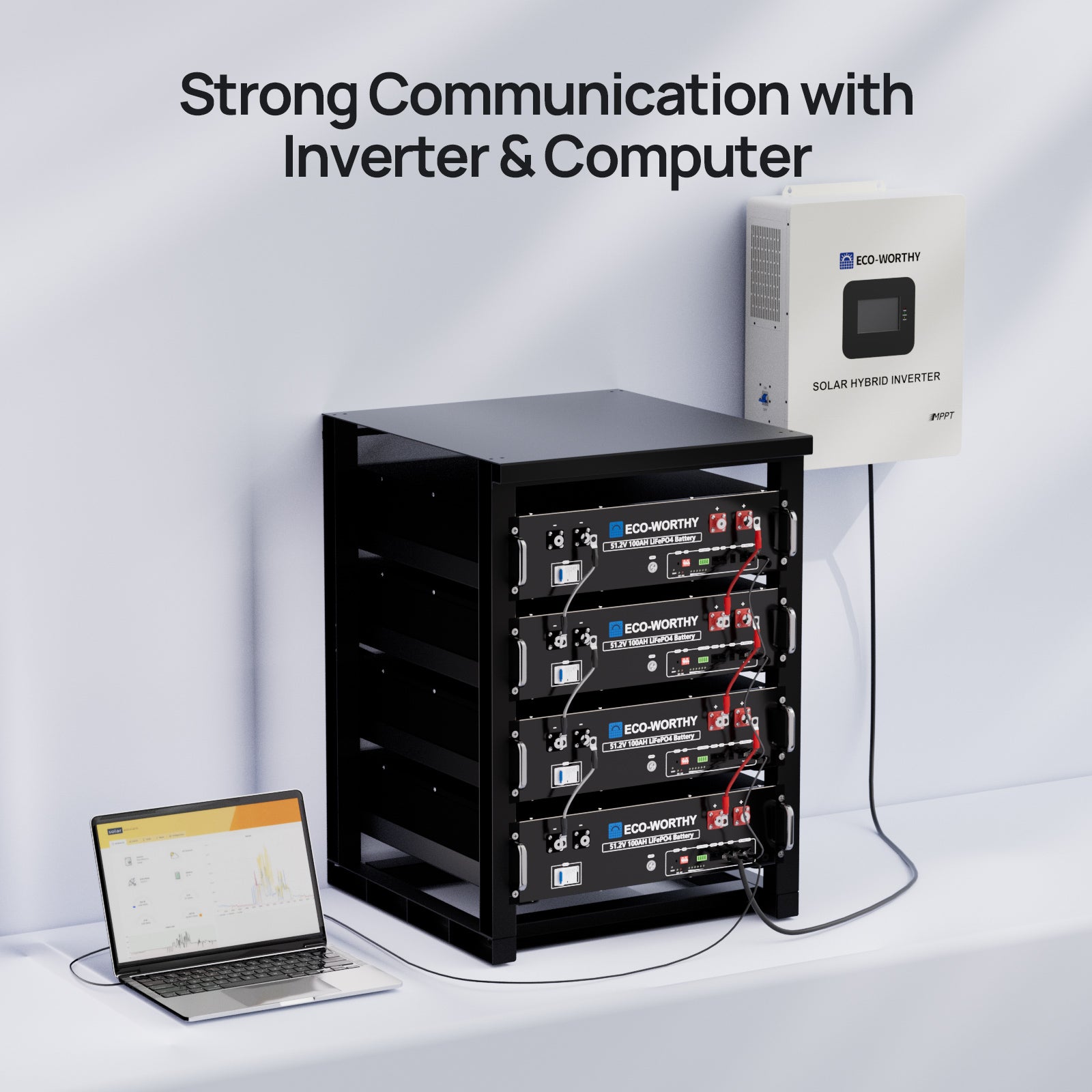

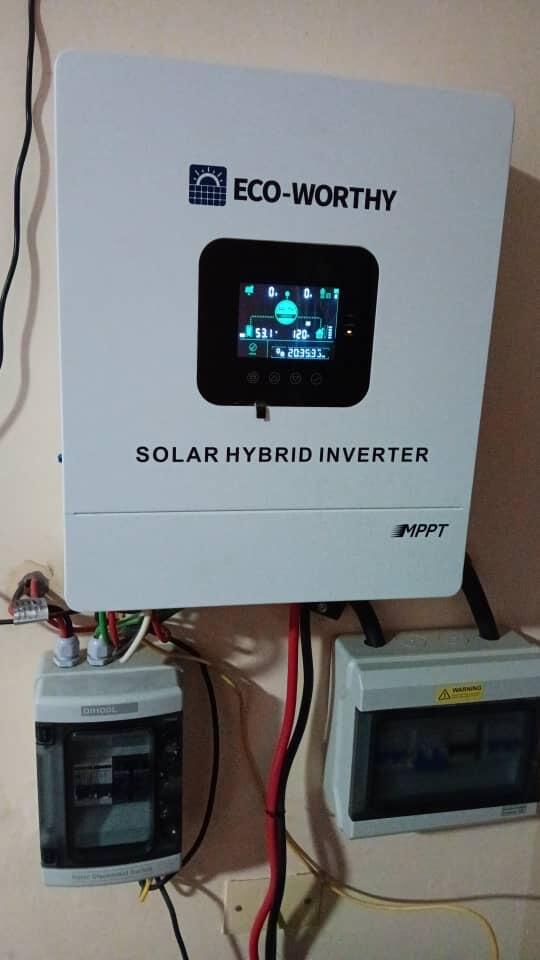

I bought this fantastic inverter 6 months ago and having been working for 5 months it is running in a backup system where the energy of the public grid is present for 2 and 3 hours in 24 hours sometimes it remains up to 24 hours without public network in different in the time it has been operating to generate 939.70kwh I can visualize its behavior in real time remotely with respect to the battery it is very strong and safe and robust it has communication with the inverter through the rs485 port in the immediate future I can enlarge the system by putting another battery and inverter in split split phase I will continue to update samples time passes I bought this product 4 and it's working perfectly

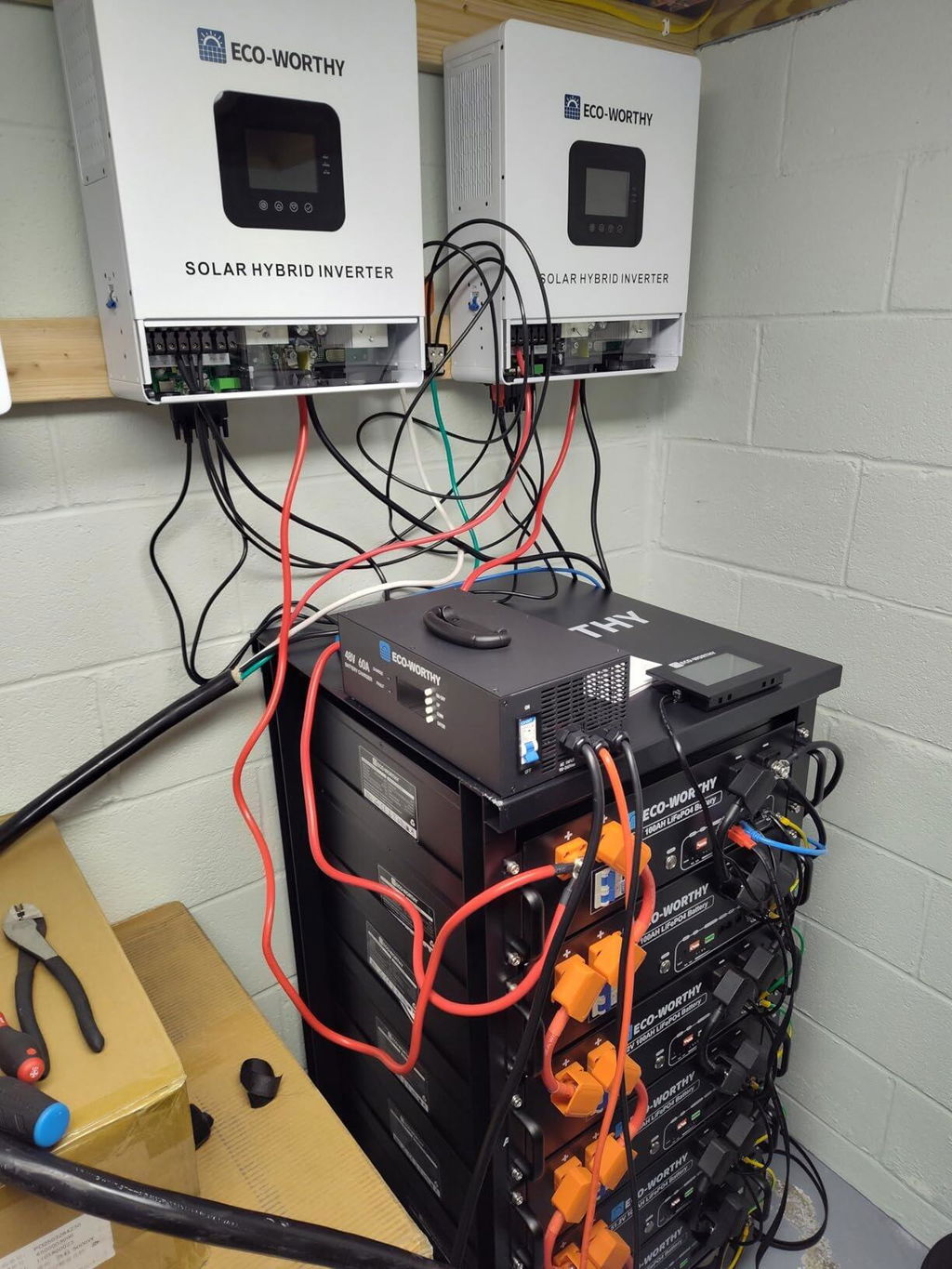

I upgrading from my small diy setup to these Eco Worthy kits and I am very impressed with their products. I am currently testing 2 inverters in parallel to get 240 volts. During testing I was able to run an electric dryer on high heat. It aslo handled the well pump great. The investors did not like the load of a 2.5 ton ac unit. But had no problems running our hybrid water heater. Take your time on setup and make sure that you set the parameters correctly. At first I missed the load parameter and it was set to mixed loads so it was trying to use solar and utility line power to balance the load and the investors would not handle much because I currently only have batteries connected. I then switched to inverter first for load and bingo it handles the load just with battery power. I plan on building out 6 inverters 3 on each leg. Overall I have no regrets with going with Eco Worthy!
I'm new to solar so far it's been working as it should. I would recommend ECO WORTHY.
Off Grid Home Power Bundle | 5kW Inverter with 48V 100AH Server Rack Battery
With the right wiring and a temp electrical connection box, had this up and running in just a couple hours of setup with most of that reviewing the inverter manual for parameter settings. Working great so far. Be sure to initially change the parameter for maximum grid AC current to 15A or so for a normal US dedicated 110v circuit since the higher default will blow your breaker.
Everything arrived just as expected and a lot faster than expected!
The specs say this 1 inverter is capable of 240v in the description but the specs below say it’s only capable of 120v unless you parallel 2 or more inverters. The description should be updated. Great unit otherwise.
It is working just as it should. It will be a power source for my trailer and a backup for my house. I am still gathering parts. It was simple to get it going. It all seams to be of good quality products.
