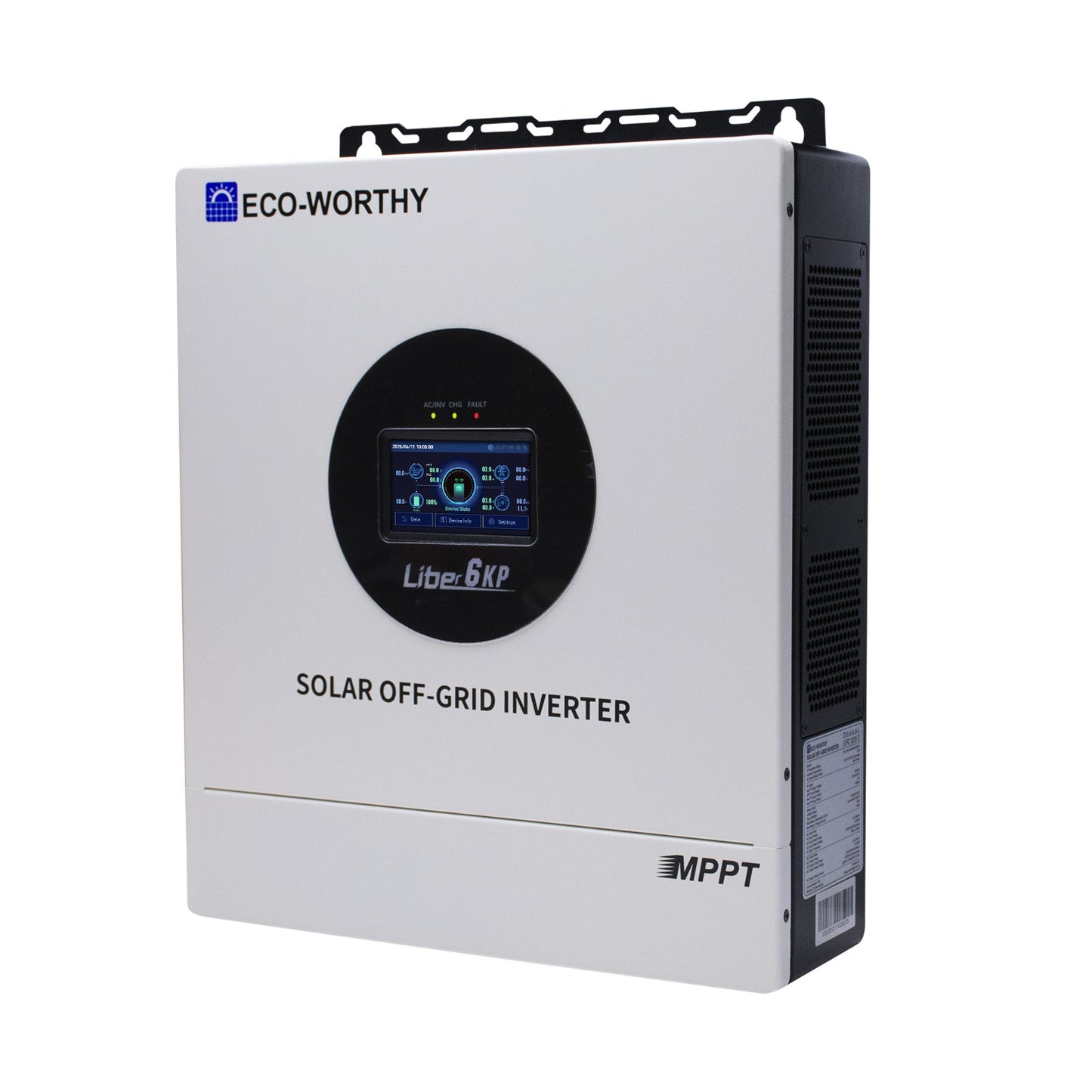

ECO-WORTHY 6KW Solar Off-grid Split-phase AIO Inverter, 48Vdc to 240Vac, 9kW@500V PV Input

ECO-WORTHY 6KW Solar Off-grid Split-phase AIO Inverter, 48Vdc to 240Vac, 9kW@500V PV Input

$699.99
$699.99 $999.99
save 30% Sold out
Shipping calculated at checkout.

SKU: US-L03YTJUSKBJ6000W-1

·Parallel Supportable: Parallel support up to 6 units-30kw Max. It can be single phase or separate phase parallel.The output voltage of one inverter is 120v, and more than two inverters can output 120v/208v/240v in parallel. (Two units MINIMUM have to be in parallel to achieve 220V power.)

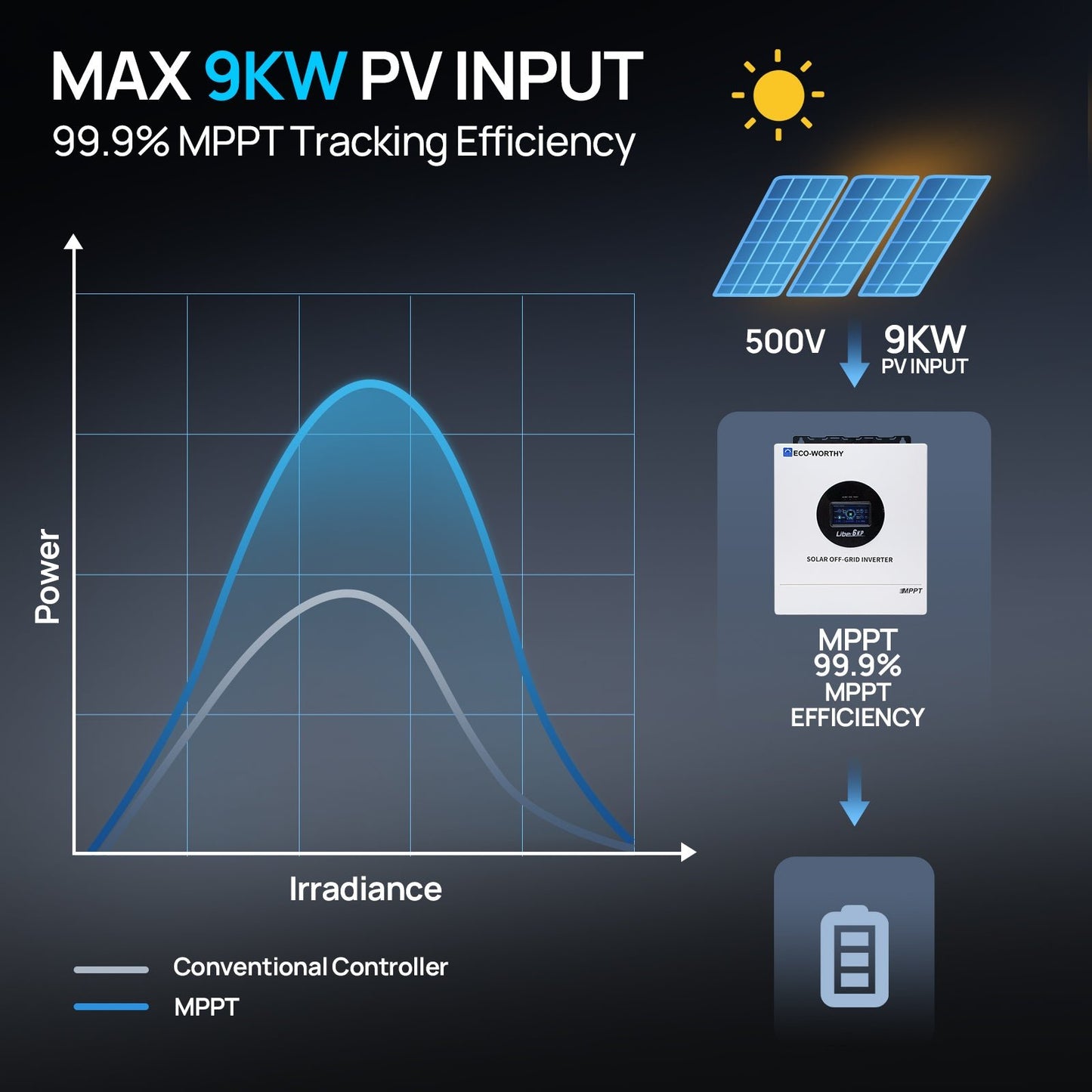

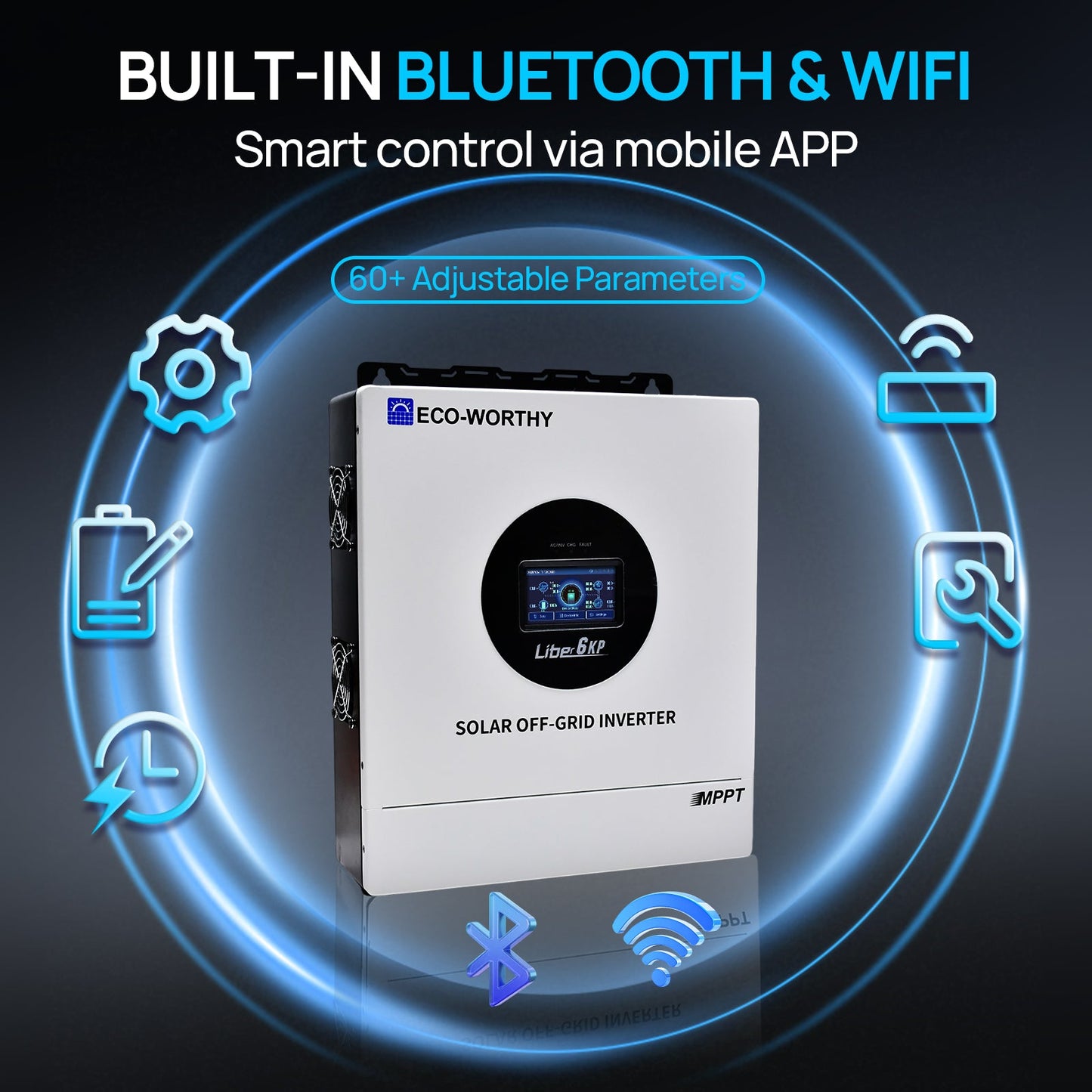

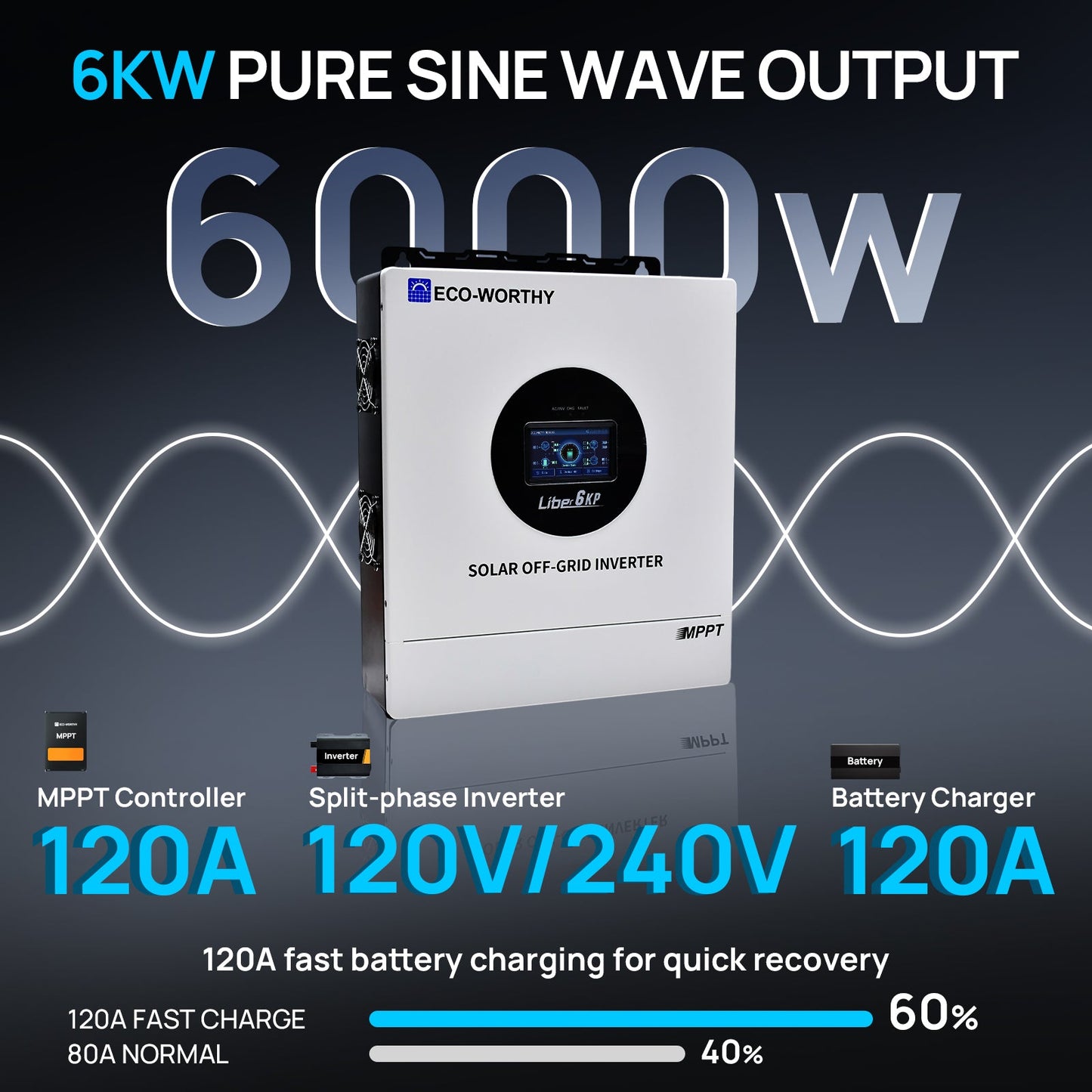

【6000W Split-Phase All-in-One Inverter】Converts 48V DC to split-phase 240V AC and comes equipped with a 9000W MPPT solar charge controller. The maximum PV open-circuit voltage is 500VDC, with an MPPT operating range of 125VDC–425VDC; maximum solar charging current is 120A; maximum AC charging current is 100A. Built-in WiFi module supports remote inverter monitoring.
【Multiple Output Modes】The default setting is Grid Priority (UTL mode). In SOL mode, the load is primarily powered by solar energy; when solar power is insufficient, the grid supplies the load. In SBU mode, the load is primarily powered by solar energy, and when solar is unavailable, power is drawn from the battery. In SUB mode, the battery is primarily charged by solar power before supplying the load; if no solar power is available, the grid provides the energy.
【Three Charging Modes & Multiple Protection Features】Supports three charging modes: hybrid charging with solar and grid power (default), limited solar charging, and pure solar charging. The inverter also includes multiple protection functions to ensure safe and reliable charging. It supports communication with a Battery Management System (BMS) for real-time monitoring, enabling stable operation when connected to server rack batteries.

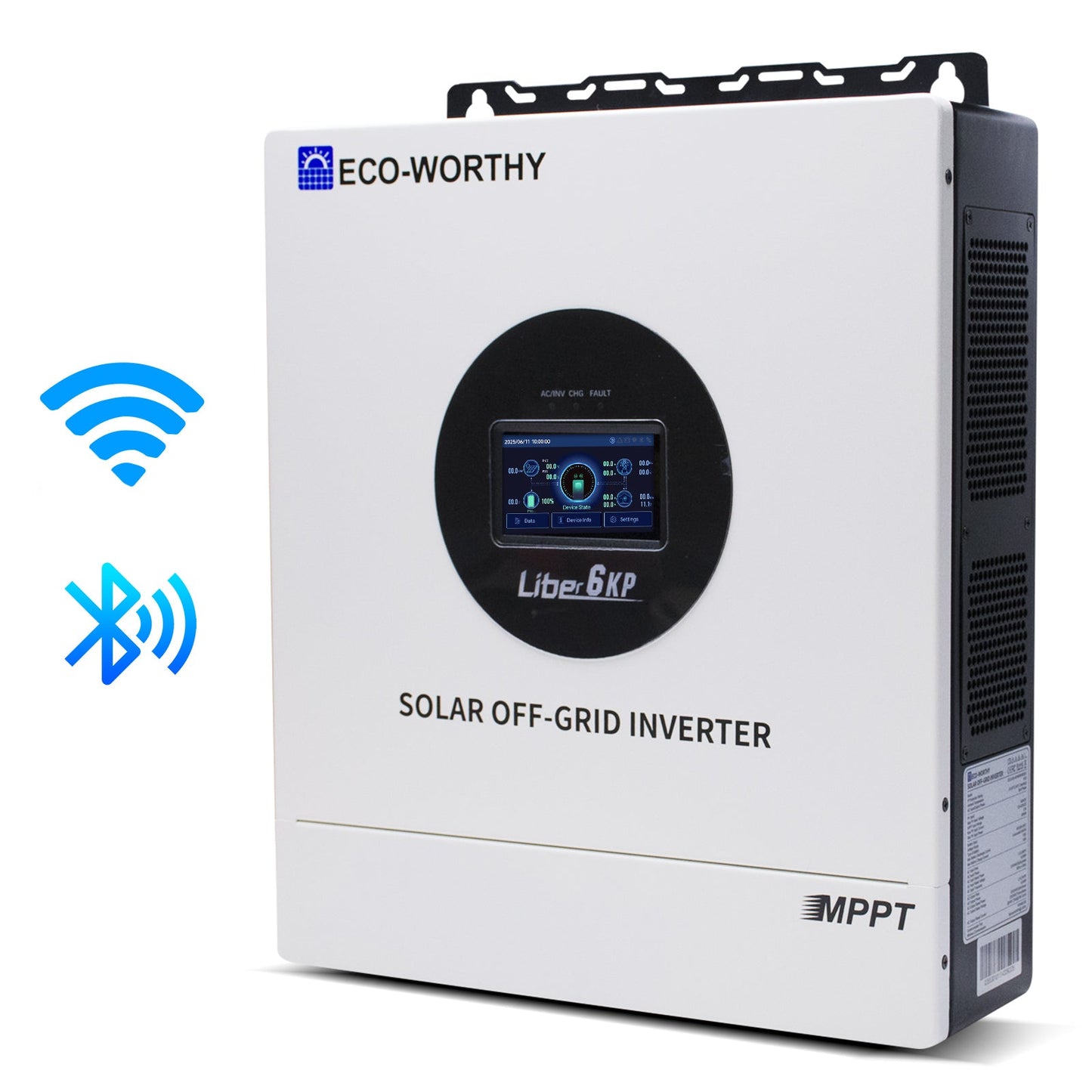

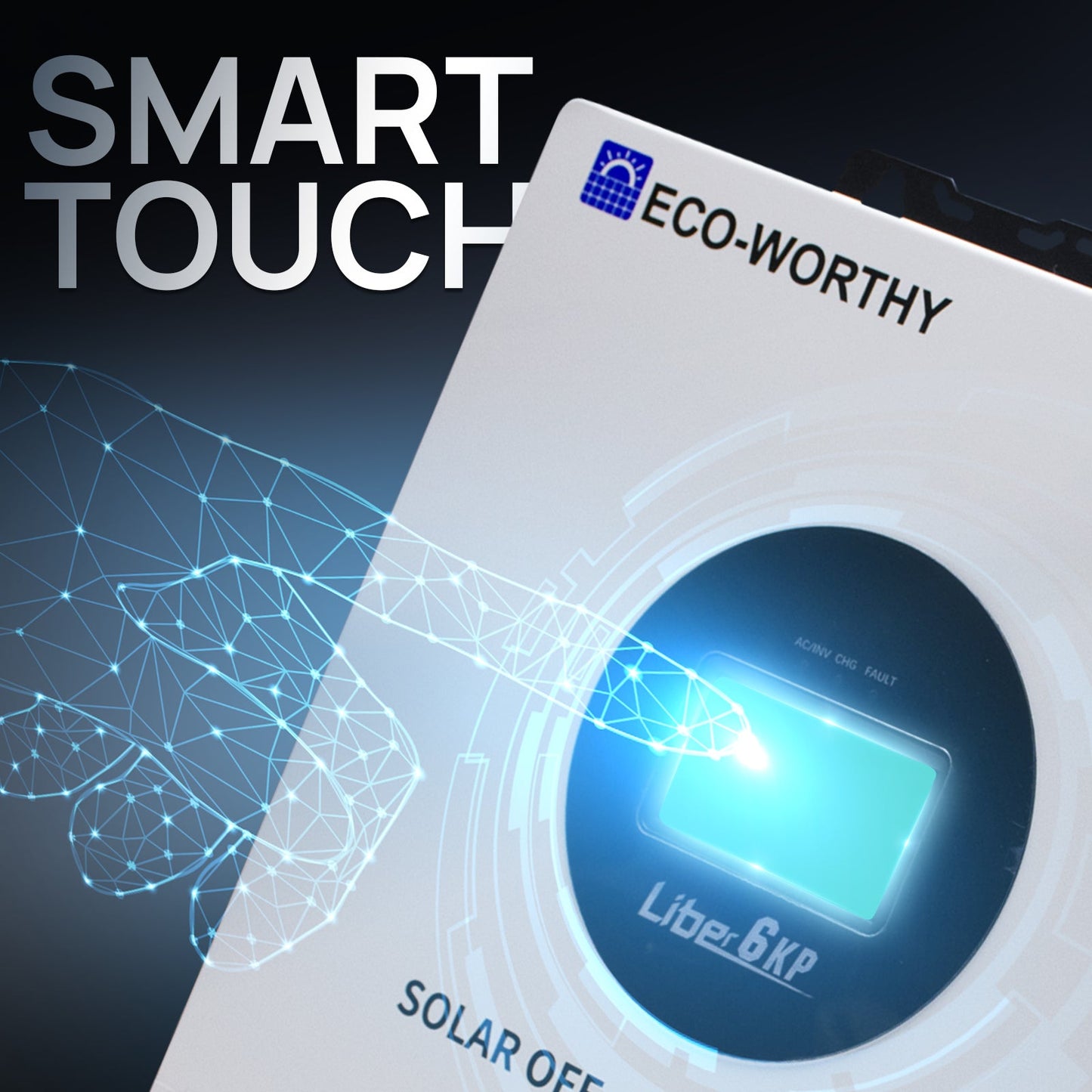

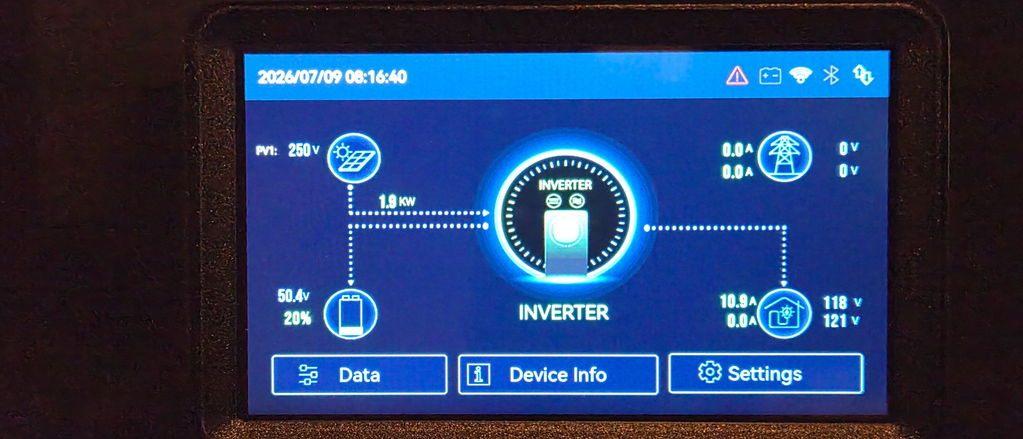

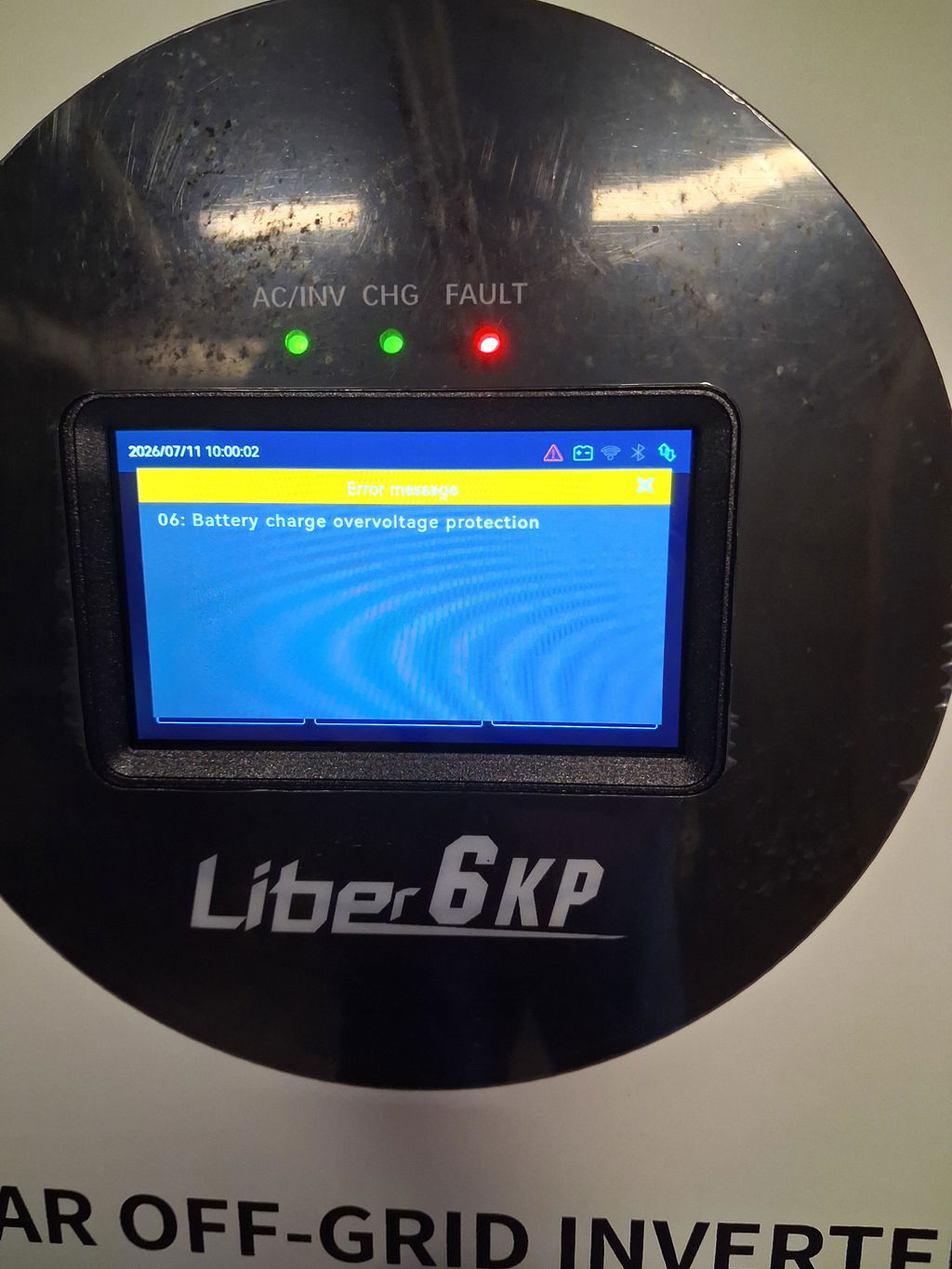

【Easy Real-Time Monitoring with Touchscreen Control】The newly designed inverter features an LED capacitive touchscreen, allowing users to easily configure system parameters and view real-time system data and operating status. If a fault occurs, the corresponding error code is displayed to help users quickly identify and resolve issues. In addition, the inverter has three LED indicators that dynamically display system information, allowing users to check inverter status at a glance — a highly practical feature.

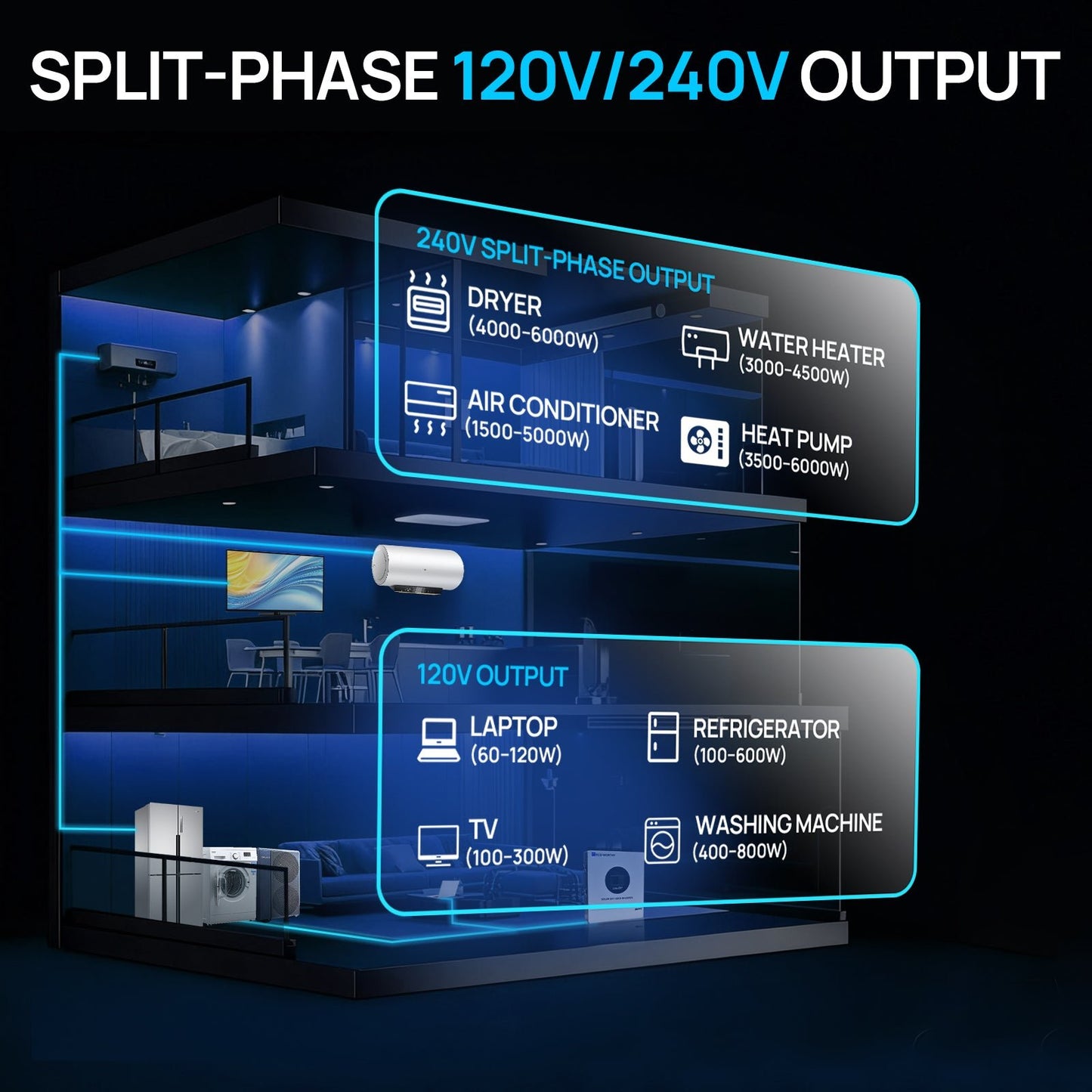

【Wide Range of Applications】This hybrid solar inverter is suitable for various applications, such as home backup energy systems and off-grid cabins. It can power a variety of large household appliances that use split-phase AC, including air conditioners, water heaters, and washing machines.
Learn More See Less

This item is on pre-order and is expected to ship around November 30.
4 interest-free payments of ... with
Afterpay
Klarna
Affirm
View full details
Description Specification Downloads Shipping&Return
The 6000W Split-Phase All-in-One Inverter converts 48V DC to split-phase 240V AC and integrates a 9000W MPPT solar charge controller with a 500VDC open-circuit voltage and 125-425VDC MPPT range. It supports multiple operation modes (UTL, SOL, SBU, and SUB), offering flexible power management between solar, battery, and grid sources. With three charging options—hybrid, limited solar, and pure solar—the inverter ensures safe and efficient charging through comprehensive protection features and BMS communication for server rack batteries. Its LED capacitive touchscreen enables easy setup, real-time monitoring, and quick fault diagnosis, complemented by dynamic LED indicators. Ideal for home backup systems and off-grid cabins, it can reliably power large split-phase appliances such as air conditioners, water heaters, and washing machines.
