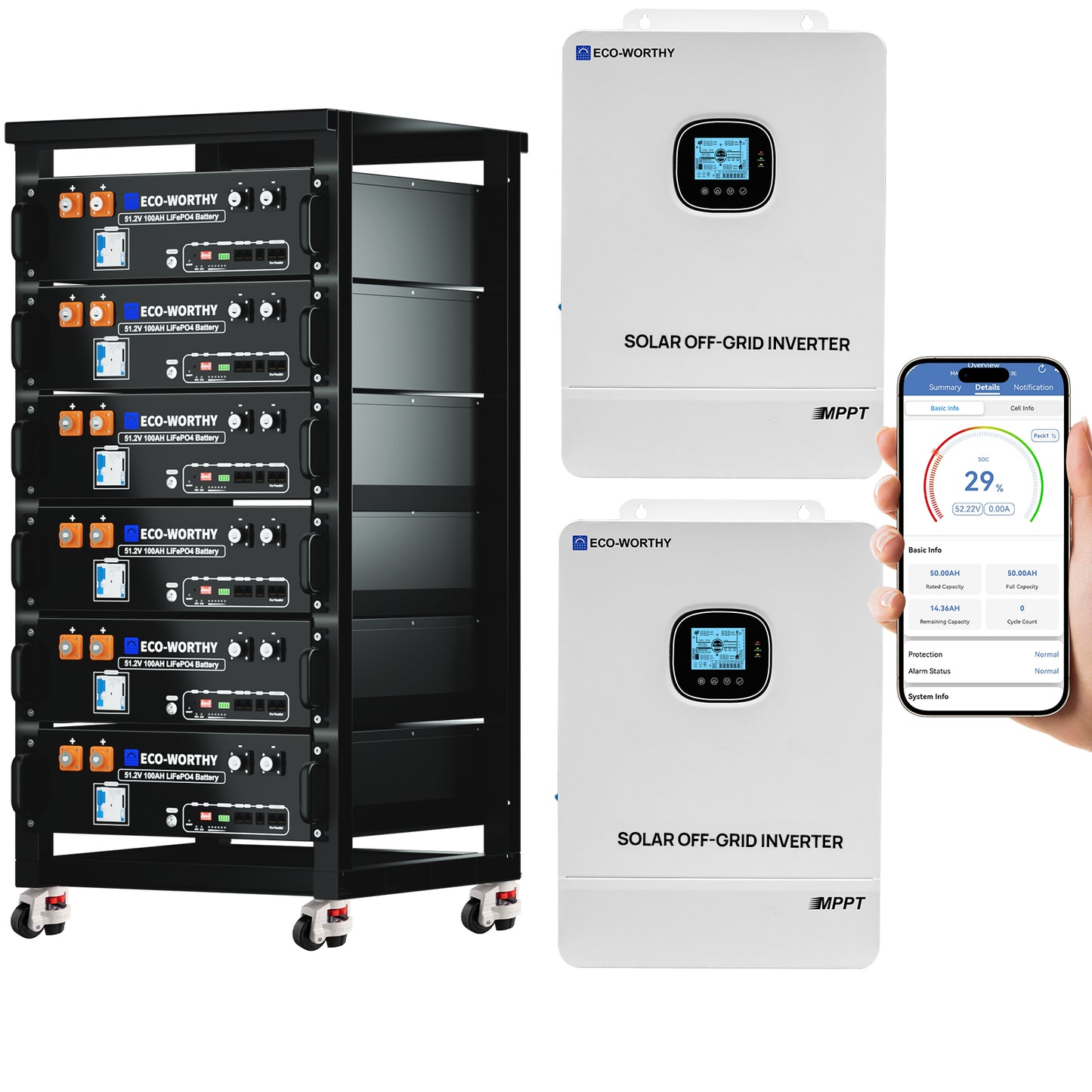

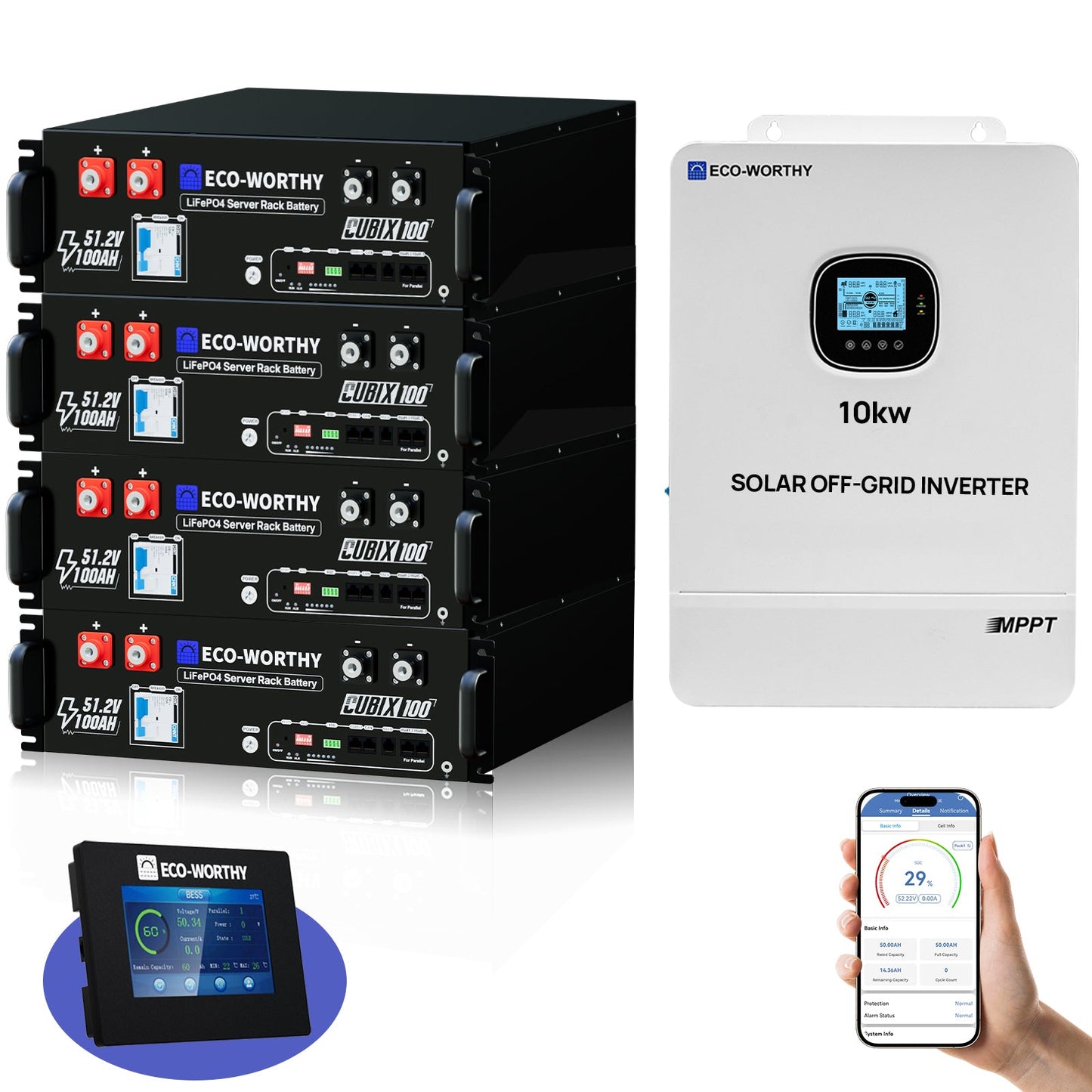

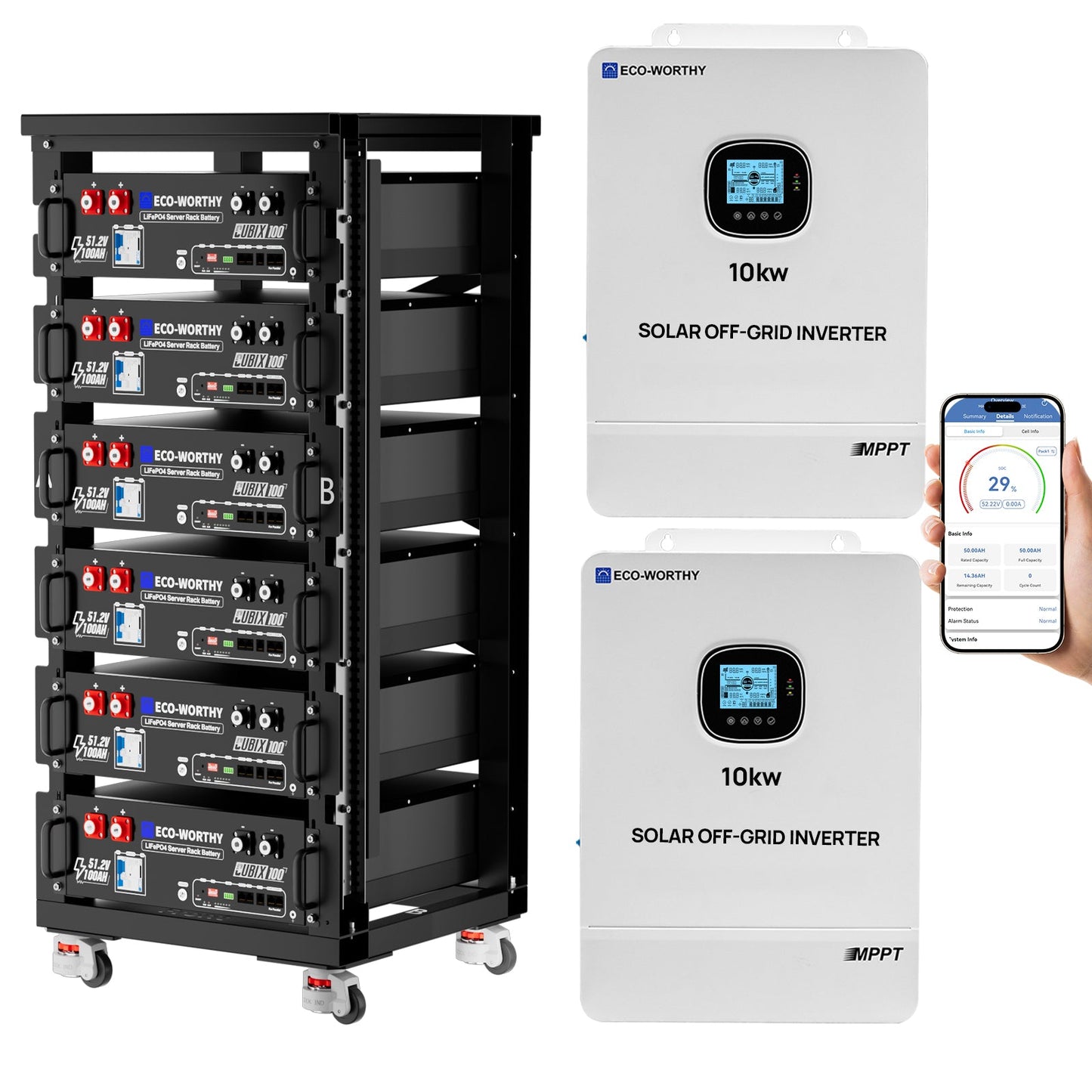

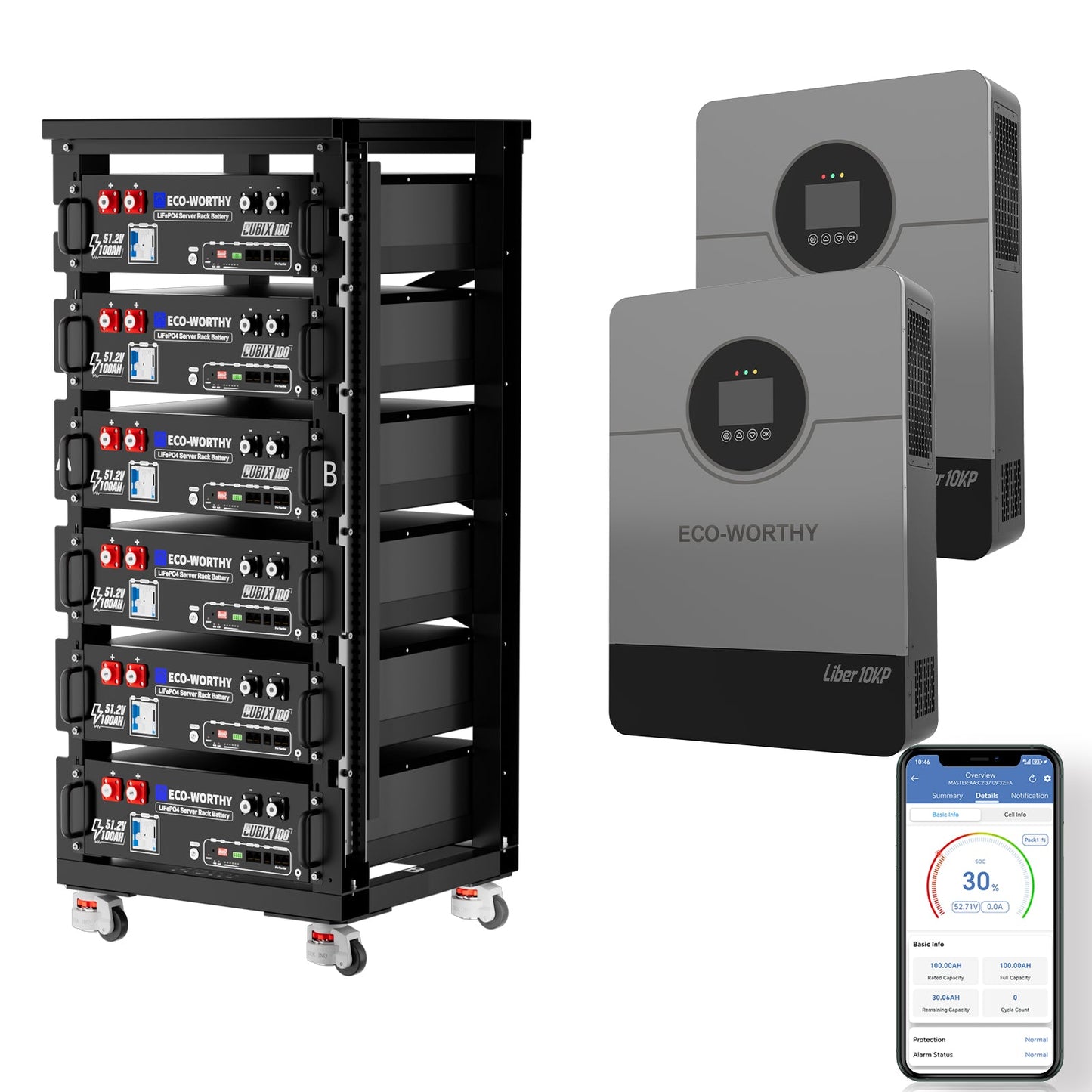

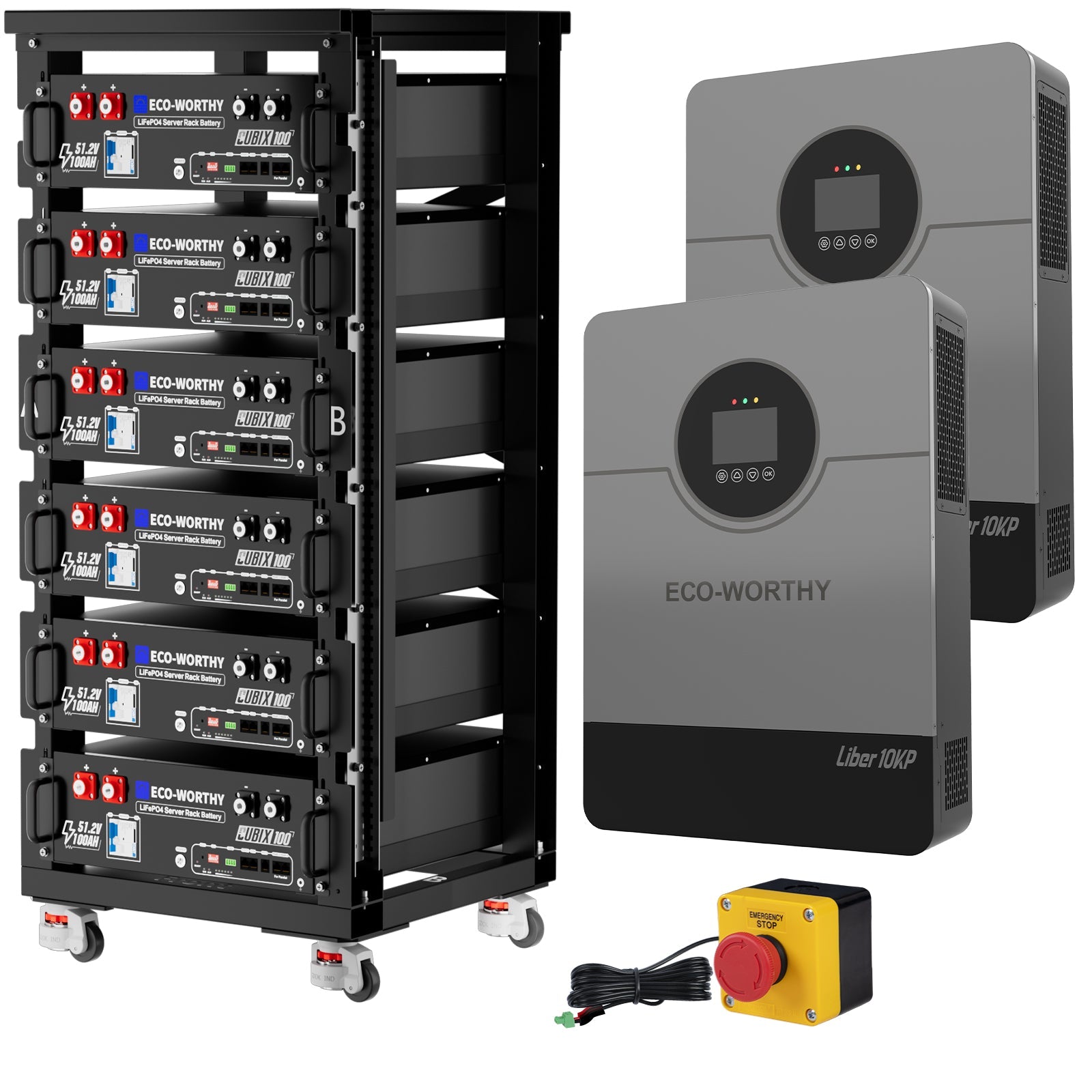

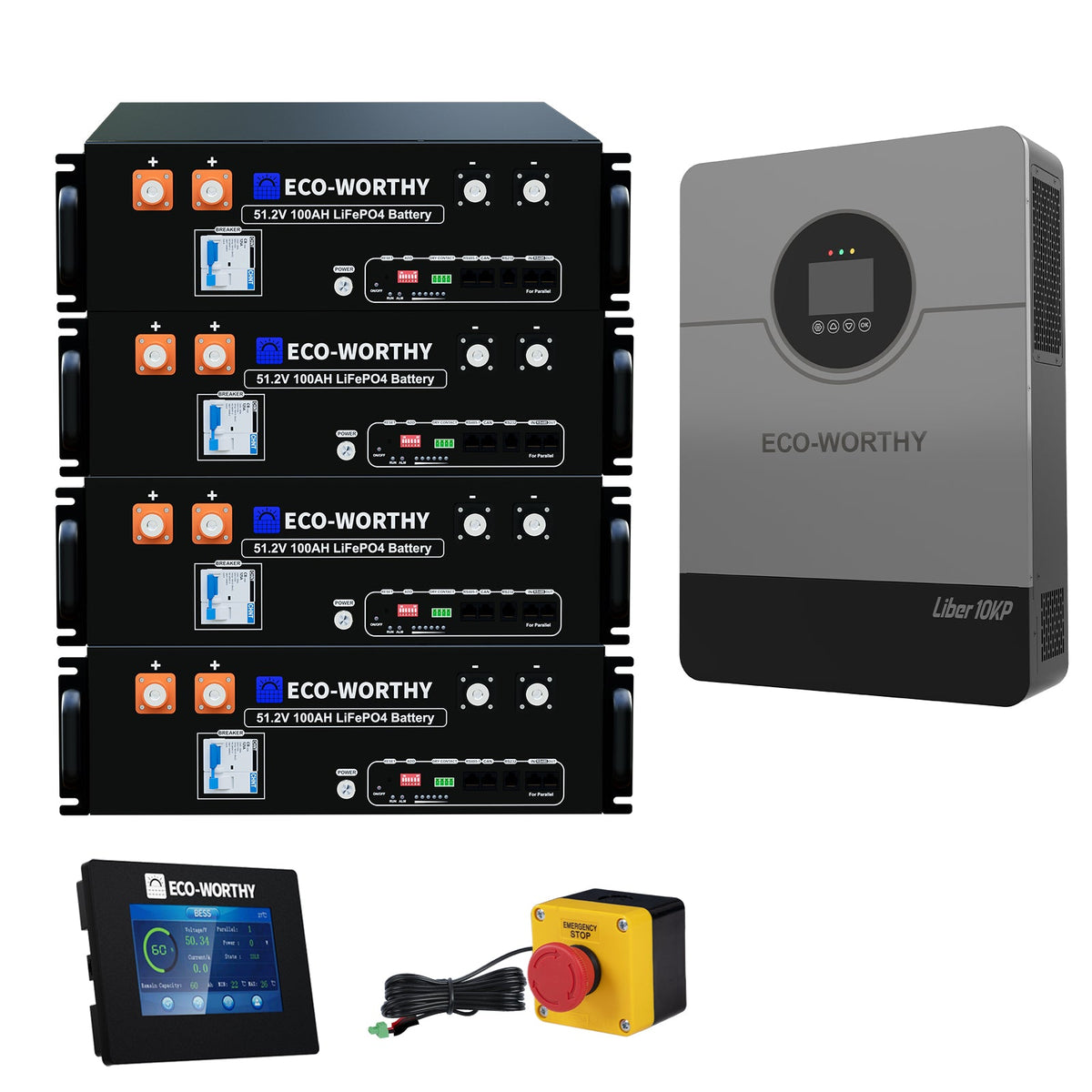

ECO-WORTHY Home Backup Power Bundle with 48V 100ah Battery and 10kW Inverter
ECO-WORTHY Home Backup Power Bundle with 48V 100ah Battery and 10kW Inverter
Regular price
$2,999.99
Sale price
$2,999.99
Regular price
$8,999.99
Unit price
per
Shipping calculated at checkout.
SKU:
SKU:GW-L02SRNK10KUSL4800CNZH3U-2
Read More
⏰Limited Time Deals,The Offer May End early!
Total Price
$2,999.99
Couldn't load pickup availability
Free Shipping
Return Guarantee
Secure Payment
or 4 interest-free payments of $749.99 with
Installments available at checkoutShop with Confidence at Eco-Worthy
Free & Fast Delivery
14-Day Money-Back Guarantee
Up To 10-Year Warranty
Lifetime Customer Support
Pay with ease
Trusted delivery
ECO-WORTHY home backup power

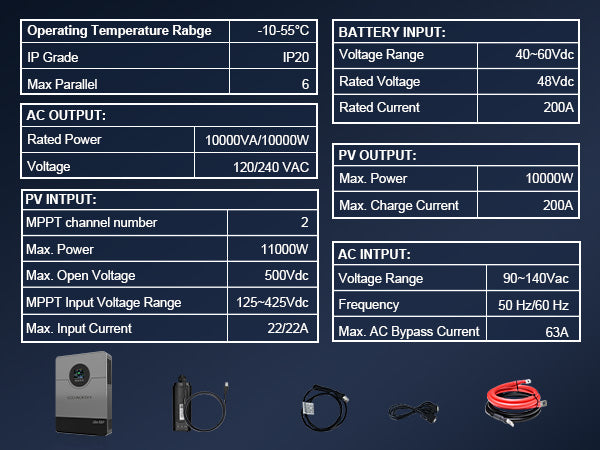

Technical Specifications

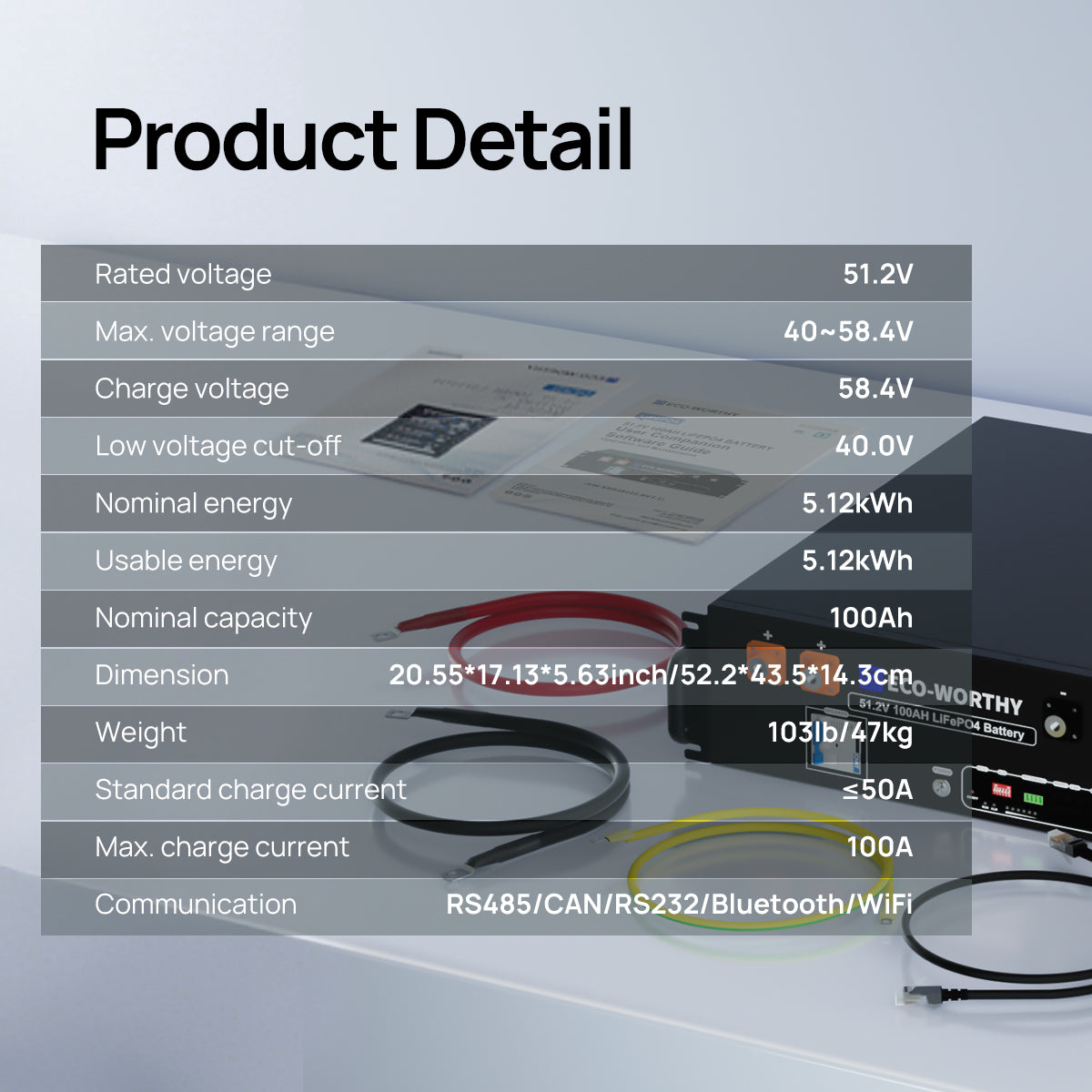

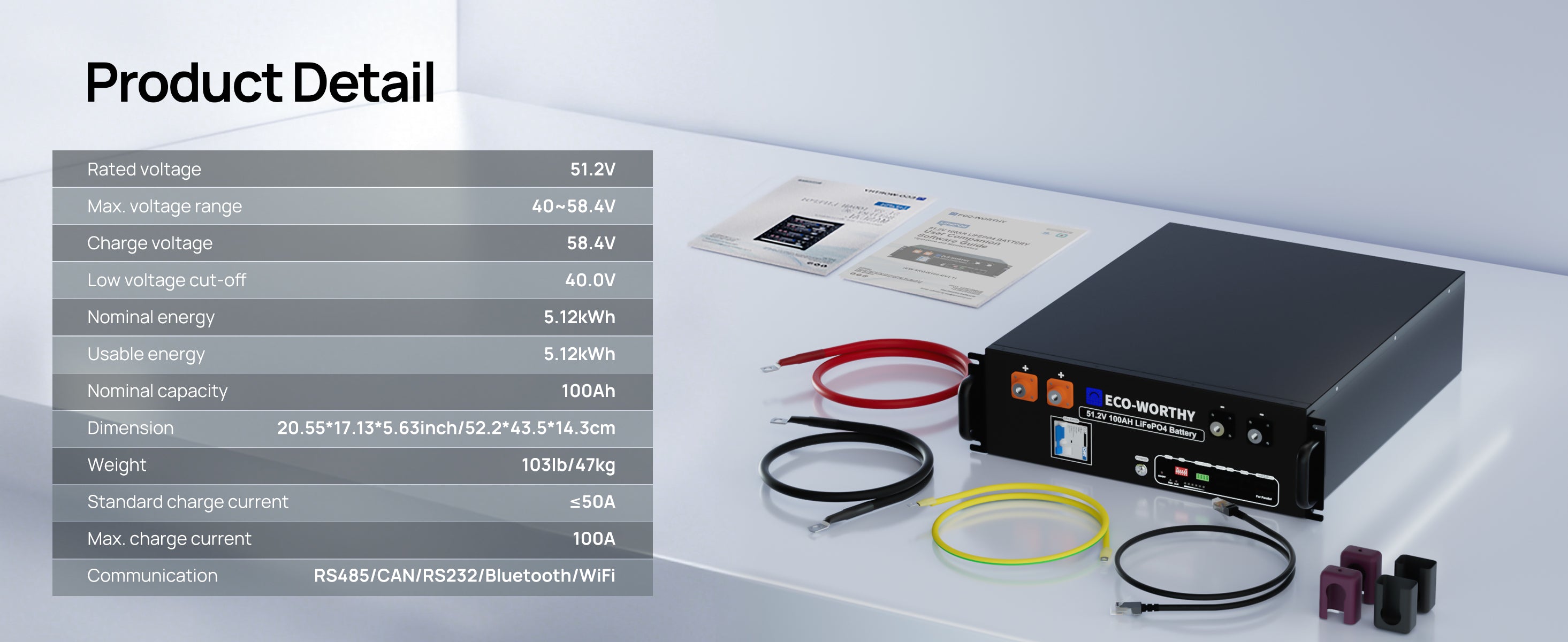

48V 100Ah Server Rack Battery

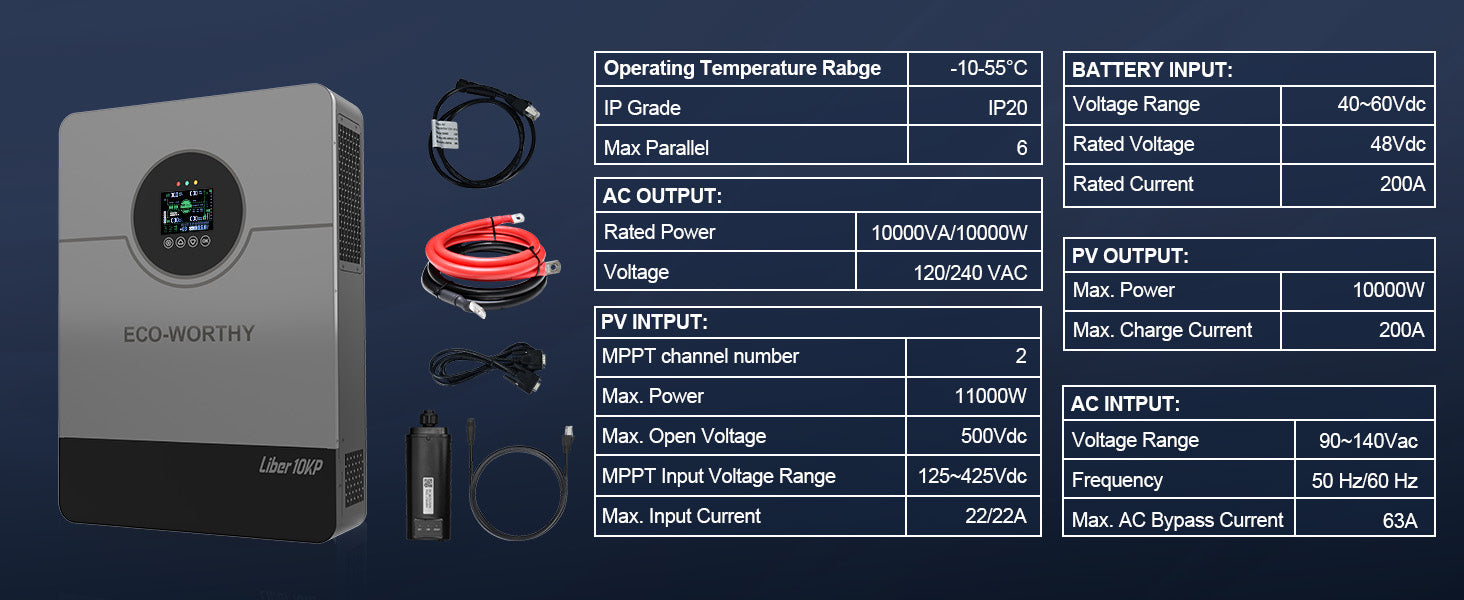

Eco-Worthy 10000W Solar Off-grid Split-phase AIO Inverter
Battery Capacity
100Ah
Battery Power
5120Wh
Rated Voltage
40~58V
Maximum Charge/Discharge Current
100A
Charge Temperature Range
0-55°C
Discharge Temperature Range
-20-55°C
Voltage Range
40~58V
Maximum Charge Voltage
58.4V
Screw size
M8
Battery Size
22.09*19.02*5.63inch
Battery Weight
103 lbs
Certification
UL9540 | UL1973 | UL9540A | CEC LISTED
Warranty
10 Year Warranty
Rated output power
10,000W
Maximum peak power
20,000W
Rated output voltage
120/240VAC(single-phase/split-phase)
Loading motor capacity
6HP
Rated frequency
50/60Hz
Output wave
Pure sine wave
Switching time
10ms (typical value)
Parallel number
6
Battery type
Lithium-ionbattery/lead-acidbattery/user-defined battery
Rated battery voltage
48Vdc
Voltage range
40Vdc-60Vdc
Maximum PV charge current
200A
Maximum mains/generator charge current
120A
Maximum mix charge current
200A
MPPT channel number
2
Maximum input power
11,000W
Maximum Input Current
22/22A
Maximum open circuit voltage
500Vdc
MPPT operating voltage range
125 Vdc-425 Vdc
Input voltage range
90VAC-140VAC
Input frequency range
50/60 Hz
Bypass overload current
63A
Dimension
620 mm*445 mm*130 mm
Weight
27 kg
Protection level
IP20, for indoor use only
Ambient temperature
−10°C–55°C, >45°C derating
Noise
<60 dB
Cooling mode
Intelligent fan
Included in the Box
Frequently Asked Questions
What certifications do you hold?
+
Our 51.2V 100Ah battery has obtained UL1973, UL9540A, and CEC listed. You can view the relevant certificates in the download section of the product page.
What is the warranty period of the battery?
+
We offer 10-year warranty for 51.2v server rack lithium battery,covering non-human-induced battery failure issues.When you buy this solar kit, you are covered by the full manufacturer warranties on each component. Plus, you’ll receive our lifetime customer and technical support.
What communication methods are supported?
+
Our battery communicate via built-in Bluetooth/WiFi with mobile apps; RS485-1 on the front panel communicates with host computer software, mainstream inverters, and Solar Assistant; CAN interface communicates with inverters; RS232 interface communicates with host computer software.
What kind of battery cells are used?
+
We use 100% A-grade prismatic cells from REPT, ensuring 6000 cycles at 80% DOD.
What safety designs does the battery have?
+
Each battery includes a built-in 100A BMS, a pre-charging circuit, and a 125A short-circuit protection switch on the front panel.
Which inverters can this battery communicate with?
+
Compatible with all major inverters: Victron, Deye, Growatt, Lux Power, Sol-Ark, GoodWe, EG4, SRNE, and more.
Can V3 communicate in parallel with V2?
+
Yes. The DIP switch principles are the same. V2 should be in the first 15 batteries due to DIP limitations; V3 has no such limit.
Do I need to update the JBD software for 32 parallel units?
+
Yes. Please download here: https://app.eco-worthy.com:7778/Download/BMS-Tool&Drive-for-Windows.zip
Does the mobile app need to be updated for 32 parallel units?
+
Yes. Upgrade the "Lithium Battery IoT Cloud" app to version 1.6.6.
Do I need to buy battery cables separately?
+
Each battery includes 1 pair of parallel cables, screws, a grounding wire, and a communication cable — no extra purchase needed.
