ECO-WORTHY Solar Panel Dual Axis Tracking System (Expanded Version Increase 40% Power) with Tracker Controller
ECO-WORTHY Solar Panel Dual Axis Tracking System (Expanded Version Increase 40% Power) with Tracker Controller
SKU: US-L03TGSF12-SCB1-1A
Accurate light tracking, extend time Dual-axis drive + sensitive sensors, realizing 270°accurate tracking of the sun, capturing every beam of light, and improving the efficiency of energy conversion.
Intelligent adaptation to extreme weather Wind speed over 17.2m/s automatic leveling (adjustable), support manual adjustment of bracket direction, intelligent snow removal in snowy days.
Save 90% installation space Occupies only 0.0484m², saves 90% space compared with traditional bracket, suitable for small yards/farms.
Reliable service and lifelong technical support ECO-WORTHY provides one-on-one customer service and lifetime technical support to answer your questions at any time.
Code:
Copy CodeCouldn't load pickup availability















FAQ
Q1: How to fix the base of main pole? (foundation length, width and depth)
A1: The main pole must be installed on solid concrete ground or pier with the expansion bolts.The solid ground base must be larger or equal to 600*600*700mm cube.Recommend concrete material (kg/m³):Cement(450kg)+Water(183kg)+Sand(600kg)+Gravel (1,192kg)
Q2: Distance between multiple sets of solar tracker?
A2:4.5m(14.8FT) or more
Q3: Light sensor installation position and direction?
A3:The outlet of the light sensor should always face south, and it is recommended to install it at the end of the first C-shaped steel on the east side
Q4: Installation position of "East-West"linear actuator?
A4:Towards the west side
Q5: What should I do if I encounter problems with the installation?
A5:Please let us know ,we will reply your email in 12h on weekdays






Package Includes:
Upgraded Expanded Tracking System
SolarPanelSuitability | 100W | 200W | 400W |
Quantity | 10PCS | 8PCS | 4PCS |
Width | ≤550mm | ≤690mm | ≤1300mm |
Product Dimensions: | 110 x 110 x 64 inches | Max wind speed: | 17.2m/s |
Item Weight: | 141 pounds | Max load: | 200kg |
6" 150mm Linear Actuator
Input Voltage: 12V DC | Max. Load: 1500N/330lbs/150kg |
Stroke Length: 6 inches (150mm) | Duty Cycle: 25% |
Protection Class: IP65 | Material: Aluminum alloy |
Low Noise: db<45 (A) |
12" 300mm Linear Actuator
Input Voltage: 12V DC | Max. Load: 1500N/330lbs/150kg |
Stroke Length: 12 inches (300mm) | Duty Cycle: 25% |
Protection Class: IP65 | Material: Aluminum alloy |
Low Noise: db<45 (A) |
We hope you have enjoyed your online shopping experience with ECO-WORTHY. Please read below for more information about our shipping and return policies.
SHIPPING
You will receive a confirmation e-mail after placing an order and another e-mail after your order has been shipped. The second one will contain the tracking information and some instructions on how to track your parcel. Depending on your order, your purchase may arrive in multiple packages.
ORDER PROCESSING
Procession time can take between 1-3 business days.
The time it takes to prepare your item(s) to ship from our American local warehouse. This includes preparing your items, performing quality checks, and packing for shipment.
SHIPPING COUNTRIES
We offer a free shipping service for most of mainland from our American local warehouse.
Note: HI, AK, PR & US Territories
(Free shipping is not available for customers in Hawaii (HI), Alaska (AK), Puerto Rico (PR) or any US Territory. Please contact us for a shipping quote on your order.)
SHIPPING TIME
All items sold at ECO-WORTHY are guaranteed to be delivered in 30 days.
If you have not received your item(s) beyond this time, you are eligible for a full refund after we have conducted a postal investigation.
Shipping from |
Shipping to |
Shipping time |
tracking information |
US warehourse |
Most of the U.S. states |
3 - 5 business days |
tracked |
Freight: Larger Panels Kits must be shipped by freight, the shipping time is 5-14 business days.
Note: The shipping times mentioned above refer to the estimated times of business days that the shipment will take after an order has been shipped. Business days do not include Saturday/Sunday and any public holidays. These estimates are based on normal circumstances and are not a guarantee of delivery times. We are not responsible for the failures or delays in delivery resulting from any force majeure event, such as natural disaster, bad weather, war, and any other event beyond our direct control, such as public holidays and customs issues.
Full refunds are not available under the following circumstances:
1. Delays caused by the buyer providing incorrect or incomplete delivery information.
2. Delays in delivery caused by any force majeure incidents, such as natural disasters, bad weather, and war.
3. Any un-insured order that is lost or stolen.4. Delays in delivery caused by any other beyond ECO-WORHTY's control, such as public holidays and Customs issues.
GUARANTEE & RETURN POLICY
14 Days DOA Product Guarantee
If one or more of the items you received are damaged, different, or not working, you will be protected by this Guarantee. Please contact us for Return Material Authorization within 14 days of the order being received. In the event of a replacement, ECO-WORTHY will arrange for return shipment of the defective unit, and once the part has been received and inspected, we will ship out the replacement part within 3 working days. To qualify under our Defective on Arrival policy, goods must be returned in their original packaging. Goods returned without original packaging will not be accepted.
30 Days No Reason Return
Standard in stock merchandise purchased through ECO-WORTHY may be returned within 30 days of the receipt of the product. You will receive a refund or credit towards your account, provided the merchandise is returned in the original packaging in new and resalable condition with the original blank warranty cards, manuals, and all accessories. ECO-WORTHY will pay the shipping costs of the returned item(s) for the following reasons: carrier damage, defective product, product inconsistent with advertisements, incorrect product received, or for any extra products you did not order. For all other reasons, customers are responsible for the return shipping fees. ECO-WORTHY requires at minimum 1-2 working days to inspect a returned item prior to issuing a refund or credit.
Please note that ECO-WORTHY will not accept returns with product modifications as it voids our warranty policy. Any modified products received will be returned to you at your expense.
Please be prepared with your invoice or the following information:
Order number
Proof of purchase
Video or photo of the faulty product (if applicable)
Mailing address
Contact telephone number
Please carefully follow our warranty process to minimize any delays:
1. Describe the problem with your item in detail: What happened? When? How? Please also state your full order number and product code (SKU number).
2. Tell us what steps you have already taken to resolve the issue.
3. Provide the item code indicated on the outer packaging.
4. Send a clear photo or video showing the defect(s); these should be taken under good lighting.

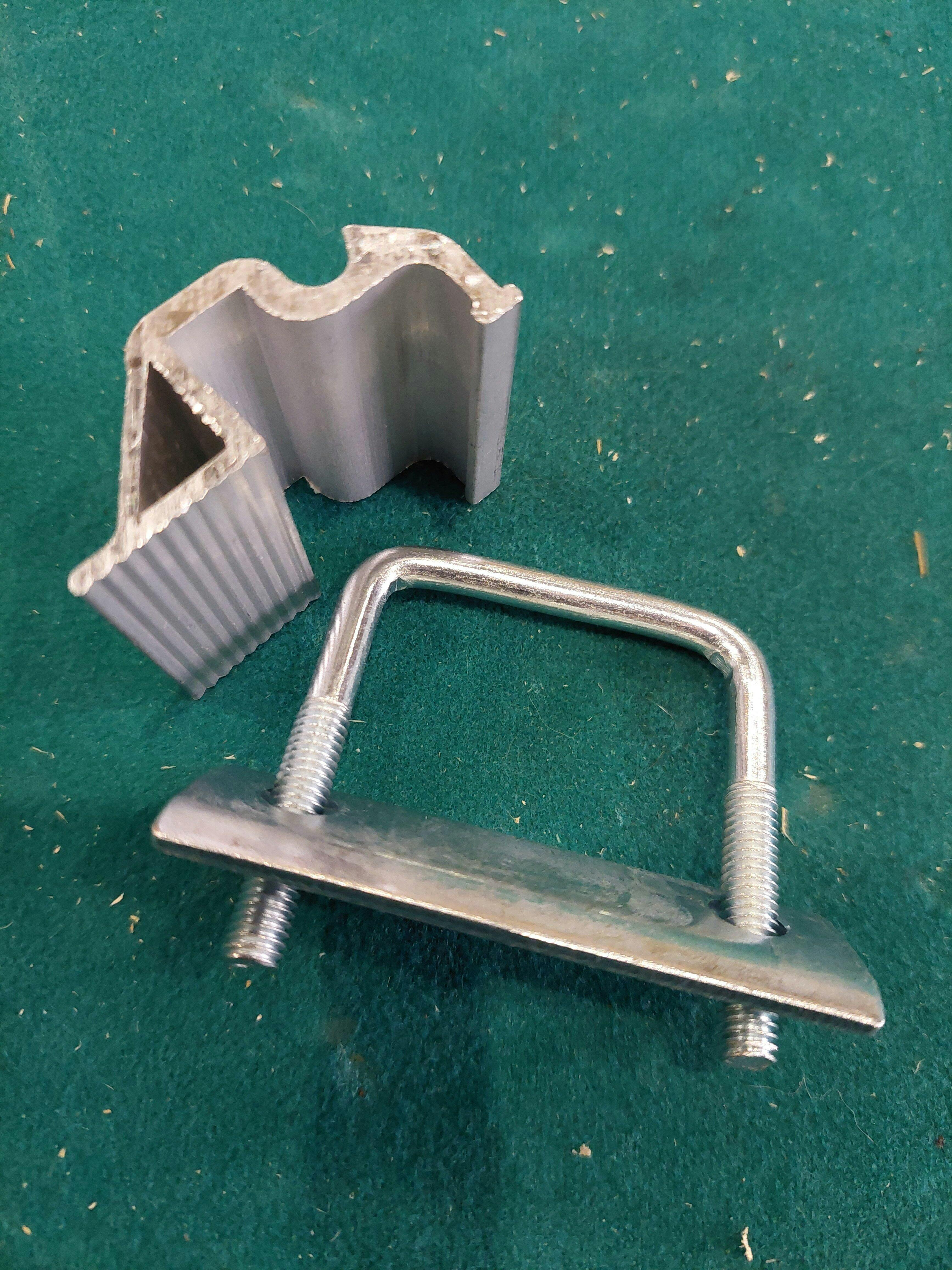

I would have easily given this 5 star review had it not been for the lack of information for assembly, they were not terribly clear. The tracker itself is well made and works very well. The instruction booklet is somewhat lacking. As an example, the clips sent to secure the panels to the uni-strut are unlike anything I could find any information about. I believe they are designed to clamp to the frame of the panel from underneath so that there would be no gaps between panels and that the array would appear quite streamlined. I'm quite happy and excited to have this and I will definitely be purchasing at least three more in the future, I just am not pleased with the assembly books. Going forward, now that I've assembled this one, future trackers should be easy to build.

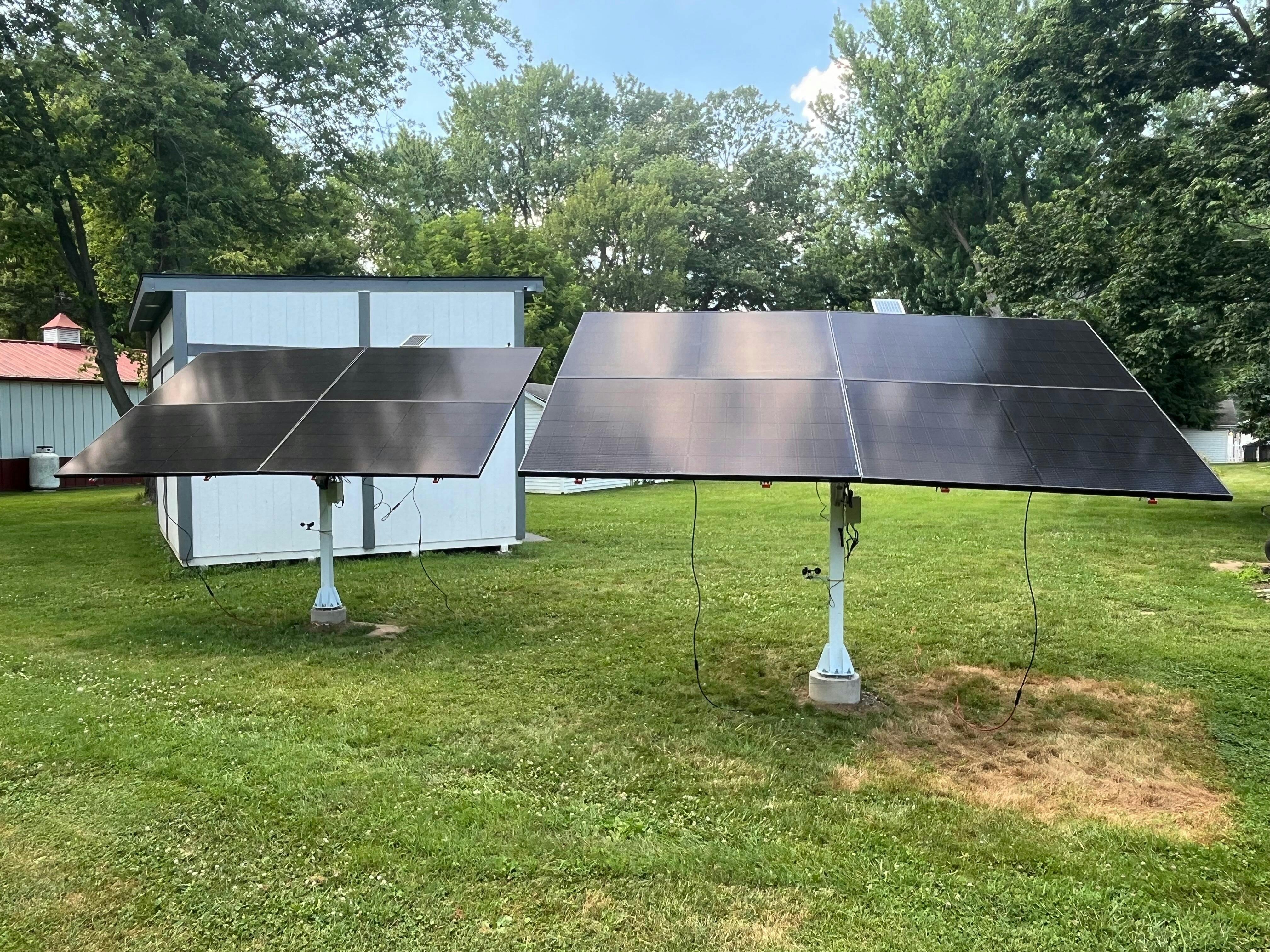

I recently purchased and installed two Extended Dual Axis trackers and solar panels from Eco-Wothy. both trackers and solar panels arrived with no damage and defective free. I must say Eco-Worthy does provide some of the most protective packing. The system came with clear instructions noting which numbered package to when constructing the panels. Once all systems were installed I was quite surprised with the power results I received through the panels. I am getting between 80 to 90% power output.
I would highly recommend the Eco-Worthy Dual Axis tracker and solar panels. The design of the tracker and panels were well thought out.
Finally got around to installing and am amazed at how neat this product is including the technology in this thing. Will definitely be buying more.
This is my third EW tracker, it works great. I swapped out the steel channel for aluminum solar rails to lighten up and stiffen the rack. I put three 520 watt bifacials 34 x 78 on them. The steel channel flexes too much and weighs too much for my panel config. The controller works flawlessly. Have yet to see what happens when the battery gets cold.
EW, please scale this up to a 10' x10' array!
