How to Use the Host PC Software

September 8,2025

During lithium-battery debugging, maintenance, or configuration, the host-PC application is the most direct and effective tool. It provides real-time monitoring of battery operation and supports parameter setting, fault diagnosis, log export, and many other tasks, making it suitable for a wide range of scenarios.

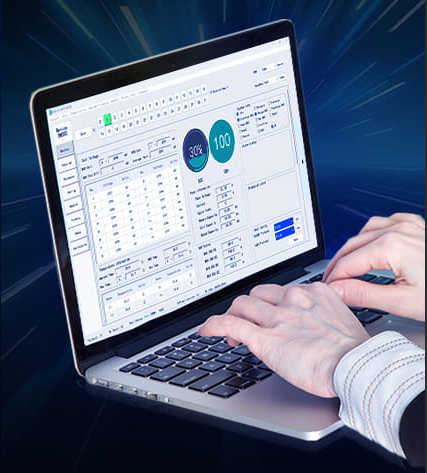

I. What is Host-PC Communication?

The host PC (Host Computer) refers to a computer program that exchanges data with the battery’s BMS via serial port, USB, or other communication interfaces. Common examples include:



- BMS-vendor PC tools (e.g., JBD Tools)

👉Download the manual to learn about the detailed guide to connecting JBD with the host computer software

- Custom visualization platforms (e.g., HMI panels, data-acquisition software).



Through these tools, users can perform fine-grained configuration and monitoring of the battery.

II. Host-PC Connection Methods

Battery connectors vary by model, so the connection method to the host PC may differ. Always refer to the relevant manual. Currently supported batteries include the Server Rack series, 48V 280Ah LiFePO4 Solar Battery , etc.

33% Off
ECO-WORTHY 48V 100AH Server Rack Battery 5.12kwh LiFePO4

ECO-WORTHY 48V 100Ah Server Rack Battery | 5.12kWh V3 Lithium Battery | UL1973 | UL9540A | 10-Year Warranty

$899.99
$1,299.99

(43 ratings)

(Buy Batteries Get Free Monitor & Rack)

Example connection – Server Rack 48V 100 Ah battery👉Download the brochure for more details



20% Off
ECO-WORTHY 48V 280AH Wall Mount Battery 14.3kwh LiFePO4

ECO-WORTHY 48V 280Ah LiFePO4 Battery| Solar Battery Backup for home | Wall Mount

$2,399.99
$2,999.99

(1 rating)

(Buy Batteries Get Free Busbar)

Core Functions of Host-PC Software

Although the user interface differs slightly among BMS brands, the essential features are the same:

Subscribe

Get an Exclusive $10 Off Your First Purchase

Thanks for contacting us. We'll get back to you as soon as possible.

Main Article

Decoding the Multi-Dimensional Communication Capabilities of the ECO-WORTHY 48V100Ah Server Rack Battery

May 29,2025

Related Articles

How to Configure Master-Slave Communication Between Batteries

August 29,2025
Title

How to Connect the Mobile App

September 11,2025
Title

Which inverter brands are supported? What is closed-loop communication?

September 19,2025
Title

How to Configure the Battery for Closed-Loop Communication with an Inverter?

September 19,2025
Title

Closed-Loop vs. Open-Loop Communication

September 22,2025

Core Topic

The core theme of this article series is “Intelligent Battery Communication,” focusing on the communication functions and technologies of the 48V 100AH server rack battery and its related devices. It covers master-slave communication, upper computer communication, mobile APP communication, and inverter communication, aiming to help users understand and apply these technologies.

1.

Real-Time Monitoring

Pack voltage, current, SOC (State of Charge)

Individual cell voltage, temperature, balancing status

Protection states (over-voltage, under-voltage, over-current, over-temperature, etc.)

2.

Parameter Configuration (password-protected)

Charge/discharge voltage and current thresholds

Temperature protection limits

Battery chemistry type and capacity settings

⚠️Caution:



Some parameters—especially protection voltages and current limits—must be adjusted carefully. Incorrect settings can prevent charging or trigger premature protection.

3.

Fault Diagnosis & Data Export

View historical fault codes and protection logs

Export real-time monitoring data to CSV files

Certain software versions support firmware upgrades

III. Troubleshooting & Solutions

Q: Cannot connect / recognize COM port

A: Confirm that the COM port is shown in Device Manager. If not, reinstall the USB driver and verify the cable wiring.

Q: Connection established, but data is garbled or missing

A: Incorrect baud rate. Reset the baud rate according to the product manual.

Q:Parameters cannot be changed

A: Insufficient privileges. Parameter modification usually requires logging in with an admin or high-level user account.

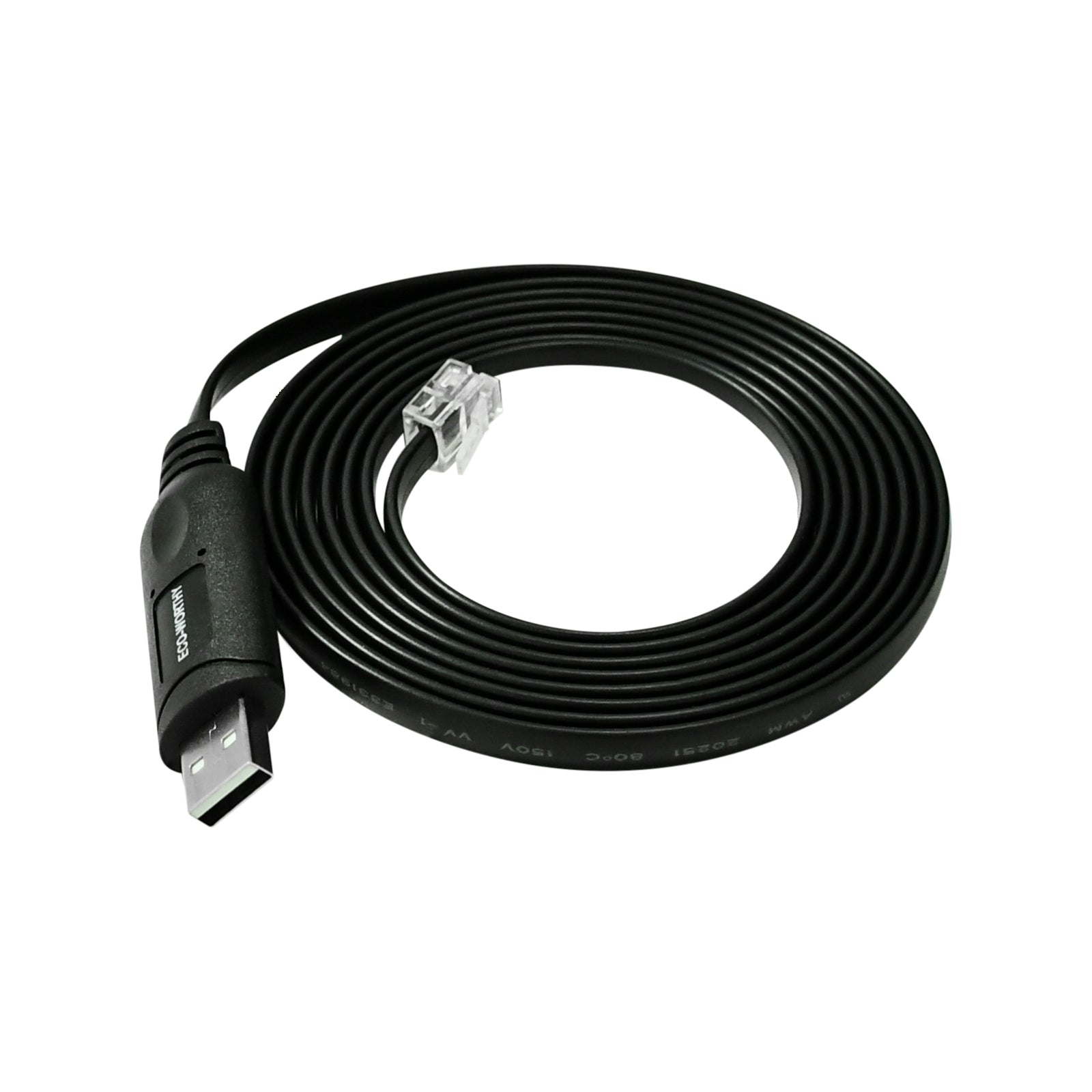

Host-PC communication is a vital tool for battery system commissioning. Mastering the connection and operation procedures greatly improves work efficiency and diagnostic accuracy. We recommend using the dedicated adapter cable and the official debugging software (available on the relevant product page) to ensure stable and safe communication.
