SKU:
SKU:L02M195TM-SRNKUS3.5KMU3U1-8

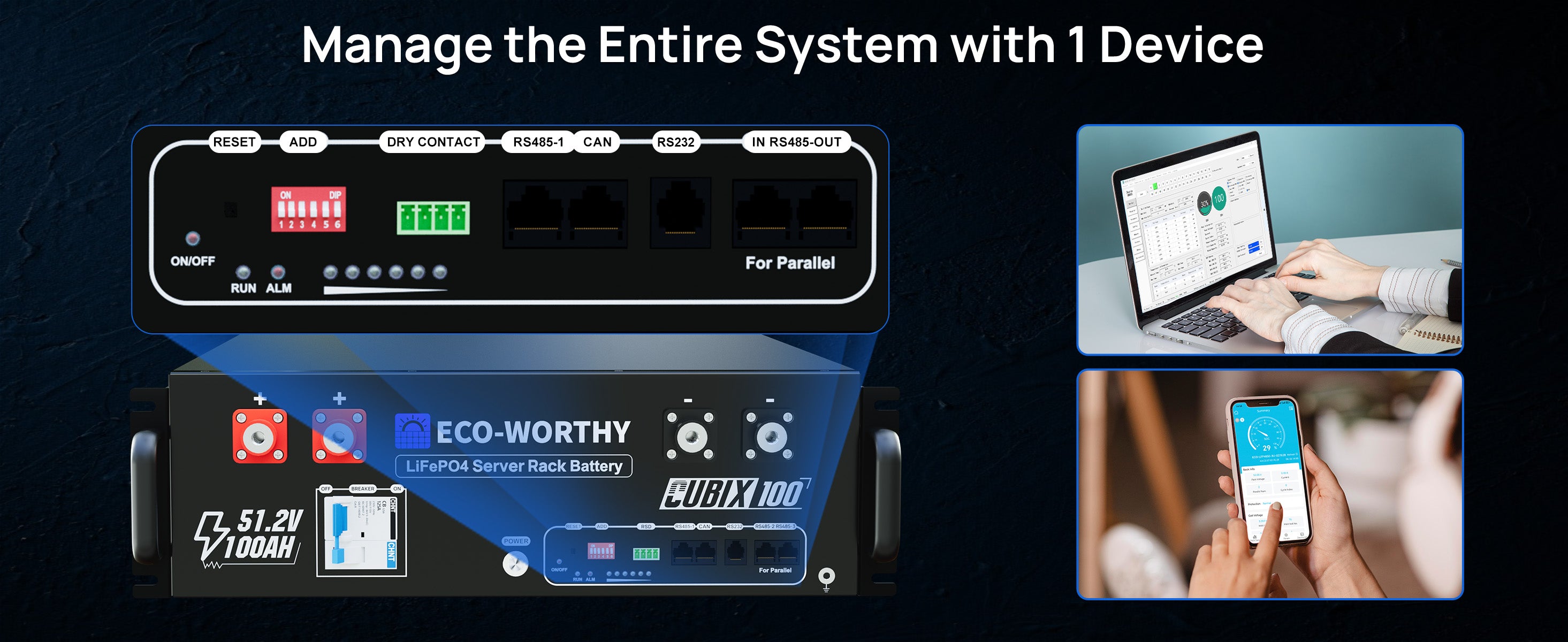

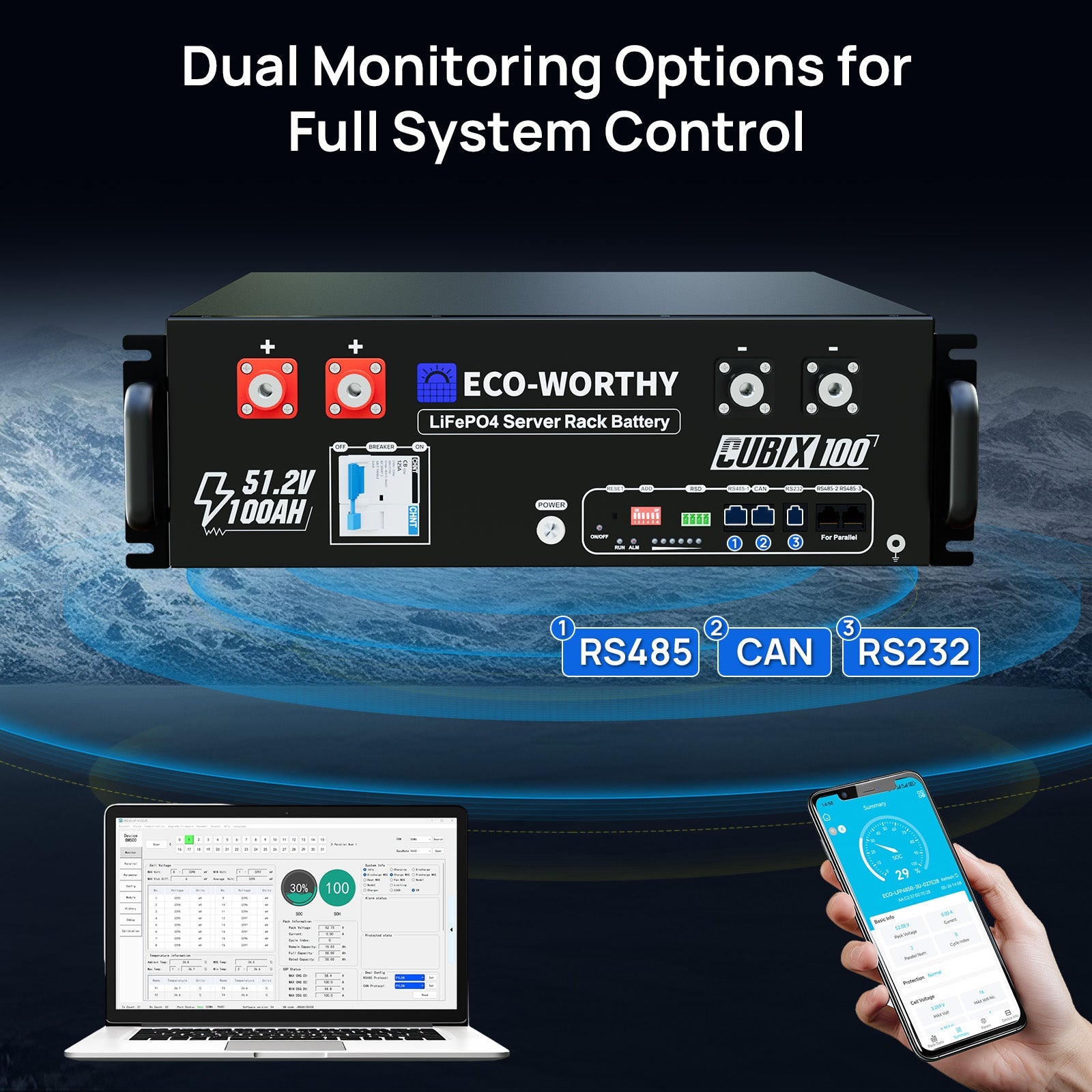

10-Year Warranty: Powered by premium Grade A cells, this battery offers exceptional consistency and long-lasting performance. Dual protection of circuit breaker and shunt type disconnector ensures disconnection even if the BMS fails.Backed by a 10-year after-sales support, you can trust in the quality and reliability of this battery for years to come. Smart Monitoring: Supports CAN/RS485 for seamless communication with popular all-in-one solar inverters.You can easily monitor your battery’s status through the mobile app, which supports both Bluetooth and WiFi connections. Stay informed on your battery’s health and performance in real-time Space-Saving Design: Easily integrates into standard 3U racks for efficient space use. Its manageable 97 lb weight allows for single-person installation, with support for up to 32 parallel connections. [Parallel Supportable] Parallel support up to 6 units-21kw Max. It can be single phase or separate phase parallel.The output voltage of one inverter is 120v, and more than two inverters can output 120v/208v/240v in parallel. (Two units MINIMUM have to be in parallel to achieve 220V power.) [Convenient Adjustment & Monitoring] Our 48v 3500w inverter allows easy parameter setting via the LCD screen and buttons. Meanwhile, the ability to remotely monitor various data in real time on your phone ensures worry - free use. 195W solar panels: 195W Monocrystalline solar panels are used on off-grid situations that include RV, boat,sailboat, yacht,truck, cabin, camper ,tent , trailer, golf cart,Diodes are pre-installed in junction box, with a pair of pre-attached 2.79ft Cable.
Total Price
Couldn't load pickup availability
Free Shipping
Return Guarantee
Secure Payment
or 4 interest-free payments of $624.99 with
Free & Fast Delivery
14-Day Money-Back Guarantee
3-Year Warranty
Lifetime Customer Support
Pay with ease
Trusted delivery
Technical Specifications
Rated Power
195W
Solar Cell
Monocrystalline Silicon N-Type
Maximum/Peak Voltage(Vmp)
20.2V
Open Circuit Voltage(Voc)
21.2V±3%
Short circuit current
11.60A±3%
Maximum current
9.65A
Connector Type
MC4
Module Efficiency STC[%]
19.60%
Temperate coefficient of Voc
-(0.38+/-0.01)%/℃
Temperature range
－40℃～ +80℃
Frame
Aluminum alloy frame
Weight
10.5kg/23.15lbs
Size
58.86x26.18x1.37in (1495*665*35)
Rated Input Voltage
110/120VAC
Input Voltage Range
90V-140VAC
Frequency
50Hz/60Hz(auto detect)
Overload/Short Circuit Protection
Circuit breaker
Efficiency
92%
AC Reverse Protection
Available
Max Bypass Overload Current
40A
Output Voltage Waveform
Pure Sine Wave
Rated Output Power
3500W
Rated Output Voltage
120VAC
Peak Power
6000W
Bypass Breaker
Rated Battery Input Voltage
48V
Min Starting Voltage
44V
Power Saving Mode
≤50W
Battery Type
Lead acid or lithium battery
Max Charge Current
Charge Voltage Range
40-60VDC
Overcharge Protection
Alarm and turn off charging after 1 minute
Max Input Power
4400W
PV Charging Current Range
0-80A
Max PV Open Circuit Voltage
145VDC
PV Operating Voltage Range
60-145VDC
MPPT Voltage Range
60-115VDC
Battery Voltage Range
Max Output Power
4200W
Charging Short Circuit Protection
Blown fuse
Battery Capacity
100Ah
Battery Power
5120Wh
Rated Voltage
40~58V
Maximum Charge/Discharge Current
100A
Charge Temperature Range
0-55°C
Disharge Temperature Range
-20-55°C
Voltage Range
Maximum Charge Voltage
58.4V
Screw size
M8
Battery Size
22.55*17.13*5.63inch
Battery Weight
95 lbs
Certification
UL1973 | UL9540A | CEC LISTED

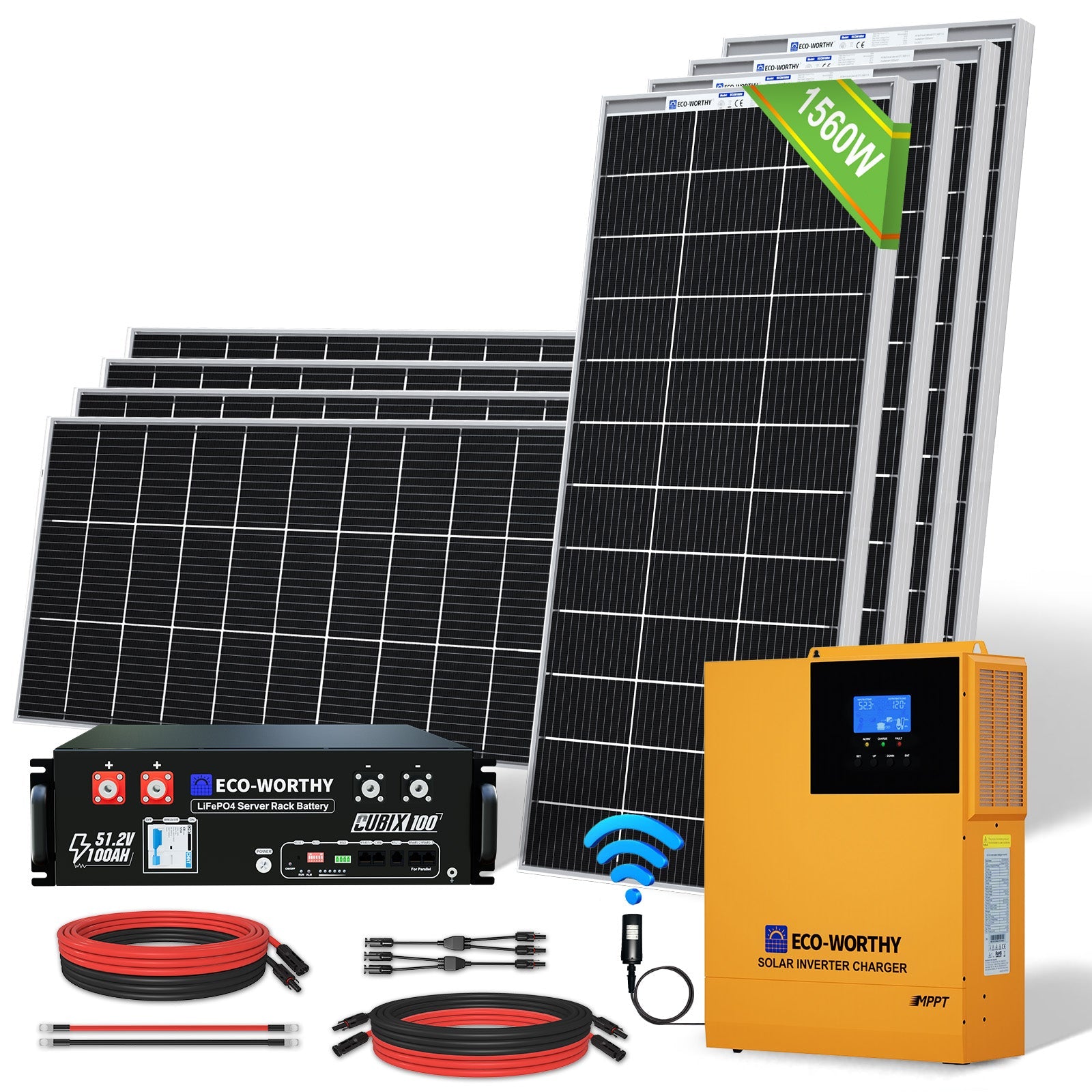

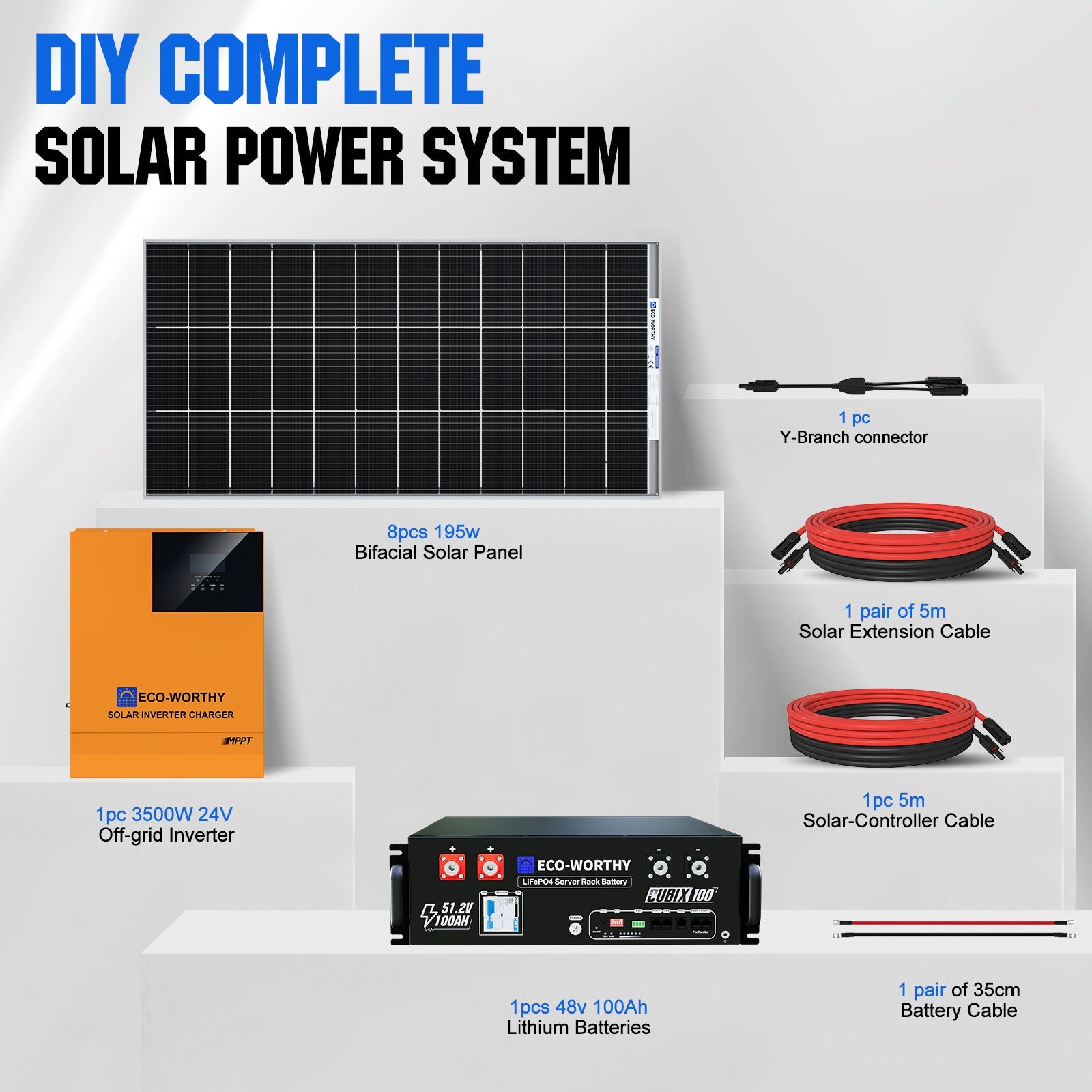

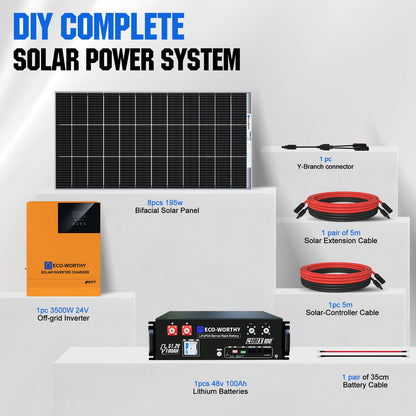

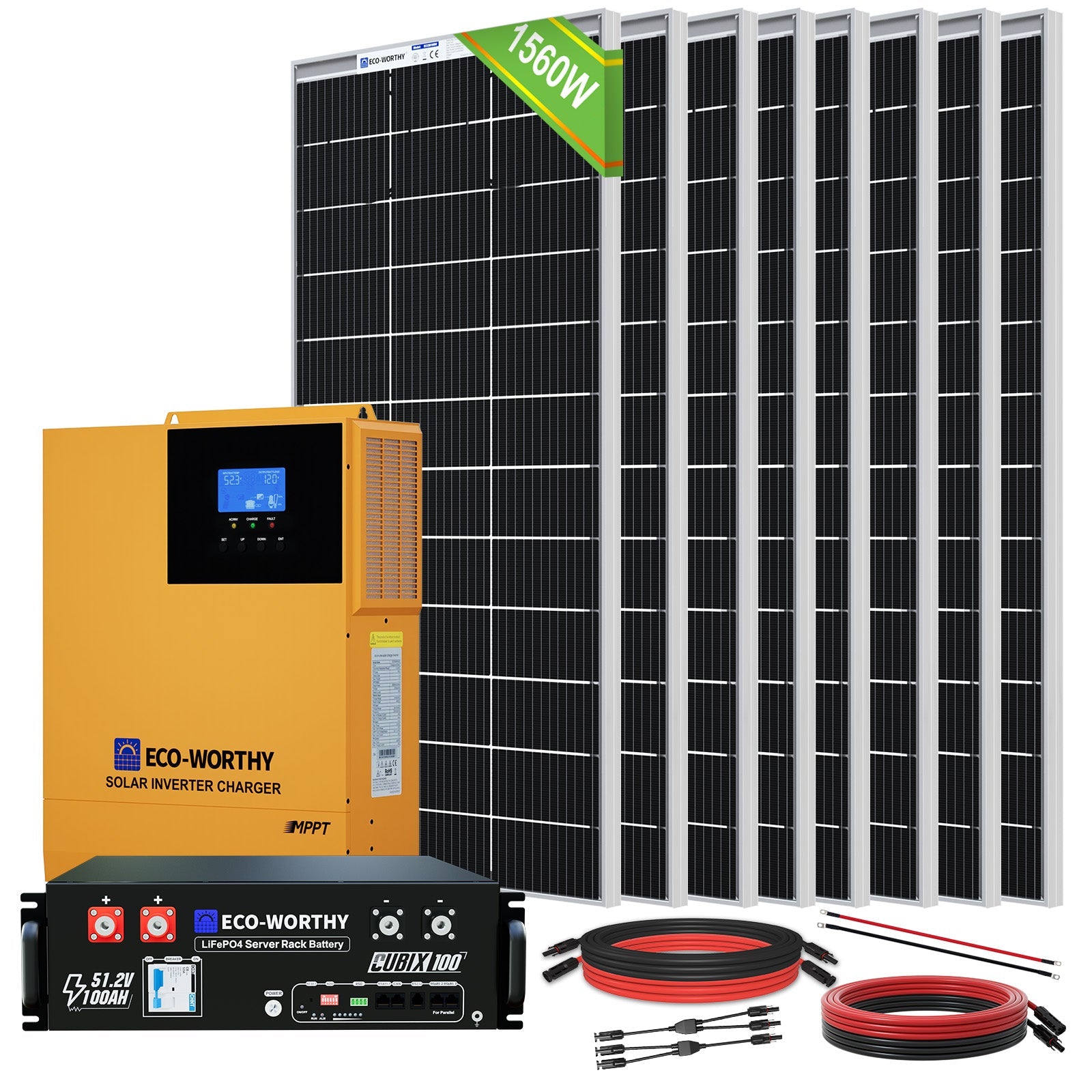

1.8x 195W N-Type Bifacial Solar Panel 2.1x 3500W 48V Inverter All-in-one Inverter 3.1x 5M 12AWG Extension Cable with MC4 4.1x 5M 12AWG MC4-MC4 Extension Cable 5.1x Y MC4 Connector 6.1x 48v 100Ah 48V(51.2V) 100Ah Server Rack Battery
ECO-WORTHY 48V 3500W 120V/240V AC Solar Inverter Charger Manual
ECO-WORTHY 48V 100Ah Rack Battery Manual
Wanted to give an update after a month of use. Built a fold up awning on the back of the portable workshop trailer. Now all 8 solar panels running. Running the ac an extra fan the lights some battery chargers and occasional pancake compressor. After 9hrs still had 44 percent left on 1 100ah battery. Never had to start the generator. Makes it really nice traveling with the ac on. Stays 75 deg in the trailer. I did change the ac settings to a 2 degree differential as well. I have been playing with the settings as to charge rates and cutt offs. The functionality has been excellent. The automatic transfer switch i built for when I plug it up to shore power when I get home hasn't caused an issue thus far. The unit just start charging the battery conbine with pv. When I'm ready just unplug and go. Been really impressed. Will update again in a few months.
Got the system after a week. Some damaged solar panel packaging. Otherwise panels ok. I bought the system for my portable workshop trailer. I was running my generator the whole time. Now I can use my generator as a supplement to the solar. When just running the a/c, lights and few small tools. I can run mostly off solar. Only pulling about 5 to 8 percent and hr on the battery. Which gives me a lot of run time before needing the generator. A couple of mentions. I did order a disconnect for the solar panels, a fuse for the battery line. I had everything else. The system has performed flawlessly for about a week now. I reset the parameters on the battery to shut down at no lower than 20 percent. The shore power kicks in and keeps everything going while recharging the battery. The 8 panels were just enough to take up all the room on my trailer. Going to do some testing as a ups also. Now I just need a couple more batteries. I will upload some picks when the system is completed. Oh. Did I mention I'm making it portable. Going to ba able to roll it into the house. Or the work shop. This is a pick of the cart for the unit when I first started on it.
Bought and installed the 1170W bundle about a year and 1/2 ago... been running pretty good. Keeps my freezer and fridge in my garage off grid. only issue I have is that the battery % charge indication is pretty worthless. for most of the day it is shows between 35 and 55%. So when the sun goes down and the first small load is applied (less than 200W) it takes about 10 minutes and the system says the (24V 100Ah) battery is already at 45%. during the next 10h (through the night) the battery just goes down another 15-20%, so when the sun comes up is says it is between 25 to 30%. As I said, the battery charge level is annoying, but otherwise, the system works great.
So far so good. Hooked up in van and working. Haven't gotten to put it to the test yet due to covid but will update if needed
