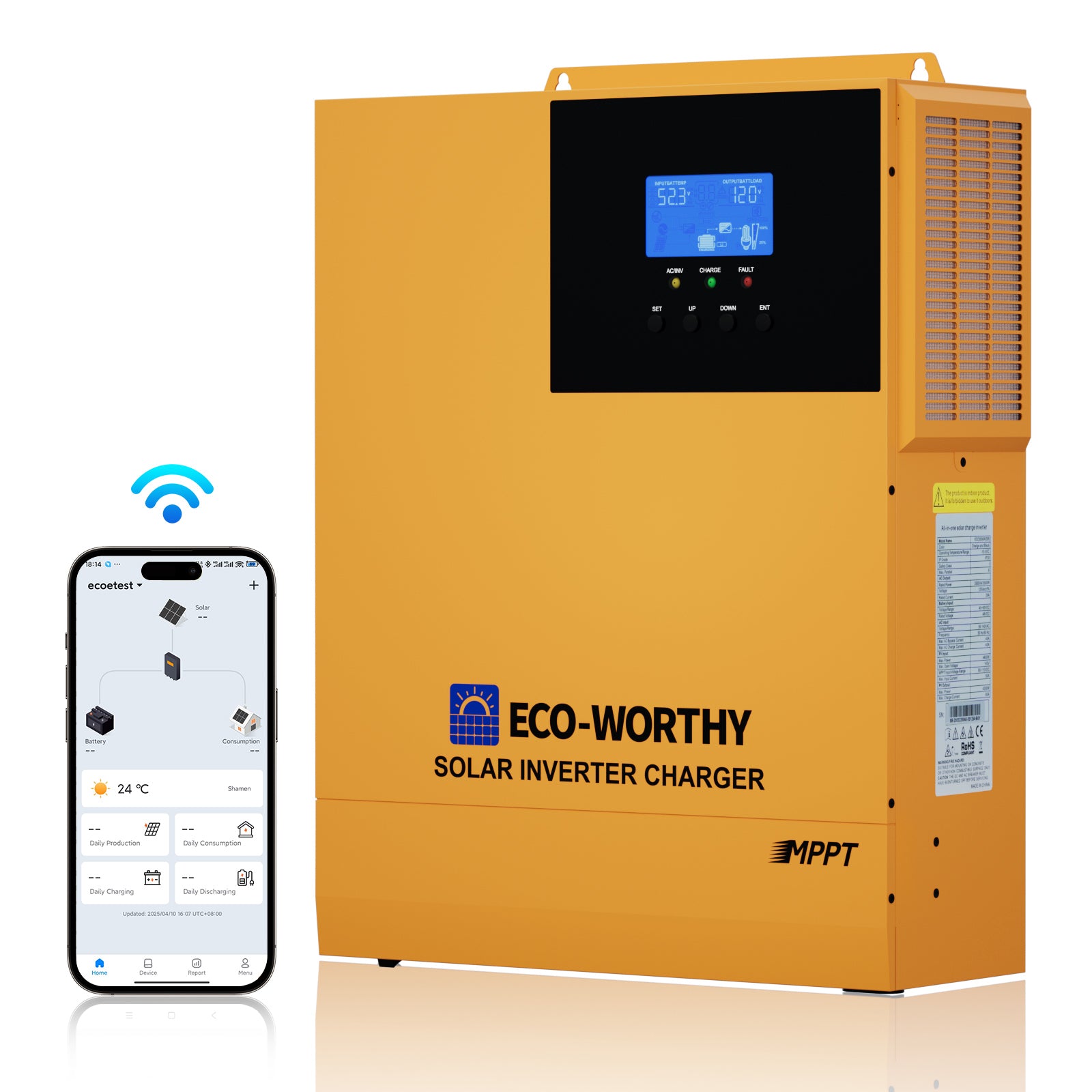

3500W Solar Off-grid AIO Inverter, 48Vdc to 120Vac, 4400W@150V PV Input

3500W Solar Off-grid AIO Inverter, 48Vdc to 120Vac, 4400W@150V PV Input

$499.99
$499.99 $799.99
Sale Sold out
Shipping calculated at checkout.

SKU:

L03SRUS3.5KWYTJ-1

Your first AIO inverter ! 3500W Golden Power! Specially Designed and Customized for Entry-Level Off-Grid Solar Power System!

【Best Off-Grid 】Ideal for Small Barns, Cabins, RV Builds, Home Critical Loads.
【3500W Power】Great Entry-Level 48V AIO Inverter Model

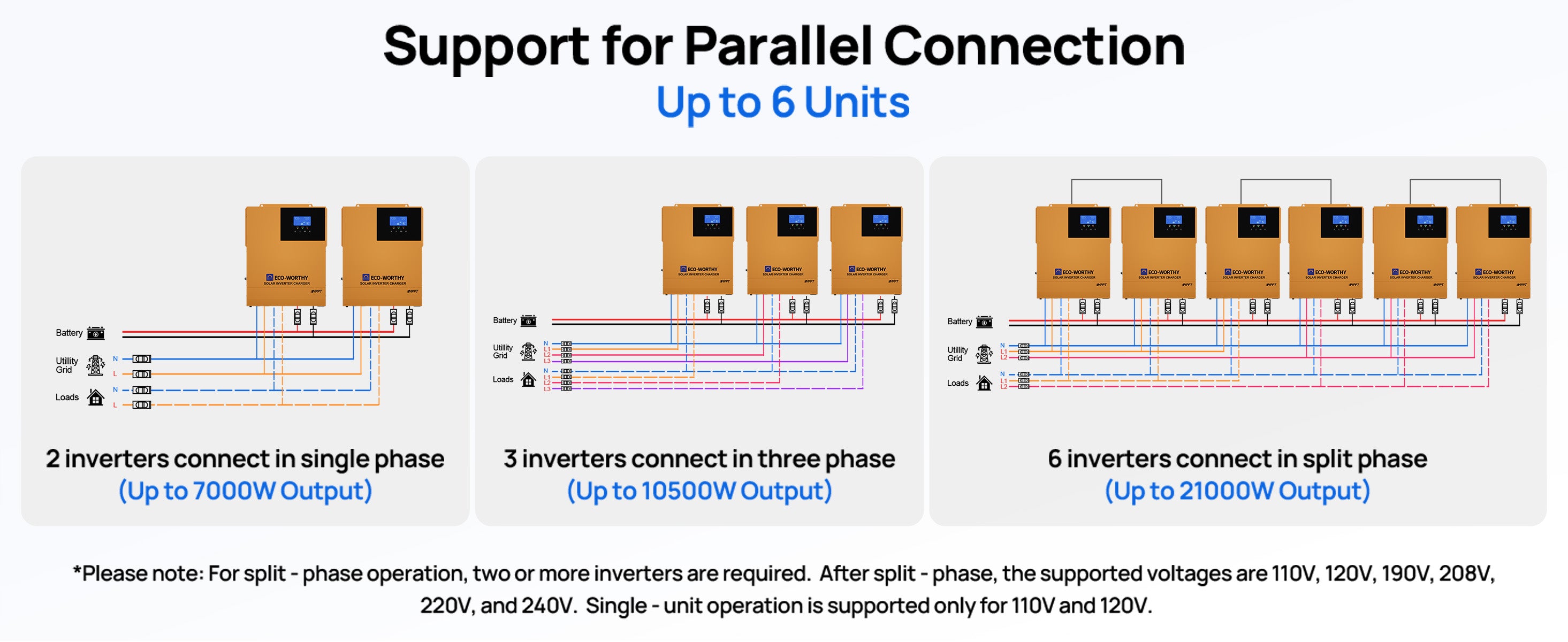

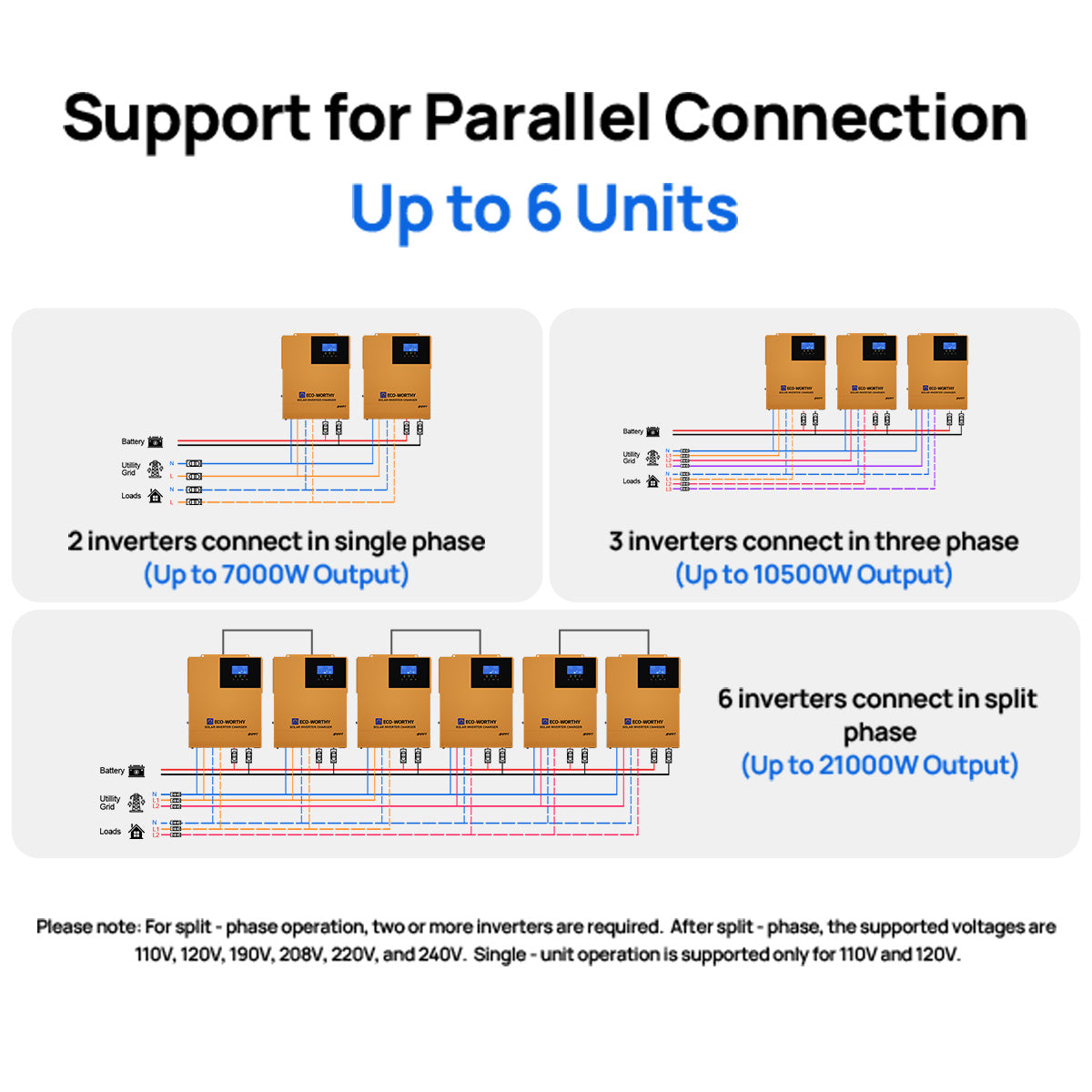

, scalable up to 21kW with 6 units in parallel.
【Low-Voltage Solar Mppt】4400W Solar Input Capacity,145VDC Solar Input Voltage,80A Solar Charge Current.
【120V Single Phase 】120Vac Output and more than 2 inverters can output 120v/240v in parallel.

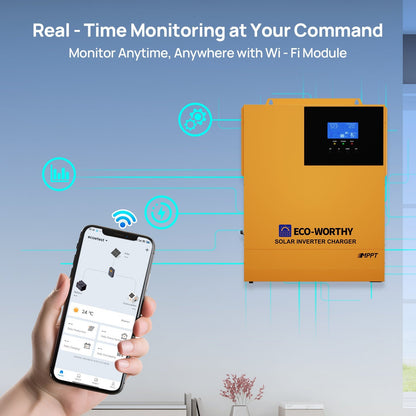

【Closed Loop Available】Real-time, two-way exchange of critical battery data (such as SOC, voltage, current, tempe.),compatible with eco-worthy batteries and other batteries using the PylonTech communication protocol.

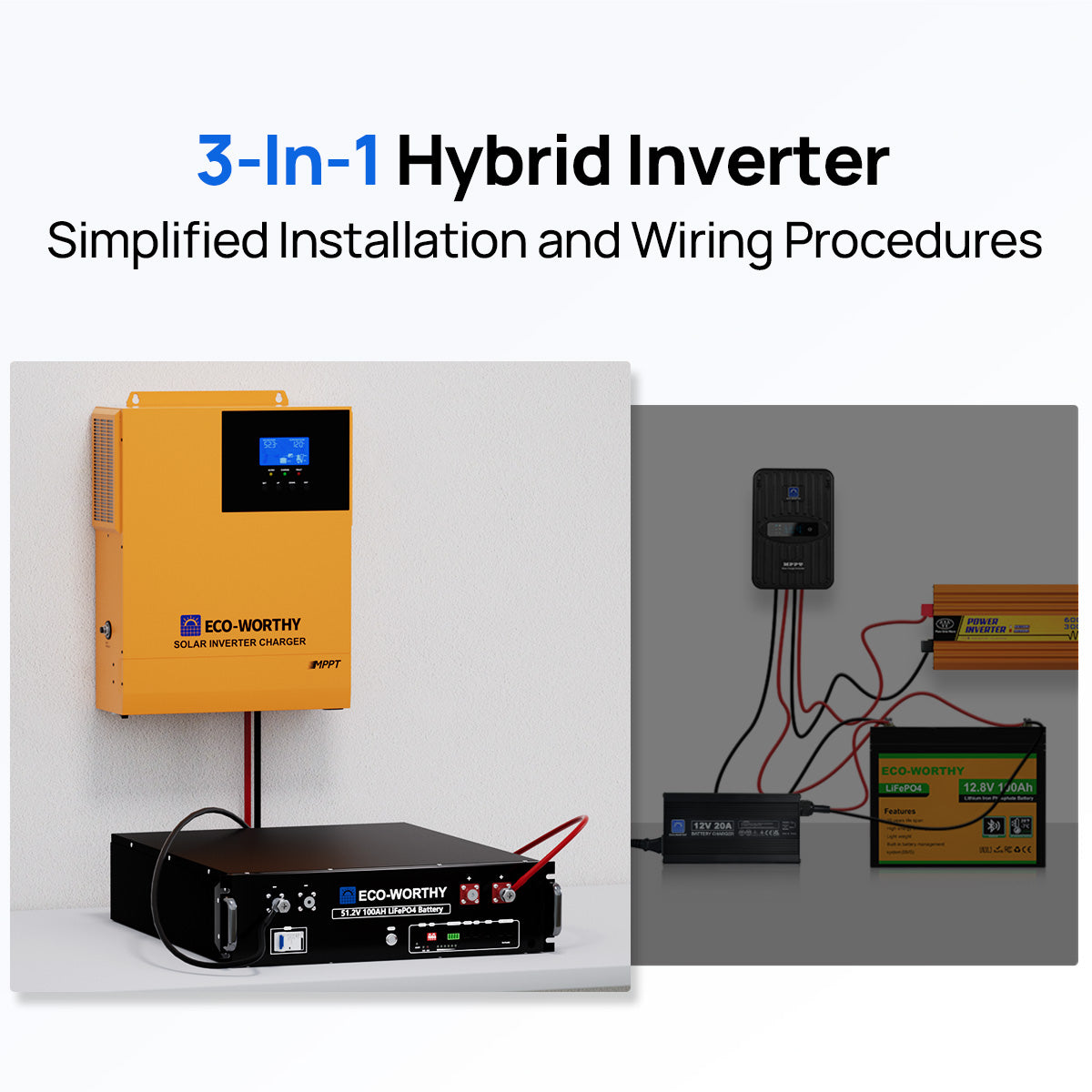

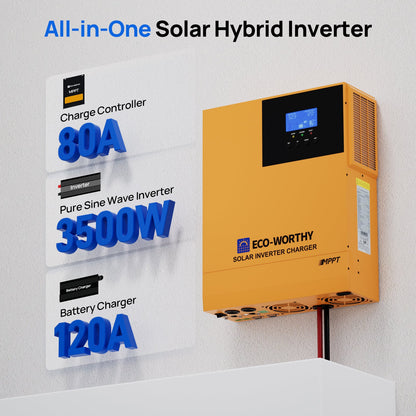

【All-IN-ONE】Included inverter, AC-DC charger,MPPT Solar charge,Wifi and Bluetooth module in one unit.

Read More

Total Price

$499.99
Buy It Now

Free Shipping

Return Guarantee

Secure Payment

or 4 interest-free payments of $124.99 with

Installments available at checkout
Shop with Confidence at Eco-Worthy

Free & Fast Delivery

14-Day Money-Back Guarantee

Up To 10-Year Warranty

Lifetime Customer Support

Pay with ease

  • American Express
  • Diners Club
  • Discover
  • JCB
  • Mastercard
  • PayPal
  • Venmo
  • Visa

Trusted delivery

View full details
X
$499.99 $799.99
Learn More
Buy It Now
Feature
Included in the box
Reviews
FAQs
3500W 48V→120V Split-Phase Off-Grid Solar Inverter/Charger

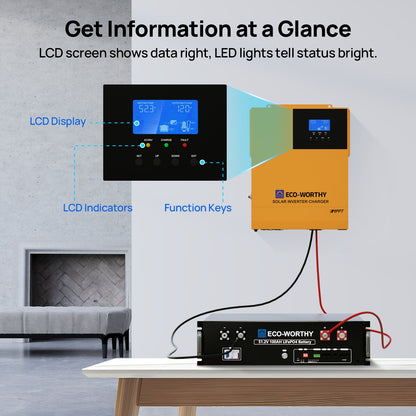

Pure-sine 3500W continuous, 7000W surge, 48V DC to 120V/240V AC split-phase output; built-in 80A MPPT SCC & battery charger, auto-transfer switch, remote LCD, and Wi-Fi monitoring—perfect for whole-home backup or off-grid solar systems.

Technical Specifications

3500W Solar Off-grid AIO Inverter

Rated Input Voltage

110/120VAC

Input Voltage Range

90V-140VAC

Frequency

50Hz/60Hz(auto detect)

Overload/Short Circuit Protection

Circuit breaker

Efficiency

92%

AC Reverse Protection

Available

Max Bypass Overload Current

40A

Output Voltage Waveform

Pure Sine Wave

Rated Output Power

3500W

Rated Output Voltage

120VAC

Peak Power

6000W

Bypass Breaker

40A

Rated Battery Input Voltage

48V

Min Starting Voltage

44V

Power Saving Mode

≤50W

Battery Type

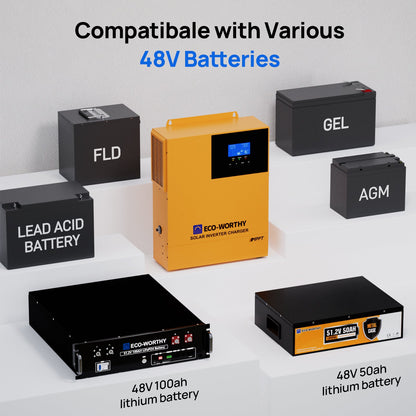

Lead acid or lithium battery

Max Charge Current

40A

Charge Voltage Range

40-60VDC

Overcharge Protection

Alarm and turn off charging after 1 minute

Max Input Power

4400W

PV Charging Current Range

0-80A

Max PV Open Circuit Voltage

145VDC

PV Operating Voltage Range

60-145VDC

MPPT Voltage Range

60-115VDC

Battery Voltage Range

40-60VDC

Max Output Power

4200W

Charging Short Circuit Protection

Blown fuse

Included in the Box
  1. 1 x 48V 3500W AIO Inverter
  2. Inverter Accessories
User manual

Eco-Worthy 48V 3500W 120V AC Solar Inverter Charger Manual

Download

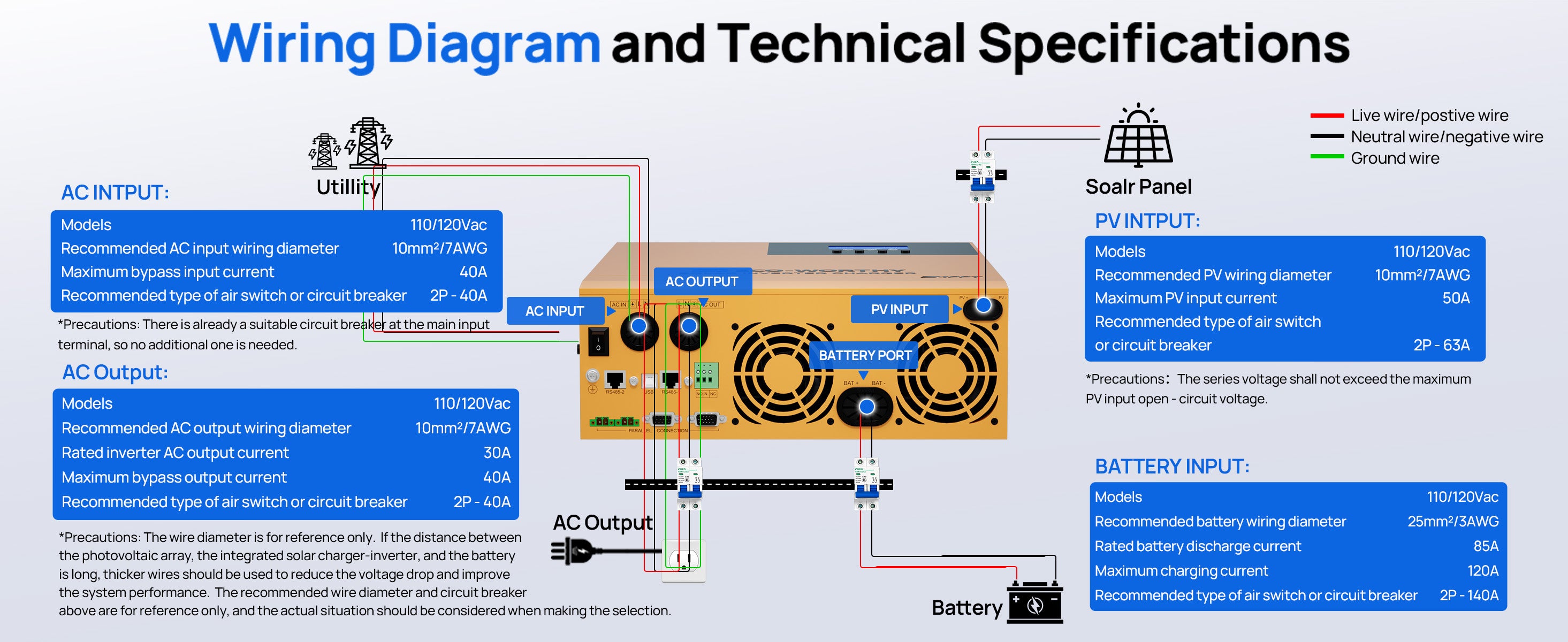

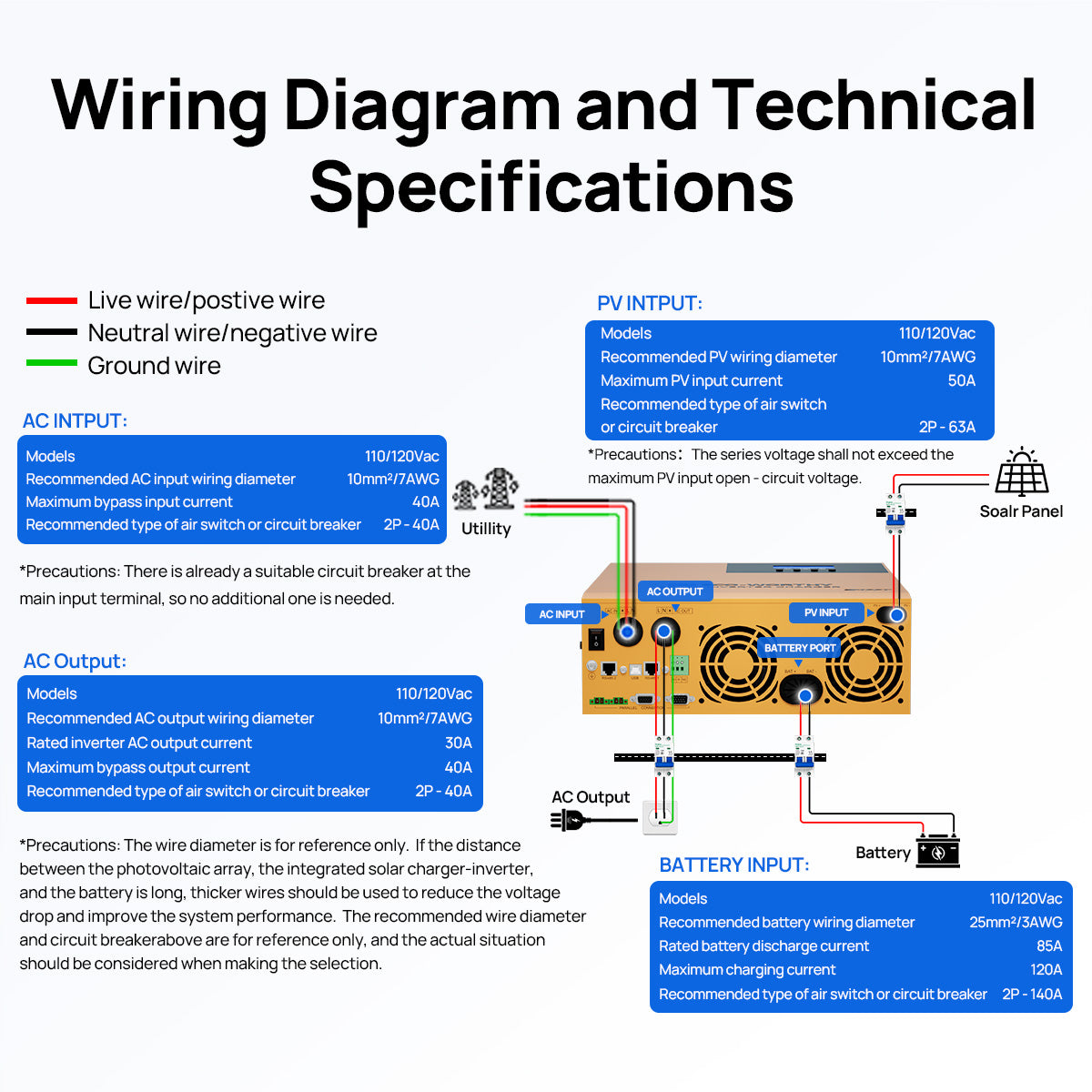

Eco-Worthy ECO3500W SR Wiring Specification and Circuit Breaker Selection US Standard

Download

Eco-Worthy ECO3500W SR AIO Inverter Specification Sheet US Standard

Download
