SKU:
SKU:US-L02M100N-MCWMZIUS2000L200-4A

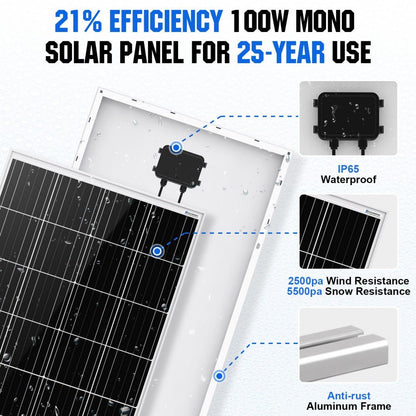

[Powerful Energy Generation]The Premium 400W Kit can produce an average of 1.6KWH of electricity per day (depending on sunlight availability). Each solar panel comes with a pair of 35 inches cables. By-pass diodes are pre-installed in waterproof IP-65 rated junction box to minimize power drop caused by shade and ensure excellent performance in low-light environments. [Premium Quality]100W Monocrystalline Cell Solar Panel, 21% High efficiency of charge the Energy storage equipment. Withstand high wind (2400Pa) and snow loads (5400Pa), the surface is made up of 3.2mm low Iron glass, the monocrystalline modules are framed by 35mm width aluminum alloy, which is 2~5mm wider than the others'. [Maximum Efficiency]Maximum power point tracking technology, the tracking efficiency is as high as 99%, and the peak conversion efficiency is 98%, which is 40% higher than the traditional PWM charge controller. And protects your system from overcharge and overdischarge. [Easy Installation]Each solar panel rear shelf has pre drilled and 16 foot cables with Y branches.Cable plug and play designed connectors allow for quick installation and detailed instructions for each attachment, making your installation easier and safer. [Stay Connected]Monitor your system with ease using the BT-02 Bluetooth module, which pairs with the controller and transmits real-time data on solar panel, battery, load, and more directly to your mobile phone. With Bluetooth 5.0 technology, the signal can reach up to 82 feet.
Total Price
Couldn't load pickup availability
Free Shipping
Return Guarantee
Secure Payment
or 4 interest-free payments of $369.99 with
Free & Fast Delivery
14-Day Money-Back Guarantee
3-Year Warranty
Lifetime Customer Support
Pay with ease
Trusted delivery

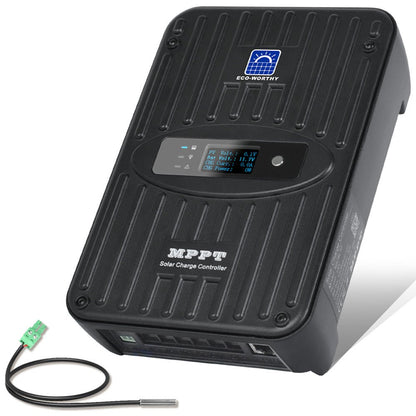

If efficiency, reliability and affordable are high on your wish list, ECO-WORTHY 400W 12V expandable Solar Kit is an ideal choice. ECO-WORTHY 100 Watt 12V Mono solar panel is backed by 25-year linear power guarantee. ECO-WORTHY LiFePO4 Lithium Iron Phosphate Battery has twice the power, half the weight and lasts 8 times longer than a sealed lead acid battery. 40A MPPT Charge Controller is the most efficient type of charge controller. With up to 99% tracking efficiency, ensures maximum power point solar charging that gets more energy to your battery bank. 1100W Pure Sine Wave Inverter provides high-quality AC power equivalent to grid power to protect your household appliances and electronic equipment, especially suitable for sensitive electrical appliances. ECO-WORTHY 400W 12V Solar Kit can be used for several different purposes, including cottages, weekends, cabins, boats, RVs, Campers, etc. Whatever the kit is used for, you can rest assured that you are purchasing a quality system. If you have any questions regarding this product, please contact us info@eco-worthy.com.
Technical Specifications
Battery Capacity:
100Ah
Battery Power:
1280Wh
Battery Voltage:
12.8V
Maximum Charge/ Discharge Current:
100A
Charge Temperature Range:
0-55℃
Discharge Temperature Range:
﹣20－55℃
Maximum Charge Voltage:
14.6V
Discharge Cut-Off Voltage:
10V
Screw size:
M8
Battery Size:
260*168*209mm（10.2*6.6*8.4inch）
Battery Weight:
10.5kg
Recommended charger:
12v 10A charger
Rated Power
100W
Maximum/Peak Voltage(Vmp)
20.2V
Short circuit current
5.20A
Output Tolerance
±3%
Temperate coefficient of Voc
-(0.38+/-0.01)%/℃
Frame
Aluminum alloy frame
Size of extension cable
4mm²（11AWG）/MC4 Connector
Size
35.24x23.03x1.38 inches
Solar Cell
Monocrystalline
Open Circuit Voltage(Voc)
24.5V
Maximum current
4.95A
Temperate coefficient of Isc
(010+/-0.01)%/℃
Temperature range
－40℃～ +85℃
Length of extension cable
90cm（2.95ft）
Weight
15.06lbs

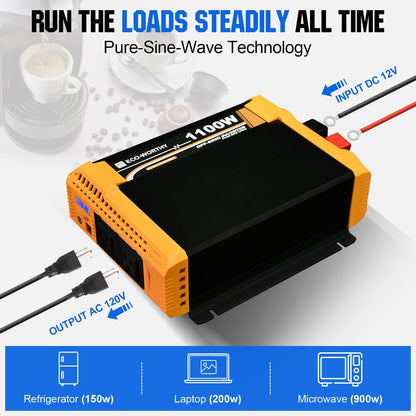

Output Continuous Watts(W)
1100W+18W USB
Surge Capacity (PeakPower)
2200W
Rated Input DC (V,A)
12V Battery, 100A
Input Voltage Range
10.5-16Vdc±0.3V
Rated Frequency (Hz)
60Hz±1
Rated Output AC (V,A)
115Vac±10%, 9.5A
Rated Output USB (V,A)
2*QC3.0 USB Ports (5V/3A,9V/2A,18W max)
No Load Current
<1A
Optimum Efficiency
85% min
Fuse (A)
30A*4
FuseType
Internal Blade
Output Wave Form
Pure Sine Wave
Touch Temperature
65℃(149℉)max
Operating Temperature
-20℃~40℃ (4℉~104℉)
Operating/Storage Humidity RH
5~95%
Cooling System
Thermo Fan
Dimensions (L*W*H)
10.6*9.8*4.1 in
Assembled Weight (kg)
3.65kg
External Fuse (Max Load Current)
120A
Battery voltage
12V/24V
Max Solar Input Power
560/1120W
Charging mode
MPPT
Rated Load Current
20A
Charge Efficiency (Peak)
97%
Self-Consumption
1~2W
Battey Type
LiFePO4,AGM,Sealed,Gel,Flooded
220*148*64mm/8.7*5.8*2.5inch
Max Charge current
40A
1.5KG
Max.PV Open-Circuit Voltage
<100V

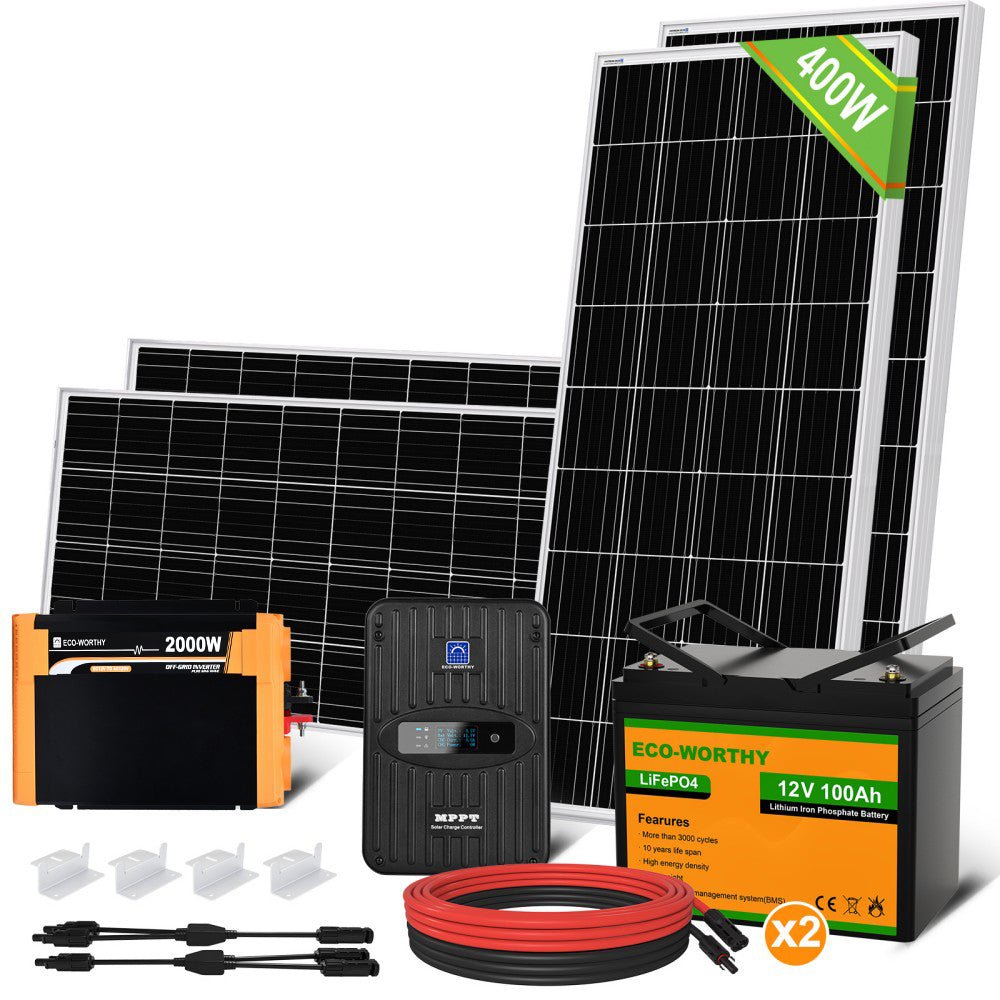

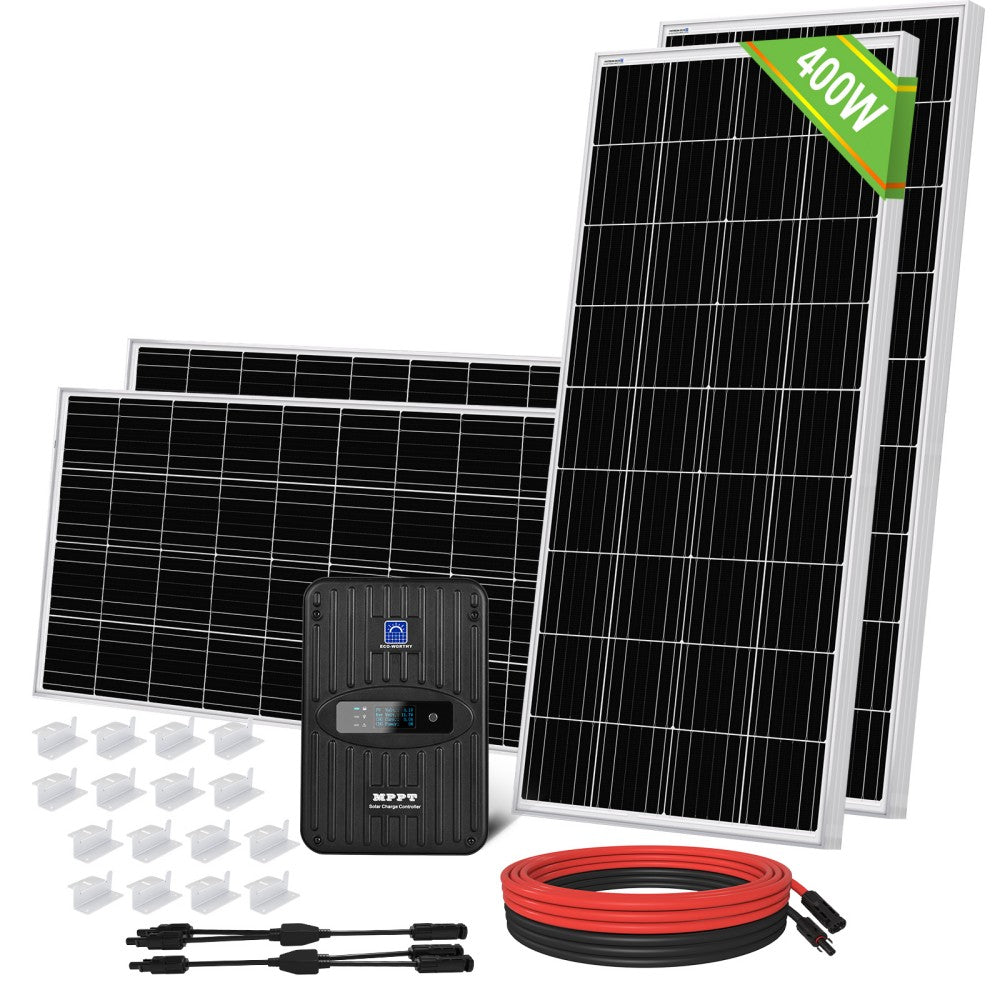

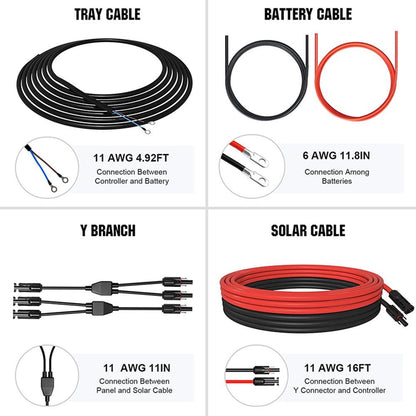

1.4x 100W Mono Solar Panel 2.1x 40A MPPT Solar Controller 3.1x 5M 12AWG Extension Cable with MC4 4.3x Y MC4 Connector 5.4x Z Mounting Bracket 6.1x 1.5M Tray Cable 7.1x 1.5M Tray Cable
1.1x 1100W 12V-110V Pure Sine Wave Inverter 2.1x 100Ah 12V LiFePO4 Lithium Battery 3.4x 100W Mono Solar Panel 4.1x 40A MPPT Solar Controller 5.1x 5M 12AWG Extension Cable with MC4 6.3x Y MC4 Connector 7.4x Z Mounting Bracket 8.1x 1.5M Tray Cable
1.1x 2000W 12V-110V Pure Sine Wave Inverter 2.2x 100Ah 12V LiFePO4 Lithium Battery 3.4x 100W Mono Solar Panel 4.1x 40A MPPT Solar Controller 5.1x 5M 12AWG Extension Cable with MC4 6.3x Y MC4 Connector 7.4x Z Mounting Bracket 8.1x 1.5M Tray Cable
ECO-WORTHY 12V 100Ah With Low-temp Manual
ECO-WORTHY 1100W 2000W power inverter User Manual
ECO-WORTHY 1100W 2000W power inverter remote controller installtion guide
ECO-WORTHY 100W 12V Monocrystalline Solar Panel Manual
On time and excellent quality
I was pleasantly surprised that my 400 watt eco-worthy solar kit showed up on the date they said. I ordered the extra battery with my kit but noticed the extra wire for the second battery was not in the package. I thought I was going to have to contact the company and go through a battle to get the wire. Not so, the following day the wire showed up in the mail. Not used to this type of service.
I bought the 400 watt package for a van project and ne piece was shipped wrong and the way these people handled a small problem was great. Fast response on a Sunday and they made the fix easy and expedited my right part. I also got great information from the sales department when I was shopping, they had an idea for my installation no one else thought of as I was talking to 3 companies.
Now I have done the install and can tell you these guys make it easy, plug and go system… very easy install and plenty of wire lead etc
Do not hesitate to do business here
I will be installing in the spring but I’m looking forward to hooking up And I will be adding to my battery bank
From purchase to arrival it's been a flawless transition. Product on first appearance is beautiful. No parts missing. Keep in mind it does take some left work and studying to out this system together. Their 50Ah YouTube video is what you need to watch to assemble this system. It shows everything but how to wire your two batteries in parallel. Super excited to use this system off grid this winter!
