SKU:
SKU:US-L03YTJUSKBJ5000W-1A

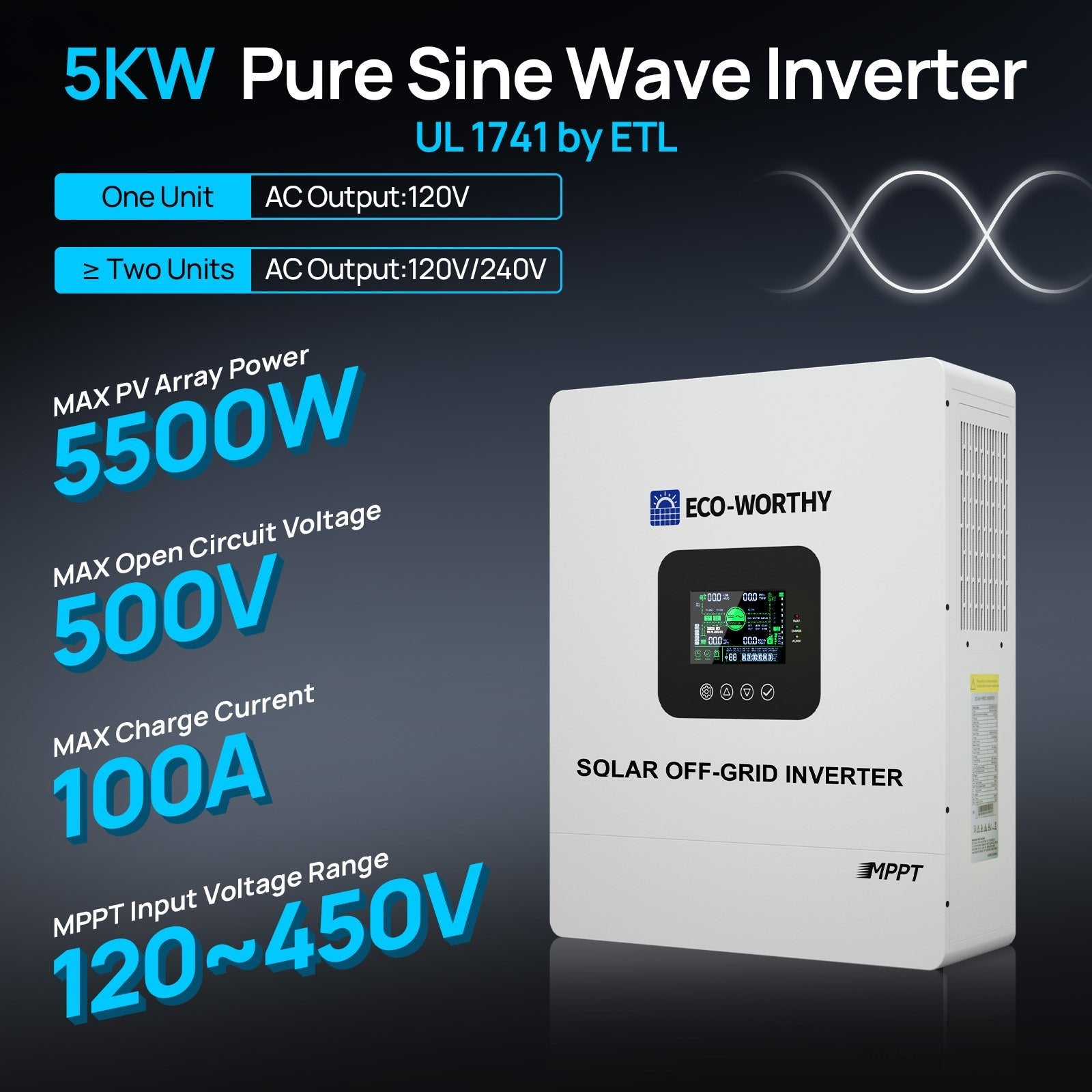

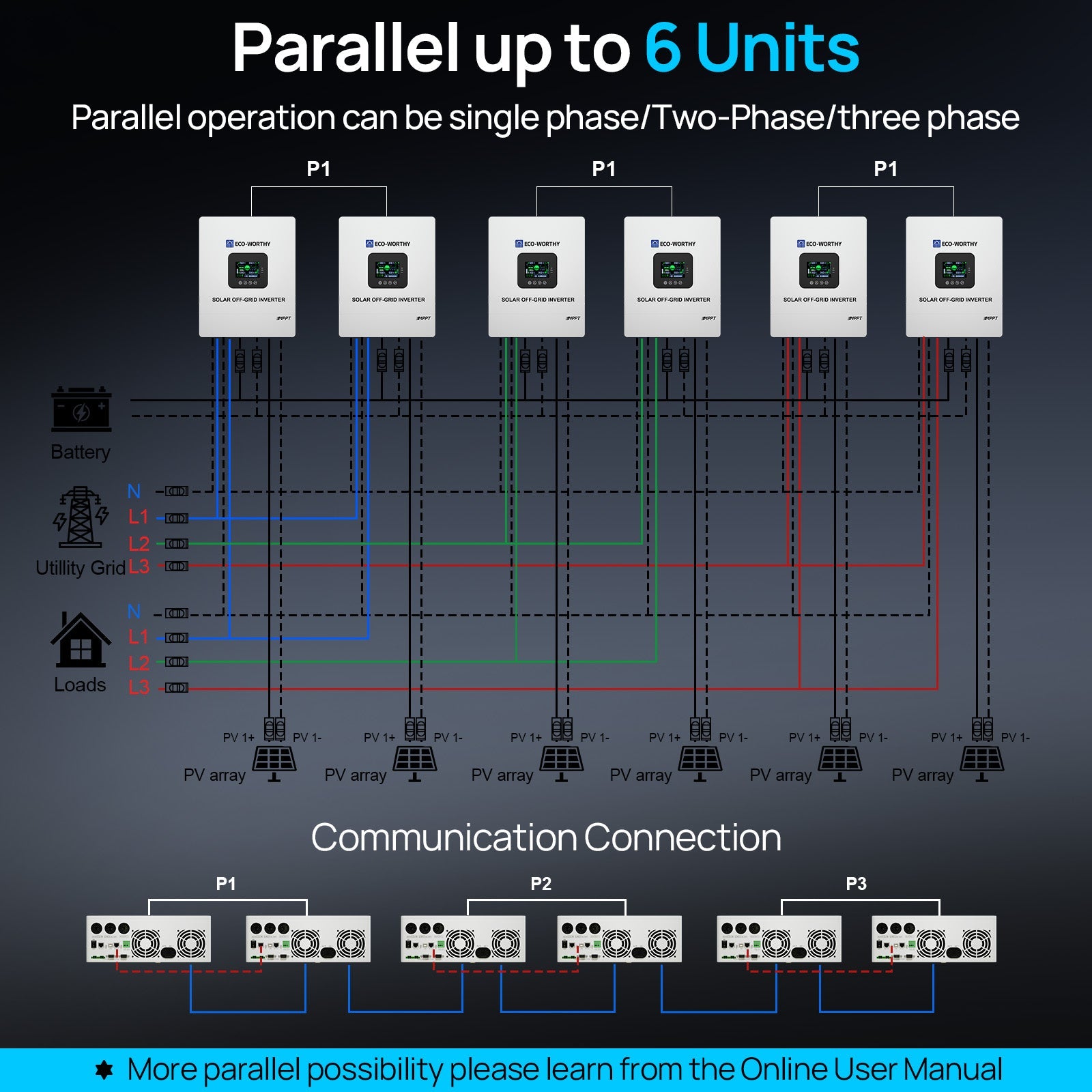

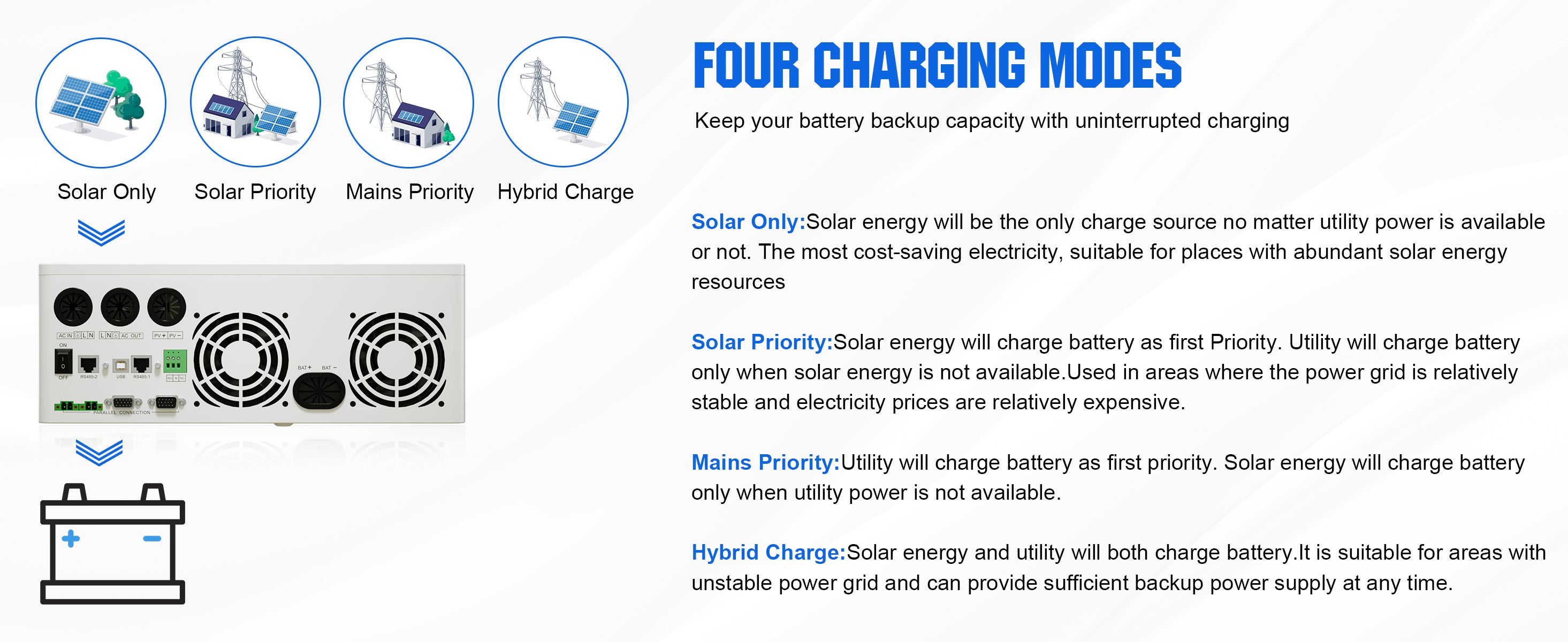

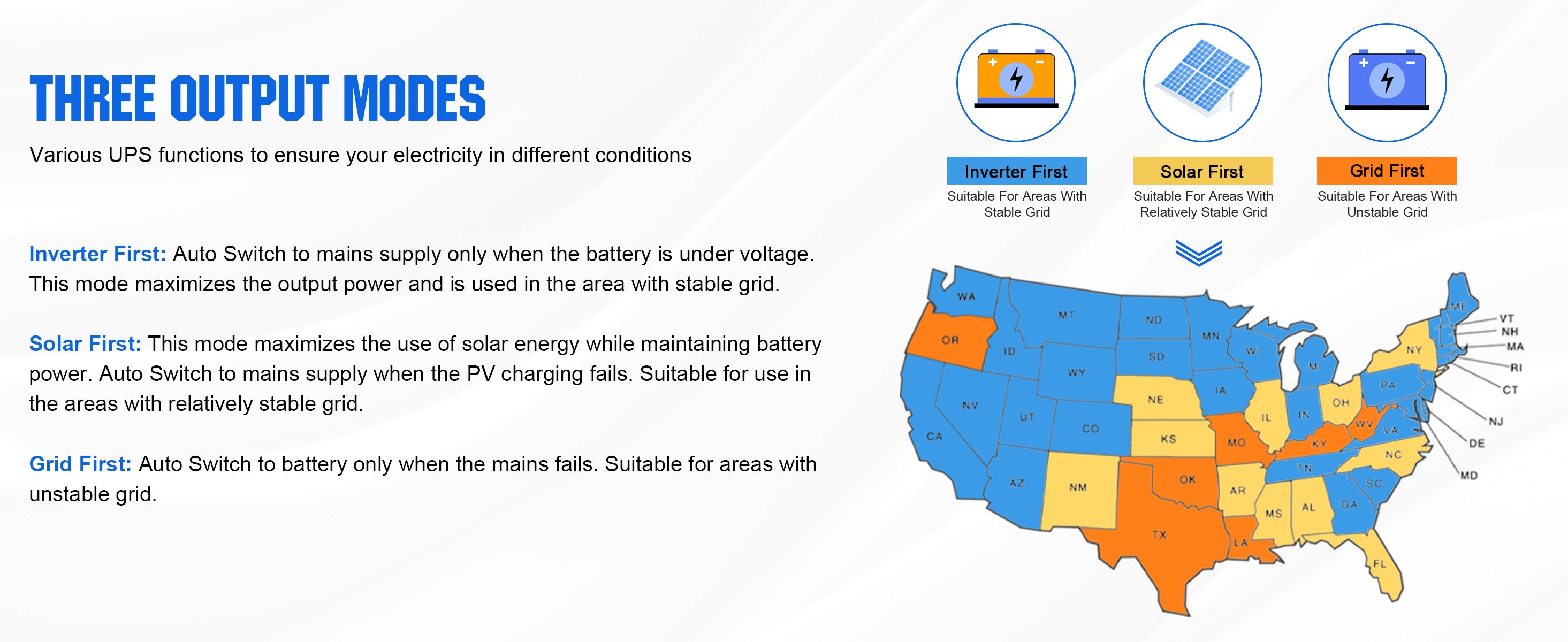

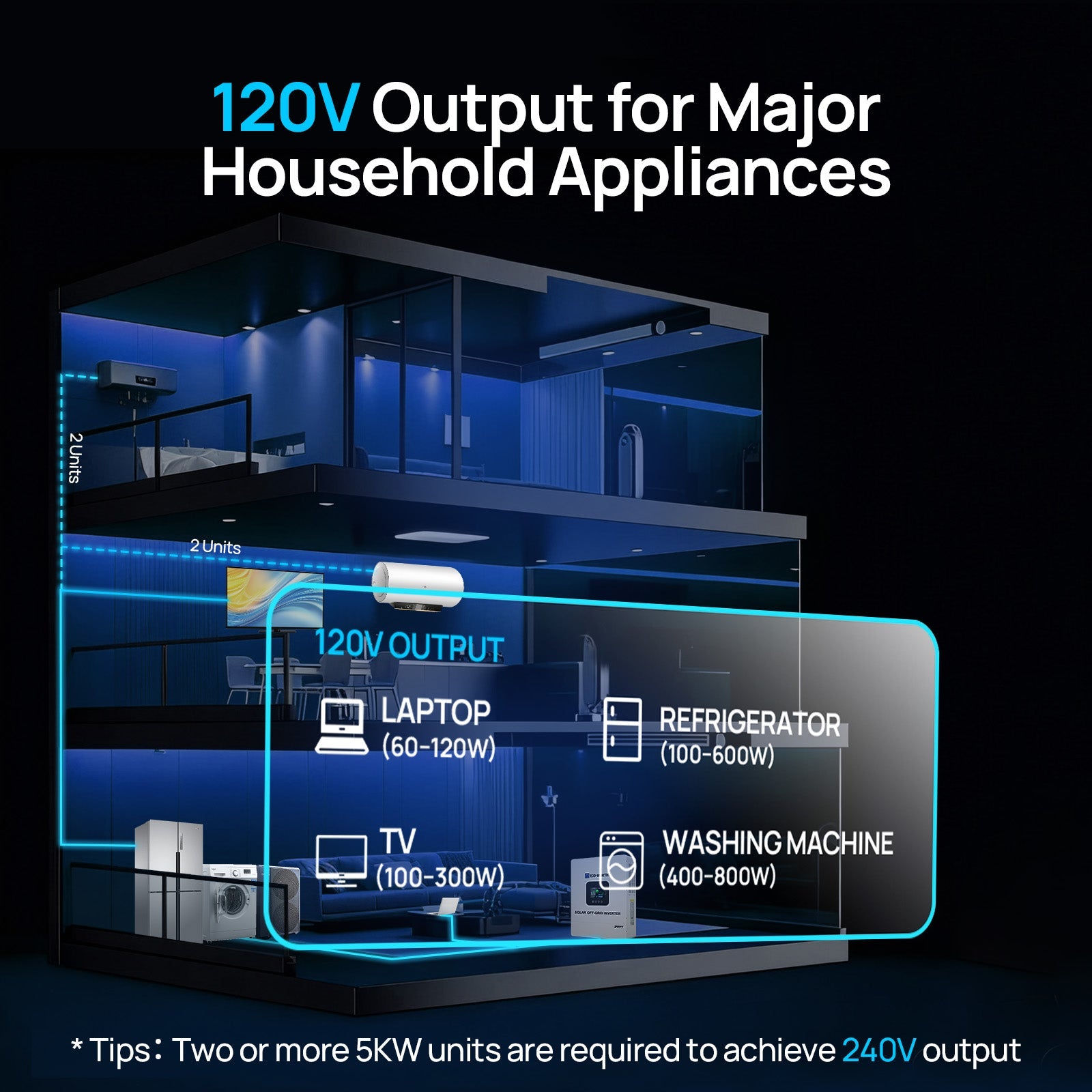

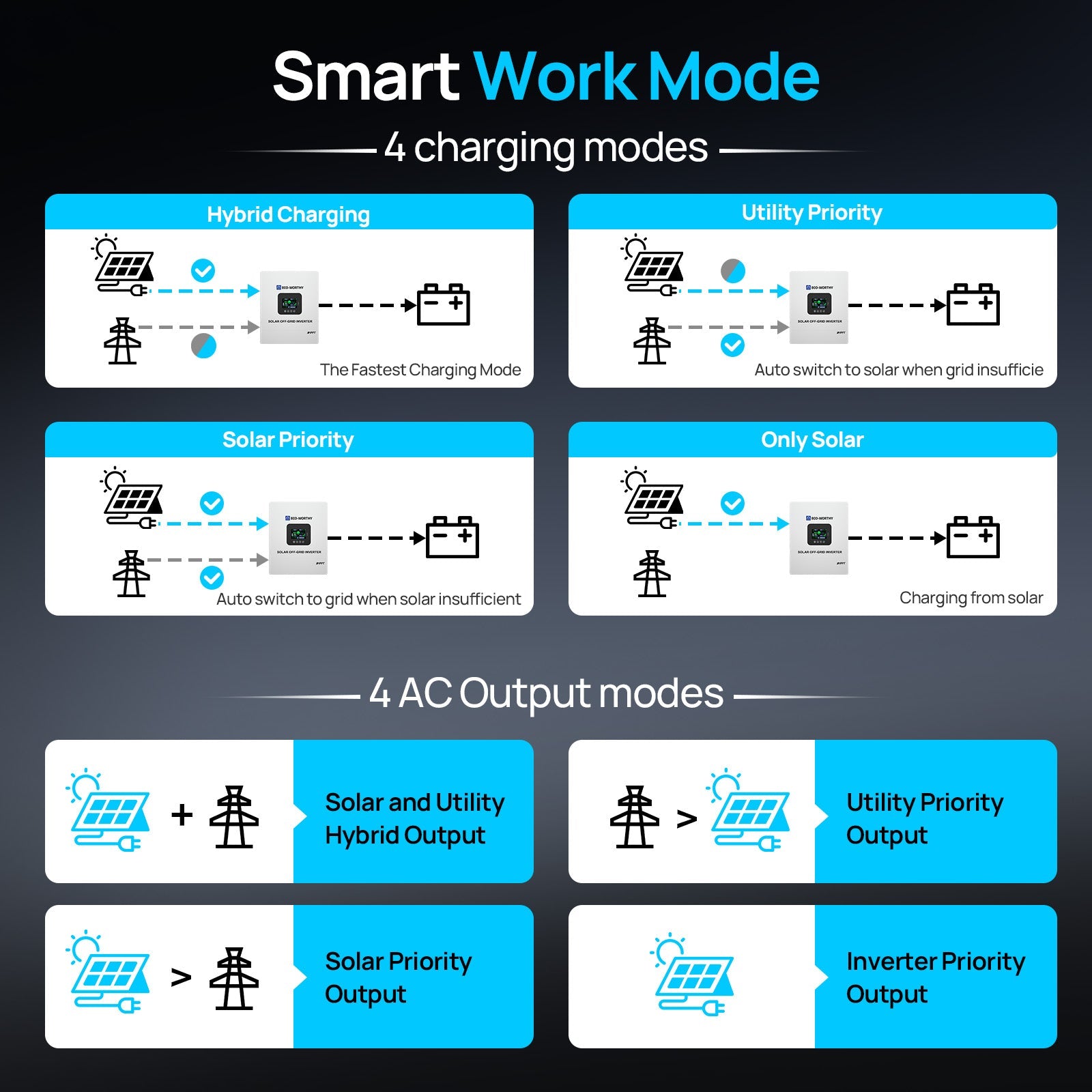

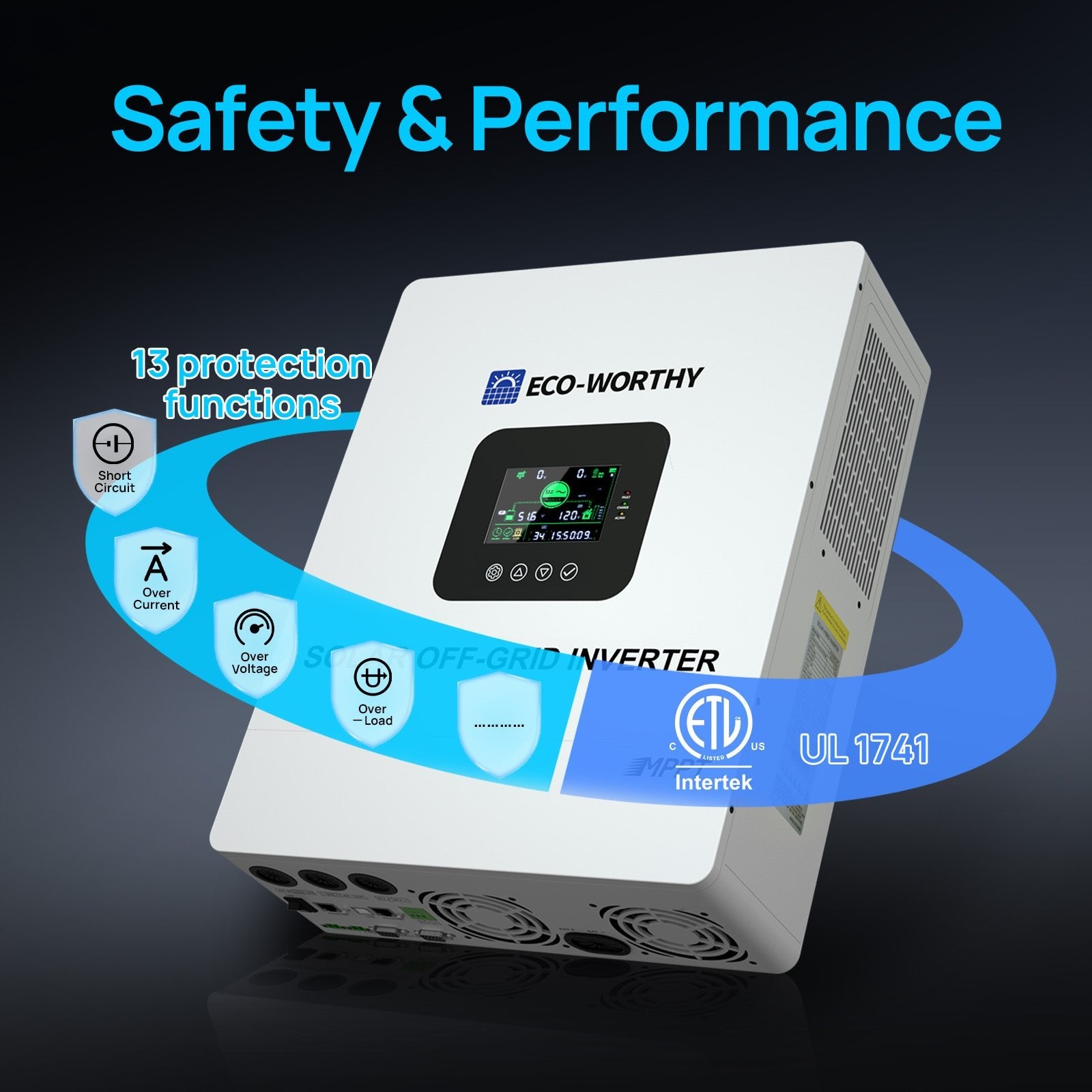

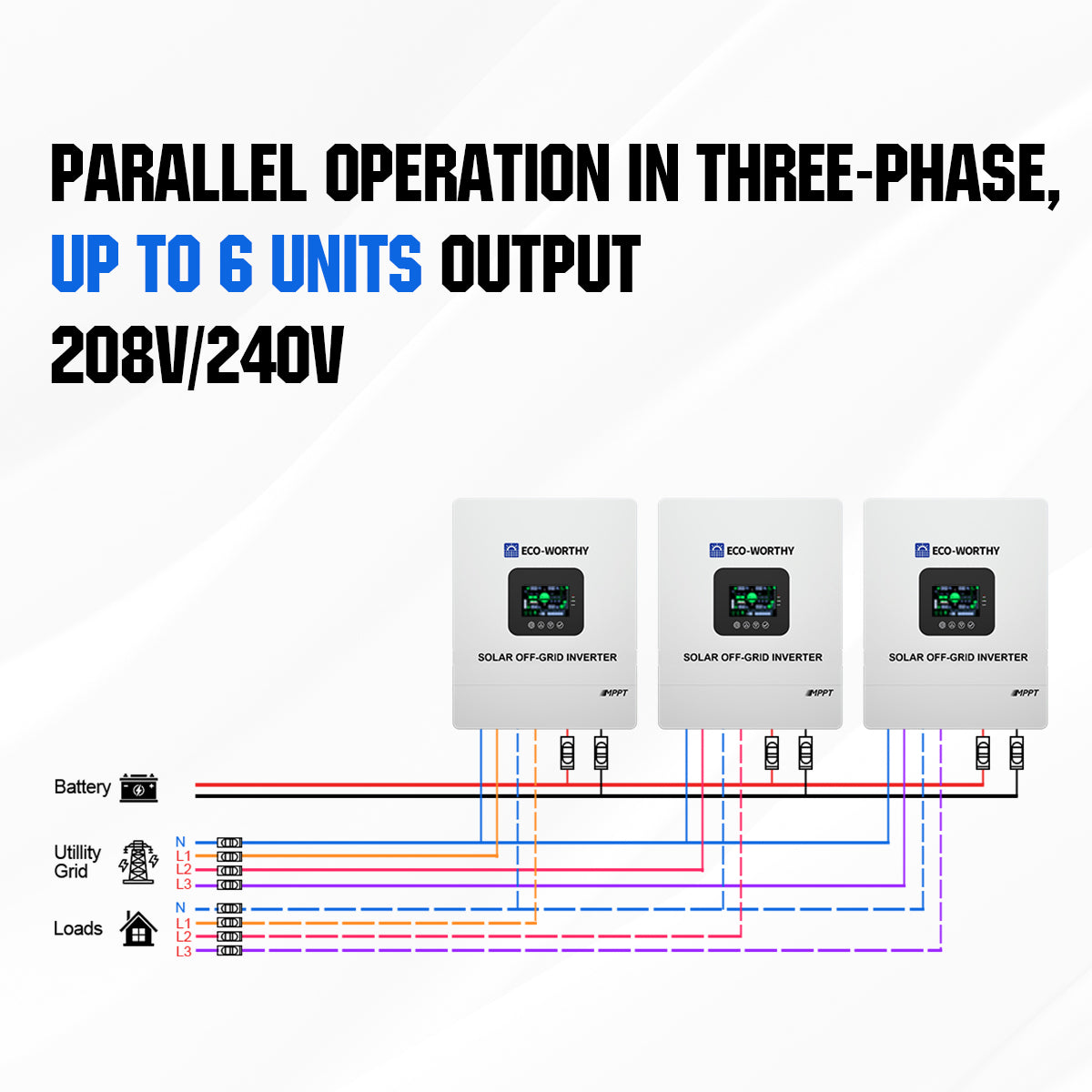

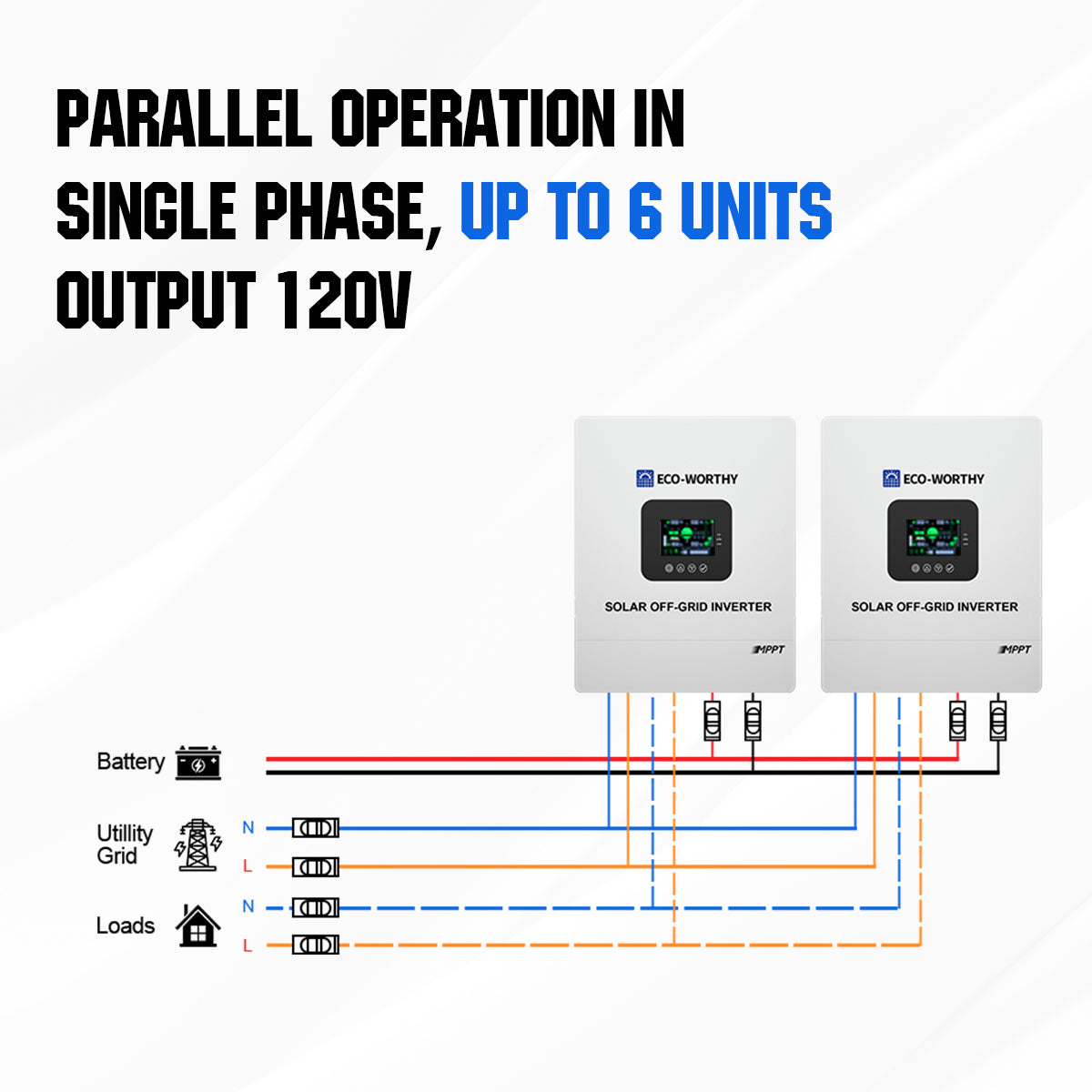

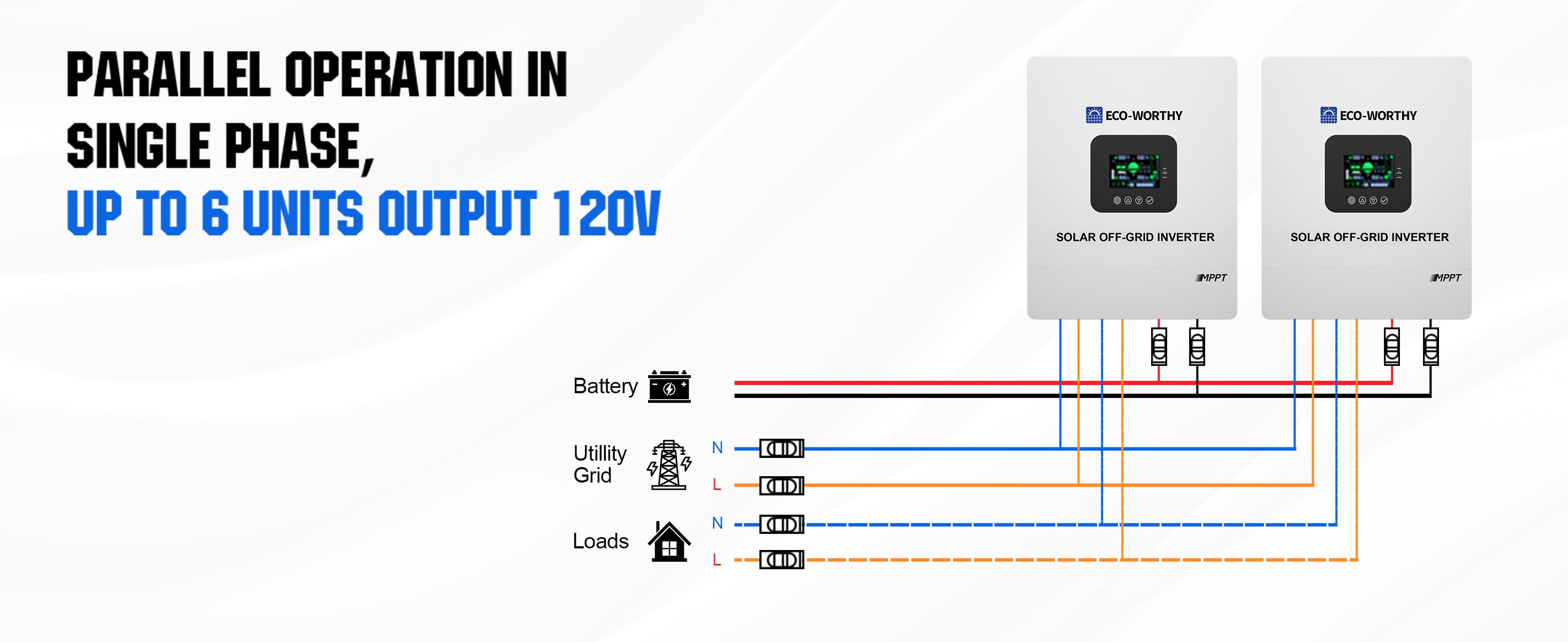

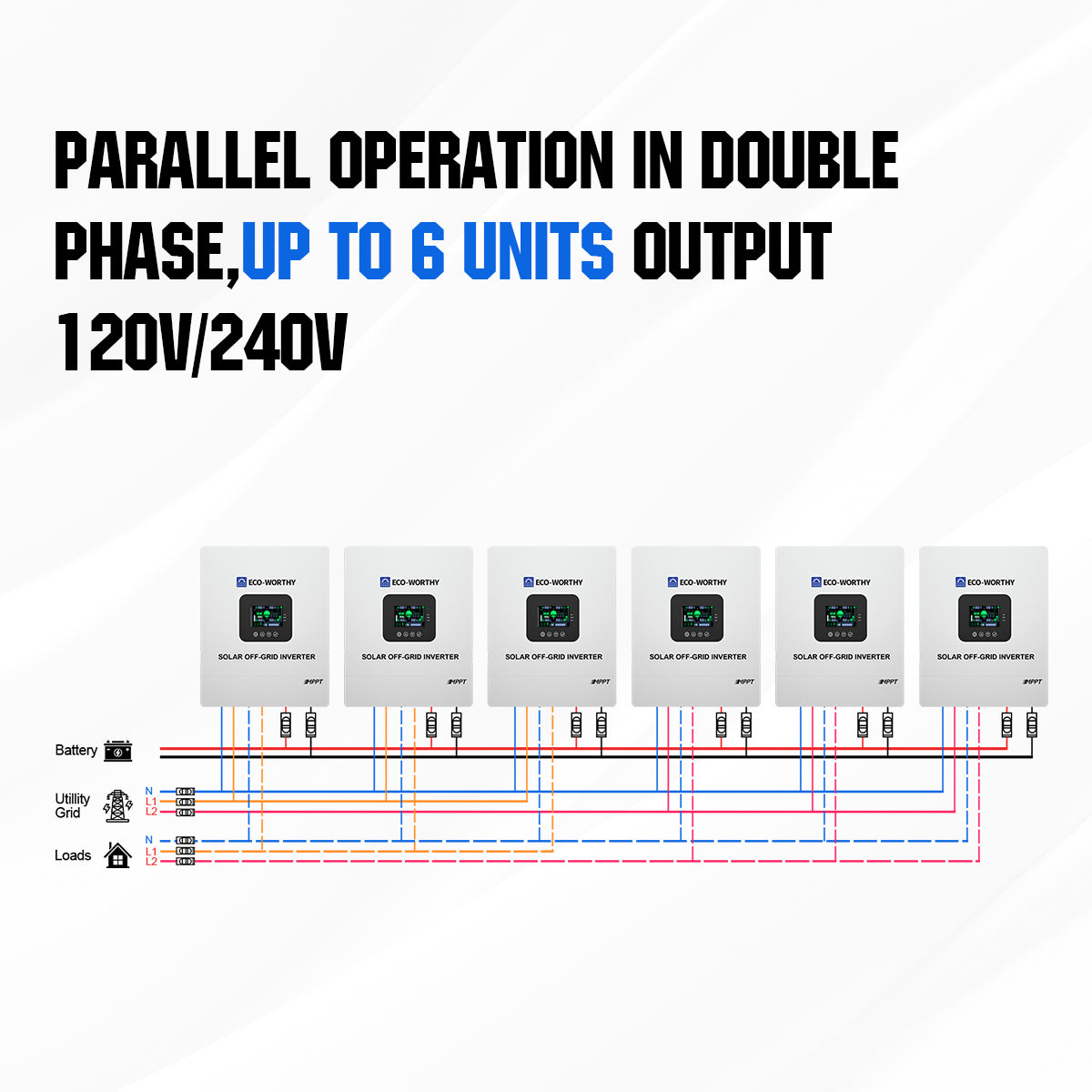

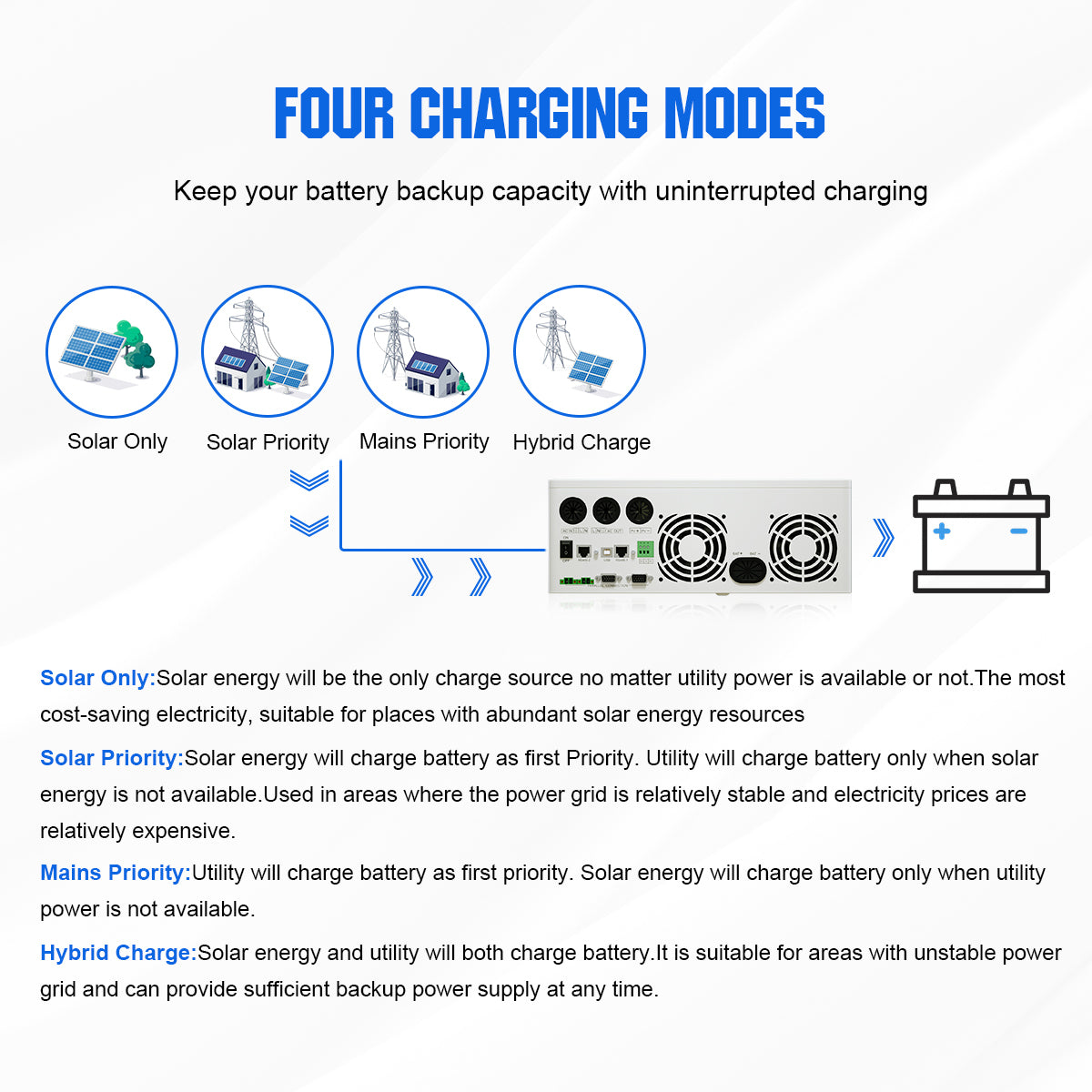

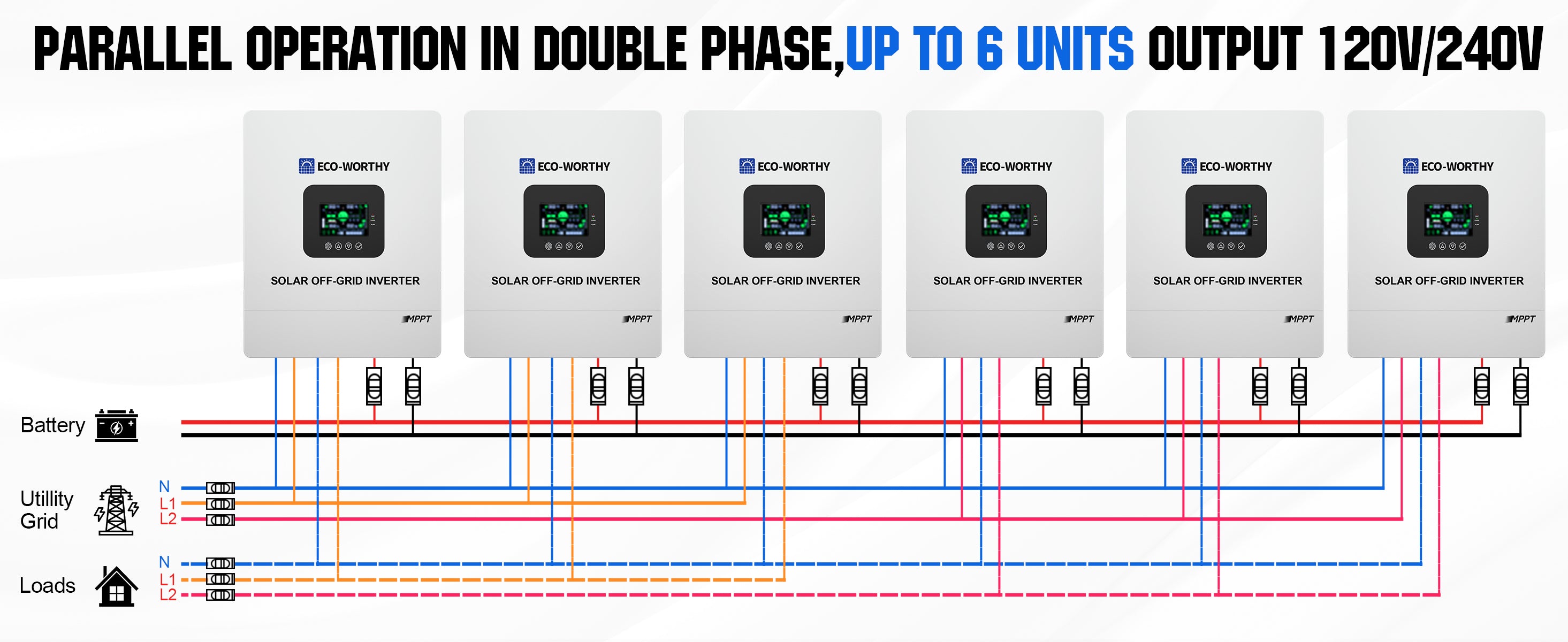

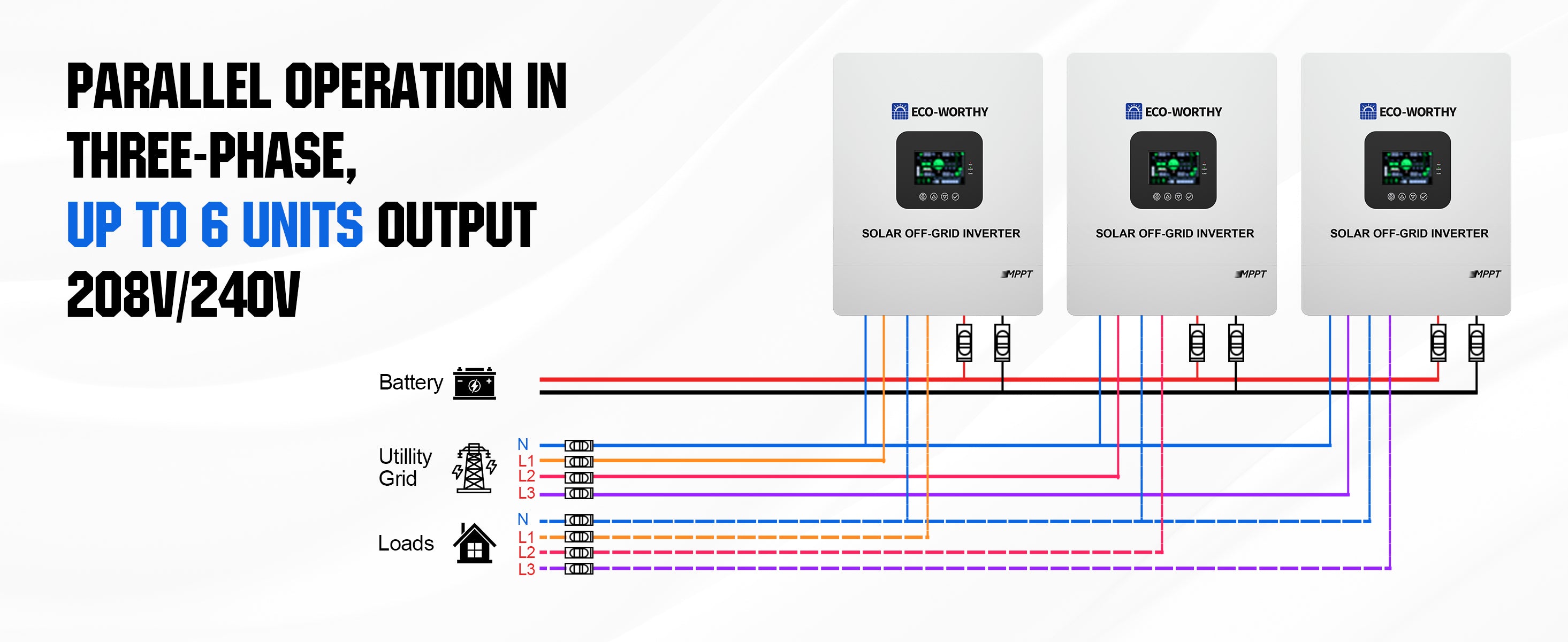

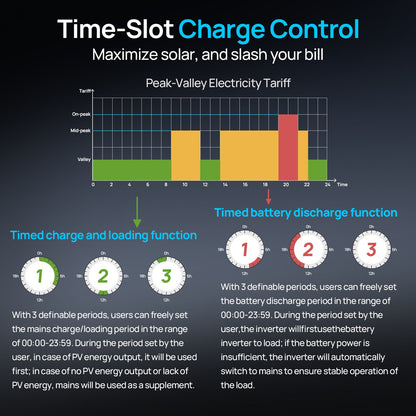

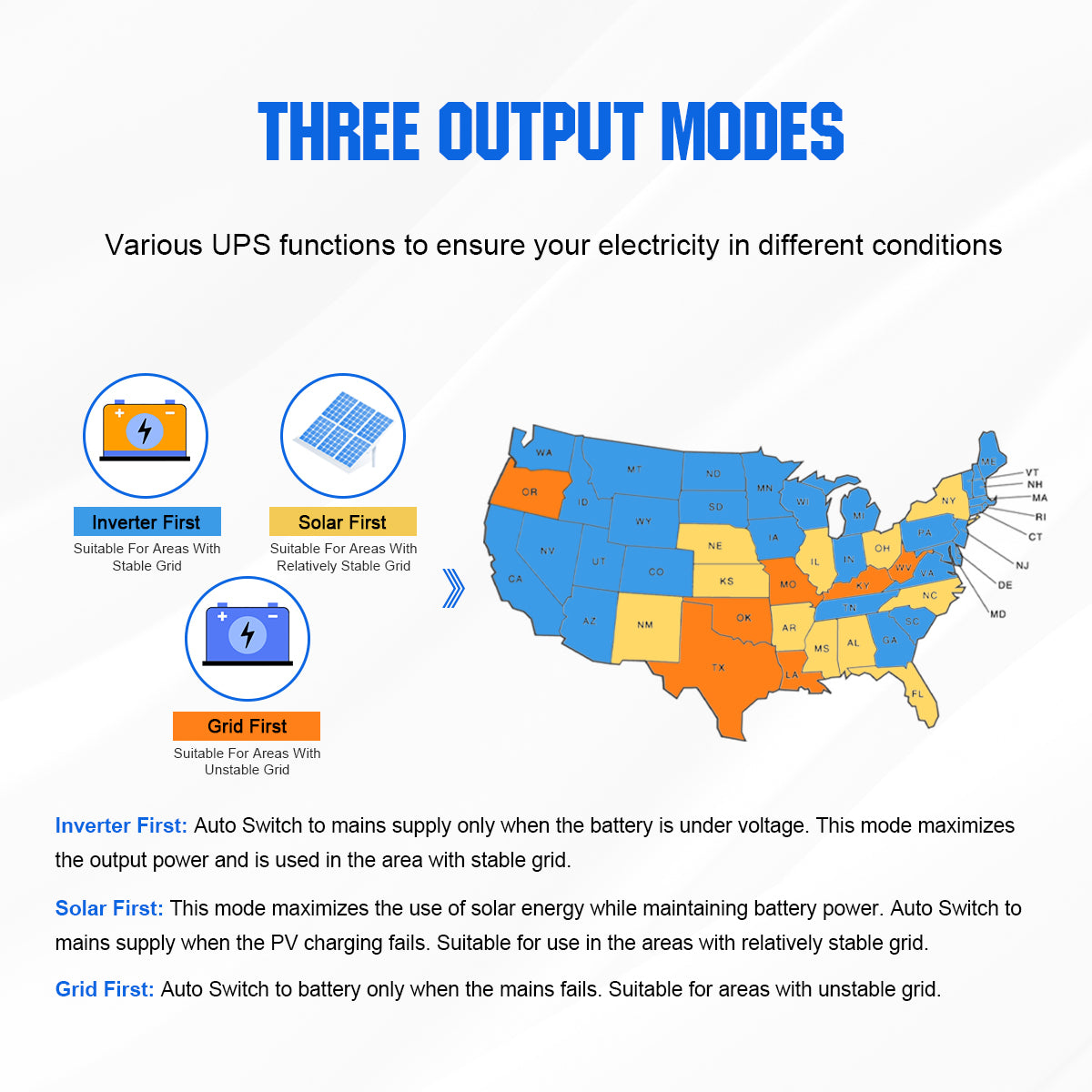

·Parallel Supportable: Parallel support up to 6 units-30kw Max. It can be single phase or separate phase parallel.The output voltage of one inverter is 120v, and more than two inverters can output 120v/208v/240v in parallel. (Two units MINIMUM have to be in parallel to achieve 220V power.) ·Battery-Free Running: It can work without battery power input. Keep the load running continuously in the battery-free state and use PV DC current to power the inverter. ·Segmented Charing/Discharging: 3 output modes: mains priority and, battery priority, PV priority; uninterrupted power supply. Available in 4 charging modes: Only Solar, Mains Priority, Solar Priority and Mains & Solar hybrid charging. Set a flexible time period for mains charging/discharging according to the local mains condition, and help you save the mains. ·Technical Specifications: Max.PV input power: 5500W, PV input voltage range: 120-500V DC, Max.MPPT Charging Current: 80A, Rated Output Power: 5000W, Max.Peak Power: 10000W, Rated OutputVoltage: 120/240Vac.（split phase/single phase) ·Easy & Safe Use: LCD display to monitor all data anytime. Multiple intelligent protections, such as PV input current/power limiting protection, PV input over-voltage, PV night reverse current protection, multiple cooling fans to prevent over-heat issue, etc.
Total Price
Couldn't load pickup availability
Free Shipping
Return Guarantee
Secure Payment
or 4 interest-free payments of $174.99 with
Free & Fast Delivery
14-Day Money-Back Guarantee
3-Year Warranty
Lifetime Customer Support
Pay with ease
Trusted delivery
Technical Specifications
Output Voltage Waveform
Pure Sine Wave
Rated Output Voltage
120VAC
Bypass Breaker
63A
Min Starting Voltage
44V
Rated Output Power
5000W
Peak Power
10000W
Rated Battery Input Voltage
48V
Power Saving Mode
Load ≤25W
Max Input Power
Max PV Open Circuit Voltage
500VDC
MPPT Voltage Range
120-450VDC
Max Output Power
PV Charging Current Range
0-80A(can be set)
PV Operating Voltage Range
Battery Voltage Range
40-60VDC
Charging Short Circuit Protection
Blown fuse

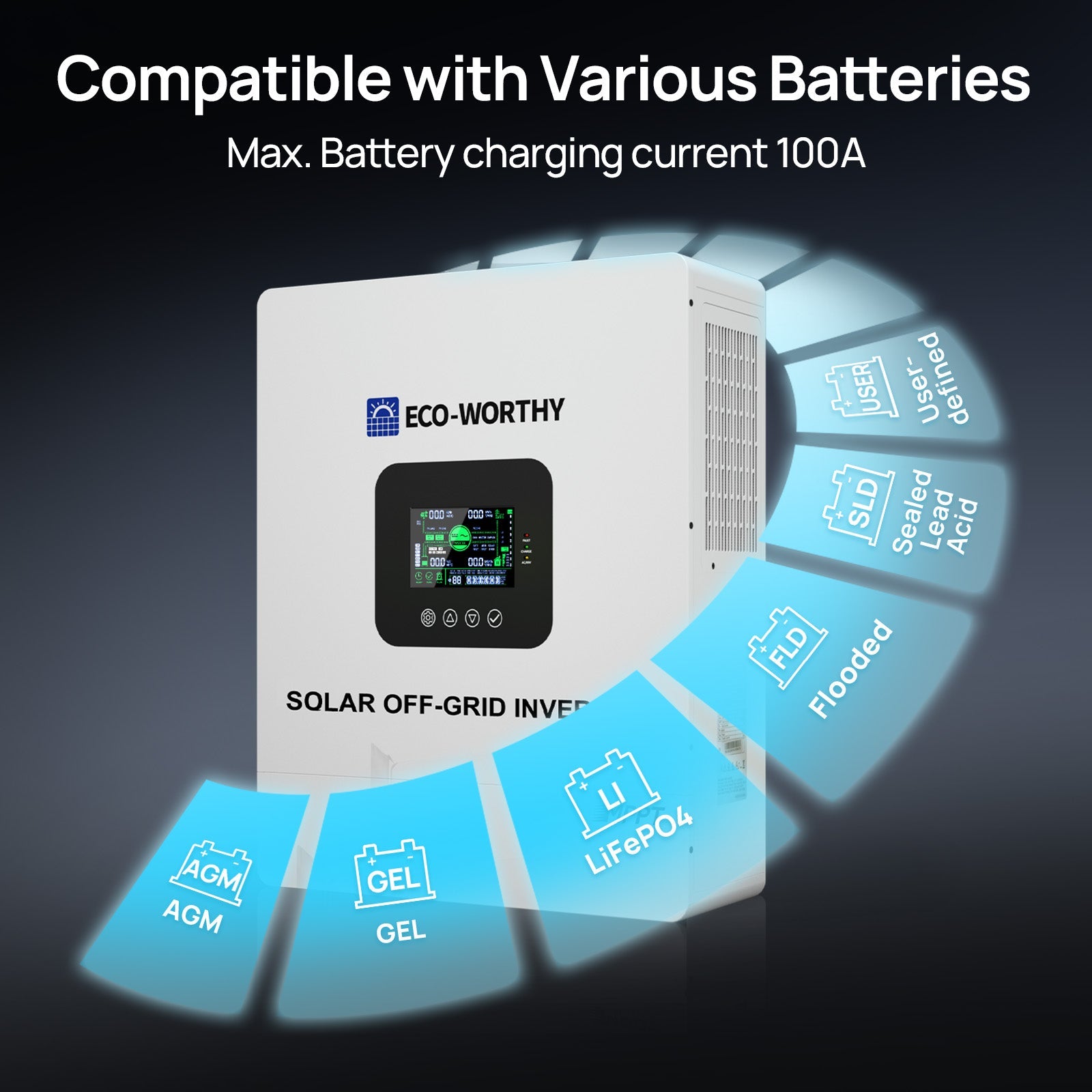

Battery Type
Lead acid or lithium battery
Charge Voltage Range
Max Charge Current
60A
Overcharge Protection
Alarm and turn off charging after 1 minute
Rated Input Voltage
110/120VAC
Frequency
50Hz/60Hz(auto detect)
Efficiency
>95%
Max Bypass Overload Current
40A
Input Voltage Range
90V-140VAC
Overload/Short Circuit Protection
Circuit breaker
AC Reverse Protection
Available
1x 5000W 48V Off-grid Inverter
ECO-WORTHY HYP48S+U100-H 5000W Inverter Manual EN_V1.0_23-05-11
ECO-WORTHY HYP48S+U100-H 5000W Hybrid Inverter UL 1741 Certificate
ECO5000W(SR) AIO Inverter Specification Sheet-US Standard
ECO5000W(SR) Wiring Specification and Circuit Breaker Selection-US Standard

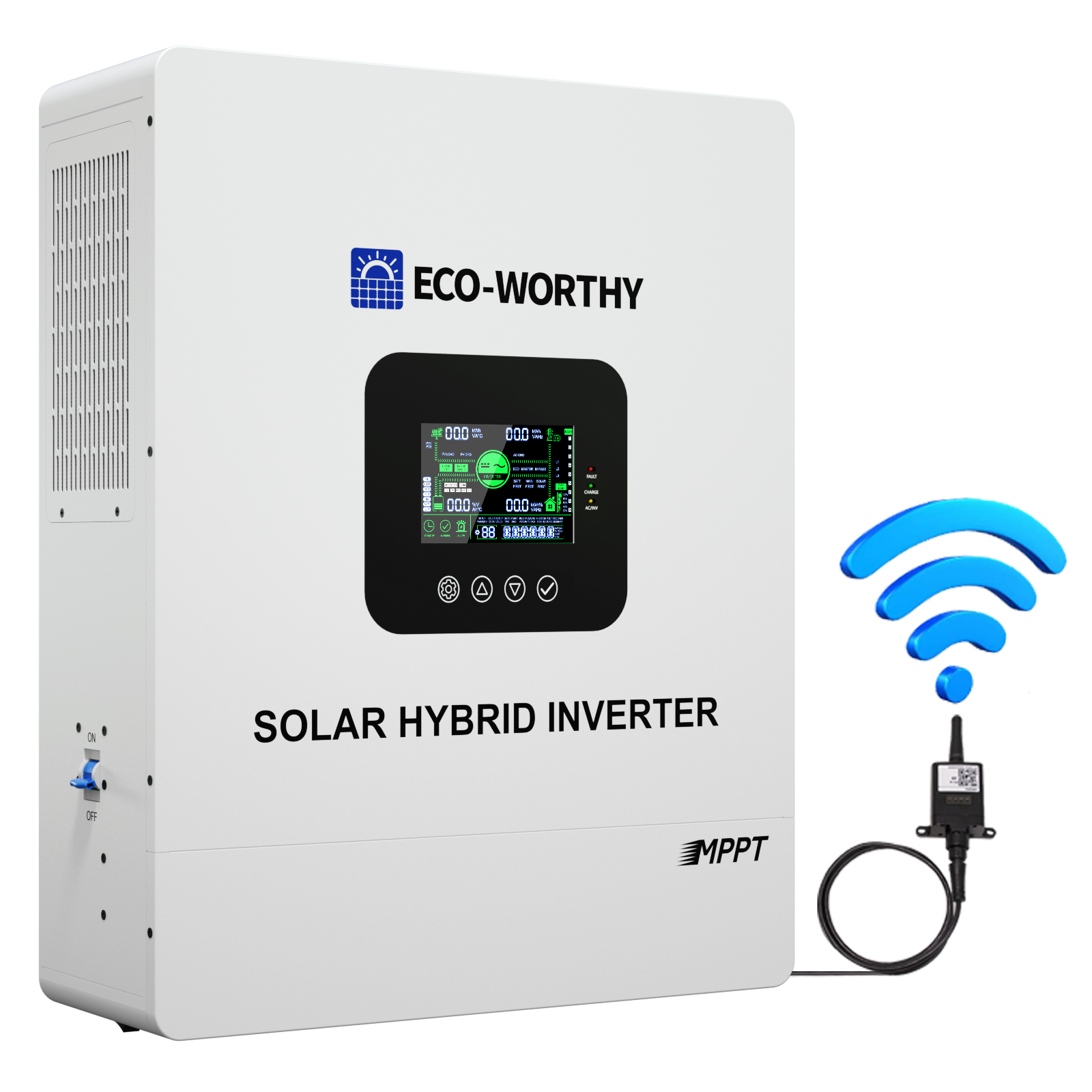

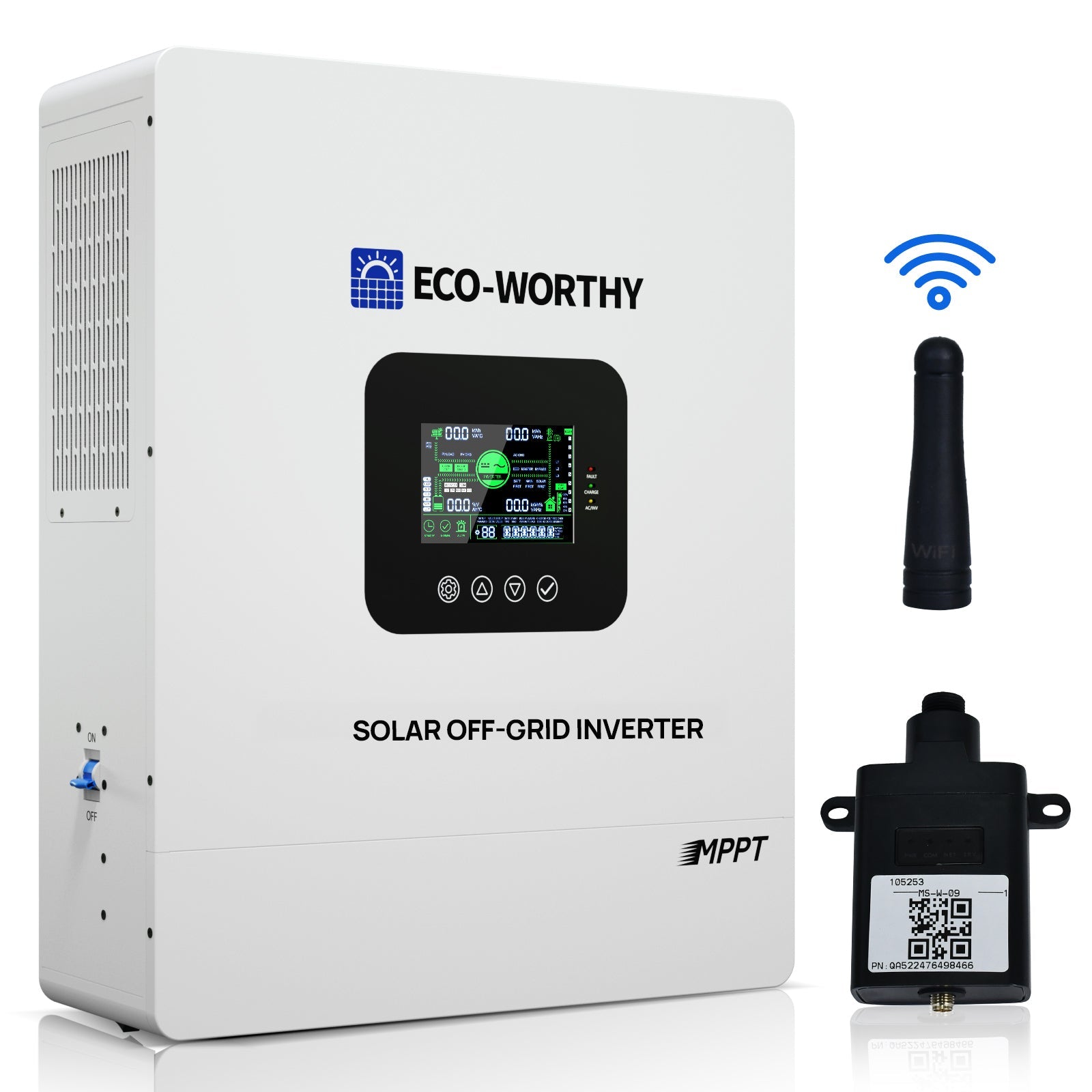

The hardware is good, it comes with cables and a wi-fi capable datalogger (which I have not tested yet since installs so far have been remote with no wifi available). The install documentation is good enough for an experienced installer, but probably a little difficult for the first-timer DIY owner.
I do have a few minor suggestions that would make the install much easier:
- change the terminal block cover design from using 5 TINY philips head screws to a hinge and latch. The TINY screws are easy to drop, and difficult to see/access in tight spaces.
- access to the bottom back mounting bolt is quite tight... It's easy to drop the screw inside during installation, and difficult to recover.
- the battery cable cutout/port on the bottom is oblong for both cables rather than two separate round standard sized holes for typical cord grips. On the plus side is a dielectric separater, but on the negative, if a terminal bolt is dropped inside during install, it is difficult to recover because its behind a flimsy clear plastic cover.
- The biggest objection I have is the terminal block for Grid/Gen input, and Load output. Given that this is a 5000watt-120v unit, 6AWG wire should be used, and the terminal block openings are hard to see, and a little too small for easy insertion.... and the philips terminal screws are on the small side to get adequate torque. I would MUCH prefer properly sized lever blocks, or using actual circuit breakers for terminal blocks... but this would require hinge/latch cover for quick access to breaker(s).
The units are stable and dependable, but unfortunately, the company does not have the software for pc operation even though there is a usb port for it.
I bought two eco-worthy ECO5000W(SR) hybrid inverters, they are connected in parallel in split phase and I have had them working for over two months now and I have to say that they are very good, to date they have not presented the slightest failure or instability, they respond well to changes in the main grid. The integrated MPPT works perfectly. During this period I have been changing the configurations to adjust them to my needs and in each of the variants the performance is excellent. Right now I have them configured in [01] BT1ST, [06] ONLYPV and I am delighted with their operation. However, the only thing I have not been able to get to work are the Dataloggers that they bring for remote monitoring, However, for this one problem I give it 5 stars because I am really happy with the inverter's operation.. Otherwise everything works at 100%. So I recommend this inverter.
Easy installation
After 2 weeks it is still working. However, I am having difficulty finding instruction for connecting the BT and WiFi on the new ECO5000W(SR). Please check your messages for my information I submitted a few days ago and call me back.
