SKU:
SKU:US-L03APDMPPT60A-1

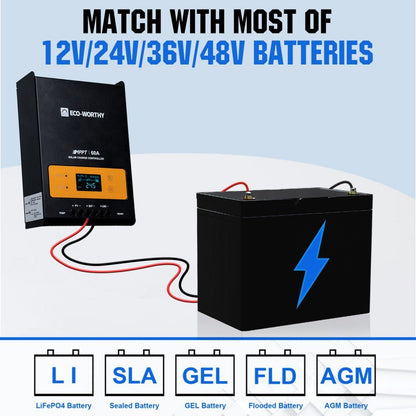

ECO-WORTHY 60A MPPT Charge Controller is the most efficient type of charge controller. With up to 99% tracking efficiency, ensures maximum power point solar charging that gets more energy to your battery bank. It's able to charge and discharge different kinds of 12/24/36/48V battery banks, including Gel, AGM, Lithium, LiFePO4, Flooded and NCM/NCA batteries.
Total Price
Couldn't load pickup availability
Free Shipping
Return Guarantee
Secure Payment
or 4 interest-free payments of $42.49 with
Free & Fast Delivery
14-Day Money-Back Guarantee
Up To 10-Year Warranty
Lifetime Customer Support
Pay with ease
Trusted delivery
Technical Specifications
Battery voltage
12V/24V/36V/48V
Charging mode
MPPT
Charge Efficiency (Peak)
97%
Battey Type
LiFePO4,AGM,Sealed,Gel,Flooded
Size
240*166*65mm
Maximum wire size
20mm2
Max Solar Input Power
780W(12V)/1560W(24V)/2340W(36V)/3120W(48V)
Rated Load Current
30A
Max Charge current
60A
No-load static loss
0.5W-1.2W
Weight
1.96KG
1X 60A MPPT solar charge controller
60A MPPT solar charge controller Manual
I have the older version Charge and use energy in one device very useful ! I hope the contact fasteners and display is improved on newer models. It does draw energy if not turned off manually

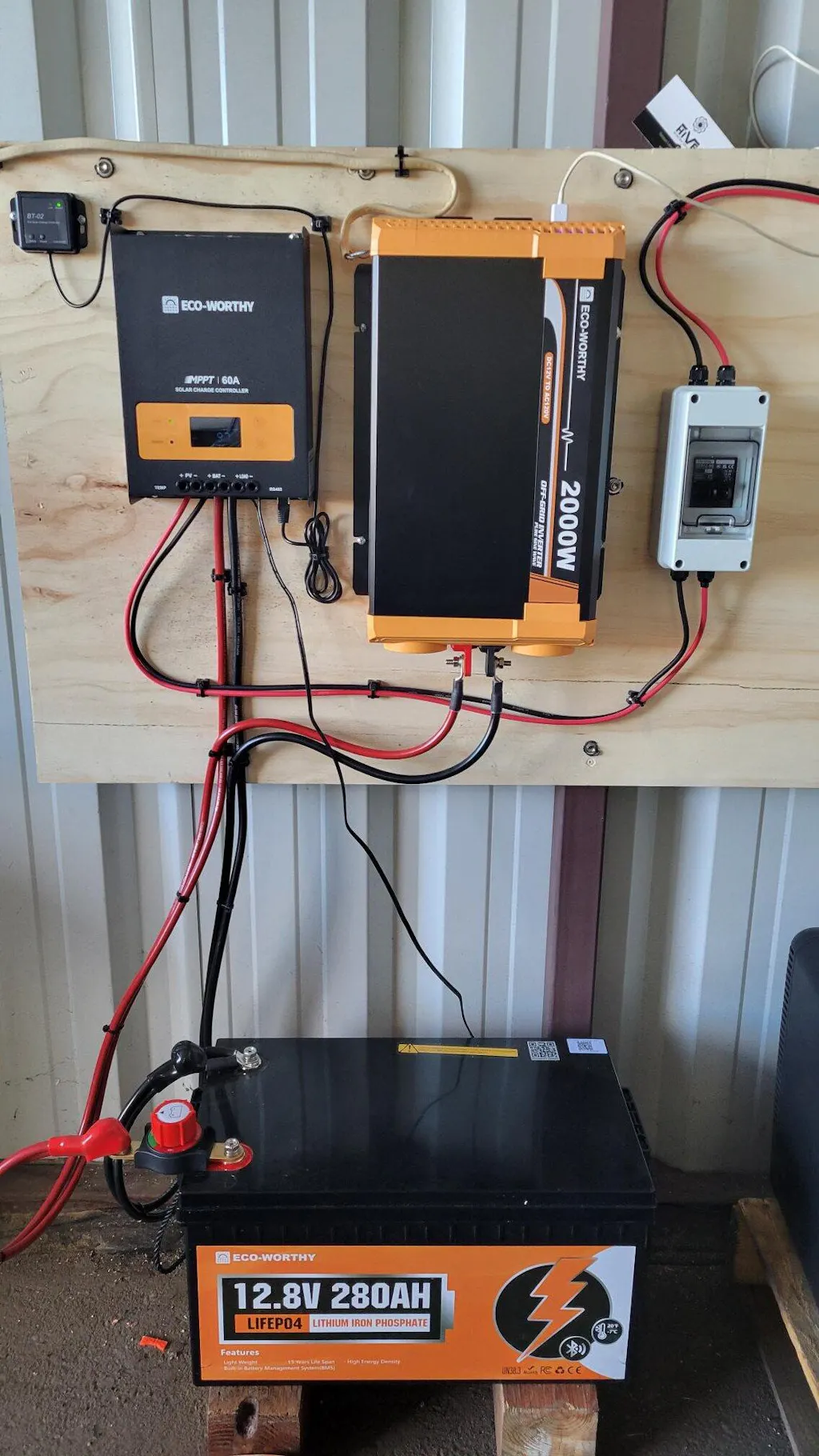

Honestly, I was looking for price over performance as this is a remote setup that won't get used much. An online auction site led me to factory refurbished 195W/12v panels, a mounting rack for the roof capable of holding 4 of the panels, the 60amp MPPT controller, a 2000 watt inverter, and a 280ah 12v battery. I has to source cables, breakers and cutoff switches - but once everything was connected in series I was shocked at how good the MPPT algorithm is for maximizing the PV power and charging the battery. The Eco-Worthy application uses Bluetooth to get information from both the MPPT controller and the battery. For basic situational awareness, it's really great. The menu and programming on the screen on the MPPT leaves a lot to be desired, and it would be great if you could configure things in the app. There are some settings you can change, but others you cannot. Anyway - this setup seems to be working flawlessly out of the box so to speak. For the price I could not be happier and I am pleased with the performance so far.
After receiving and powering on my 60 amp mppt charge controller i got a fault light. The controller did not auto detect my 24v battery. Pg8 of the booklet says it will auto detect if sys voltage is set to auto detect. However there are no instructions on how to configure it to do that. Pg 8 also says step1 turn on the battery C/B and set the battery type. Once again there are no instructions in the book to tell you how to do this. Resolving this took several hours and since it was a weekend I was unable to call for assistance. I realize that ECO Worthy did not write these instructions. It would be really great if one of your technical support folks could write and include a sheet of detailed instructions to assist us in setting up the battery system parameters on this unit. Thank you.
I have eco-worthy panels,controllers and lifepo4 batteries. My solar is finally top notch. I am very impressed with the 280 amp hour batteries. MPPT controllers are amazing. Most of my panels are several years old and still putting out the maximum. Great products. Customer service is also great.
