ECO-WORTHY 20.48kWh To 30.72kWh Home Backup Power with 48V LiFePO4 and 10kW Inverter

ECO-WORTHY 20.48kWh To 30.72kWh Home Backup Power with 48V LiFePO4 and 10kW Inverter

$4,599.99
$4,599.99 $8,999.99
Sale Sold out
Shipping calculated at checkout.

SKU:

L13NK10KSR48100B-4

Integrated Communication Batteries - ECO-WORTHY 48V（51.2V） 100Ah LiFePO4 battery features Grade A cells, CAN/RS485 communication, and Bluetooth/Wi-Fi monitoring. Includes full-metal shell, 100A BMS, 125A Circuit Breaker for safety. Battery conforms to UL STD 1973,and it has been tested in accordance with the UL 9540A standard. The test data supports safe installation and compliance with relevant regulations.UL 1741 Certified Solar Off-Grid Inverter，UL1973 | UL9540A Certified Battery

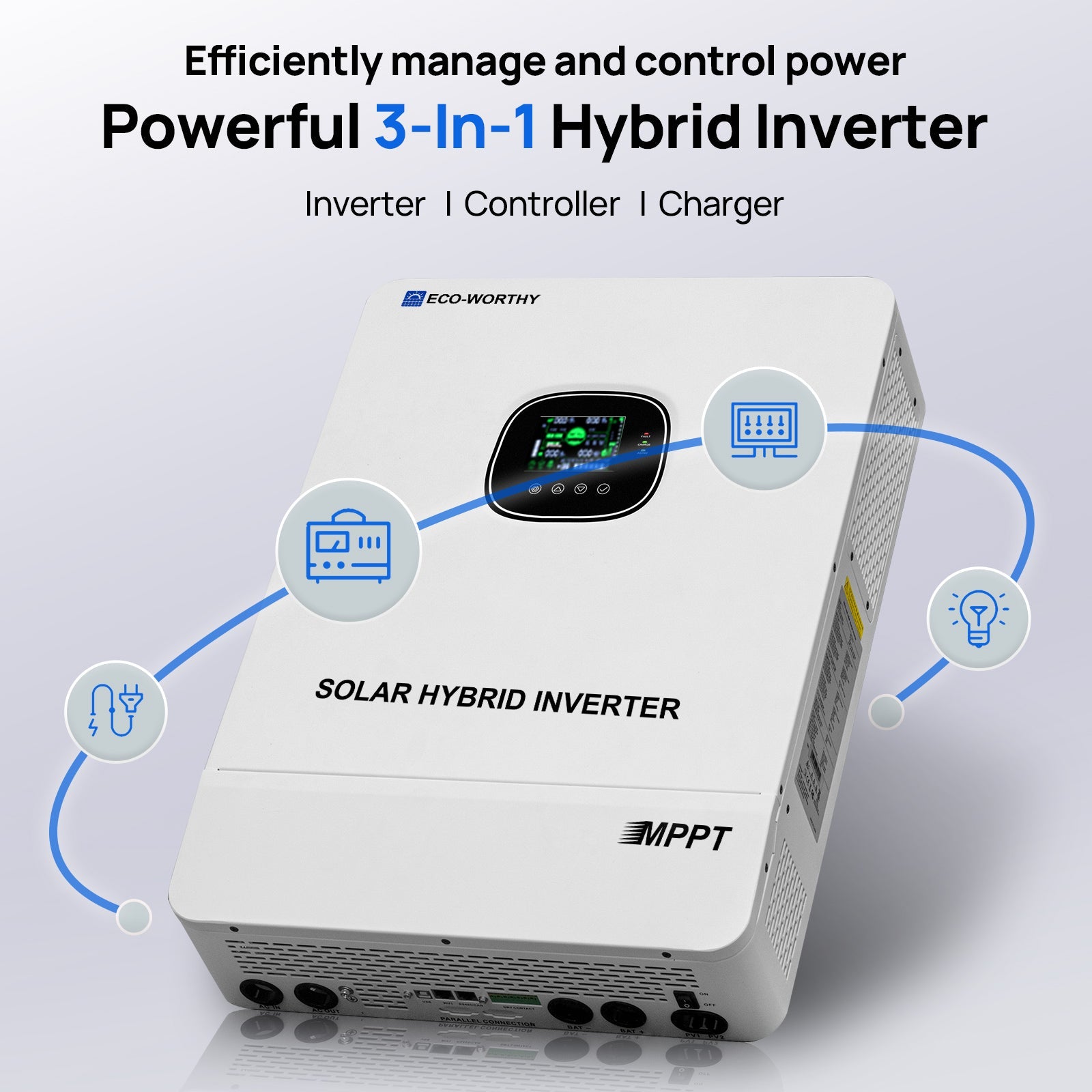

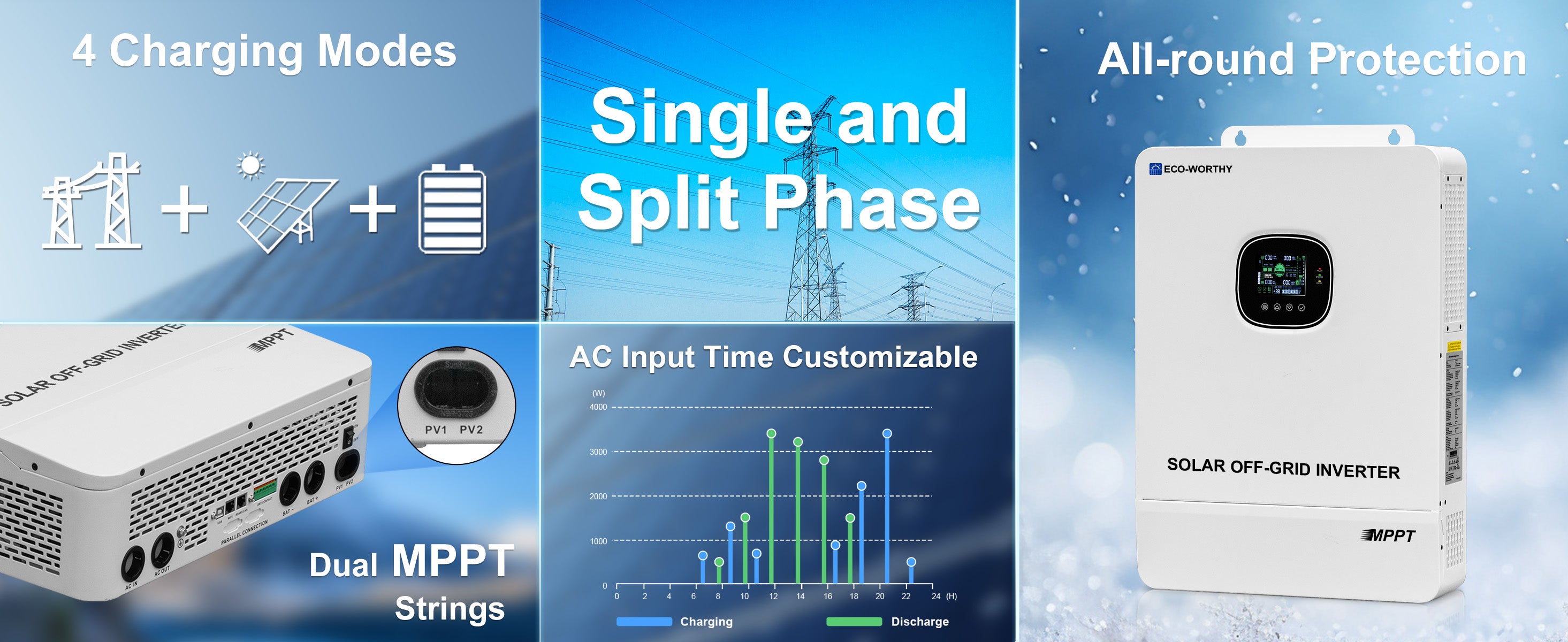

Off-Grid Solar Charger Inverter - It consists of 10000W 48V DC-120V/240V AC pure sine wave inverter（Split-Phase 240V）and 200A MPPT controller. It can receive power from the grid to charge for all-weather use, it can also be used via off-grid photovoltaic. You can also remotely monitor the system operation status in real time through APP.

UPS Automatic Switching - It has a backup power (UPS) function. You can set the priority for switching between the grid mode and the inverter mode, easily charge the batteries and power the load. When the grid fails, it automatically switches the grid power to the battery to provide uninterrupted power to the load. Keep your home powered and embrace the power of uninterrupted supply.

Flexible Power Usage - Use the app to plan specific circuits in your home. It's not just for power outages. You can also flexibly set the charging/discharging time periods of the mains according to the local mains situation to help you save on mains power.

Read More
System Size

Total Price

$4,599.99
Buy It Now

Free Shipping

Return Guarantee

Secure Payment

or 4 interest-free payments of $1,149.99 with

Installments available at checkout
Shop with Confidence at Eco-Worthy

Free & Fast Delivery

14-Day Money-Back Guarantee

3-Year Warranty

Lifetime Customer Support

Pay with ease

  • American Express
  • Diners Club
  • Discover
  • JCB
  • Mastercard
  • PayPal
  • Venmo
  • Visa

Trusted delivery

View full details
X
$4,599.99 $8,999.99
Learn More
Buy It Now
Feature
Included in the box
Reviews
FAQs

ECO-WORTHY 20.48KWh/30.72KWh Home Backup Power Solution

This robust system pairs a high-capacity 48V 100Ah LiFePO4 battery bank with a powerful 10kW off-grid inverter, delivering reliable whole-home energy storage. Featuring UL1973-certified safety, Bluetooth/Wi-Fi monitoring, and compatibility with major inverter brands, it ensures seamless operation. Built with premium REPT A-grade cells for 6000+ cycles at 80% DOD and backed by a 10-year warranty, this scalable power solution offers professional-grade performance for complete energy independence and emergency preparedness.

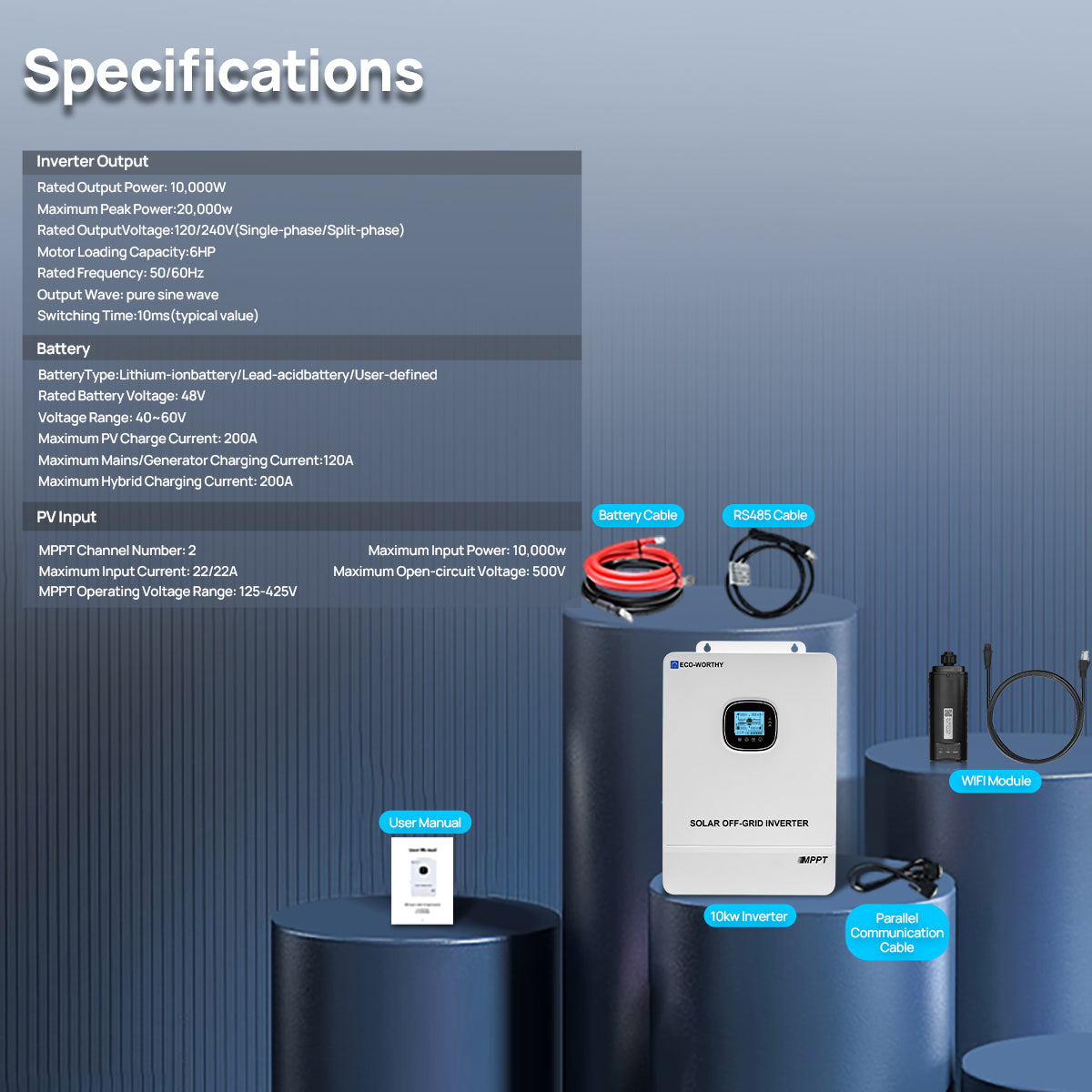

Technical Specifications

10kW 48V All-in-one Inverter

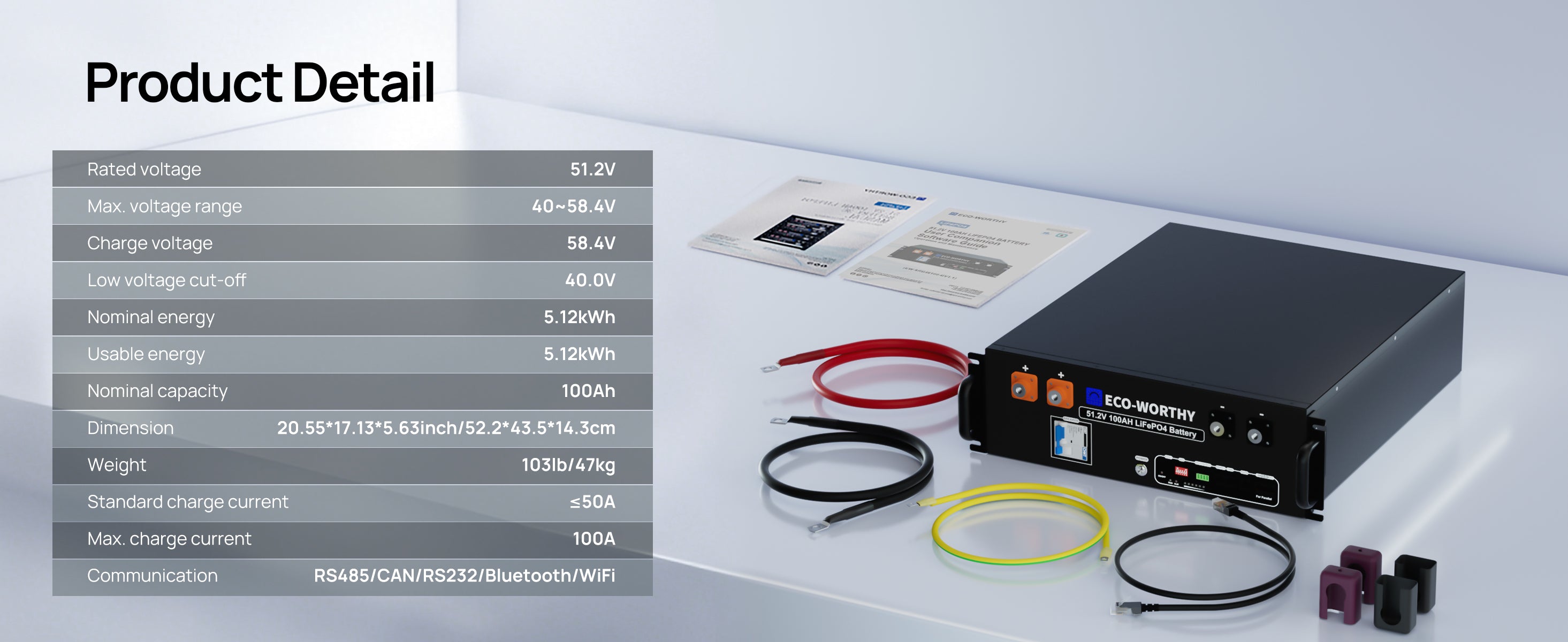

Cubix 100 48V 100Ah Server Rack Battery

PV Charging Current Range

0-200A

MPPT Voltage Range

125-425VDC

Max Input Power

11000W

Battery Voltage Range

40-60VDC

Output Waveform

Pure Sine Wave

Rated Output Power

10000W

Rated Output

120VAC/240VAC 50Hz/60Hz

Rated Battery Input Voltage

48V

Peak Power

20000W

Rated Input

90VAC-140VAC 50Hz/60Hz(auto detect)

Battery Capacity

100Ah

Battery Power

5120Wh

Rated Voltage

40~58V

Maximum Charge/Discharge Current

100A

Charge Temperature Range

0-55°C

Disharge Temperature Range

-20-55°C

Voltage Range

40~58V

Maximum Charge Voltage

58.4V

Screw size

M8

Battery Size

22.55*17.13*5.63inch

Battery Weight

95 lbs

Certification

UL1973 | UL9540A | CEC LISTED

Included in the Box
box image

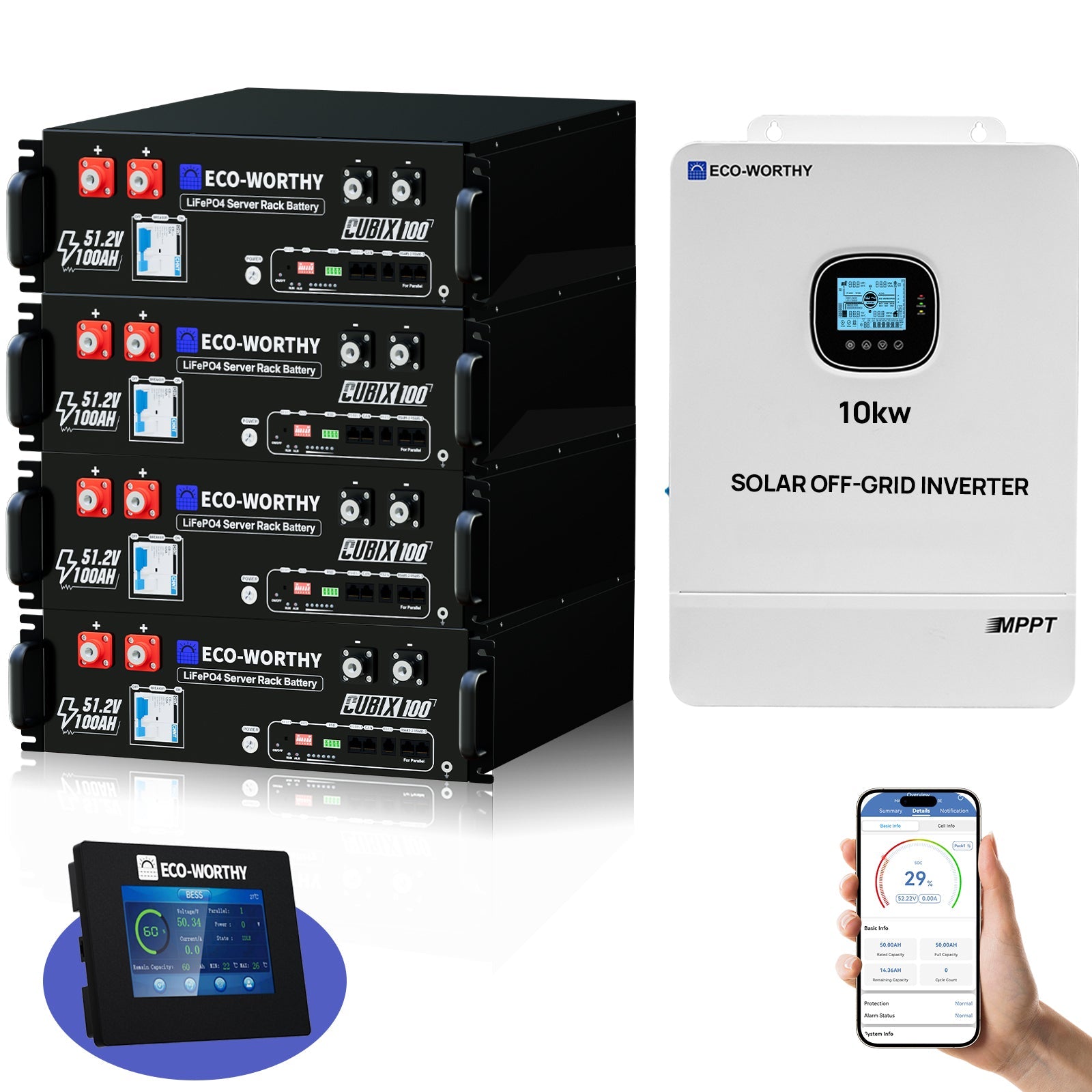

1.4 x 48v 100ah Serve Rack Lithium Battery
2.1 x 10000W Off-grid battery Rack
3.1 Pair Battery-to-Inverter Connection Cable
4.4 Pairs Battery Parallel Cables
5.1xAccessories Pack

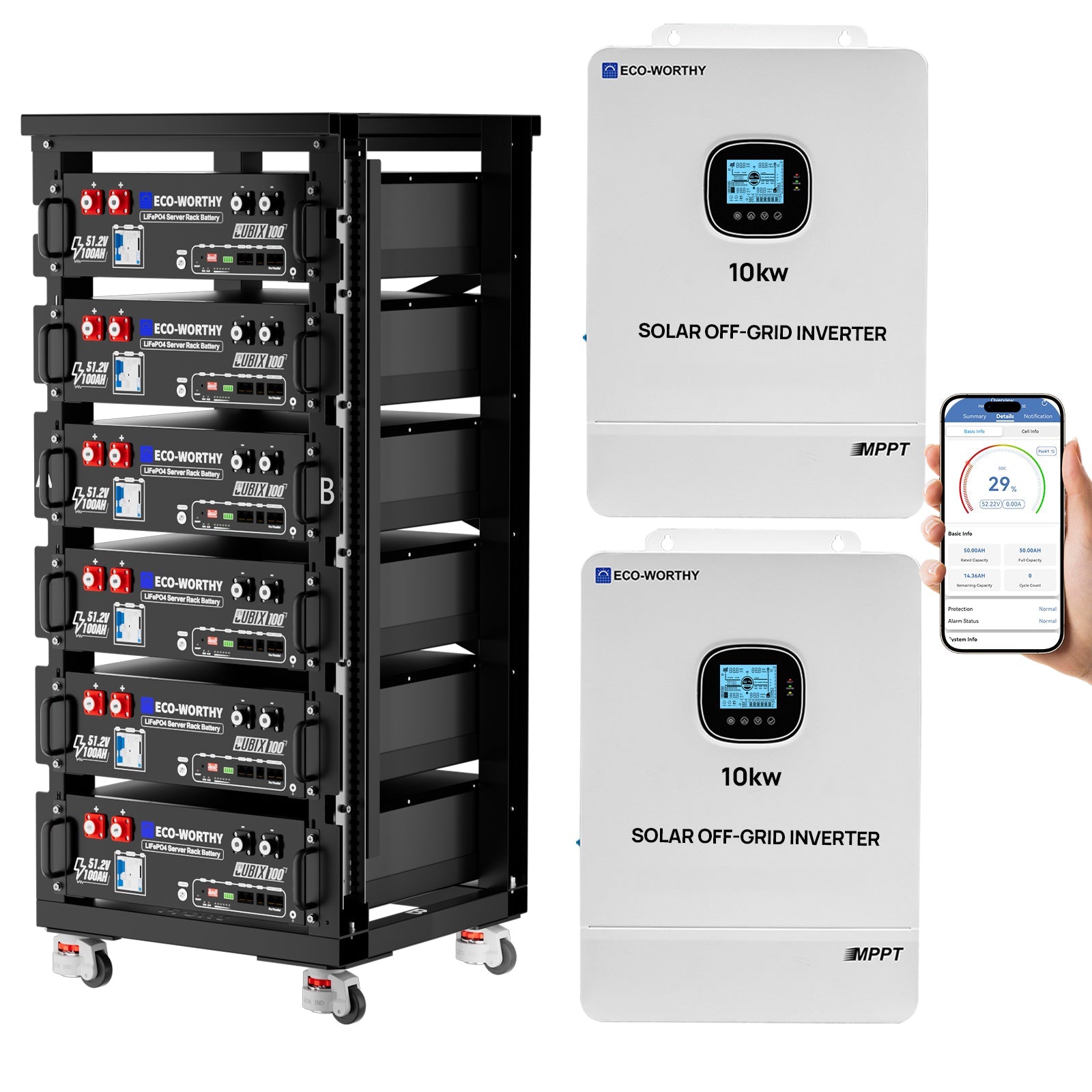

box image

1.6x48v 100ah Serve Rack Lithium Battery
2.2x10000W Off-grid Inverter

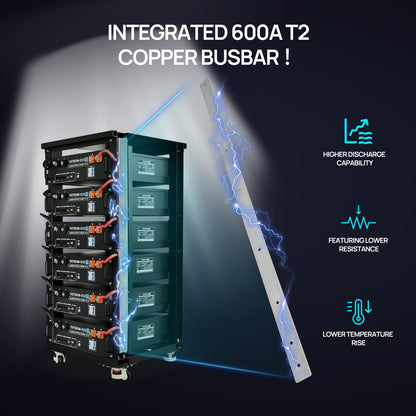

3.1xECO-WORTHY RACK6 V2 I 6-Layer Rack With 600A Busbar
4.2 Pairs Battery-to-Inverter Connection Cable
5.6 Pairs Battery Parallel Cables
6.1xAccessories Pack

User manual

ECO-WORTHY 48V 100AH Battery Manual

Download

ECO-WORTHY_10kW_Solar_Off grid_Inverter_Charger_Manual

Download

ECO-WORTHY ECO10000W-UL 1741

Download

Frequently Asked Questions

What certifications do you hold?

+
Our 51.2V 100Ah battery has obtained UL1973, UL9540A, and CEC listed. You can view the relevant certificates in the download section of the product page.

What is the warranty period of the battery?

+
We offer 10-year warranty for 51.2v server rack lithium battery,covering non-human-induced battery failure issues.When you buy this solar kit, you are covered by the full manufacturer warranties on each component. Plus, you’ll receive our lifetime customer and technical support.

What communication methods are supported?

+
Our battery communicate via built-in Bluetooth/WiFi with mobile apps; RS485-1 on the front panel communicates with host computer software, mainstream inverters, and Solar Assistant; CAN interface communicates with inverters; RS232 interface communicates with host computer software.

What kind of battery cells are used?

+
We use 100% A-grade prismatic cells from REPT, ensuring 6000 cycles at 80% DOD.

What safety designs does the battery have?

+
Each battery includes a built-in 100A BMS, a pre-charging circuit, and a 125A short-circuit protection switch on the front panel.

Which inverters can this battery communicate with?

+
Compatible with all major inverters: Victron, Deye, Growatt, Lux Power, Sol-Ark, GoodWe, EG4, SRNE, and more.

Can V3 communicate in parallel with V2?

+
Yes. The DIP switch principles are the same. V2 should be in the first 15 batteries due to DIP limitations; V3 has no such limit.

Do I need to update the JBD software for 32 parallel units?

+
Yes. Please download here: https://app.eco-worthy.com:7778/Download/BMS-Tool&Drive-for-Windows.zip

Does the mobile app need to be updated for 32 parallel units?

+
Yes. Upgrade the "Lithium Battery IoT Cloud" app to version 1.6.6.

Do I need to buy battery cables separately?

+
Each battery includes 1 pair of parallel cables, screws, a grounding wire, and a communication cable — no extra purchase needed.
