The ECO-WORTHY 10000W Solar Off-Grid Inverter Charger efficiently converts 48V DC to 240V AC with split-phase capability, ensuring a reliable and powerful energy solution for your off-grid systems. Designed for both residential and commercial use, this inverter supports high loads and offers seamless charging with built-in protection features. Perfect for solar setups, RVs, and emergency backup applications, it provides a stable, long-lasting power supply for your appliances and devices.
Pictures
Videos
Early Prime Day Sale
Eco-Worthy 10000W Solar Off-grid Split-phase AIO Inverter | 48Vdc to 120Vac/240Vac | 10000W@500V PV Input | UL 1741
Eco-Worthy 10000W Solar Off-grid Split-phase AIO Inverter | 48Vdc to 120Vac/240Vac | 10000W@500V PV Input | UL 1741
Regular price
$1,499.99
Sale price
$1,499.99
Regular price
$1,999.99
Unit price
per
Shipping calculated at checkout.
SKU:
SKU:L03SR10KWYTJ-1
Read More
Total Price
$1,499.99
Couldn't load pickup availability
Free Shipping
Return Guarantee
Secure Payment
or 4 interest-free payments of $374.99 with
Installments available at checkoutShop with Confidence at Eco-Worthy
Free & Fast Delivery
14-Day Money-Back Guarantee
Up To 10-Year Warranty
Lifetime Customer Support
Pay with ease
Trusted delivery
High-Power ECO-WORTHY 10000W Off-Grid Solar Inverter Charger for Reliable Energy Supply

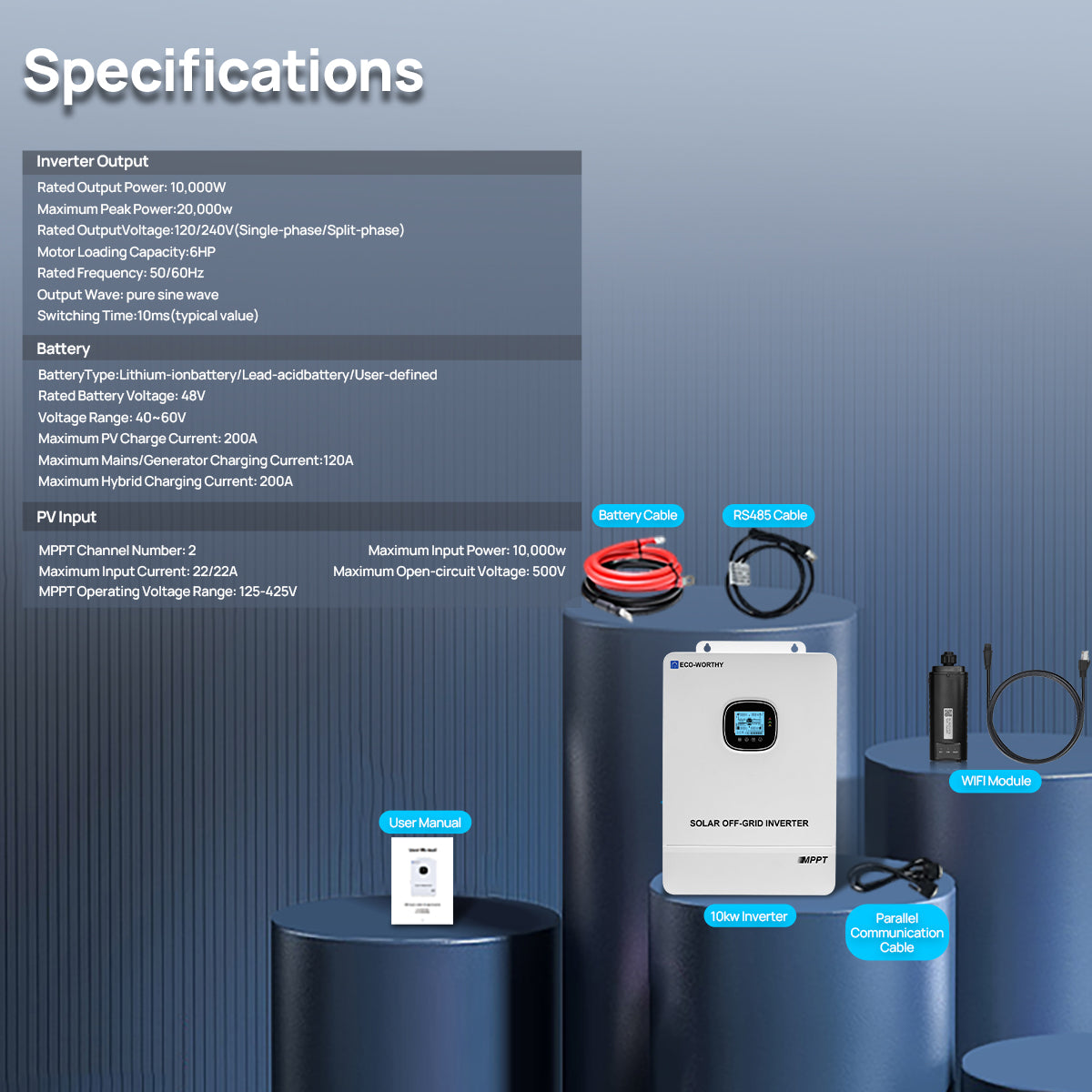

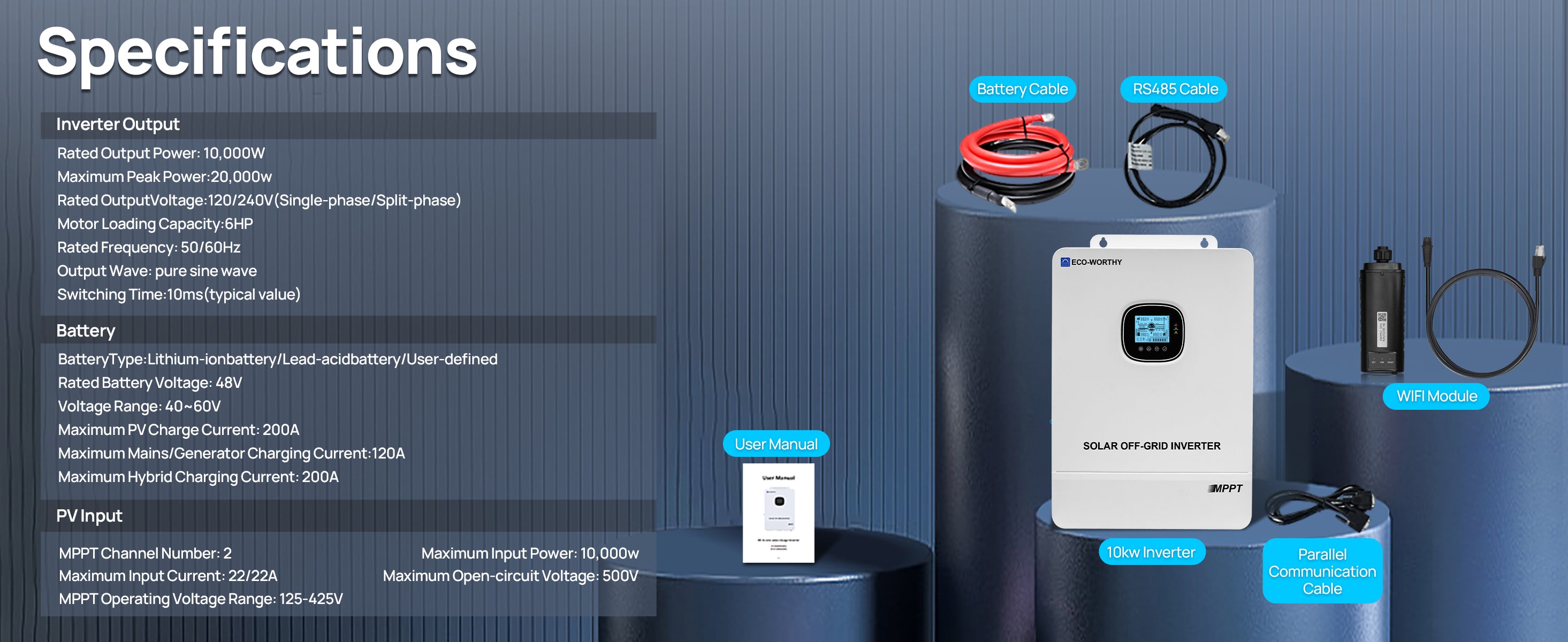

Technical Specifications
Eco-Worthy 10000W Solar Off-grid Split-phase AIO Inverter
Rated output power
10,000W
Maximum peak power
20,000W
Rated output voltage
120/240VAC(single-phase/split-phase)
Loading motor capacity
6HP
Rated frequency
50/60Hz
Output wave
Pure sine wave
Switching time
10ms (typical value)
Parallel number
6
Battery type
Lithium-ionbattery/lead-acidbattery/user-defined battery
Rated battery voltage
48Vdc
Voltage range
40Vdc-60Vdc
Maximum PV charge current
200A
Maximum mains/generator charge current
120A
Maximum mix charge current
200A
MPPT channel number
2
Maximum input power
11,000W
Maximum Input Current
22/22A
Maximum open circuit voltage
500Vdc
MPPT operating voltage range
125 Vdc-425 Vdc
Input voltage range
90VAC-140VAC
Input frequency range
50/60 Hz
Bypass overload current
63A
Dimension
620 mm*445 mm*130 mm
Weight
27 kg
Protection level
IP20, for indoor use only
Ambient temperature
−10°C–55°C, >45°C derating
Noise
<60 dB
Cooling mode
Intelligent fan
Included in the Box
User manual
Eco-Worthy 48V 10000W 120V 240V AC Solar Inverter Charger Manual
DownloadEco-Worthy ECO10000W SR Wiring Specification and Circuit Breaker Selection US Standard
DownloadEco-Worthy ECO10000W SR AIO Inverter Specification Sheet US Standard
DownloadEco-Worthy 10kW AIO Inverter&Battery Wiring Diagram&Configuration
Download10kW AIO Inverter Server Rack Battery Installation Guide
DownloadFrequently Asked Questions
Are Eco-Worthy batteries safe for home use?
+
All Eco-Worthy Batteries Built with premium Grade A LiFePO4 cells, one of the safest lithium technologies available. Built-in BMS protection prevents overcharge, overheating, and short circuits—making it ideal for residential energy storage.
Will it work with my inverter/solar system?
+
Yes. Our batteries are designed to be widely compatible with most 48V inverters and solar systems used in U.S. homes. For best performance, we recommend checking your inverter’s communication protocol or contacting our support team before purchase.
How much power do I actually need for my home?
+
It depends on your usage: 5–10 kWh → essentials (fridge, lights, WiFi); 10–20 kWh → partial home backup; 20 kWh+ → whole-home coverage; Our systems are scalable, so you can start small and expand anytime.
Can I expand the system later?
+
Absolutely. Eco-Worthy batteries support parallel expansion, allowing you to increase capacity as your energy needs grow—without replacing your existing system.
What kind of warranty and support do you offer?
+
We provide up to a 10-year warranty on key battery models, along with U.S.-based support. Our team assists with installation guidance, troubleshooting, and system planning to ensure a smooth experience.
