Achieve total energy independence with the ECO-WORTHY 10kW Complete Off-Grid Solar Kit. This robust system is engineered for whole-home power, delivering 10kW of 120V/240V split-phase AC output. It pairs two high-efficiency 5kW inverters with a massive, expandable bank of UL-certified server rack lithium batteries, offering 20.48kWh or 30.72kWh of storage. Fed by 8260W or 10620W of solar panels, this all-inclusive kit is a turnkey solution for off-grid homes, cabins, and backup power. The system is fully expandable and includes a free upgraded 6-layer rack with a 600A busbar, representing exceptional value for a professional-grade power station.
Pictures
Videos
Early Prime Day Sale

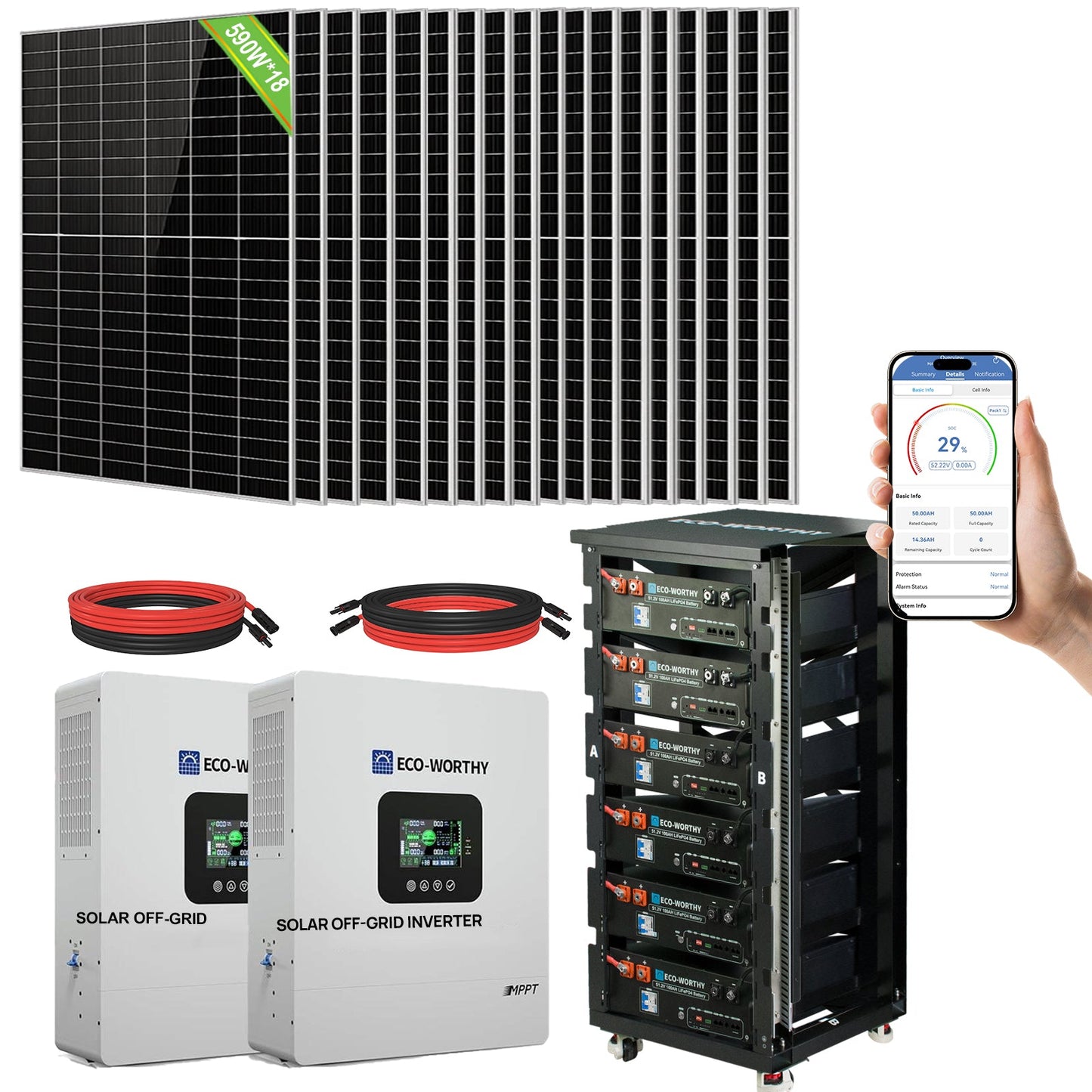

Eco-Worthy 10kw Complete Off-Grid Solar Power System |20.48kWh to 30.72kWh Battery | 10000W 120/240V | 8260W to 10620W PV
Eco-Worthy 10kw Complete Off-Grid Solar Power System |20.48kWh to 30.72kWh Battery | 10000W 120/240V | 8260W to 10620W PV
Regular price
$8,899.99
Sale price
$8,899.99
Regular price
$11,899.99
Unit price
per
Shipping calculated at checkout.
SKU:
SKU:L02M590-SRNK10KUSL4800-14
Read More
The 590w Solar panels will be packed on shipping pallets,and expect to ship on about June 5th
Total Price
$8,899.99
Couldn't load pickup availability
Free Shipping
Return Guarantee
Secure Payment
or 4 interest-free payments of $2,224.99 with
Installments available at checkoutShop with Confidence at Eco-Worthy
Free & Fast Delivery
14-Day Money-Back Guarantee
Up To 10-Year Warranty
Lifetime Customer Support
Pay with ease
Trusted delivery
Technical Specifications
590W Solar Panel

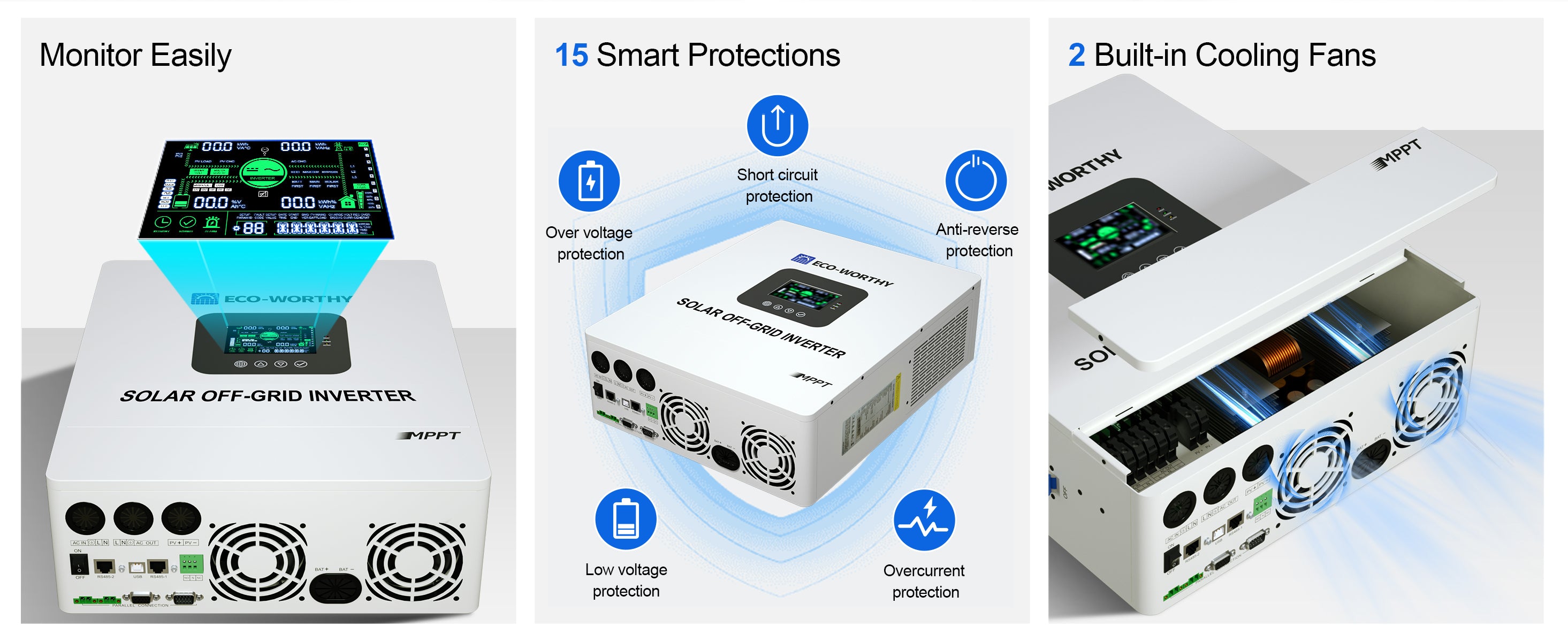

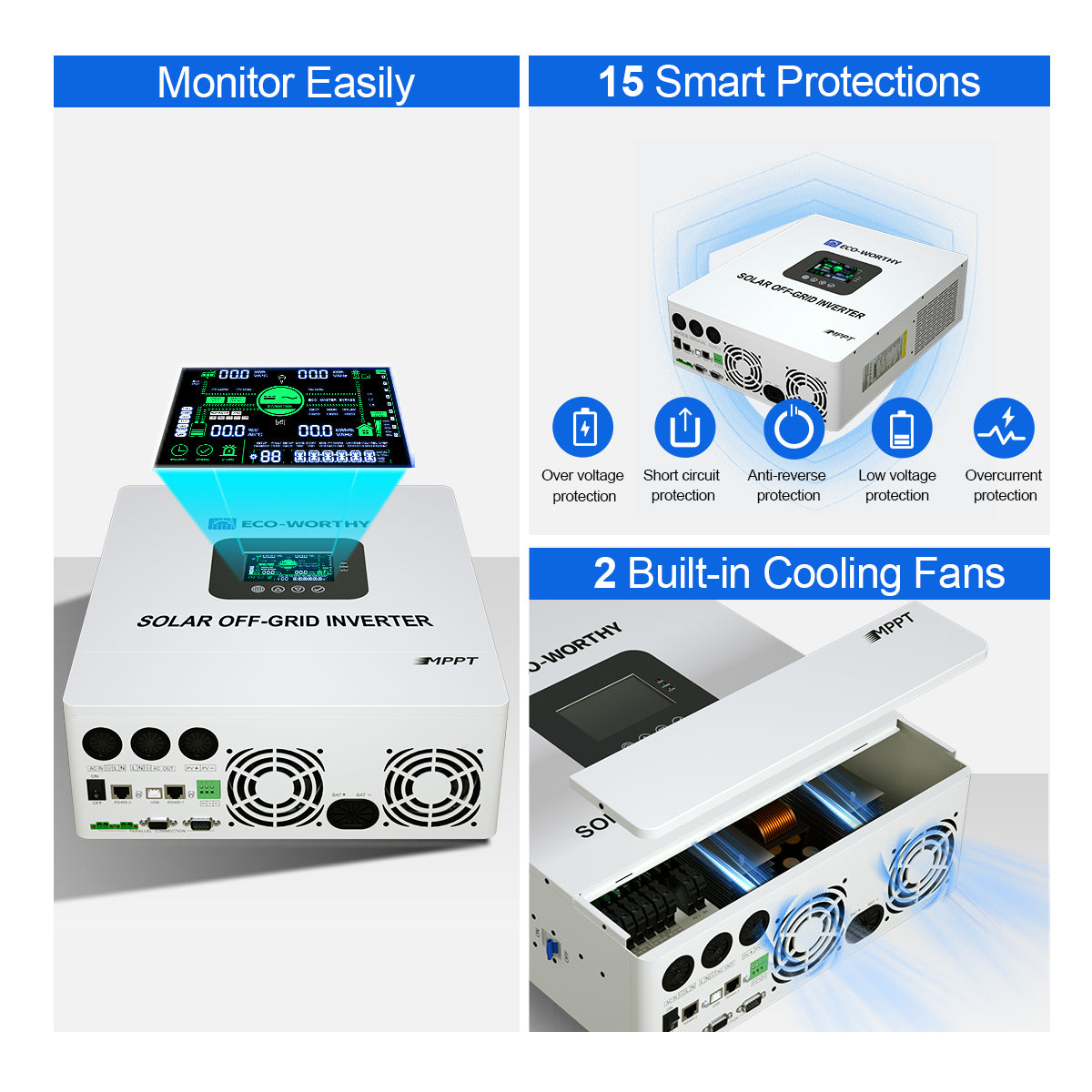

5kW 48V All-in-one Inverter

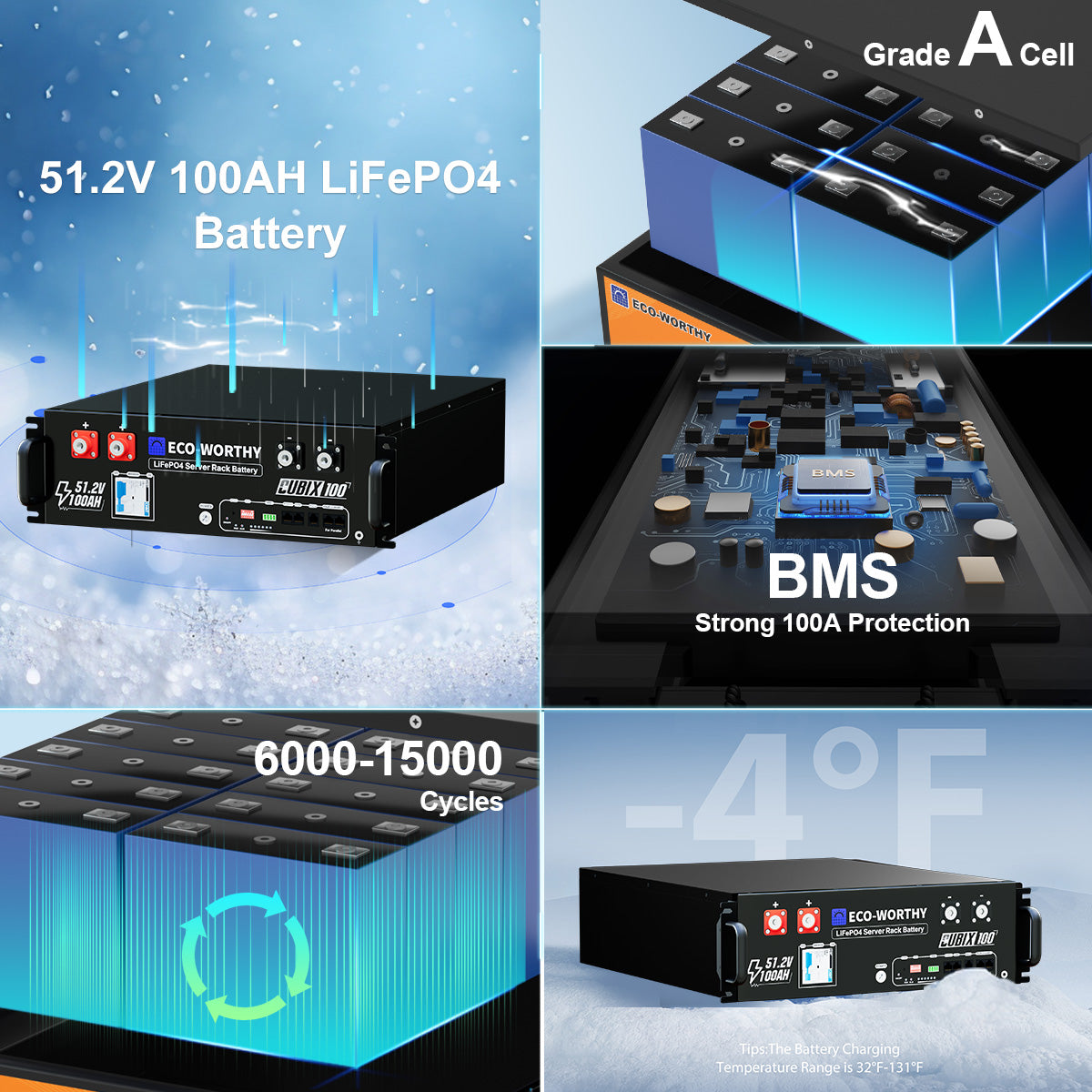

48V 100Ah Server Rack Battery
Peak Power
590W
Cell Type
N-type Monocrystalline
MPPT Voltage(VmpV)
43.2-44.16V
Mppt current
13.36-13.66A
Short circuit current
14.07-14.46A
Open Circuit Voltage(Voc)
51.9-53.41V
Module Efficiency(%)
22.84
Power Tolerance
0~+5W
Maximum System Voltage
DC1500V
Temperature range
－40℃～ +85℃
Maximum Series Fuse Rating
30A
Weight
32.1 kg
Size
2278x1134x30 mm(With Frame)
Fire Type（Rating)
UL Type29/IECClassC
Rated Input Voltage
110/120VAC
Input Voltage Range
90V-140VAC
Frequency
50Hz/60Hz(auto detect)
Overload/Short Circuit Protection
Circuit breaker
Efficiency
>95%
AC Reverse Protection
Available
Max Bypass Overload Current
40A
Output Voltage Waveform
Pure Sine Wave
Rated Output Power
5000W
Rated Output Voltage
120VAC
Peak Power
10000W
Bypass Breaker
63A
Rated Battery Input Voltage
48V
Min Starting Voltage
44V
Power Saving Mode
Load ≤50W
Battery Type
Lead acid or lithium battery
Max Charge Current
60A
Charge Voltage Range
40-60VDC
Overcharge Protection
Alarm and turn off charging after 1 minute
Max Input Power
5500W
PV Charging Current Range
0-80A(can be set)
Max PV Open Circuit Voltage
500VDC
PV Operating Voltage Range
60-145VDC
MPPT Voltage Range
120-450VDC
Battery Voltage Range
40-60VDC
Charging Short Circuit Protection
Blown fuse

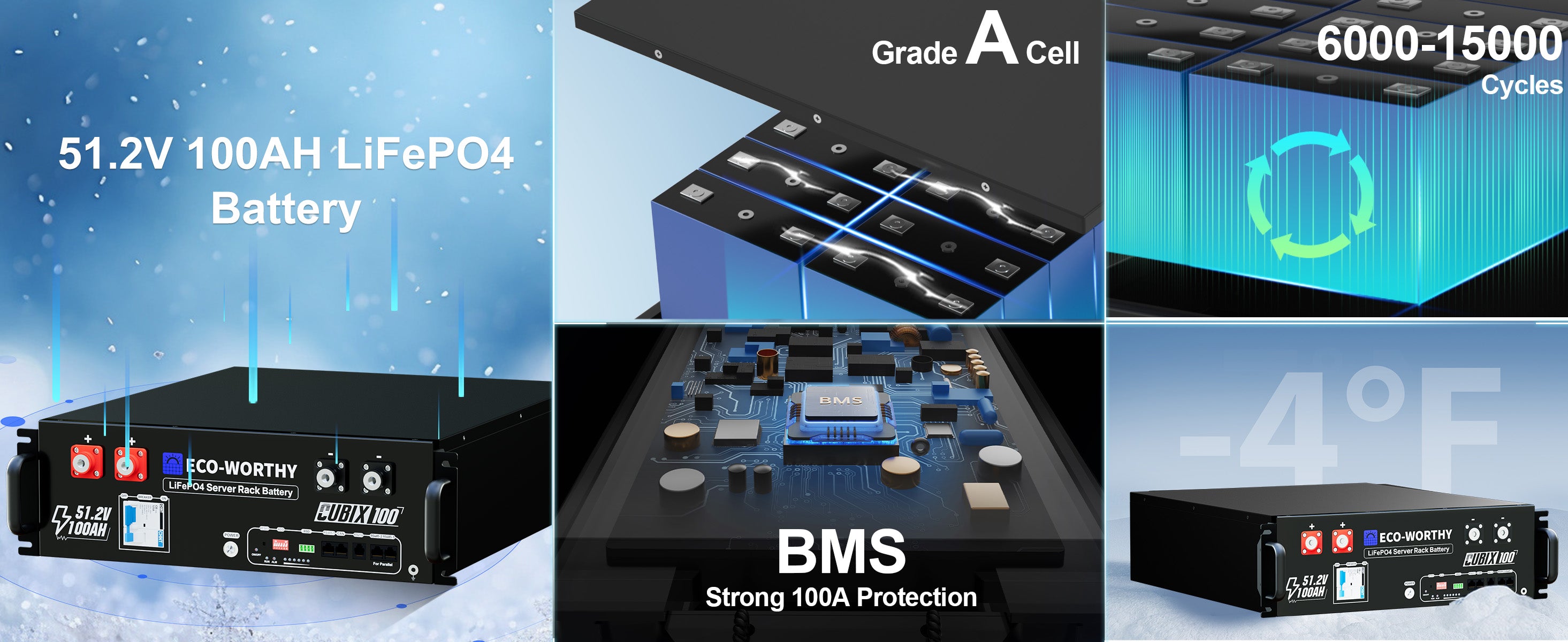

Battery Capacity
100Ah
Battery Power
5120Wh
Rated Voltage
40~58V
Maximum Charge/Discharge Current
100A
Charge Temperature Range
0-55°C
Discharge Temperature Range
-20-55°C
Voltage Range
40~58V
Maximum Charge Voltage
58.4V
Screw size
M8
Battery Size
22.09*19.02*5.63inch
Battery Weight
103 lbs
Certification
UL9540 | UL1973 | UL9540A | CEC LISTED
Warranty
10 Year Warranty
Included in the Box
Frequently Asked Questions
What warranty is included with this solar kit?
+
When you buy this solar kit, you are covered by the full manufacturer warranties on each component. Plus, you’ll receive our lifetime customer and technical support.
Can l expand this system in the future?
+
The system is fully expandable. Add more split phase inverters, lifepo4 batteries and solar panels as needed. You may find you need more power depending on where in the country you are.
How do I install the system?
+
We've created the kits for absolute simplicity. And all our products are equipped with very detailed instruction manuals.That said, we highly recommend getting the help of a professional installer / certified electrician. You should plan on potential costs associated with this as well.If you have any questions about installation, you can contact us by email or phone for help.
How is the kit shipped?
+
Due to the large number of products included in your system, your order will be shipped in multiple packages. Your solar panels will be palletised and shipped by truck to your mansion. Shipping time is approximately 5-15 days; other products will be delivered by courier.
Will I be able to track my order and deliveries?
+
You will receive your tracking numbers via email as soon as they are available. So please make sure you use a good Email address when ordering that can receive email for your your tracking information. Also, please expect to receive multiple deliveries and packages as we ship from multiple warehouses to keep costs down.
What's Your Return Policy?
+
We try and keep returns simple and easy. We do not charge restocking or return fees. That said, if you decide to return it because you no longer want it, you'll just pay return shipping. If something arrives damaged, we'll cover all of the costs to get you a properly working product.
What happens if stuff arrives damaged?
+
We stand behind what we sell and we'll take care of the costs of getting you a new working product. Just reach out to us if this happens and we will get you all taken care of.
