ECO-WORTHY 12V 314Ah LiFePO4 lithium battery features Bluetooth monitoring, SOC LEDs, and low temperature protection for solar storage systems.

Technical Specifications
ECO-WORTHY 12V 314Ah LiFePO4
Battery Capacity
314Ah
Battery Power
4019Wh
Battery Voltage
12.8V
Maximum Charge/ Discharge Current
200A

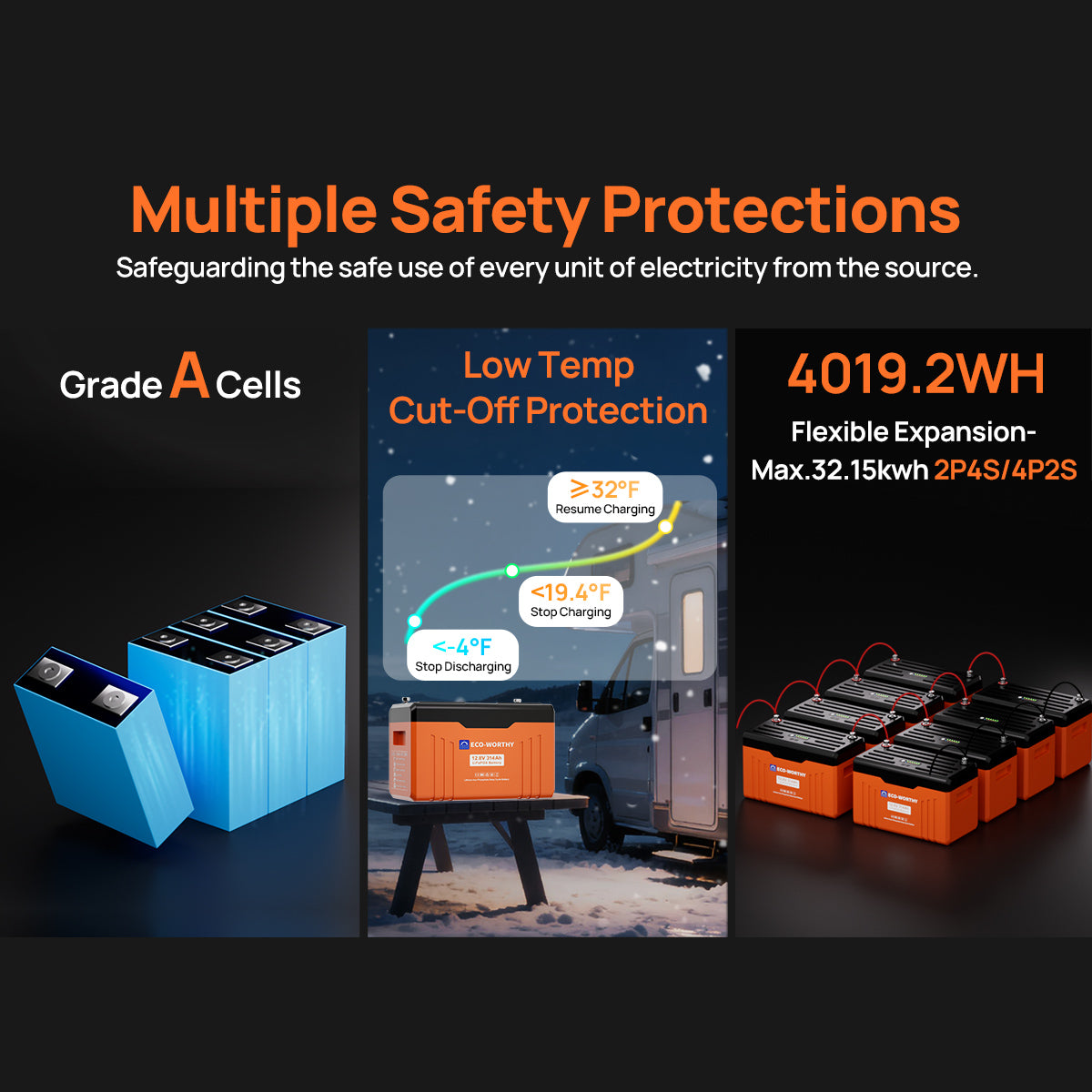

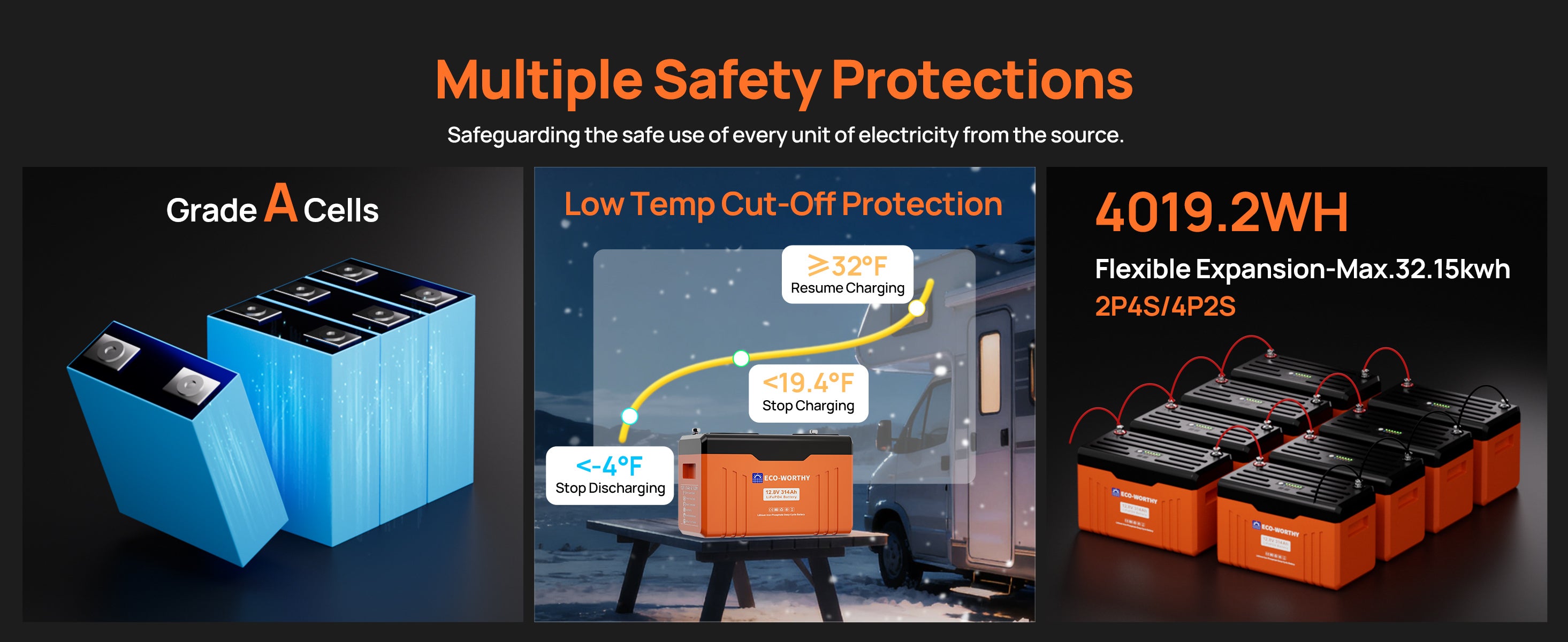

Charge Temperature Range
0-55℃
Discharge Temperature Range
﹣20-55℃
Maximum Charge Voltage
14.6V
Discharge Cut-Off Voltage
10V
Screw size
M8
Battery Size
16.3*8.5*10.2inch
Battery Weight
61.4lbs

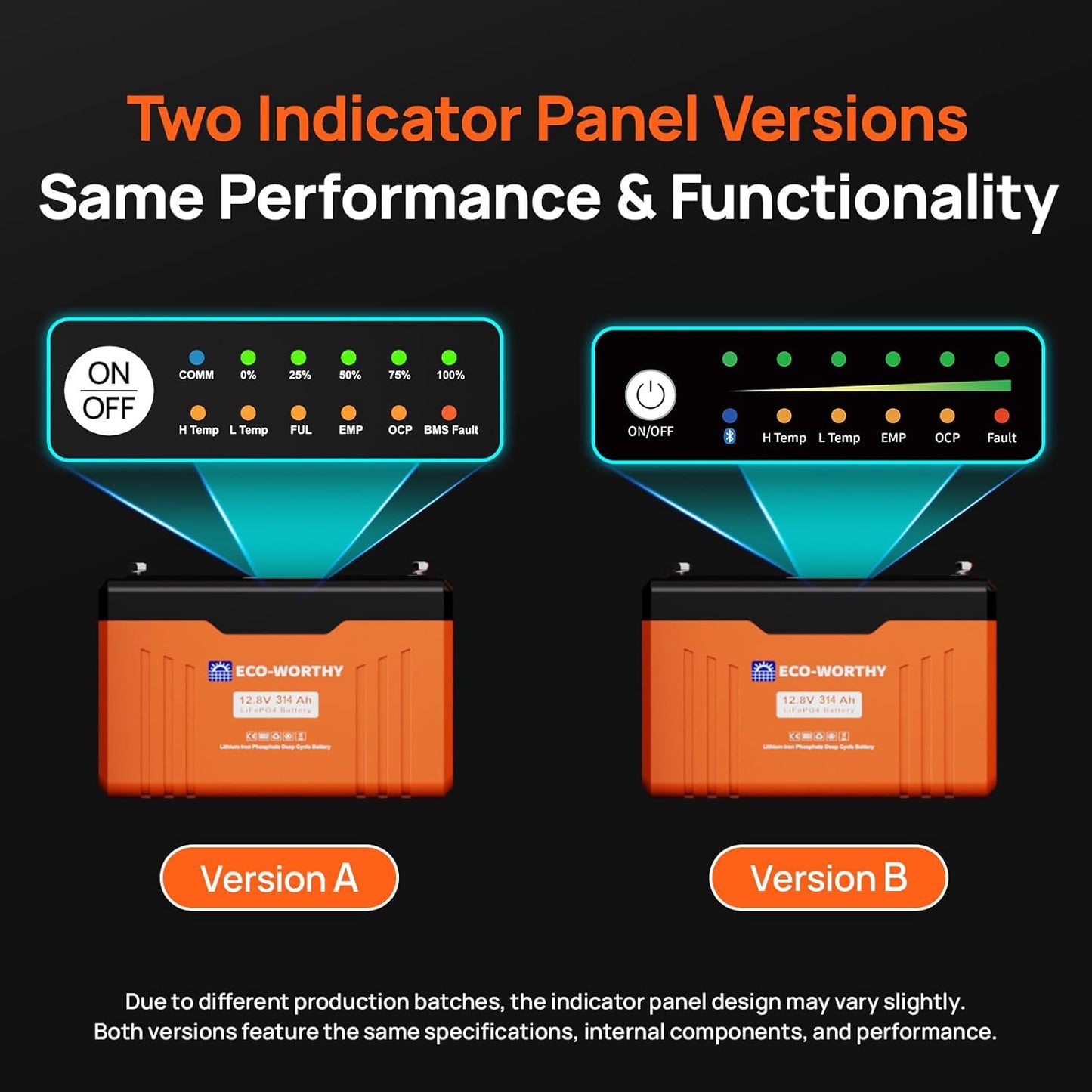

Bluetooth/SOC LEDs
User manual
ECO-WORTHY 12V 314AH Lifepo4 Lithium Battery Bluetooth with SOC LEDs and Low Temp Protection User Manual
DownloadFrequently Asked Questions
Are Eco-Worthy batteries safe for home use?
+

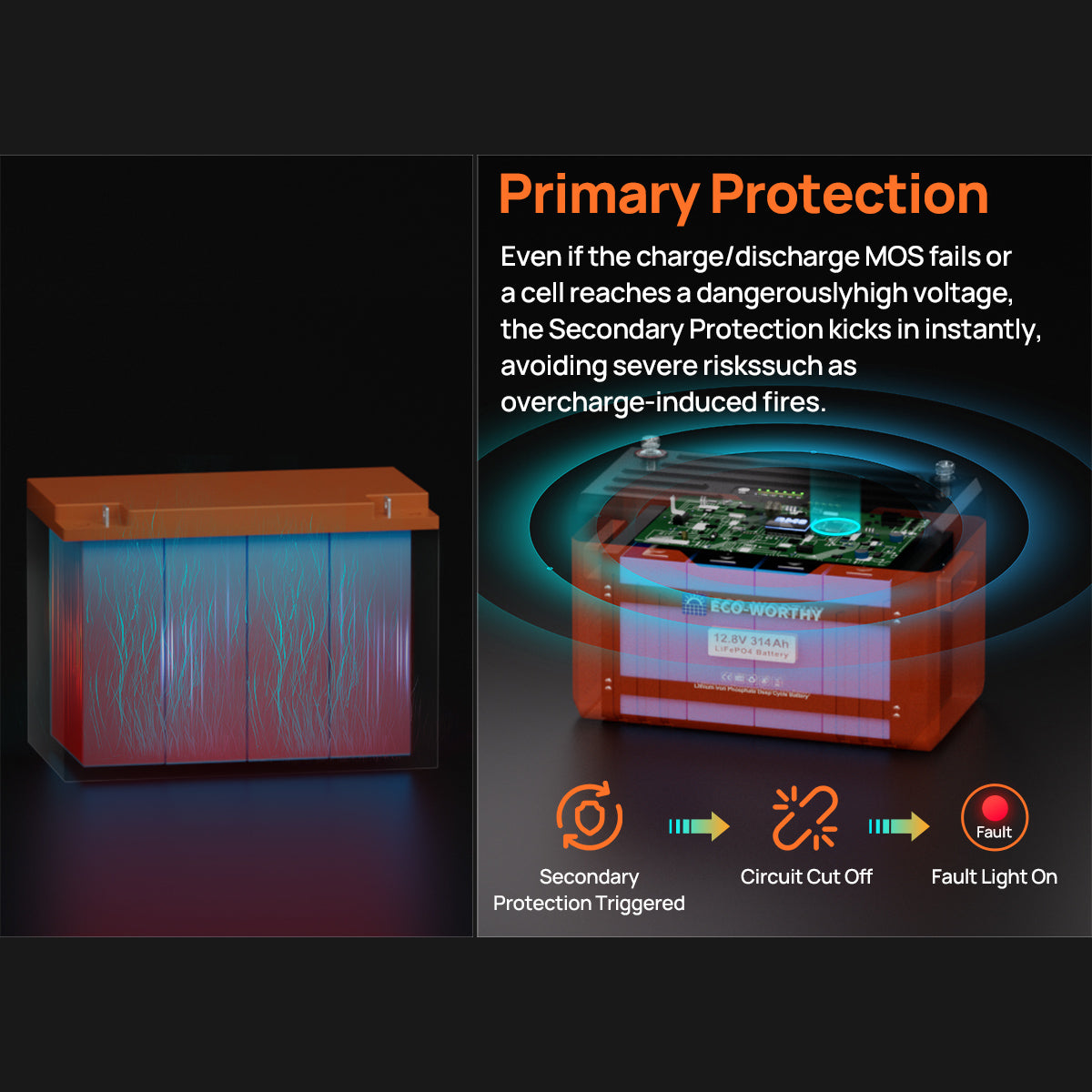

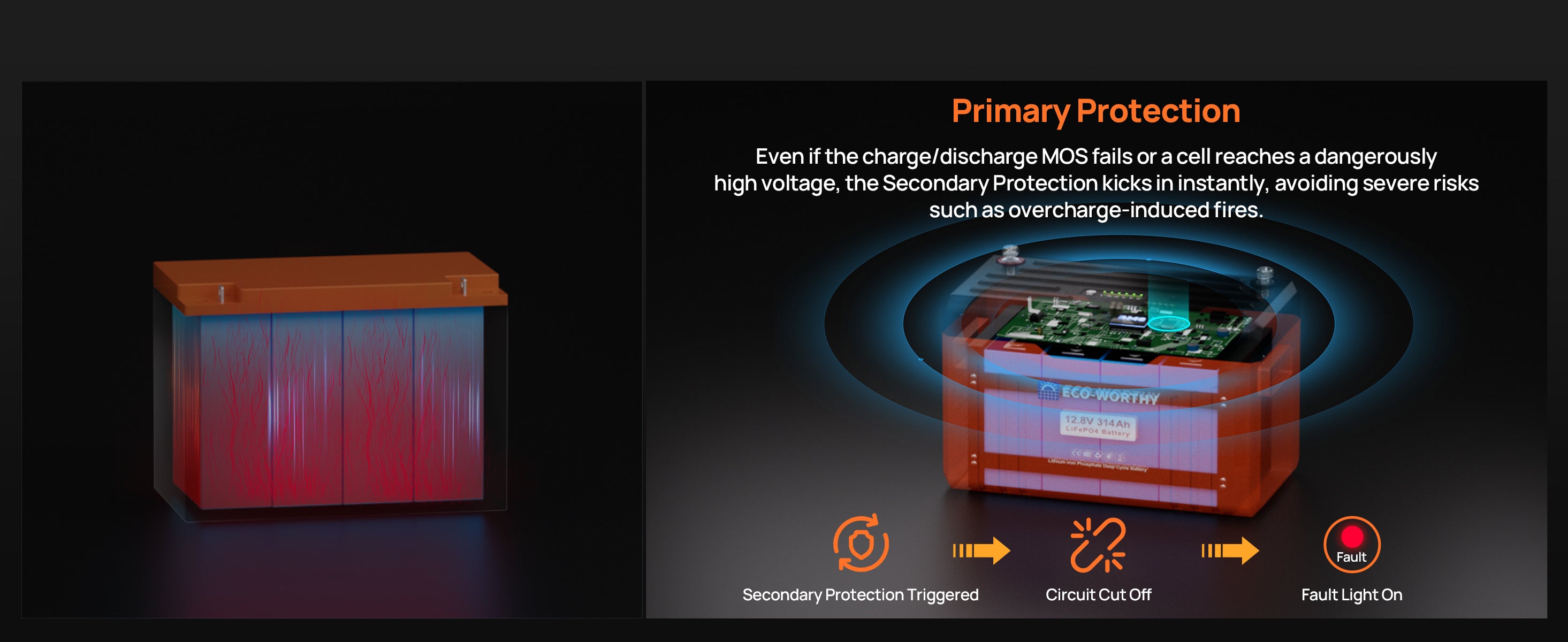

All Eco-Worthy Batteries Built with premium Grade A LiFePO4 cells, one of the safest lithium technologies available. Built-in BMS protection prevents overcharge, overheating, and short circuits—making it ideal for residential energy storage.
Will it work with my inverter/solar system?
+
Yes. Our batteries are designed to be widely compatible with most 48V inverters and solar systems used in U.S. homes. For best performance, we recommend checking your inverter’s communication protocol or contacting our support team before purchase.

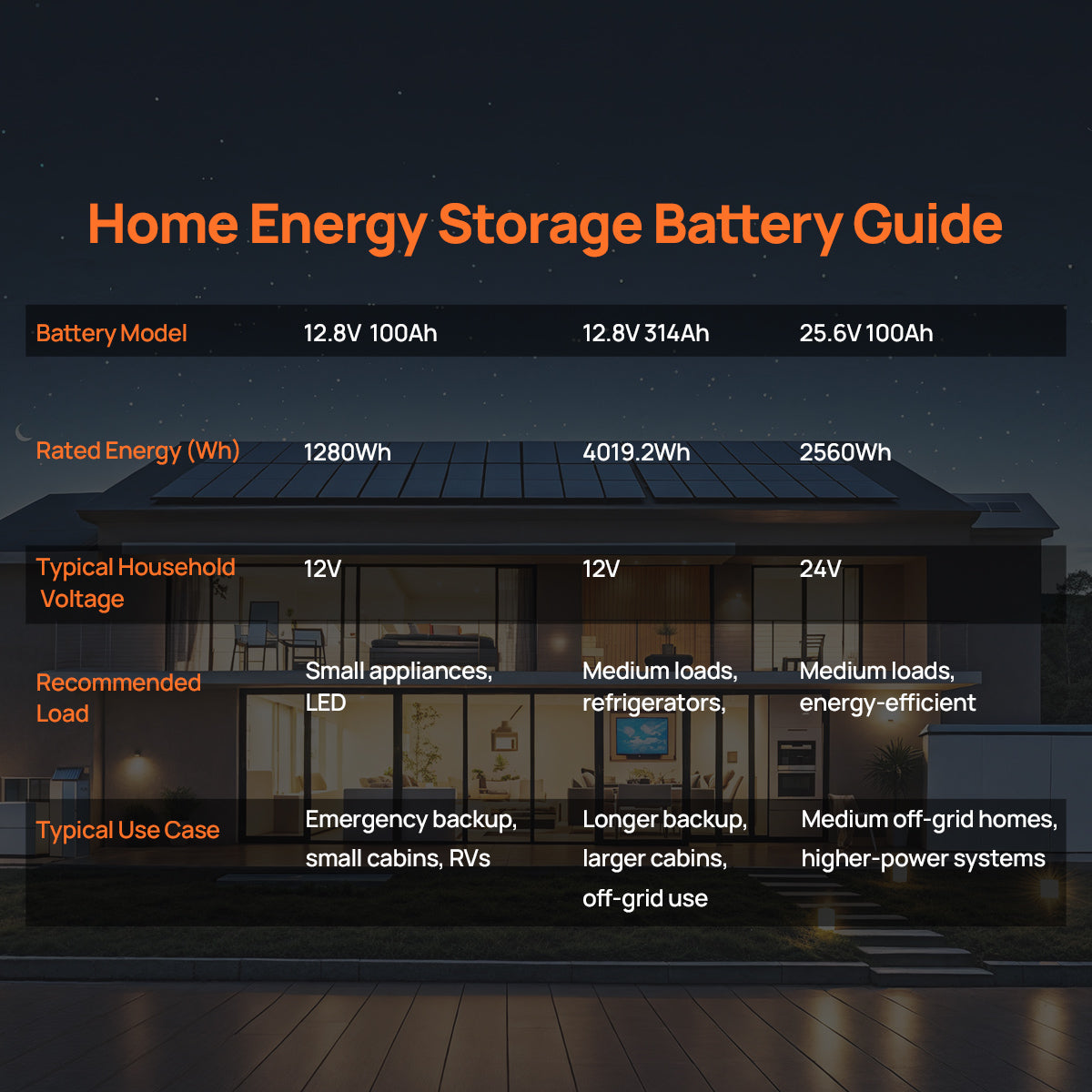

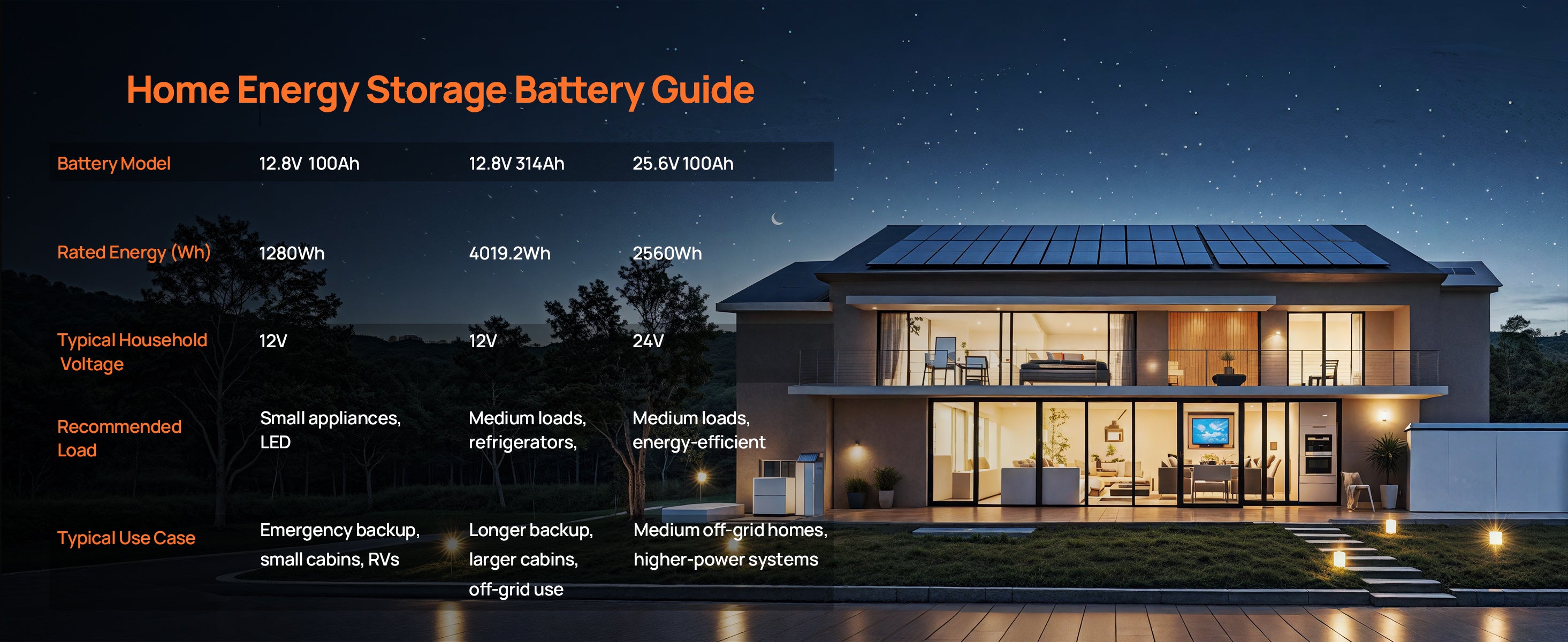

How much power do I actually need for my home?
+
It depends on your usage: 5–10 kWh → essentials (fridge, lights, WiFi); 10–20 kWh → partial home backup; 20 kWh+ → whole-home coverage; Our systems are scalable, so you can start small and expand anytime.
Can I expand the system later?
+
Absolutely. Eco-Worthy batteries support parallel expansion, allowing you to increase capacity as your energy needs grow—without replacing your existing system.
What kind of warranty and support do you offer?
+
We provide up to a 10-year warranty on key battery models, along with U.S.-based support. Our team assists with installation guidance, troubleshooting, and system planning to ensure a smooth experience.
