ECO-WORTHY 5kW Off-Grid Power Bundle: Reliable Energy Independence
This complete solar kit combines a 5kW pure sine wave inverter with a UL1973-certified 48V 100Ah server rack battery, delivering 5.12kWh of expandable storage. Featuring plug-and-play setup with Bluetooth/Wi-Fi monitoring and compatibility with Victron, Growatt, and other major inverters, it's perfect for DIY home backup, cabins, or RV power. With 6000 cycles at 80% DOD, 10-year warranty, and seamless parallel expansion up to 32 batteries, this bundle offers professional-grade performance with beginner-friendly operation.
Pictures
Videos
Early Prime Day Sale
Eco-Worthy Off Grid Home Power Bundle | 5kW Inverter with 48V 100AH Server Rack Battery
Eco-Worthy Off Grid Home Power Bundle | 5kW Inverter with 48V 100AH Server Rack Battery
Regular price
$1,499.99
Sale price
$1,499.99
Regular price
$1,799.99
Unit price
per
Shipping calculated at checkout.
SKU:
SKU:L13NK5KSR48100B-1
Read More
Total Price
$1,499.99
Couldn't load pickup availability
Free Shipping
Return Guarantee
Secure Payment
or 4 interest-free payments of $374.99 with
Installments available at checkoutShop with Confidence at Eco-Worthy
Free & Fast Delivery
14-Day Money-Back Guarantee
Up To 10-Year Warranty
Lifetime Customer Support
Pay with ease
Trusted delivery
Technical Specifications
5kW 48V All-in-one Inverter
48V 100Ah Server Rack Battery
Rated Input Voltage
110/120VAC
Input Voltage Range
90V-140VAC
Frequency
50Hz/60Hz(auto detect)
Overload/Short Circuit Protection
Circuit breaker
Efficiency
>95%
AC Reverse Protection
Available
Max Bypass Overload Current
40A
Output Voltage Waveform
Pure Sine Wave
Rated Output Power
5000W
Rated Output Voltage
120VAC
Peak Power
10000W
Bypass Breaker
63A
Rated Battery Input Voltage
48V
Min Starting Voltage
44V
Power Saving Mode
Load ≤50W
Battery Type
Lead acid or lithium battery
Max Charge Current
60A
Charge Voltage Range
40-60VDC
Overcharge Protection
Alarm and turn off charging after 1 minute
Max Input Power
5500W
PV Charging Current Range
0-80A(can be set)
Max PV Open Circuit Voltage
500VDC
PV Operating Voltage Range
60-145VDC
MPPT Voltage Range
120-450VDC
Battery Voltage Range
40-60VDC
Charging Short Circuit Protection
Blown fuse

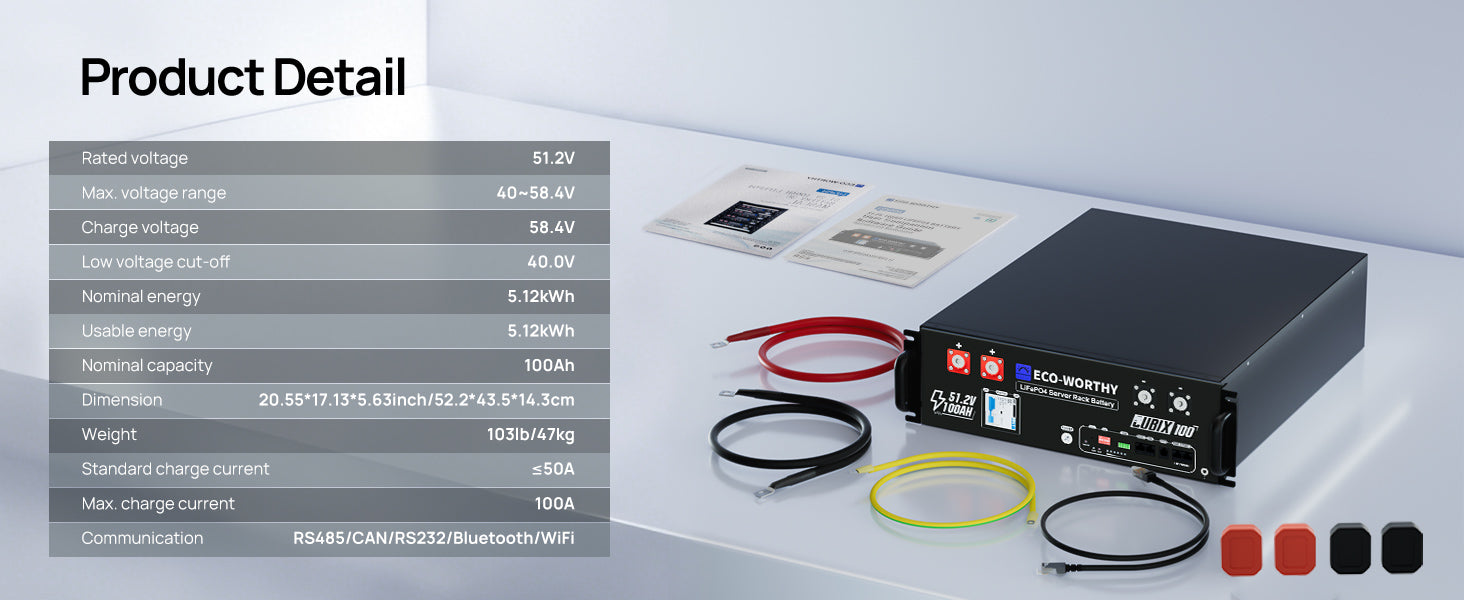

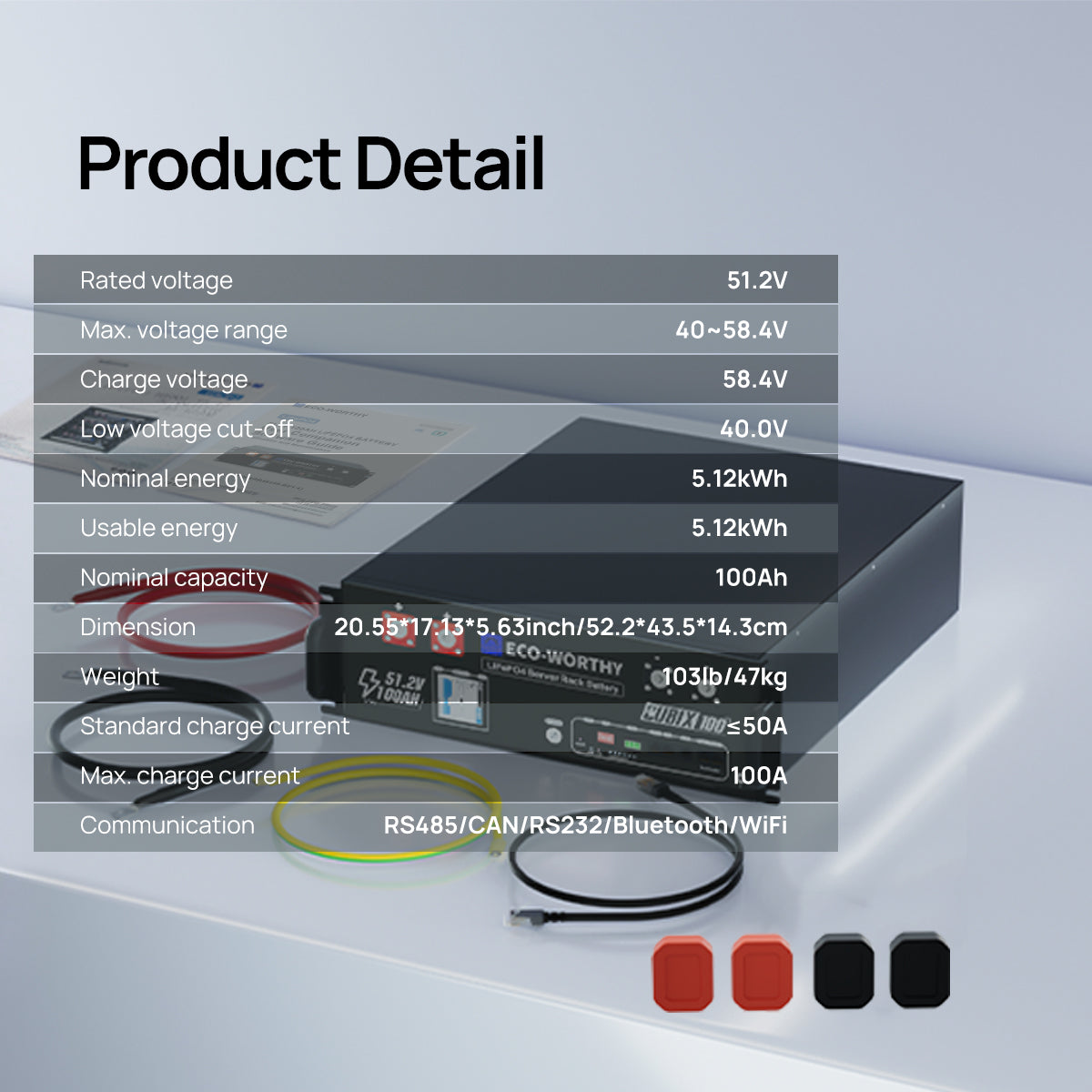

Battery Capacity
100Ah
Battery Power
5120Wh
Rated Voltage
40~58V
Maximum Charge/Discharge Current
100A
Charge Temperature Range
0-55°C
Discharge Temperature Range
-20-55°C
Voltage Range
40~58V
Maximum Charge Voltage
58.4V
Screw size
M8
Battery Size
22.09*19.02*5.63inch
Battery Weight
103 lbs
Certification
UL9540 | UL1973 | UL9540A | CEC LISTED
Warranty
10 Year Warranty
Included in the Box
Frequently Asked Questions
What certifications do you hold?
+
Our 51.2V 100Ah battery has obtained UL1973, UL9540A, and CEC listed. You can view the relevant certificates in the download section of the product page.
What is the warranty period of the battery?
+
We offer 10-year warranty for 51.2v server rack lithium battery,covering non-human-induced battery failure issues.When you buy this solar kit, you are covered by the full manufacturer warranties on each component. Plus, you’ll receive our lifetime customer and technical support.
What communication methods are supported?
+
Our battery communicate via built-in Bluetooth/WiFi with mobile apps; RS485-1 on the front panel communicates with host computer software, mainstream inverters, and Solar Assistant; CAN interface communicates with inverters; RS232 interface communicates with host computer software.
What kind of battery cells are used?
+
We use 100% A-grade prismatic cells from REPT, ensuring 6000 cycles at 80% DOD.
What safety designs does the battery have?
+
Each battery includes a built-in 100A BMS, a pre-charging circuit, and a 125A short-circuit protection switch on the front panel.
Which inverters can this battery communicate with?
+
Compatible with all major inverters: Victron, Deye, Growatt, Lux Power, Sol-Ark, GoodWe, EG4, SRNE, and more.
Can V3 communicate in parallel with V2?
+
Yes. The DIP switch principles are the same. V2 should be in the first 15 batteries due to DIP limitations; V3 has no such limit.
Do I need to update the JBD software for 32 parallel units?
+
Yes. Please download here: https://app.eco-worthy.com:7778/Download/BMS-Tool&Drive-for-Windows.zip
Does the mobile app need to be updated for 32 parallel units?
+
Yes. Upgrade the "Lithium Battery IoT Cloud" app to version 1.6.6.
Do I need to buy battery cables separately?
+
Each battery includes 1 pair of parallel cables, screws, a grounding wire, and a communication cable — no extra purchase needed.
