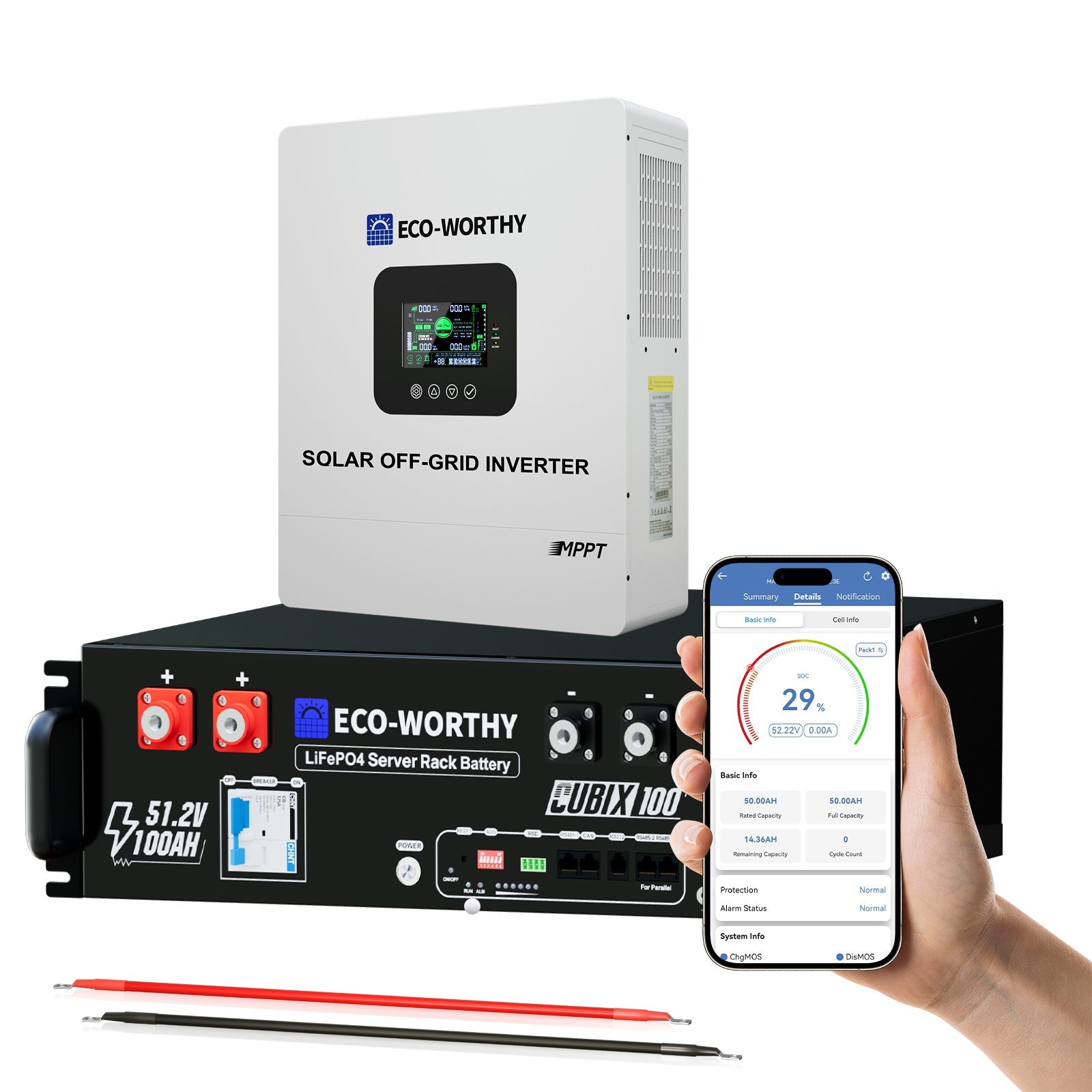

Off Grid Home Power Bundle | 5kW Inverter with 48V 100AH Server Rack Battery

Off Grid Home Power Bundle | 5kW Inverter with 48V 100AH Server Rack Battery

$1,499.99
$1,499.99 $1,799.99
Sale Sold out
Shipping calculated at checkout.

SKU:

L13NK5KSR48100B-1

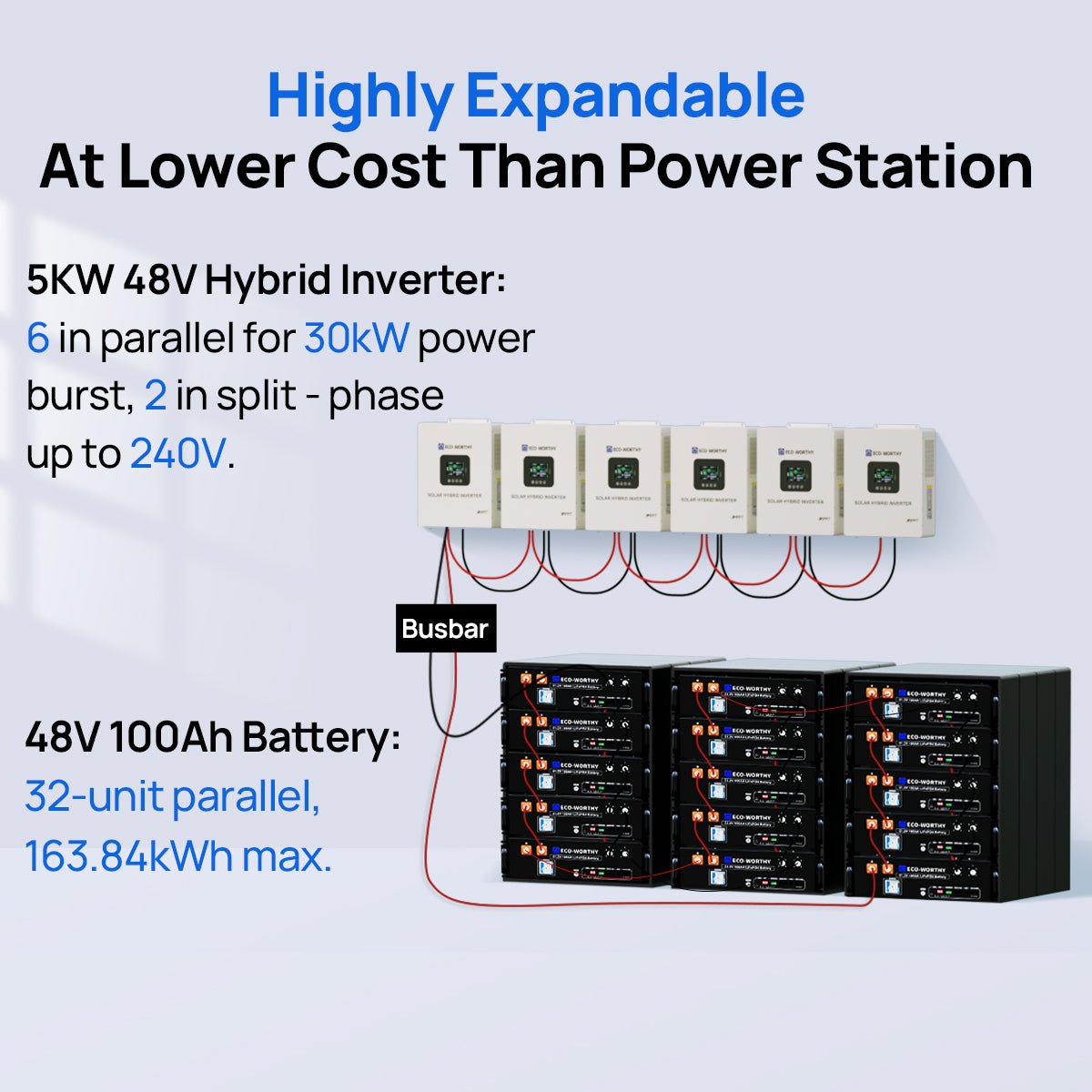

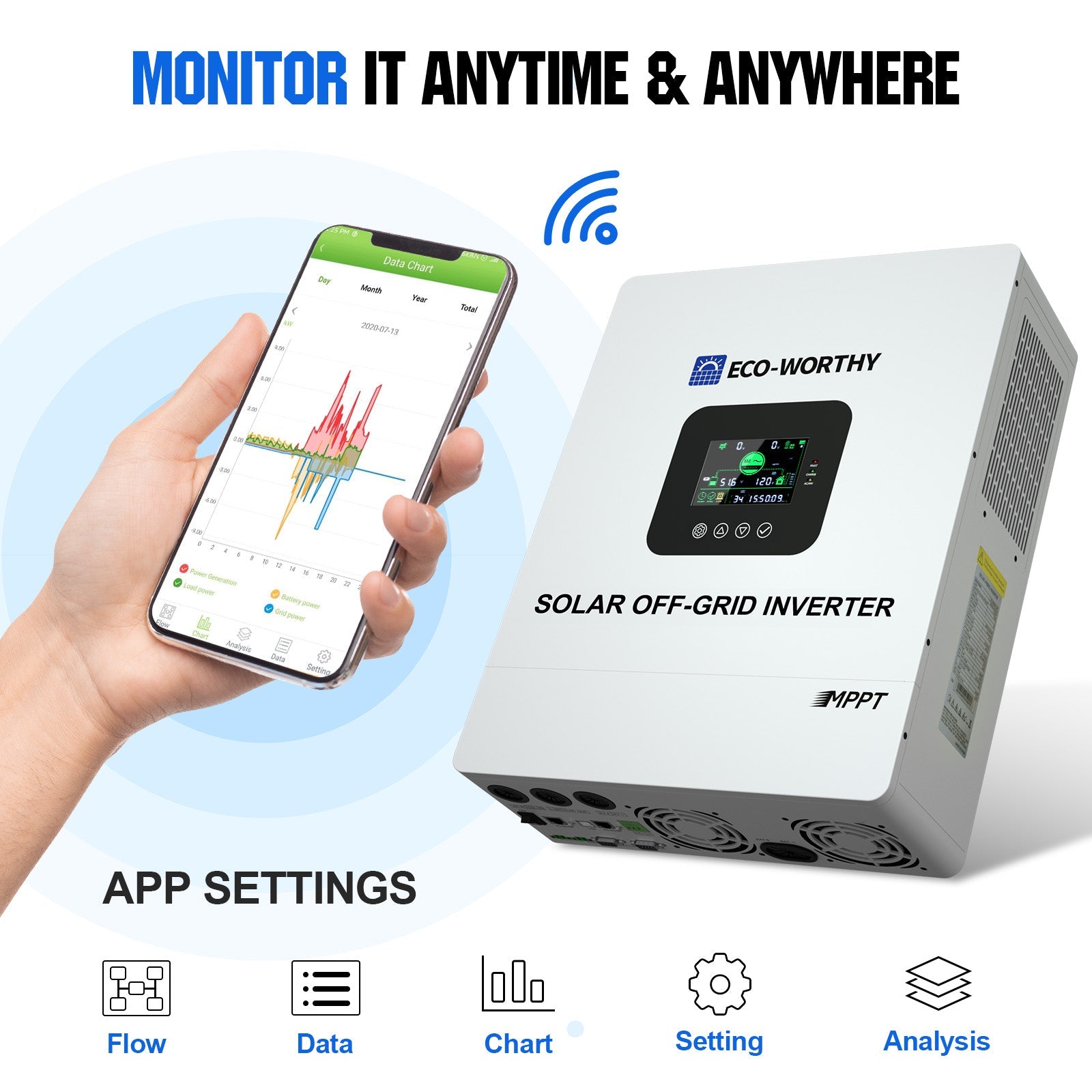

Expandable 5kW Inverter​ | UL1741- With 5.5kW PV input, 5kW AC output (120Vac), and 10kW surge power, it easily starts high-demand devices like water pumps and AC units. Includes a Wi-Fi module and is expandable to 6 units in parallel.

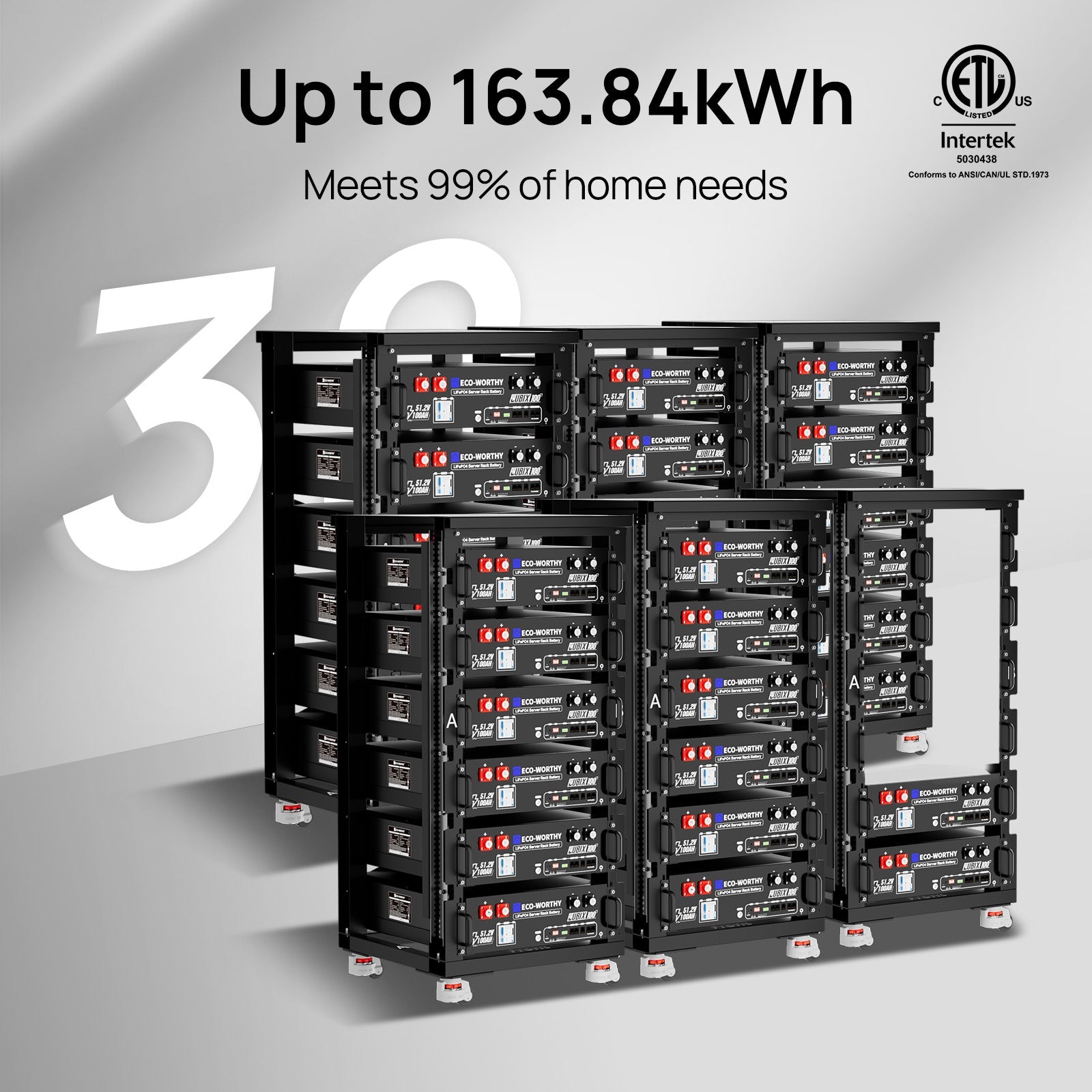

​Smart 48V 100Ah Battery​​- Features a compact rack-mountable design,Bluetooth/Wi-Fi monitoring, a 125A circuit breaker, and low-temperature charging protection. Supports expansion of up to 32 units in parallel.

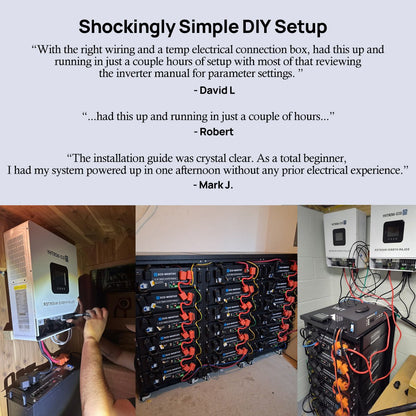

​Easy DIY Installation- The inverter and battery feature closed-loop communication for simple, intuitive setup. No complex parameter configuration is needed, making off-grid system installation easy even for beginners.
​Reliable Quality & Support​​- The battery meets key U.S. safety standards including UL1973, UL9540A, and CEC Listed. Your investment is secured by a 10-year warranty and 24/7 customer support.
Ready-to-Use Power​​- The system provides 5kWh of storage, ideal as backup power for outages (lighting, water pumps) or for powering cabins and workshops. Includes complete installation guides and a 30-day return policy.

Read More
Battery Capacity

Total Price

$1,499.99
Buy It Now

Free Shipping

Return Guarantee

Secure Payment

or 4 interest-free payments of $374.99 with

Installments available at checkout
Shop with Confidence at Eco-Worthy

Free & Fast Delivery

14-Day Money-Back Guarantee

3-Year Warranty

Lifetime Customer Support

Pay with ease

  • American Express
  • Diners Club
  • Discover
  • JCB
  • Mastercard
  • PayPal
  • Venmo
  • Visa

Trusted delivery

View full details
X
$1,499.99 $1,799.99
Learn More
Buy It Now
Feature
Included in the box
Reviews
FAQs

ECO-WORTHY 5kW Off-Grid Power Bundle: Reliable Energy Independence
This complete solar kit combines a 5kW pure sine wave inverter with a UL1973-certified 48V 100Ah server rack battery, delivering 5.12kWh of expandable storage. Featuring plug-and-play setup with Bluetooth/Wi-Fi monitoring and compatibility with Victron, Growatt, and other major inverters, it's perfect for DIY home backup, cabins, or RV power. With 6000 cycles at 80% DOD, 10-year warranty, and seamless parallel expansion up to 32 batteries, this bundle offers professional-grade performance with beginner-friendly operation.

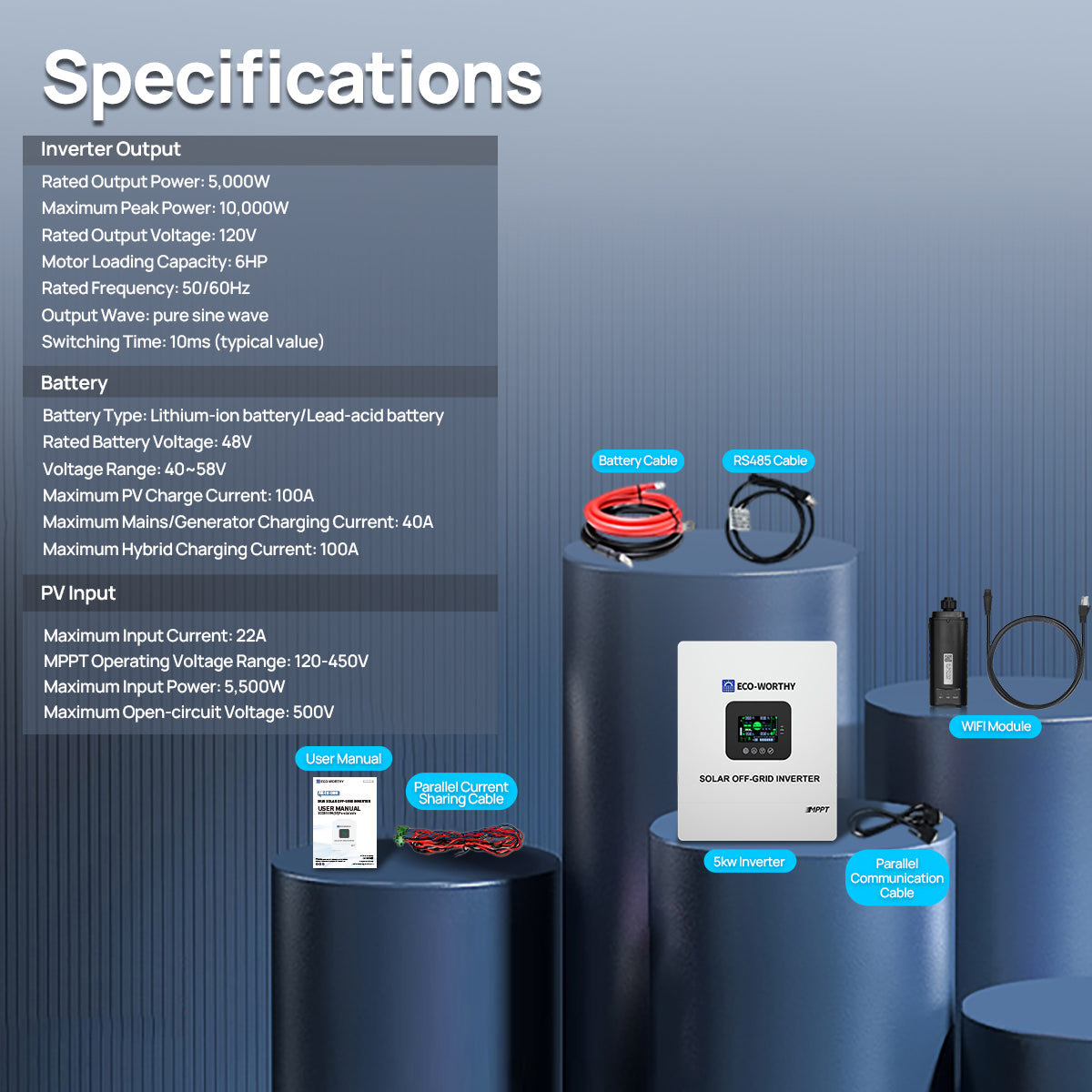

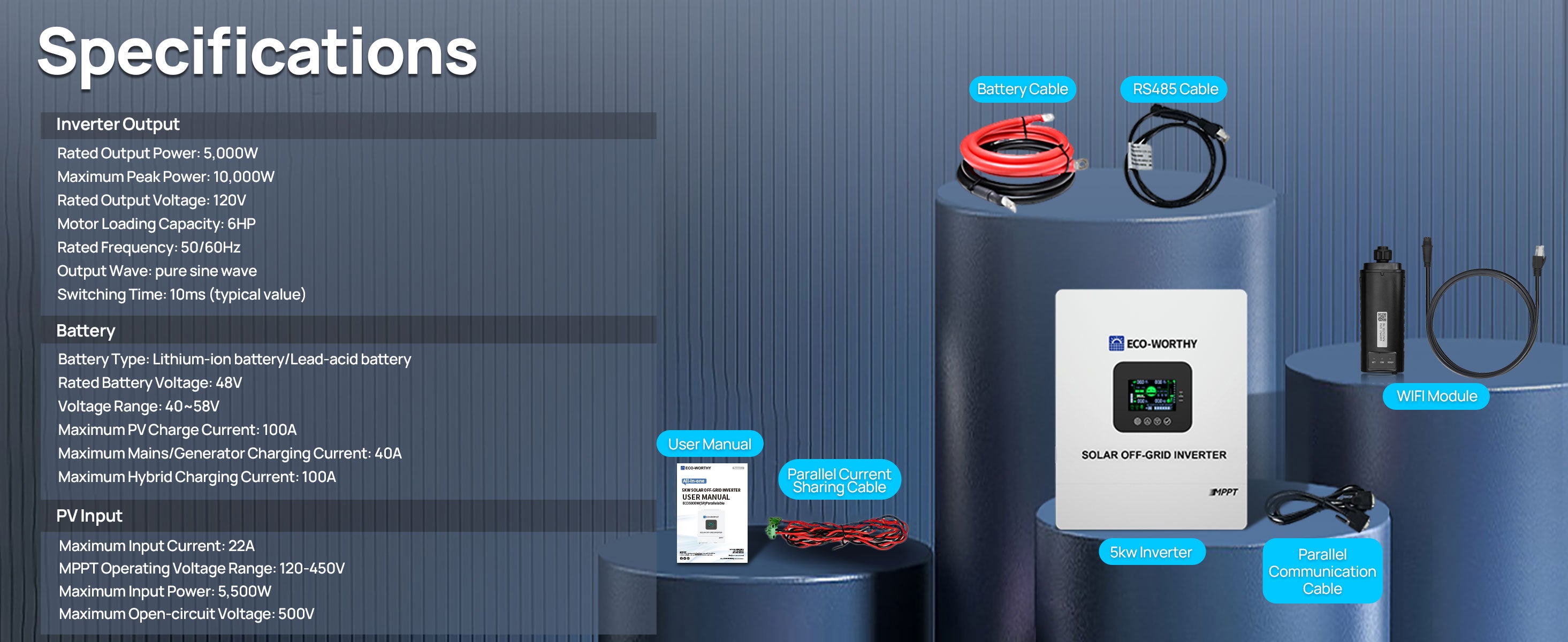

Technical Specifications

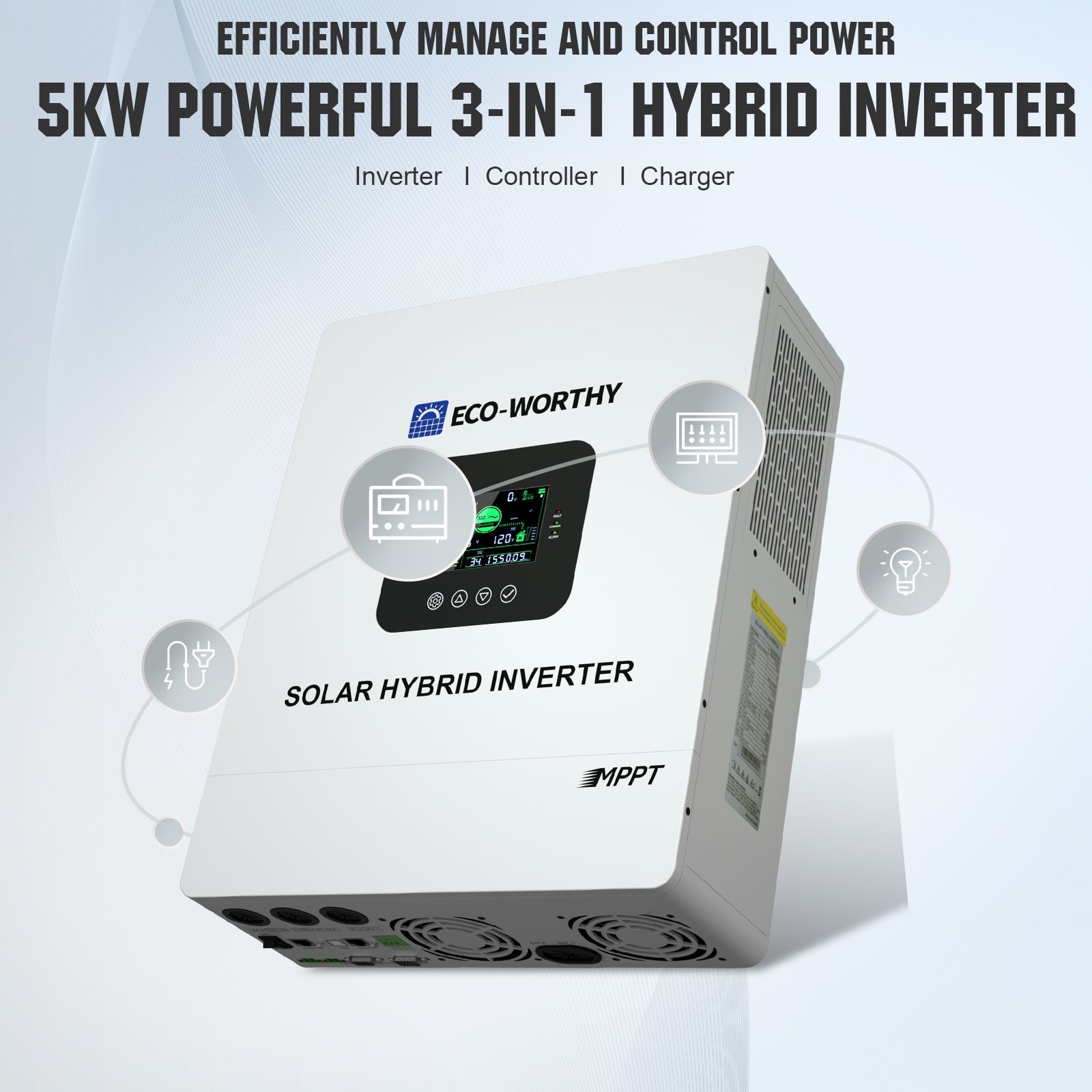

5kW 48V All-in-one Inverter
Cubix 100 48V 100Ah Server Rack Battery

Rated Input Voltage

110/120VAC

Input Voltage Range

90V-140VAC

Frequency

50Hz/60Hz(auto detect)

Overload/Short Circuit Protection

Circuit breaker

Efficiency

>95%

AC Reverse Protection

Available

Max Bypass Overload Current

40A

Output Voltage Waveform

Pure Sine Wave

Rated Output Power

5000W

Rated Output Voltage

120VAC

Peak Power

10000W

Bypass Breaker

63A

Rated Battery Input Voltage

48V

Min Starting Voltage

44V

Power Saving Mode

Load ≤25W

Battery Type

Lead acid or lithium battery

Max Charge Current

60A

Charge Voltage Range

40-60VDC

Overcharge Protection

Alarm and turn off charging after 1 minute

Max Input Power

5500W

PV Charging Current Range

0-80A(can be set)

Max PV Open Circuit Voltage

500VDC

PV Operating Voltage Range

60-145VDC

MPPT Voltage Range

120-450VDC

Battery Voltage Range

40-60VDC

Charging Short Circuit Protection

Blown fuse

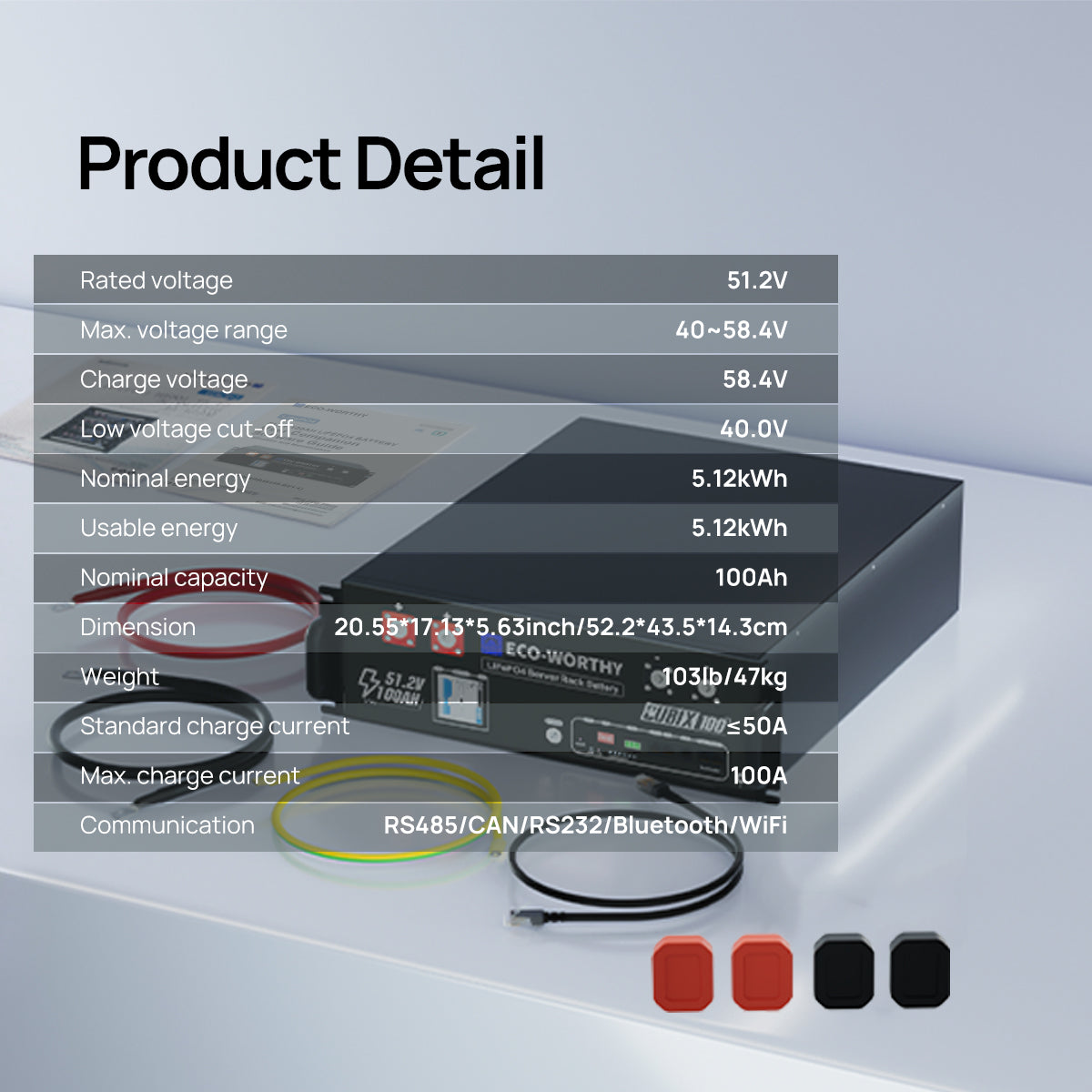

Battery Capacity

100Ah

Battery Power

5120Wh

Rated Voltage

40~58V

Maximum Charge/Discharge Current

100A

Charge Temperature Range

0-55°C

Disharge Temperature Range

-20-55°C

Voltage Range

40~58V

Maximum Charge Voltage

58.4V

Screw size

M8

Battery Size

22.55*17.13*5.63inch

Battery Weight

95 lbs

Certification

UL1973 | UL9540A | CEC LISTED

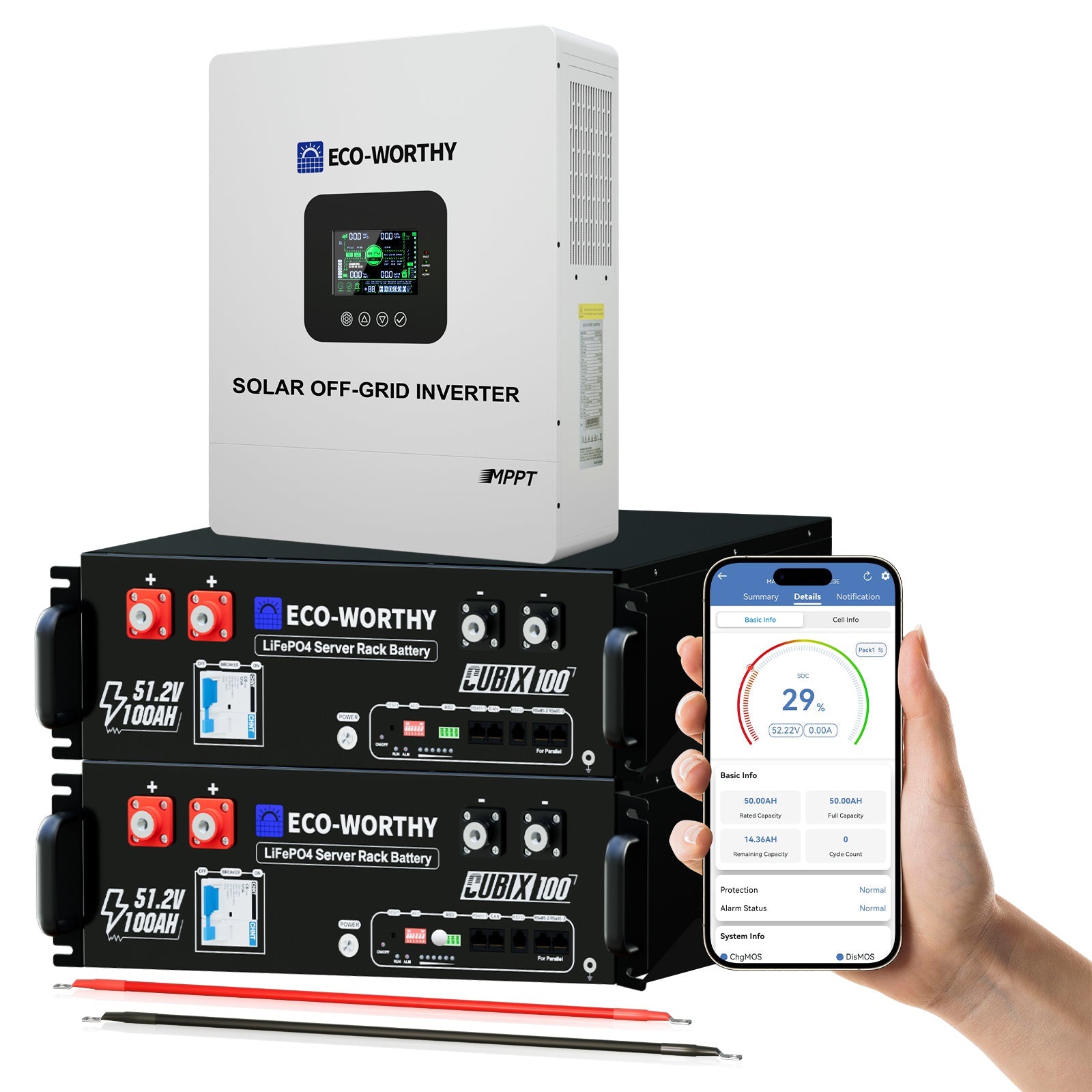

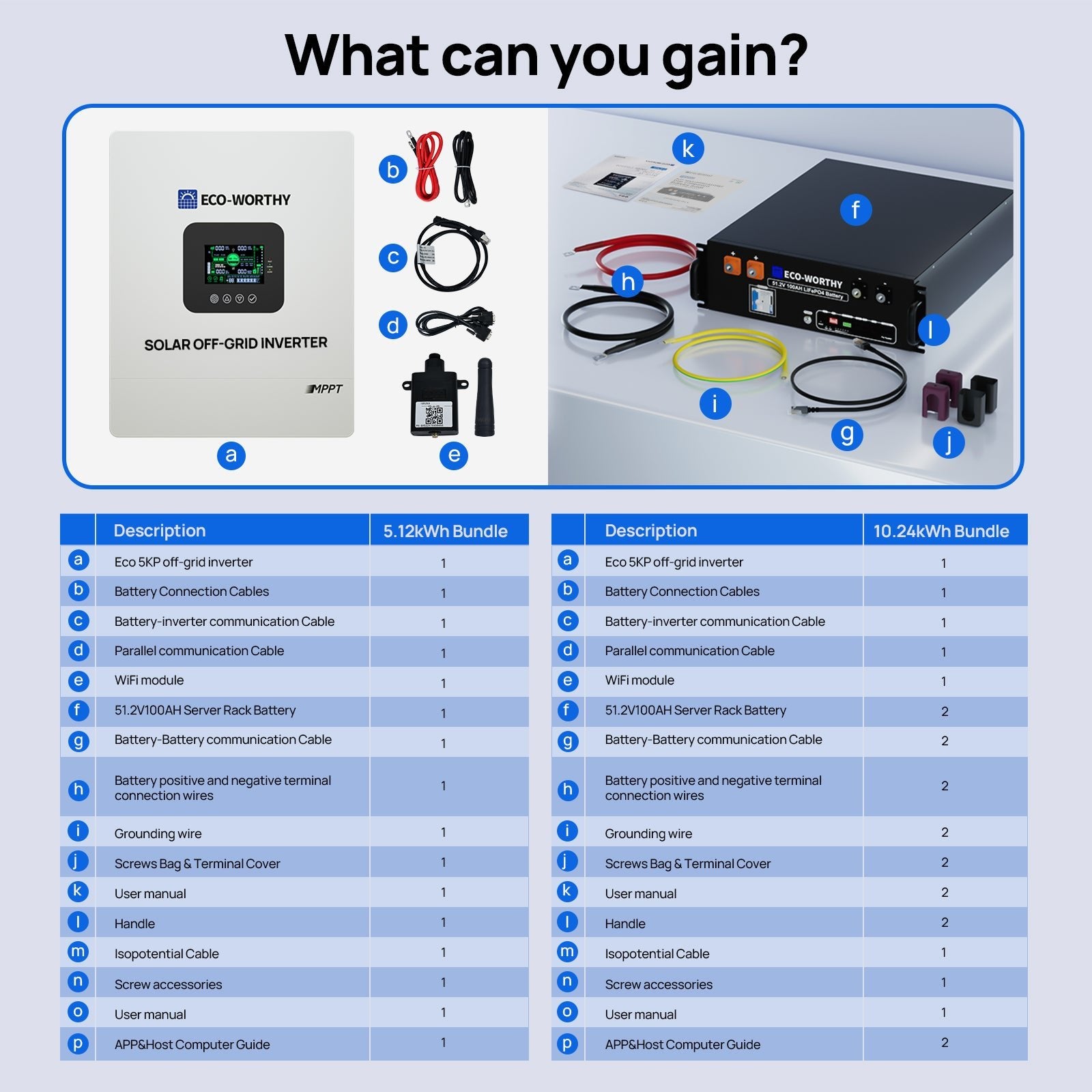

Included in the Box
box image

1.1x48V 100AH Server Rack Battery
2.1x5kW AIO Inverter
3.1xAccessories Pack

box image

1.2x48V 100AH Server Rack Battery
2.1x5kW AIO Inverter
3.1xAccessories Pack

User manual

ECO-WORTHY 5kw bundle kit install guide

Download

ECO-WORTHY 48V 100AH Battery Manual

Download

ECO-WORTHY 5000W HYP48S+U100-H Manual(Neutral)EN_V1.0_23-05-11 Manual

Download

ECO-WORTHY ECO5000W-UL 1741

Download

Frequently Asked Questions

What certifications do you hold?

+
Our 51.2V 100Ah battery has obtained UL1973, UL9540A, and CEC listed. You can view the relevant certificates in the download section of the product page.

What is the warranty period of the battery?

+
We offer 10-year warranty for 51.2v server rack lithium battery,covering non-human-induced battery failure issues.When you buy this solar kit, you are covered by the full manufacturer warranties on each component. Plus, you’ll receive our lifetime customer and technical support.

What communication methods are supported?

+

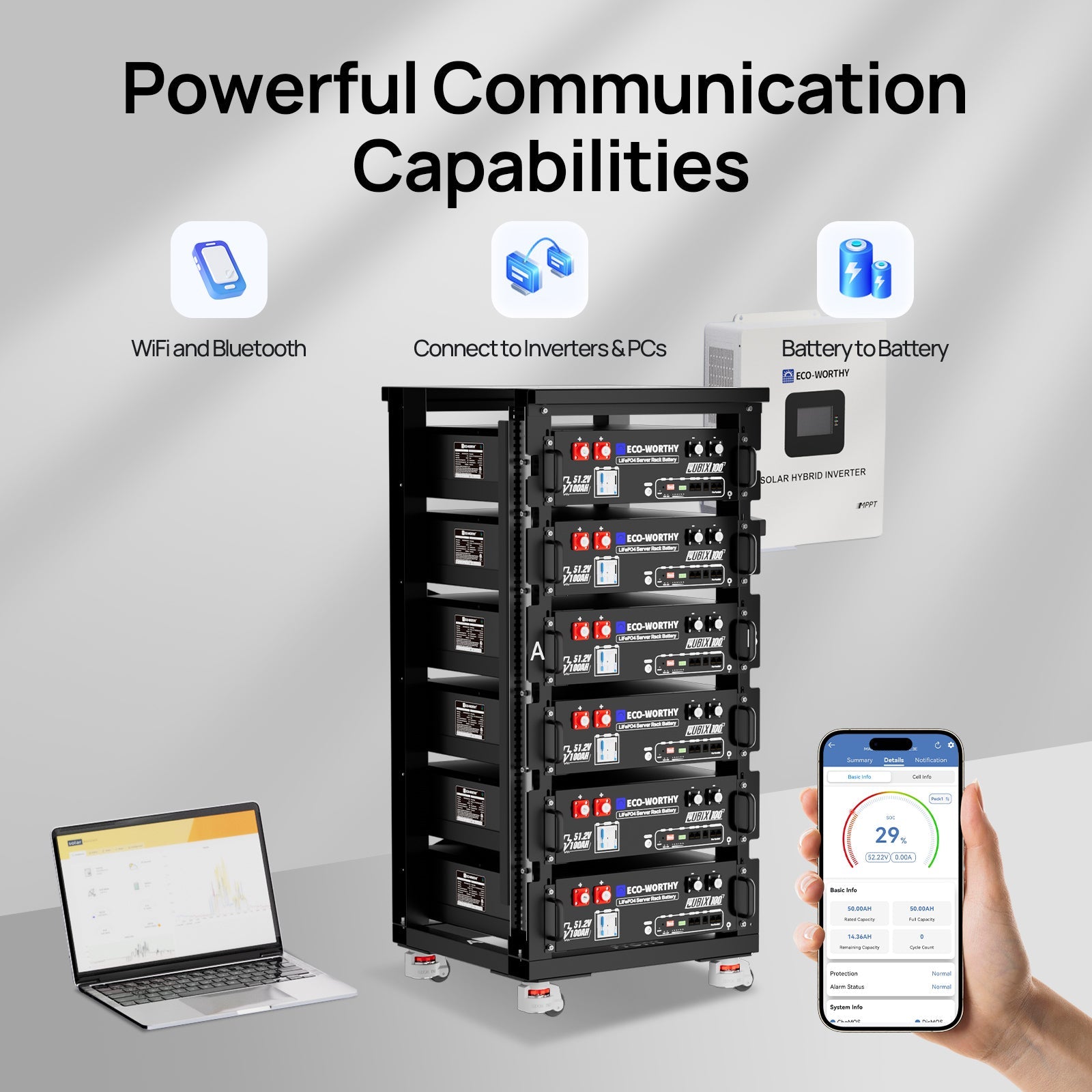

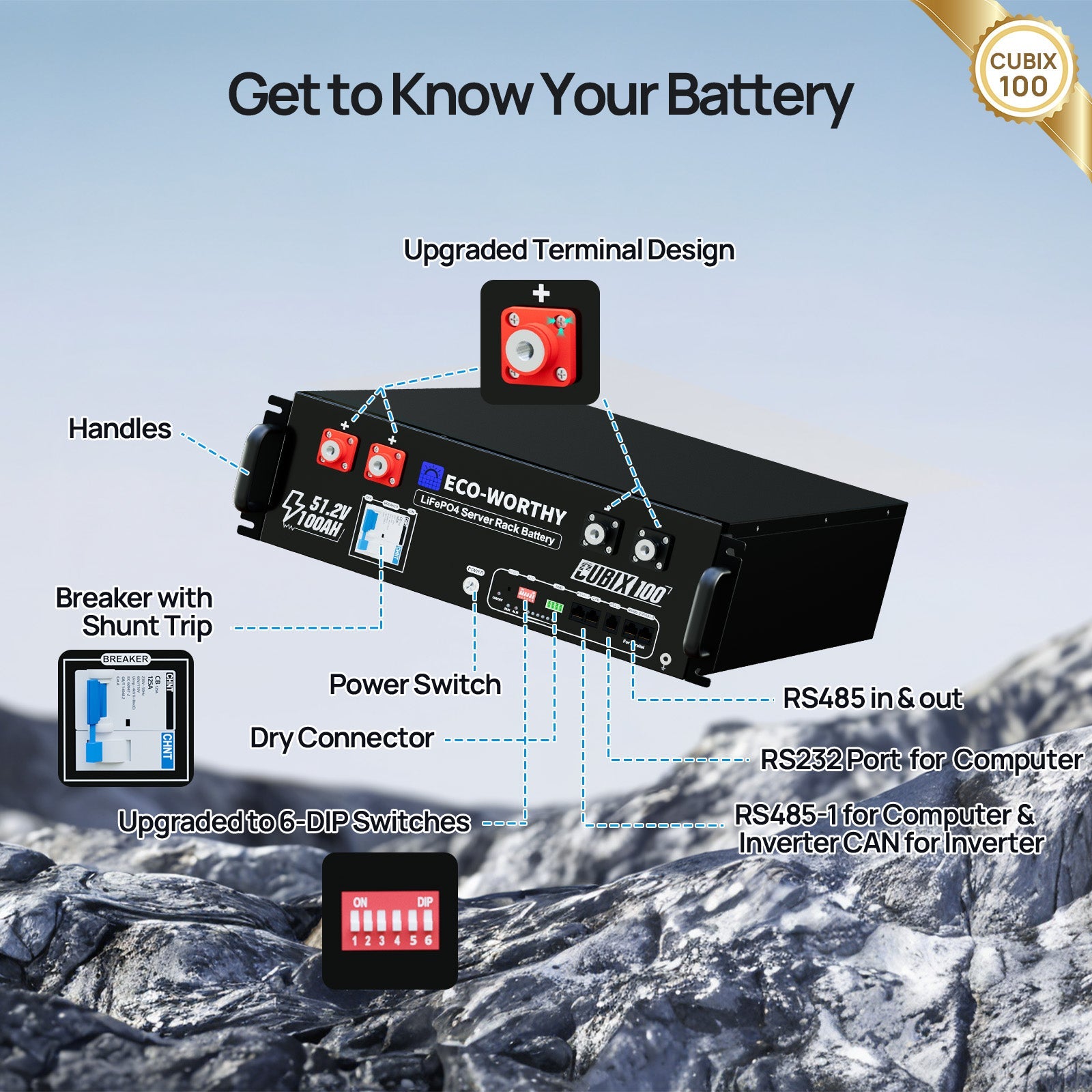

Our battery communicate via built-in Bluetooth/WiFi with mobile apps; RS485-1 on the front panel communicates with host computer software, mainstream inverters, and Solar Assistant; CAN interface communicates with inverters; RS232 interface communicates with host computer software.

What kind of battery cells are used?

+

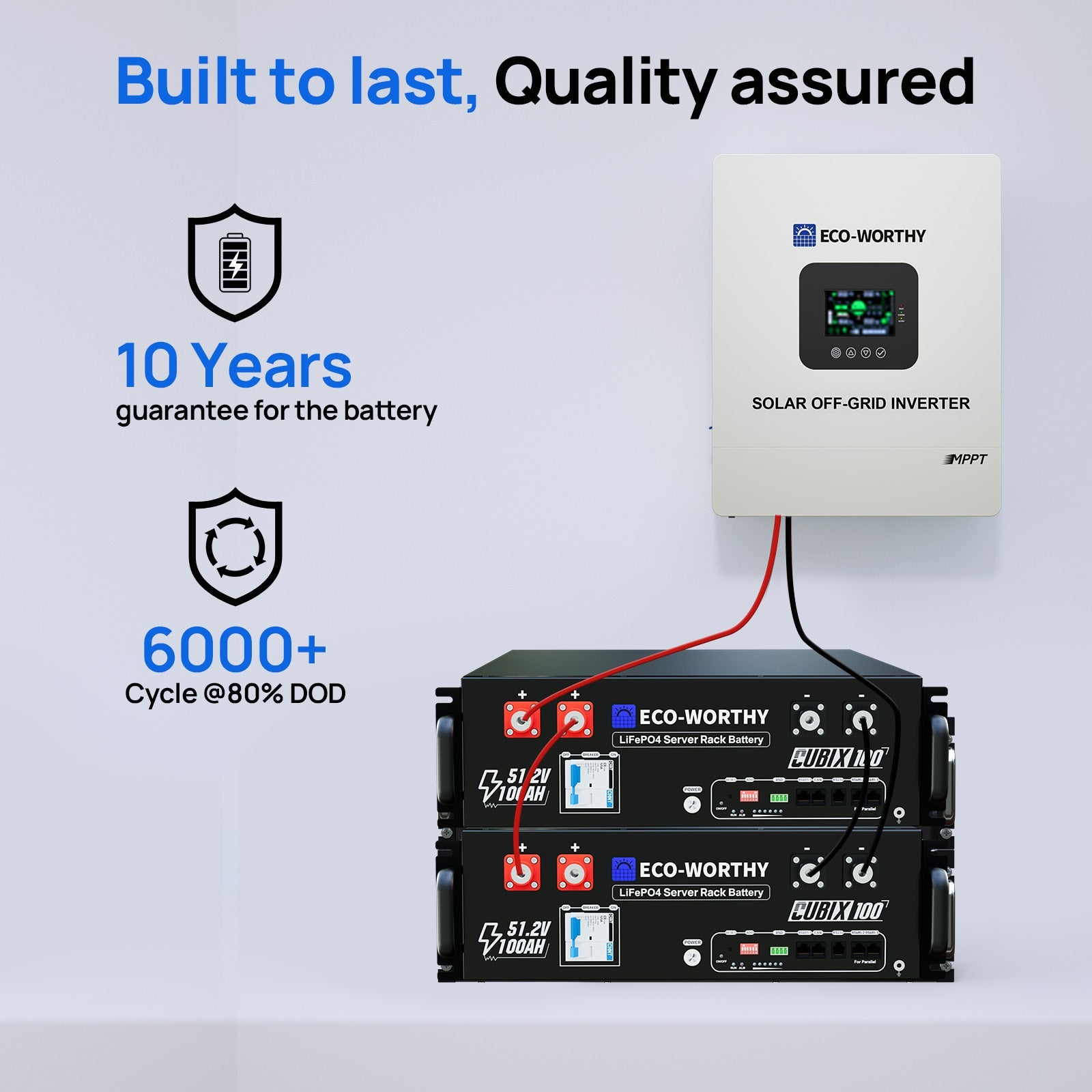

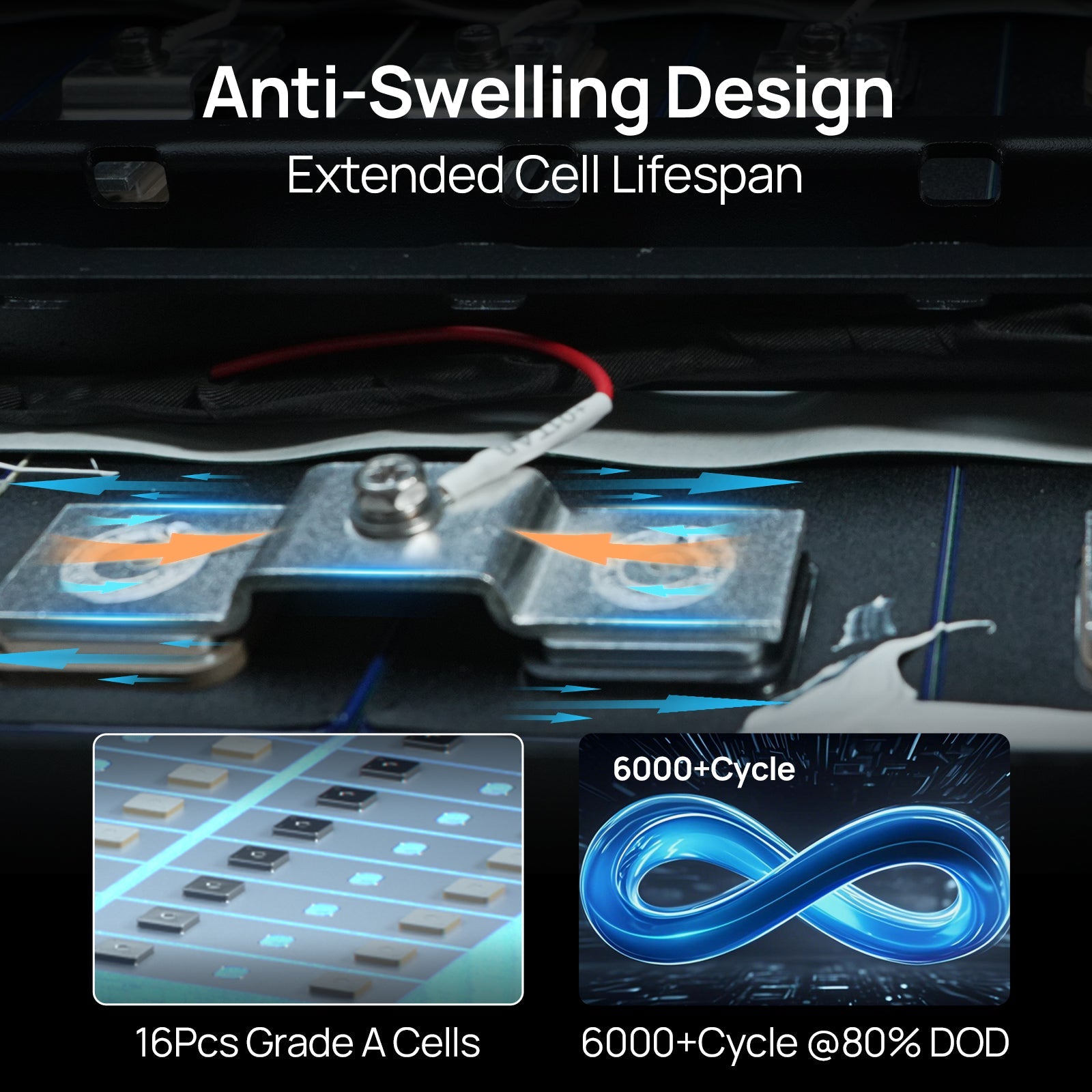

We use 100% A-grade prismatic cells from REPT, ensuring 6000 cycles at 80% DOD.

What safety designs does the battery have?

+

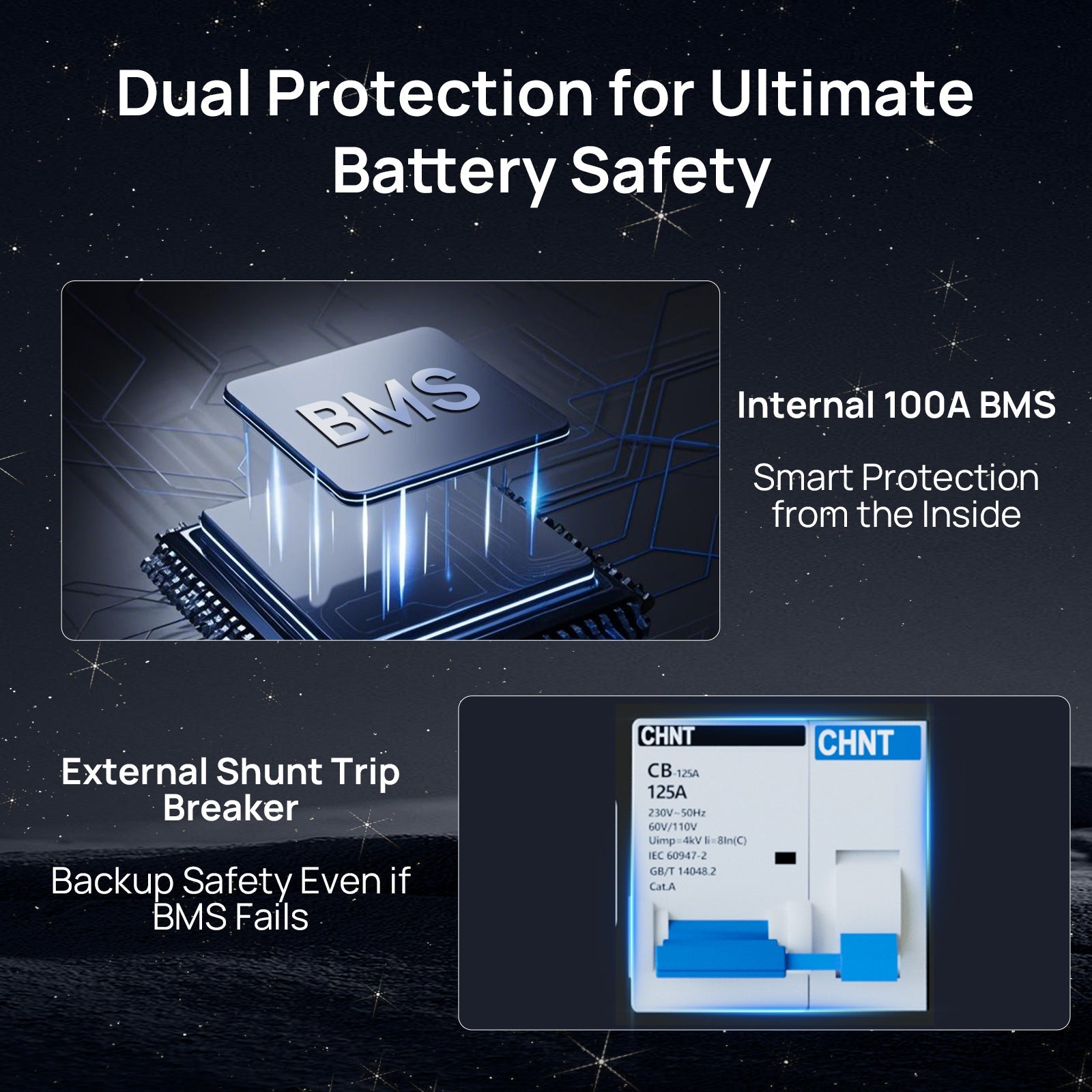

Each battery includes a built-in 100A BMS, a pre-charging circuit, and a 125A short-circuit protection switch on the front panel.

Which inverters can this battery communicate with?

+
Compatible with all major inverters: Victron, Deye, Growatt, Lux Power, Sol-Ark, GoodWe, EG4, SRNE, and more.

Can V3 communicate in parallel with V2?

+
Yes. The DIP switch principles are the same. V2 should be in the first 15 batteries due to DIP limitations; V3 has no such limit.

Do I need to update the JBD software for 32 parallel units?

+
Yes. Please download here: https://app.eco-worthy.com:7778/Download/BMS-Tool&Drive-for-Windows.zip

Does the mobile app need to be updated for 32 parallel units?

+
Yes. Upgrade the "Lithium Battery IoT Cloud" app to version 1.6.6.

Do I need to buy battery cables separately?

+
Each battery includes 1 pair of parallel cables, screws, a grounding wire, and a communication cable — no extra purchase needed.
