If efficiency, reliability and affordable are high on your wish list, ECO-WORTHY 2340W 48V expandable MPPT Solar Kit is an ideal choice.
ECO-WORTHY 195 Watt 12V Mono solar panel is backed by 25-year linear power guarantee. ECO-WORTHY LiFePO4 Lithium Iron Phosphate Battery has twice the power, half the weight and lasts 8 times longer than a sealed lead acid battery.
All in one inverter Integrated with 80A/48V MPPT solar charge controller, 5000W pure sine wave inverter in one compact unit to let you enjoy the stable power from the sun and the utility grid to keep you powered under any circumstances.
ECO-WORTHY 2340W 48V MPPT Solar Kit can be used for several different purposes, including homes, cabins, etc. Whatever the kit is used for, you can rest assured that you are purchasing a quality system. If you have any questions regarding this product, please contact us info@eco-worthy.com.

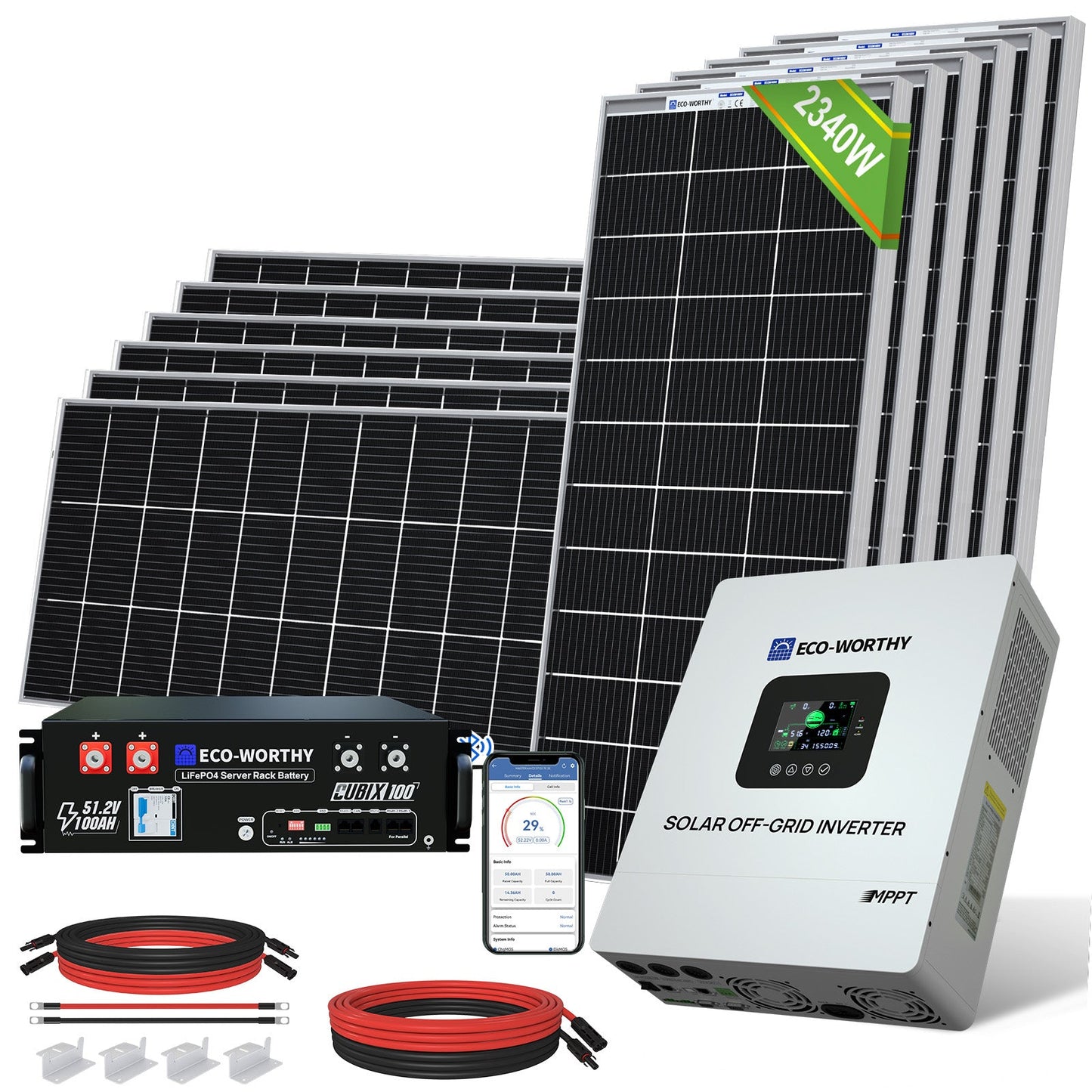

2340W 48V (12x195W) Complete MPPT Off Grid Solar Kit
2340W 48V (12x195W) Complete MPPT Off Grid Solar Kit
SKU:
SKU:GW-L02M195TM-SRNK5KU3U1-12
Total Price
Couldn't load pickup availability
Free Shipping
Return Guarantee
Secure Payment
or 4 interest-free payments of $899.99 with
Installments available at checkoutShop with Confidence at Eco-Worthy
Free & Fast Delivery
14-Day Money-Back Guarantee
Up To 10-Year Warranty
Lifetime Customer Support
Pay with ease
Trusted delivery
Technical Specifications
Battery Capacity
100Ah
Battery Power
5120Wh
Rated Voltage
40~58V
Maximum Charge/Discharge Current
100A
Charge Temperature Range
0-55°C
Discharge Temperature Range
-20-55°C
Voltage Range
40~58V
Maximum Charge Voltage
58.4V
Screw size
M8
Battery Size
22.09*19.02*5.63inch
Battery Weight
103 lbs
Certification
UL9540 | UL1973 | UL9540A | CEC LISTED
Warranty
10 Year Warranty
Rated Power
195W
Solar Cell
Monocrystalline Silicon N-Type
Maximum/Peak Voltage(Vmp)
20.2V
Open Circuit Voltage(Voc)
21.2V±3%
Short circuit current
11.60A±3%
Maximum current
9.65A
Connector Type
MC4
Module Efficiency STC[%]
19.60%
Temperate coefficient of Voc
-(0.38+/-0.01)%/℃
Temperature range
－40℃～ +80℃
Frame
Aluminum alloy frame
Weight
10.5kg/23.15lbs
Size
58.86x26.18x1.37in (1495*665*35)
Rated Input Voltage
110/120VAC
Input Voltage Range
90V-140VAC
Frequency
50Hz/60Hz(auto detect)
Overload/Short Circuit Protection
Circuit breaker
Efficiency
>95%
AC Reverse Protection
Available
Max Bypass Overload Current
40A
Output Voltage Waveform
Pure Sine Wave
Rated Output Power
5000W
Rated Output Voltage
120VAC
Peak Power
10000W
Bypass Breaker
63A
Rated Battery Input Voltage
48V
Min Starting Voltage
44V
Power Saving Mode
Load ≤50W
Battery Type
Lead acid or lithium battery
Max Charge Current
60A
Charge Voltage Range
40-60VDC
Overcharge Protection
Alarm and turn off charging after 1 minute
Max Input Power
5500W
PV Charging Current Range
0-80A(can be set)
Max PV Open Circuit Voltage
500VDC
PV Operating Voltage Range
60-145VDC
MPPT Voltage Range
120-450VDC
Battery Voltage Range
40-60VDC
Charging Short Circuit Protection
Blown fuse
Included in the Box
