ECO-WORTHY 10kw Complete Off-Grid Solar Power System |20.48kWh to 30.72kWh Battery | 10000W 120/240V | 8260W to 10620W PV

Name: ECO-WORTHY 10kw Complete Off-Grid Solar Power System |20.48kWh to 30.72kWh Battery | 10000W 120/240V | 8260W to 10620W PV
Brand: ECO-WORTHY
SKU: L02M590-SRNK10KUSL4800-18
Price: 12049.99 USD
Availability: InStock

$12,049.99

$12,049.99 ~~$15,049.99~~

Sale Sold out

Shipping calculated at checkout.

SKU:

SKU:L02M590-SRNK10KUSL4800-18

[Start Small, Expand as You Go] Whether powering a cabin or a full home, this system grows with you. Stack up to 32 batteries for massive 163.84kWh storage and add solar panels anytime. This battery is rigorously tested and certified by intertek to UL9540 & UL1973 & UL9540A standards with a 10-year warranty, it’s built to last and adapt.

[Smart & Simple Monitoring] With a rated output power of 5KW and a peak power of 10KW, it supports single-phase and split-phase parallel connection, output 120V and 240V at same time. If more power is needed, It can be Paralleled up to 6 units-30kW AC output.Our server rack battery can easily communicate with inverter, supports Bluetooth and Wi-Fi connection, you can easily use APP to monitor the working status of the system

[Easy & Safe Use] 5KW Off-Grid inverter supports LCD display to monitor all data anytime. Multiple intelligent protections, such as PV input current/power limiting protection, PV input over-voltage, PV night reverse current protection, multiple cooling fans to prevent over-heat issue, etc

[High-Efficiency Solar Panels] 590W panels deliver max power, even in low light or shade. Tough, weather-resistant design backed by a 12-year warranty—perfect for harsh climates.

[Shipping Notice] This item includes 590W solar panels, which are large and heavy. They will be packed and shipped on a pallet via truck. Please confirm that your delivery address is accessible for truck deliveries. Other products in your order will be shipped separately via courier.

Battery Bank Options 8260W PV &20.48kWh Battery 10620W PV & 30.72kWh Battery

Quantity

Total Price

$12,049.99

Free Shipping

Return Guarantee

Secure Payment

or 4 interest-free payments of $3,012.49 with

Installments available at checkout

Shop with Confidence at Eco-Worthy

Free & Fast Delivery

14-Day Money-Back Guarantee

Up To 10-Year Warranty

Lifetime Customer Support

Pay with ease

Trusted delivery

View full details

$8,899.99 $11,899.99

Learn More

Buy It Now

Feature

Included in the box

Reviews

FAQs

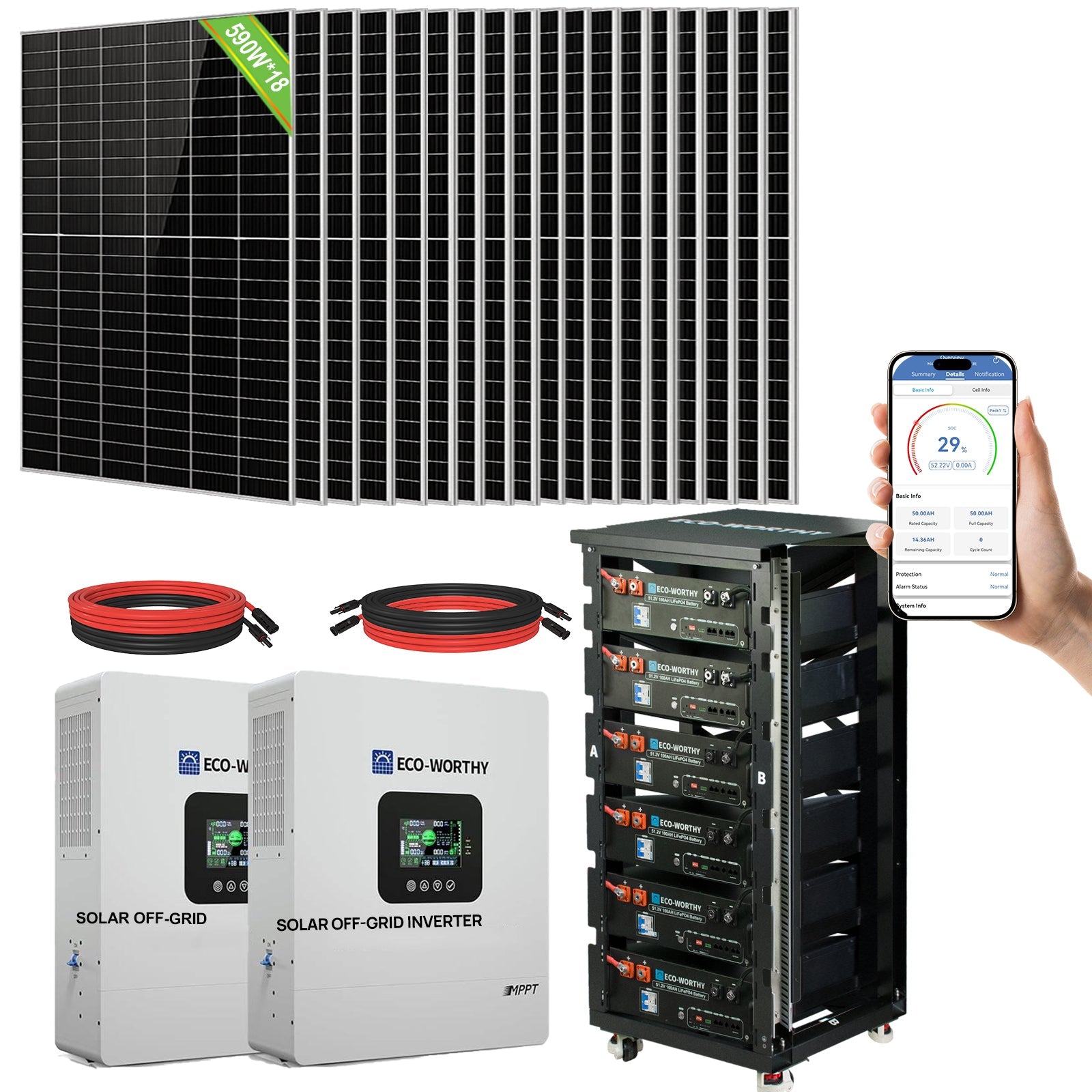

Achieve total energy independence with the ECO-WORTHY 10kW Complete Off-Grid Solar Kit. This robust system is engineered for whole-home power, delivering 10kW of 120V/240V split-phase AC output. It pairs two high-efficiency 5kW inverters with a massive, expandable bank of UL-certified server rack lithium batteries, offering 20.48kWh or 30.72kWh of storage. Fed by 8260W or 10620W of solar panels, this all-inclusive kit is a turnkey solution for off-grid homes, cabins, and backup power. The system is fully expandable and includes a free upgraded 6-layer rack with a 600A busbar, representing exceptional value for a professional-grade power station.

Technical Specifications

590W Solar Panel

5kW 48V All-in-one Inverter

48V 100Ah Server Rack Battery

ECO-WORTHY RACK6 V2.1 I 6-Layer Rack With 600A Busbar

Peak Power

590W

Cell Type

N-type Monocrystalline

MPPT Voltage(VmpV)

43.2-44.16V

Mppt current

13.36-13.66A

Short circuit current

14.07-14.46A

Open Circuit Voltage(Voc)

51.9-53.41V

Module Efficiency(%)

22.84

Power Tolerance

0~+5W

Maximum System Voltage

DC1500V

Temperature range

－40℃～ +85℃

Maximum Series Fuse Rating

30A

Weight

32.1 kg

Size

2278x1134x30 mm(With Frame)

Fire Type（Rating)

UL Type29/IECClassC

Rated Input Voltage

110/120VAC

Input Voltage Range

90V-140VAC

Frequency

50Hz/60Hz(auto detect)

Overload/Short Circuit Protection

Circuit breaker

Efficiency

>95%

AC Reverse Protection

Available

Max Bypass Overload Current

40A

Output Voltage Waveform

Pure Sine Wave

Rated Output Power

5000W

Rated Output Voltage

120VAC

Peak Power

10000W

Bypass Breaker

63A

Rated Battery Input Voltage

48V

Min Starting Voltage

44V

Power Saving Mode

Load ≤50W

Battery Type

Lead acid or lithium battery

Max Charge Current

60A

Charge Voltage Range

40-60VDC

Overcharge Protection

Alarm and turn off charging after 1 minute

Max Input Power

5500W

PV Charging Current Range

0-80A(can be set)

Max PV Open Circuit Voltage

500VDC

PV Operating Voltage Range

60-145VDC

MPPT Voltage Range

120-450VDC

Battery Voltage Range

40-60VDC

Charging Short Circuit Protection

Blown fuse

Battery Capacity

100Ah

Battery Power

5120Wh

Rated Voltage

40~58V

Maximum Charge/Discharge Current

100A

Charge Temperature Range

0-55°C

Discharge Temperature Range

-20-55°C

Voltage Range

40~58V

Maximum Charge Voltage

58.4V

Screw size

Battery Size

22.09*19.02*5.63inch

Battery Weight

103 lbs

Certification

UL9540 | UL1973 | UL9540A | CEC LISTED

Warranty

10 Year Warranty

Package Gross Weight

47 kg ±1kg

Product Dimensions

47.32 in × 23.07 in × 21.93 in

Effective Space per Layer

20.87 in × 17.44 in × 6.50 in

Busbar Dimensions

W 40 mm × H 4 mm

Busbar Current Rating

600 A

Busbar Material

T2 Copper

Battery Capacity

Up to 6 batteries

Material

Metal

Included in the Box

1.14xECO-WORTHY & 590W SOLAR PANEL-BLACK
2.2xECO-WORTHY 5000W ALL-IN-ONE OFF-GRID INVERTER
3.2xPV-INVERTER CPV-INVERTER CABLE
4.4xPV EXTENSION CABLE
5.4xECO-WORTHY 51.2V 100AH LiFePO4 BATTERY
6.1xECO-WORTHY RACK6 V2 I 6-Layer Rack With 600A Busbar

1.18xECO-WORTHY & 590W SOLAR PANEL-BLACK
2.2xECO-WORTHY 5000W ALL-IN-ONE OFF-GRID INVERTER
3.2xPV-INVERTER CABLE
4.4xPV EXTENSION CABLE
5.6xECO-WORTHY 51.2V 100AH LiFePO4 BATTERY
6.1xECO-WORTHY RACK6 V2 I 6-Layer Rack With 600A Busbar

User manual

ECO-WORTHY_48V_100Ah_lithium_battery_Manual

Download

ECO-WORTHY 5000W HYP48S+U100-H Manual(Neutral)EN_V1.0_20260716 Manual

Download

ECO-WORTHY ECO5000W-UL 1741

Download

Frequently Asked Questions

What warranty is included with this solar kit?

When you buy this solar kit, you are covered by the full manufacturer warranties on each component. Plus, you’ll receive our lifetime customer and technical support.

Can l expand this system in the future?

The system is fully expandable. Add more split phase inverters, lifepo4 batteries and solar panels as needed. You may find you need more power depending on where in the country you are.

How do I install the system?

We've created the kits for absolute simplicity. And all our products are equipped with very detailed instruction manuals.That said, we highly recommend getting the help of a professional installer / certified electrician. You should plan on potential costs associated with this as well.If you have any questions about installation, you can contact us by email or phone for help.

How is the kit shipped?

Due to the large number of products included in your system, your order will be shipped in multiple packages. Your solar panels will be palletised and shipped by truck to your mansion. Shipping time is approximately 5-15 days; other products will be delivered by courier.

Will I be able to track my order and deliveries?

You will receive your tracking numbers via email as soon as they are available. So please make sure you use a good Email address when ordering that can receive email for your your tracking information. Also, please expect to receive multiple deliveries and packages as we ship from multiple warehouses to keep costs down.

What's Your Return Policy?

We try and keep returns simple and easy. We do not charge restocking or return fees. That said, if you decide to return it because you no longer want it, you'll just pay return shipping. If something arrives damaged, we'll cover all of the costs to get you a properly working product.

What happens if stuff arrives damaged?

We stand behind what we sell and we'll take care of the costs of getting you a new working product. Just reach out to us if this happens and we will get you all taken care of.
