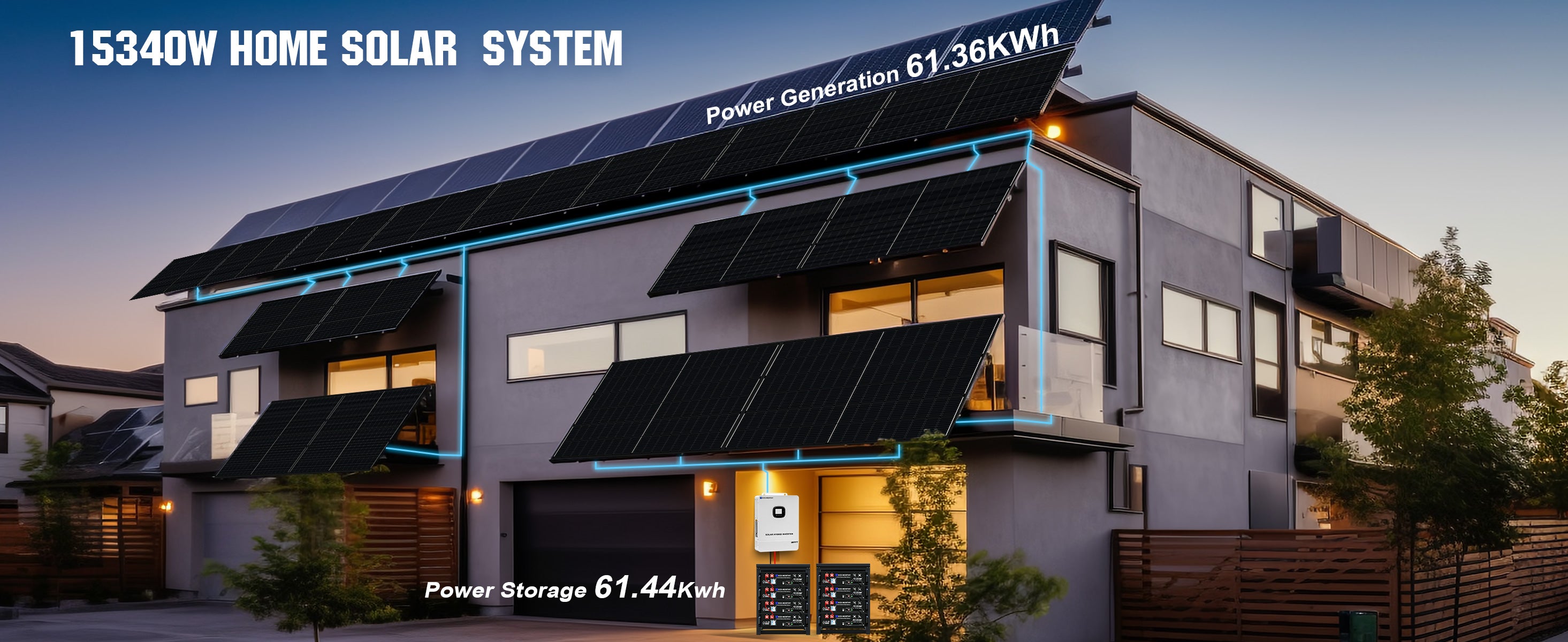

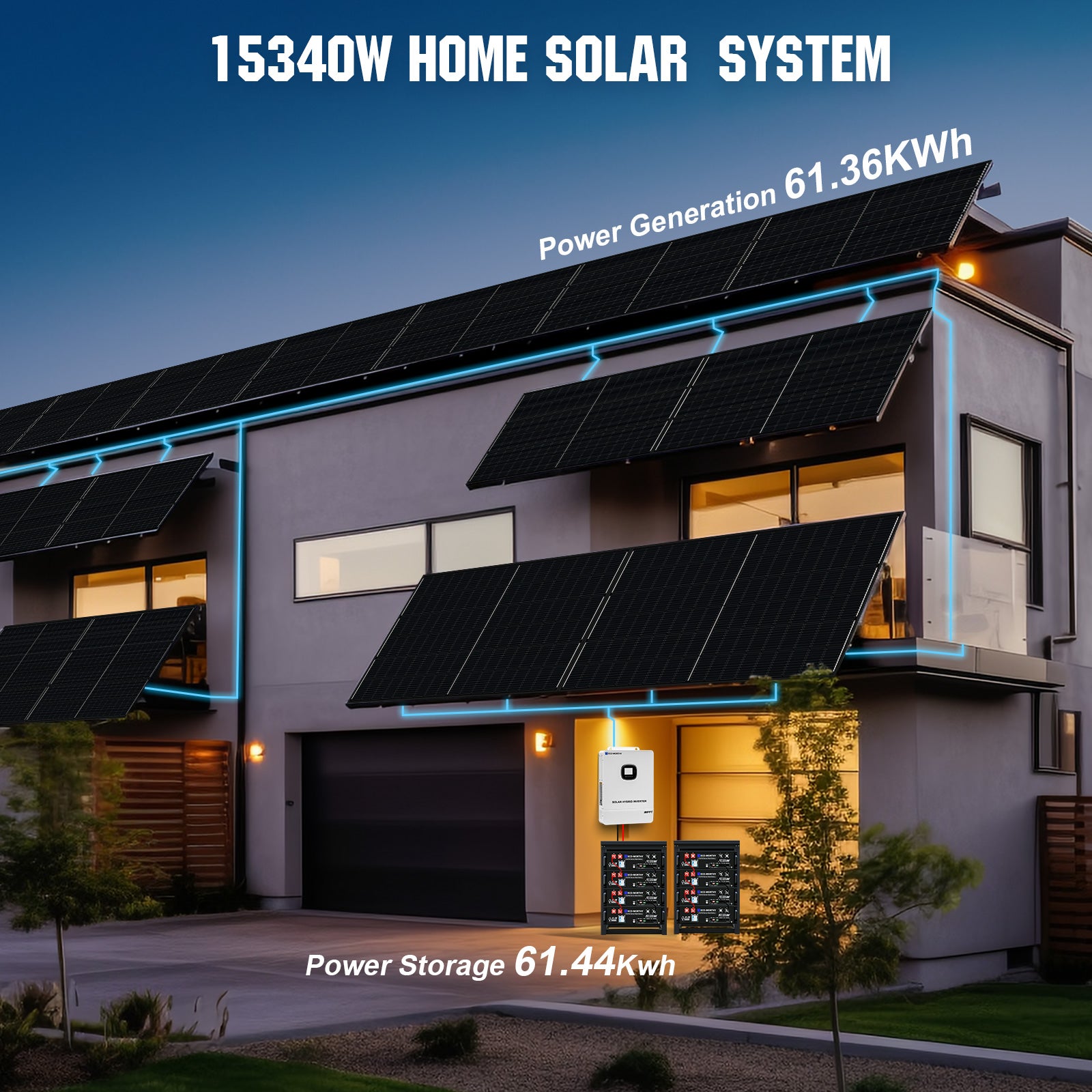

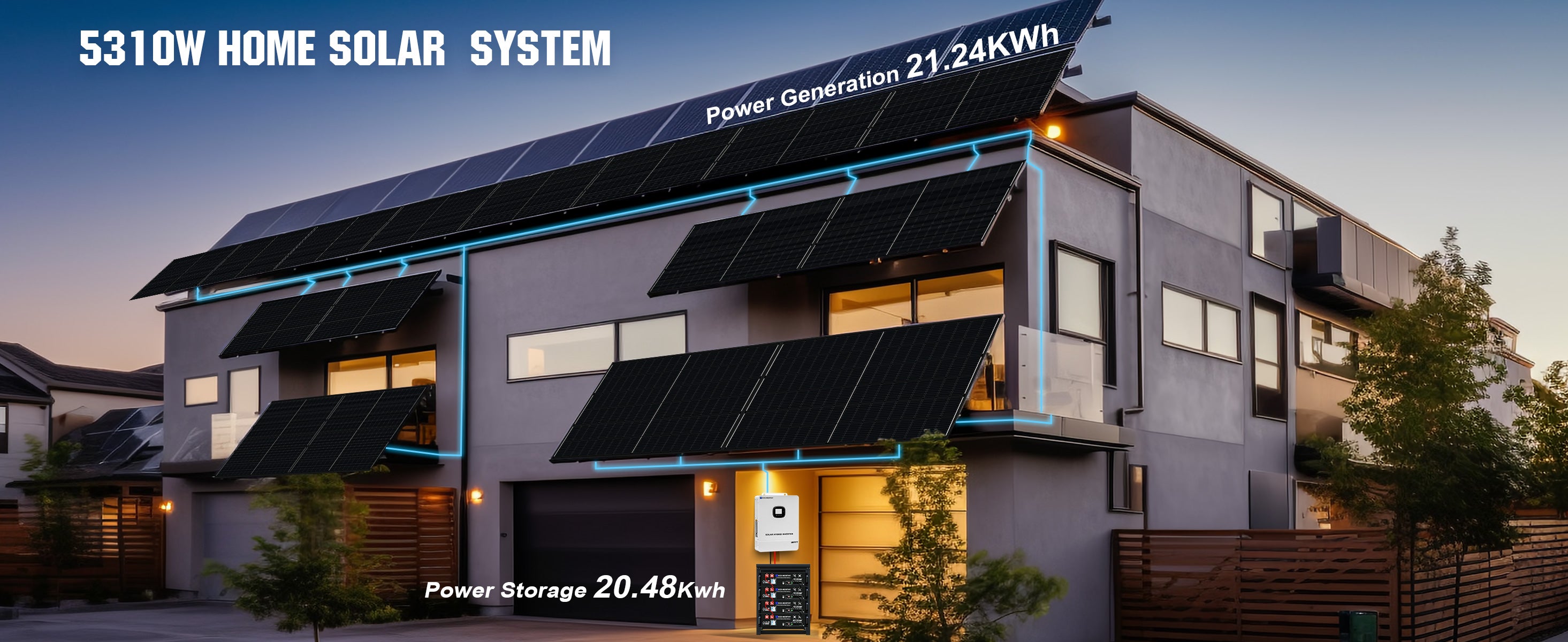

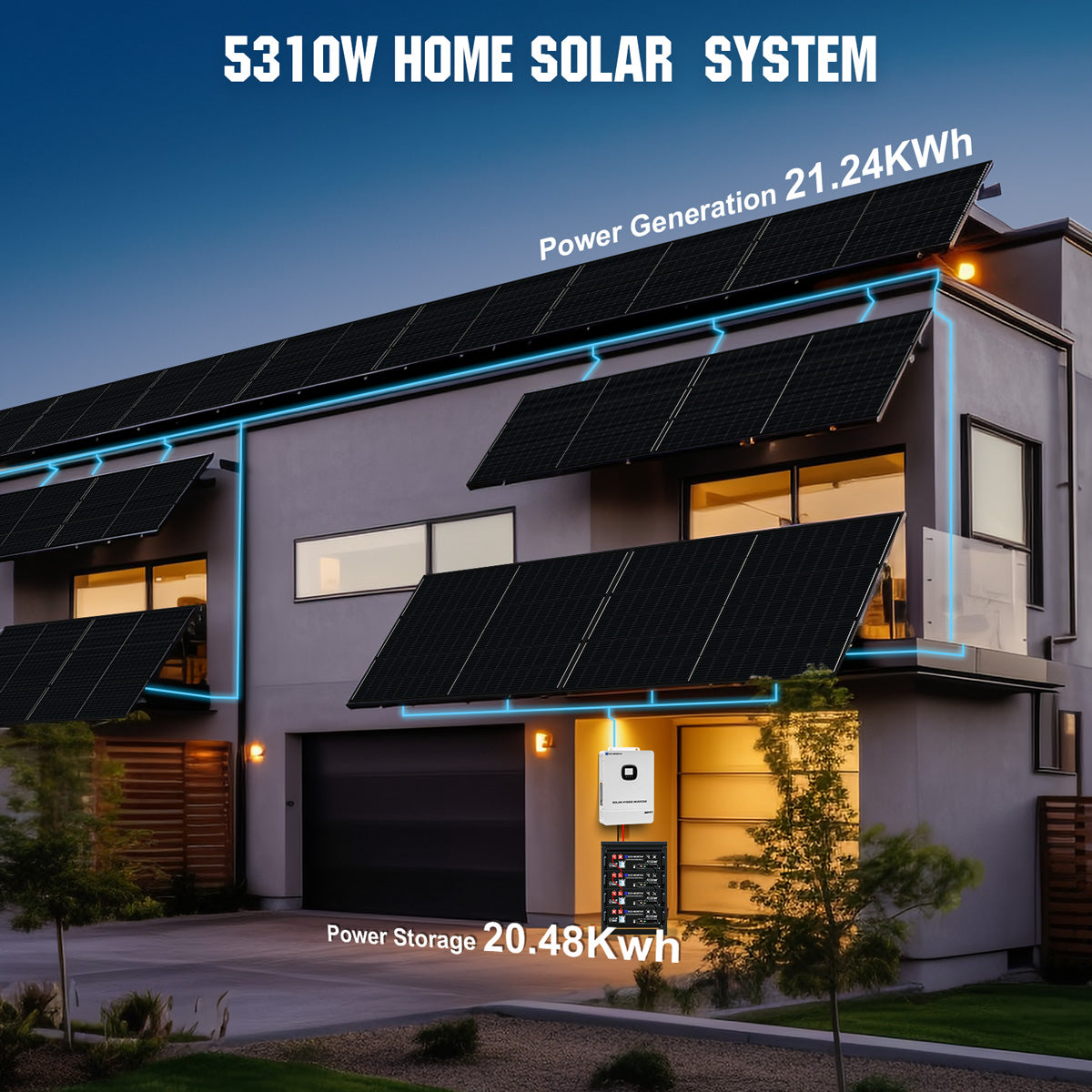

ECO-WORTHY 10kW Off-Grid Solar Power System: Your Ultimate Energy Independence Solution. This complete kit delivers robust 10kW / 120V/240V split-phase output, powered by a massive 20.48kWh/61.44kWh LiFePO4 battery for whole-home backup. With 5310W/15340W of high-efficiency solar panels, it captures maximum energy. Featuring seamless closed-loop communication and UL-certified safety, this plug-and-play system is the ideal all-in-one power solution for off-grid homes, cabins, and emergency preparedness. Achieve reliable, sustainable energy with expert engineering and support.
Pictures
Videos
Prime Day Sale

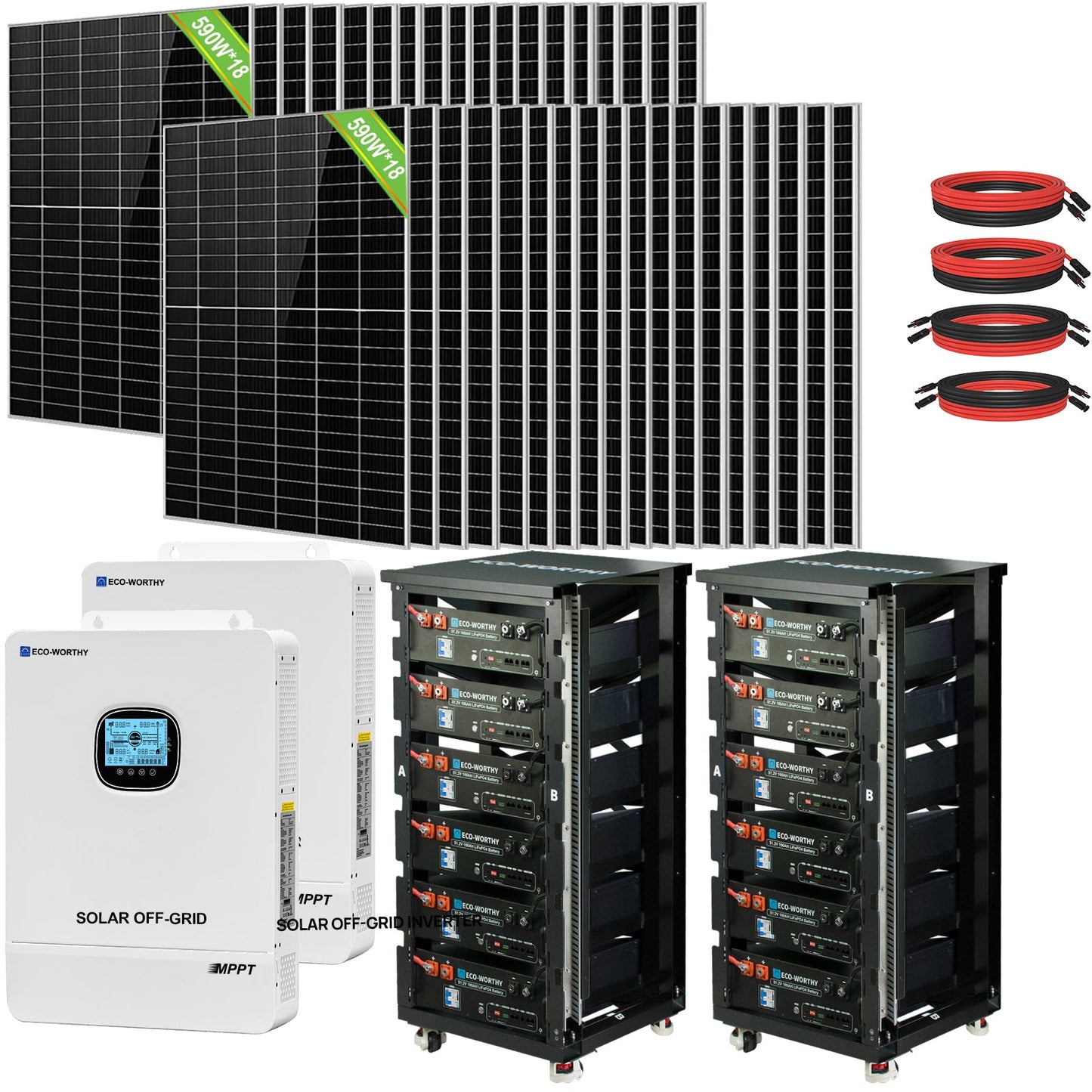

Eco-Worthy Complete Off-Grid Solar Power System |20.48kWh/61.44kWh Battery | 10000W 120/240V | 5310W/15340W PV
Eco-Worthy Complete Off-Grid Solar Power System |20.48kWh/61.44kWh Battery | 10000W 120/240V | 5310W/15340W PV
Regular price
$7,999.99
Sale price
$7,999.99
Regular price
$10,999.99
Unit price
per
Shipping calculated at checkout.
SKU:
SKU:L02M590-SRNK10KUSL4800-9
Read More
The 590w Solar panels will be packed on shipping pallets,and expect to ship on about June 5th
Total Price
$7,999.99
Couldn't load pickup availability
Free Shipping
Return Guarantee
Secure Payment
or 4 interest-free payments of $1,999.99 with
Installments available at checkoutShop with Confidence at Eco-Worthy
Free & Fast Delivery
14-Day Money-Back Guarantee
Up To 10-Year Warranty
Lifetime Customer Support
Pay with ease
Trusted delivery
Technical Specifications
590W Solar Panel
48V 100Ah Server Rack Battery

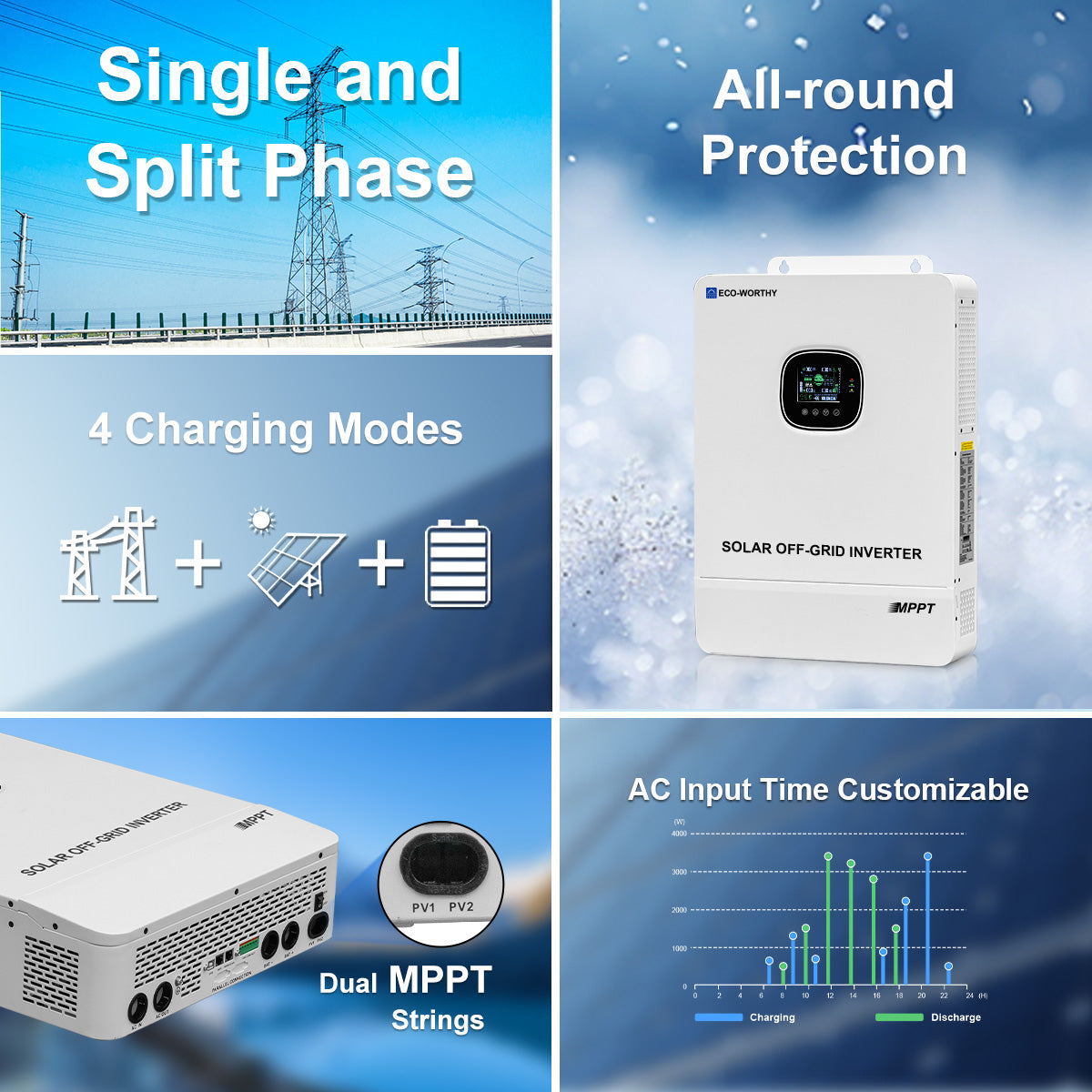

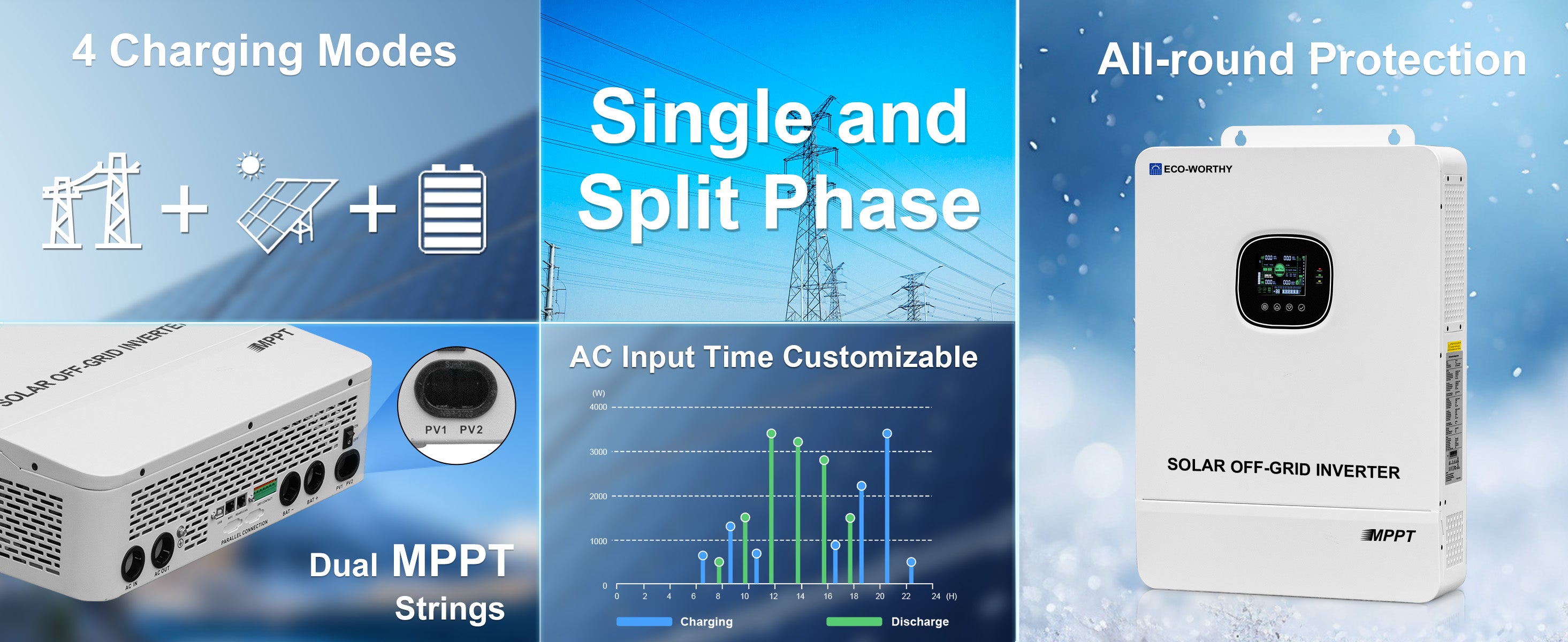

Eco-Worthy 10000W Solar Off-grid Split-phase AIO Inverter
Peak Power
590W
Cell Type
N-type Monocrystalline
MPPT Voltage(VmpV)
43.2-44.16V
Mppt current
13.36-13.66A
Short circuit current
14.07-14.46A
Open Circuit Voltage(Voc)
51.9-53.41V
Module Efficiency(%)
22.84
Power Tolerance
0~+5W
Maximum System Voltage
DC1500V
Temperature range
－40℃～ +85℃
Maximum Series Fuse Rating
30A
Weight
32.1 kg
Size
2278x1134x30 mm(With Frame)
Fire Type（Rating)
UL Type29/IECClassC
Battery Capacity
100Ah
Battery Power
5120Wh
Rated Voltage
40~58V
Maximum Charge/Discharge Current
100A
Charge Temperature Range
0-55°C
Discharge Temperature Range
-20-55°C
Voltage Range
40~58V
Maximum Charge Voltage
58.4V
Screw size
M8
Battery Size
22.09*19.02*5.63inch
Battery Weight
103 lbs
Certification
UL9540 | UL1973 | UL9540A | CEC LISTED
Warranty
10 Year Warranty
Rated output power
10,000W
Maximum peak power
20,000W
Rated output voltage
120/240VAC(single-phase/split-phase)
Loading motor capacity
6HP
Rated frequency
50/60Hz
Output wave
Pure sine wave
Switching time
10ms (typical value)
Parallel number
6
Battery type
Lithium-ionbattery/lead-acidbattery/user-defined battery
Rated battery voltage
48Vdc
Voltage range
40Vdc-60Vdc
Maximum PV charge current
200A
Maximum mains/generator charge current
120A
Maximum mix charge current
200A
MPPT channel number
2
Maximum input power
11,000W
Maximum Input Current
22/22A
Maximum open circuit voltage
500Vdc
MPPT operating voltage range
125 Vdc-425 Vdc
Input voltage range
90VAC-140VAC
Input frequency range
50/60 Hz
Bypass overload current
63A
Dimension
620 mm*445 mm*130 mm
Weight
27 kg
Protection level
IP20, for indoor use only
Ambient temperature
−10°C–55°C, >45°C derating
Noise
<60 dB
Cooling mode
Intelligent fan
Included in the Box
Frequently Asked Questions
What warranty is included with this solar kit?
+
When you buy this solar kit, you are covered by the full manufacturer warranties on each component. Plus, you’ll receive our lifetime customer and technical support.
Can l expand this system in the future?
+
The system is fully expandable. Add more split phase inverters, lifepo4 batteries and solar panels as needed. You may find you need more power depending on where in the country you are.
How do I install the system?
+
We've created the kits for absolute simplicity. And all our products are equipped with very detailed instruction manuals.That said, we highly recommend getting the help of a professional installer / certified electrician. You should plan on potential costs associated with this as well.If you have any questions about installation, you can contact us by email or phone for help.
How is the kit shipped?
+
Due to the large number of products included in your system, your order will be shipped in multiple packages. Your solar panels will be palletised and shipped by truck to your mansion. Shipping time is approximately 5-15 days; other products will be delivered by courier.
Will I be able to track my order and deliveries?
+
You will receive your tracking numbers via email as soon as they are available. So please make sure you use a good Email address when ordering that can receive email for your your tracking information. Also, please expect to receive multiple deliveries and packages as we ship from multiple warehouses to keep costs down.
What's Your Return Policy?
+
We try and keep returns simple and easy. We do not charge restocking or return fees. That said, if you decide to return it because you no longer want it, you'll just pay return shipping. If something arrives damaged, we'll cover all of the costs to get you a properly working product.
What happens if stuff arrives damaged?
+
We stand behind what we sell and we'll take care of the costs of getting you a new working product. Just reach out to us if this happens and we will get you all taken care of.
