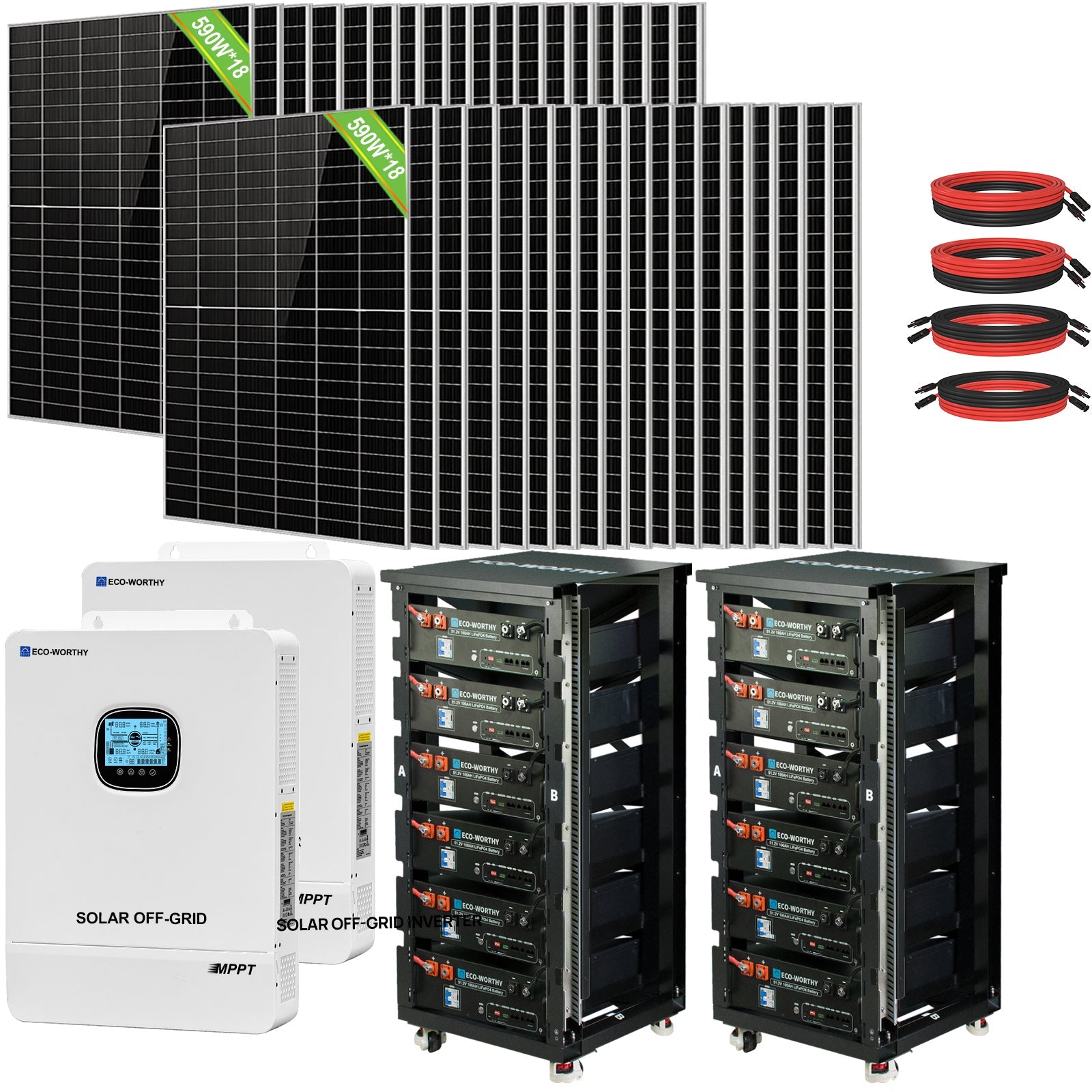

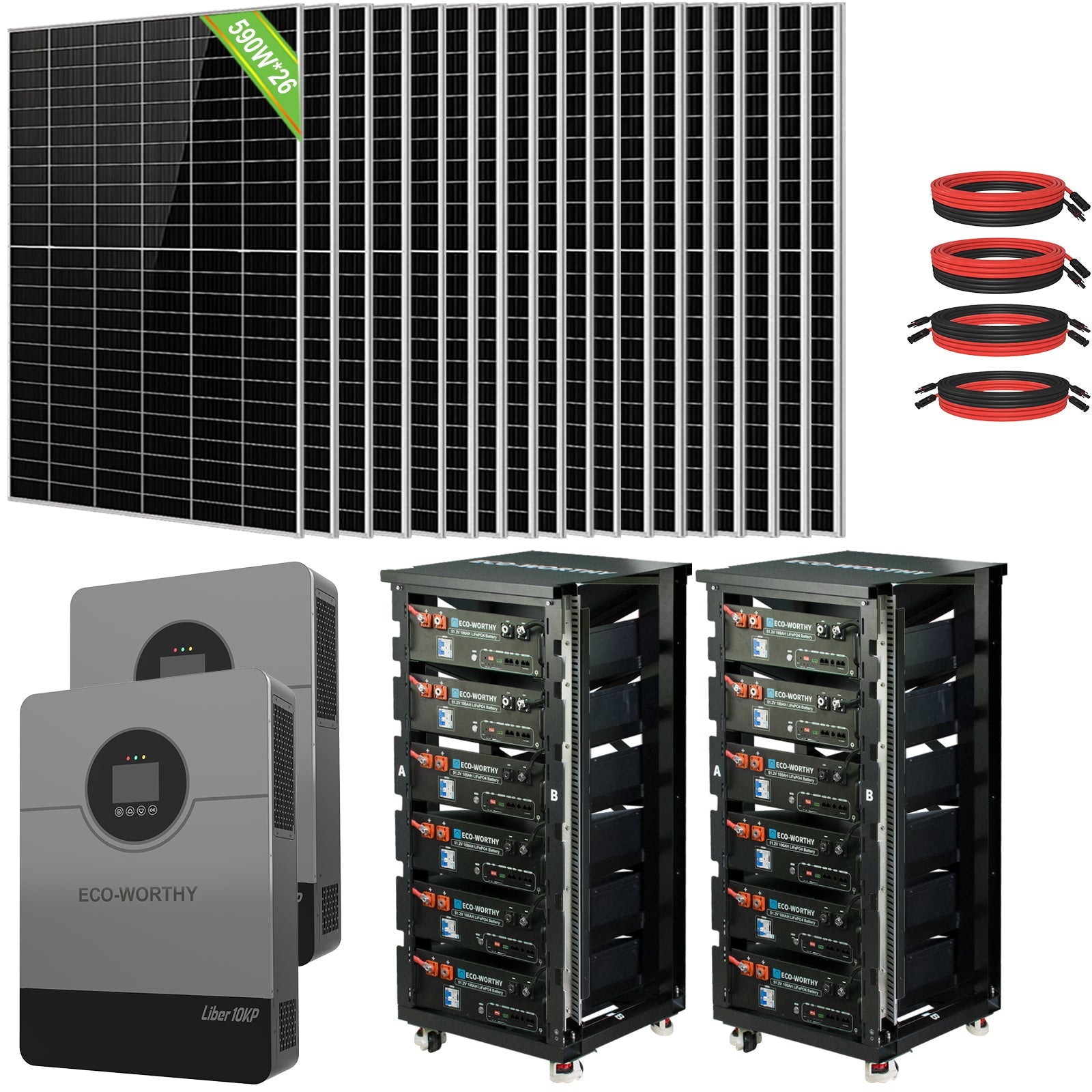

ECO-WORTHY Complete Off-Grid Solar Power System |20.48kWh/61.44kWh Battery | 10000W 120/240V | 5310W/15340W PV

Name: ECO-WORTHY Complete Off-Grid Solar Power System |20.48kWh/61.44kWh Battery | 10000W 120/240V | 5310W/15340W PV
Brand: ECO-WORTHY
SKU: L02M590-SRNK20KUSL4800-26
Price: 20899.99 USD
Availability: InStock

$20,899.99

$20,899.99 ~~$23,899.99~~

Sale Sold out

Shipping calculated at checkout.

SKU:

SKU:L02M590-SRNK20KUSL4800-26

[Start Small, Expand as You Go] Whether powering a cabin or a full home, this system grows with you. Stack up to 32 batteries for massive 163.84kWh storage and add solar panels anytime. This battery is rigorously tested and certified by intertek to UL9540 & UL1973 & UL9540A standards with a 10-year warranty, it’s built to last and adapt.

[Smart & Simple Monitoring] Control your system from anywhere. ECO-WORTHY Cubix100 server rack battery can easily communicate with inverter, supports Bluetooth and Wi-Fi connection, you can easily use APP to monitor the working status of the system.Capable of split-phase (120V/240V) or single-phase (120V) output in standalone operation.

[Blackout-Proof Your Home] Keep lights on during outages. The off-grid inverter Built with two independent MPPT solar controllers, supporting dual 5500W PV input (11,000W total) and up to 200A max battery charging (AC 120A / PV 200A / Hybrid 200A). 500VDC max open-circuit voltage ensures flexible solar array design and higher energy harvest efficiency.Ideal for storms or off-grid living.

[High-Efficiency Solar Panels] 590W panels deliver max power, even in low light or shade. Tough, weather-resistant design backed by a 12-year warranty—perfect for harsh climates.

[Shipping Notice] This item includes 590W solar panels, which are large and heavy. They will be packed and shipped on a pallet via truck. Please confirm that your delivery address is accessible for truck deliveries. Other products in your order will be shipped separately via courier.

Battery Bank Options 5310W PV&20.48kWh Battery 15340W PV&61.44kWh Battery

Quantity

Total Price

$20,899.99

Free Shipping

Return Guarantee

Secure Payment

or 4 interest-free payments of $5,224.99 with

Installments available at checkout

Shop with Confidence at Eco-Worthy

Free & Fast Delivery

14-Day Money-Back Guarantee

Up To 10-Year Warranty

Lifetime Customer Support

Pay with ease

Trusted delivery

View full details

$7,999.99 $10,999.99

Learn More

Buy It Now

Feature

Included in the box

Reviews

FAQs

ECO-WORTHY 10kW Off-Grid Solar Power System: Your Ultimate Energy Independence Solution. This complete kit delivers robust 10kW / 120V/240V split-phase output, powered by a massive 20.48kWh/61.44kWh LiFePO4 battery for whole-home backup. With 5310W/15340W of high-efficiency solar panels, it captures maximum energy. Featuring seamless closed-loop communication and UL-certified safety, this plug-and-play system is the ideal all-in-one power solution for off-grid homes, cabins, and emergency preparedness. Achieve reliable, sustainable energy with expert engineering and support.

Technical Specifications

590W Solar Panel

48V 100Ah Server Rack Battery

Eco-Worthy 10000W Solar Off-grid Split-phase AIO Inverter

ECO-WORTHY RACK6 V2.1 I 6-Layer Rack With 600A Busbar

Peak Power

590W

Cell Type

N-type Monocrystalline

MPPT Voltage(VmpV)

43.2-44.16V

Mppt current

13.36-13.66A

Short circuit current

14.07-14.46A

Open Circuit Voltage(Voc)

51.9-53.41V

Module Efficiency(%)

22.84

Power Tolerance

0~+5W

Maximum System Voltage

DC1500V

Temperature range

－40℃～ +85℃

Maximum Series Fuse Rating

30A

Weight

32.1 kg

Size

2278x1134x30 mm(With Frame)

Fire Type（Rating)

UL Type29/IECClassC

Battery Capacity

100Ah

Battery Power

5120Wh

Rated Voltage

40~58V

Maximum Charge/Discharge Current

100A

Charge Temperature Range

0-55°C

Discharge Temperature Range

-20-55°C

Voltage Range

40~58V

Maximum Charge Voltage

58.4V

Screw size

Battery Size

22.09*19.02*5.63inch

Battery Weight

103 lbs

Certification

UL9540 | UL1973 | UL9540A | CEC LISTED

Warranty

10 Year Warranty

Rated output power

10,000W

Maximum peak power

20,000W

Rated output voltage

120/240VAC(single-phase/split-phase)

Loading motor capacity

6HP

Rated frequency

50/60Hz

Output wave

Pure sine wave

Switching time

10ms (typical value)

Parallel number

Battery type

Lithium-ionbattery/lead-acidbattery/user-defined battery

Rated battery voltage

48Vdc

Voltage range

40Vdc-60Vdc

Maximum PV charge current

200A

Maximum mains/generator charge current

120A

Maximum mix charge current

200A

MPPT channel number

Maximum input power

11,000W

Maximum Input Current

22/22A

Maximum open circuit voltage

500Vdc

MPPT operating voltage range

125 Vdc-425 Vdc

Input voltage range

90VAC-140VAC

Input frequency range

50/60 Hz

Bypass overload current

63A

Dimension

620 mm*445 mm*130 mm

Weight

27 kg

Protection level

IP20, for indoor use only

Ambient temperature

−10°C–55°C, >45°C derating

Noise

<60 dB

Cooling mode

Intelligent fan

Package Gross Weight

47 kg ±1kg

Product Dimensions

47.32 in × 23.07 in × 21.93 in

Effective Space per Layer

20.87 in × 17.44 in × 6.50 in

Busbar Dimensions

W 40 mm × H 4 mm

Busbar Current Rating

600 A

Busbar Material

T2 Copper

Battery Capacity

Up to 6 batteries

Material

Metal

Included in the Box

1.9xEco-Worthy 590w Solar Panel-Black
2.1xEco-Worthy 10000w All-In-One Off-Grid Inverter
3.1xPv-Inverter Cable
4.2xPv Extension Cable
5.4xEco-Worthy 51.2v 100ah Lifepo4 Battery
6.1x Eco-Worthy Rack6 V2 I 6-Layer Rack With 600a Busbar

1.26xEco-Worthy 590w Solar Panel-Black
2.2xEco-Worthy 10000w All-In-One Off-Grid Inverter
3.4xPv-Inverter Cable
4.8xPv Extension Cable
5.12xEco-Worthy 51.2v 100ah Lifepo4 Battery
6.2x Eco-Worthy Rack6 V2 I 6-Layer Rack With 600a Busbar

User manual

Eco-Worthy 48V 100Ah lithium battery Manual

Download

Eco-Worthy 10kW Solar Off grid Inverter Charger Manual

Download

Eco-Worthy ECO10000W-UL 1741

Download

Frequently Asked Questions

What warranty is included with this solar kit?

When you buy this solar kit, you are covered by the full manufacturer warranties on each component. Plus, you’ll receive our lifetime customer and technical support.

Can l expand this system in the future?

The system is fully expandable. Add more split phase inverters, lifepo4 batteries and solar panels as needed. You may find you need more power depending on where in the country you are.

How do I install the system?

We've created the kits for absolute simplicity. And all our products are equipped with very detailed instruction manuals.That said, we highly recommend getting the help of a professional installer / certified electrician. You should plan on potential costs associated with this as well.If you have any questions about installation, you can contact us by email or phone for help.

How is the kit shipped?

Due to the large number of products included in your system, your order will be shipped in multiple packages. Your solar panels will be palletised and shipped by truck to your mansion. Shipping time is approximately 5-15 days; other products will be delivered by courier.

Will I be able to track my order and deliveries?

You will receive your tracking numbers via email as soon as they are available. So please make sure you use a good Email address when ordering that can receive email for your your tracking information. Also, please expect to receive multiple deliveries and packages as we ship from multiple warehouses to keep costs down.

What's Your Return Policy?

We try and keep returns simple and easy. We do not charge restocking or return fees. That said, if you decide to return it because you no longer want it, you'll just pay return shipping. If something arrives damaged, we'll cover all of the costs to get you a properly working product.

What happens if stuff arrives damaged?

We stand behind what we sell and we'll take care of the costs of getting you a new working product. Just reach out to us if this happens and we will get you all taken care of.
