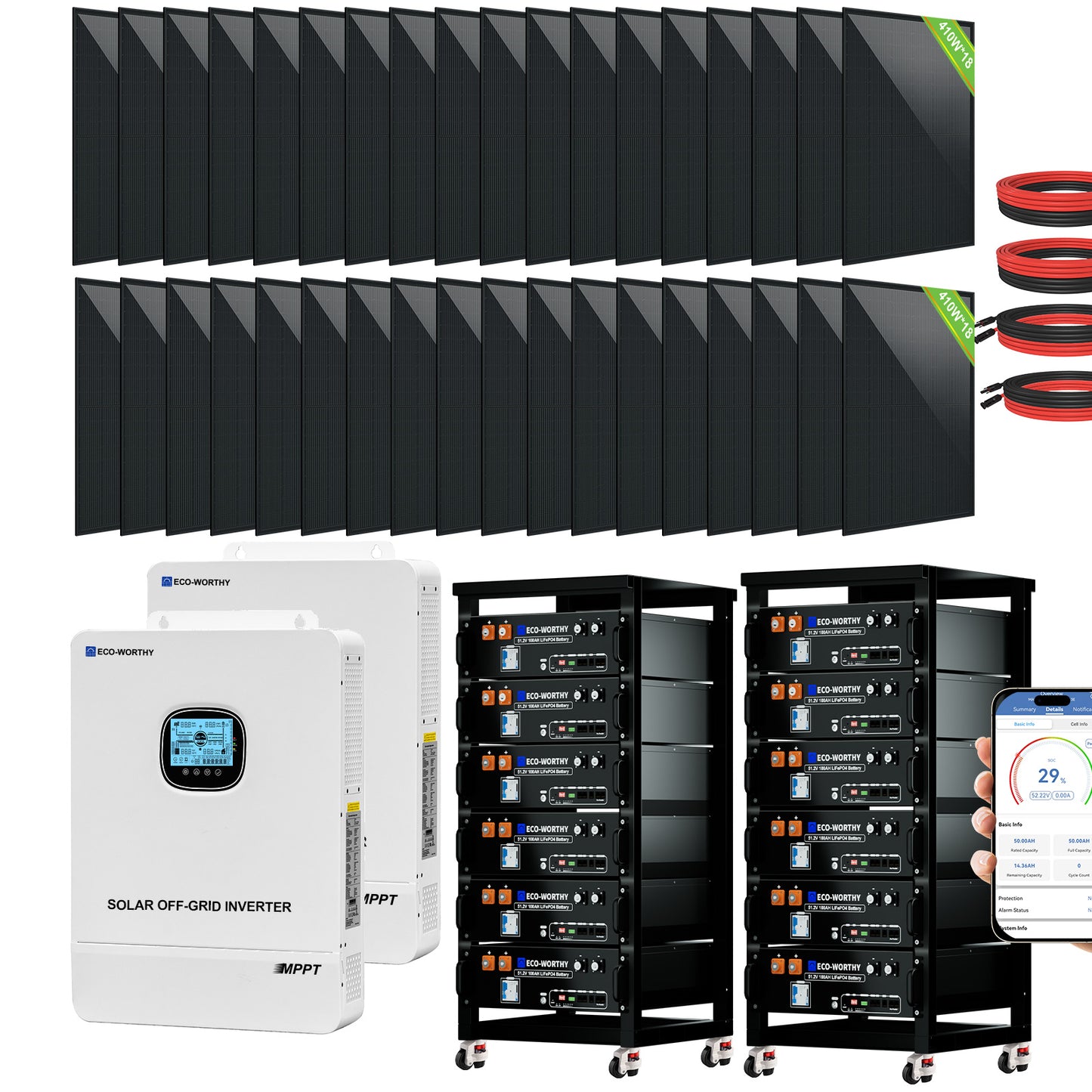

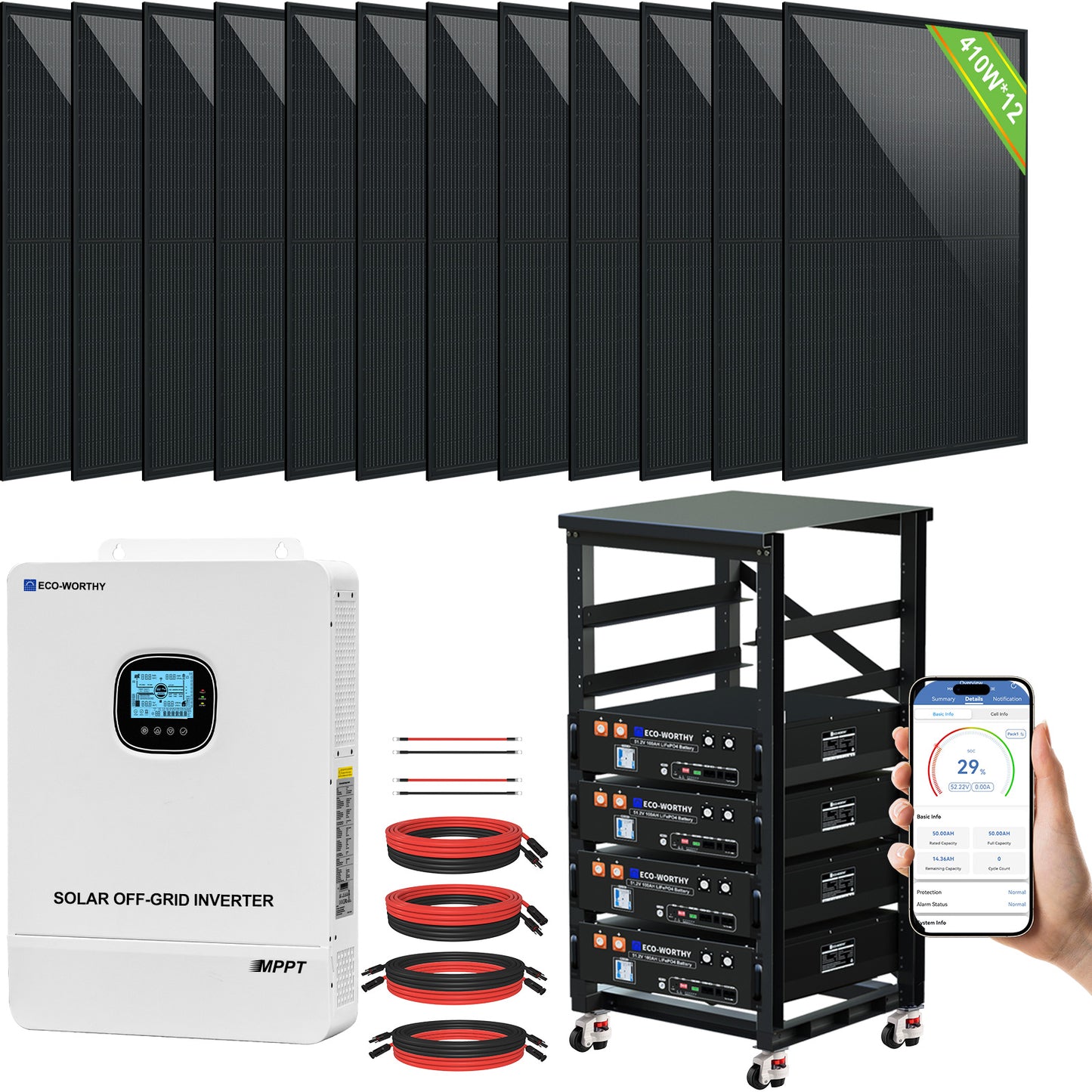

ECO-WORTHY 10kW Off-Grid Solar Power System: Your Ultimate Energy Independence Solution. This complete kit delivers robust 10kW / 120V/240V split-phase output, powered by a massive 20.48kWh/61.44kWh LiFePO4 battery for whole-home backup. With 5310W/15340W of high-efficiency solar panels, it captures maximum energy. Featuring seamless closed-loop communication and UL-certified safety, this plug-and-play system is the ideal all-in-one power solution for off-grid homes, cabins, and emergency preparedness. Achieve reliable, sustainable energy with expert engineering and support.
Pictures
Videos
⏰ Limited time deal
ECO-WORTHY Complete Off-Grid Solar Power System |20.48kWh/61.44kWh Battery | 10000W 120/240V | 5310W/15340W PV
ECO-WORTHY Complete Off-Grid Solar Power System |20.48kWh/61.44kWh Battery | 10000W 120/240V | 5310W/15340W PV
Regular price
$7,999.99
Sale price
$7,999.99
Regular price
$10,999.99
Unit price
per
Shipping calculated at checkout.
SKU:
SKU:L02M590-SRNK10KUSL4800-9
Read More
⏰Limited Time Deals,The Offer May End early!
Total Price
$7,999.99
Couldn't load pickup availability
Free Shipping
Return Guarantee
Secure Payment
or 4 interest-free payments of $1,999.99 with
Installments available at checkoutShop with Confidence at Eco-Worthy
Free & Fast Delivery
14-Day Money-Back Guarantee
Up To 10-Year Warranty
Lifetime Customer Support
Pay with ease
Trusted delivery
Technical Specifications
590W Solar Panel
48V 100Ah Server Rack Battery
Eco-Worthy 10000W Solar Off-grid Split-phase AIO Inverter
ECO-WORTHY RACK6 V2.1 I 6-Layer Rack With 600A Busbar
Peak Power
590W
Cell Type
N-type Monocrystalline
MPPT Voltage(VmpV)
43.2-44.16V
Mppt current
13.36-13.66A
Short circuit current
14.07-14.46A
Open Circuit Voltage(Voc)
51.9-53.41V
Module Efficiency(%)
22.84
Power Tolerance
0~+5W
Maximum System Voltage
DC1500V
Temperature range
－40℃～ +85℃
Maximum Series Fuse Rating
30A
Weight
32.1 kg
Size
2278x1134x30 mm(With Frame)
Fire Type（Rating)
UL Type29/IECClassC
Battery Capacity
100Ah
Battery Power
5120Wh
Rated Voltage
40~58V
Maximum Charge/Discharge Current
100A
Charge Temperature Range
0-55°C
Discharge Temperature Range
-20-55°C
Voltage Range
40~58V
Maximum Charge Voltage
58.4V
Screw size
M8
Battery Size
22.09*19.02*5.63inch
Battery Weight
103 lbs
Certification
UL9540 | UL1973 | UL9540A | CEC LISTED
Warranty
10 Year Warranty
Rated output power
10,000W
Maximum peak power
20,000W
Rated output voltage
120/240VAC(single-phase/split-phase)
Loading motor capacity
6HP
Rated frequency
50/60Hz
Output wave
Pure sine wave
Switching time
10ms (typical value)
Parallel number
6
Battery type
Lithium-ionbattery/lead-acidbattery/user-defined battery
Rated battery voltage
48Vdc
Voltage range
40Vdc-60Vdc
Maximum PV charge current
200A
Maximum mains/generator charge current
120A
Maximum mix charge current
200A
MPPT channel number
2
Maximum input power
11,000W
Maximum Input Current
22/22A
Maximum open circuit voltage
500Vdc
MPPT operating voltage range
125 Vdc-425 Vdc
Input voltage range
90VAC-140VAC
Input frequency range
50/60 Hz
Bypass overload current
63A
Dimension
620 mm*445 mm*130 mm
Weight
27 kg
Protection level
IP20, for indoor use only
Ambient temperature
−10°C–55°C, >45°C derating
Noise
<60 dB
Cooling mode
Intelligent fan
Package Gross Weight
47 kg ±1kg
Product Dimensions
47.32 in × 23.07 in × 21.93 in
Effective Space per Layer
20.87 in × 17.44 in × 6.50 in
Busbar Dimensions
W 40 mm × H 4 mm
Busbar Current Rating
600 A
Busbar Material
T2 Copper
Battery Capacity
Up to 6 batteries
Material
Metal
Included in the Box
This product has no reviews of its own. The merchant grouped it with related products, so the reviews shown are from across that group.
E
IT WORK WELL
D
Currently system is running our well pump. It will power our tiny home when completed. Very impressed with system. Everything came as promised, very good ship time. One panel was damaged and customer service was excellent in correcting the issue. I also have the dual solar tracker system for another system that I haven't connected yet. Shipping and entire process on that was great as well. Very impressed with everything so far!
L
We were able to get everything we needed and very quick. No problems. Nothing connected yet. Just finished setting up solar array. Can't wait to get it all connected and using it real often.
B
I purchased an installed this in July 2025 and working great, i could not get the communication to work from the inverter on the app. It flows from solar to grid power seamlessly. The only thing is you have to switch it off the grid power once it goes to grid power. Based on affordability and overall inverter intelligence, i give it a 5 stars. Customer service was responsive thru fb messenger, maybe due to the time difference. Note that some things may be not UL listed so keep that in mind, but the system has been overall durable. it reduced my electric bill quite a bit monthly and much cheaper then other options.
D
Installed 10kw controller, 4x100ah batteries and 410kw PVs and have offloaded my backyard/outdoor electrical needs from the grid to solar and it is working as advertised. Even powering a jacuzzi. Only using off-grid to reduce grid footprint and to have an emergency backup for power outages. I am happy with the ordering, delivery and the results so far.
S
I have received the batteries and panels but not the charging station or battery rack so it has not been installed so I don’t know how well it’s working nor do I know if I like it.
Hello, you may not have noticed, but we have a note on the product details page stating that the battery will be shipped as normal, but the rack is out of stock and is expected to ship at the end of August.The 10kw inverter has been shipped today. Please check your delivery. Thank you for your understanding and support.
J
ECO-WORTHY Complete Off-Grid Solar Panel Kit | 2*5KW 120V/240V Output | 20.48kWh/30.72kWh Lithium Battery | 7380Watt /9840Watts of Solar Panels
A
Fantastic
R
It took a long route I think it's going to fit right in.
D
I don't have measuring equipment, but it seems to perform as specified.
Frequently Asked Questions
Which system sizes are available on this product page?
+
Available configurations combine a 10kW 120V/240V inverter with approximately 20.48kWh or 61.44kWh of battery storage and about 5.31kW or 15.34kW of solar panels.
Can the system power both 120V and 240V loads?
+
Yes. The all-in-one inverter supports 120V/240V split-phase output as well as 120V single-phase operation within its 10kW continuous rating.
What are the inverter's solar and charging limits?
+
The inverter uses two independent MPPT controllers, accepts up to 11,000W of PV input, and supports up to 200A battery charging, with a 500V DC maximum open-circuit voltage.
Can I expand the battery bank later?
+
Yes. The Cubix100 batteries support up to 32 units in parallel, providing up to 163.84kWh of nominal storage.
How will the complete system be delivered?
+
The large 590W panels ship on a pallet by freight truck, while other system components may arrive separately by courier. Confirm truck access and track each shipment individually.
