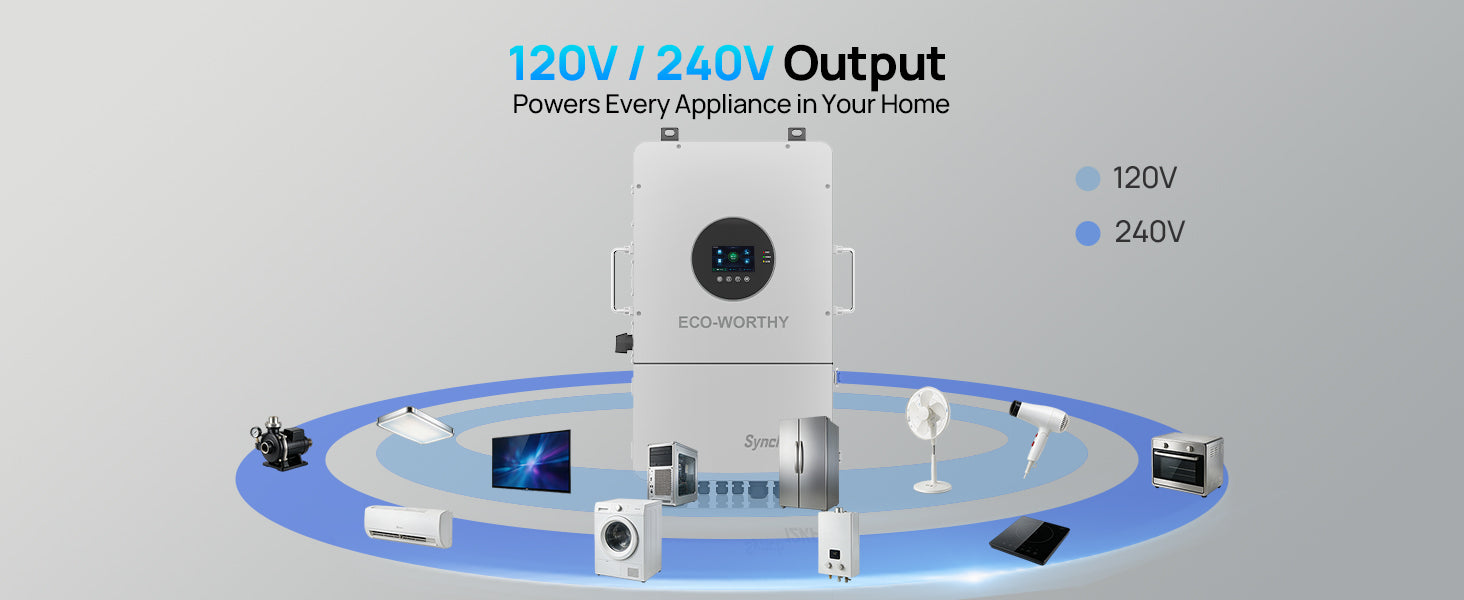

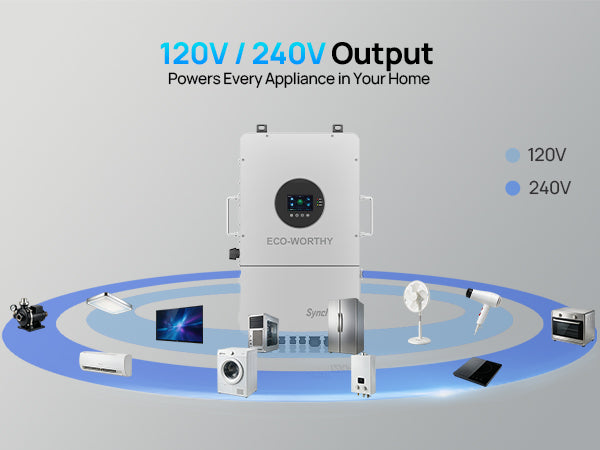

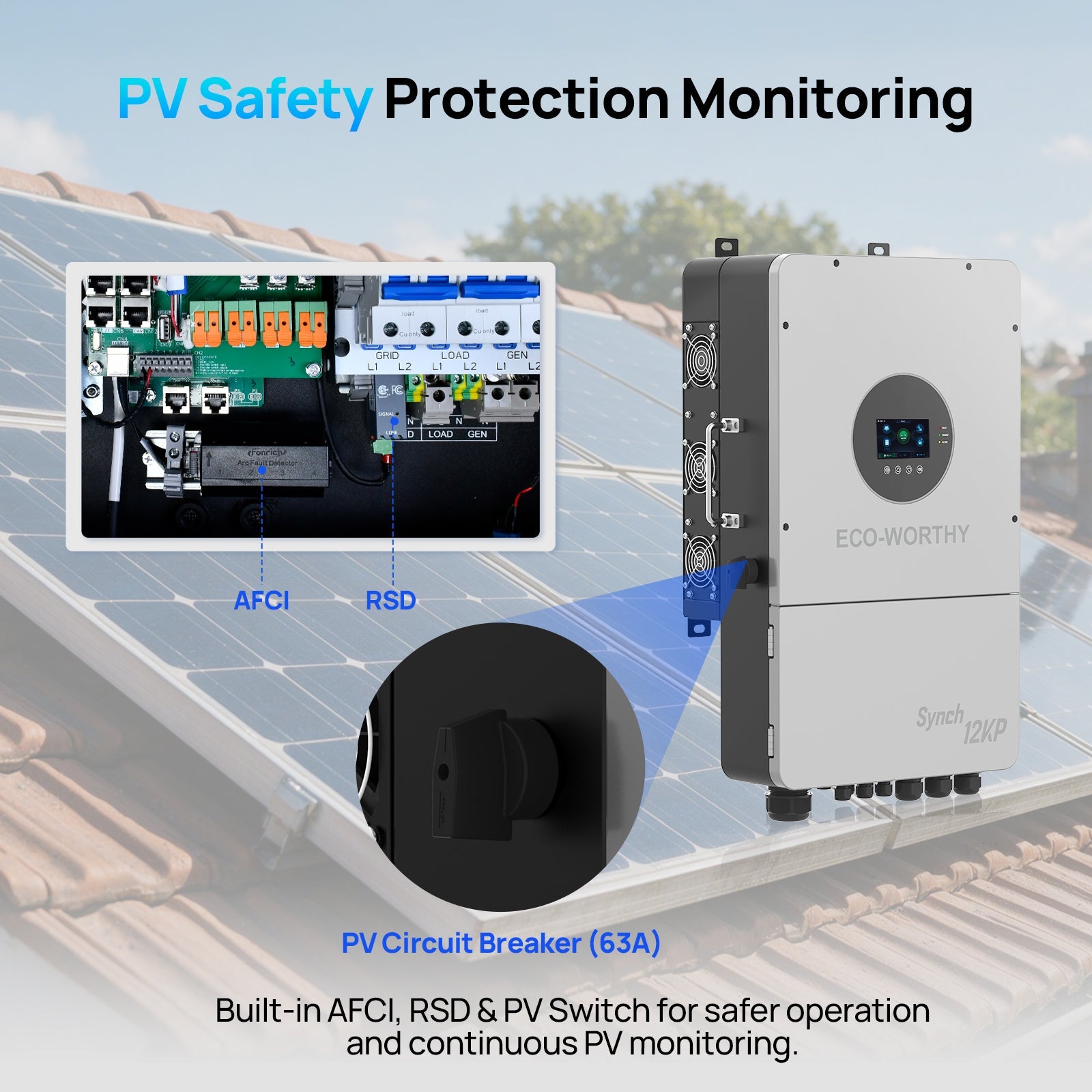

Power your home with a high-performance 12kW solar hybrid inverter, designed for whole-home energy storage and off-grid solar systems. Delivering 120V/240V split-phase output, it easily runs heavy appliances like HVAC and large loads. Featuring dual MPPT trackers with ultra-high efficiency, it maximizes solar input and supports flexible panel configurations. Smart energy management with time-of-use (TOU) control helps reduce electricity costs through peak shaving and optimized grid usage. Built with IP65 protection, advanced safety features (AFCI, rapid shutdown), and scalable up to 72kW, this inverter is the ideal solution for residential solar power, backup energy, and energy independence.
Pictures
Videos
⏰ Limited time deal

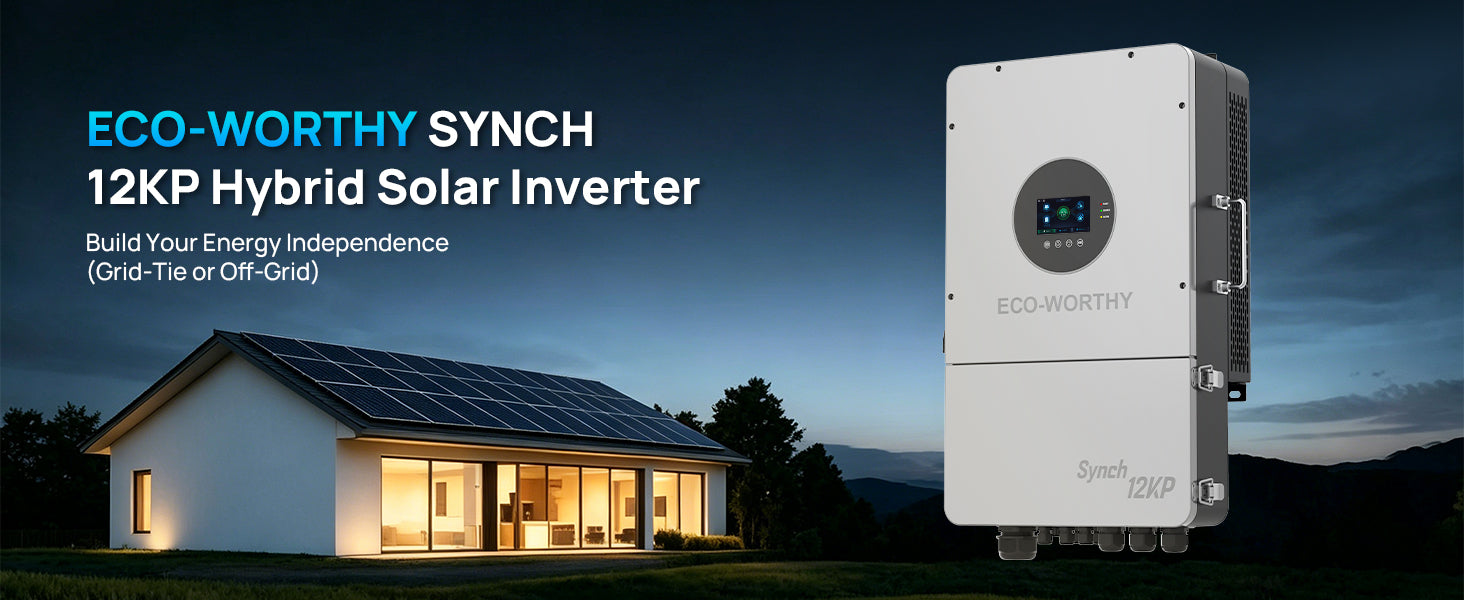

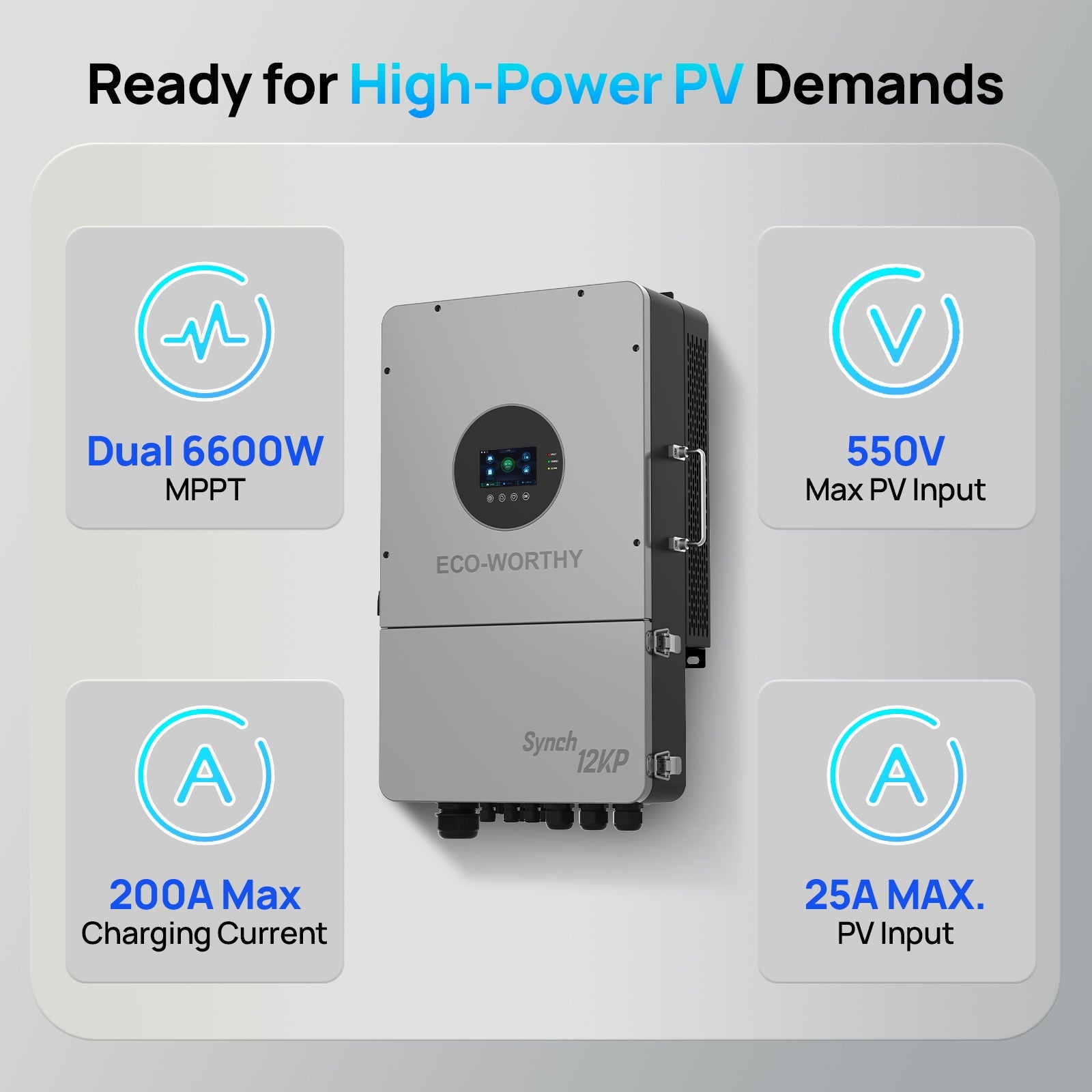

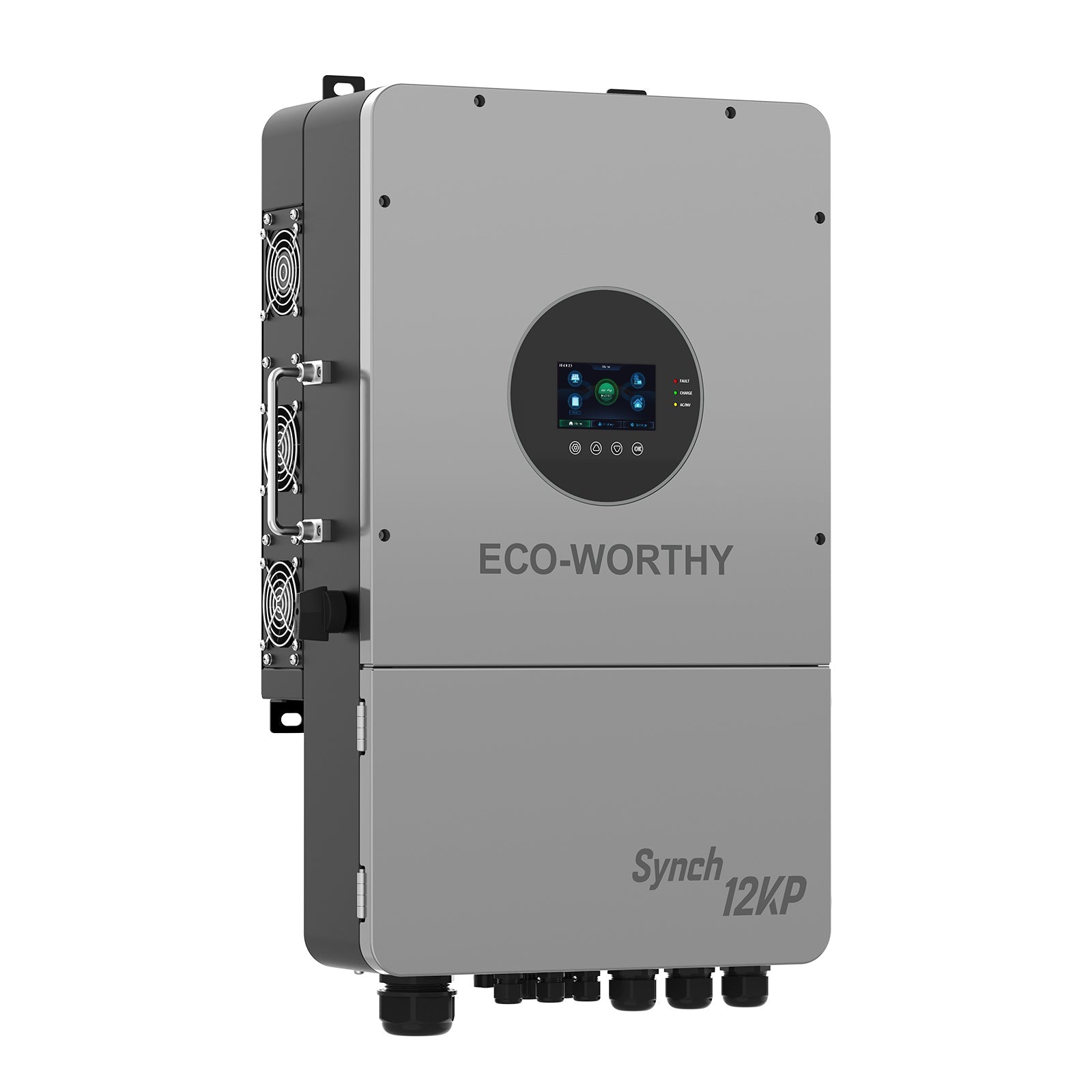

ECO-WORTHY Synch 12KP Split-Phase Solar Hybrid Inverter | 48Vdc to 120Vac/240Vac | 13200W@550V PV Input
ECO-WORTHY Synch 12KP Split-Phase Solar Hybrid Inverter | 48Vdc to 120Vac/240Vac | 13200W@550V PV Input
Regular price
$2,969.99
Sale price
$2,969.99
Regular price
$2,999.99
Unit price
per
Shipping calculated at checkout.
SKU:
SKU:GW-L03SR12KWYTJ-1
Read More
Total Price
$2,969.99
Couldn't load pickup availability
Free Shipping
Return Guarantee
Secure Payment
or 4 interest-free payments of $742.49 with
Installments available at checkoutShop with Confidence at Eco-Worthy
Free & Fast Delivery
14-Day Money-Back Guarantee
Up To 10-Year Warranty
Lifetime Customer Support
Pay with ease
Trusted delivery

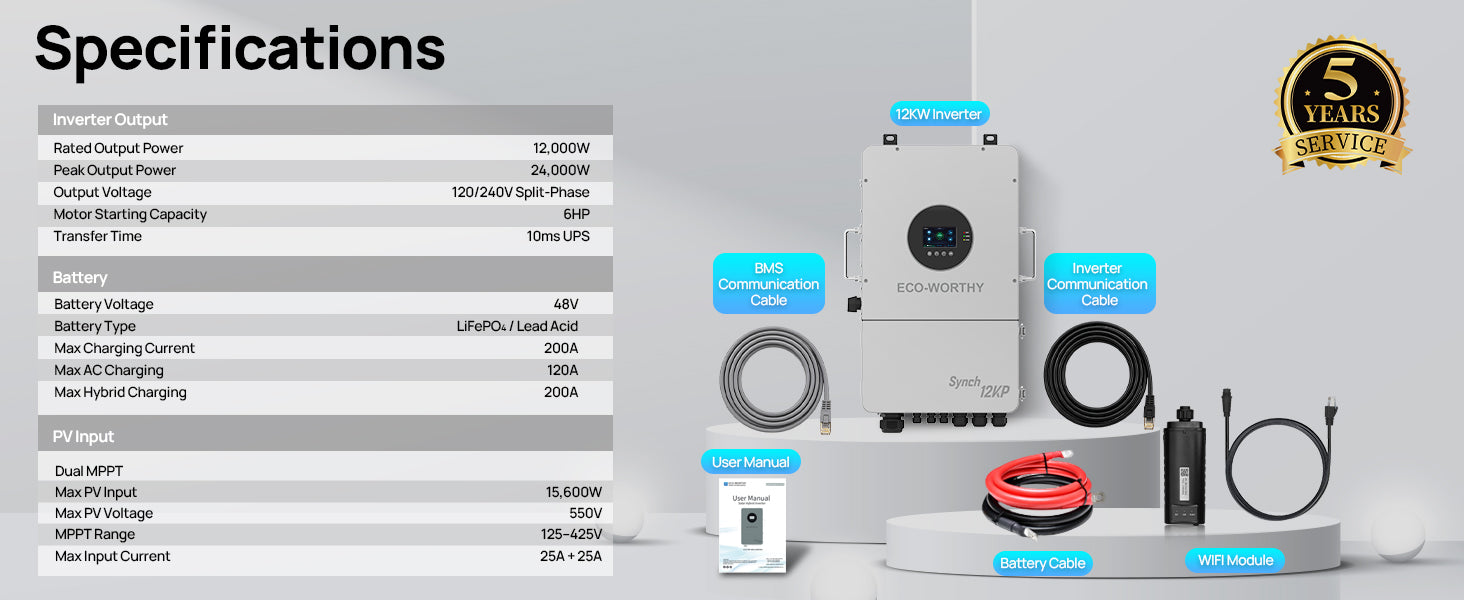

Technical Specifications
12KW INVERTER
Rated Output Power
@240V 12000W @208V 10400W
Max.Peak Power
2 times rated power@5S
Rated Output Voltage
120/240Vac(Split-phase)120/208V(Three-phase)
Rated Output Current
50A
Load Capacity of Motors
6HP
Rated ACF requency
50/60Hz
Wave form
Pure Sine Wave
Parallel Capacity
6
Battery Type
Li-ion / Lead-Acid / UserDefined
Rated Battery Voltage
48Vdc
Voltage Range
40-60Vdc
Max.PVCharging Current
200A
Max.Grid Charging Current
120A
Max.Generator Charging Current
60A
Max.Hybrid Charging Current
200A
Num. of MPPT rackers
2
Max.PV Array Power
6600W/6600W
Max.Input Current
25A+25A
Max.Voltage of Open Circuit
550Vdc+550Vdc
MPPT Voltage Range
125-450Vdc/125-450Vdc
Input Voltage Range
90-140Vac 90-140Vac each live wire
Frequency Range
50/60Hz
Bypass Phase Current
63A
Dimensions
29.5"×17.3"×9.4"
Weight
93lbs
Protection Degree
IP65
Operating Temperature Range
—13 - 140°F, >113°F derated
Noise
<60dB
Included in the Box
Frequently Asked Questions

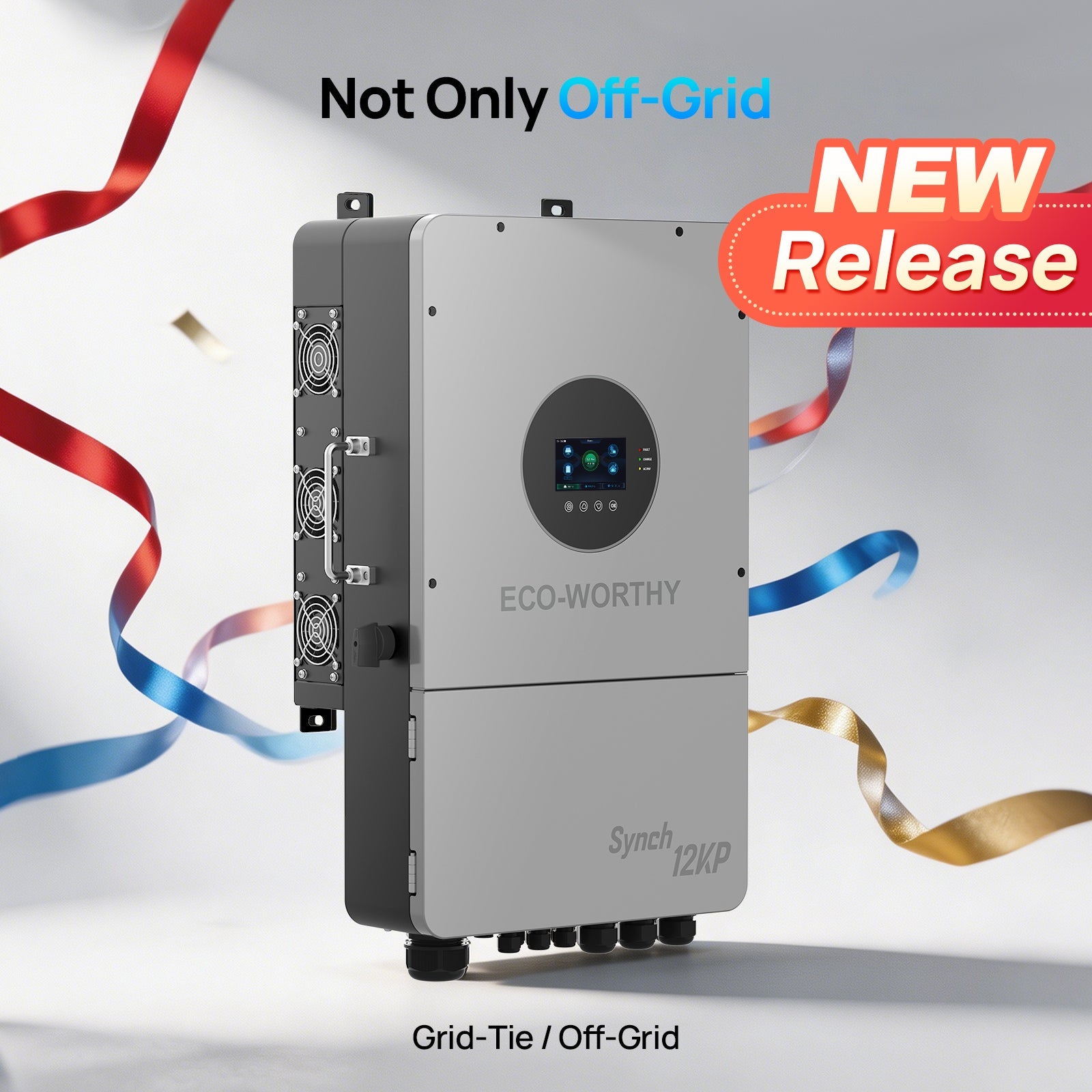

Can the Synch 12KP operate on-grid and off-grid?
+
Yes. It supports on-grid, off-grid, and partial-home-backup applications with 12kW continuous 120V/240V split-phase output.

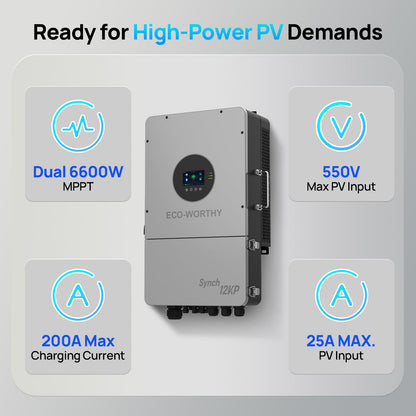

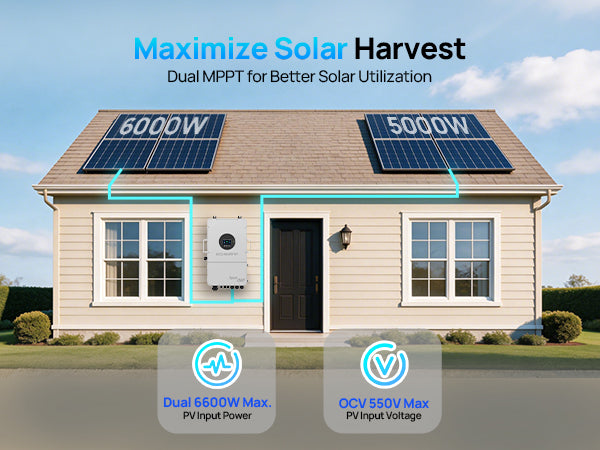

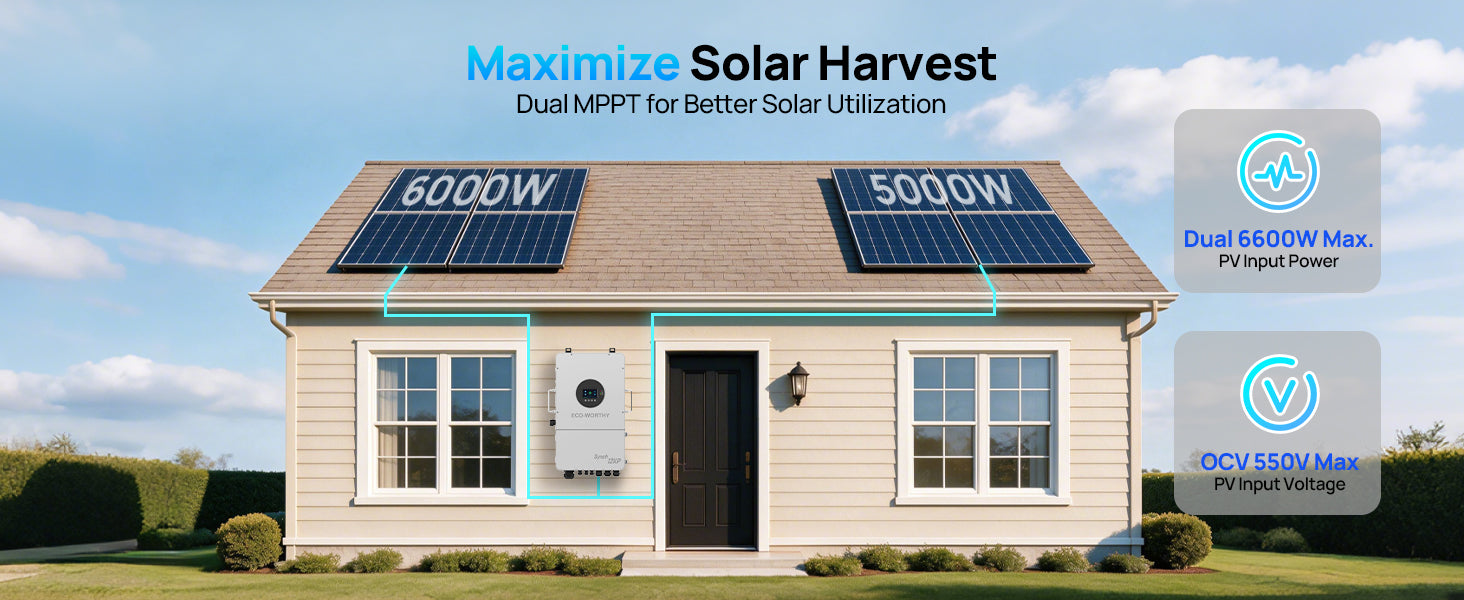

How much solar input does it support?
+
Its dual MPPT inputs support up to 13.2kW of PV power and up to 550V high-voltage solar input. A DC solar disconnector is built in.

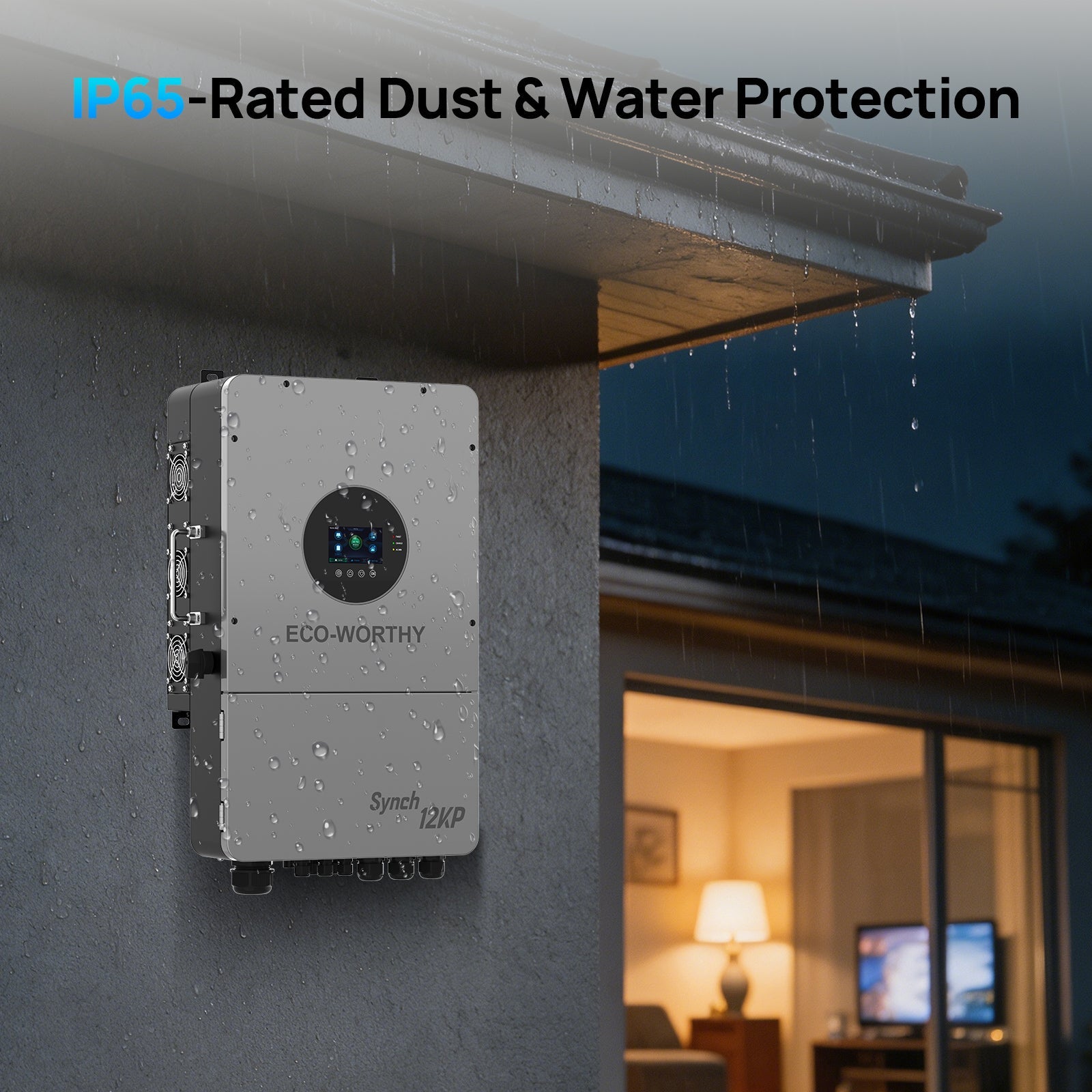

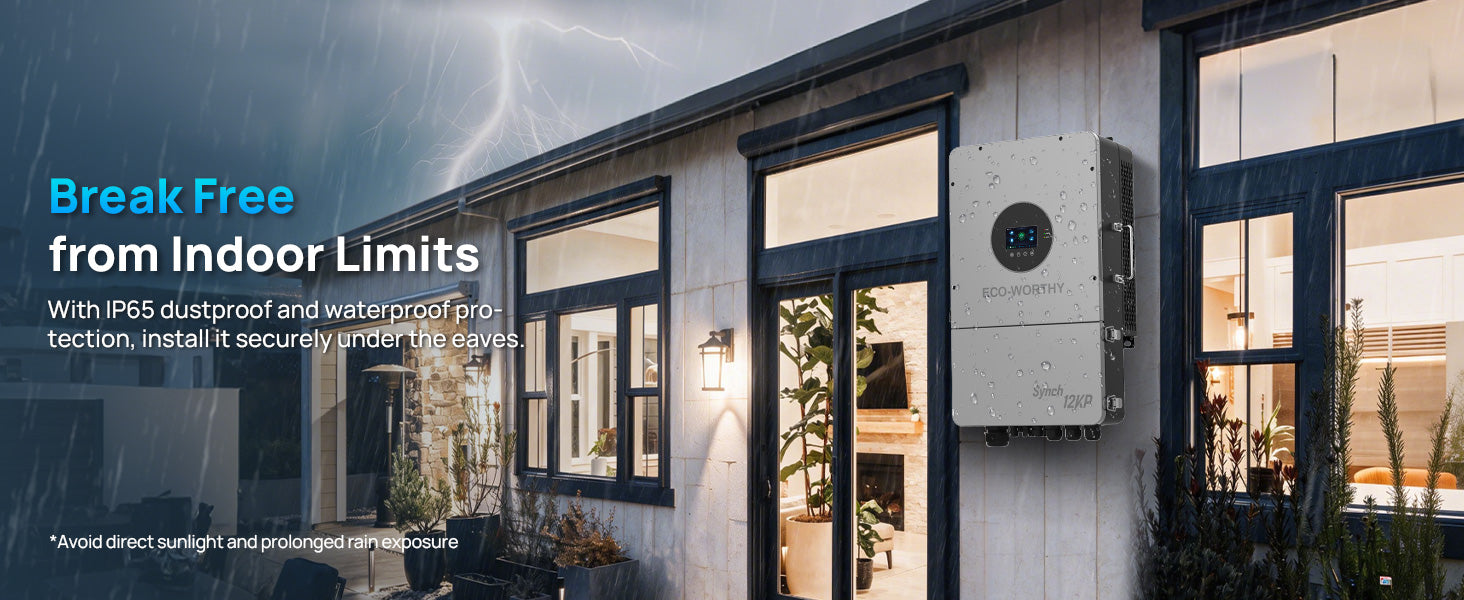

Can the inverter be installed outdoors?
+

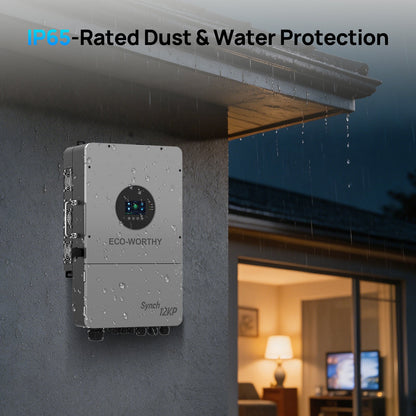

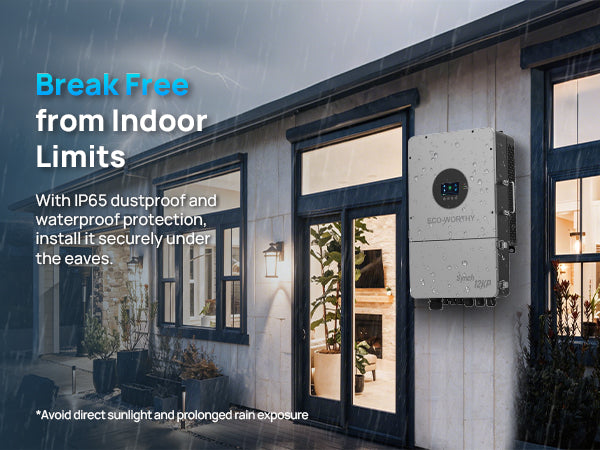

Yes. The enclosure is IP65 rated for outdoor installation when mounted and wired according to the installation manual and local code.
What certifications does it have?
+

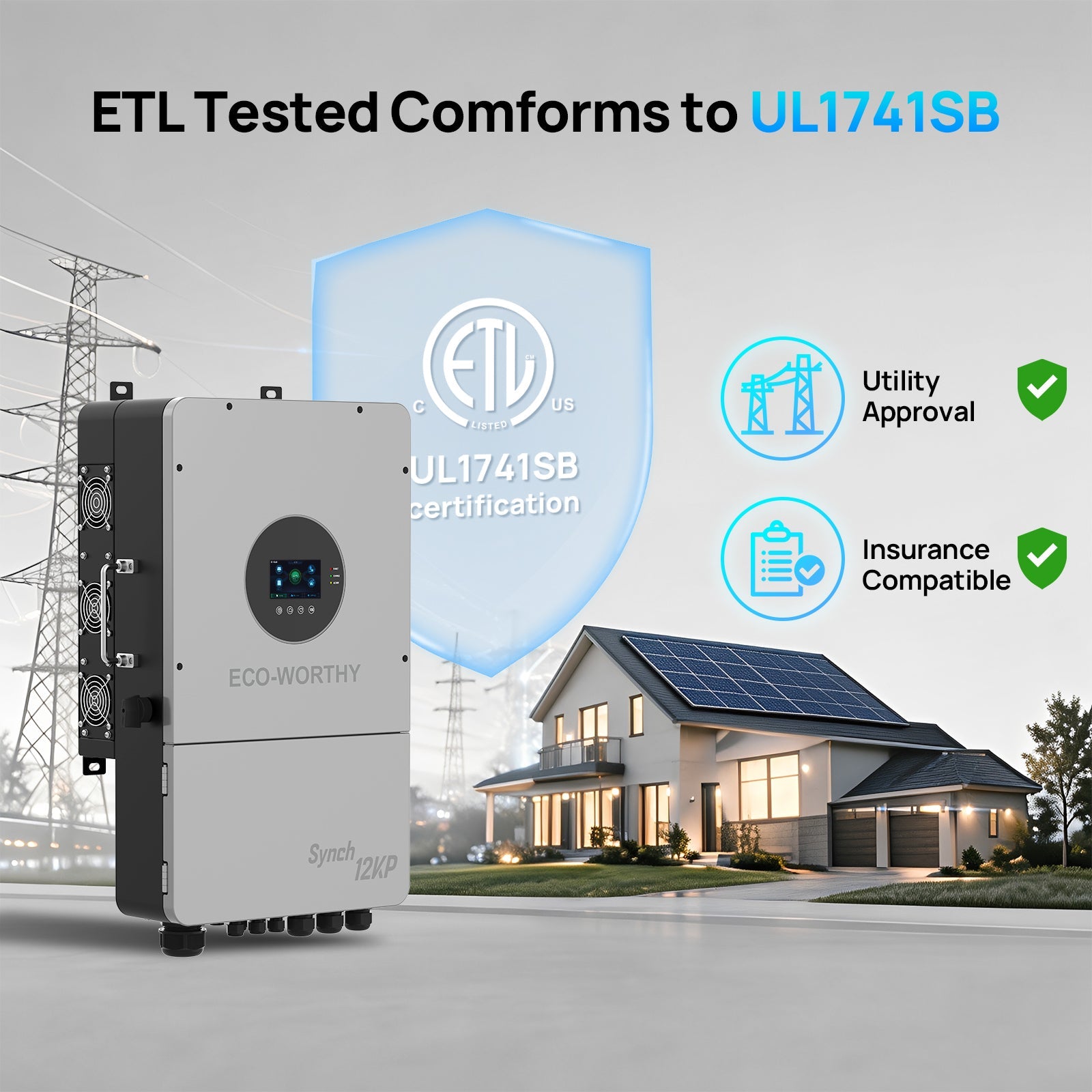

The inverter is ETL certified to UL 1741. When paired with the specified Cubix100 batteries, the system can be configured for the applicable UL 9540 system solution; confirm documentation for the exact design.
Can I expand the inverter system and use closed-loop batteries?
+

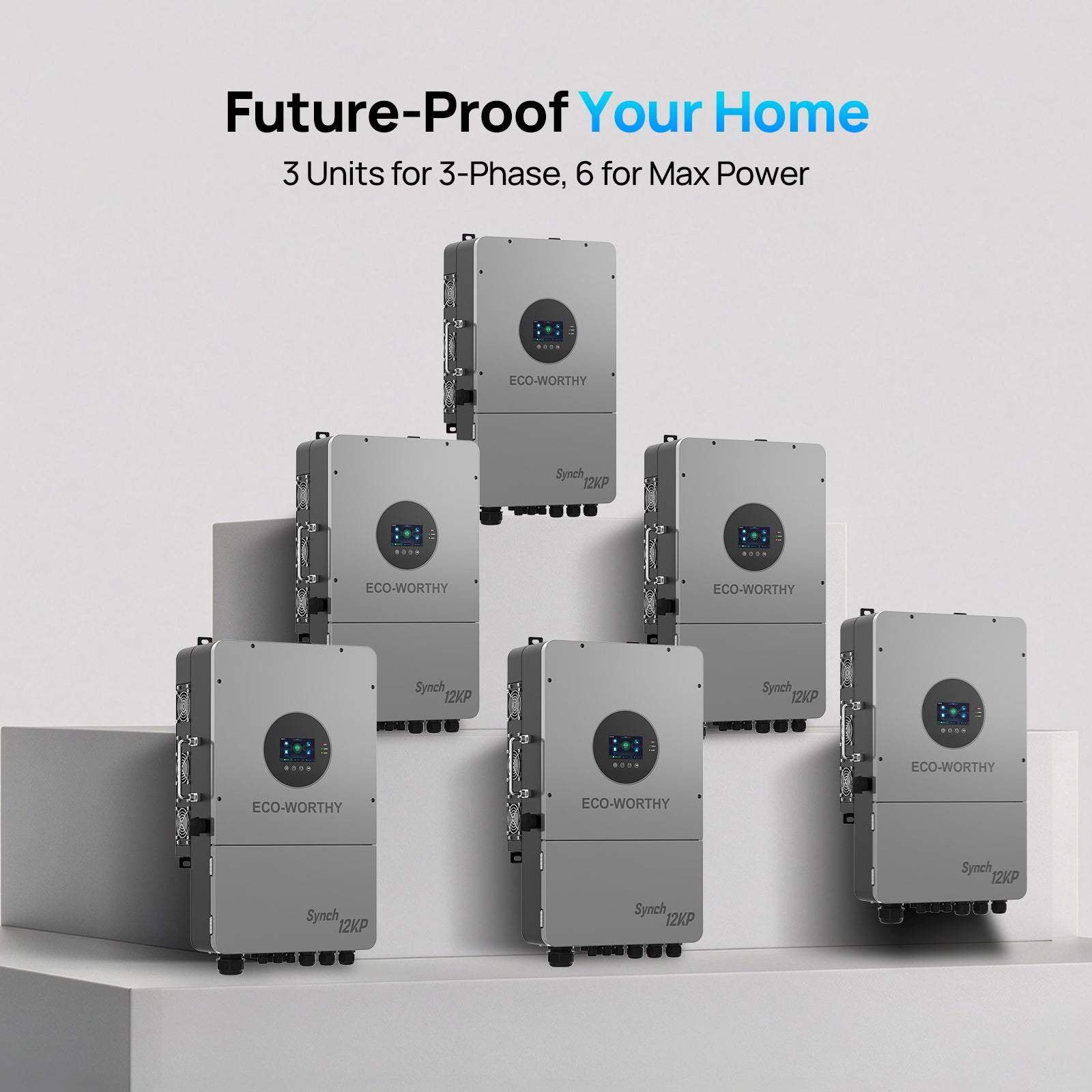

Yes. Up to six units can be paralleled for 72kW total output. It supports up to 200A battery charging and closed-loop communication with compatible 48V batteries.
